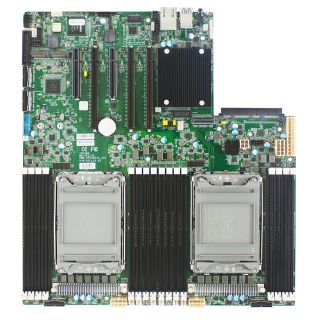

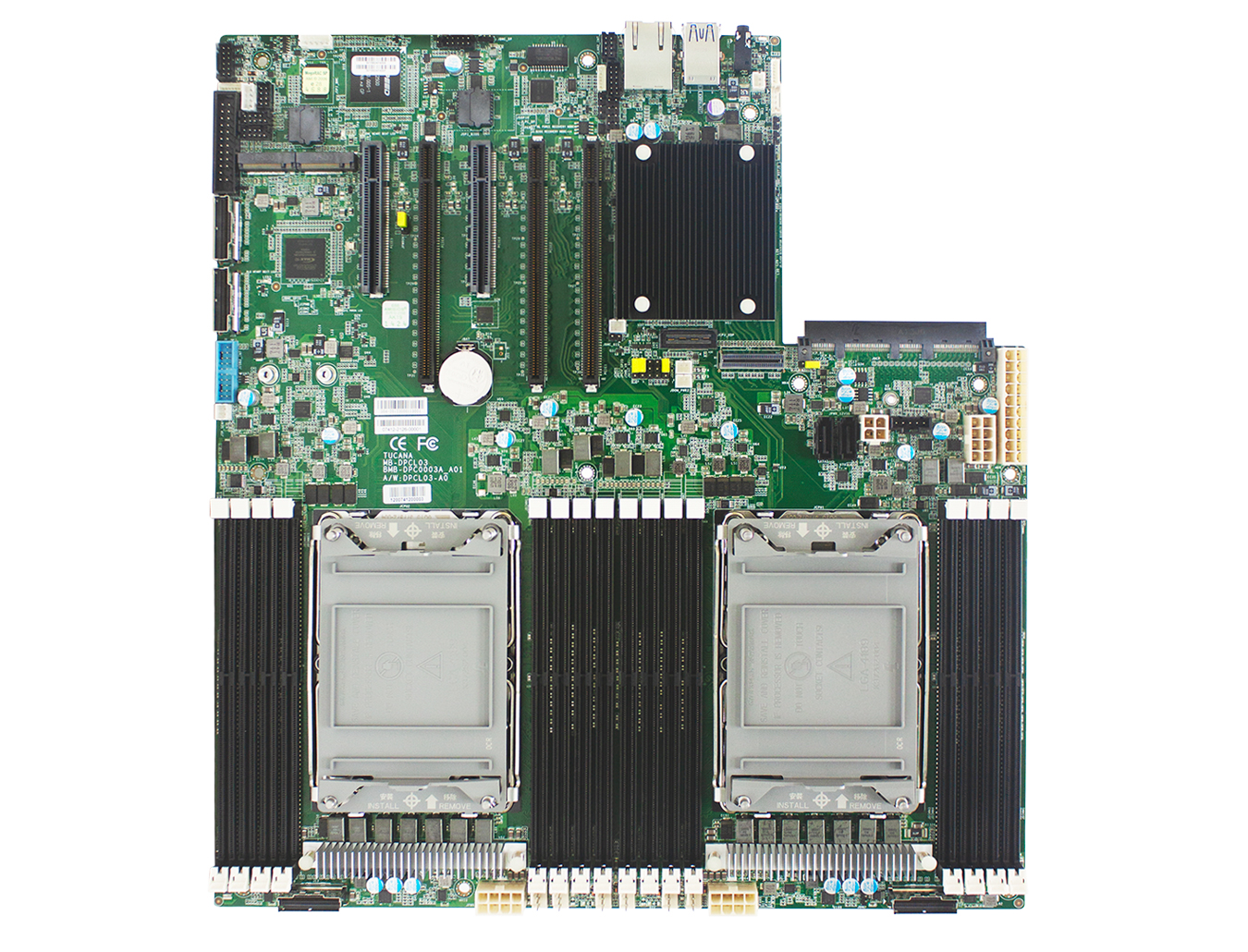

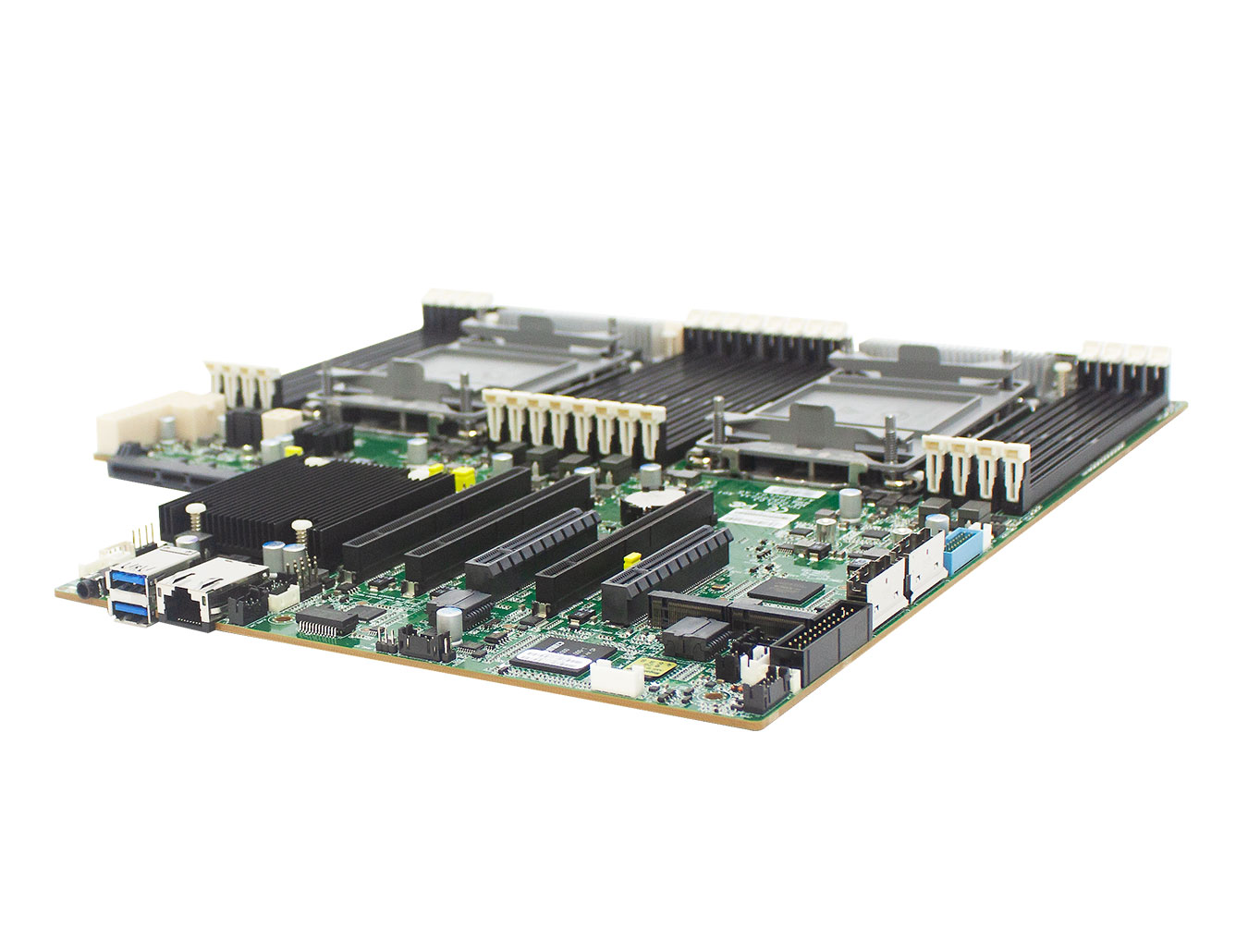

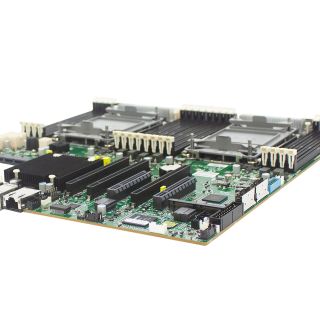

The Tucana server board offers the latest Xeon® Scalable Processors technology solutions with compelling performance and provides premium power efficiency, which is optimized for efficient performance platforms (storage, security and communications infrastructure)
By implementing Intel® Xeon® Scalable Processors, fully integrated microarchitecture supports up to 3 x 16 lanes, 2 x8 lanes, 4 slimline x8 of PCIe Gen4 and one OCP 3.0 PCIe Gen4, providing eight channels per CPU with total sixteen DIMM slots deployment which can support up to DDR4 3200/2933MHz, Tucana server board can meet both cost efficiency and performance requirement for lots of applications.
Featured with ground breaking technologies including Intel® Next Generation Microarchitecture and Instruction Set (AVX-512, VMD), Speed Shift Technology, UPI link speeds up to 11.2GT/s, the Tucana server board enable next generation server solutions with an incredible leap in performance.
By implementing Intel® Xeon® Scalable Processors, fully integrated microarchitecture supports up to 3 x 16 lanes, 2 x8 lanes, 4 slimline x8 of PCIe Gen4 and one OCP 3.0 PCIe Gen4, providing eight channels per CPU with total sixteen DIMM slots deployment which can support up to DDR4 3200/2933MHz, Tucana server board can meet both cost efficiency and performance requirement for lots of applications.
Featured with ground breaking technologies including Intel® Next Generation Microarchitecture and Instruction Set (AVX-512, VMD), Speed Shift Technology, UPI link speeds up to 11.2GT/s, the Tucana server board enable next generation server solutions with an incredible leap in performance.
KEY FEATURE
Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency
FEATURE
Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency
Supports 16 DDR4 DIMM slots for maximum memory performance
FEATURE
Supports 16 DDR4 DIMM slots for maximum memory performance
Supports up to 3 x 16 lanes, 2 x8 lanes, 4 x slimline x8, 1 x OCP 3.0 of PCIe Gen4
FEATURE
Supports up to 3 x 16 lanes, 2 x8 lanes, 4 x slimline x8, 1 x OCP 3.0 of PCIe Gen4
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Embedded components for 5+ year long life
FEATURE
Embedded components for 5+ year long life
Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations
FEATURE
Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations
Specification
SPECIFICATION
Main
Sub
Details
System
Dimensions
• mm : 304.8 x 330.2
• inches : 12 x 13
• inches : 12 x 13
Processor-Support
3rd Gen Intel® Xeon® Scalable Processors (Ice lake CPU)
CPU-TDP
270W
UPI-Speeds
Socket-Type
Socket P+ (LGA-4189)
System-Memory
• 8 x memory channels per CPU(1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support
Expansion-Slots
• CPU0: 2 x PCIe Gen4 X16 slots + 1 x OCP V3.0 + 1 x slimline X8
• CPU1: 1 x PCIe Gen4 X16 slot
2 x PCIe Gen4 X8
3 x slimline X8
• CPU1: 1 x PCIe Gen4 X16 slot
2 x PCIe Gen4 X8
3 x slimline X8
System-BIOS
BIOS-Type
AMI UEFI BIOS
BIOS-Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug
On-board-Devices
SATA
Lewisburg PCH on-chip solution supports 12 x SATA 6.0 Gb/s
• 2 x SATA 7pin
• 8 x SATA by Slimline + 2 x SATA by M.2
(supports both SATA/PCIe by PCH HSIO)
• 2 x SATA 7pin
• 8 x SATA by Slimline + 2 x SATA by M.2
(supports both SATA/PCIe by PCH HSIO)
BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
Network-Controller
• Realtek RTL8211E GbE for BMC dedicated management port
(NCSI shared NIC - reserved for OCP & I210 by jumper setting)
• Intel I210 GbE for BMC shared NIC management port by onboard connector
(NCSI shared NIC - reserved for OCP V3.0)
(NCSI shared NIC - reserved for OCP & I210 by jumper setting)
• Intel I210 GbE for BMC shared NIC management port by onboard connector
(NCSI shared NIC - reserved for OCP V3.0)
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
Additional Information

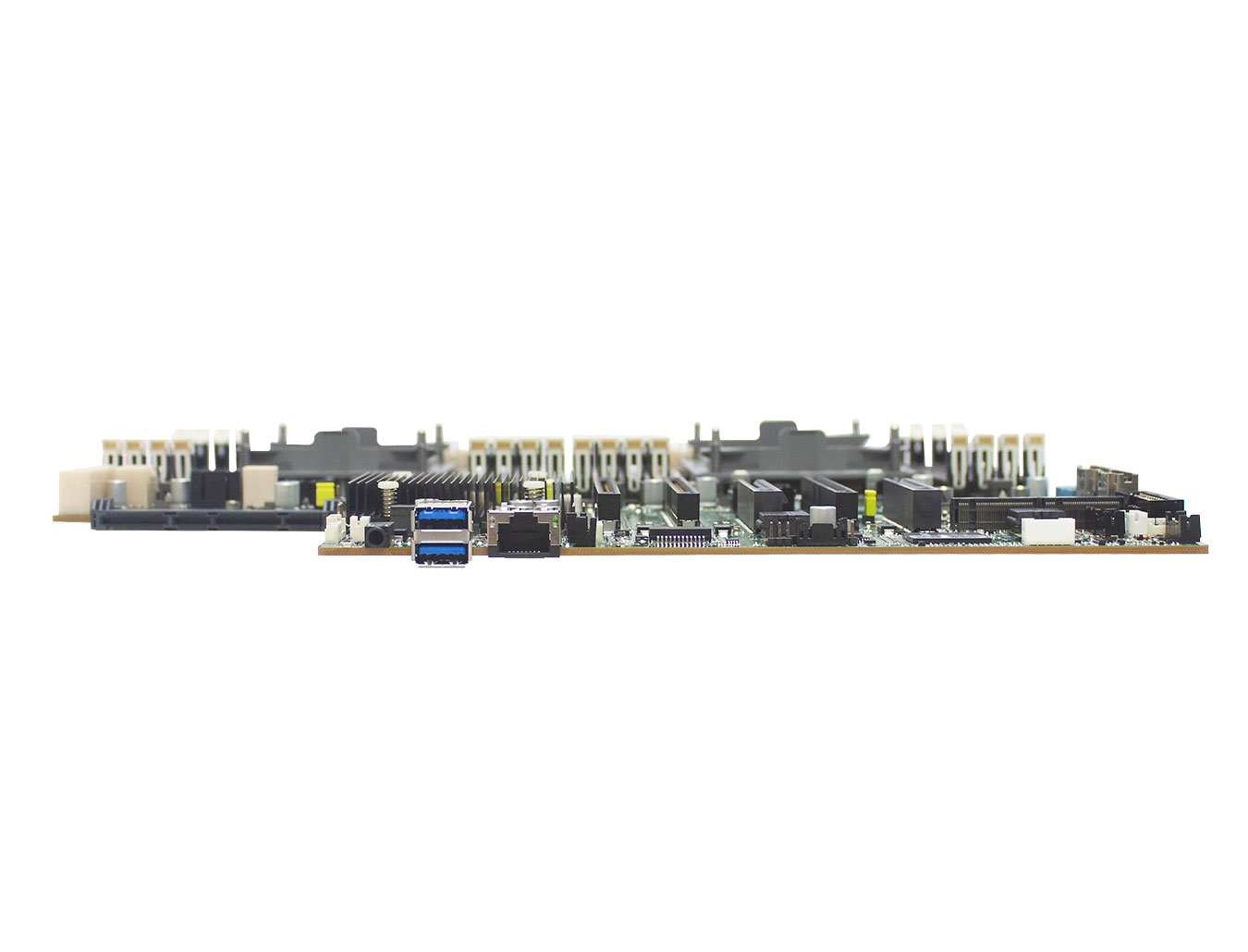

Input-Output
SATA
Lewisburg PCH on-chip solution supports 12 x SATA 6.0 Gb/s
• 2 x SATA 7pin
• 8 x SATA by Slimline + 2 x SATA by M.2
(supports both SATA/PCIe by PCH HSIO)
• 2 x SATA 7pin
• 8 x SATA by Slimline + 2 x SATA by M.2
(supports both SATA/PCIe by PCH HSIO)
LAN
• 1 x GbE RJ45 dedicated to BMC management
USB
• 2 x USB3.2 double-stake Type A connectors
• 2 x USB pin headers support USB3.2/2.0
• 2 x USB pin headers support USB3.2/2.0
Display
• 1 x internal VGA pin-header
Serial-Port
• 1 x external COM port
• 1 x COM2 box header
• 1 x COM1 box header shared with rear I/O phone jack
• 1 x COM2 box header
• 1 x COM1 box header shared with rear I/O phone jack
Others
• 1 x TPM 2.0 onboard
Additional-Information
Security
* All specifications are subject to change without notice.
| Ordering Information | Description |
|---|---|
| BMB2DPC0003A | PCBA/MOTHER BOARD/MB-DPCL03(TUCANA)/VER:B04(MP) ICE LAKE-SPX2/LEWISBURG-1/OCP3.0/GBEX1/PHYX1/270W |
