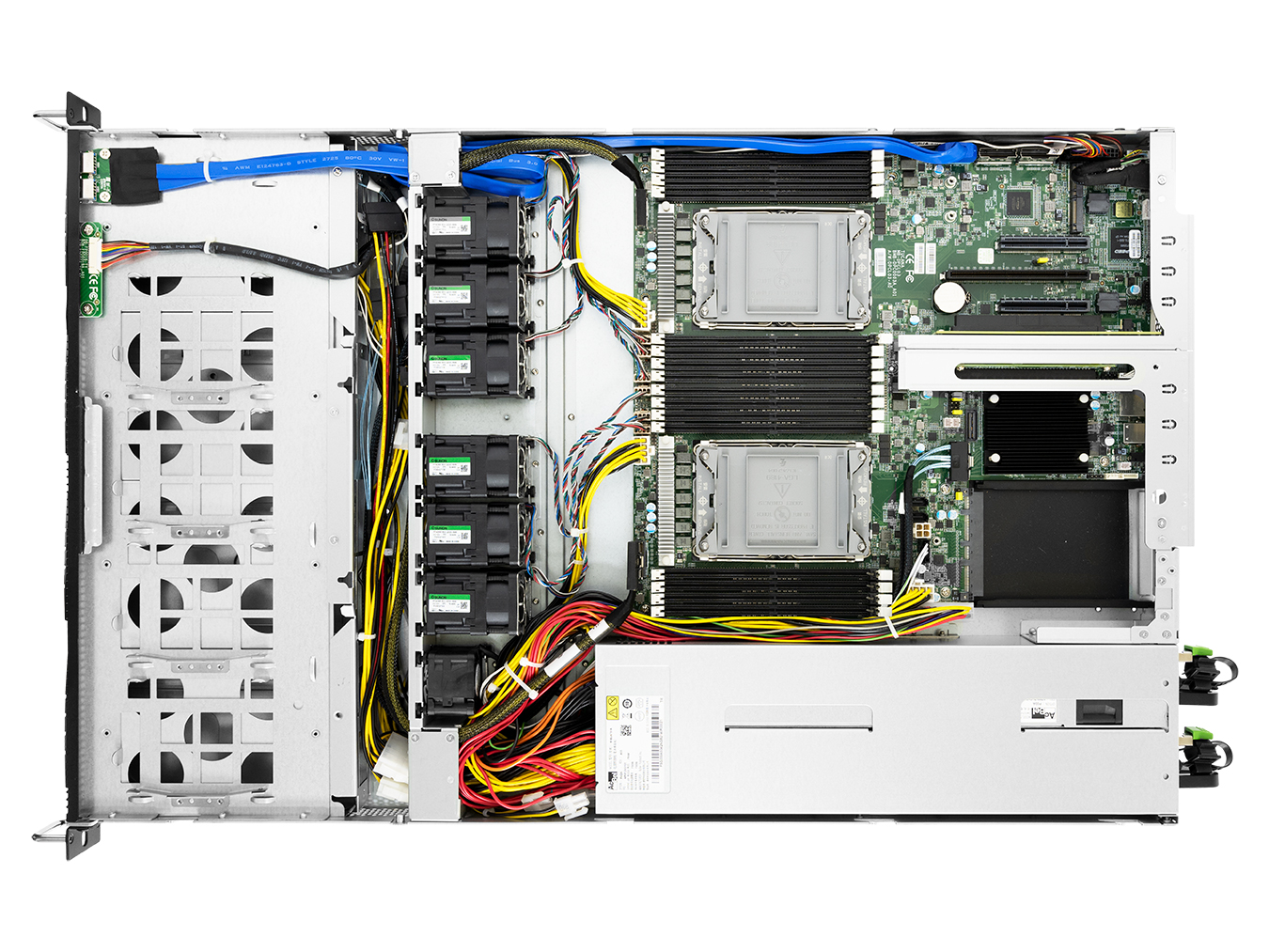

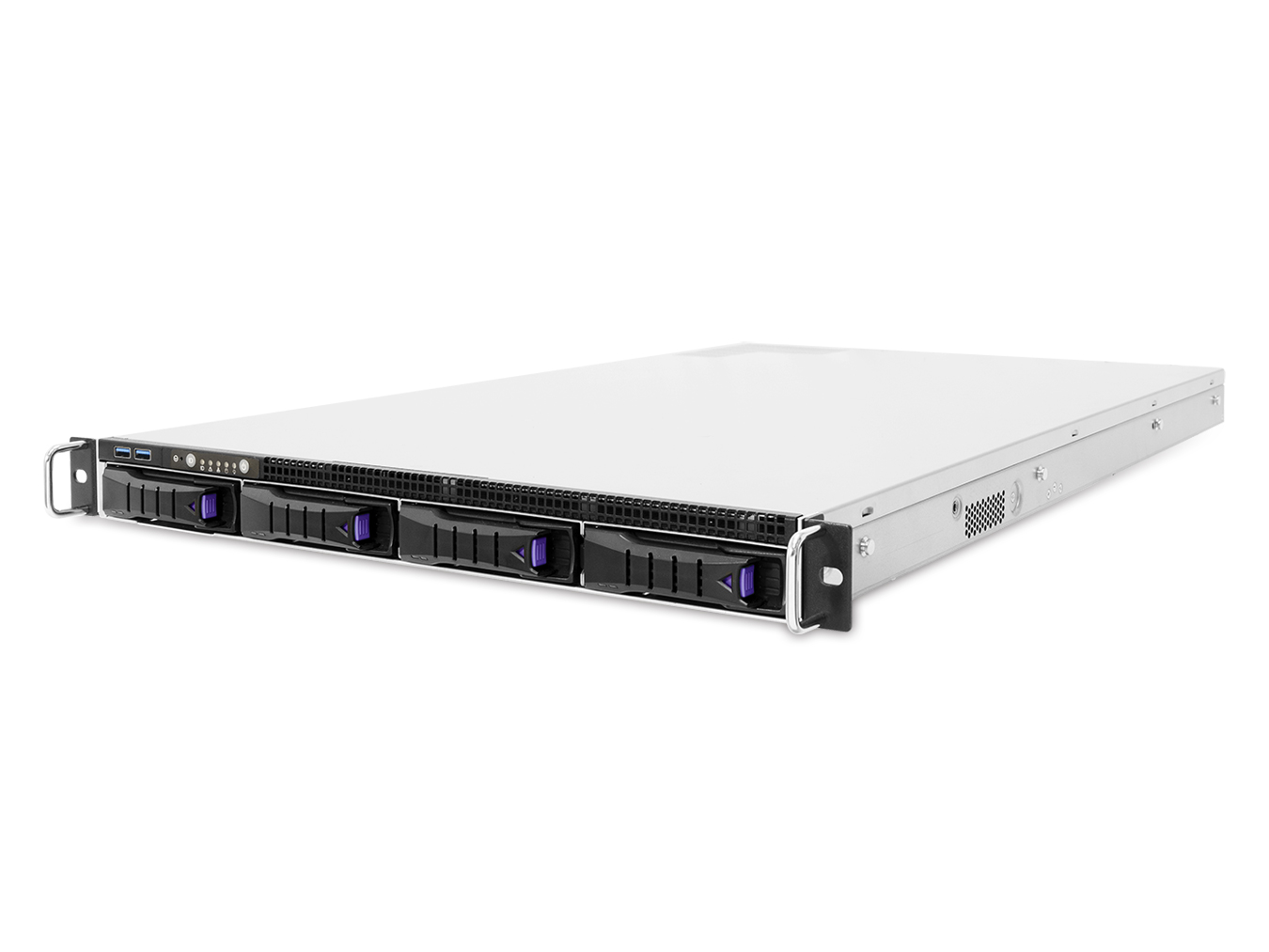

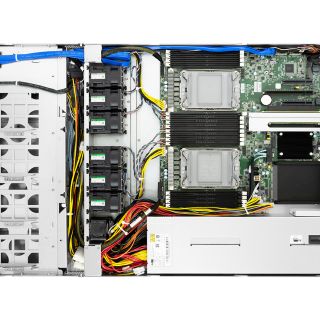

SB101-TU, a 1U 4-bay storage server solution.
It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design. It has Rackmount Technology Extension (RTX) form factor utilizes and Onboard Baseboard Management Controller for system management and IPMI control.
It supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design. It has Rackmount Technology Extension (RTX) form factor utilizes and Onboard Baseboard Management Controller for system management and IPMI control.
KEY FEATURE
Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency
FEATURE
Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency
Supports 16 DDR4 DIMM slots for maximum memory performance
FEATURE
Supports 16 DDR4 DIMM slots for maximum memory performance
Supports up to 2 x16 lanes, 4 slimline x8, 1 OCP 3.0 of PCIe Gen4 expansions
FEATURE
Supports up to 2 x16 lanes, 4 slimline x8, 1 OCP 3.0 of PCIe Gen4 expansions
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Embedded components for 5+ year long life
FEATURE
Embedded components for 5+ year long life
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 678.7 x 44.4
inches
17.2 x 26.7 x 1.7
Motherboard
AIC Server Board Tucana
Processor
Processor Support
• 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
• Supports CPU TDP up to 270W
• Supports CPU TDP up to 270W
CPU Interconnection
UPI Speeds: 10.4 / 11.2 GT/s
Socket Type
Socket P+ (LGA-4189)
Chipset Support
Intel® C621A Chipset
System Memory
• 8 x memory channels per CPU (1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support

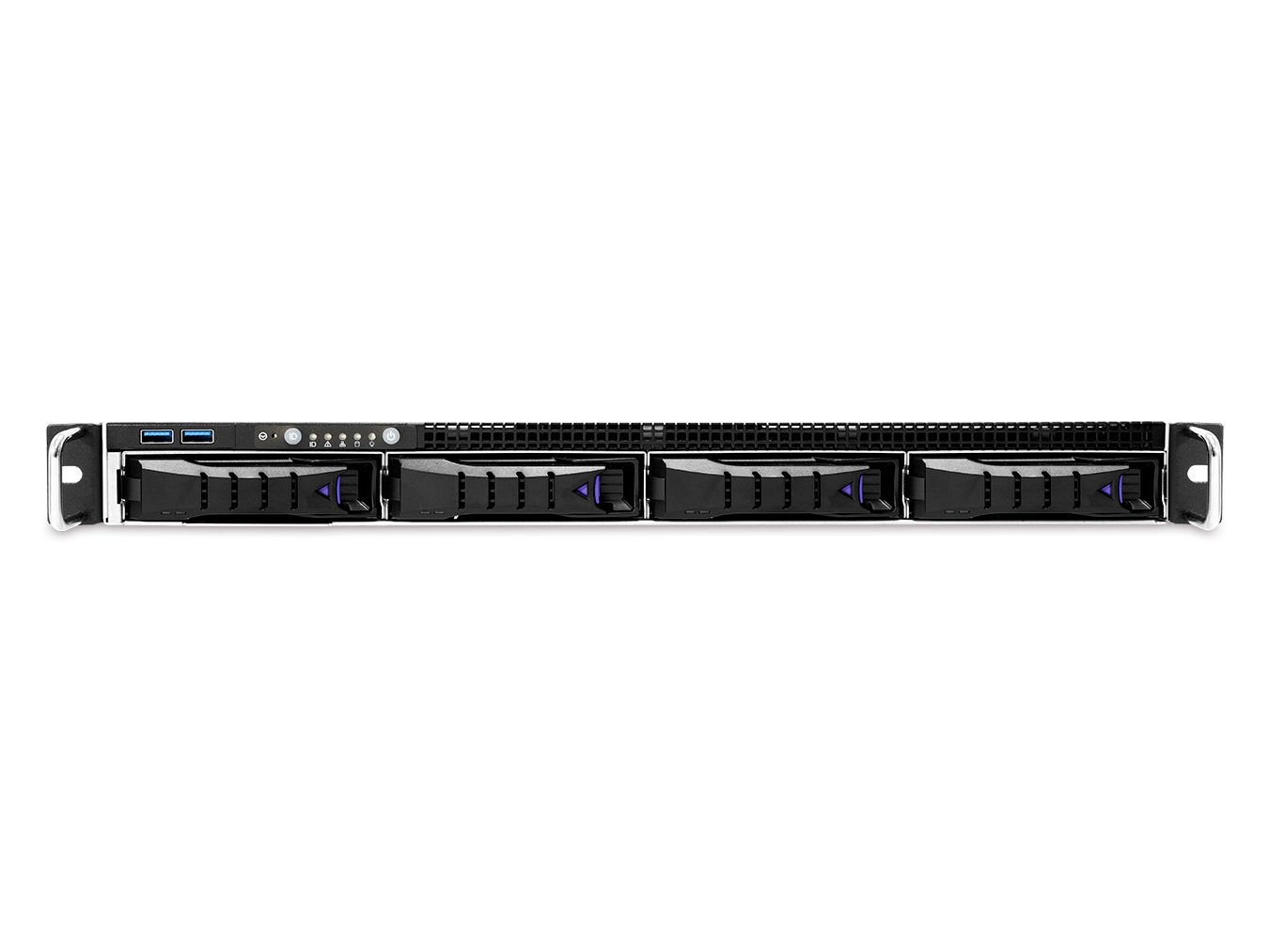

Front Panel
• System power on/off
• System reset
• 2 x USB 3.0 Type A
• System ID
• System reset
• 2 x USB 3.0 Type A
• System ID
LEDs
• Power status
• HDD activity
• LAN activity
• Warning
• System ID
• HDD activity
• LAN activity
• Warning
• System ID
Drive Bays
External
3.5”/2.5” hot-swap x 4 (SAS/SATA/NVMe)
Internal
• 2 x 2.5” OS (SATA)
• M.2 : 2 x M.2(NGFF)/M-Key/2280
• M.2 : 2 x M.2(NGFF)/M-Key/2280
Backplane
1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2 x SFF-8654 (Slimline 8i) connectors
Expansion Slots
CPU0: 2 x PCIe Gen4 x16 slots (1 x FHHL & 1 x HHHL) + 1 x OCP V3.0
System Bios
Bios Type
AMI UEFI BIOS
Bios Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug
On Board
Devices
SATA :
Lewisburg PCH on-chip solution supports 10 x SATA 6.0 Gb/s
• 2 x SATA 7pin
• 8 x SATA by slimline
(supports both SATA/PCIe by PCH HSIO)
Lewisburg PCH on-chip solution supports 10 x SATA 6.0 Gb/s
• 2 x SATA 7pin
• 8 x SATA by slimline
(supports both SATA/PCIe by PCH HSIO)
Devices BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
Devices Network Controllers
• Realtek RTL8211E GbE for BMC dedicated management port
• Intel I210 GbE for BMC shared NIC management port by onboard connector
(NCSI shared NIC - reserved for OCP V3.0)
• Intel I210 GbE for BMC shared NIC management port by onboard connector
(NCSI shared NIC - reserved for OCP V3.0)
Devices Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

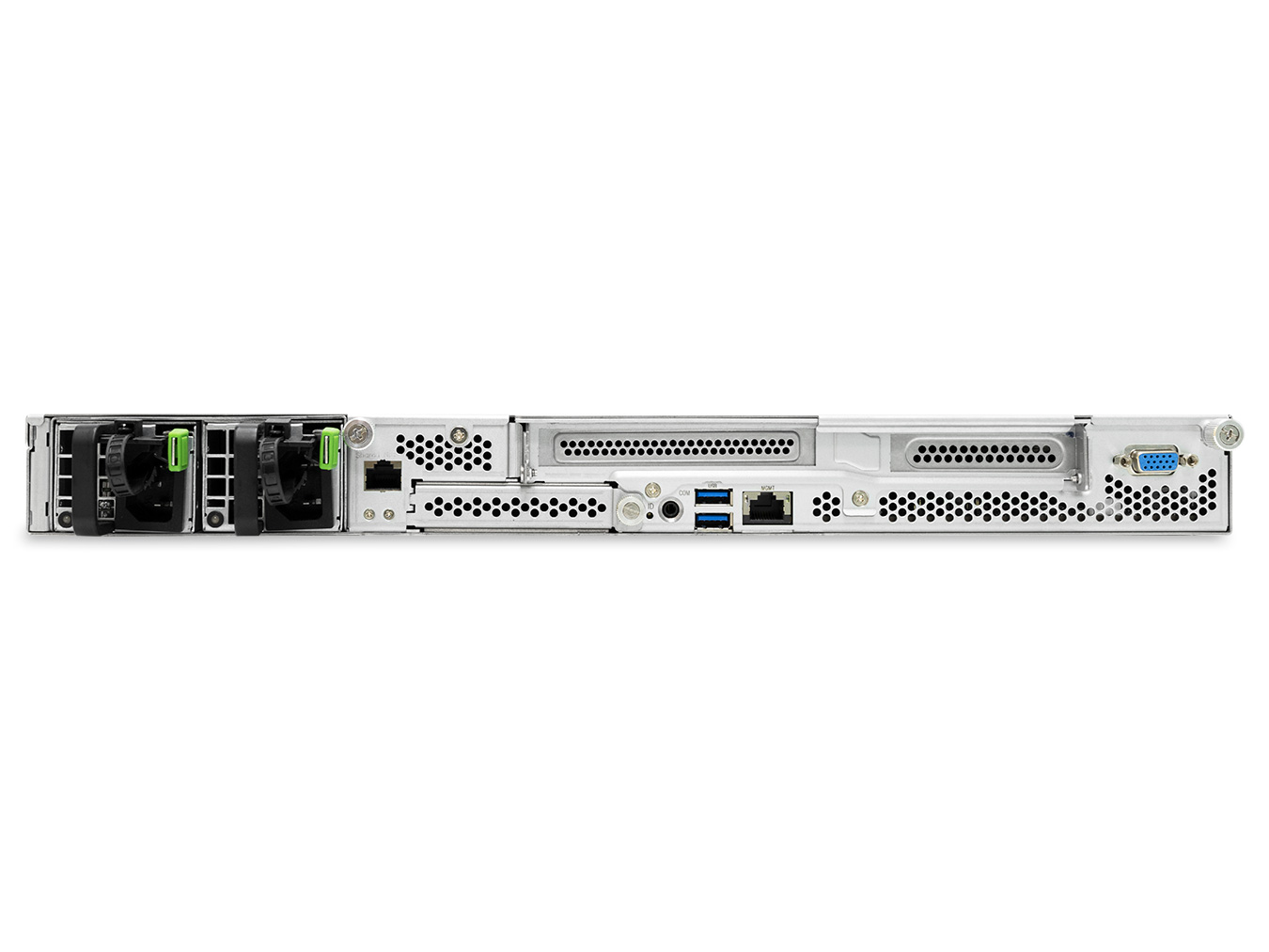

Rear I/O
ID
LAN
1 x GbE RJ45 dedicated to BMC management
USB
2 x USB 3.0 double-stack Type A connectors
Video Output
1 x VGA DB15
Serial Port
1 x external COM port phone jack
TPM Support
2.0 onboard
Power Supply
750W/1100W 1+1 redundant power supply 80+ Platinum
System Cooling
• 6 x 40x56mm easy swap fans
• 1 x 40x28mm fan
• 1 x 40x28mm fan
System Management
IPMI: Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5, Redfish
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5, Redfish
Environmental Specifications
• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
20
lbs
44
Packaging Dimensions (W x D x H)
mm
615 x 1025 x 274
inches
24 x 40 x 10.8
Mounting (Standard)
28" tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
|
XP1-S101TU01 |
1U 4x 3.5"/2.5" SAS/SATA hot-swap, 2x 2.5" 7mm SATA internal, 6x 4056 & 1x 4028 FAN, Acbel 750W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel |
|
XP1-S101TU02 |
1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 7mm SATA internal, 6x 4056 & 1x 4028 FAN, Acbel 750W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel |
|
XP1-S101TU04 |
1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 7mm NVMe internal, 6x 4056 & 1x 4028 FAN, 3Y 1100W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.4 (HHHL), 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (270W), 28" slide rail, w/o bezel |
| FRU Information | ||
|---|---|---|
| Standard Parts List | Part Number | Description |
| Backplane | BBP-FB10009A | 4 port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U02-TY) |
| Power supply | PH-A00000122 | 750W redundant power supply housing |
| Power supply | PM-C00000009 | 750W redundant power supply module |
| Power supply | PH-A00000151 | 1100W redundant power supply housing |
| Power supply | PM-A00000138 | 1100W redundant power supply module |
| Fan | FC-A00000567 | 4056 fan L200MM |
| Fan | FC-A00000502 | 4028 fan L300MM |
| Riser card | BRC-PE10033A | PCIe Gen.4 x16 riser card (RC-PE1U30-TY) for right-hand side add-in card support (from rear window view) |
| Riser card | BRC-PE10016B | PCIe Gen.4 x16 riser card (RC-PE1U18-TY) for left-hand side add-in card support (from rear window view) |
| Slide rail | H5541T200003 | 31" tool-less slide rail |
| OCP Adapter | M04-1399-016 | Dual port Intel X550-AT2 10G Base-T (DB-MZ0005-TY) PCIe Gen.4 OCP 3.0 Module |
