SB101-A6

Home Products Server MainStream Server 1U Rackmount Server

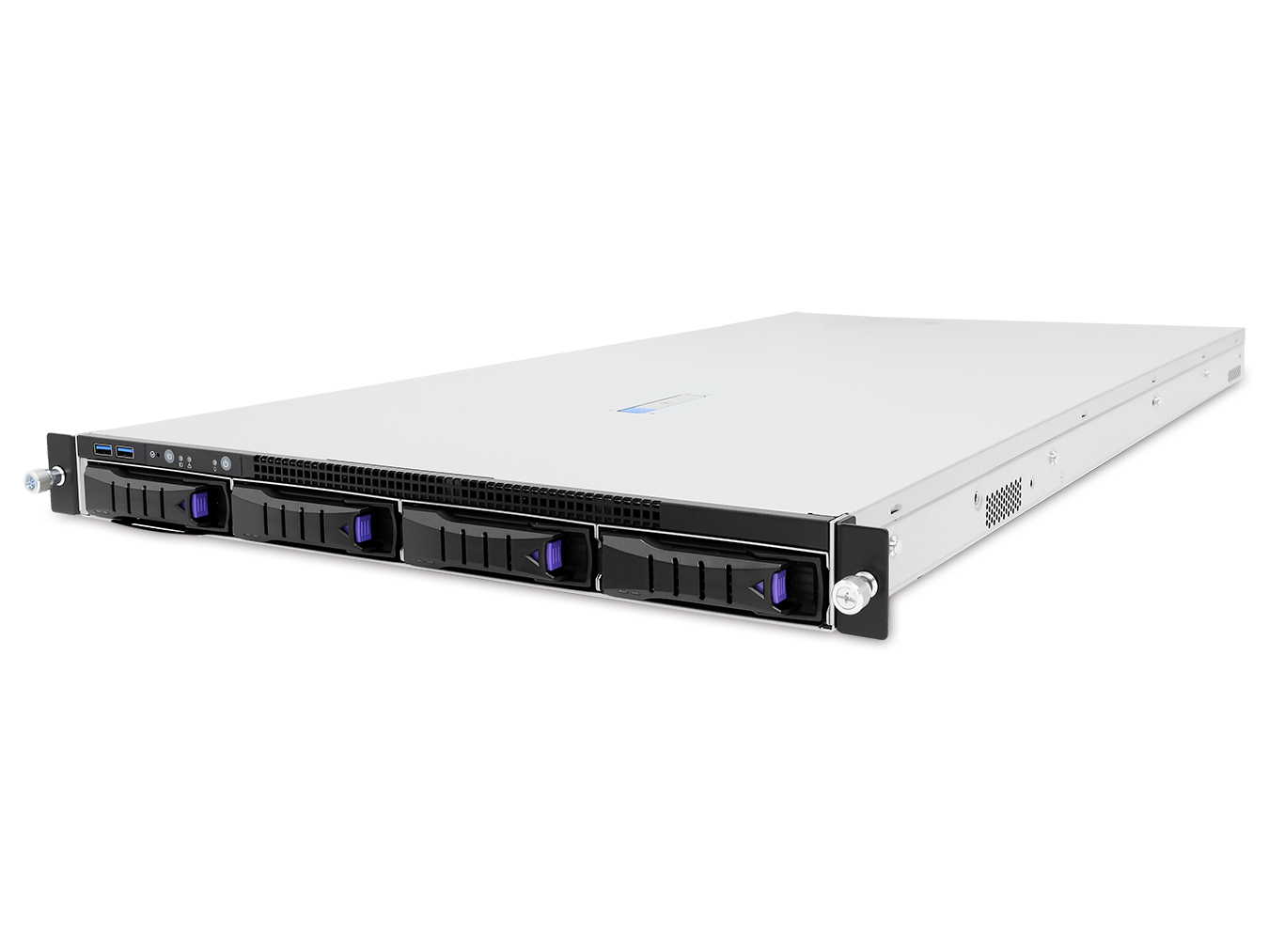

SB101-A6, a 1U 4-Bay Storage Server Solution, supports dual 3rd Gen Intel® Xeon® Scalable Processors (codename Ice Lake). SB101-A6 has 4 x 3.5” (front) hot-swappable and 2x 2.5" internal OS HDD/SSD bays to provide high storage density.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

1U general purpose storage server supports 4 hot swap 3.5"/2.5” universal SATA/SAS/NVMe U.2 drive bays

FEATURE

Supports 3rd Gen. Intel® Xeon® Scalable processors (codename Ice Lake)

FEATURE

Onboard Baseboard Management Controller for system management and IPMI control

FEATURE

Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions

FEATURE

Dedicated BMC management port

Specification

Specification
SKU
FRU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 800 x 43.5

inches

17.2 x 31.5 x 1.7

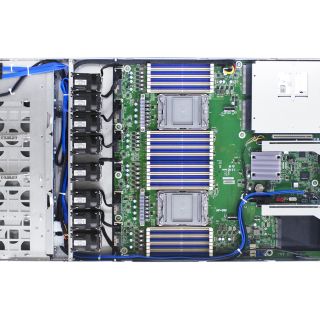

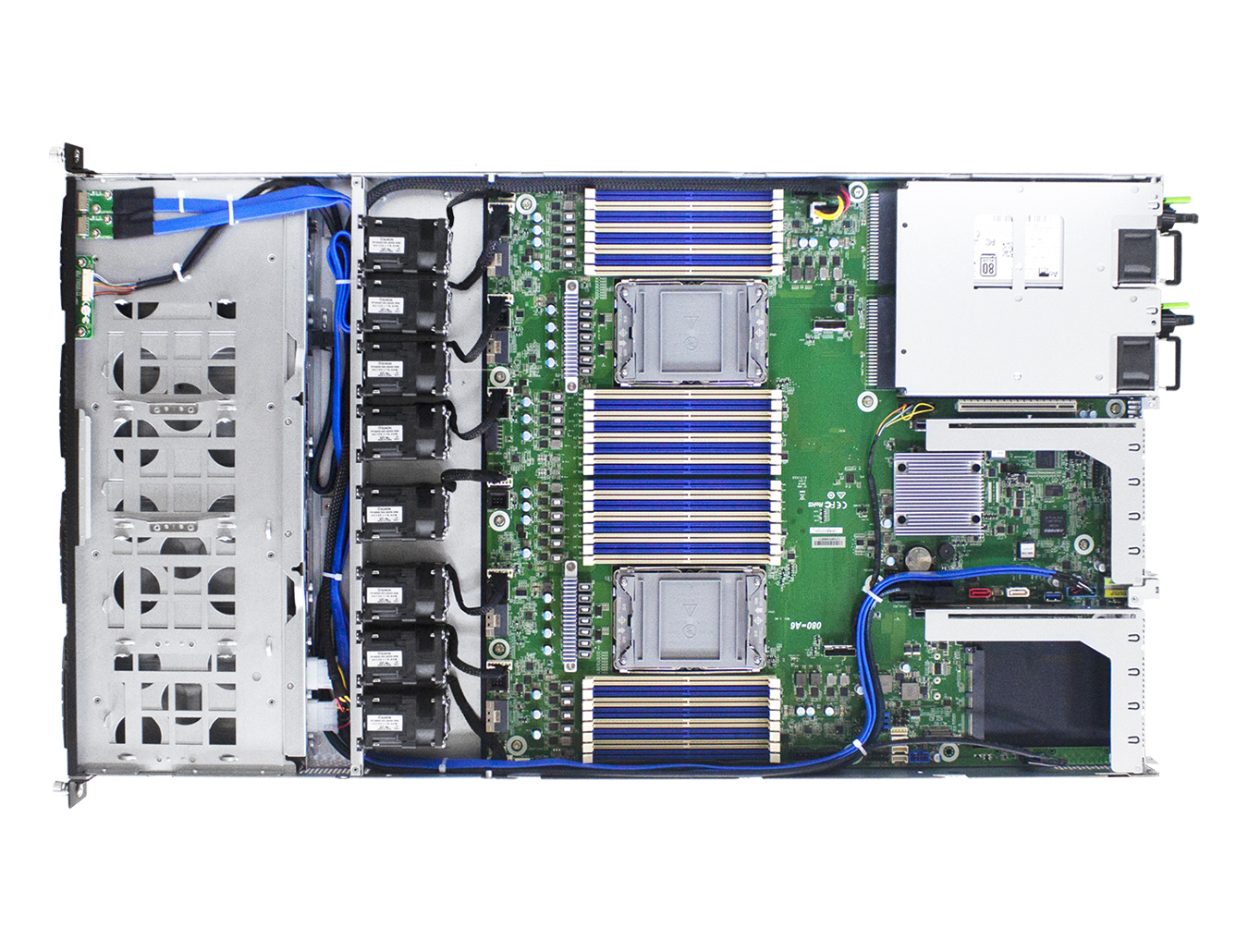

Motherboard

AIC Server Board A6

Processor

Processor Support

Intel® Ice Lake-SP Processors

CPU Interconnection

UPI Speeds: 10.4 GT/s, 9.6 GT/s

Supports CPU TDP up to 270W
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)

Socket Type

Socket P0 (LGA-4189 Socket)

Chipset Support

Intel® C621A series PCH

System Memory

• DDR4 3200/2933/2666/2400 (1DPC/2DPC) MHz

• Total 16+16 DIMM slots (2DPC)

• Up to 12TB 3DS ECC RDIMM/LRDIMM

• Intel® Optane™ Persistent Memory 200 Series support

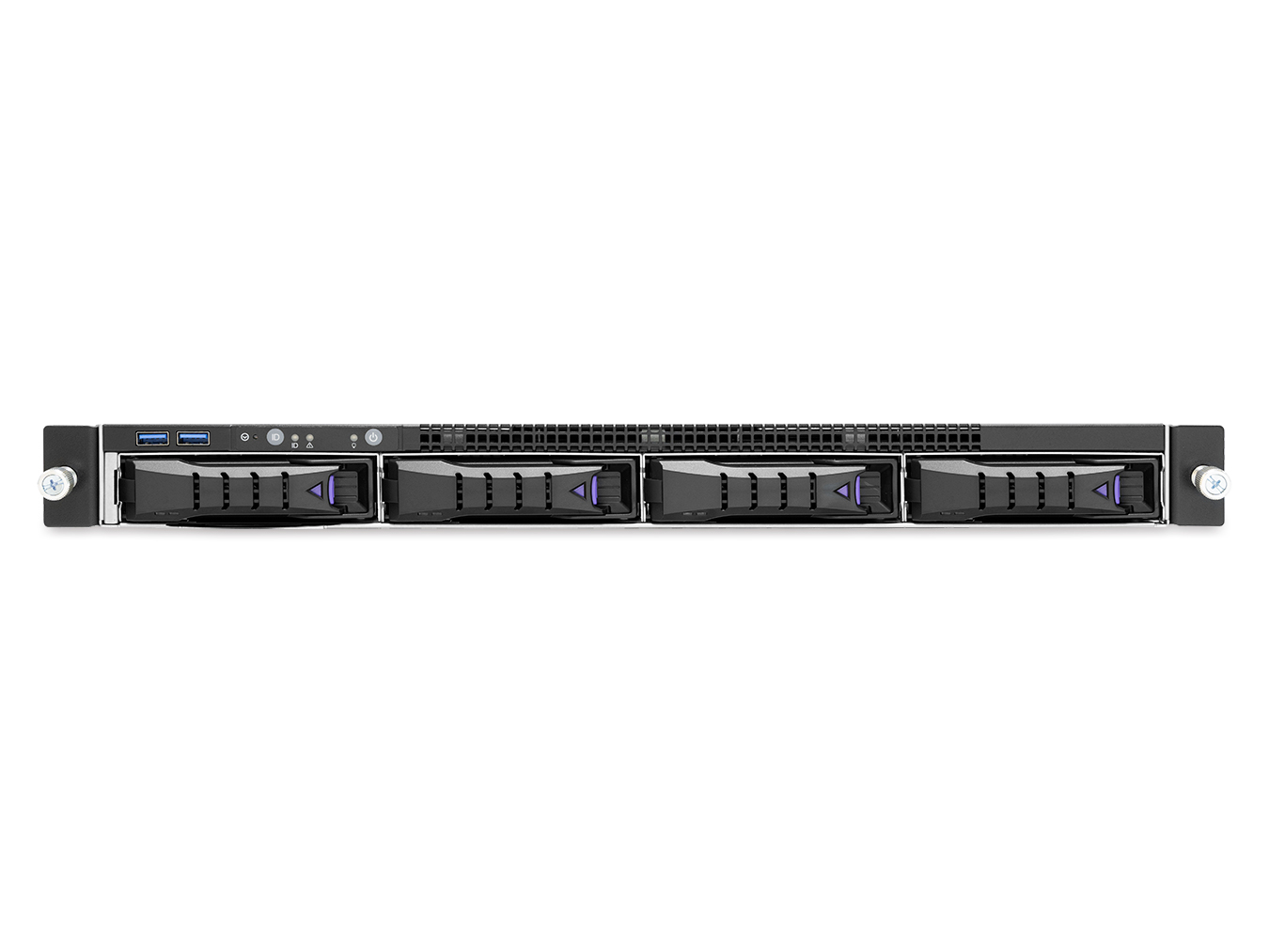

Front Panel

• System power on/off

• System reset

• 2 x USB 3.2 Gen1 Type A

• System ID

LEDs

• Power status

• System alert

• System ID

Drive Bays

External

4 x 3.5”/2.5” hot swap (SAS/SATA/NVMe)

Internal

• 2 x 2.5” OS (SATA)

• M.2 : 1 x M.2(NGFF)/M-Key/2280 (SATA/PCIe)

Backplane

1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2x SFF-8654(Slimline 8i) connectors

Expansion Slots

• 2 PCIe4.0 x16

• 1 OCP NIC 3.0

Riser Card (included):

• RC-PE1U02-Z2 : 1 x16 PCIe slot

System Bios

Bios Type

AMI UEFI BIOS

Bios Features

• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode

On Board

Devices

SATA :
Intel® Lewisburg PCH on-chip solution
• 14 x SATA 6.0 Gb/s; 3 Mini-SAS HD, SATA DOM, SATA DOM or M.2
• RAID 0, 1, 5, 10 support by Intel RSTe

Devices BMC

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Devices Network Controllers

Networking options provided via OCP Mezzanine extension

Devices Graphics

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Process
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

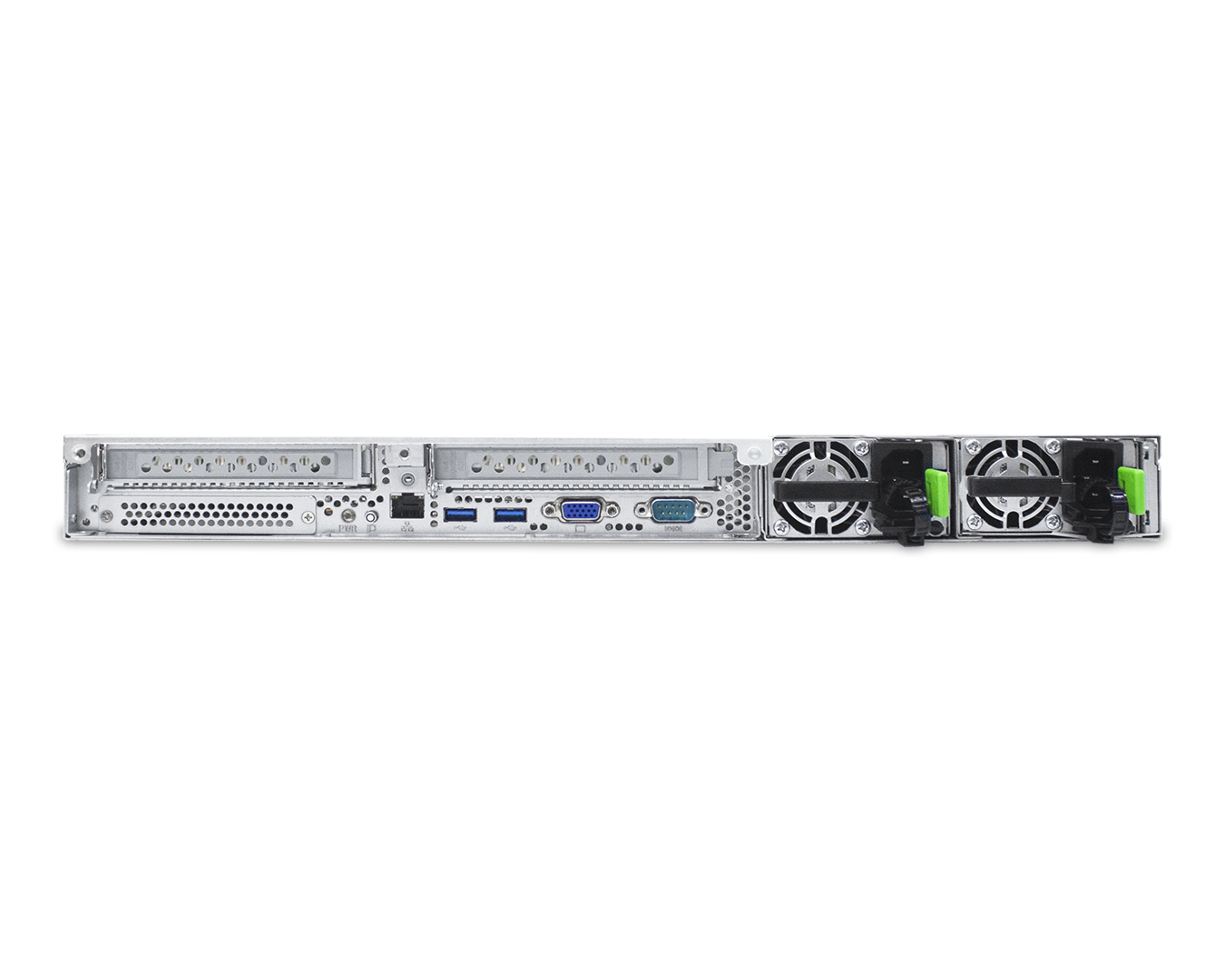

Rear I/O

LAN

1 x GbE RJ45 dedicated to BMC management

USB

2 x USB 3.0 Type A in double-stack connector

Video Output

1 x external DB-15 VGA port

Serial Port

1 x RS-232 connector

TPM Support

Power Supply

800W/1200W 1+1 redundant power supply 80+ Platinum

• AC INPUT : 100~240V,50/60Hz,7-3.5A

System Cooling

8 x 40x56mm easy swap fans

System Management

IPMI: Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor

• Baseboard Management Controller

• Intelligent Platform Interface 2.0 (IPMI 2.0)

• iKVM, Media Redirection, IPMI over LAN, Serial over LAN

• SMASH Support

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity : 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

Packaging Dimensions (W x D x H)

615 x 1135 x 273

inches

24.2 x 44.7 x 10.7

Mounting (Standard)

28" tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-S101A601	1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 9mm SATA internal, 8x 4056 fan, Acbel 800W redundant power supply Platinum, A6 motherboard, DDR4 RDIMM x32, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsink (195W), 28" slide rail, w/o bezel
XP1-S101A602	1U 4x 3.5"/2.5" tri-mode hot-swap, 2x 2.5" 9mm SATA internal, 8x 4056 fan, Acbel 1200W redundant power supply Platinum, A6 motherboard, DDR4 RDIMM x32, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsink (270W), 28" slide rail, w/o bezel

FRU Information
Standard Parts List	Part Number	Description
Backplane	BBP-FB10009A	4-port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U02-TY)
Power supply	PM-A00000117	800W redundant power supply module
Power supply	PM-A00000118	1200W redundant power supply module
Fan	FC-A00000552	4056 fan L100MM
Fan	FC-A00000551	4056 fan L100MM (CPU TDP 270W)
Slide rail	H5541T100005	33" tool-less slide rail
Screw	M15-00027-18	Screw kit/24 x 2.5“ HDD, Bottom, F(+), M3X4L, NI*96pcs (for 3.5" tray with 2.5" device mounting)
