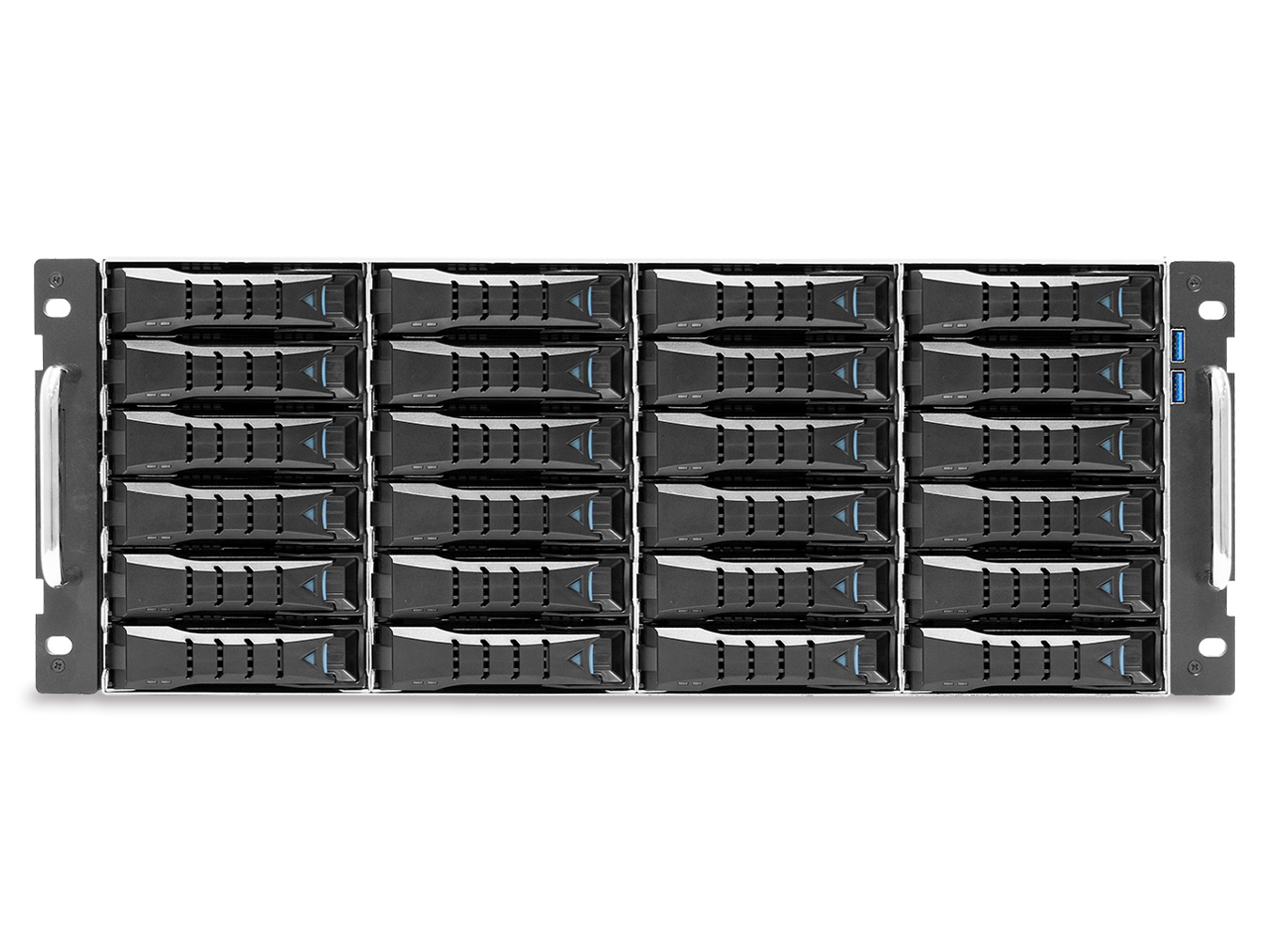

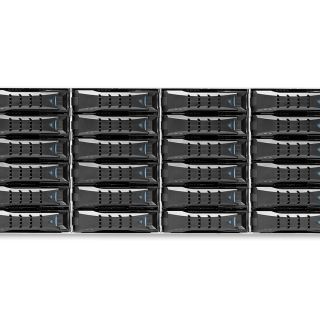

  • RSC-4BT3_Front

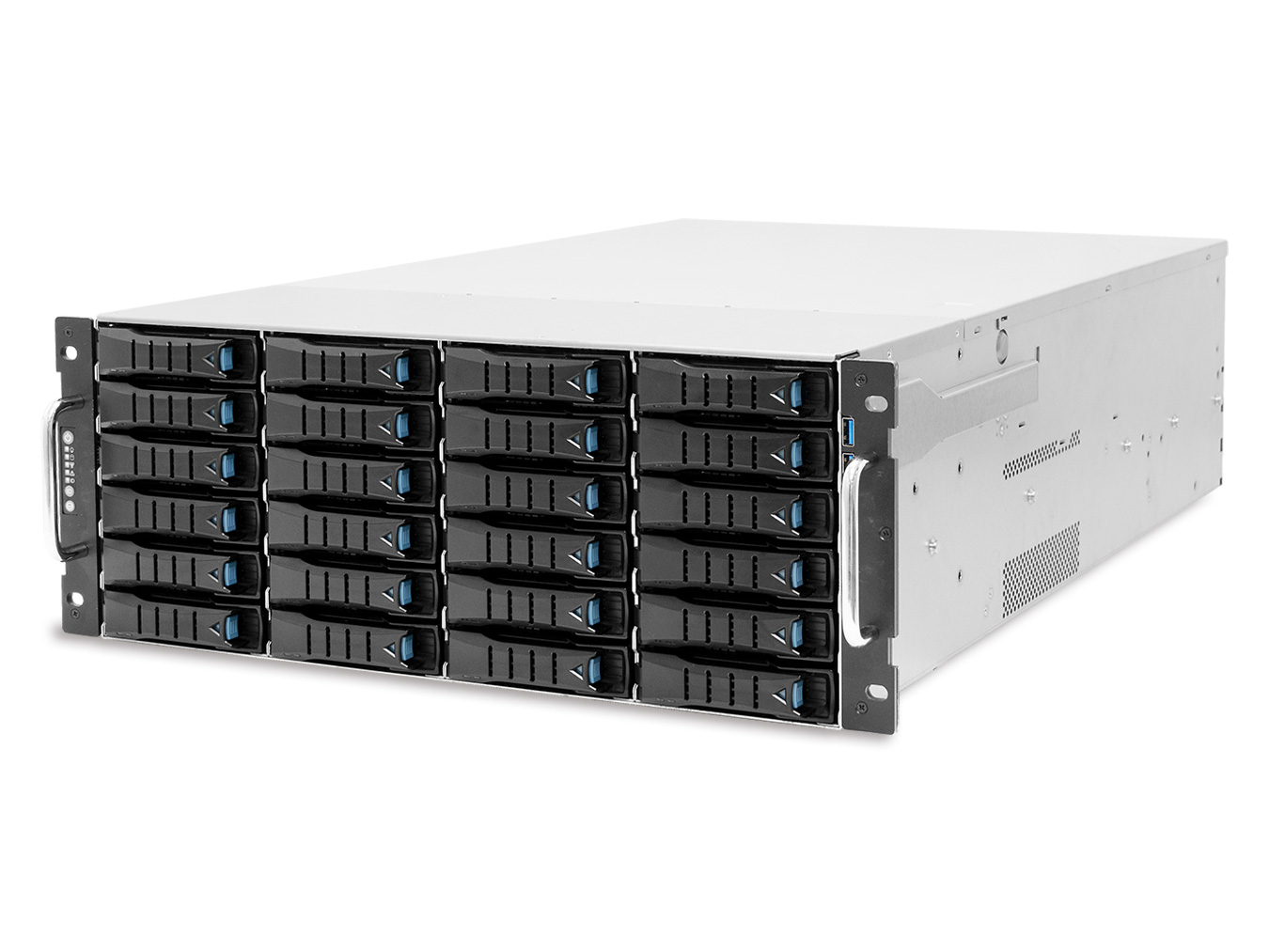

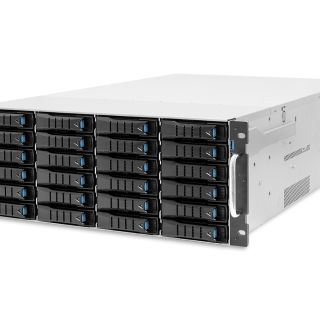

  • RSC-4BT3_Front45

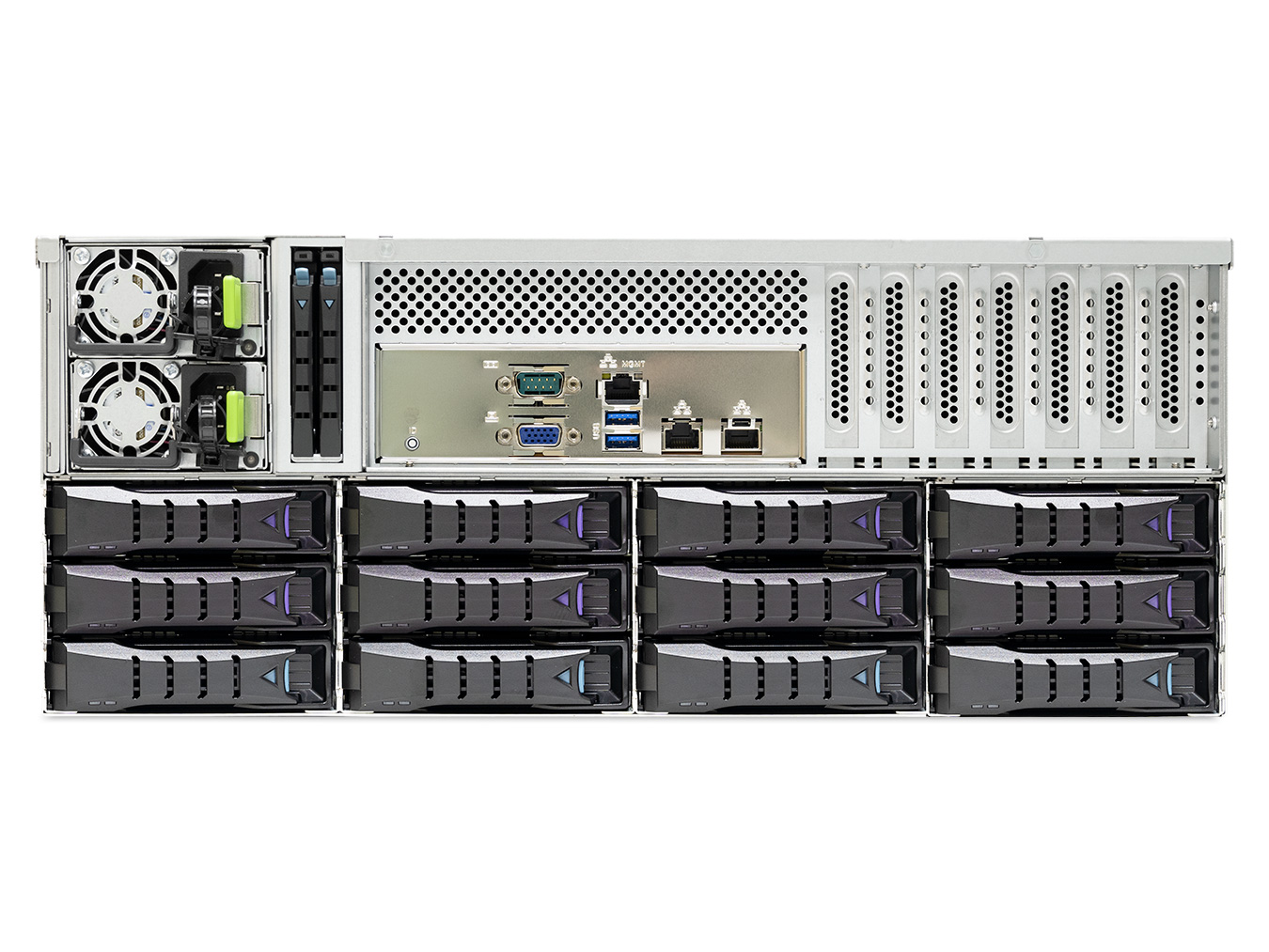

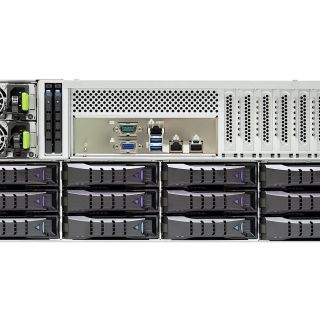

  • RSC-4BT3_Rear
  • RSC-4BT3_Front
  • RSC-4BT3_Front45
  • RSC-4BT3_Rear
RSC-4BT3_Front RSC-4BT3_Front45 RSC-4BT3_Rear

RSC-4BT3

Home Products Chassis Server Chassis
RSC-4BT3 is a T series 4U 36-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4BT3 supports quick installation and easy maintenance. This tool-less design solution also features 6 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.  (Power supply is included. Motherboard is not included.)
COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE
Tool-less design supports quick installation and easy maintenance: - Tool-less 3.5” & 2.5” drive trays, top covers, backplane & slide rails
FEATURE
12Gb/s SAS expander chip on backplane
FEATURE
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
FEATURE
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive & 2x 2.5” SATA H/W on rear panel
FEATURE
36 (24 front + 12 rear) bays to provide high-density storage in a 4U server chassis, 12x rear bays can change + 8x 3.5”/2.5” tri-mode (NVMe/12G SAS/SATA) passive + 4x 3.5”/2.5” (12G SAS/SATA) passive + 2x 2.5” SATA (7mm)
FEATURE
Comes with a redundant PSU 80+ Platinum
FEATURE
Two front access USB 3.0 ports
Specification

SPECIFICATION

Main
Sub
Details

Dimensions

mm
430 x 680 x 177
inches
17 x 26.8 x 7

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel: Black

Cooling

Middle: 6 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply

1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum

(Option: 1300W CRPS Titanium redundant power supply)

Expansion Slots

7 low profile

Front Panel

System power on/off, System reset, System ID and 2 x USB 3.0 ports

LED Indicators

Power, LAN, Drive, ID and Alert

System board

12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

External
• 36 x 3.5” hot swap

• 2 x 2.5” hot swap (option)
Internal
• 2 x 2.5" (option)

Backplane

• 1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors

• 8x 3.5”/2.5” tri-mode (NVMe/12G SAS/SATA) passive + 4x 3.5”/2.5” (12G SAS/SATA) passive

Storage Temparature

0ºC(32ºF) ~ 50ºC(122ºF)

Humidity

5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs
40.4
lbs
89

Packaging Dimensions (W x D x H)

mm
626 x 931 x 413
inches
24.6 x 36.7 x 16.3

Cubic Feet

8.3

Container Load Quantity

20'
120
40'
245
40' H
285

Mounting

Standard: 28” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information Description

XE1-4BT02-01

4U 36x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply Platinum, 2x 2.5" 7mm SATA OS hot-swap, 6x 8038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) +rear 8x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), w/ FAN board set, w/o bezel

XE1-4BT02-02

4U 36x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS redundant power supply Titanium, 2x 2.5" 7mm SATA OS hot-swap, 6x 8038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) +rear 8x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), w/ FAN board set, w/o bezel

XE1-4BT02-03

4U 36x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply Platinum, 2x 2.5" 7mm SATA OS hot-swap, 6x 8038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) +rear 8x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), w/ 6x FAN cable, w/o FAN board, w/o bezel

XE1-4BT02-04

4U 36x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS redundant power supply Titanium, 2x 2.5" 7mm SATA OS hot-swap, 6x 8038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) +rear 8x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), w/ 6x FAN cable, w/o FAN board, w/o bezel
FRU Information
Standard Parts List Part Number Description

Backplane

BBP-HD40022A

4U24EOB/MINI-SAS-HD/24XSAS/LSISAS35X36R/ BP-HD4E07-TY

Backplane

BBP-FB10016C

4-port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U11-TY)

Backplane

BBP-HD10035A

4-port 12GB SAS/SATA passive backplane (BP-HD1S07-TY)

Backplane

BBP-HD10012A

7mm 2-port SATA/SAS backplane (for external: 2x 2.5" hot-swap/ BP-HD1H09-TY)

Power Housing

PH-A00000163

1200W CRPS power supply housing 220mm
Optional Parts List Part Number Description

Power supply

PM-A00000118

1200W CRPS Platinum power module

Power supply

PM-A00000133

1300W CRPS Titanium power module

Fan

FC-A00000968

8038 fan L60MM (for H/S FAN location)

Cable

G3-000000122

SFF-8643 to SFF-8643 mini SAS HD cable L800MM for RAID/HBA card

Cable

G3-A00001169

Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 4i*2 (SFF-8654) SAS cable L850MM for RAID/HBA card

Cable

G3-A00001114

Slimline SAS 8i (SFF-8654) PCIe Gen.4 to SFF-8643*2 mini SAS HD cable L750MM for RAID/HBA card

Cable

G3-A00000721

Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 8i (SFF-8654) cable L850MM for RAID/HBA card

Cable

G3-A00001307

MCIO 8i (SFF-TA-1016) PCIe Gen.5 to mini SAS HD (SFF-8643)*2 cable L850MM

Cable

G3-A00001319

MCIO 8i (SFF-TA-1016) PCIe Gen.5 to Slimline SAS 8i (SFF-8654) cable L900MM

Cable

M21-1598-001

FAN cable assembly set (with 6 pcs FAN adapter cable L700MM G1-A00001140) for FAN to MB direct connection
