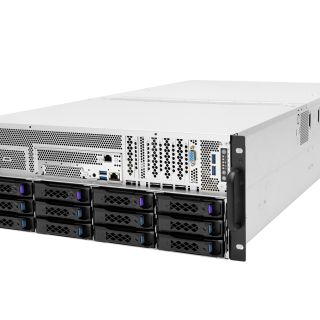

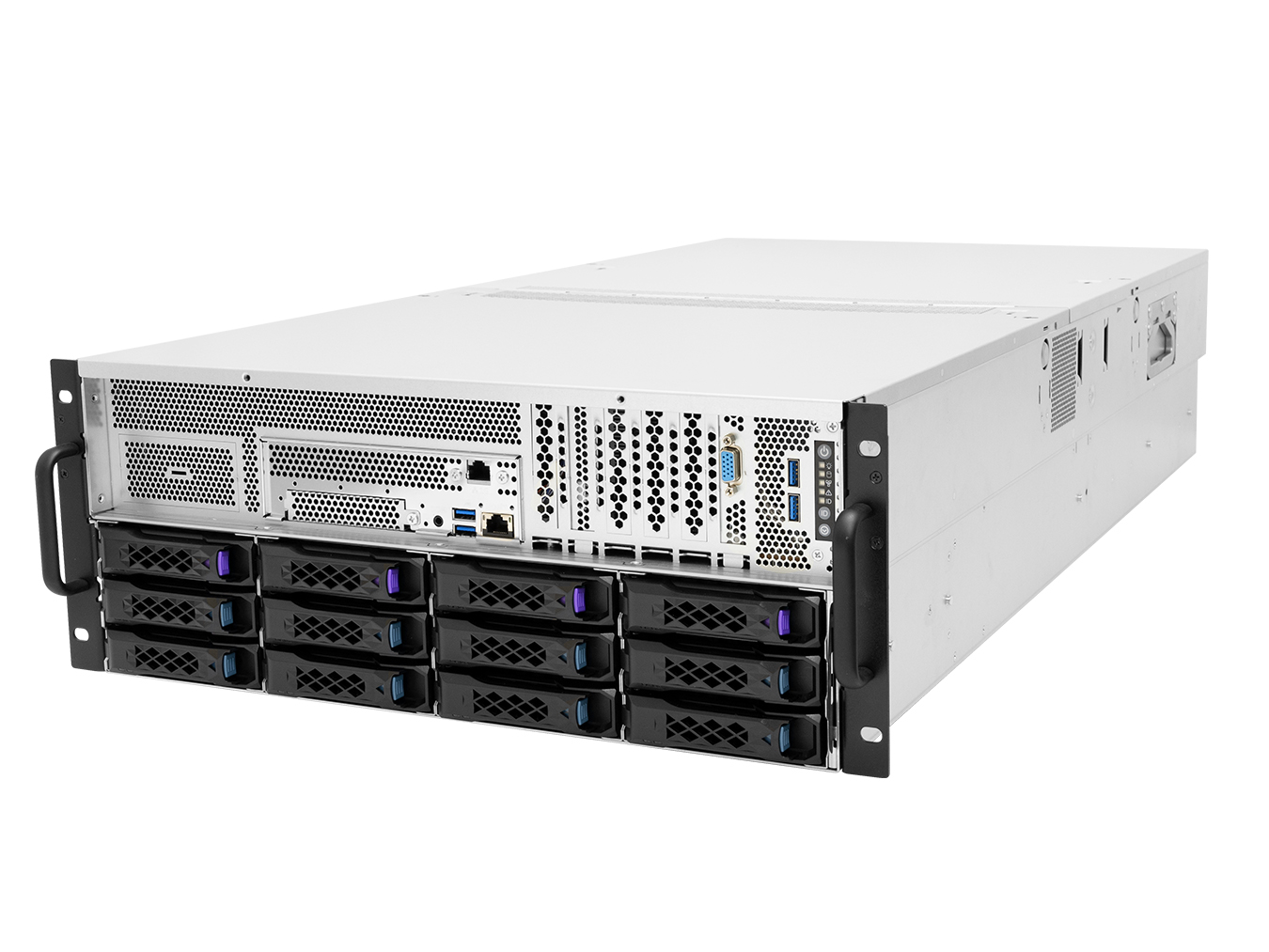

  • CB401-TU_front45

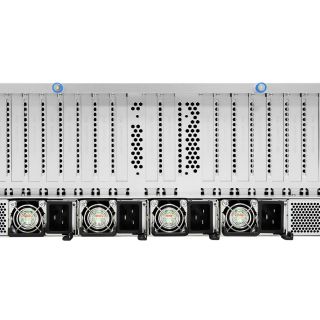

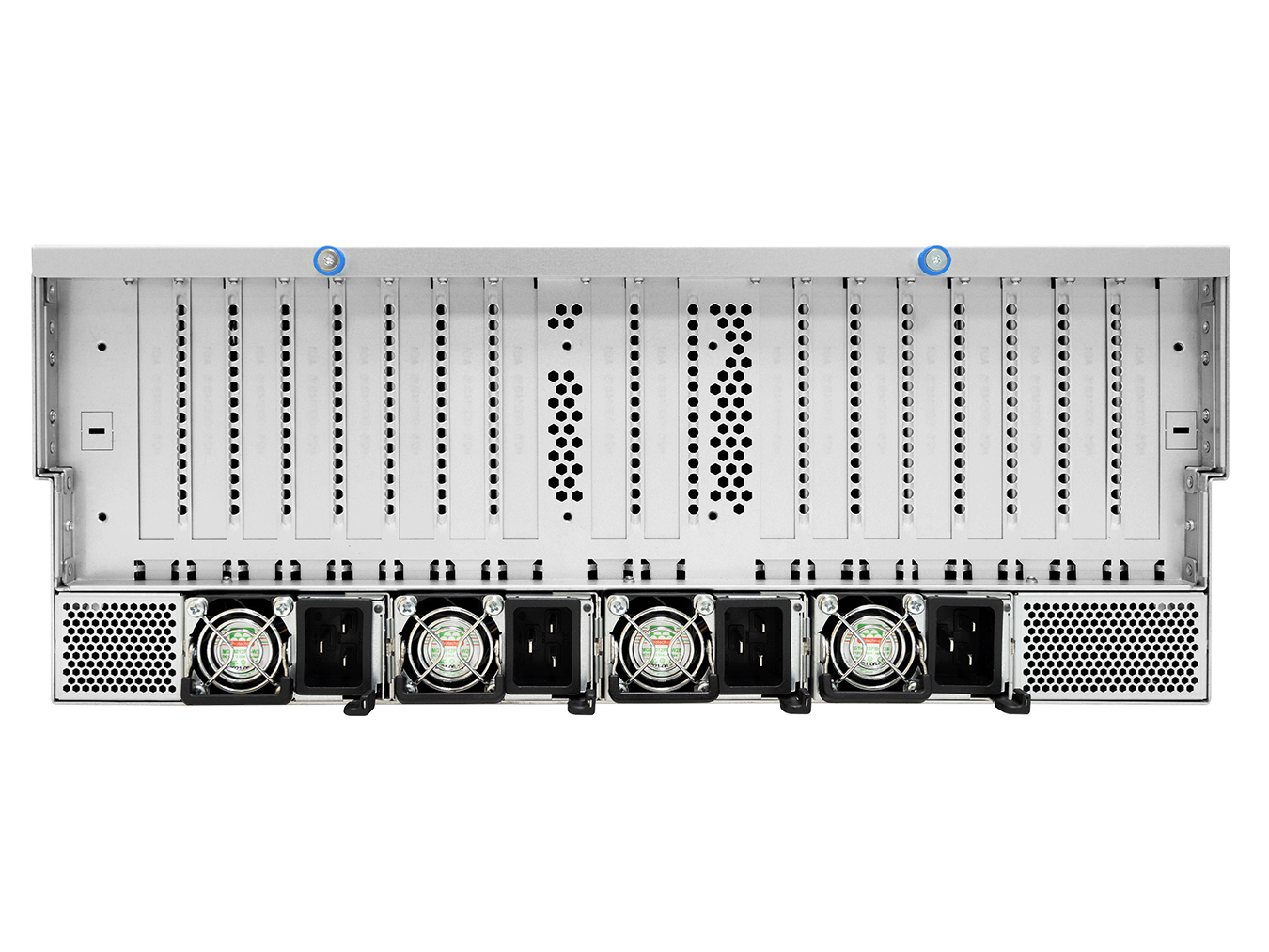

  • CB401-TU_rear

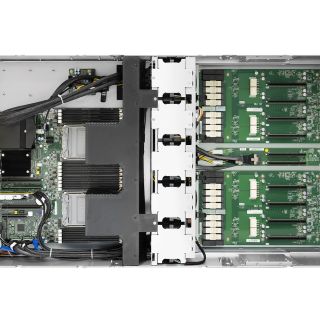

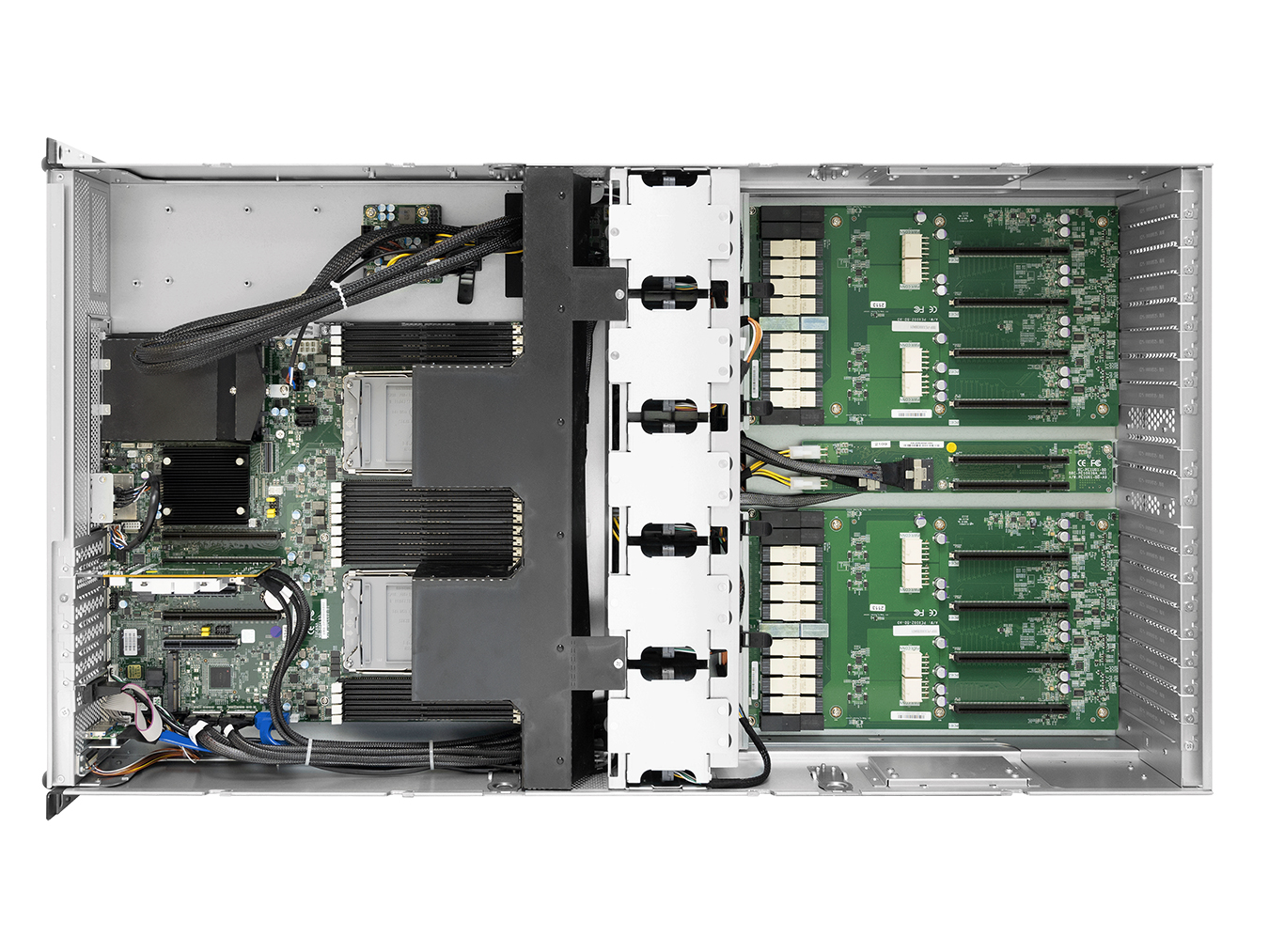

  • CB401-TU_top

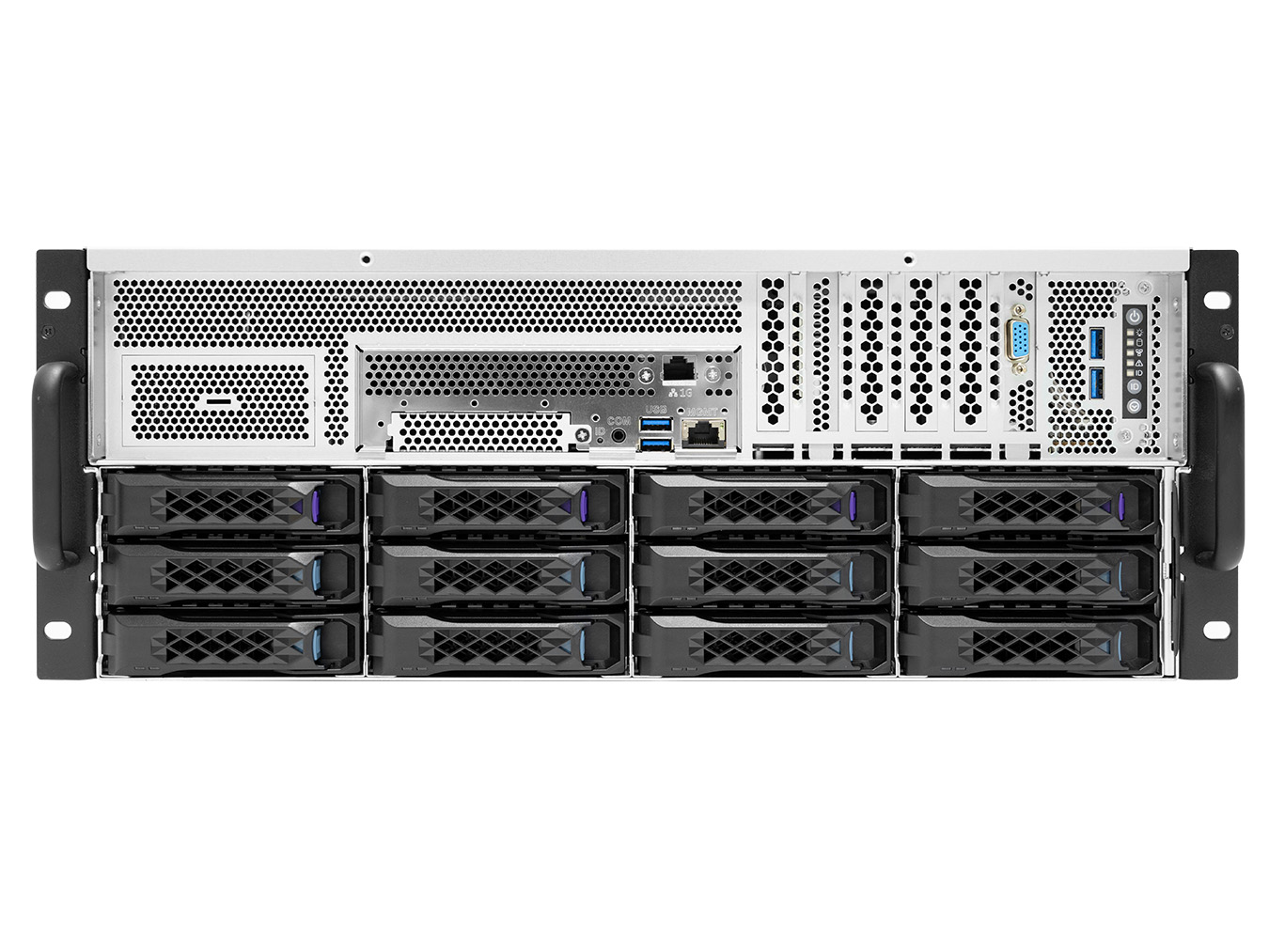

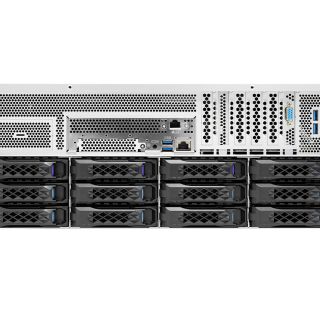

  • CB401-TU_front
  • CB401-TU_front45
  • CB401-TU_rear
  • CB401-TU_top
  • CB401-TU_front
CB401-TU_front45 CB401-TU_rear CB401-TU_top CB401-TU_front

CB401-TU

Home Products Server GPU Server PCIe Gen4
CB401-TU, a 4U GPGPU server, supports 3rd Gen Intel® Xeon® Scalable Processors with PCIe 4.0 extension design, 12 hot-swappable drive bays (4 NVMe + 8 SATA/SAS), maximum 8 dual-slot GPGPU cards with up to 450W each, ideal for GPGPU applications.
COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE
4U 8 GPU server supports maximum 8 dual-slot GPU cards with up to 450W each
FEATURE
Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
FEATURE
Intel® C621A Chipset to provide 5+ years product life cycle
FEATURE
4 x NVMe + 8 x SAS/SATA hot swappable drive bays
FEATURE
Front-to-back airflow and hot swap redundant fans to provide optimal thermal condition
Specification

SPECIFICATION

Main
Sub
Details

Dimensions

mm
435 x 830 x 175
inches
17.1 x 32.7 x 6.9

Motherboard

AIC Server Board Tucana

Processor

Processor Support
3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
CPU Interconnection
11.2 GT/s
Socket Type
Socket P+ (LGA-4189)

Chipset Support

Intel® C621A

System Memory

• 8 x memory channels per CPU (1DPC)

• 16 x DIMM slots support:

DDR4 3200/2933MHz RDIMM/LRDIMM

- up to 512GB RDIMM SRx4 (16Gb)

- up to 1024GB RDIMM DRx4 (16Gb)

- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)

- up to 2048GB LRDIMM QRx4 (16Gb)

- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)

• Intel® Optane™ DC Persistent Memory (Barlow Pass) support

Front Panel

System power on /off, System reset, ID button

LEDs

Power status, Drive activity, LAN activity, System alert, System ID

Drive Bays

External
3.5" hot swap x 12
Internal
2 x M.2/M-Key/2280

Backplane

• 1 x 4-port PCIe Gen4 NVMe backplane

• 2 x 4-port SAS/SATA backplane

Expansion Slots

PCIe 5.0
PCIe 4.0
Front:

• 2 x PCIe X16 slots (HHHL)

• 2 x PCIe X8 slots (HHHL)

• 1 x OCP 3.0

(*1 x PCIe X16 slot occupied by retimer card)

Rear:

• 8 x16 slots (FHFL)/ dual slot

• 2 x16 slots (FHHL)

System BIOS

BIOS Type
AMI UEFI BIOS
BIOS Features
• ACPI

• PXE

• WOL

• AC loss recovery

• IPMI 2.0 KCS interface

• SMBIOS

• Serial console redirection

• BIOS Boot Specification

• BIOS Recovery Mode

• SRIOV

• iSCSI

• TPM

• PCIe Hotplug

On-board Devices

SATA
SAS/SATA :
Intel® C621A PCH on-chip solution

• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS)

• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)

Optional SAS 3008/3108 modules (on OCP)
IPMI
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor

• Baseboard Management Controller

• Intelligent Platform Interface 2.0 (IPMI 2.0)

• iKVM, Media Redirection, IPMI over LAN, Serial over LAN

• SMASH Support
Network Controllers
• Realtek RTL8211E GbE for BMC dedicated management port

• Intel I210 GbE for BMC shared NIC management port by onboard connector

(NCSI shared NIC - reserved for OCP V3.0)
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor

• PCIe VGA/2D Controller

• 1920x1200@60Hz 32bpp

Rear I/O

LAN
• 1 x GbE RJ45

• 1 x GbE RJ45 dedicated to BMC management
USB
4 x USB 3.0 Type A
Video Output
1 x external DB-15 VGA port
Serial Port
1 x external COM port phone jack

Power Supply

2000W 3+1 redundant power supply 80+ Platinum

System Cooling

9 x 80 x 56mm easy swap fans

System Management

• Baseboard Management Controller

• Intelligent Platform Interface 2.0 (IPMI 2.0)

• iKVM, Media Redirection, IPMI over LAN, Serial over LAN

• SMASH Support

• HTML5

• Redfish

Environmental Specifications

• Storage temperature: -10°C(14°F) ~ 60°C(140°F)

• Operating temperature: 0°C(32°F) ~ 35°C(95°F)

• Storage operating humidity: 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs
43.5
lbs
95.9

Packaging Dimensions (W x D x H)

mm
625 x 1130 x 454
inches
24.6 x 44.5 x 17.9

Mounting

Standard : 43” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information Description

XP1-C401TU02

4U 12-bay 8 GPU/FPGA server, 4x 3.5"/2.5" NVMe/SAS/SATA + 8x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 3200W 2+2 Titanium redundant power supply (C20 inlet), 9x 8056 easy-swap fan, FIO Tucana motherboard, Intel Lewisburg Xeon 3, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 2x PCIe x16 HHHL Gen.4 (front), 2x PCIe x8 HHHL Gen.4 (front), 2x PCIe x16 FHHL Gen.4 (rear), EATX, 2x CPU heatsink (270W), 37" slide rail, w/o bezel

XP1-C401TU04

4U 12-bay 8 GPU/FPGA server,  4x 3.5"/2.5" NVMe/SAS/SATA + 8x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 2000W 3+1 Titanium  redundant power supply (C14 Inlet), 9x 8056 easy-swap fan, FIO Tucana motherboard, Intel Lewisburg Xeon 3, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 2x PCIe x16 HHHL Gen.4 (front), 2x PCIe x8 HHHL Gen.4 (front), 2x PCIe x16 FHHL Gen.4 (rear), EATX, 2x CPU heatsink (270W), 28" slide rail, w/o bezel
