RSC-4H1
KEY FEATURE

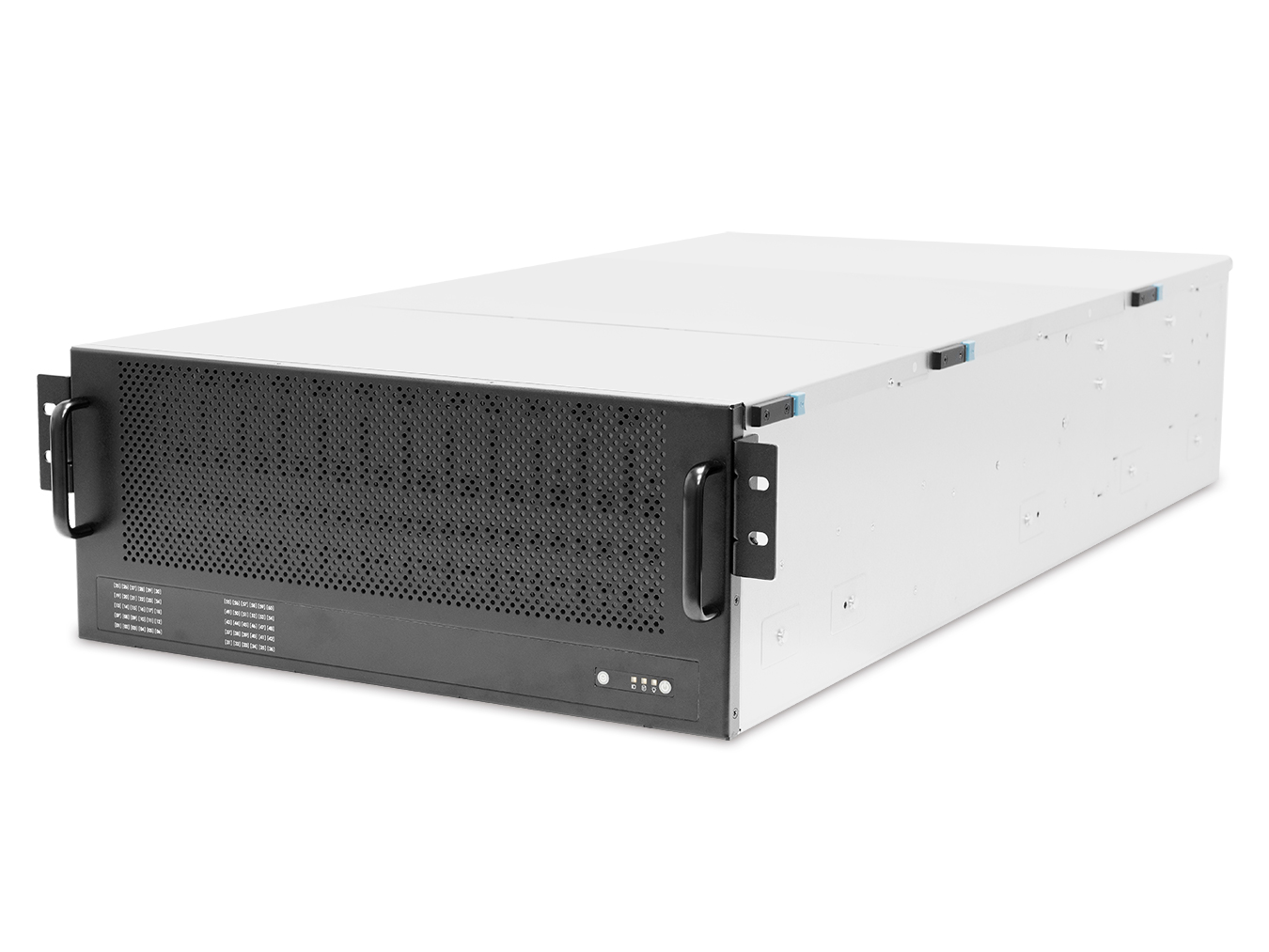

High-density storage server chassis
FEATURETool-less design for easy maintenance

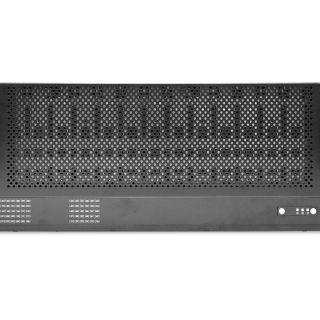

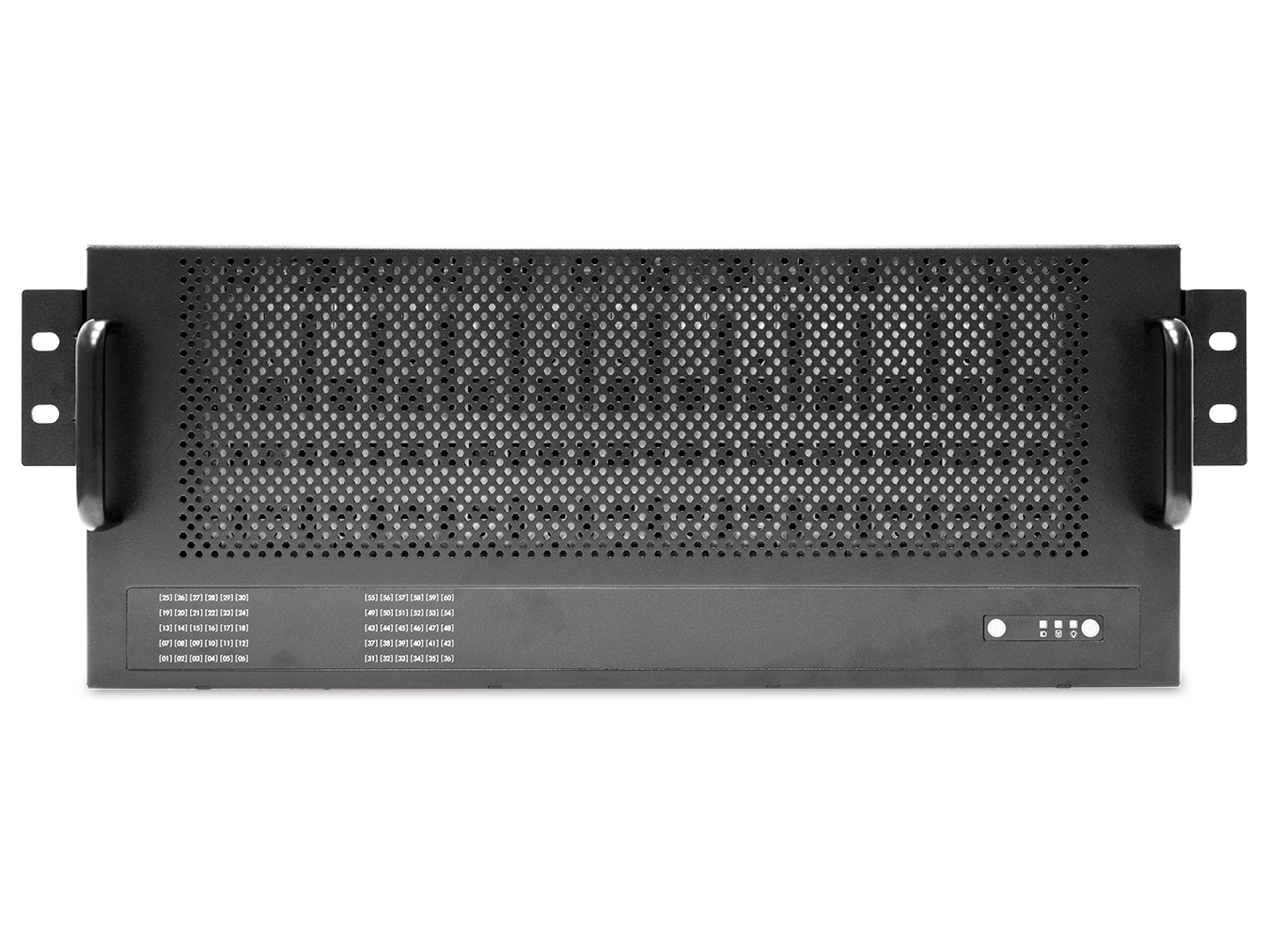

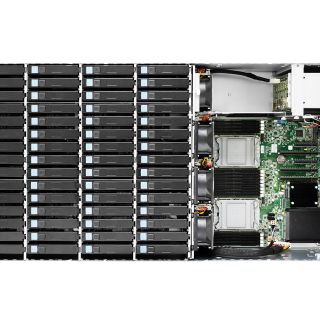

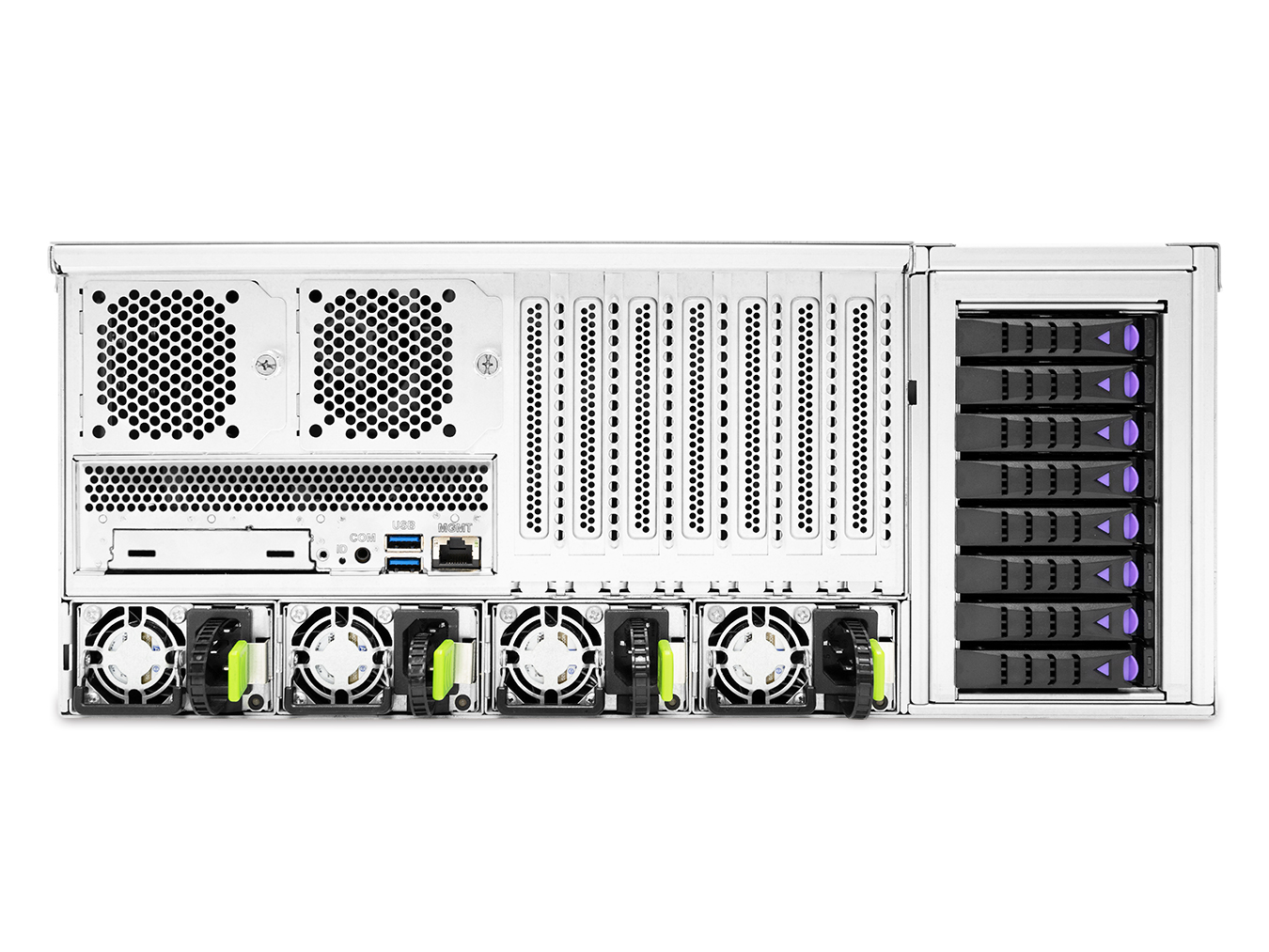

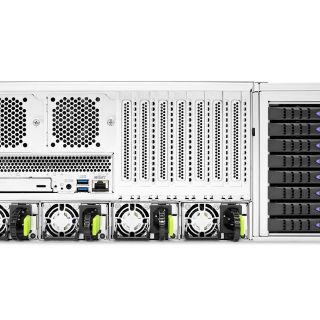

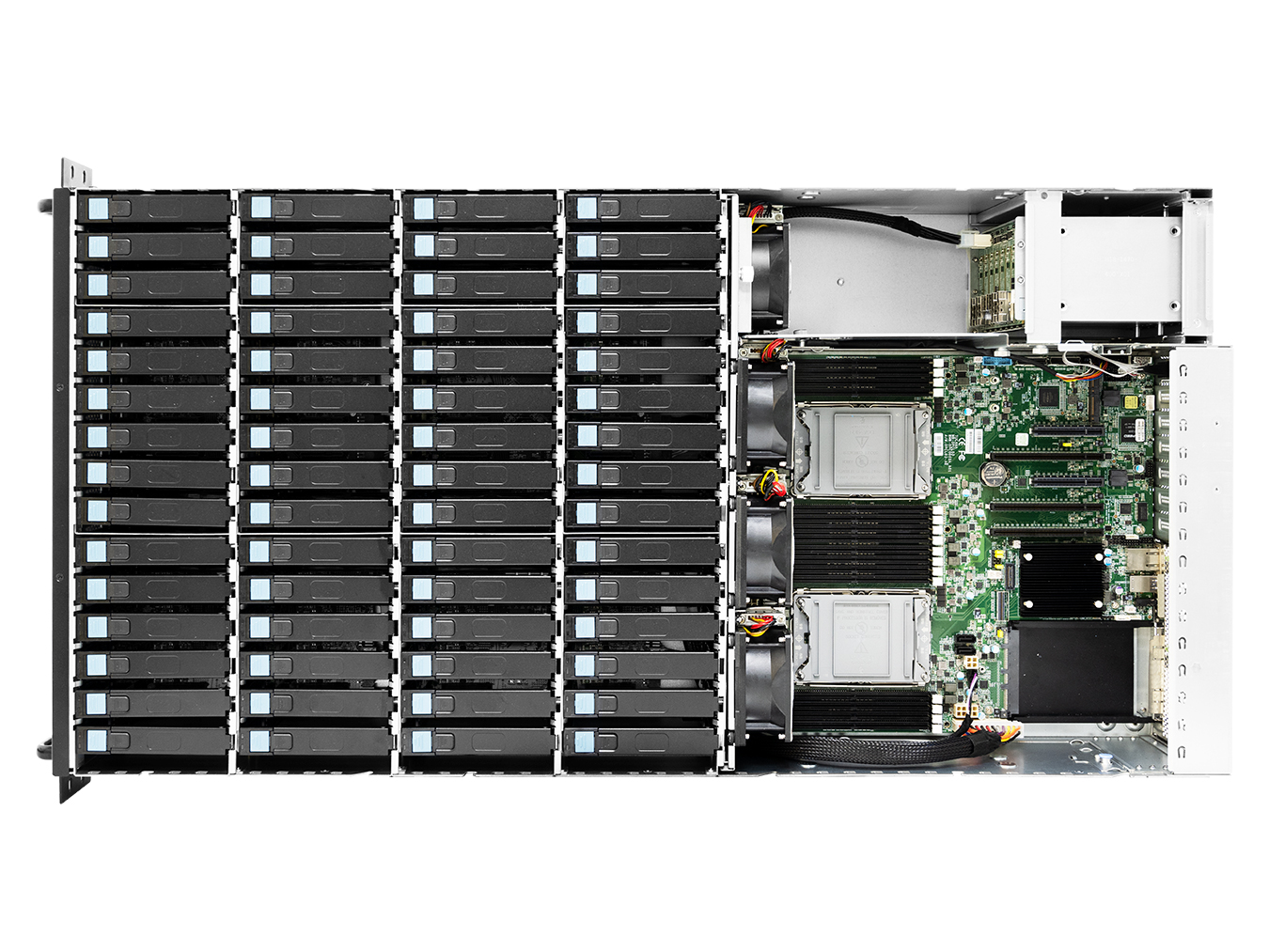

FEATURE60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
FEATUREHot-swap cooling fans and 80+ redundant power supply
FEATURESupports up to 2/4/6/8 x 2.5” hot swap drives for OS
FEATUREFlexible Motherboard plate design for E-ATX form factor in the market
FEATURESPECIFICATION
Dimensions
Industry Standard
Material
Color
Cooling
• Middle : 4 x 80x38mm hot-swap fans
• Optional : up to 2 x 60x38mm easy-swap fans
Power Supply
• 800W 2+2 redundant
• 1600W 1+1 redundant
Expansion Slots
Front Panel
LED Indicators
System board
Drive Bays
Backplane
• 2 x 30-port 24G SAS backplanes with 40-PHY expander (TBD)
Storage Temparature
Humidity
Gross Weight (W/PSU& Rail)
Packaging Dimensions (W x D x H)
Cubic Feet
Container Load Quantity
Mounting
Option : Cable Management Kit
* All specifications are subject to change without notice.
| SKU Information | Description |
|
XE1-4H002-01 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 2x 2.5" SATA hot-swap OS (without data cable), 800W 2+2 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 35" slide rail (for 1M and over 1M rack or post to post 693.5~993mm rack), pallet |
|
XE1-4H002-02 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 2x 2.5" SATA hot-swap OS (without data cable), 1600W 1+1 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 35" slide rail (for 1M and over 1M rack or post to post 693.5~993mm rack), pallet |
|
XE1-4H002-03 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 6x 2.5" tri-mode + 2x 2.5" SATA hot-swap (without data cable), 800W 2+2 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 35" slide rail (for 1M and over 1M rack or post to post 693.5~993mm rack), pallet |
|
XE1-4H002-04 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 6x 2.5" tri-mode + 2x 2.5" SATA hot-swap (without data cable), 1600W 1+1 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 35" slide rail (for 1M and over 1M rack or post to post 693.5~993mm rack), pallet |
|
XE1-4H002-10 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 6x 2.5" tri-mode + 2x 2.5" SATA hot-swap (without data cable), 800W 2+2 redundant Titanium power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 35" slide rail (for 1M and over 1M rack or post to post 693.5~993mm rack), pallet |
|
XE1-4H002-11 |
4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 6x 2.5" tri-mode + 2x 2.5" SATA hot-swap (without data cable), 1600W 1+1 redundant Titanium power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 35" slide rail (for 1M and over 1M rack or post to post 693.5~993mm rack), pallet |
| FRU Information | ||
|---|---|---|
| Standard Parts List | Part Number | Description |
| Slide rail | H5531T100002 | 35" tool-less slide rail (TL:650mm, post to post distance 693.5~993mm) For 434mm chassis width, for 1M and over 1M rack or post to post 693.5~993mm rack |
| Fan | FC-A00001099 | FAN 8038 |
| Fan | M03-00362-01 | 6038 FAN Module with FAN 6038*1, FAN guard & screws |
| Fan | G1-000000242 | FAN 4P to 4P extension cable for rear 6038 FAN connection L700MM |
| Backplane | BBPHHD40013B | 30-port 12G SAS backplane with LSI 35X28 expender on board (usage 2 pcs) |
| Cable | G3-A00001238 | RSC-4H1/SB407-TU option parts - SlimSAS Y cable for RAID/HBA to two BP connection L1000MM |
| Adapter | M06-00628-15 | J4060-04/J4078/J4108/RSC-4H1/SB407-TU/SB405-VL FRU parts- 3.5" tray to 2.5" device adapter (32pc in package) |
| Tray | M06-00395-15 | 3.5" T-tray assy for density top loading chassis (w/o packing) |
| Tray | M06-00628-30 | 3.5" T-tray assy for density top loading chassis (w/ packing 60 pcs in package) |
