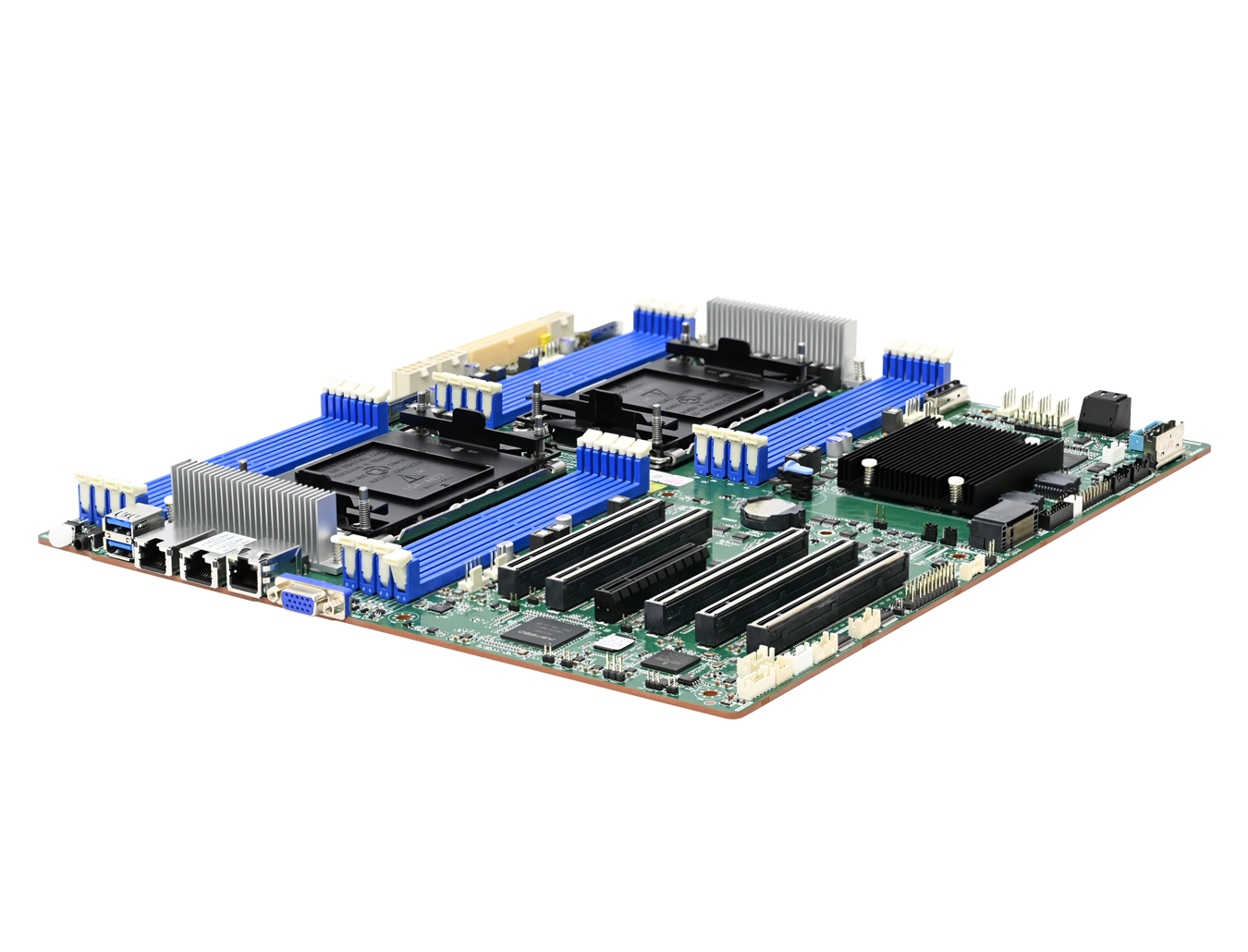

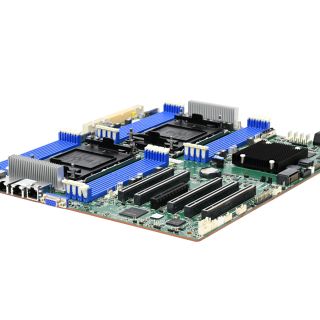

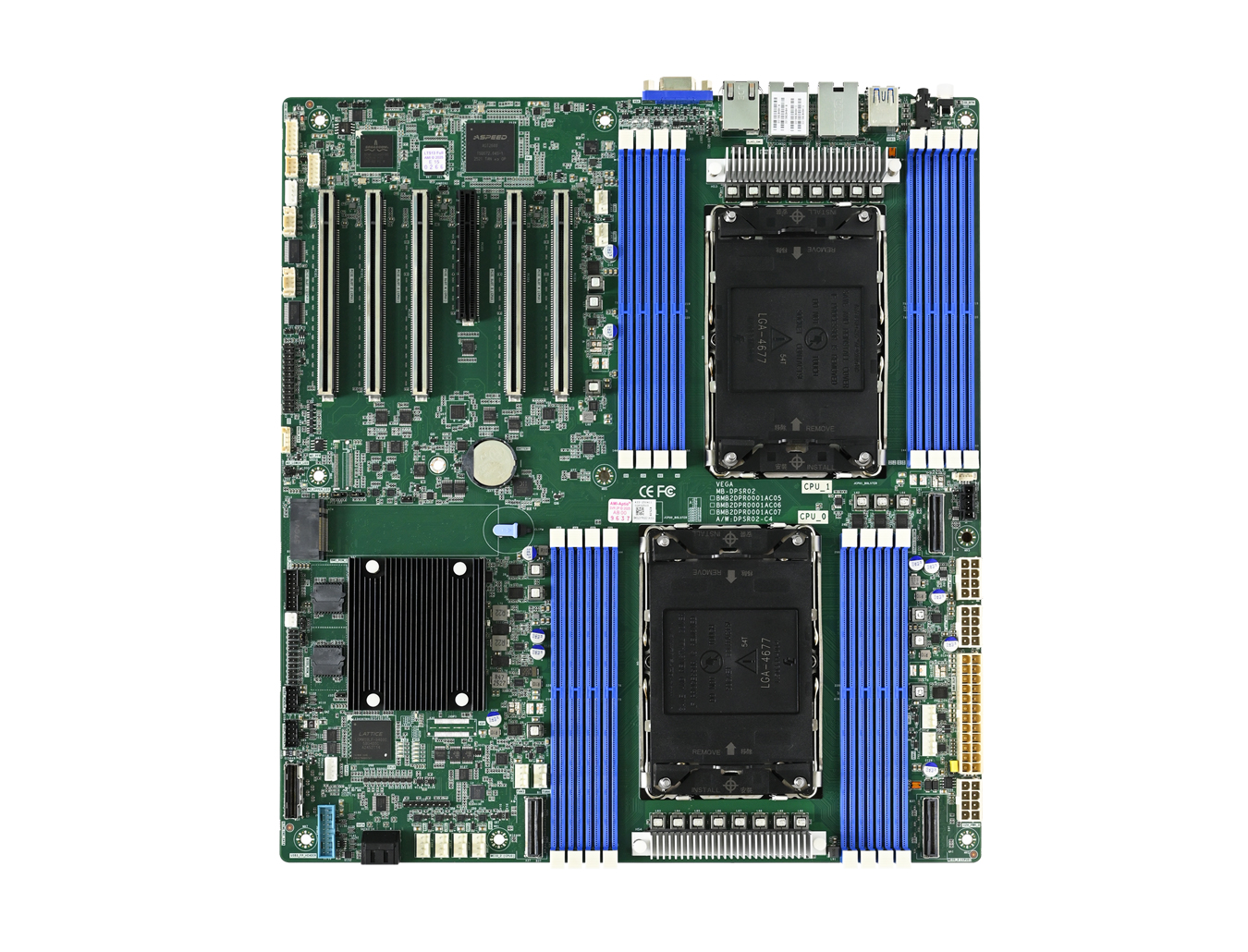

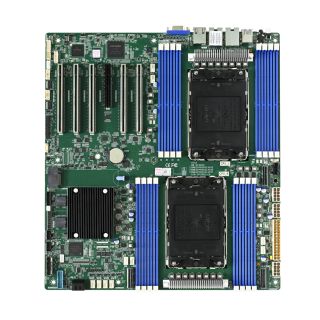

Vega supports dual 4th/5th Generation Intel® Xeon® Scalable Processors with 3 UPIs (up to 20GTs), per CPU cores up to 60, and TDP up to 350W. With builtin Intel® C741, it supports up to 4TB DDR5 3DS RDIMM with 16 memory slots and memory speeds up to 5600MHz. The high speed expansion I/O includes 5 x16 PCIe5.0/CXL1.1 slots, 1 x8 PCIe5.0 slot, 3 MCIO x8 PCIe5.0, 2 M.2 2280 PCIe4.0 x4, 2 SATA3.0 7pin connectors (6 Gb/s), and 1 slimline connector (up to 8 SATA). Security features include TPM 2.0 and TCM 2.0 interface for extension.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Supports 4th/5th Gen Intel® Xeon® Scalable Processors for highest every performance and improved power efficiency

FEATURE

Supports 16DDR5 DIMM slots for maximum memory performance

FEATURE

Supports Compute Express Link (CXL1.1)

FEATURE

Six PCIe slots can support three FHFL PCIe5.0 x16 add-in cards

FEATURE

Supports three MCIO x8, total 24 PCIe5.0 lanes

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

System

Dimensions

• mm : 304.8 x 332.7
• inches : 12 x 13

Processor-Support

Dual Intel® Sapphire Rapids / Emerald Rapids CPU

CPU-TDP

350W

UPI-Speeds

16/20GTs

Socket-Type

Socket E1 (LGA-4677-X)

System-Memory

• DDR5 5600/4800MHz RDIMM (1DPC)
• Total 16 memory slots; 8 slots per CPU (1DPC)
• Support up to 4TB (3DS RDIMM)

Expansion-Slots

Total support 112 lanes of PCIe5.0
• PCIe slots (up to 5 x16 CXL1.1 devices)
- 3 x16 PCIe5.0/CXL1.1 (CPU0)
- 2 x16 PCIe5.0/CXL1.1 (CPU1)
- 1 x8 PCIe5.0 (CPU1)
• MCIO
- 3 MCIO x8 PCIe5.0
• M.2
- 2 M.2 2280-D5-M PCIe Gen4.0 x4

System-BIOS

BIOS-Type

AMI UEFI BIOS

BIOS-Features

• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hot plug

On-board-Devices

SATA

Emmitsburg PCH on-chip solution
• 2 x SATA3.0 (6 Gb/s) 7pin connectors
• 1 x Slimline connector (up to 8 SATA ports)

BMC

ASPEED AST2600

Network-Controller

• Realtek RTL8211FS 1GbE for BMC dedicated management port
• Broadcom BCM5720 dual port 1GbE (NCSI for share NIC)

Graphics

• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp

Additional Information

TPM 2.0 - NUVOTON NPCT760AABYX

Input-Output

SATA

• 2 x SATA3.0 12Gb/s (by 7pin )
• 1 x Slimline connector supports 8 x SATA

LAN

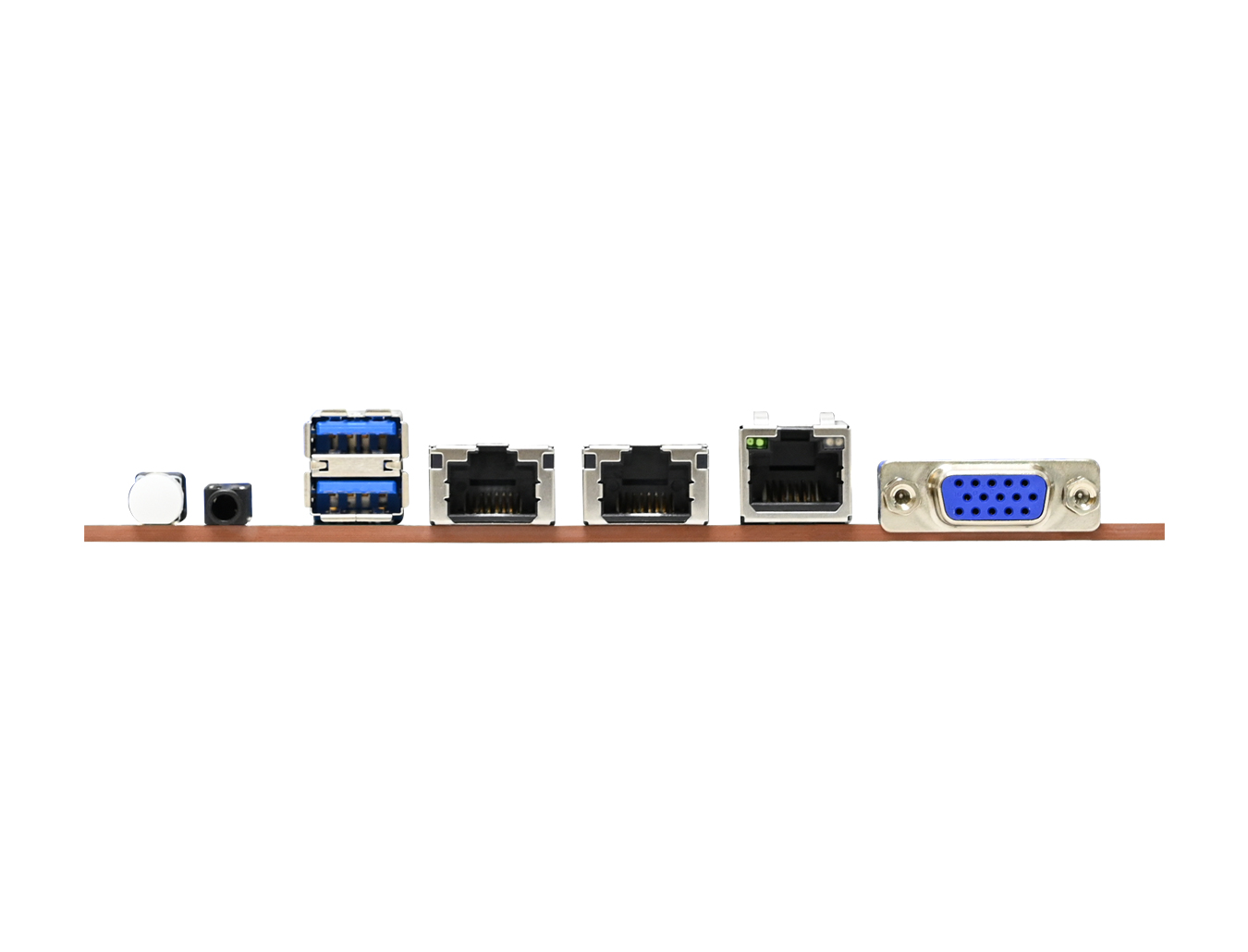

• 1 x RJ45 GbE connector for BMC dedicate management port
• 2 x RJ45 1GbE connectors

USB

• USB3
- 2 x USB3.1 Gen1 double stack type-A connector at rear I/O
- 1 x USB3 pin header supports two USB3.1 Gen1
• USB2
- 2 x USB2.0 pin headers support two USB2.0

Display

1 x DB-15 VGA connector

Serial-Port

1 x COM connector (Audio Jack)

Others

1 x external UID/switch button

Additional-Information

Security

• TCM 2.0 interface for extension
• TPM 2.0 onboard (Default: N/A; optional by SKU)

* All specifications are subject to change without notice.

MB_SKU	Ordering Information	Description
Vega	BMB2DPR0001A	PCBA/MOTHER BOARD/MB-DPSR02/VEGA/EGS/EATX/C01 INTEL CPU2/MEMORY16/PCIEX16 SLOT 5/PCIEX8 SLOT 1/ M.2 SLOT 2/MCIOX83/SLIMLINEX8*1/TPM
Vega	M22-1717-006	VEGA MB (BMB2DPR0001A) (MB-DPSK02) with IOS (M60-1717-001), bulk packing with 10 pcs MB & IOS (10 pcs in packing)
Vega	M22-1717-007	VEGA MB (BMB2DPR0001A) (MB-DPSK02) with IOS (M60-1717-001), single packing
