ES1-212-E0

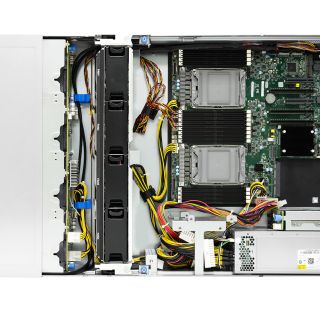

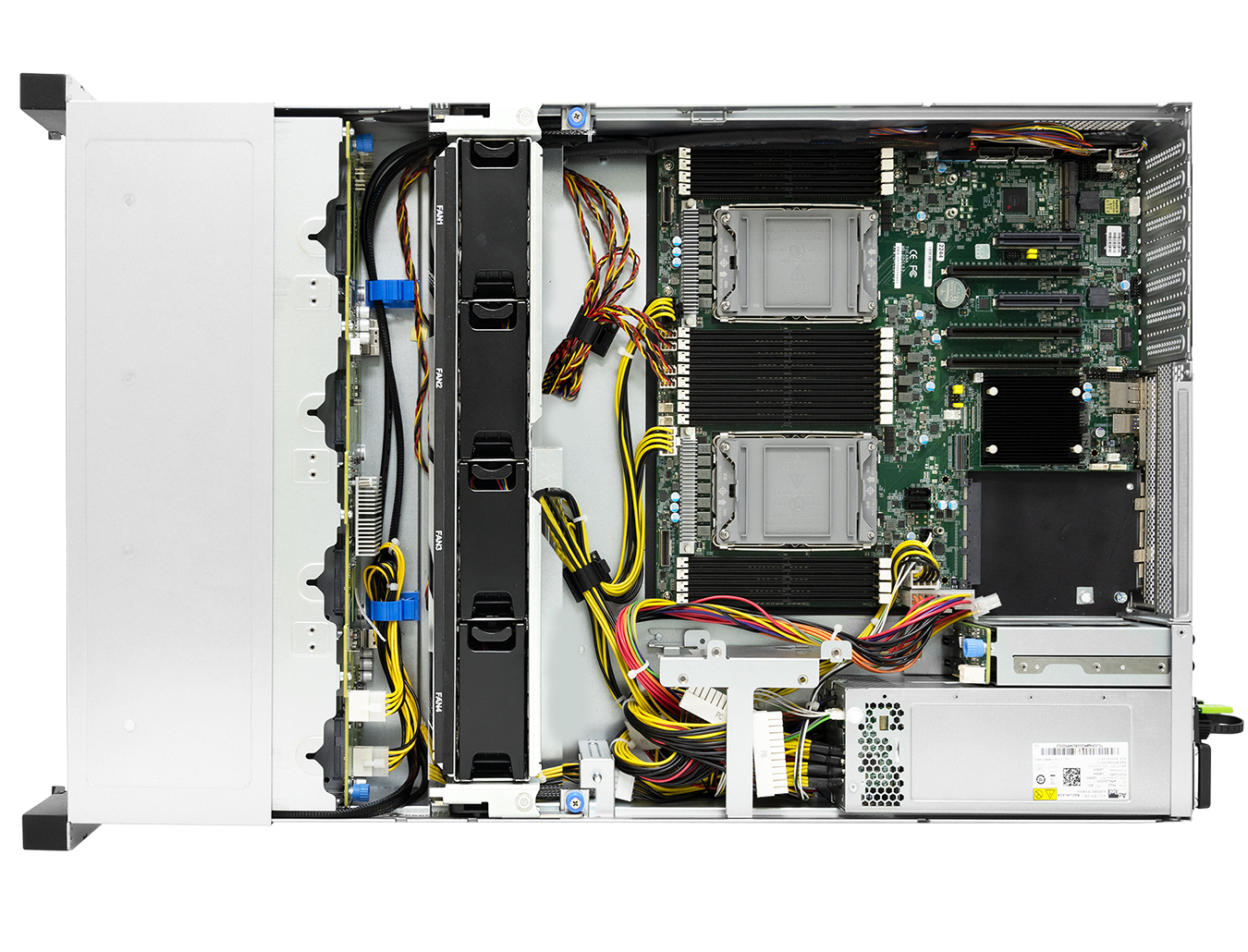

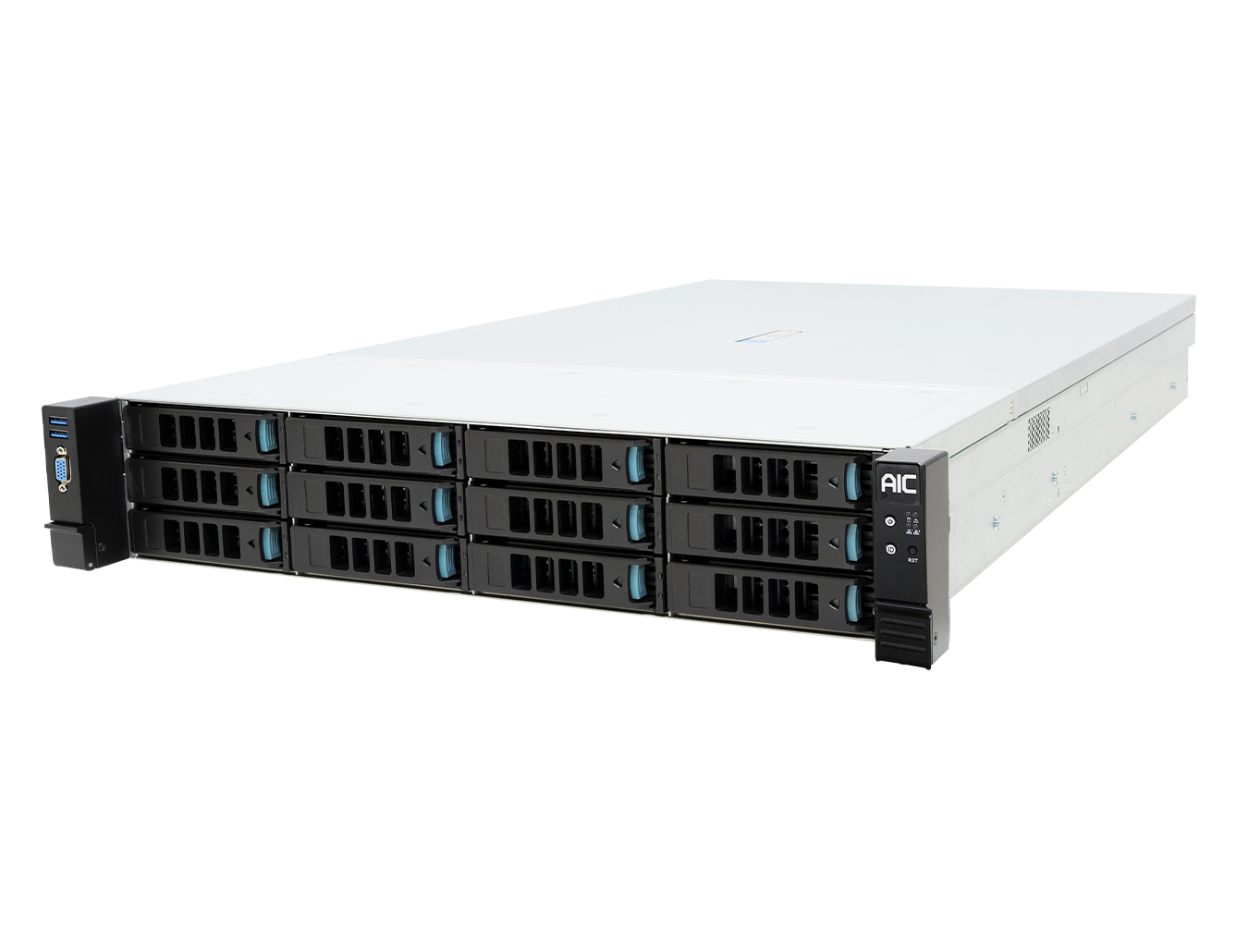

AIC new generation 2U storage chassis with high range mother board size support up to EATX+ 12.8” x 14”. Tool-less design are for drive tray, top cover, FAN & FAN bar, BP releasing. Additional VGA port in front for friendly maintenance supporting. It also supports close loop liquid solution especially with “shadow” CPU layout mother board. Up to 2000w 1+1 redundant PSU support.
KEY FEATURE
General purpose 2U rackmount chassis support SSI EEB and E-ATX M/B, with size up to 12.8”x14” and thickness up to 3.2mm
FEATURE
General purpose 2U rackmount chassis support SSI EEB and E-ATX M/B, with size up to 12.8”x14” and thickness up to 3.2mm
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- 3.5” & 2.5” drive trays, slide rails, backplane
- Top cover with embedded latch & lock design
Supreme system cooling
FEATURE
Supreme system cooling:
- 4 x 8038 (4th one optional) or 8056 (optional) hot-swap fans to support TDP up to 350W
- Reserved room from AIC proprietary or 3rd party made closed-loop liquid cooling kit (optional)
Flexible configuration to adapt to a wide variety of applications
FEATURE
• Flexible configuration to adapt to a wide variety of applications

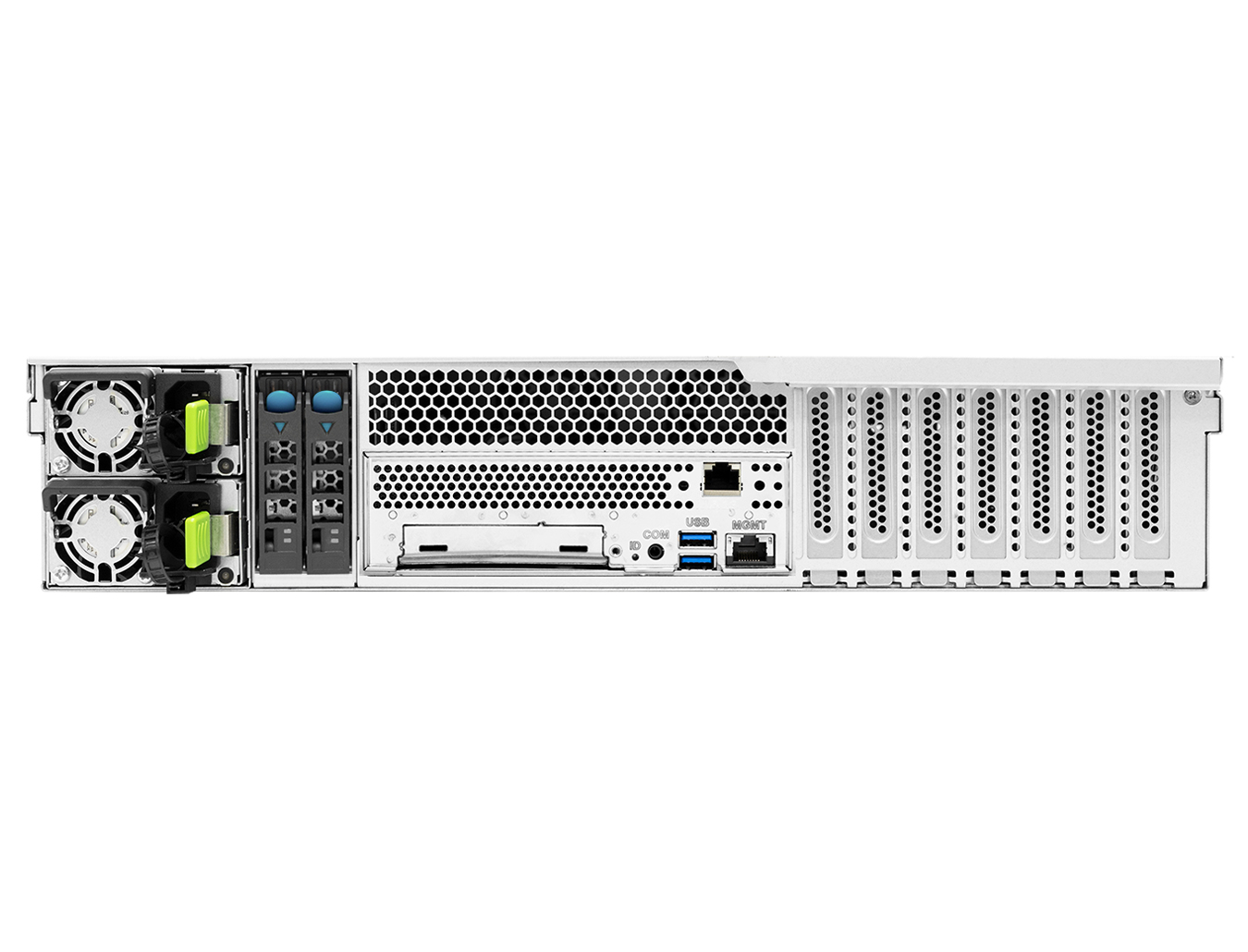

- 2 x 2.5” hot-swappable OS drive bays at rear
- Optional bracket for 2 x internal 2.5” drive bays for future storage expandability
- Flexible backplane support: 1 x 12-port 12Gb/s SAS3 EOB, and NVMe tri-mode backplane
Anti-vibration design for fan holder & fan cage
FEATURE
Anti-vibration design for fan holder & fan cage
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 720 x 87
inches
17.2 x 28.35 x 3.4
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
• Standard: 3 x 80x38mm hot swap fans (Optional 4 x 80x38mm hot swap fans)
• Optional:
- 4 x 80x38mm high speed hot swap fans
- AIC proprietary dual cold plate liquid cooling kit
• Optional:
- 4 x 80x38mm high speed hot swap fans
- AIC proprietary dual cold plate liquid cooling kit
Power Supply
• 800W 1+1 redundant PSU 80+ Platinum/Titanium
• 1200W 1+1 redundant PSU 80+ Platinum
• 1300W 1+1 redundant PSU 80+ Titanium
• 1200W 1+1 redundant PSU 80+ Platinum
• 1300W 1+1 redundant PSU 80+ Titanium
Expansion Slots
7 low profile
Front Panel

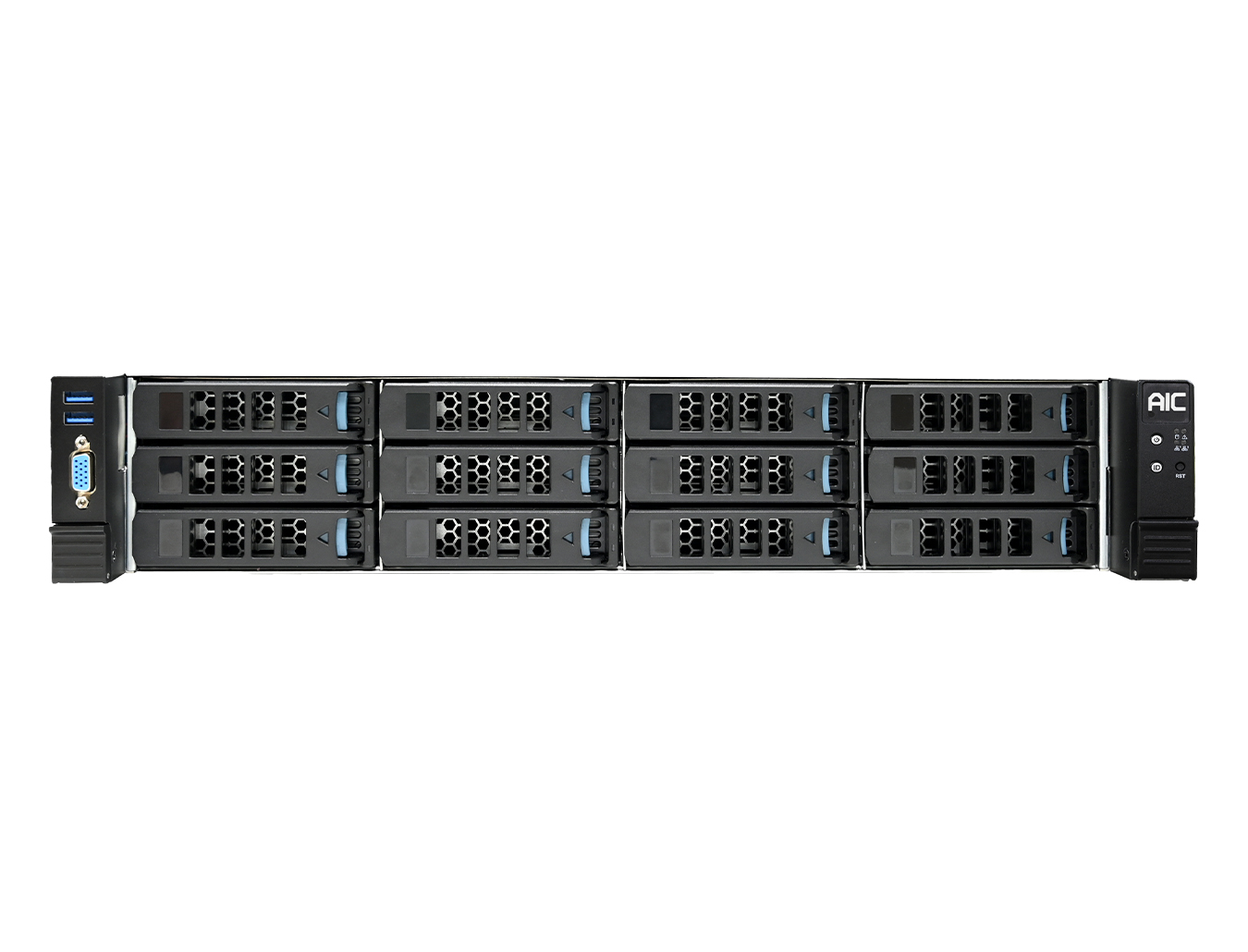

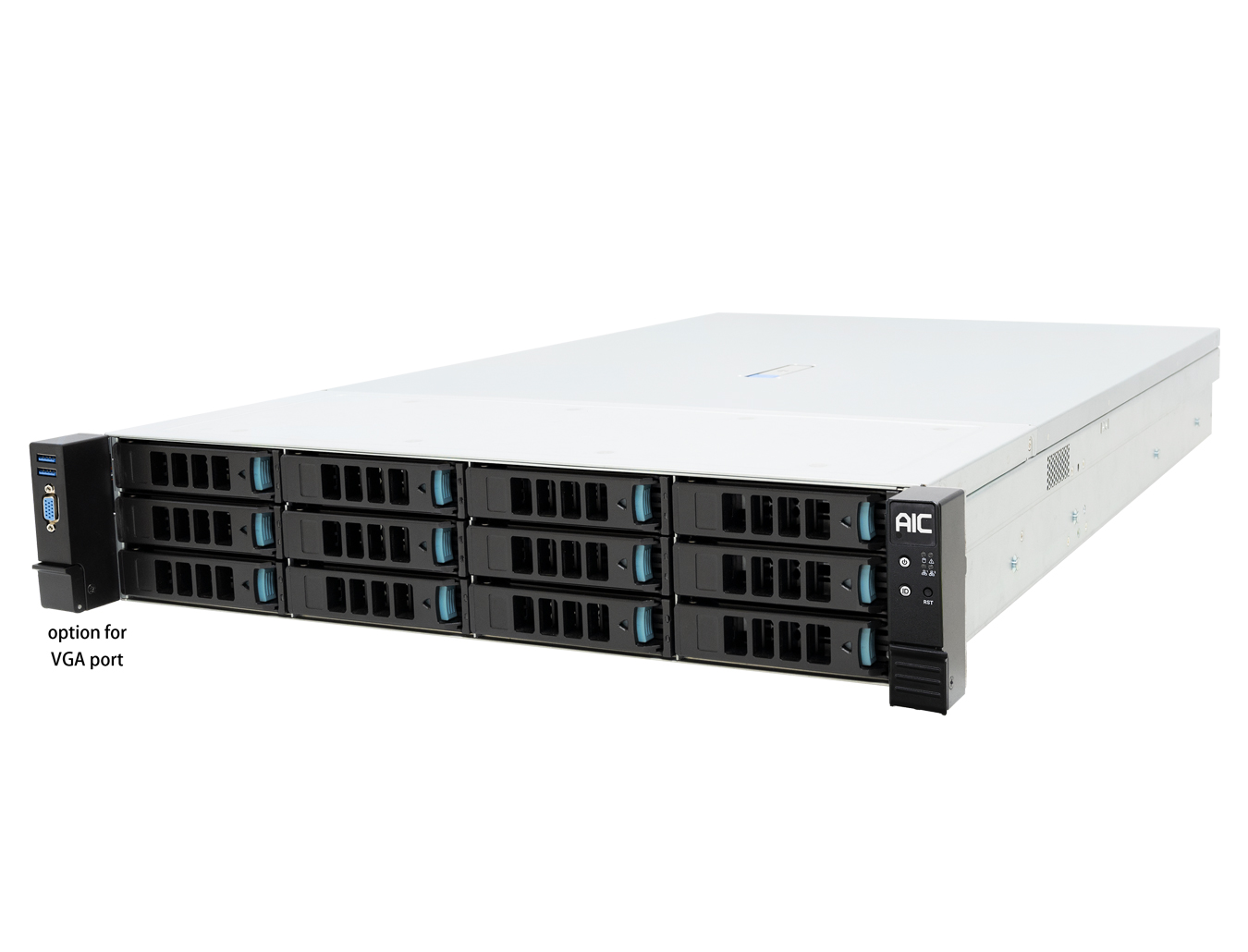

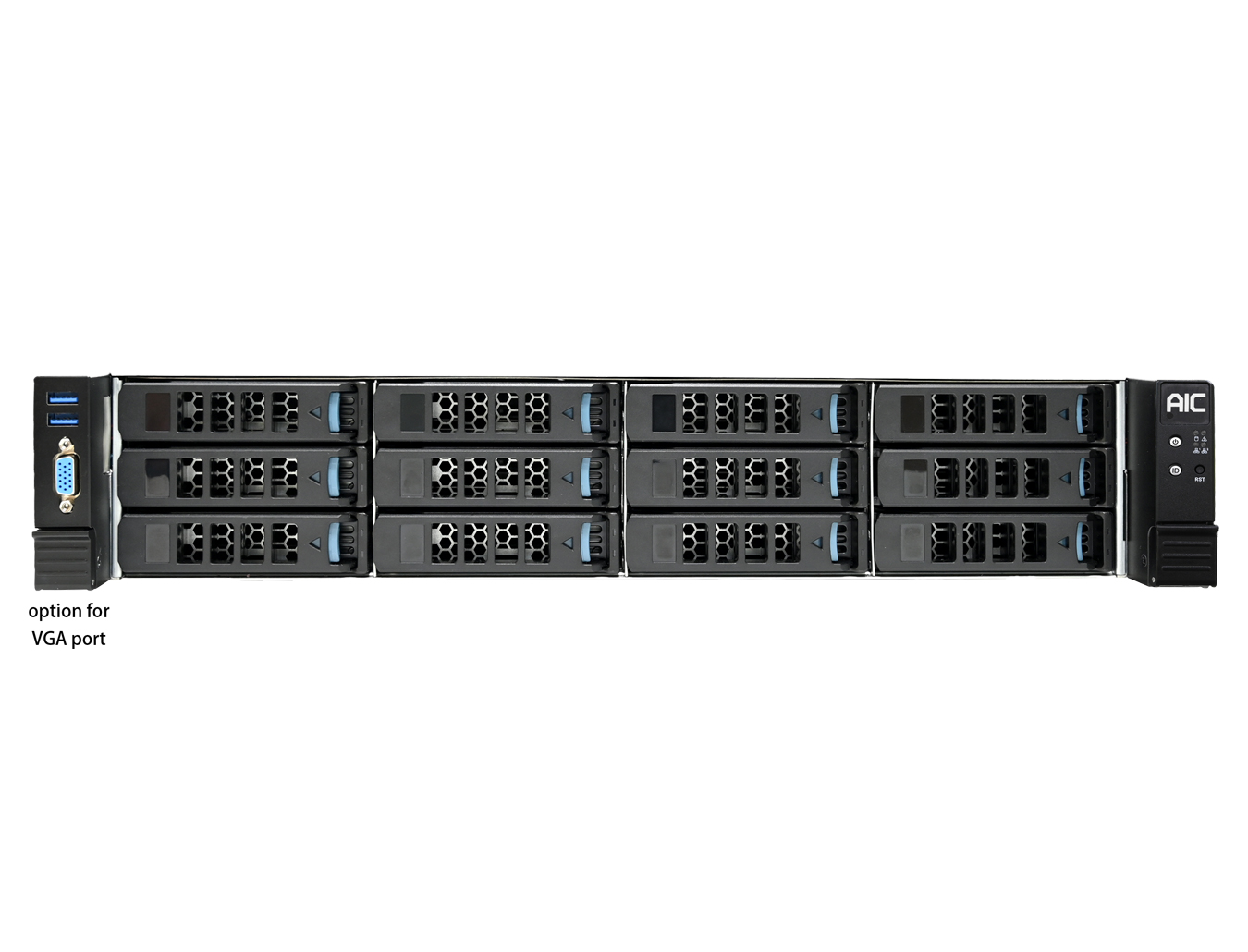

System power on/off, System ID, System reset, 2 x USB3.2 Gen1 x1 ports, and VGA port (optional)
LED Indicators
Power, ID, LAN 1, LAN 2, Drive, and Alert
System board
SSI EEB 3.6 compliant, E-ATX up to 12.8”(W) x 14”(D)
Drive Bays
External
• 12 x 3.5” hot swap
• 2 x 2.5” hot swap (rear)
• 2 x 2.5” hot swap (rear)
Internal
2 x 2.5” (optional)
Backplane
Front :
• 1 x 12-port SAS3/SATA EOB backplane
• 1 x 12-port SAS3/SATA/PCle Gen4 NVMe tri-mode backplane
Rear :
• 1 x 2-port SATA backplane
• 1 x 2-port SAS3/SATA/PCIe Gen5 NVMe tri-mode backplane
• 1 x 12-port SAS3/SATA EOB backplane
• 1 x 12-port SAS3/SATA/PCle Gen4 NVMe tri-mode backplane
Rear :
• 1 x 2-port SATA backplane
• 1 x 2-port SAS3/SATA/PCIe Gen5 NVMe tri-mode backplane
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs:
24
lbs:
53
Packaging Dimensions (W x D x H)
mm
620 x 960 x 274
inches
24.4 x 37.8 x 10.8
Cubic Feet
4.62
Container Load Quantity
20'
140
40'
294
40' H
336
Mounting
Standard: 36” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-212E0-01 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS Platinum redundant power supply, front ear 2x USB 3.0, 2x 15mm 2.5" hot-swap OS SATA, 3x 8038 hot-swap FAN (13000RPM), low profile rear panel, rail, 2U 12x 3.5"/2.5" SAS/SATA/NVMe PCIe Gen.4 hot-swap (Passive BP), w/o VGA port, w/o bezel |
| XE1-212E0-02 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS Titanium redundant power supply, front ear 2x USB 3.0, 2x 15mm 2.5" hot-swap OS SATA, 3x 8038 hot-swap FAN (13000RPM), low profile rear panel, rail, 2U 12x 3.5"/2.5" SAS/SATA/NVMe PCIe Gen.4 hot-swap (Passive BP), w/o VGA port, w/o bezel |
| XE1-212E0-05 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS Platinum redundant power supply, front ear 2x USB 3.0, 2x 15mm 2.5" hot-swap OS SATA, 3x 8038 hot-swap FAN (13000RPM), low profile rear panel, rail, 2U 12 SAS 12G expander controller on backplane (35X series), w/o VGA port, w/o bezel |
| XE1-212E0-06 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS Titanium redundant power supply, front ear 2x USB 3.0, 2x 15mm 2.5" hot-swap OS SATA, 3x 8038 hot-swap FAN (13000RPM), low profile rear panel, rail, 2U 12 SAS 12G expander controller on backplane (35X series), w/o VGA port, w/o bezel |
| XE1-212E0-09 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Platinum redundant power supply, front ear 2x USB 3.0, 2x 15mm 2.5" hot-swap OS SATA, 3x 8038 hot-swap FAN (13000RPM), low profile rear panel, rail, 2U 12 SAS 12G expander controller on backplane (35X series), w/o VGA port, w/o bezel |
| XE1-212E0-10 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Titanium redundant power supply, front ear 2x USB 3.0, 2x 15mm 2.5" hot-swap OS SATA, 3x 8038 hot-swap FAN (13000RPM), low profile rear panel, rail, 2U 12 SAS 12G expander controller on backplane (35X series), w/o VGA port, w/o bezel |
| XE1-212E0-13 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS Titanium redundant power supply, front ear 2x USB 3.0, 2x 15mm 2.5" hot-swap OS SATA, 4x 8038 high current hot-swap FAN (18300RPM), low profile rear panel, rail, 2U 12x 3.5"/2.5" SAS/SATA/NVMe PCIe Gen.4 hot-swap (Passive BP), w/o VGA port, w/o bezel |
| FRU Information | FRU Information | |
| Standard Parts List | Part Number | Description |
| Power | PM-D00000083 | 550W CRPS Platinum power supply module |
| Power | PM-B00000117 | 800W CRPS Platinum power supply module |
| Power | PM-B00000118 | 1200W CRPS Platinum power supply module |
| Power | PM-C00000132 | 800W CRPS Titanium power supply module |
| Power | PM-B00000133 | 1300W CRPS Titanium power supply module |
| Backplane | BBP2HD20001A | 8-port 12GB SAS/SATA passive backplane (BP-HD2H27-TY) |
| Backplane | BBP2HD20044A | 12-bay 12G EOB backplane (35X) BP-HD2E10-TY |
| Backplane | BBP2FB20001A | 12 port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB2U03-TY) |
| Backplane | BBP2HD10037A | 2.5" 15mm 2 port SATA backplane (BP-HD1S10-TY) |
| Backplane | BBP2FB10001A | 2.5" 15mm 2 port PCIe Gen 5 NVMe backplane (BP-FB1U06-TY) |
| FAN | FNDEG-100001 | 8038 FAN (9000 RPM) with connector |
| FAN | FNDEG-100004 | 8038 FAN (13000 RPM) with connector |
| FAN kit | M03-1622-001 | 1 x 8038 FAN (13000 RPM) with connector, FAN carrier & FAN cable |
| FAN kit | M03-1622-006 | 1 x 8038 FAN (9000 RPM) with connector, FAN carrier & FAN cable |
| FAN kit | M03-1622-004 | 1 x 8038 FAN (13000 RPM) with connector, FAN carrier |
| FAN kit | M03 -1622-002 | 1 x 8038 high current FAN (18300 RPM), FAN carrier and Y cable |
| PDB | PH-A00000170 | 1200W CRPS power supply housing |
| PDB | PH-A00000171 | 2000W CRPS power supply housing |
| Bezel | M08-1622-001 | ES1 2U Plastic bezel with key lock, with packing (10 pcs in packing) |
| Rail | H5541T200015 | 36” tool-less slide rail (TW) |
| Rail | H5541T200016 | 32” tool-less slide rail (CN) |
| Rail CMA | H56-8452-001 | Rail Cable Management Arm kit 2U and up (for H5541T200015/MA CMH-0004-AC1) |
| Switch | M50-1622-007 | Intrusion switch set with bracket & cable (CN) |
| Switch | M06-1622-230 | Intrusion switch set with bracket & cable (TW) |
| OS kit | M06-1622-226 | Rear OS kit with bracket, 2x 2.5” 15mm tray & SATA BP |
| OS kit | M06-1622-227 | Rear OS kit with bracket, 2x 2.5” 15mm tray & PCIe Gen.5 tri-mode BP |
| Bracket | M06-1622-216 | Internal 2x 2.5” 15mm OS bracket |
| Bracket | M06-1622-039 | 7mm OS rear windows assembly |
| Bracket | M05-1622-006 | Single PSU (GW) bracket assembly for GW-EPS2U600 (CN) |
| Bracket | M05-1622-005 | Single PSU (GW) bracket assembly for GW-EPS2U600 (TW) |
| Bracket | M05-1622-009 | Single PSU (FSP) bracket assembly for FSP800-50FS (TW) |
