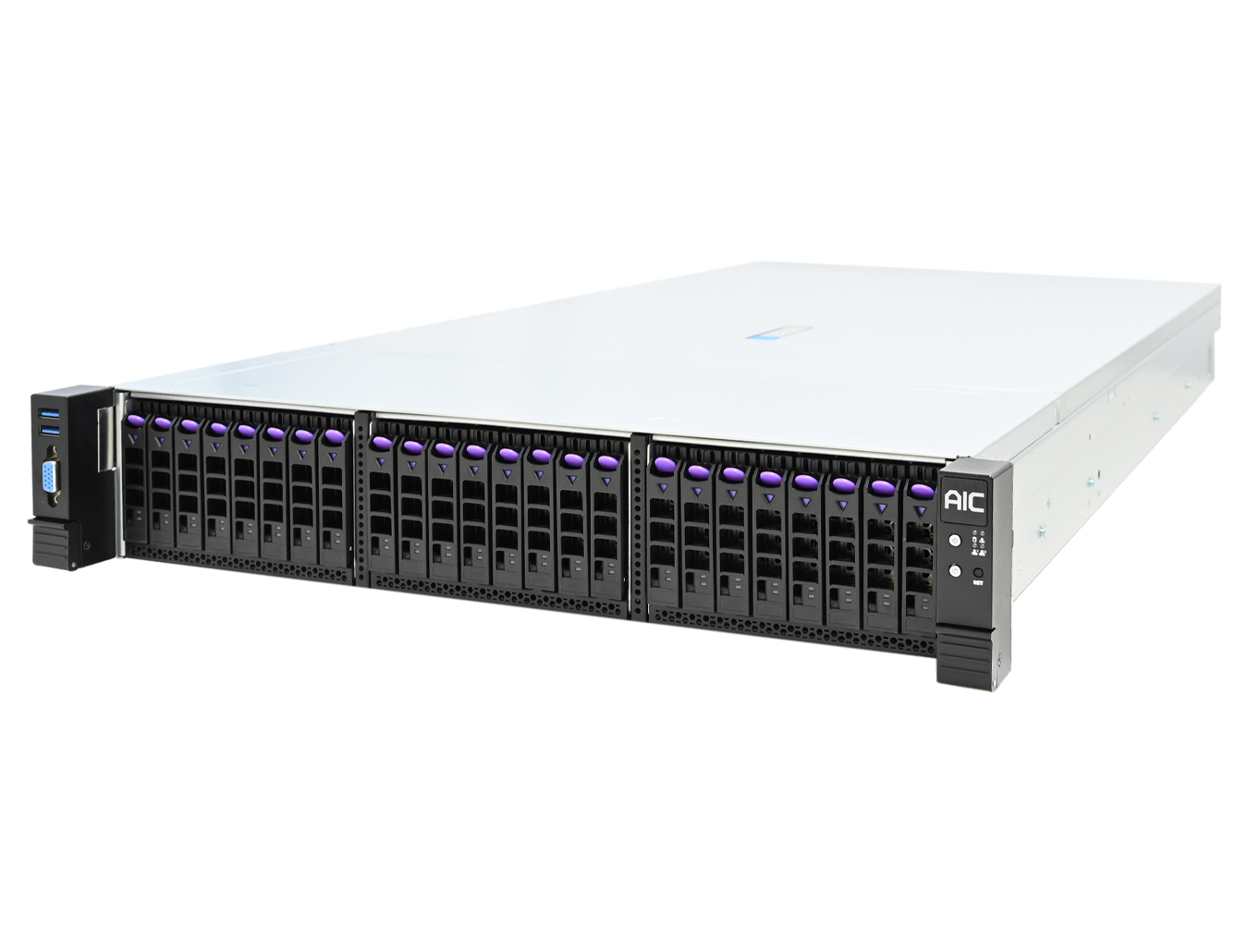

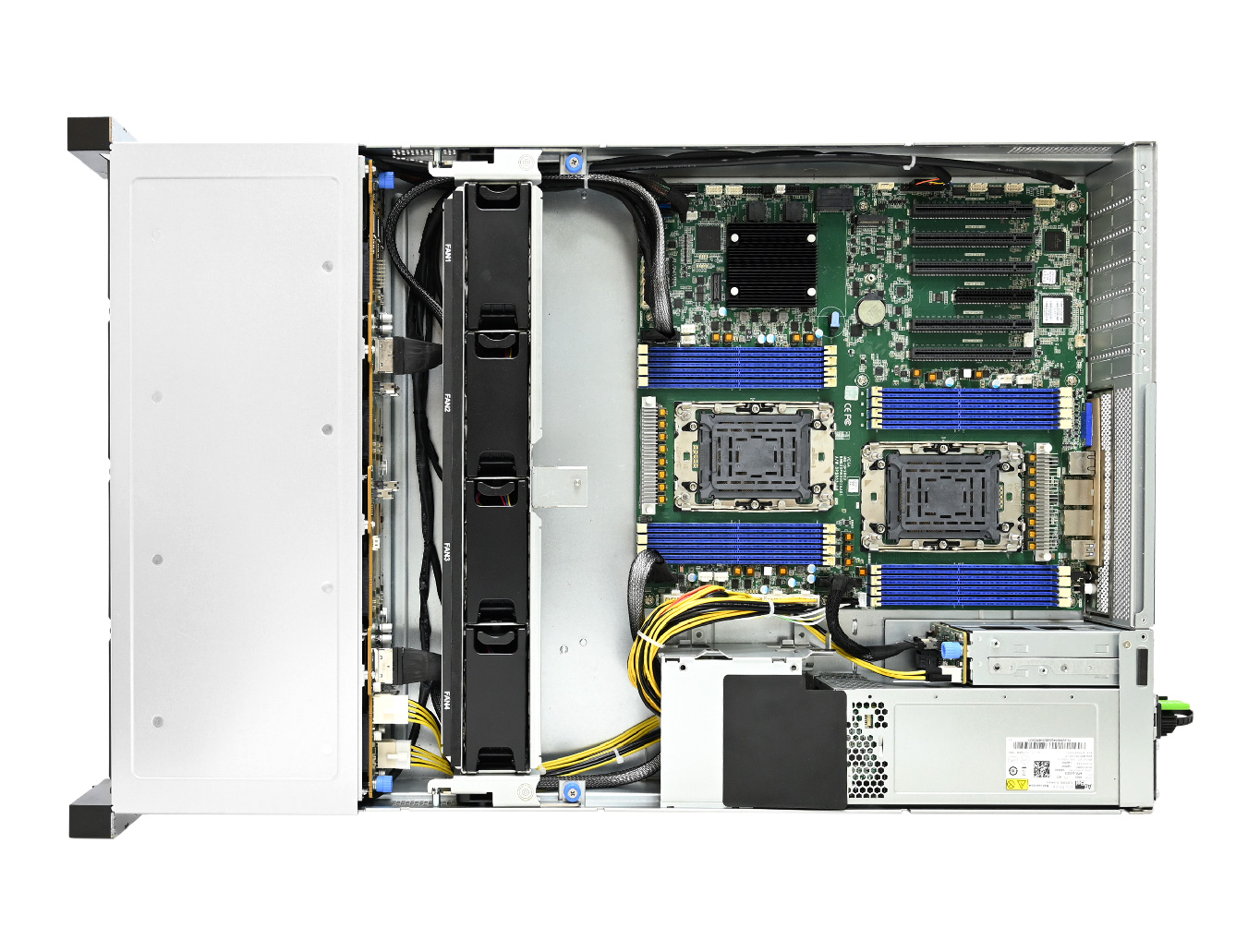

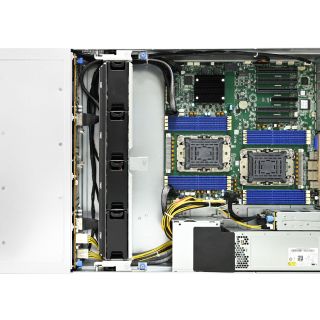

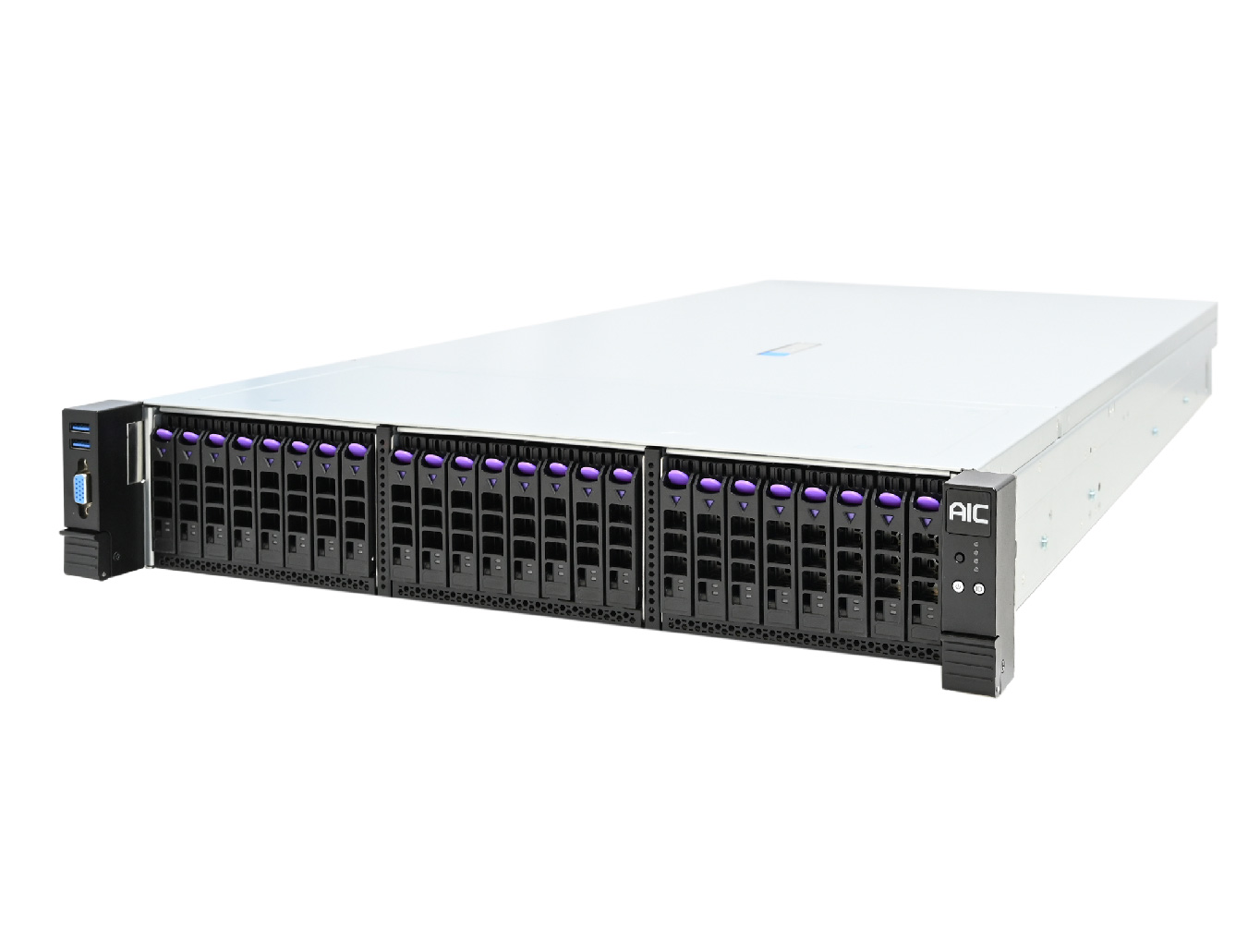

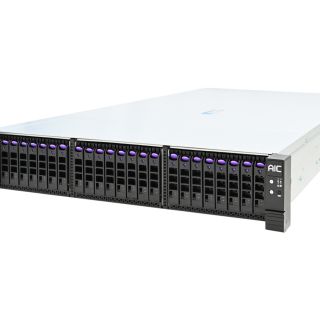

SB201-VA, a 2U general purpose server supports Intel® 4th/5th GEN Xeon® scalable processors, 16x DDR5 RDIMM, and 6x PCIe GEN5 extension slots. SB201-VA has 24 x 2.5”NVMe/SATA/SAS (front) and 2x2.5" SATA (rear) hot-swappable bays to provide highest storage density and optimized performance for the applications.
KEY FEATURE
2U 24-Bay storage server with NVMe drives support
FEATURE
2U 24-Bay storage server with NVMe drives support
Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
FEATURE
Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
FEATURE
Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
Supports DDR5 RDIMM and PCIe Gen5 extensions
FEATURE
Supports DDR5 RDIMM and PCIe Gen5 extensions
Intel® C741 Chipset to provide 5+ years product life cycle
FEATURE
Intel® C741 Chipset to provide 5+ years product life cycle
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Dedicated BMC management port
FEATURE
Dedicated BMC management port
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
FEATURE
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 728 x 87
inches
17.2 x 28.7 x 3.4
Motherboard
AIC Server Board Vega
Processor
Processor Support
• Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
CPU Interconnection
CPU Interconnection : 16/20GTs
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)
Socket Type
Socket E1 (LGA-4677-X)
Chipset Support
Intel® C741
System Memory
• Total 16 memory slots; 8 slots per CPU (1DPC)
• DDR5 5600/4800MHz RDIMM (1DPC)
• Supports up to 4TB (3DS RDIMM)
• DDR5 5600/4800MHz RDIMM (1DPC)
• Supports up to 4TB (3DS RDIMM)

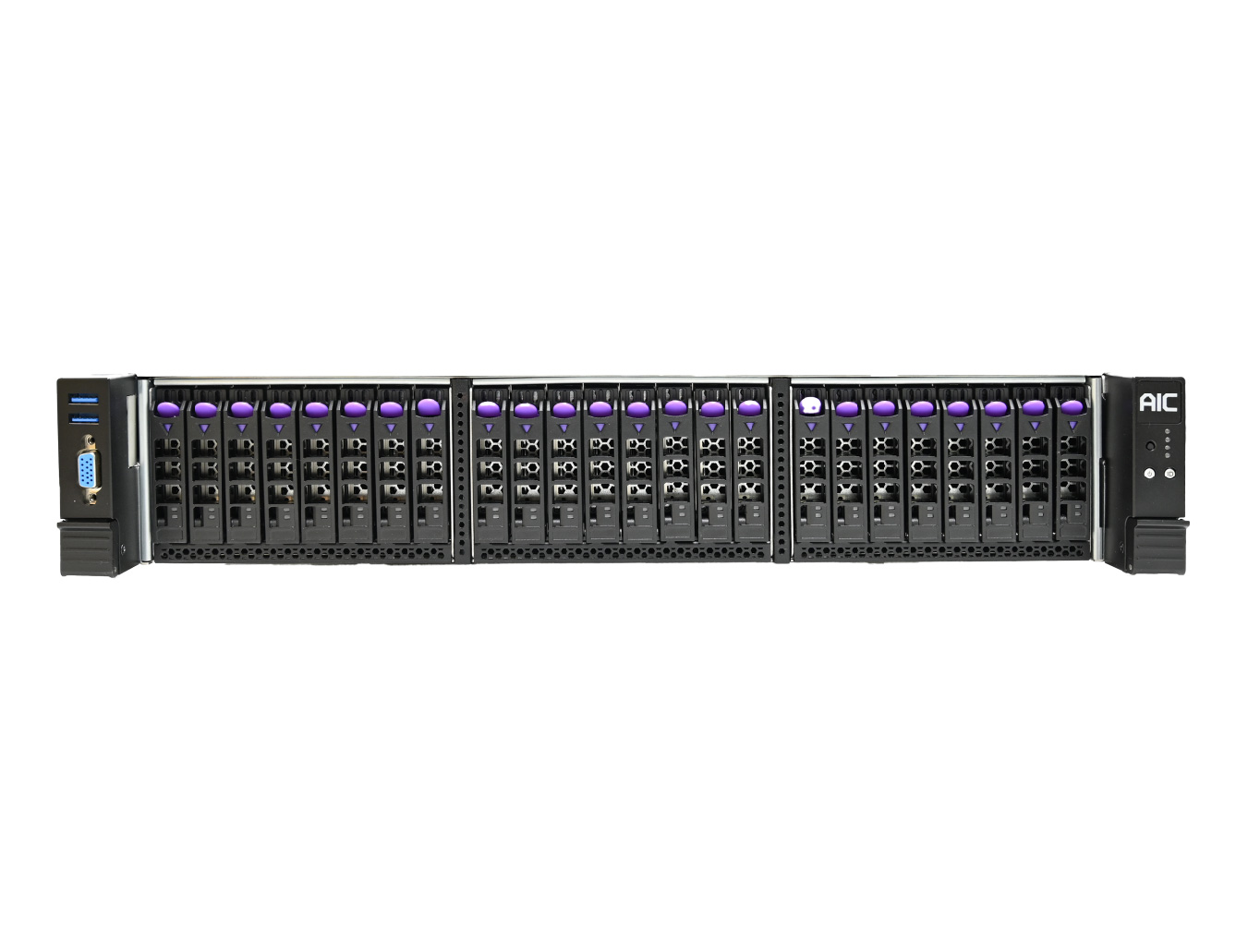

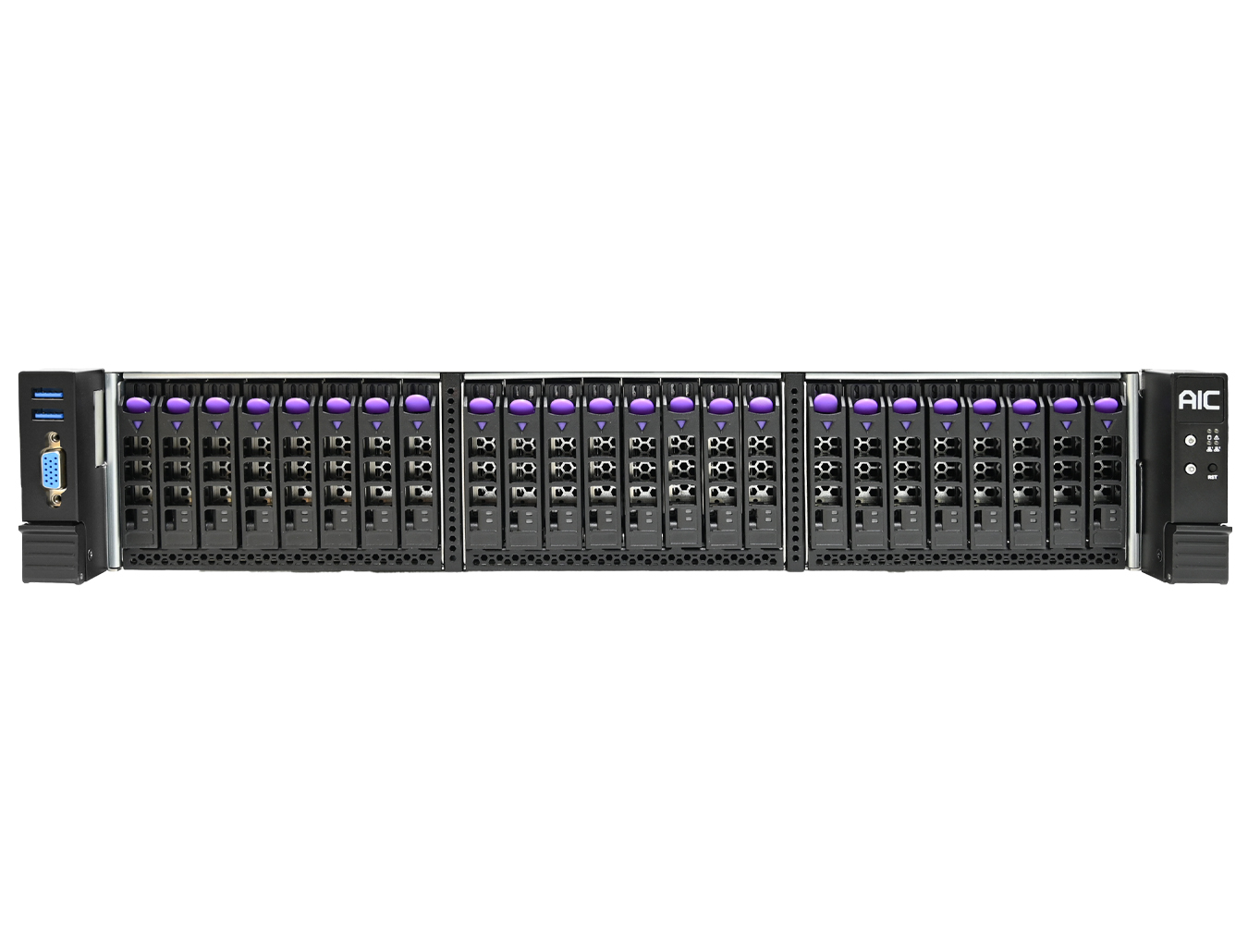

Front Panel
System power on/off, System ID, System reset, 2 x USB3.2 Gen1 ports, and VGA port (optional)
LEDs
Power, ID, LAN 1, LAN 2, Drive, and Alert

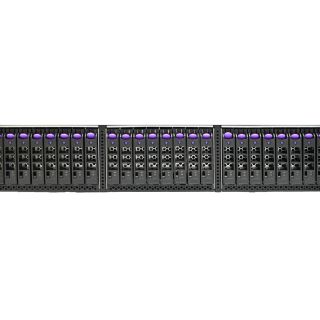

Drive Bays
External
• 24 x 2.5" Gen5 (24 x4 NVMe)
• 2 x 2.5” SATA (rear)
• 2 x 2.5” SATA (rear)
Internal
2 x M.2/M-Key/2280 (PCIe Gen4)
Backplane
Front:
• 3 x 8-port 2.5” Gen5 Tri-mode
Rear:
• 1 x 2-port 2.5” Tri-mode
• 3 x 8-port 2.5” Gen5 Tri-mode
Rear:
• 1 x 2-port 2.5” Tri-mode
Expansion Slots
1 x8 PCIe 5.0/CXL1.1
Expander Board:
Retimer card
Expander Board:
Retimer card
System Bios
Bios Type
AMI UEFI BIOS
Bios Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug
On Board
Devices
SATA :
Emmitsburg PCH on-chip solution
• 2 x SATA3.0 (6 Gb/s) 7-pin connectors
• 1 x Slimline connector (up to 8 SATA ports)
Emmitsburg PCH on-chip solution
• 2 x SATA3.0 (6 Gb/s) 7-pin connectors
• 1 x Slimline connector (up to 8 SATA ports)
Devices BMC
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
Devices Network Controllers
• Realtek RTL8211FS 1GbE for BMC dedicated management port
• Broadcom BCM5720 dual port 1GbE (NCSI for share NIC)
• Broadcom BCM5720 dual port 1GbE (NCSI for share NIC)
Devices Graphics
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp
• Resolution up to 1920x1200 @60Hz 32bpp

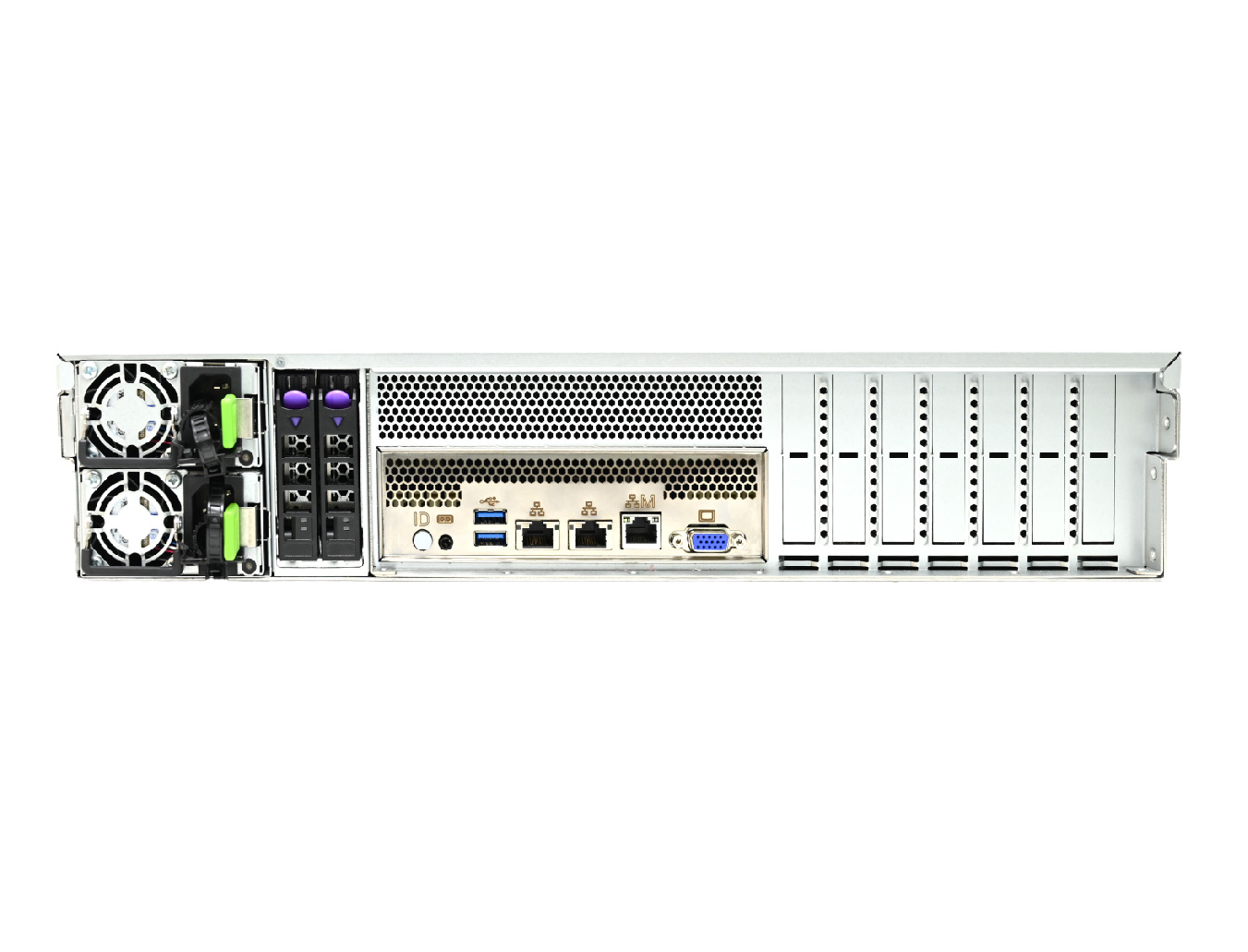

Rear I/O
LAN
• 1 x RJ45 GbE connector for BMC dedicate management port
• 2 x RJ45 1GbE connectors
• 2 x RJ45 1GbE connectors
USB
2 x USB3.2 Gen1 Type-A
Video Output
1 x DB-15 VGA connector
Serial Port
1 x COM connector (Audio Jack)
TPM Support
Power Supply
1600W 1+1 redundant power supply 80+ Platinum/Titanium
System Cooling
4 x 8038mm hot-swap fans (Air cooling)
System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
Environmental Specifications
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
lbs
Packaging Dimensions (W x D x H)
mm
615 x 1060 x 328
inches
24.2 x 41.7 x 12.9
Mounting (Standard)
36" tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
|
XP1-S201VA01 |
2U 24-bay 2.5" NVMe hot-swap (3x PCIe Gen5 Tri-mode 8-port backplane), 2x 2.5" SATA hot-swap (rear), 4x 8038 FAN, Acbel 1600W redundant power supply Titanium (C14 inlet), Vega motherboard, DDR5 RDIMM x16, 1x GbE dedicate IPMI, 1x PCIe x8 Gen5 (HHHL), with 5x PCIe Gen5 x16 retimer card, 2x CPU active heatsink, 36" slide rail, w/o bezel |
|
XP1-S201VA02 |
2U 8x 2.5" NVMe + 16x 2.5" SAS/SATA hot-swap (3x PCIe Gen5 Tri-mode 8-port backplane), 2x 2.5" SATA hot-swap (rear), 4x 8038 FAN, Acbel 1600W redundant power supply Titanium (C14 inlet), Vega motherboard, DDR5 RDIMM x16, 1x GbE dedicate IPMI, 4x PCIe x16 Gen5 (HHHL), 1x PCIe x8 Gen5 (HHHL), with 1x PCIe Gen5 x16 retimer card, 2x CPU active heatsink, 36" slide rail, w/o bezel |
| FRU Information | ||
|---|---|---|
| Standard Parts List | Part Number | Description |
| Backplane | BBP2FB20002AC01 | 2U8 / Gen5 / Tri mode / MCIO*4 / Slimlinex4*2 / SFF-8639*8 / Gowin_CPLD*2 |
| Retimer Card | BDB-PEG0042AD01 | PCIe X16 GF / Gen5 Retimer M88RT51632TRA1-T / MCIOX8 *2 |
| Power Supply | PM-A00000137 | ACBEL/CRPS-185/2000W/TITANIUM/AC-DC/PMBUS1.2/100-240INPUT |
| Heatsink | H50HP0A-0031 | HEATSINK/EGS 2U SERVER COOLER/0T242240000H |
| HDD Tray | M06-1633-800 | HDD Tray / Purple |
| HDD Tray | M06-1633-803 | HDD Tray / Blue |
| Slide Rail | H5541T200015 | 36” tool-less slide rail |
| Cable | G3-D00001214 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/350MM/29AWG/PCIE5/85OHM |
| Cable | G3-D00001217 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/500MM/29AWG/PCIE5/85OHM |
| Cable | G3-D00001218 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/550MM/29AWG/PCIE5/85OHM |
| Cable | G3-D00001219 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/600MM/29AWG/PCIE5/85OHM |
| Cable | G3-C00001469 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/650MM/29AWG/PCIE5/85OHM |
| Cable | G3-D00001220 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/700MM/29AWG/PCIE5/85OHM |
| Cable | G3-C00001414 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/750MM/29AWG/PCIE5/85OHM |
| G3-C00001507 | MCIO 8X(SFF-TA-1016,STR) TO MCIO 8X(SFF-TA-1016,STR)/800MM/29AWG/PCIE5/85OHM | |
