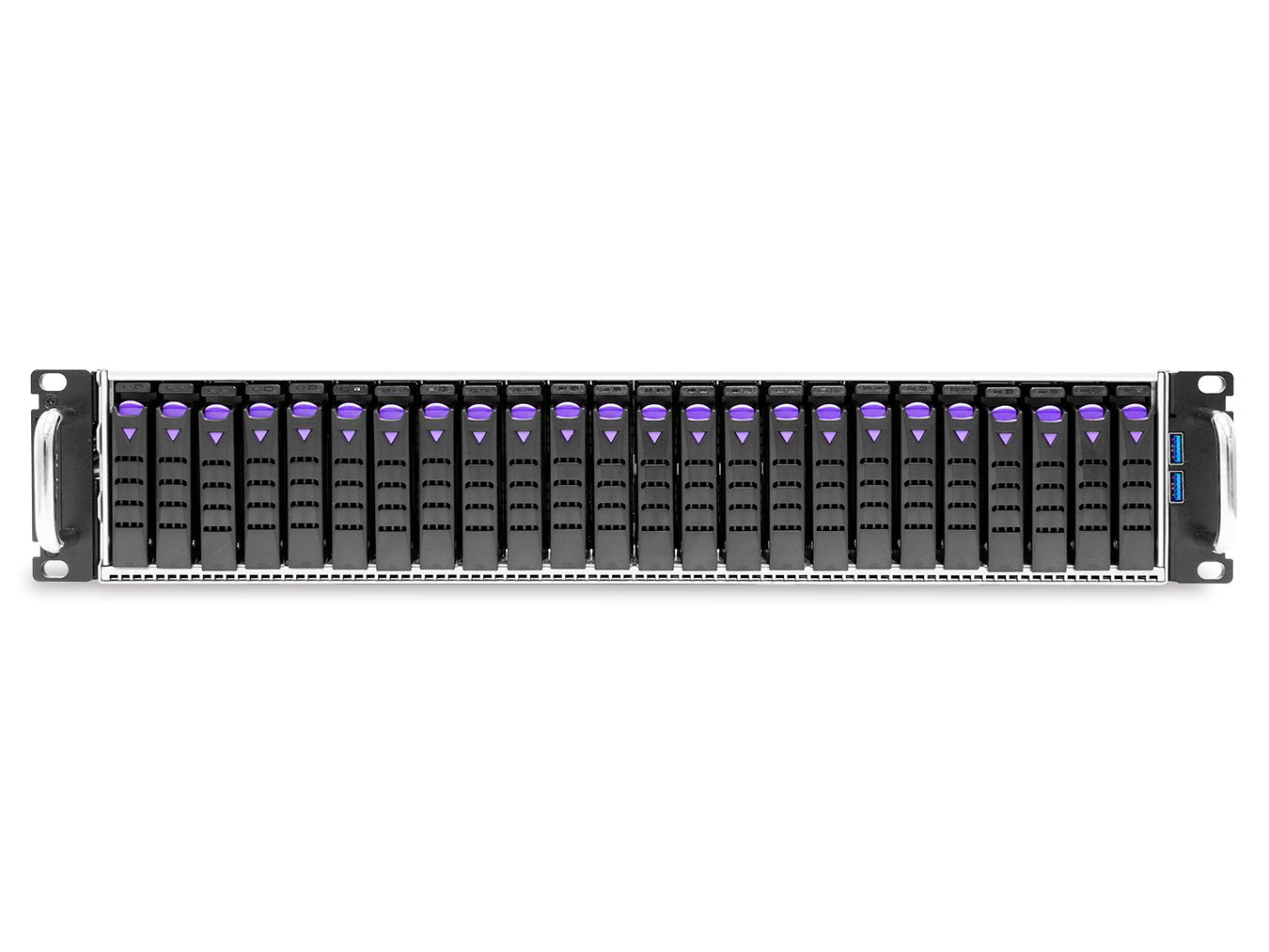

  • RSC-2AT3_Front

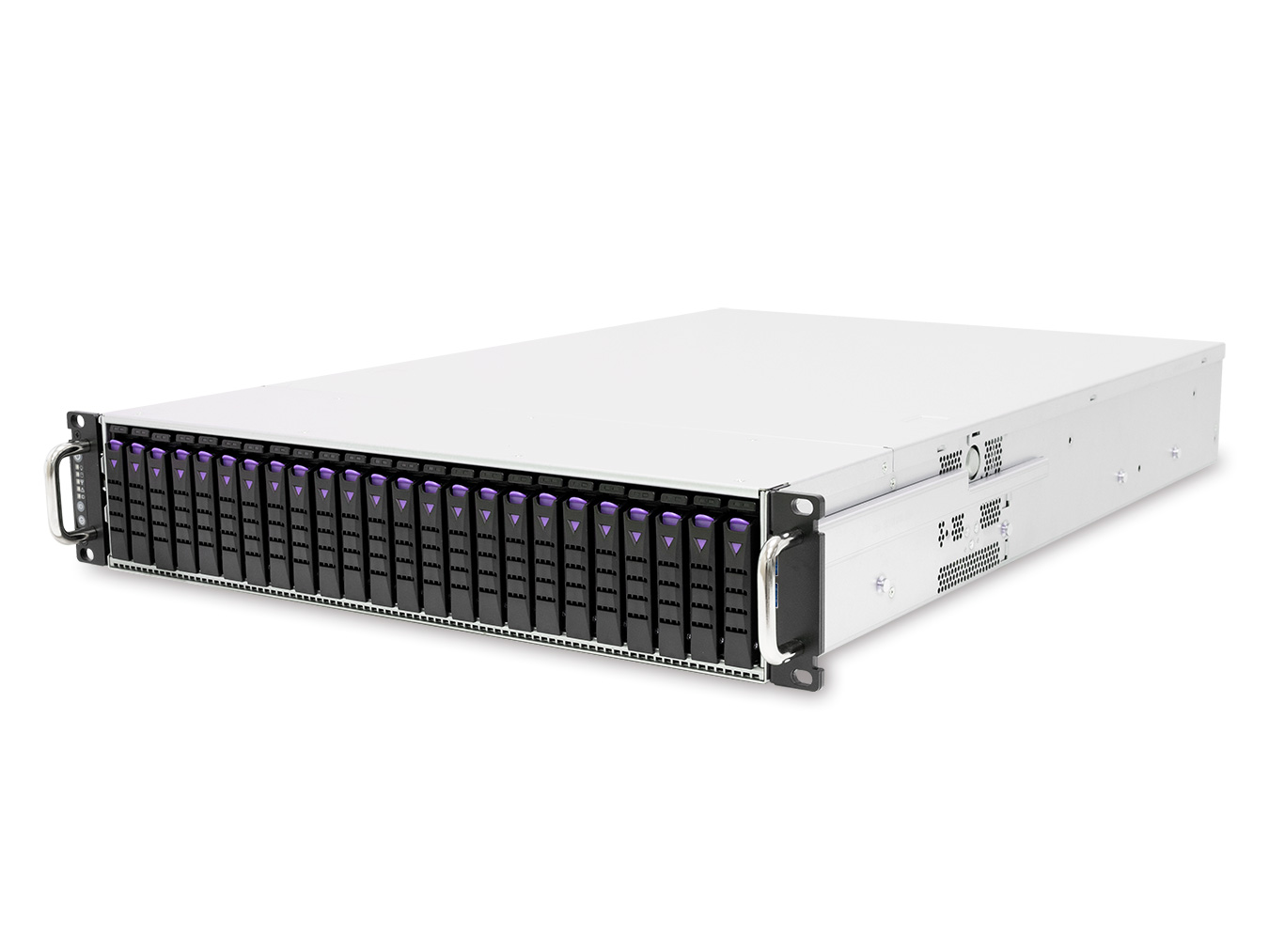

  • RSC-2AT3_Front45

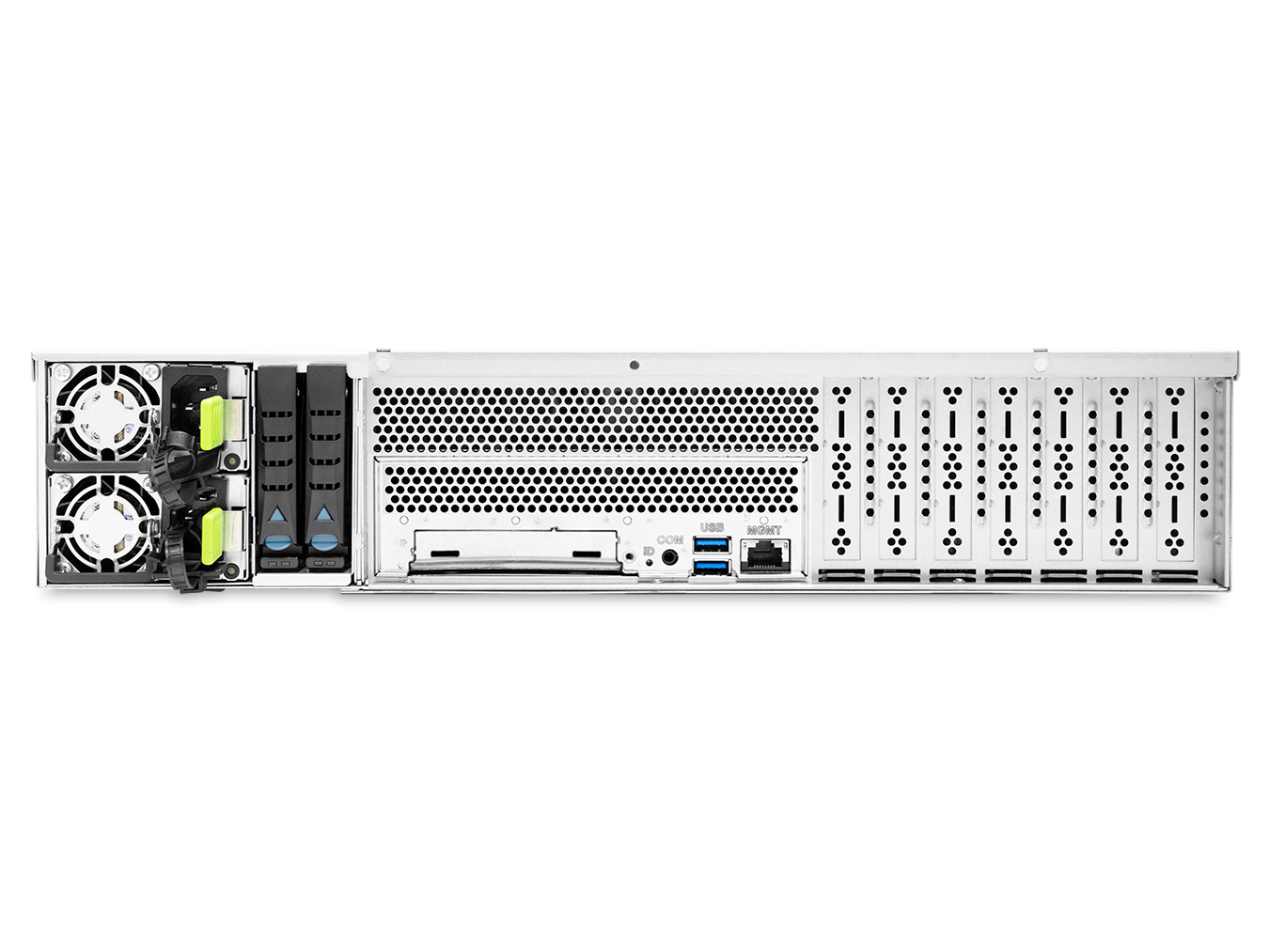

  • RSC-2AT3_Rear

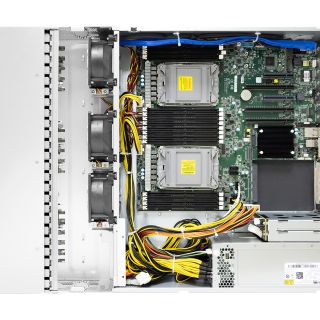

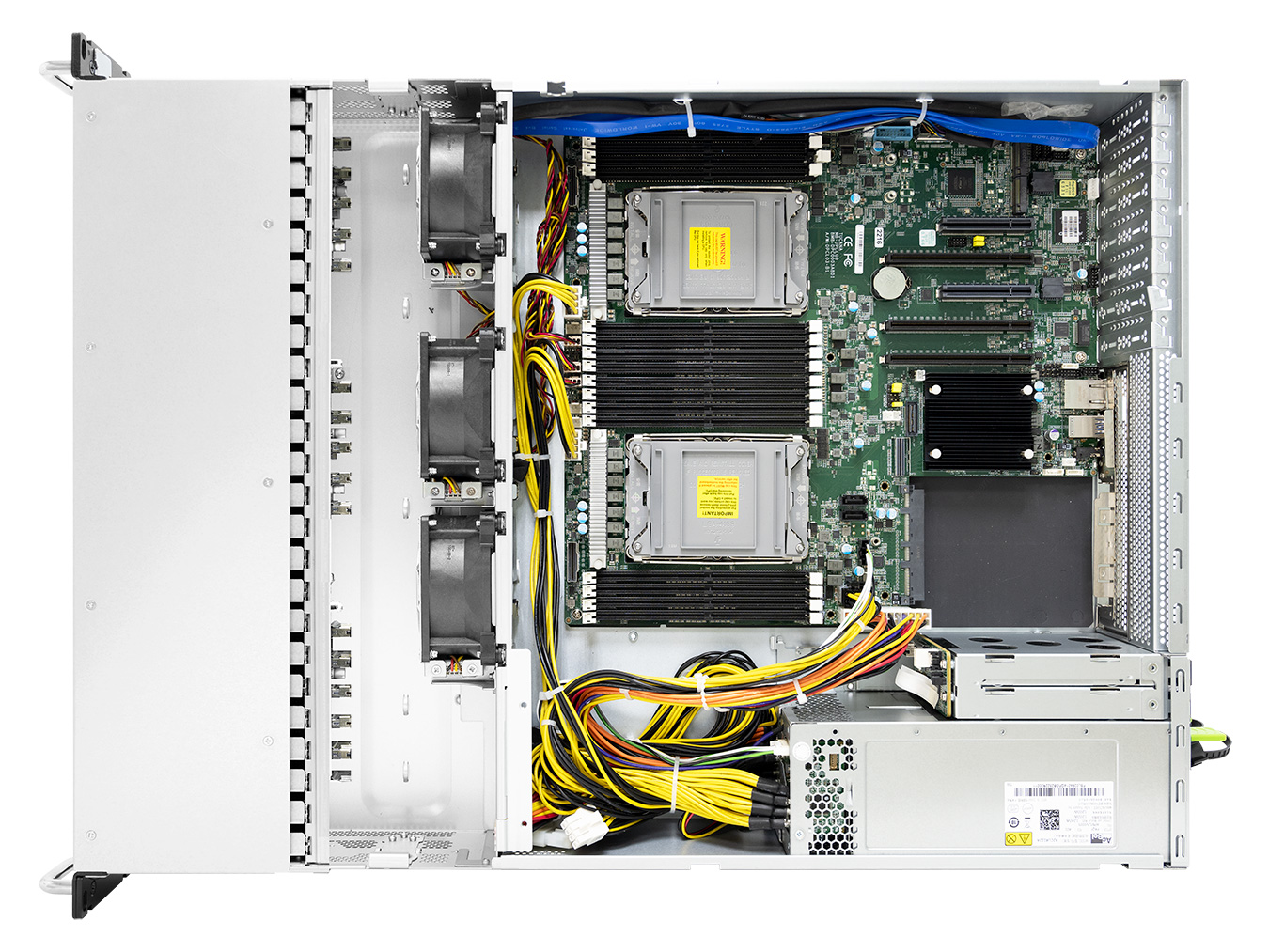

  • RSC-2AT3_TopOpen
  • RSC-2AT3_Front
  • RSC-2AT3_Front45
  • RSC-2AT3_Rear
  • RSC-2AT3_TopOpen
RSC-2AT3_Front RSC-2AT3_Front45 RSC-2AT3_Rear RSC-2AT3_TopOpen

RSC-2AT3

Home Products Chassis Server Chassis
RSC-2AT3 is a T series 2U 24-bay SAS/SATA storage server chassis. With its tool-less 2.5" hard drive/SSD carriers, top covers and backplane, the RSC-2AT3 supports quick installation and easy maintenance. This tool-less design solution also features 3 x 80x38mm hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE
Tool-less design supports quick installation and easy maintenance: - Tool-less 2.5” drive trays - Tool-less top covers - Tool-less slide rails
FEATURE
Flexible backplane support
FEATURE
12Gb/s SAS 3 expander chip / NVMe tri-mode on backplane
FEATURE
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
FEATURE
Comes with a redundant PSU 80+ Platinum
Specification

SPECIFICATION

Main
Sub
Details

Dimensions

mm
430 x 645 x 88
inches
17 x 25.4 x 3.5

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SGCC cold-rolled steel

Color

Front Panel : Black

Cooling

3 x 80x38mm hot swap fans

Power Supply

1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots

7 low profile

Front Panel

• System power on/off

• System ID

• System reset

• 2 x USB 3.0 port

LED Indicators

• Power

• LAN

• Drive

• Alert

System board

12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

External
• Front : 24 x 2.5" hot swap (SATA/SAS3/NVMe, 15mm, front)

• Rear : 2 x 2.5” hot swap (15mm, optional)
Internal

Backplane

• SKU6: 1 x 24-port expander backplane

• SKU7: 3 x 8-port SAS3 backplane

• SKU8: 1 x 8-port SAS3/PCIe Gen4 NVMe tri-mode backplane, 2 x 8-port SAS3 backplane

• SKU9: 2 x 8-port SAS3/PCIe Gen4 NVMe tri-mode backplane, 1 x 8-port SAS3 backplane

• SKU10: 3 x 8-port SAS3/PCIe Gen4 NVMe tri-mode backplane

Storage Temparature

0ºC(32ºF) ~ 50ºC(122ºF)

Humidity

5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs
24.5
lbs
54

Packaging Dimensions (W x D x H)

mm
645 x 835 x 230
inches
25.4 x 32.9 x 9.06

Cubic Feet

4.37

Container Load Quantity

20'
200
40'
430
40' H
480

Mounting

Standard: 28” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information Description
XE1-2AT02-06 2U 24x 2.5" SAS/SATA hot-swap (EOB BP) Chassis, 2x 2.5" 15mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
XE1-2AT02-07 2U 24x 2.5" SAS/SATA hot-swap (Passive BP) Chassis, 2x 2.5" 15mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
XE1-2AT02-08 2U 8x 2.5" SAS/SATA/NVMe + 16x 2.5" SAS/SATA hot-swap (Passive BP) Chassis, 2x 2.5" 15mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
XE1-2AT02-09 2U 16x 2.5" SAS/SATA/NVMe + 8x 2.5" SAS/SATA hot-swap (Passive BP) Chassis, 2x 2.5" 15mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
XE1-2AT02-10 2U 24x 2.5" SAS/SATA/NVMe hot-swap (Passive BP) Chassis, 2x 2.5" 15mm SATA hot-swap, 3x 8038 fan, Acbel 1200W redundant power supply Platinum, Low profile rear panel, 28" slide rail, w/o bezel
FRU Information

Standard Parts List Part Number Description
Fan(s) FC-A00000968 8038 fan L60MM
HD Backplane BBP-HD20005A 12G EOB Backplane
Power Supply Housing PH-A00000161 1200W CRPS power supply housing 220mm
Power Supply Module PM-A00000118 1200W redundant power supply module
Backplane BBP-HD10003A 15mm 2-port SATA/SAS backplane (for external: 2x 2.5" hot-swap/BP-HD1H04-TY)
Backplane BBP-HD20036A 24-port 12GB SAS EOB backplane (BP-HD2E07-TY)
Backplane BBP-HD20037A 8-port 12GB SAS/SATA passive backplane (BP-HD2H20-TY)
Backplane BBP-FB20003A 8-port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB2U01-TY)
Slide rail H5521T200005 28" tool-less slide rail
Optional Parts List Part Number Description
Cable G3-000000122 SFF-8643 to SFF-8643 mini SAS HD cable L800MM for RAID/HBA card
Cable G3-A00001169 Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 4i*2 (SFF-8654) SAS cable L850MM for RAID/HBA card
Cable G3-A00001114 Slimline SAS 8i (SFF-8654) PCIe Gen.4 to SFF-8643*2 mini SAS HD cable L750MM for RAID/HBA card
Cable G3-A00000721 Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 8i (SFF-8654) cable L850MM for RAID/HBA card
Cable G3-A00001307 MCIO 8i (SFF-TA-1016) PCIe Gen.5 to mini SAS HD (SFF-8643)*2 cable L850MM
Cable G3-A00001319 MCIO 8i (SFF-TA-1016) PCIe Gen.5 to Slimline SAS 8i (SFF-8654) cable L900MM
OS Kit M06-1534-019 2 port 7mm SATA OS kit with backplane (BP-HD1H09-TY), HDD cage, tray, screw and packing (20 pcs in package)
