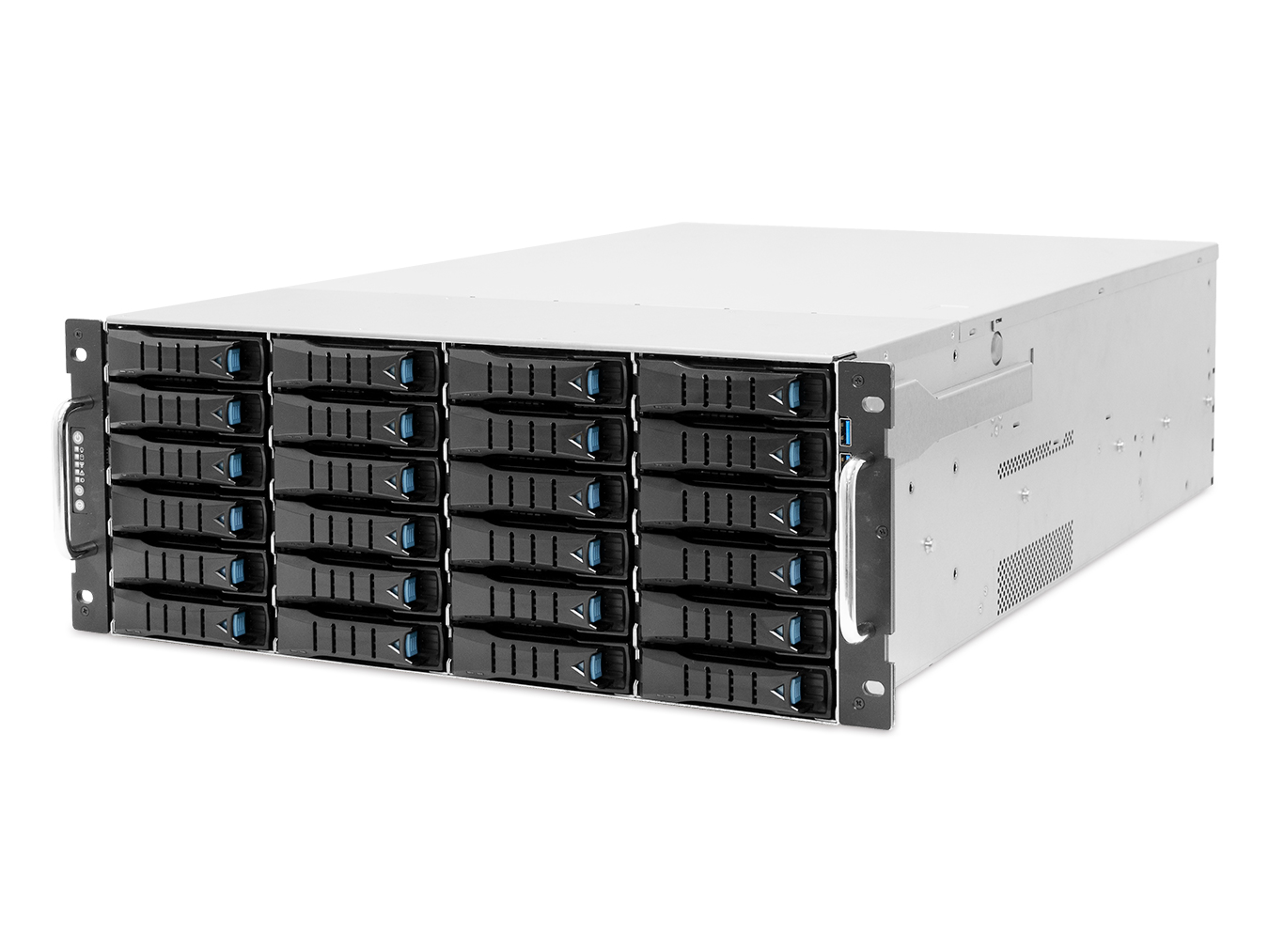

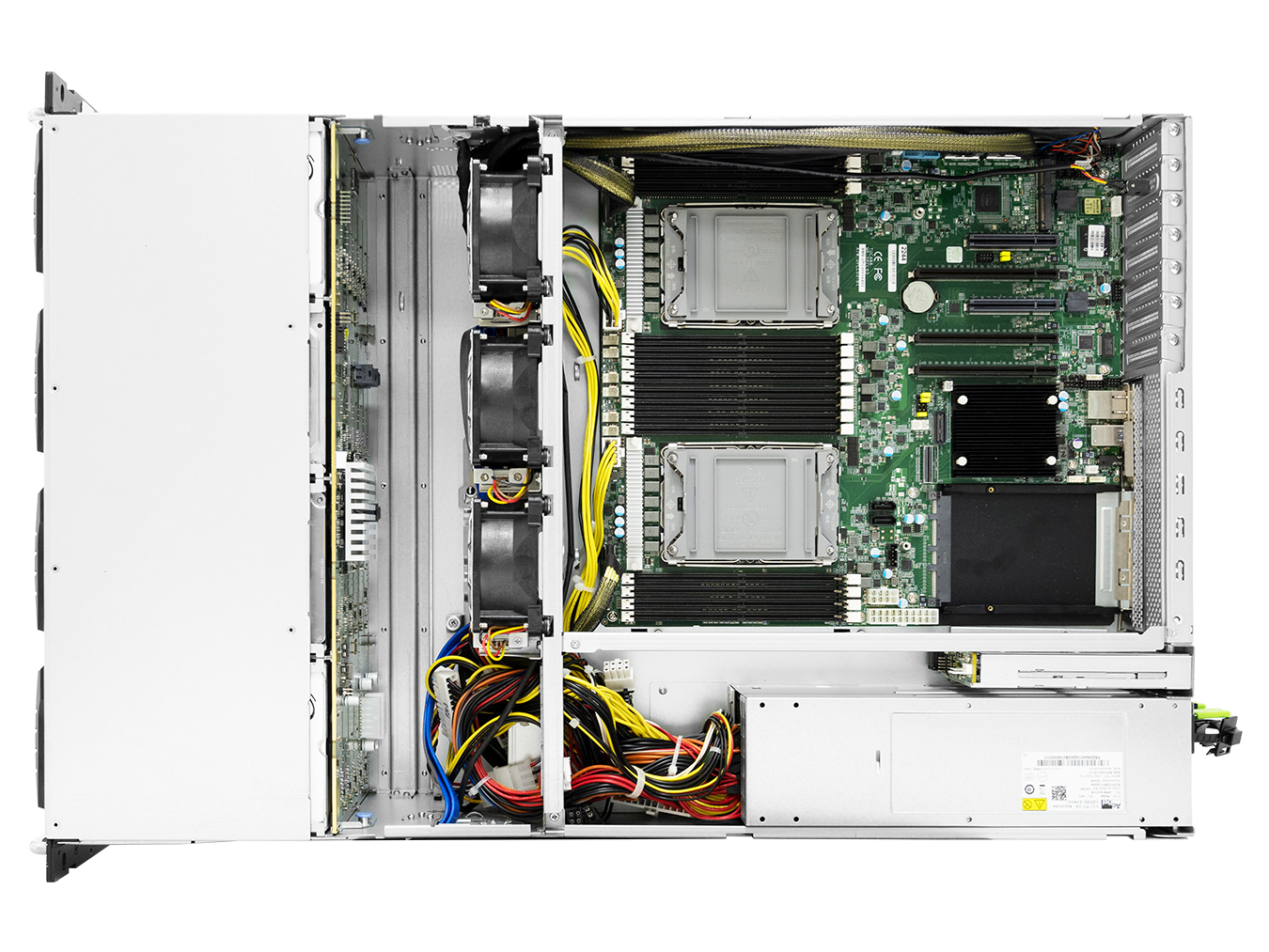

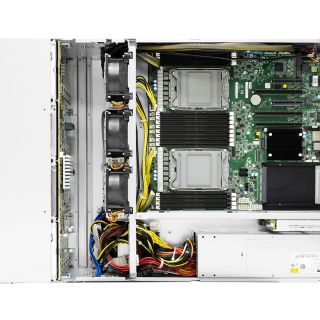

SB402-TU
SB402-TU, a 4U high-density server, supports Intel® Xeon® Scalable Processor. Equipped with front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions.
KEY FEATURE
4U 36-Bay storage server with SATA/SAS3/NVMe drives support
FEATURE
4U 36-Bay storage server with SATA/SAS3/NVMe drives support
Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
FEATURE
Supports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
Intel® C621A Chipset to provide 5+ years product life cycle
FEATURE
Intel® C621A Chipset to provide 5+ years product life cycle
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Dedicated BMC management port
FEATURE
Dedicated BMC management port
Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
FEATURE
Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
430 x 680 x 174.3
inches
16.9 x 26.8 x 6.9
Motherboard
AIC Server Board Tucana
Processor
Processor Support
3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)
CPU Interconnection
Supports CPU TDP up to 195W
Socket Type
Socket P+ (LGA-4189)
Chipset Support
Intel® C621A Chipset
System Memory
• 8 x memory channels per CPU(1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® OptaneTM DC Persistent Memory (Barlow Pass) support
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® OptaneTM DC Persistent Memory (Barlow Pass) support
Front Panel
System power on/off, System reset, System ID and 2 x USB 3.0 ports
LEDs
Power status, System alert, LAN activity, Drive activity, System ID
Drive Bays
External

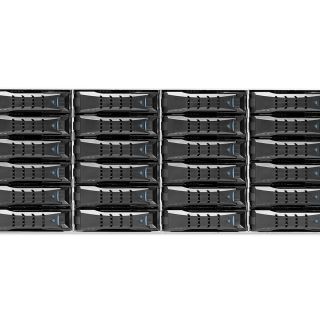

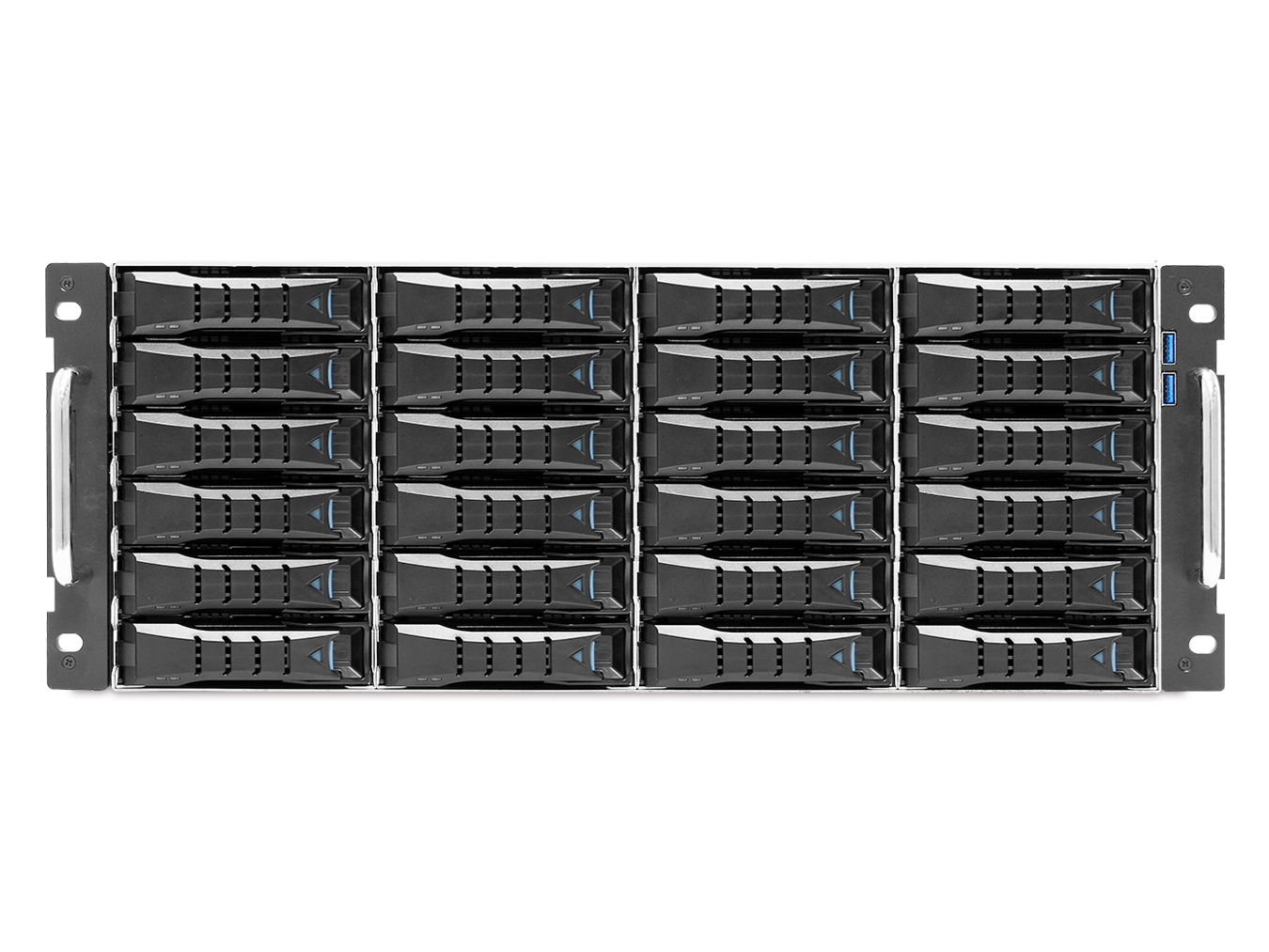

• 3.5" hot swap: 24 (SAS/SATA, front) + 12 (SAS/SATA/NVMe, rear)
• 2.5" hot swap: 2 (SATA, rear)
• 2.5" hot swap: 2 (SATA, rear)
Internal
2 x M.2(NGFF)/M-Key/2280
Backplane
Expansion Slots
PCIe 5.0
PCIe 4.0
• 3 x PCIe X16 slots HHHL(LP) + 1 x OCP 3.0
• 2 x PCIe X8 slots HHHL(LP)
• 2 x PCIe X8 slots HHHL(LP)
System BIOS
BIOS Type
AMI UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• SRIOV
• Serial console redirection
• BIOS boot specification
• BIOS recovery mode
• iSCSI
• TPM
• PCIe NTB
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• SRIOV
• Serial console redirection
• BIOS boot specification
• BIOS recovery mode
• iSCSI
• TPM
• PCIe NTB
On-board Devices
SATA
Intel® C621A PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
Optional SAS 3008/3108 modules (on OCP)
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
Optional SAS 3008/3108 modules (on OCP)
IPMI
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Network Controllers
• Realtek RTL8211E GbE for BMC dedicated management port
• Intel I210 GbE for BMC shared NIC management port by onboard connector
(NCSI shared NIC - reserved for OCP V3.0)
• Intel I210 GbE for BMC shared NIC management port by onboard connector
(NCSI shared NIC - reserved for OCP V3.0)
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

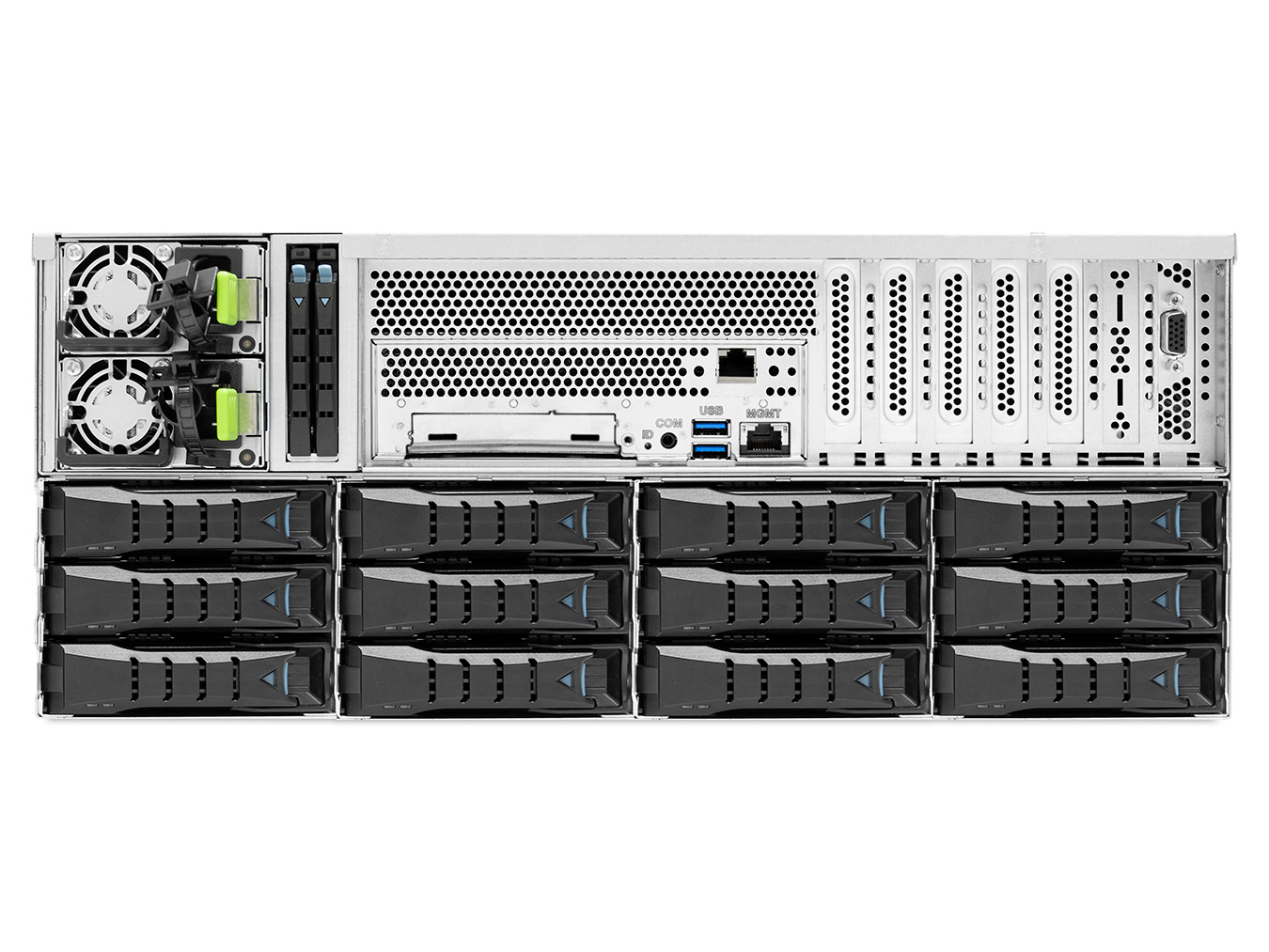

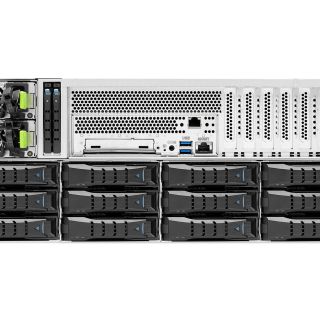

Rear I/O
LAN
• 1 x GbE RJ45
• 1 x GbE RJ45 dedicated to BMC management
• 1 x GbE RJ45 dedicated to BMC management
USB
2 x USB 3.0 double-stack Type A connectors
Video Output
1 x external DB-15 VGA port
Serial Port
1 x external COM port phone jack
Power Supply
1200W 1+1 CRPS RPSU 80+ Platinum
System Cooling
6 x 80x38mm hot- swap fans
System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID/System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID/System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
Environmental Specifications
• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
40.4
lbs
89
Packaging Dimensions (W x D x H)
mm
508 x 906 x 372
inches
20 x 35.6 x 14.6
Mounting (Standard)
28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
|
XP1-S402TU01 |
4U 24 bay 12G (35X) EOB + 12 bay 12G (35X) EOB, CRPS 1200W 1+1, 2x 7mm hot-swap SATA OS, 6x8038 FAN(CPU TDP 195W), Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 28" slide rail (for 1M rack), w/o bezel |
| XP1-S402TU02 |
4U 24 bay 12G (35X) EOB + 8 bay Tri-mode + 4 bay SAS/SATA, CRPS 1200W 1+1, 2x 7mm hot-swap SATA OS, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 28" slide rail (for 1M rack), w/o bezel |
| XP1-S402TU03 | 4U 24 bay 12G (35X) EOB + 12 bay Tri-mode, CRPS 1200W 1+1, 2x 7mm hot-swap SATA OS, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, with 1x PCIe Gen.4 x16 retimer card, 28" slide rail (for 1M rack), w/o bezel |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Fan | FN3EG-000024 | 8038 fan L300mm |
| Backplane | BBP-HD40022A | 24-port 12GB EOB backplane (BP-HD4E07-TY) |
| Backplane | BBP-HD20029A | 12-port 12GB SAS EOB backplane (BP-HD2E05-TY) |
| Backplane | BBP-HD10011A | 4-port 12GB SAS/SATA passive backplane (BP-HD1S06-TY) |
| Backplane | BBP-FB10009A | 4-port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U02-TY) |
| Backplane | BBP-HD10012A | 7mm 2.5" SATA two ports BP (BP-HD1H09-TY) |
| Slide rail | H5521T100002 | 28" slide rail |
