RSC-1DT3

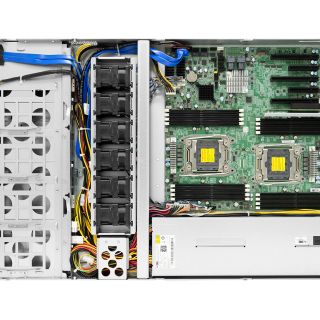

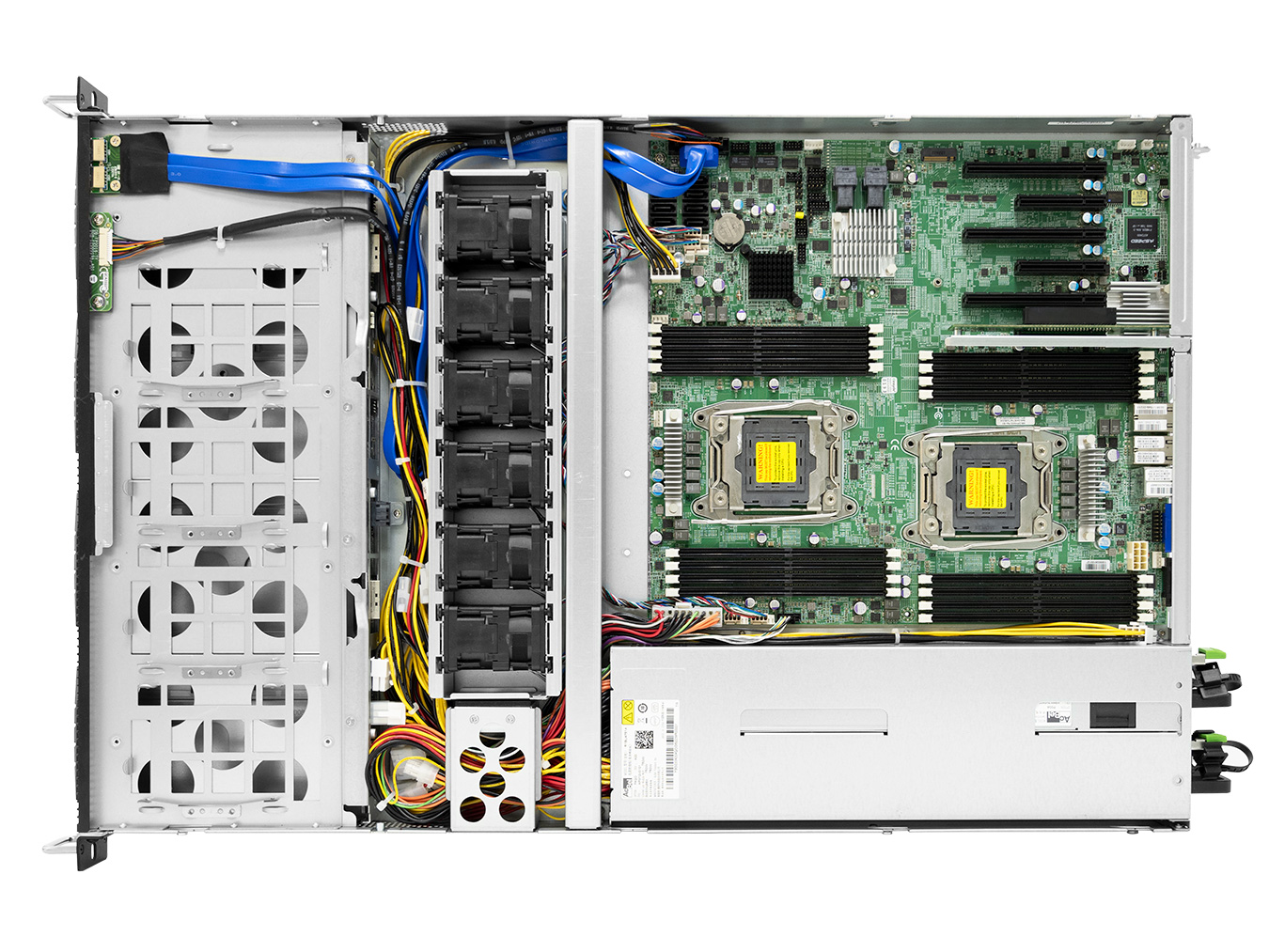

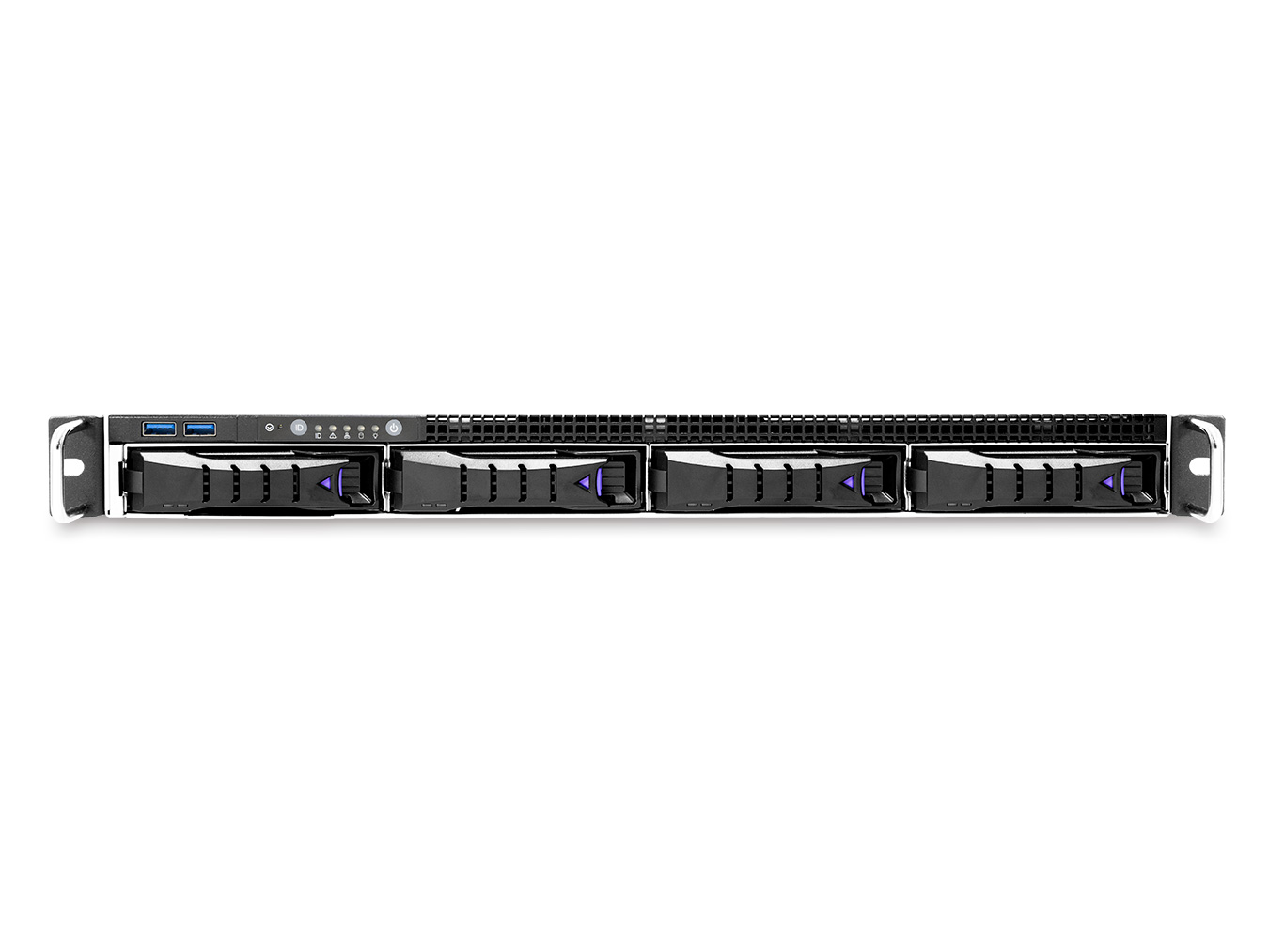

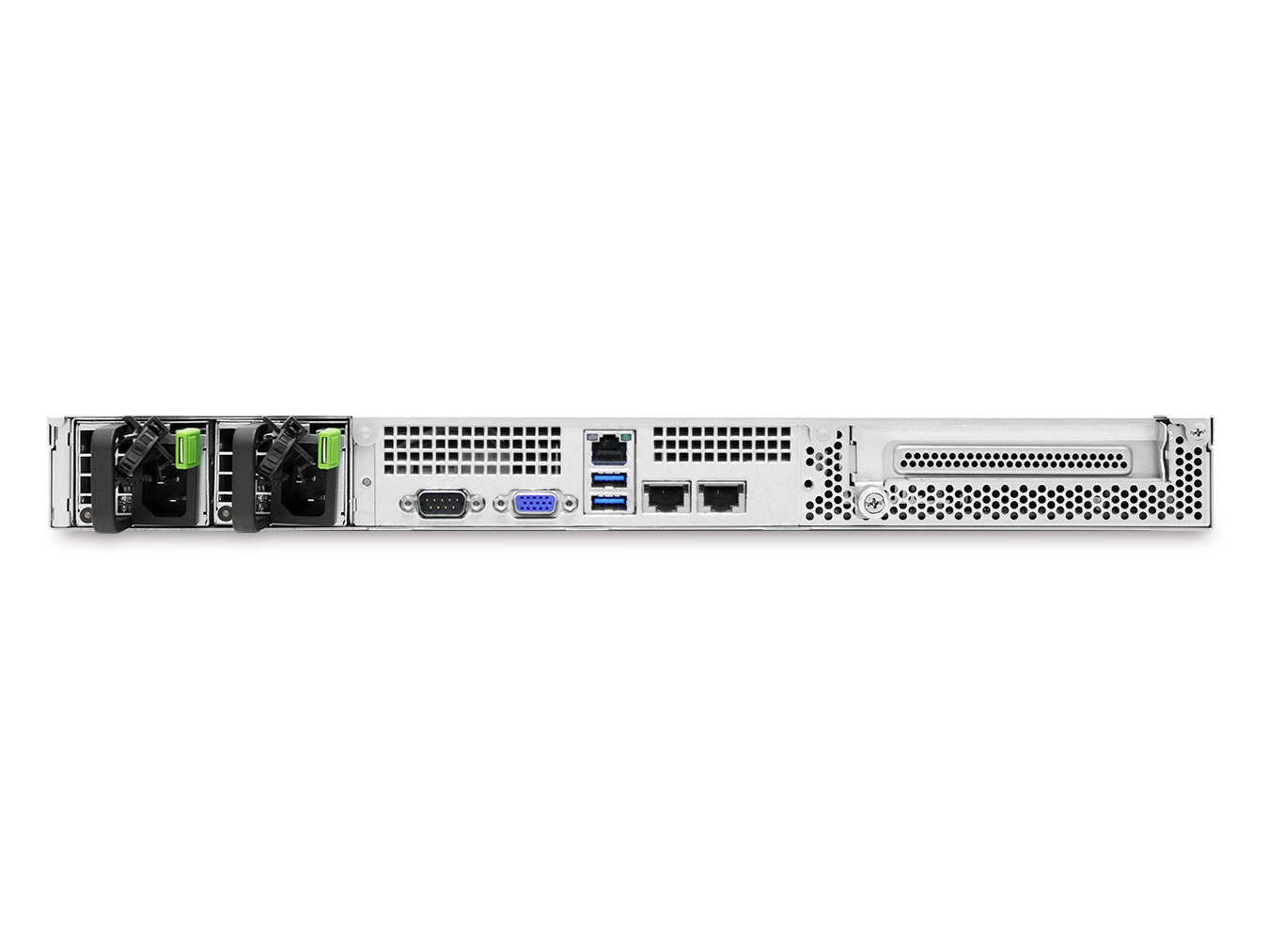

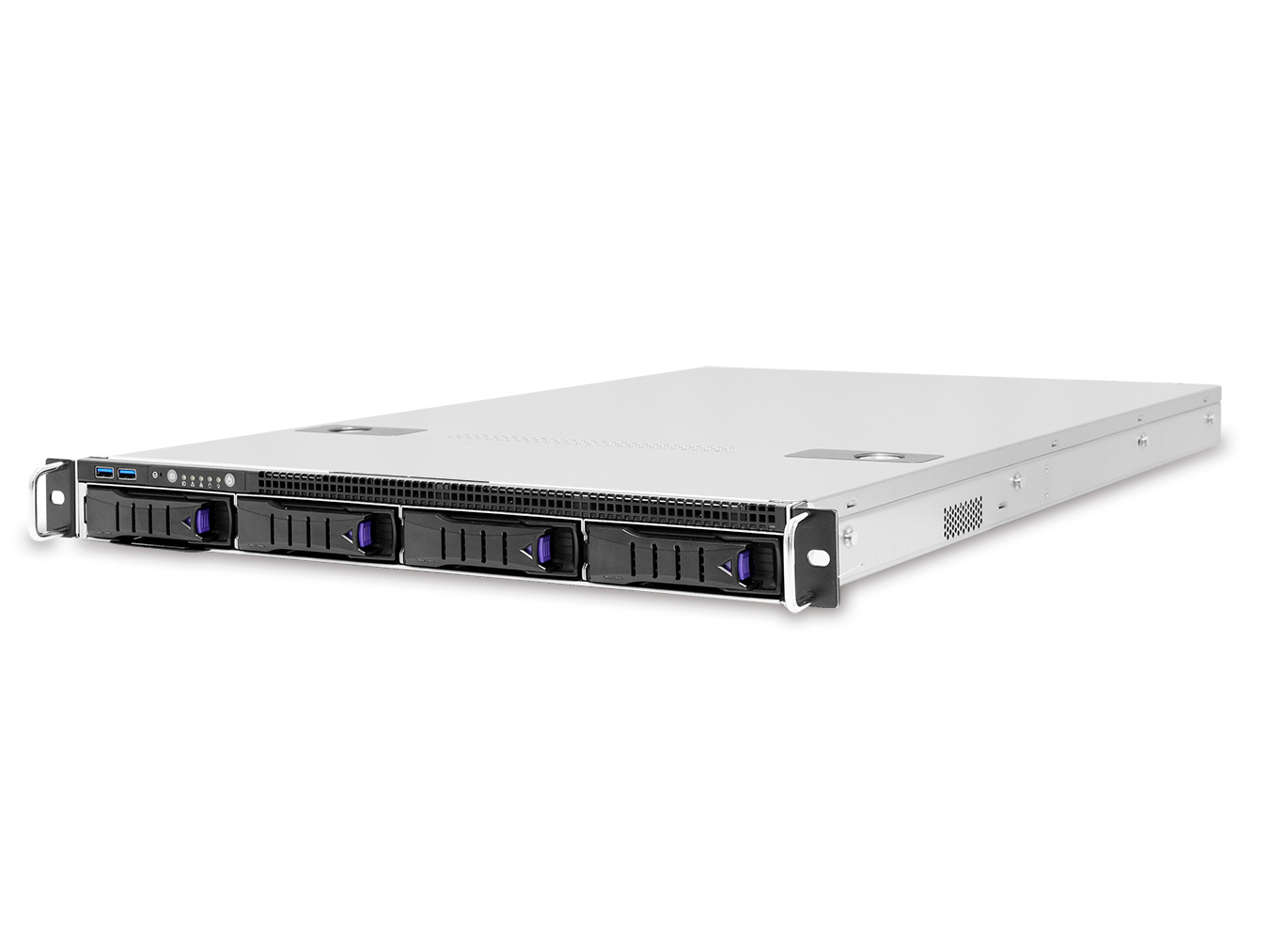

RSC-1DT3 is a T-series 1U SAS/SATA/NVMe storage server chassis supports external 4 x 12G 3.5" hot swap and internal 2 x 2.5" drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, and easy-swap PWM fans, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
KEY FEATURE
1U 4-Bay tri-mode/SATA 3.5” hot swap HDD
FEATURE
1U 4-Bay tri-mode/SATA 3.5” hot swap HDD
Two internal 2.5” 7mm device
FEATURE
Two internal 2.5” 7mm device
Supports 1 full-height expansion slot
FEATURE
Supports 1 full-height expansion slot
Supports redundant power supplies
FEATURE
Supports redundant power supplies
Supports EATX motherboard
FEATURE
Supports EATX motherboard
Two front-access USB 3.0 ports
FEATURE
Two front-access USB 3.0 ports
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 680 x 43.5
inches
17 x 26.8 x 1.72
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
6 x 40x56mm easy swap fans
Power Supply
750W 1+1 redundant power supply
Expansion Slots
1 full height
Front Panel
System power on/off and system reset, 2 x USB 3.0 ports
LED Indicators
Power, HDD, LAN
System board
Up to 12”(W) x 13”(D) EATX MB
Drive Bays
External
3.5" hot swap x 4
Internal
2.5" x 4
Backplane
• SKU03: 1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2 x SFF-8654 (Slimline 8i) connectors
• Optional SKU: 1 x 4-port SATA/SAS backplane
• Optional SKU: 1 x 4-port SATA/SAS backplane
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
17
lbs
37.5
Packaging Dimensions (W x D x H)
mm
890 x 670 x 210
inches
35 x 26.4 x 8.3
Cubic Feet
Container Load Quantity
20'
40'
40' H
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-1DT04-01 | 1U 4x 3.5"/2.5" SATA/SAS hot-swap, 2x 2.5" 7mm internal, 6x 4056 FAN, 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| XE1-1DT04-03 | 1U 4x 3.5"/2.5" SATA/SAS/NVMe tri-mode hot-swap, 2x 2.5" 7mm internal, 6x 4056 FAN, 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| XE1-1DT04-04 | 1U 4x 3.5"/2.5" SATA/SAS/NVMe tri-mode hot-swap, 2x 2.5" 7mm internal, 6x 4056 FAN, 1100W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Retimer card | BDB-PEG0031B | PCIe Gen.4 X16 retimer card with Slimline 8i*2 (DB-PEG409-TY) |
| Retimer card | BDB-PEG0032A | PCIe Gen.4 X8 retimer card with Slimline 8i*1 (DB-PEG410-TY) |
| Backplane | BBP-FB10016A | 4 port 3.5" PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U11-TY/low profile connector) |
| Bracket | H14-1467-000 | Retimer card bracket for DB-PEG410-TY & DB-PEG409-TY (w/o screw) |
| Optional Parts List | Part Number | Description |
|
Cable |
G3-A00001015 | Slimline 8i (SFF-8654) PCIe Gen.4 to Slimline 8i (SFF-8654) low profile to BP-FB1U02-TY cable L800MM for RAID/HBA card |
| Cable | G3-A00001304 | MCIO 8i (SFF-TA-1016) PCIe Gen.5 to Slimline SAS 8i (SFF-8654) low profile to BP-FB1U02-TY cable L900MM |
| Riser card | BRC-PE10033A | PCIe Gen.4 x 16 riser card (RC-PE1U30-TY) for right-hand side add-in card support (from rear window view) |
