RSC-1AT3

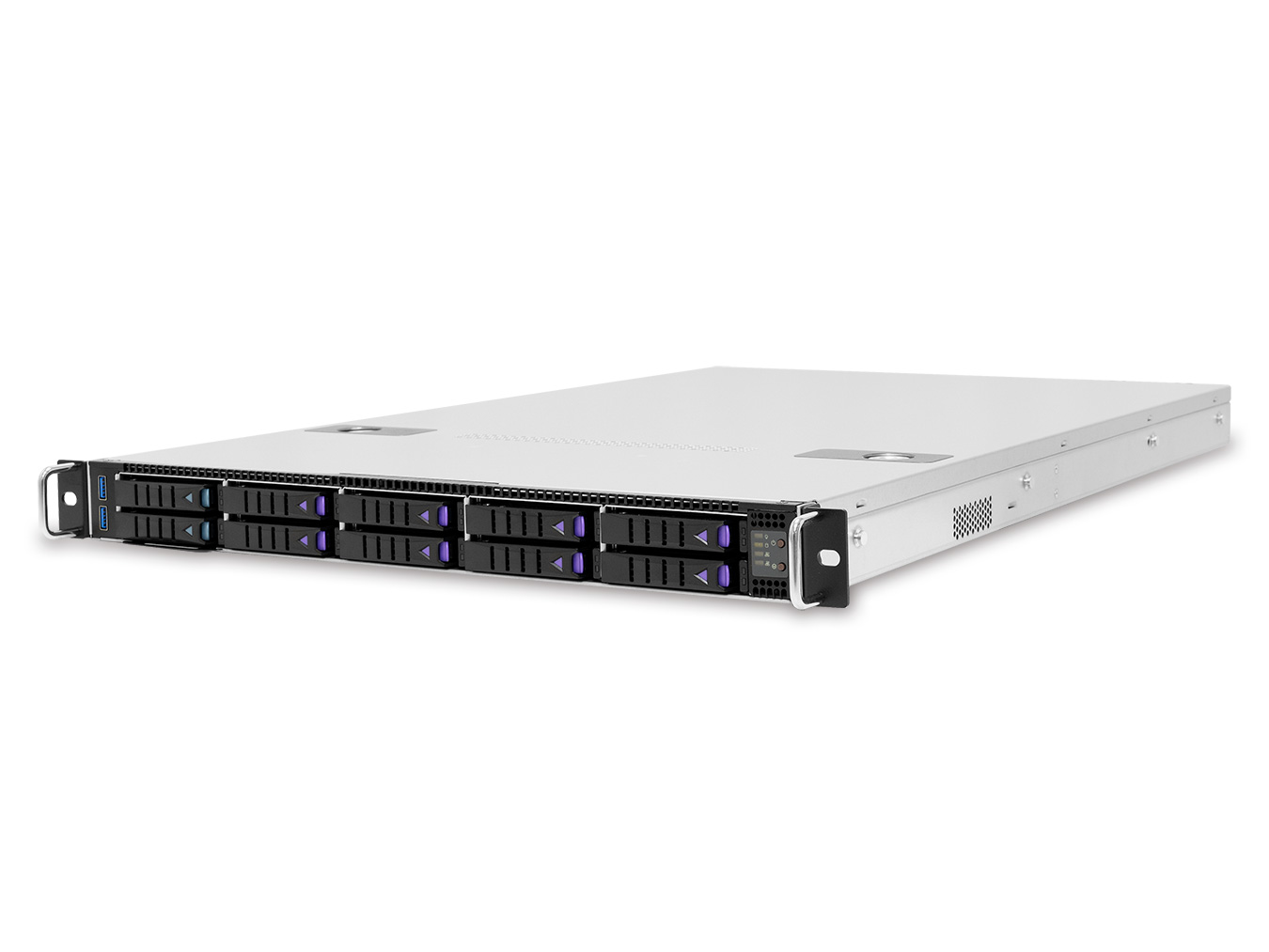

RSC-1AT3 is a T-series 1U Trimode storage server chassis supports 8 x 2.5" tri-mode hot-swap bay and 2 x 2.5" SATA SAS hot-swap bay.
KEY FEATURE
Tool-less 2.5” drive trays
FEATURE
Tool-less 2.5” drive trays
2 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 2-port 6G SATA/12G SAS Supported drives will be different according to the 4 backplane options
FEATURE
2 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 2-port 6G SATA/12G SAS Supported drives will be different according to the 4 backplane options

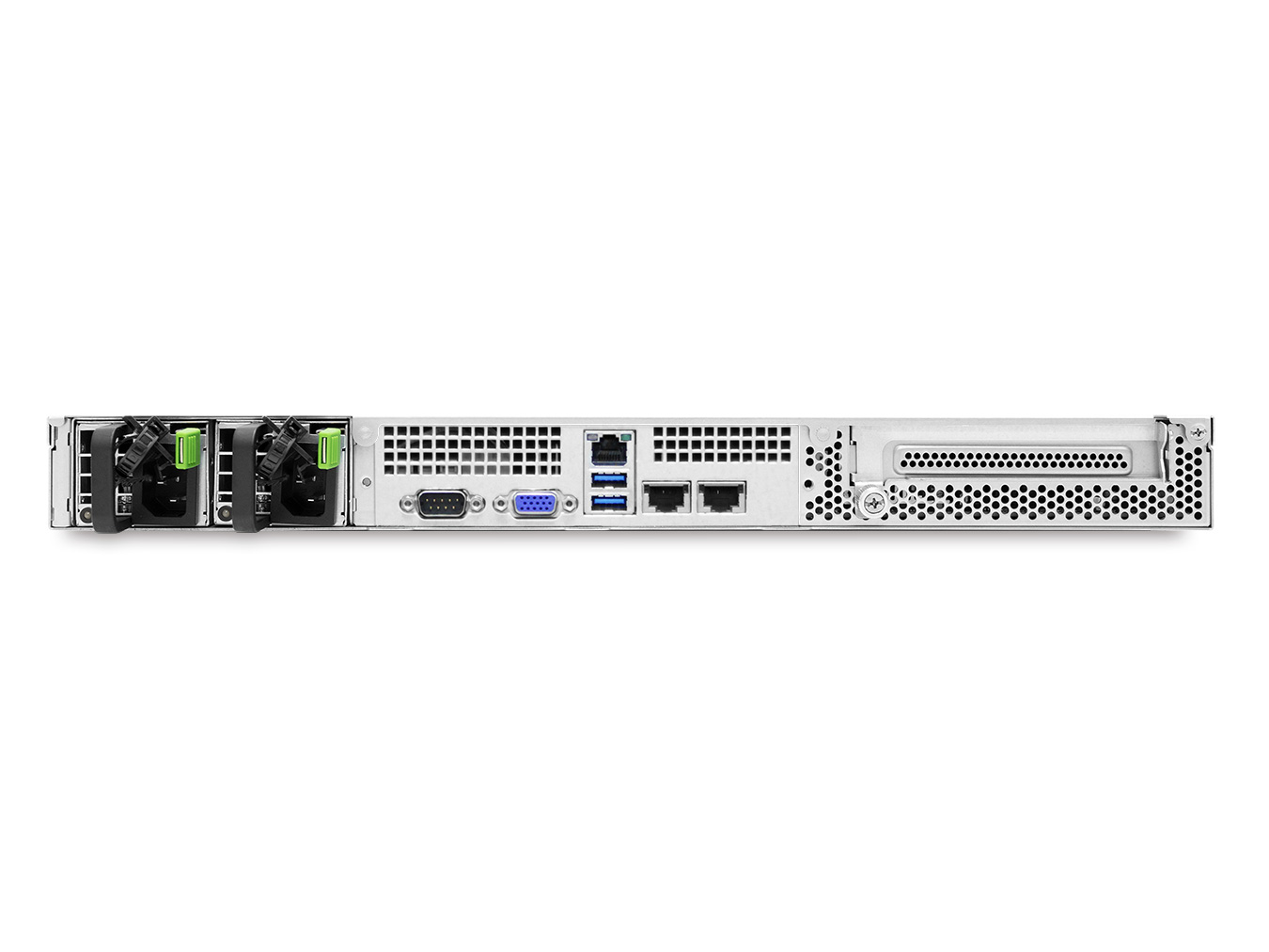

Supports redundant power supplies
FEATURE
Supports redundant power supplies
Supports 1 full height expansion slot
FEATURE
Supports 1 full height expansion slot

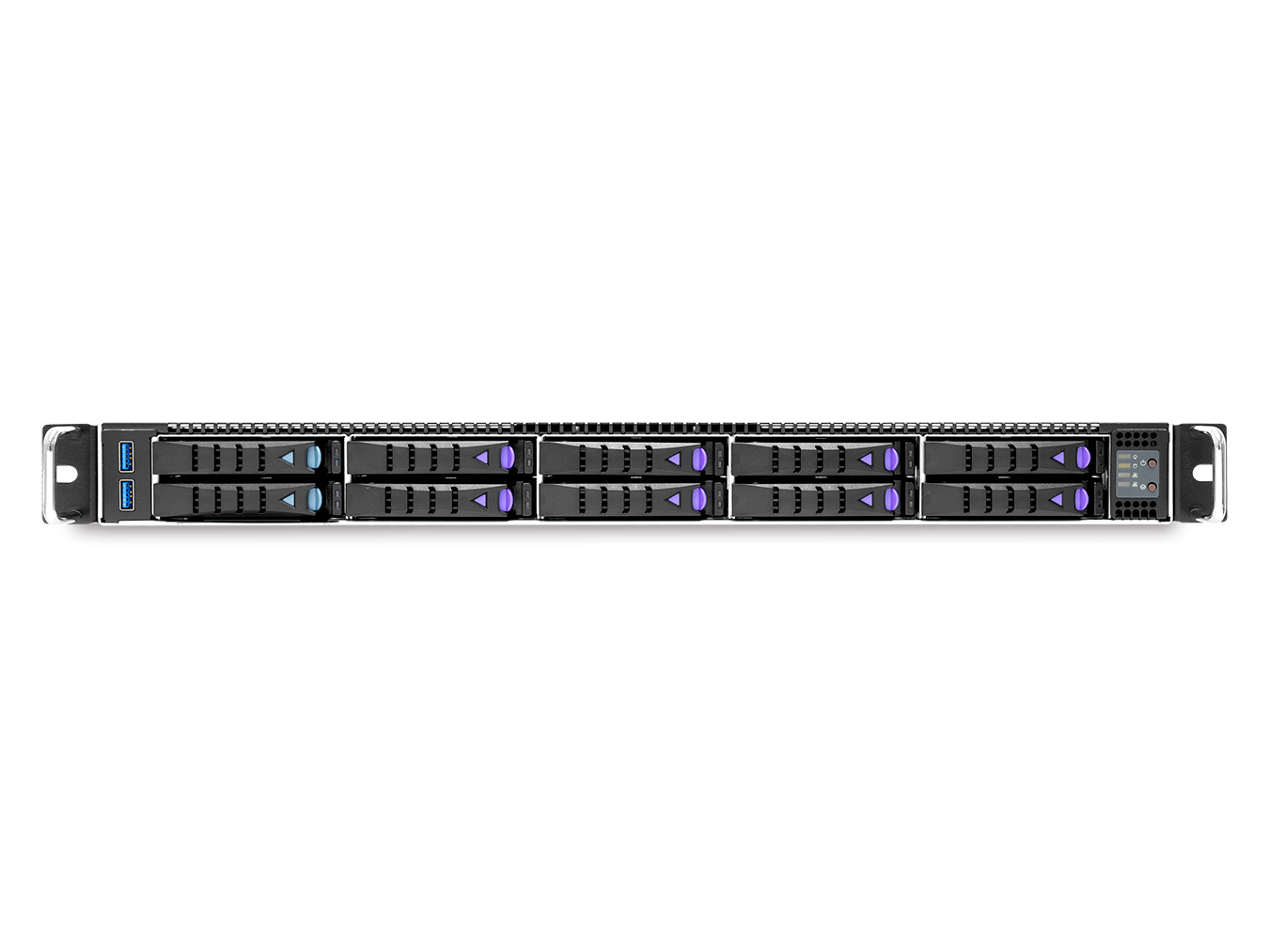

Two front access USB 3.0 ports
FEATURE
Two front access USB 3.0 ports
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 680 x 43.5
inches
17 x 26.8 x 1.72
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black

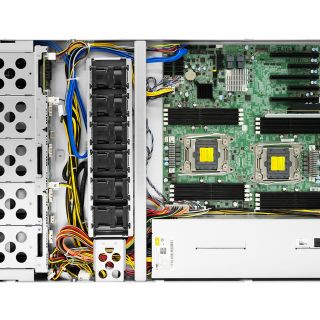

Cooling

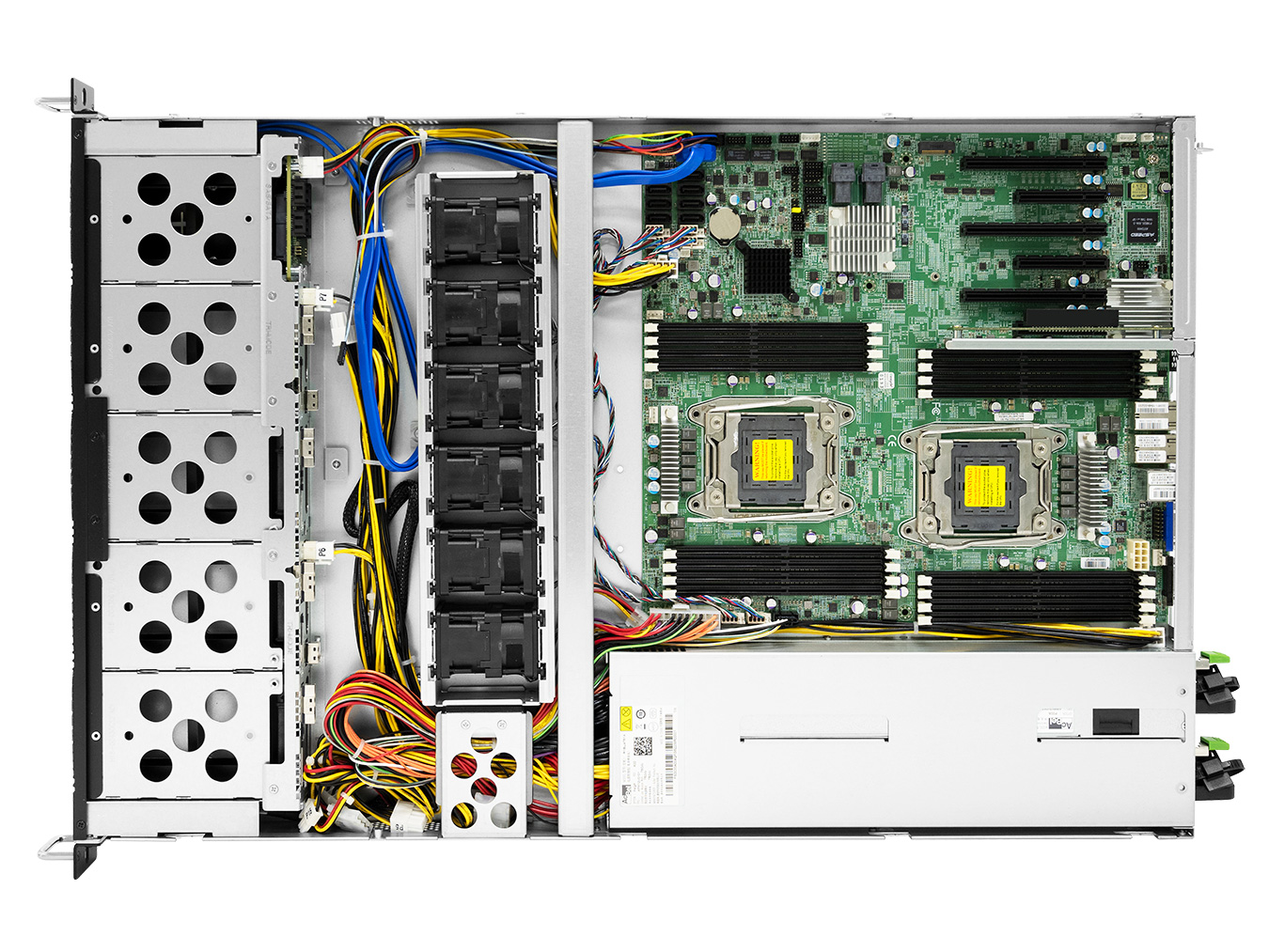

6 x 40x56mm PWM easy swap fans
Power Supply
750W 1+1 redundant power supply
Expansion Slots
1 full height
Front Panel
System power on/off and system reset, 2 x USB 3.0 ports
LED Indicators
Power, LAN, Drive and Alert
System board
Up to 12”(W) x 13”(D) EATX MB
Drive Bays
External
2.5" hot swap x 10
Internal
Backplane
• SKU1: 2 x 4-port 6G SATA/12G SAS +1 x 2-port 6G SATA
• SKU2: 1 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 4-port 6G SATA/12G SAS + 1 x 2-port 6G SATA
• SKU3: 2 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 2-port 6G SATA
• SKU4: 2 x 4-port 6G SATA/12G SAS + 1 x 2-port PCIe Gen4 NVMe
• SKU2: 1 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 4-port 6G SATA/12G SAS + 1 x 2-port 6G SATA
• SKU3: 2 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 2-port 6G SATA
• SKU4: 2 x 4-port 6G SATA/12G SAS + 1 x 2-port PCIe Gen4 NVMe
Storage Temparature
0ºC(32ºF) ~ 50ºC(122ºF)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
16
lbs
35.3
Packaging Dimensions (W x D x H)
mm
645 x 890 x 180
inches
25.3 x 35 x 7.1
Cubic Feet
Container Load Quantity
20'
40'
40' H
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-1AT02-01 | 1U 8x 2.5" SAS/SATA hot-swap, 2x 2.5" SATA hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| XE1-1AT02-02 | 1U 4x 2.5" tri-mode PCIe Gen.4 hot-swap, 4x 2.5" SAS/SATA hot-swap, 2x 2.5" SATA hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| XE1-1AT02-03 | 1U 8x 2.5" tri-mode PCIe Gen.4 hot-swap, 2x 2.5" SATA hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| XE1-1AT02-04 | 1U 8x 2.5" SAS/SATA hot-swap, 2x 2.5" NVMe PCIe Gen.4 hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
|
|||
| Part Number | Description | ||
| H14-00376B34 | 1U Universal IO shield (square hole without packing) | ||
| M06-00376-45 | 1U Universal IO shield (square hole with screw & pastic bag) | ||
| BDB-PEG0031B | PCIe Gen.4 x16 retimer card with Slimline 8i*2 (DB-PEG409-TY) | ||
| BDB-PEG0032A | PCIe Gen.4 x8 retimer card with Slimline 8i*1 (DB-PEG410-TY) | ||
| BBP-HD10014A | 4 port SAS/SATA backplane (BP-HD1S01-V5) | ||
| BBP-FB10008A | 4 port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U03-TY) | ||
| H14-1467-000 | Retimer card bracket for DB-PEG410-TY & DB-PEG409-TY (w/o screw) | ||
| DB-000000034 | 1U PCIe x8 riser card |
