KEY FEATURE

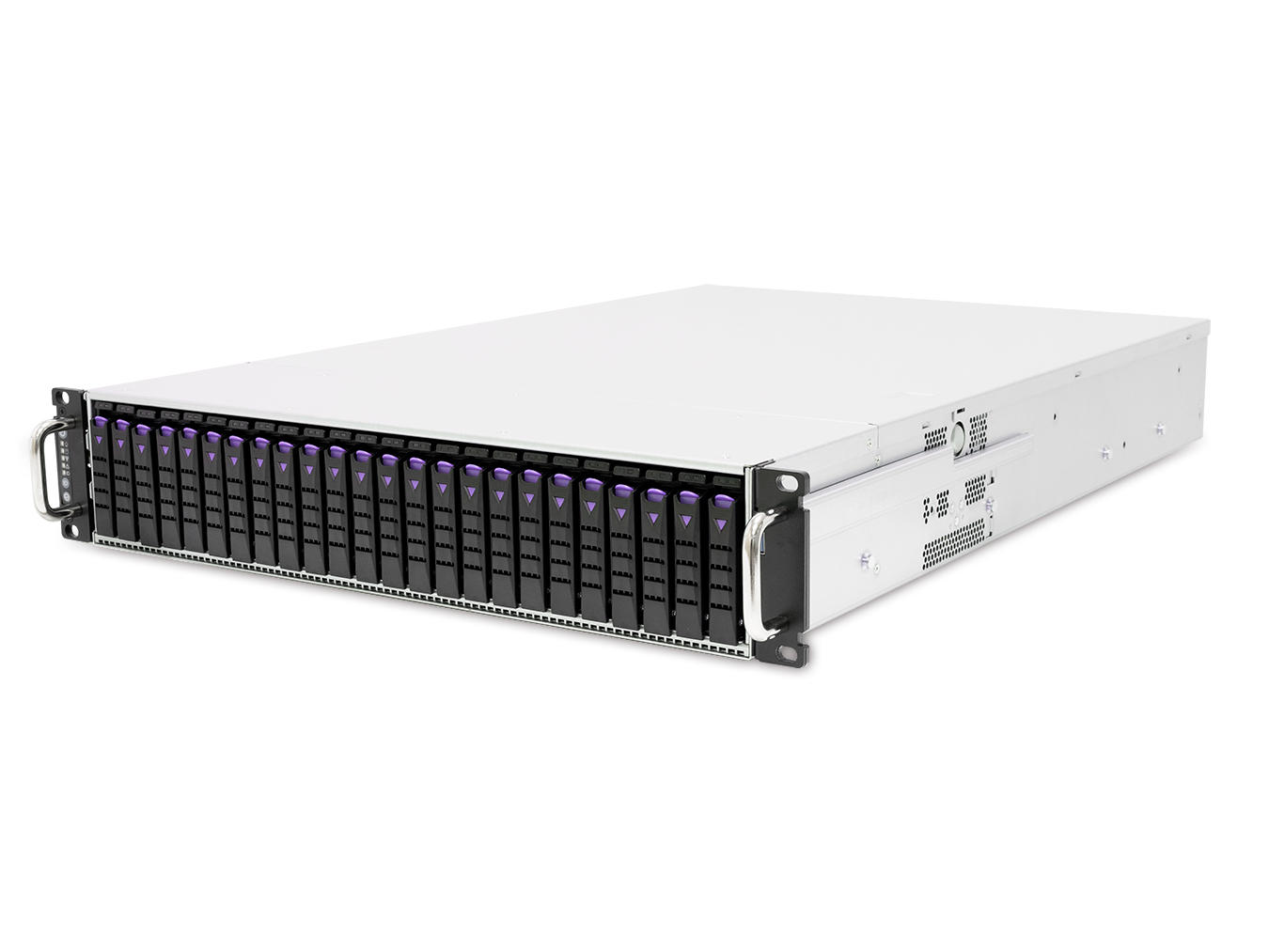

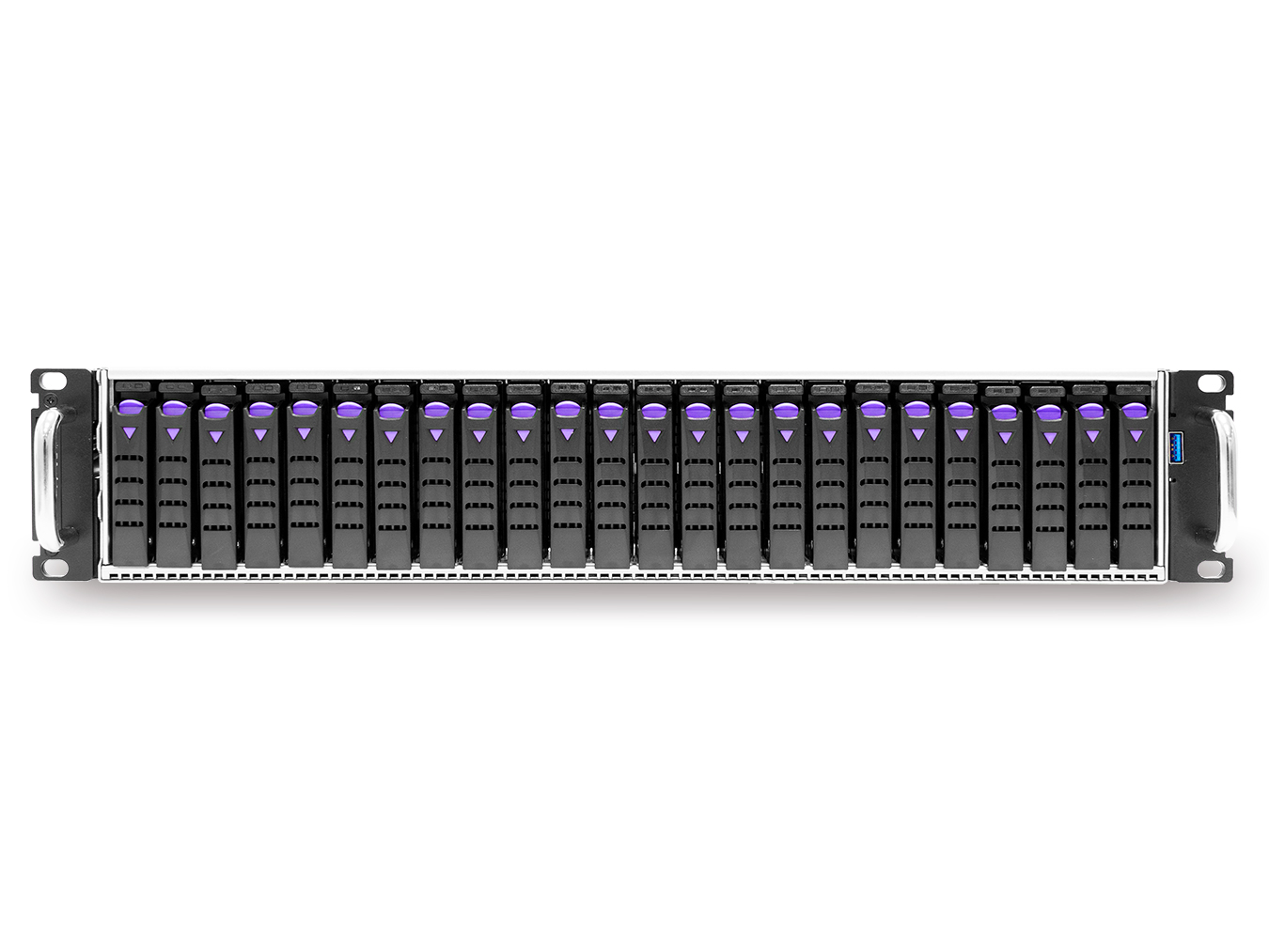

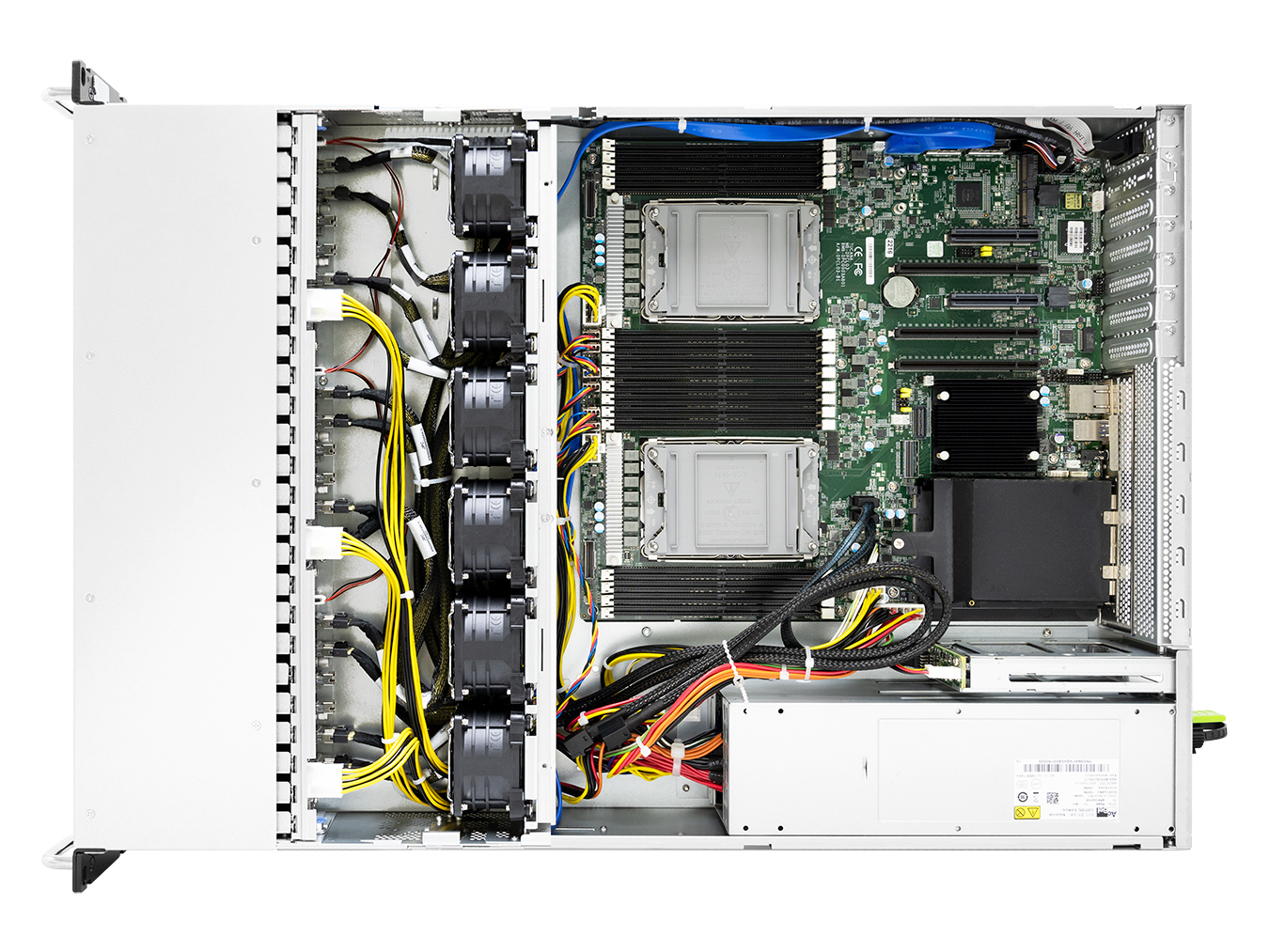

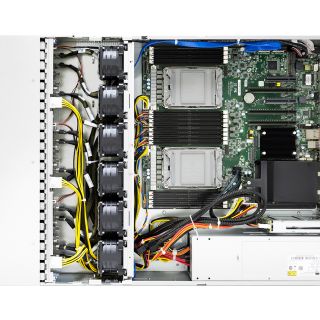

2U 24-Bay high density storage server barebone
FEATURESupports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
FEATUREIntel® C621A Chipset to provide 5+ years product life cycle
FEATUREOnboard Baseboard Management Controller for system management and IPMI control
FEATUREDedicated BMC management port
FEATUREFront-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
FEATURESPECIFICATION
Dimensions
Motherboard
Processor
• Supports CPU TDP up to 270W
(Use over 165W CPU, please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)
Chipset Support
System Memory
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support
Front Panel
• System ID
• System reset
• 1x USB 3.0 Type A
LEDs
• System alert
• LAN activity
• Drive activity
• System ID
Drive Bays
• 2 x 2.5” SATA hot-swap (7mm, rear)
Backplane
Expansion Slots
• 2 x PCIe X8 slots (HHHL)
System Bios
• SPI (Serial Peripheral Interface)
FLASH Interface
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB
On Board
Intel® C621A PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
Optional SAS 3008/3108 modules (on OCP)
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• Intel I210 GbE for BMC shared NIC management port by onboard connector (NCSI shared NIC - reserved for OCP V3.0)
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

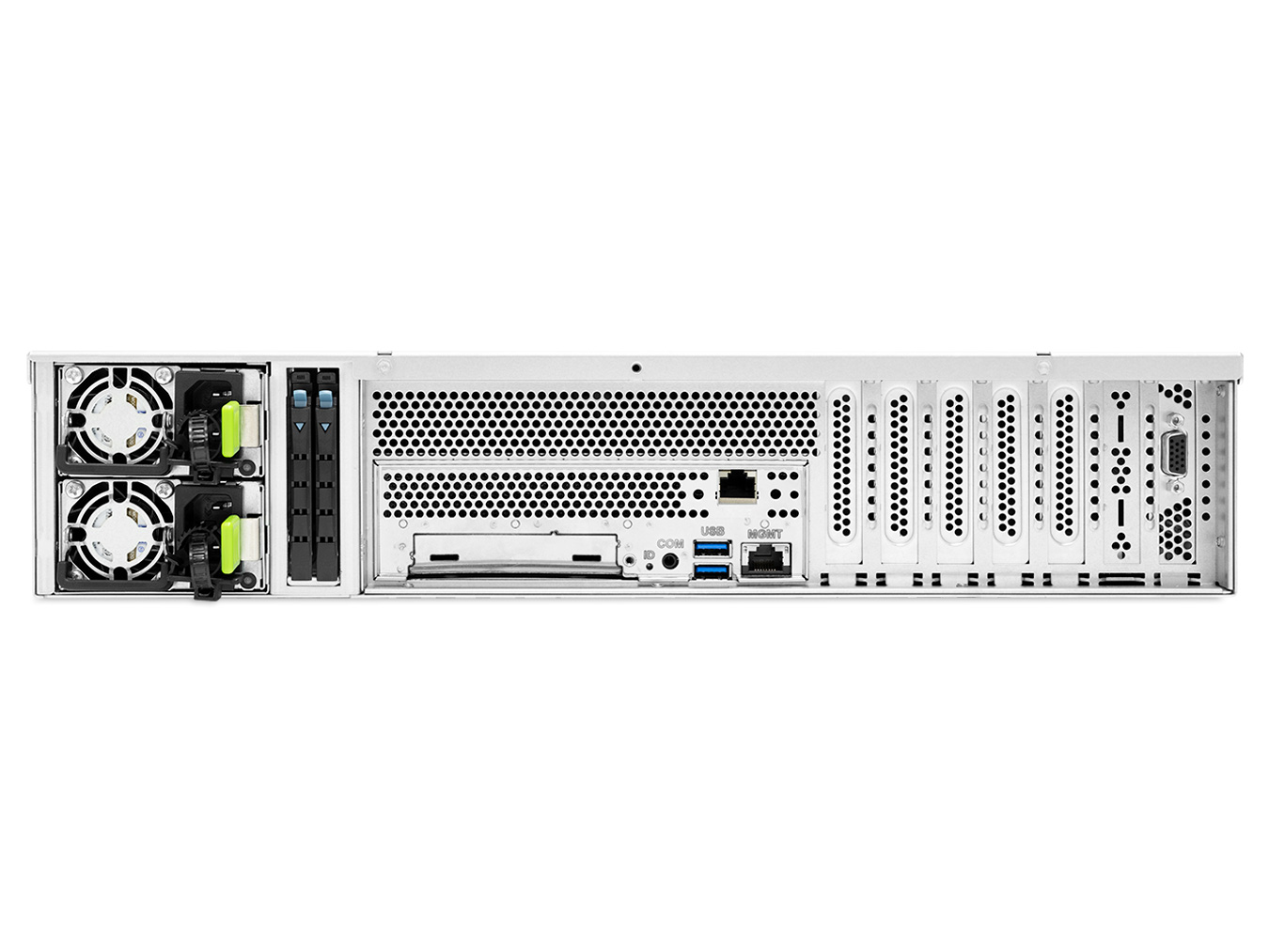

Rear I/O
• 1 x GbE RJ45 dedicated to BMC management
TPM Support
Power Supply
• AC INPUT : 100~240V,50/60Hz,10-5A
System Cooling
System Management
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID/System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
Environmental Specifications
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
Packaging Dimensions (W x D x H)
Mounting (Standard)
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
|
XP1-S201TU01 |
2U 24x 2.5" SAS/SATA hot-swap (EOB BP), 2x 2.5" 7mm SATA hot-swap, 6x 6038 fan, 1200W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 HHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel |
|
XP1-S201TU02 |
2U 24x 2.5" SAS/SATA hot-swap (Passive BP), 2x 2.5" 7mm SATA hot-swap, 6x 6038 fan, 1200W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 HHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel |
|
XP1-S201TU03 |
2U 8x 2.5" NVMe + 16x 2.5" SAS/SATA hot-swap (Passive BP), 2x 2.5" 7mm SATA hot-swap, 6x 6038 fan, 1200W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 HHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 28" slide rail, w/o bezel |
|
XP1-S201TU04 |
2U 16x 2.5" NVMe + 8x 2.5" SAS/SATA hot-swap (Passive BP), 2x 2.5" 7mm SATA hot-swap, 6x 6038 fan, 1200W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 1x PCIe x16 HHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), with 2x PCIe Gen.4 x16 retimer card, 28" slide rail, w/o bezel |
|
XP1-S201TU05 |
2U 24x 2.5" NVMe hot-swap (Passive BP), 2x 2.5" 7mm SATA hot-swap, 6x 6038 fan, 1200W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (270W), with 3x PCIe Gen.4 x16 retimer card & 2x PCIe Gen.4 x8 retimer card, 28" slide rail, w/o bezel |
| FRU Information | ||
|---|---|---|
| Standard Parts List | Part Number | Description |
| Fan | FC-A00000984 | 6038 fan L400MM |
| Power supply | PH-A00000129 | 1200W redundant power supply housing (SB201-TU) |
| Power supply | PM-A00000118 | 1200W redundant power supply module |
| Backplane | BBP-HD20036A | 24-port 12GB SAS EOB backplane (BP-HD2E07-TY) |
| Backplane | BBP-HD20037A | 8-port 12GB SAS/SATA passive backplane (BP-HD2H20-TY) |
| Backplane | BBP-FB20003A | 8-port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB2U01-TY) |
| Backplane | BBP-HD10012A | 7mm 2.5" SATA two ports BP (BP-HD1H09-TY) |
| Retimer | BDB-PEG0031A | PCIe Gen.4 x16 retimer card with Slimline 8i*2 (DB-PEG409-TY) |
| Retimer | BDB-PEG0032A | PCIe Gen.4 x8 retimer card with Slimline 8i*1 (DB-PEG410-TY) |
| Slide rail | H5521T200005 | 28" tool-less slide rail |
| OCP Adapter | M04-1399-016 | Dual port Intel X550-AT2 10G Base-T (DB-MZ0005-TY) PCIe Gen.4 OCP 3.0 Module |
| Optional Parts List | Part Number | Description |
| Cable | G3-000000122 | SFF-8643 to SFF-8643 mini SAS HD cable L800MM for RAID/HBA card |
| Cable | G3-A00001169 | Slimline SAS 8i (SFF-8654) to Slimline SAS 4i*2 (SFF-8654) SAS cable L850MM for RAID/HBA card |
| Cable | G3-A00001114 | Slimline SAS 8i (SFF-8654) to SFF-8643*2 mini SAS HD cable L750MM for RAID/HBA card |
| Cable | G3-A00000721 | Slimline SAS 8i (SFF-8654) to Slimline SAS 8i (SFF-8654) cable L850MM for RAID/HBA card |
