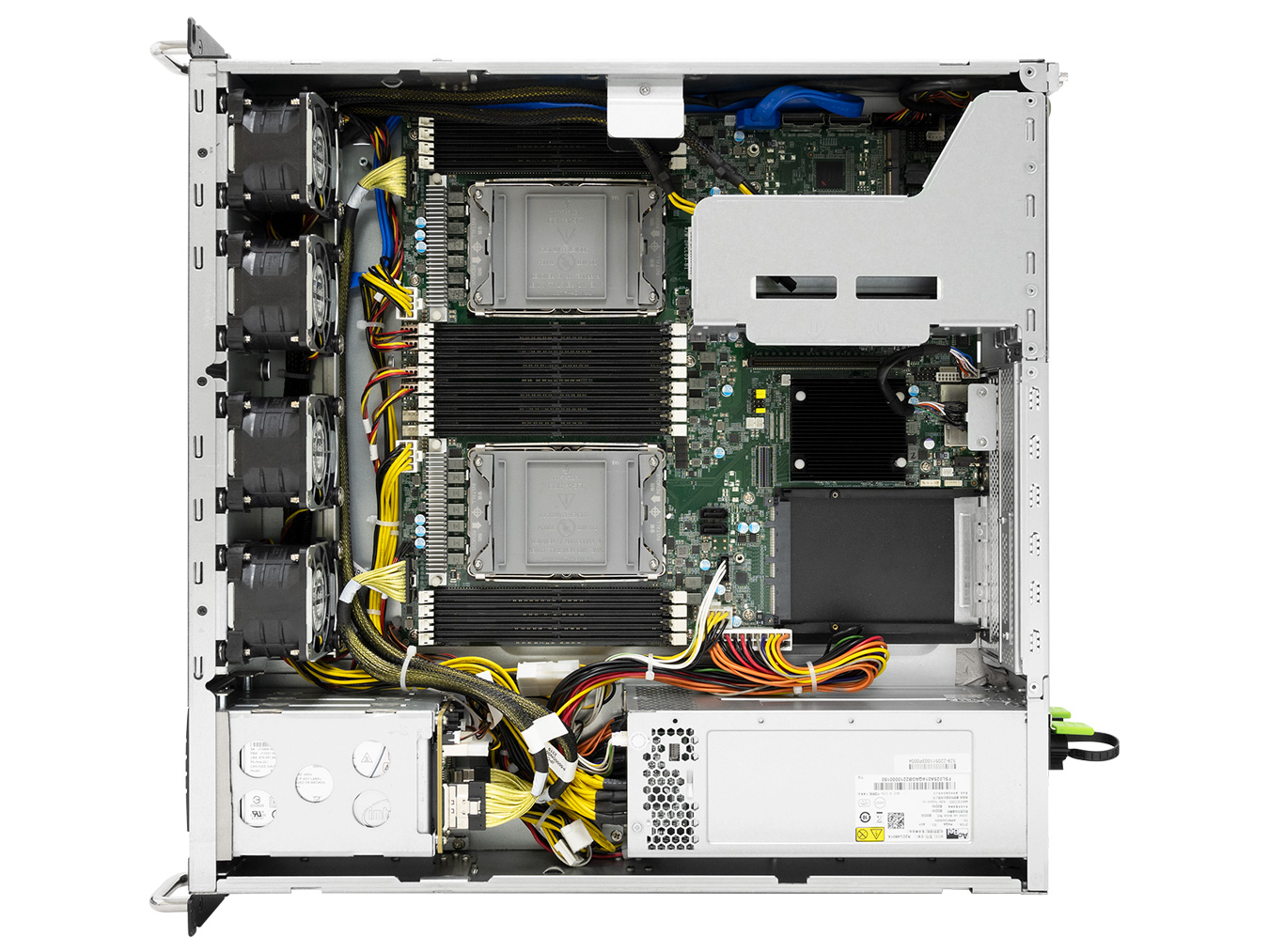

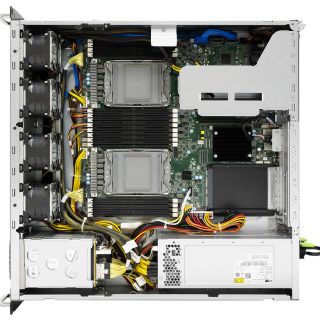

EB201-TU
KEY FEATURE
Flexible front I/O and rear I/O application options
FEATURESupports 3rd Gen. Intel® Xeon® Scalable processors (Ice Lake)
FEATUREIntel® C621A Chipset to provide 5+ years product life cycle
FEATURESupports up to 4 x 2.5” external hot swap drive bays
FEATURE4 x easy swap fans for superior cooling
FEATUREOnboard Baseboard Management Controller for system management and IPMI control
FEATUREDedicated BMC management port
FEATUREShort-depth design for space critical applications
FEATURESPECIFICATION
Dimensions
Motherboard
Processor
Chipset Support
System Memory
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support

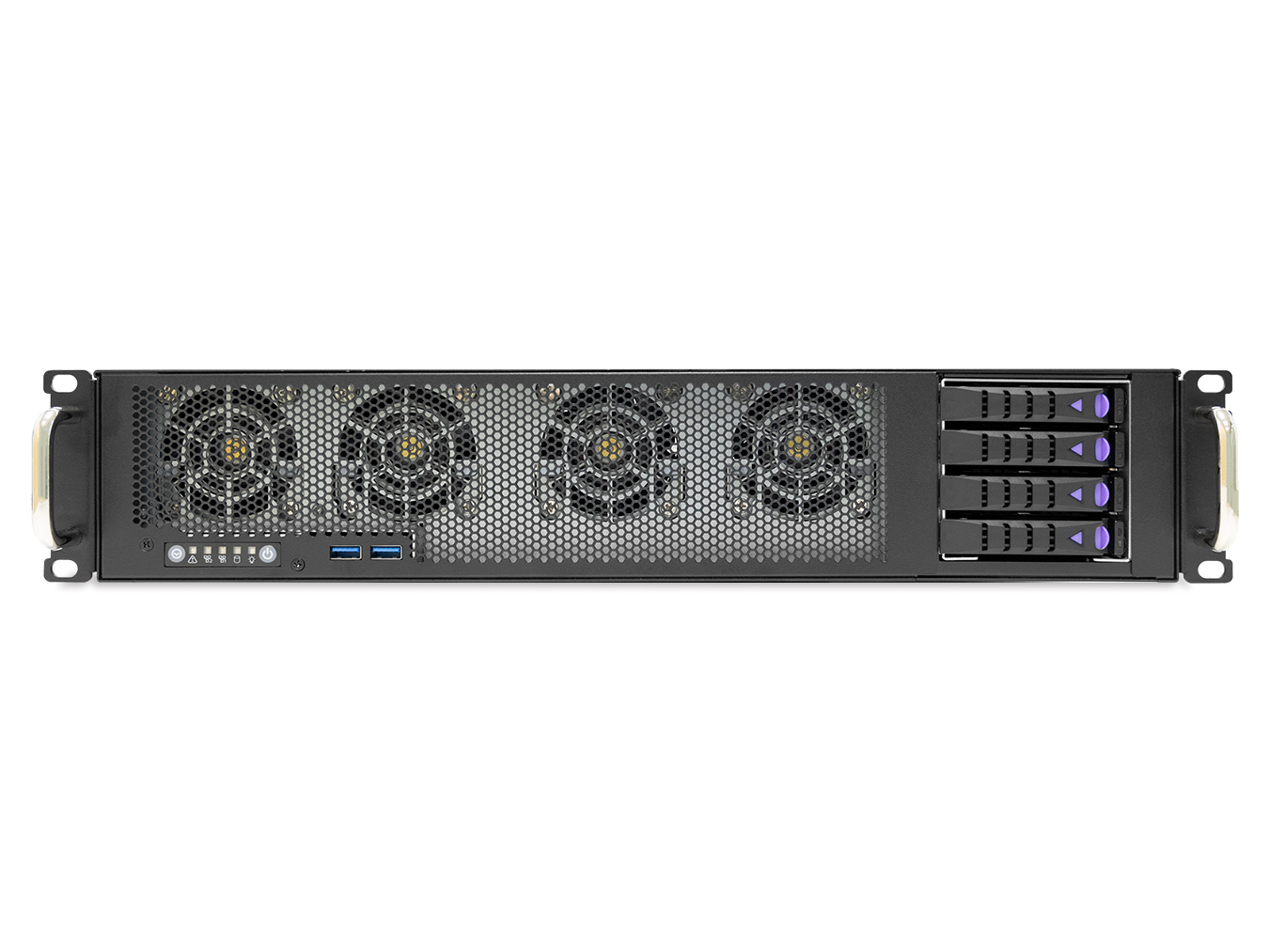

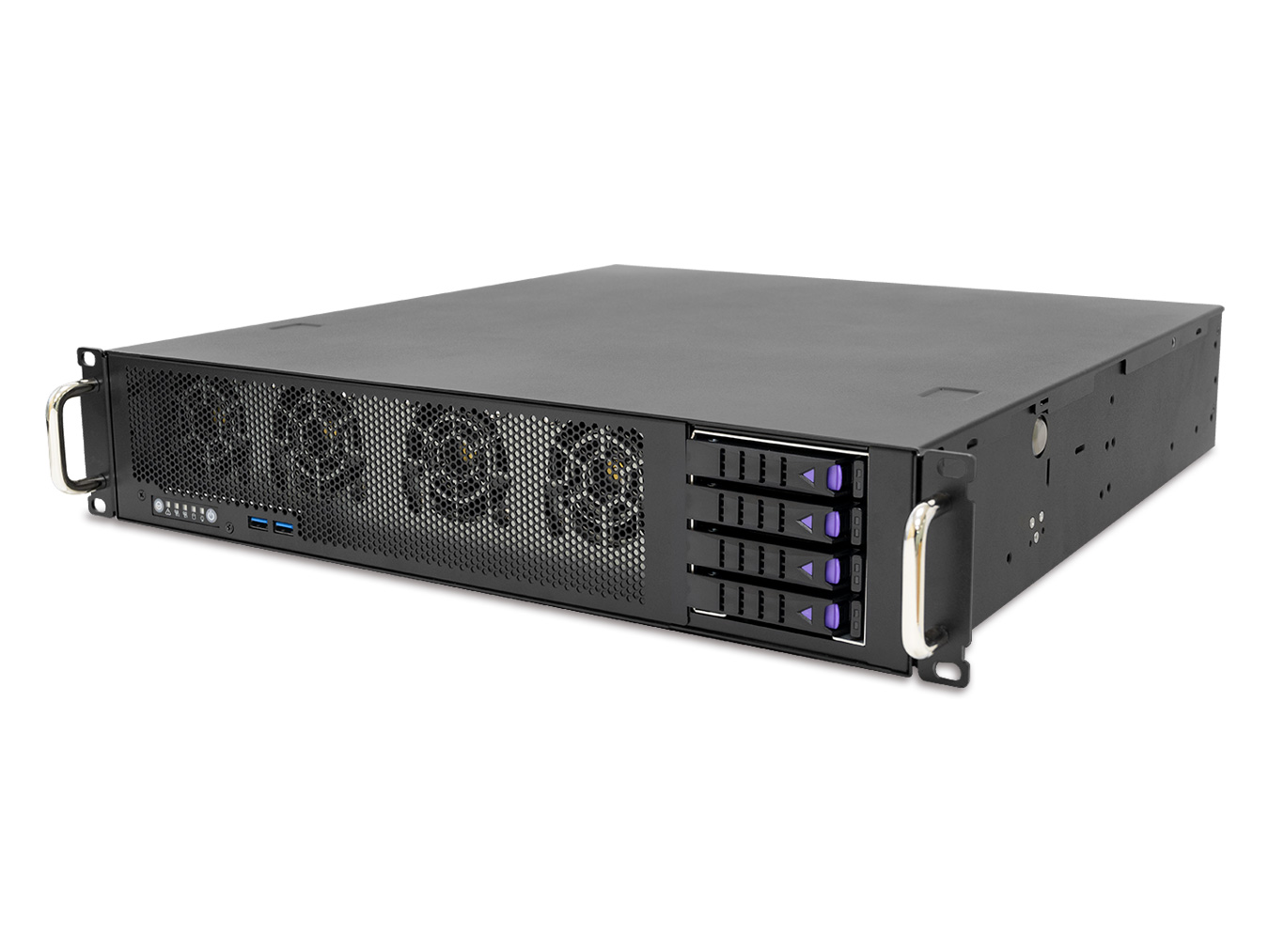

Front Panel
• System ID
• System reset
• 2 x USB 3.0 Type A
LEDs
• System alert
• LAN activity
• Drive activity
• System ID
Drive Bays
Backplane
Expansion Slots
• 3 x PCIe X8 slots (HHHL)
System BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS boot specification
• BIOS recovery mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB
On-board Devices
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
Optional SAS 3008/3108 modules (on OCP)
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• Intel I210 GbE for BMC shared NIC management port by onboard connector
(NCSI shared NIC - reserved for OCP V3.0)
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

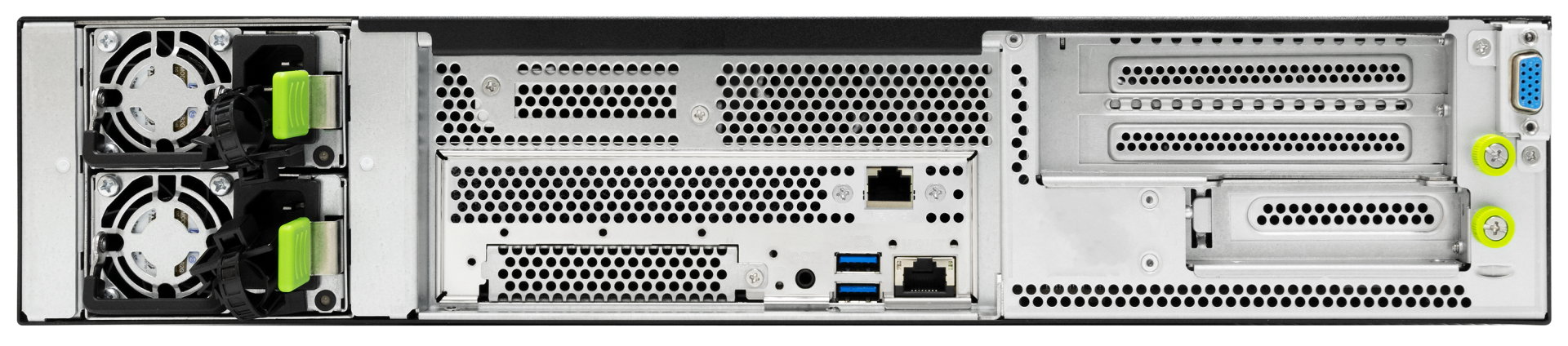

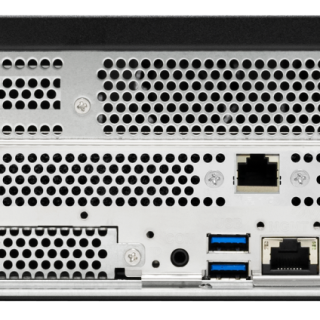

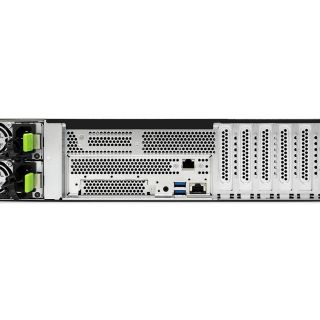

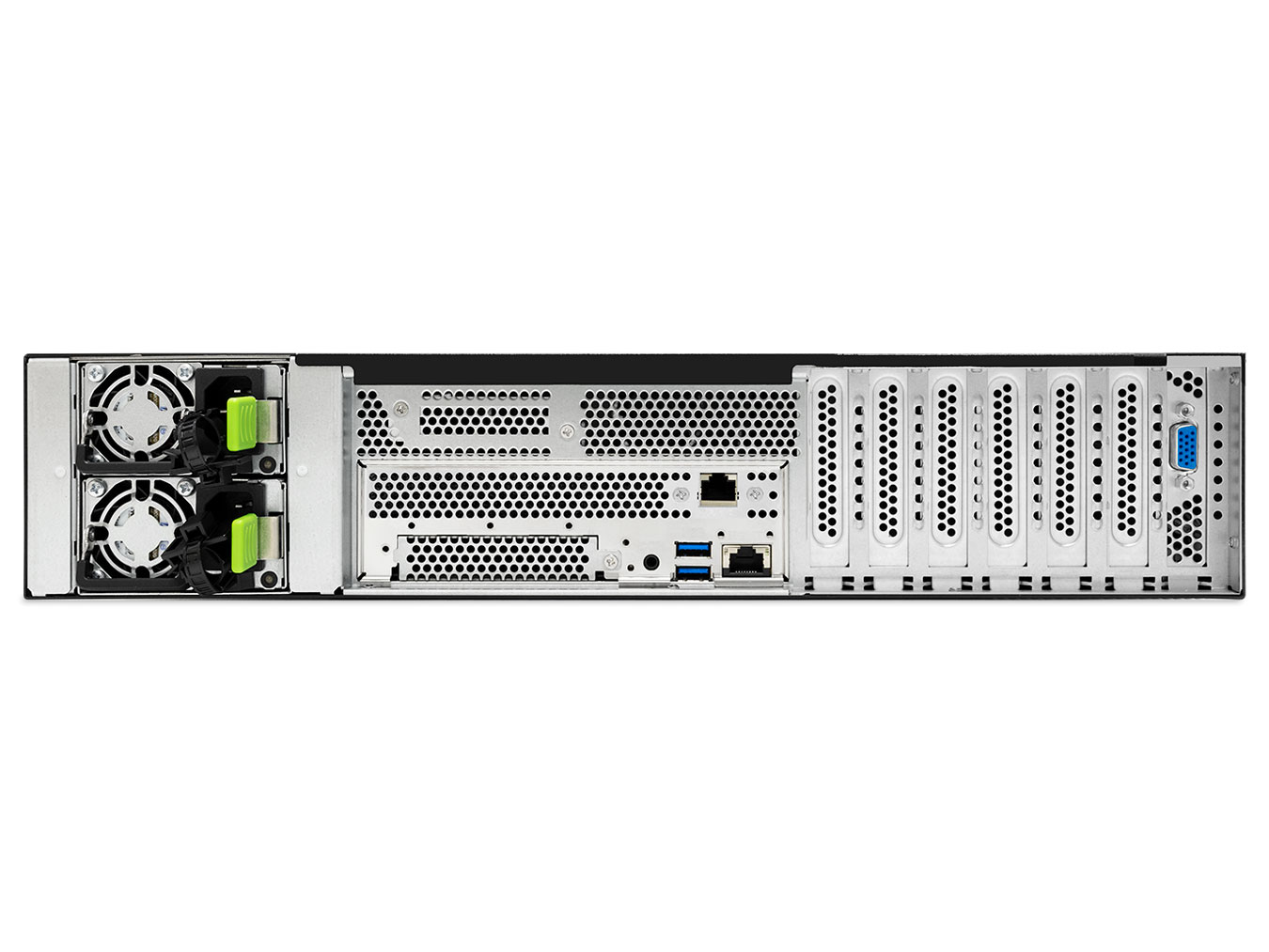

Rear I/O
• 1 x GbE RJ45 dedicated to BMC management
Power Supply
System Cooling
System Management
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• SNMP support
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• Intel NM
Environmental Specifications
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
Packaging Dimensions (W x D x H)
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
|
XP1-E201TU01 |
2U 4x 2.5" SATA hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 7 low profile slots rear window, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" slide rail, w/o bezel |
|
XP1-E201TU02 |
2U 4x 2.5" SATA hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Titanium, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 7 low profile slots rear window, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" slide rail, w/o bezel |
|
XP1-E201TU03 |
2U 4x 2.5" NVMe hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 7 low profile slots rear window, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" slide rail, w/o bezel |
|
XP1-E201TU04 |
2U 4x 2.5" NVMe hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Titanium, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 7 low profile slots rear window, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" slide rail, w/o bezel |
|
XP1-E201TU05 |
2U 4x 2.5" SATA hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, with riser card for 1x PCIe x16 FHHL Gen.4 or 2x PCIe x8 FHHL Gen.4, 1x PCIe x16 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" slide rail, w/o bezel |
|
XP1-E201TU06 |
2U 4x 2.5" SATA hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Titanium, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, with riser card for 1x PCIe x16 FHHL Gen.4 or 2x PCIe x8 FHHL Gen.4, 1x PCIe x16 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" slide rail, w/o bezel |
|
XP1-E201TU07 |
2U 4x 2.5" NVMe hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, with riser card for 1x PCIe x16 FHHL Gen.4 or 2x PCIe x8 FHHL Gen.4, 1x PCIe x16 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" slide rail, w/o bezel |
|
XP1-E201TU08 |
2U 4x 2.5" NVMe hot-swap (Passive BP 1*2 port), 4x 6038 fan, Acbel 800W redundant power supply Titanium, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, with riser card for 1x PCIe x16 FHHL Gen.4 or 2x PCIe x8 FHHL Gen.4, 1x PCIe x16 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, 1x OCP 3.0 x16 Gen.4, EATX, 2x CPU heatsink (195W), 18" |
| FRU Information | ||
|---|---|---|
| Standard Parts List | Part Number | Description |
| Fan | FC-000000338 | 6038 fan module /2510H |
| Backplane | BBP-FB10007A | DIAMOND/1U2BAY/SFF-8639*2/SLIMLINEx8*1 |
| Backplane | BBP-HD10003A | 12.5' SAS CONN 2 PORT/4 SATA |
| Heatsink | H50HP0C-0003 | MICROLOOPS/HP+CUFIN/L=113MM,W=78MM,H=24.7MM/TIM=TC-5288 |
| VGA | G7-A00000396 | |
| RJ45 | G6-A00000145 | |
