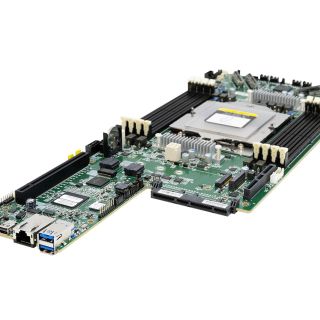

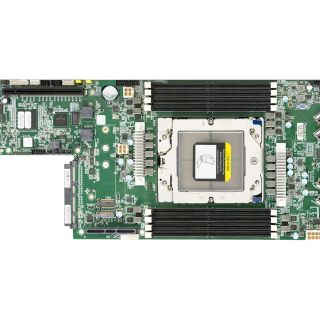

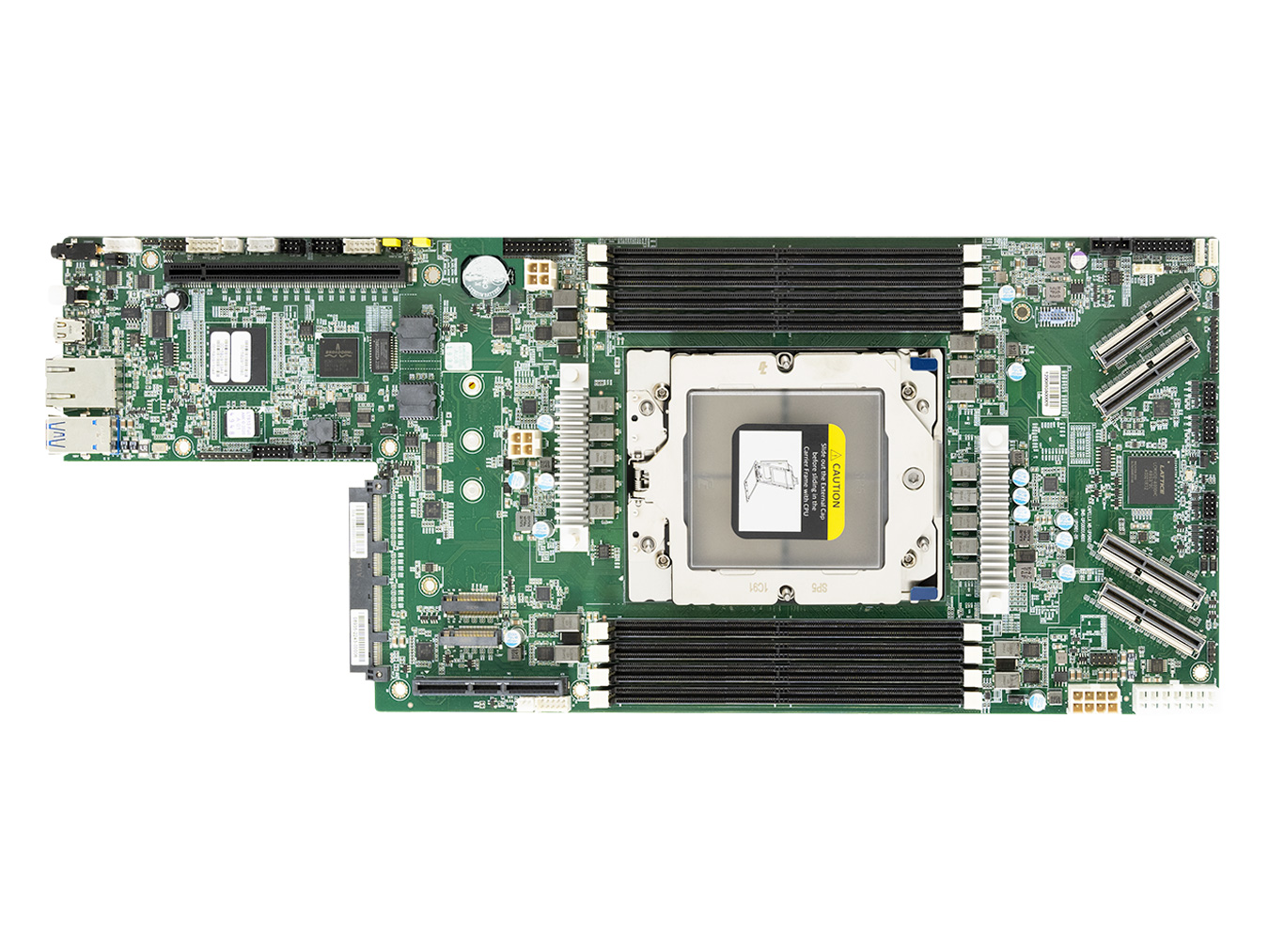

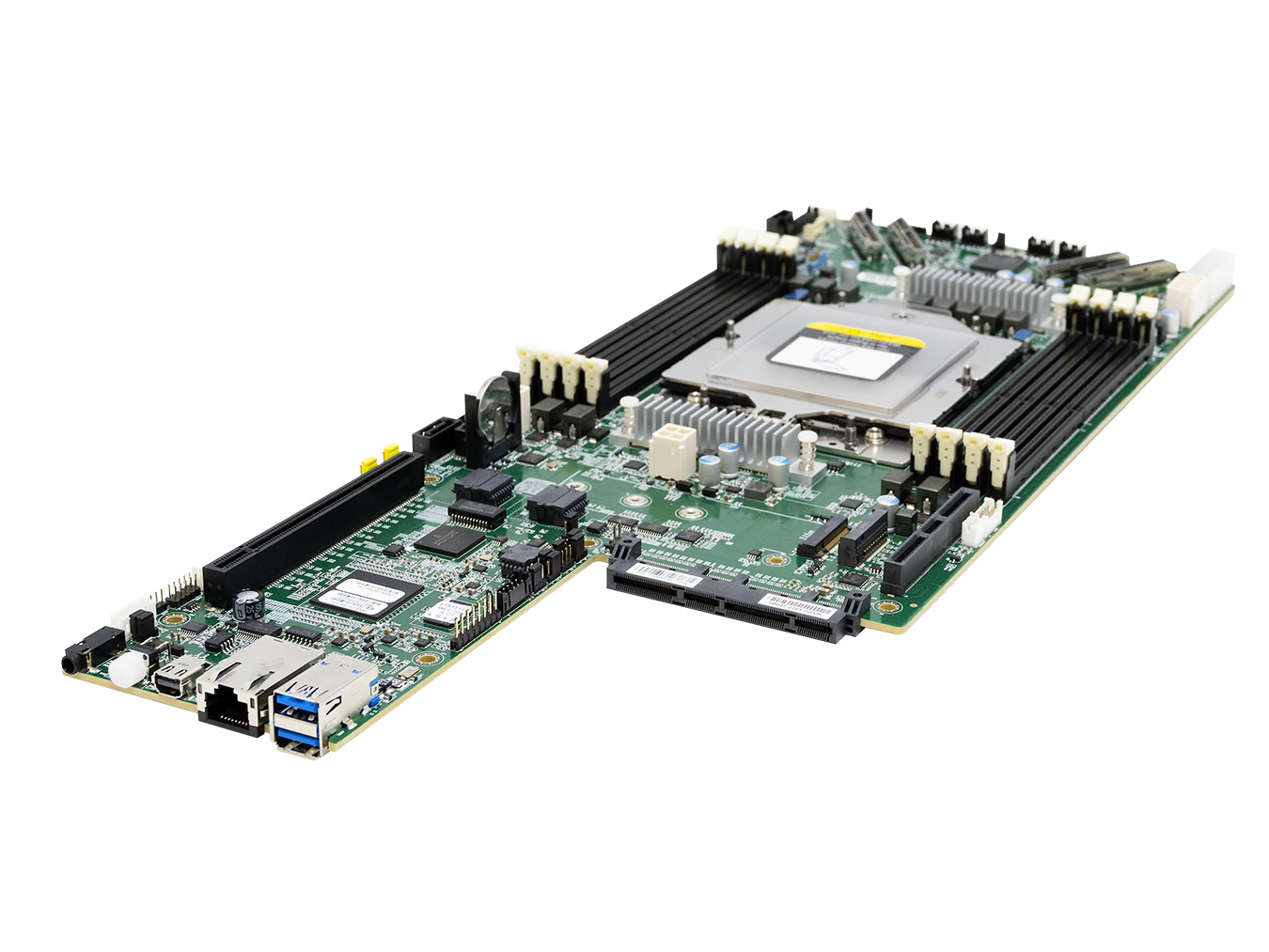

Capella
The Capella server board offers the latest AMD EPYC™ SoC technology which can support the highest core count in an x86-architecture with EPYC™ 9000-series processor, more main memory capacity and bandwidth with greater efficiency and greatest I/O density.
Capella has I/O bandwidth that matches the capability of the CPU cores to move data to and from the network, spinning disks, NVMe storage, and graphics acceleration devices.
By offering the parallelism to speed high performance computing environments, machine learning and predictive analysis benefit from the capability to process more data in memory and to accelerate computation with more direct GPU connectivity.
Capella has I/O bandwidth that matches the capability of the CPU cores to move data to and from the network, spinning disks, NVMe storage, and graphics acceleration devices.
By offering the parallelism to speed high performance computing environments, machine learning and predictive analysis benefit from the capability to process more data in memory and to accelerate computation with more direct GPU connectivity.
KEY FEATURE
Supports AMD EPYC™ 9000-series processor Genoa based on the AMD "Zen4" microarchitecture for highest server performance • Supports 8 DDR5 DIMM slots for maximum memory performance
FEATURE
Supports AMD EPYC™ 9000-series processor Genoa based on the AMD "Zen4" microarchitecture for highest server performance
• Supports 8 DDR5 DIMM slots for maximum memory performance
Supports 8 DDR5 DIMM slots for maximum memory performance
FEATURE
Supports 8 DDR5 DIMM slots for maximum memory performance
Supports one OCP Mezzanine V3.0 up to PCI Express Gen5 x16 extension
FEATURE
Supports one OCP Mezzanine V3.0 up to PCI Express Gen5 x16 extension
Supports four MCIO x16 total 64 PCI Express Gen5 lanes
FEATURE
Supports four MCIO x16 total 64 PCI Express Gen5 lanes
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Embedded components for 5+ year long life
FEATURE
Embedded components for 5+ year long life
Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations
FEATURE
Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations
2 Gen5 capable x4 M.2 slots
FEATURE
2 Gen5 capable x4 M.2 slots
Specification
SPECIFICATION
Main
Sub
Details
System
Dimensions
• mm : 431.8 x 172.7
• inches : 17 x 6.8
• inches : 17 x 6.8
Processor-Support
Single AMD EPYC™ 9000-series processor
CPU-TDP
400W
UPI-Speeds
Socket-Type
Socket SP5
System-Memory
• DDR5 6000(Turin only)/4800/3600MHz RDIMM
• Total 8 memory slots
• Supports up to 3TB
• Total 8 memory slots
• Supports up to 3TB
Expansion-Slots
• Total support 120 lanes of PCIe Gen5
- 4 x MCIO x16 (PCIe Gen5)
- 1 x PCIe Gen5/CXL X16 slot
- 1 x OCP Mezzanine V3.0 supports PCIe Gen5/CXL X16
- 1 x GenZ PCIe Gen5/CXL X16 slot
- 2 x NGFF (M.2) M-Key (2280) support PCIe Gen5/CXL X4
- 4 x MCIO x16 (PCIe Gen5)
- 1 x PCIe Gen5/CXL X16 slot
- 1 x OCP Mezzanine V3.0 supports PCIe Gen5/CXL X16
- 1 x GenZ PCIe Gen5/CXL X16 slot
- 2 x NGFF (M.2) M-Key (2280) support PCIe Gen5/CXL X4
System-BIOS
BIOS-Type
AMI UEFI BIOS
BIOS-Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
On-board-Devices
SATA
Rocket Lake PCH-H on-chip solution supports up to 8 x SATA 6.0 Gb/s
• 2 x SATA support pin#7 with 5V by jumper setting
• Another 2 x SATA share with above M.2
• 1 x MiniSAS HD supports 4 x SATA
• 2 x SATA support pin#7 with 5V by jumper setting
• Another 2 x SATA share with above M.2
• 1 x MiniSAS HD supports 4 x SATA
BMC
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
• SMASH Support
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
• SMASH Support
Network-Controller
• Realtek RTL8211FS GbE Ethernet for BMC dedicated management port
• Broadcom BCM5720 GbE for BMC shared NIC and data transfer by onboard header
(NCSI shared NIC - reserved for OCP & BCM5720 by jumper setting)
• Broadcom BCM5720 GbE for BMC shared NIC and data transfer by onboard header
(NCSI shared NIC - reserved for OCP & BCM5720 by jumper setting)
Graphics
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

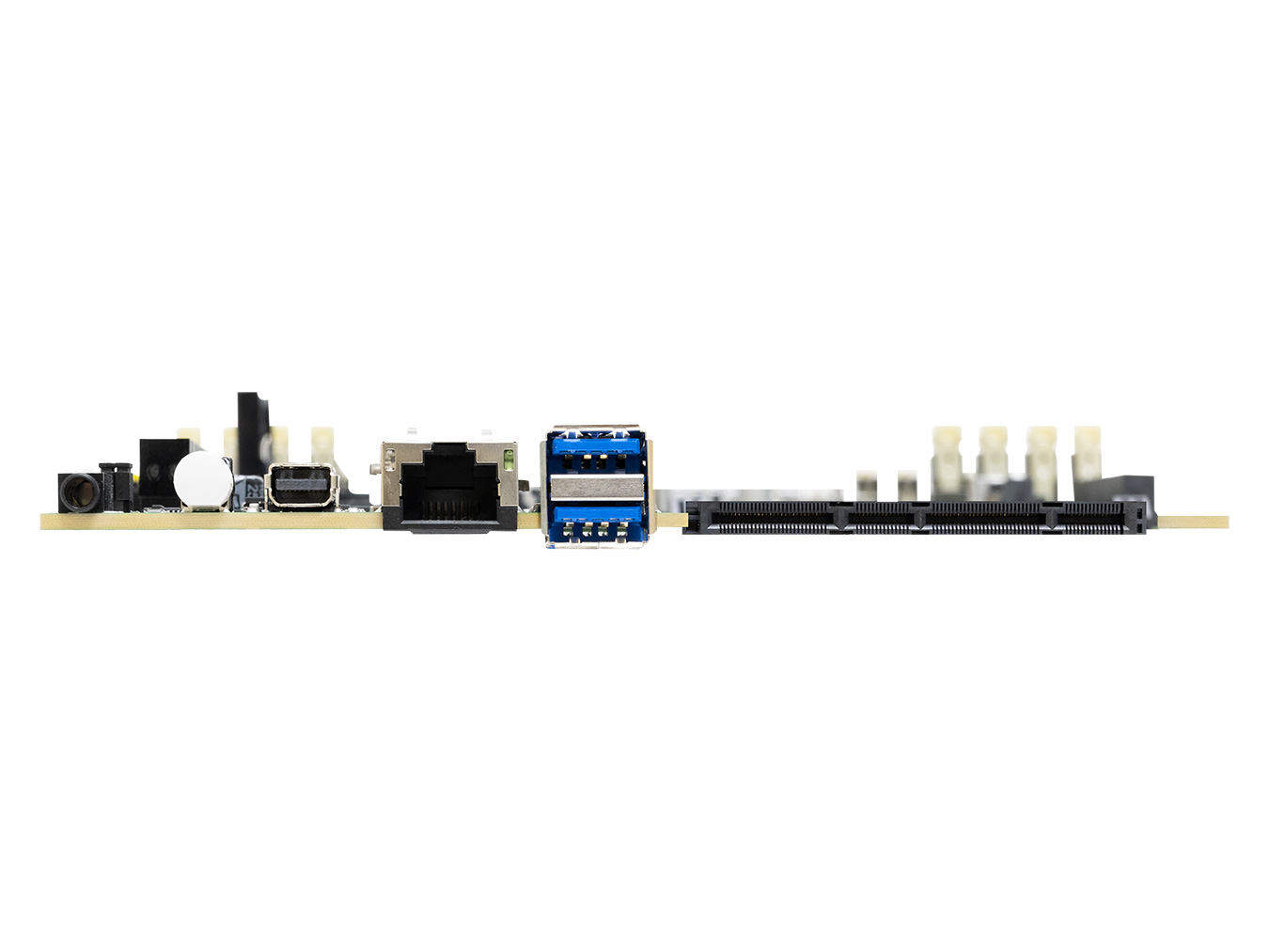

Input-Output
SATA
LAN
1 x GbE RJ45 dedicated to BMC management
USB
2 x USB3.2 Gen1 (5Gbps) double-stake Type A connectors
Display
1 x mini-DP
Serial-Port
• 1 x external COM (by Audio Jack)
• 1 x internal COM1 header + rear IO COM by phone jack + LCM header
• 1 x internal COM1 header + rear IO COM by phone jack + LCM header
Others
• 1 x external UID/switch button
• 1 x TPM 2.0 onboard
• 1 x TPM 2.0 onboard
Additional-Information
Security
* All specifications are subject to change without notice.
| Ordering Information | Description |
|---|---|
| BMB-UPG0001B | PCBA/MOTHER BOARD/MB-UPGN01/CAPELLA AMD CPU*1/GENOA/PCIE X16 STD.*1/OCP3.0*1/GENZ 4C*1/MCIO*4/M.2 22110*2/ 8 DDR |
