KEY FEATURE
FEATURE
FEATURE

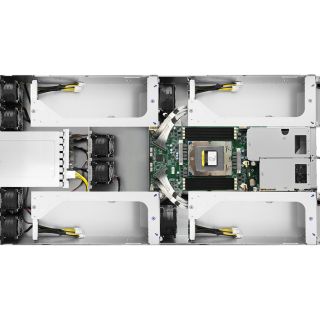

6 x 6038 fans + 4 x 8038 fans (middle & rear) ensures stable operation under heavy GPU and CPU workloads
FEATURE
FEATURE
Equipped with 3200W 1+1 redundant PSU
FEATURE
FEATURE

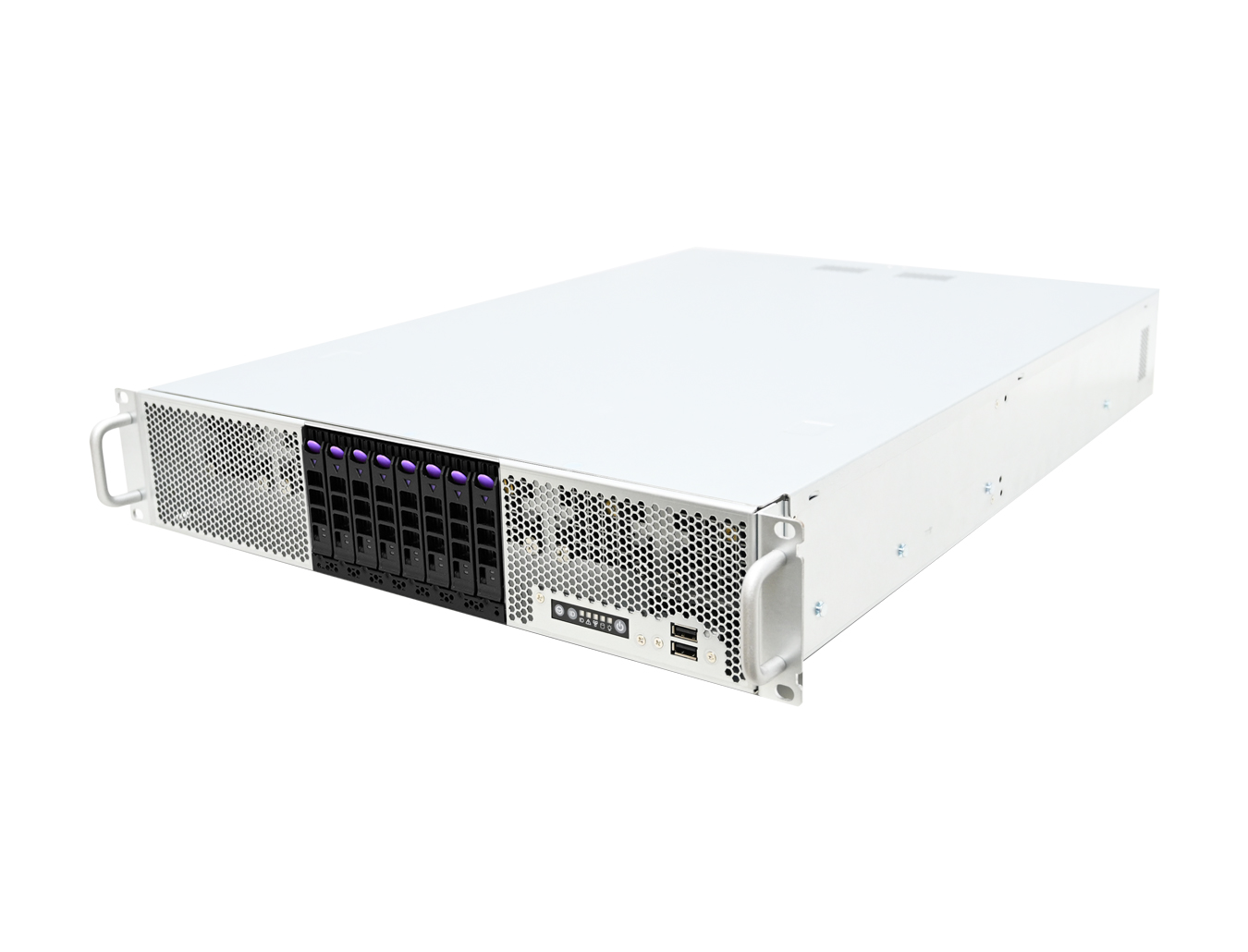

Support up to 8 × 2.5’’ SAS/SATA/NVMe (U.2) hot-swappable SSDs
FEATURE
FEATURE

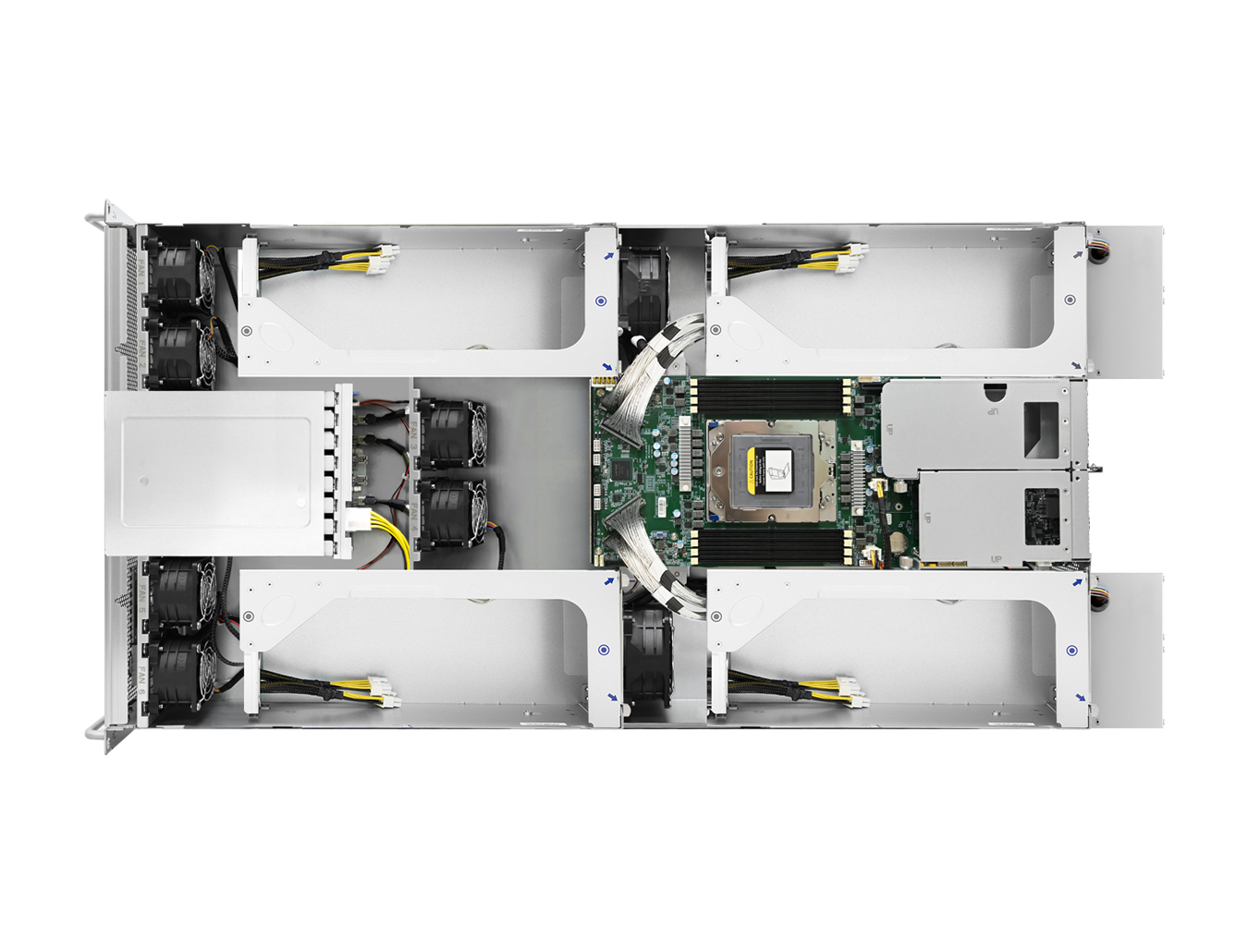

Chassis design enables installation of up to 4 × PCIe Gen5 x16 quad-width GPU cards
FEATURE
FEATURE
Supports AMD EPYC™ 9000 series (Genoa/Turin) processors with up to 400W TDP
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 835 (931with external fan) x 87.4
inches
17.24 x 32.87 (36.65 with external fan) x 3.44
Motherboard
AIC Server Board Capella
Processor
Processor Support
AMD EPYC™ 9004 Processors (Genoa/Turin)
CPU Interconnection
Socket Type
SP5
Chipset Support
System Memory
• Supports total up to 4TB
• DDR5 4800/5600/6400 MT/s
• Total 8 memory slots
• DDR5 4800/5600/6400 MT/s
• Total 8 memory slots

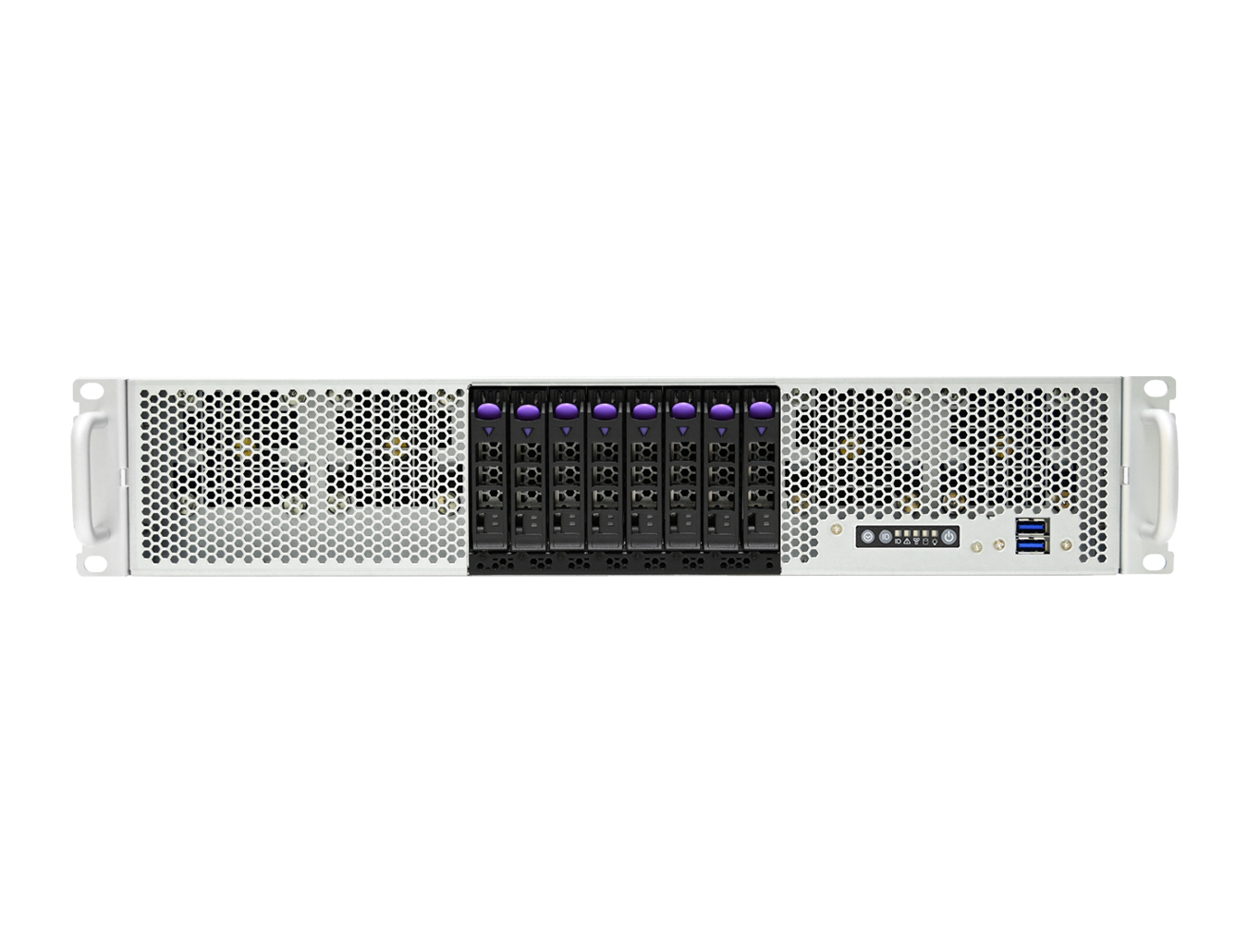

Front Panel
System power on/off, System reset, ID button
LEDs
Power status, System alert, System ID, Drive activity, LAN activity
Drive Bays
External
8 x 2.5" hot-swap (SAS/SATA/NVMe)
Internal
Backplane
8-bay 2.5” Gen5 Tri-mode
Expansion Slots
PCIe 5.0
• 4 x PCIe Gen5 X16 quad slot width GPU (by MCIOX16 CABLE-CEM)
• 2 x NGFF (M.2) M-Key (2280) support PCIe Gen5
• 1 x PCIe Gen5 X16 slot (riser form PCIe)
• 1 x PCIe Gen5 X16 GENZ slot (Reserved to front 4 x NVMe)
• 1 x PCIe Gen5 X16 OCP 3.0 Mezz
• 2 x NGFF (M.2) M-Key (2280) support PCIe Gen5
• 1 x PCIe Gen5 X16 slot (riser form PCIe)
• 1 x PCIe Gen5 X16 GENZ slot (Reserved to front 4 x NVMe)
• 1 x PCIe Gen5 X16 OCP 3.0 Mezz
PCIe 4.0
System BIOS
BIOS Type
AMI / SPI (Serial Peripheral Interface) FLASH interface
BIOS Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
On-board Devices
SATA
IPMI
IPMI 2.0 compatible BMC with iKVM support / AST2600 (eSPI)
Network Controllers
• Broadcom BCM5720 for BMC shared NIC (By pin header opt)
• Realtek RTL8211F GbE for BMC dedicate management port
• Realtek RTL8211F GbE for BMC dedicate management port
Graphics
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

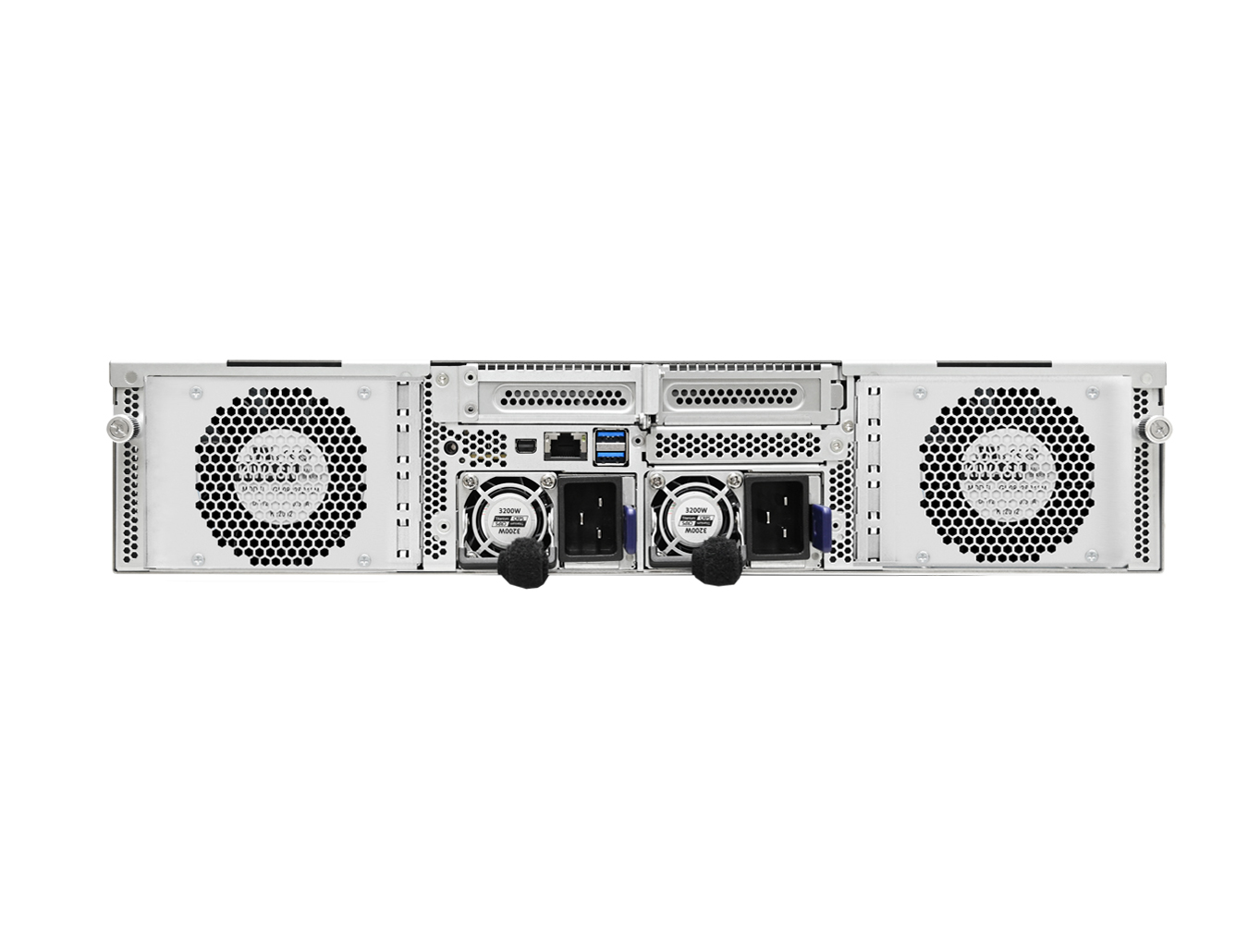

Rear I/O
LAN
1 x RJ45 for dedicated BMC management
USB
2 x USB 3.2 Gen1 Type A connectors
Video Output
1 x Mini display port
Serial Port
1 x COM (for audio jack)
Power Supply
3200W 1+1 redundant power supply
System Cooling
• 6 x 6038mm fans
• 2 x 8038mm fans (middle)
• 2 x 8038mm fans (rear Option)
• 2 x 8038mm fans (middle)
• 2 x 8038mm fans (rear Option)
System Management
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
Environmental Specifications
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
lbs
Packaging Dimensions (W x D x H)
mm
615 x 1130 x 330
inches
24.21 x 44.5 x 13
Mounting (Standard)
Standard :
36” tool-less slide rail
36” tool-less slide rail
* All specifications are subject to change without notice.
