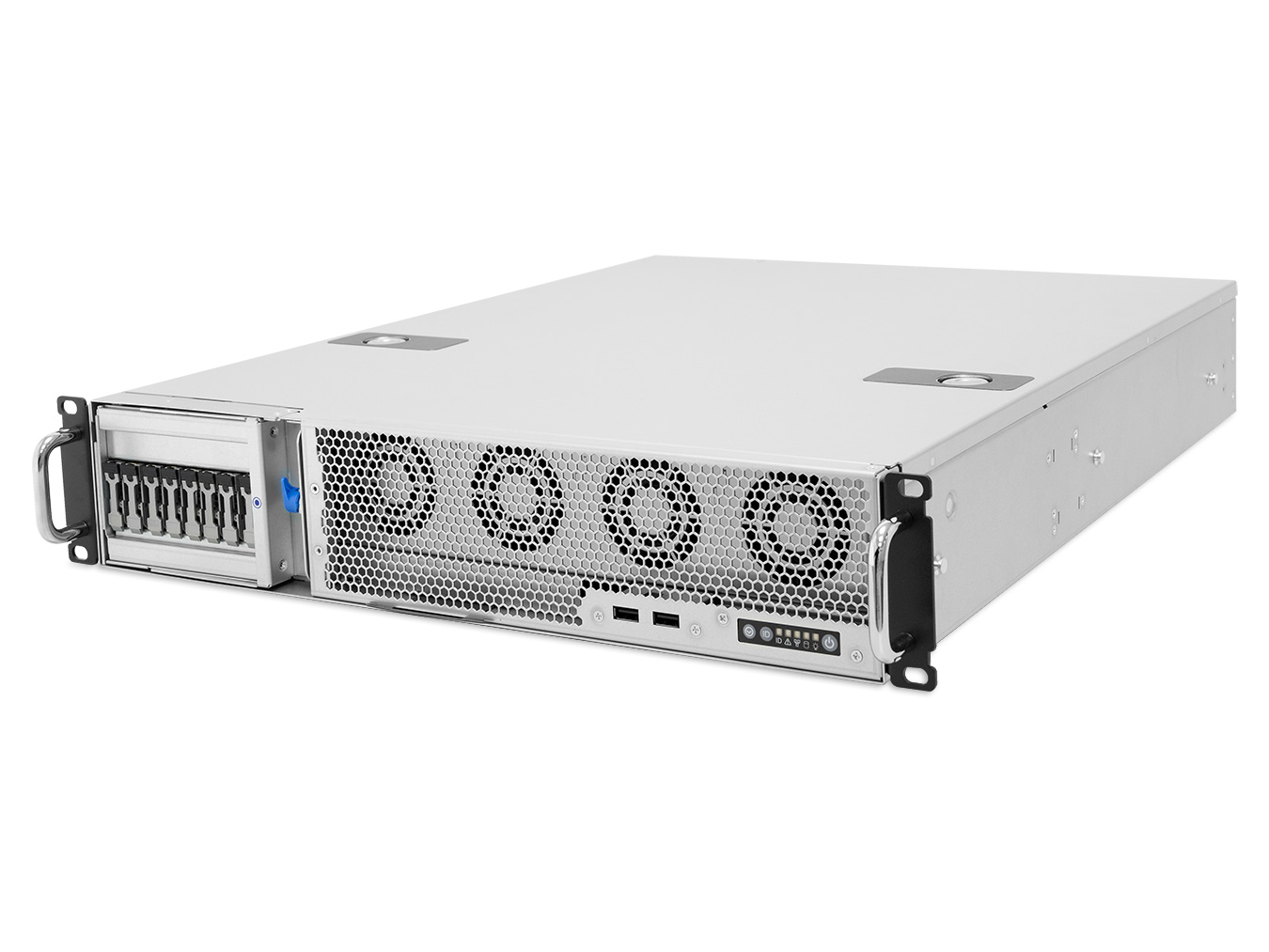

EB202-CP

EB202-CP performance in a short-depth form factor, it is ideal for 5G, low-latency, and computing edge applications. Supports Gen4 AMD EPYC™ 9004 series processors with PCIe Gen5 extension design. It supports Gen5 hot swappable EDSFF, can equip eight Gen5 E1.S/E3.S or four Gen4 U.2 NVMe, quickly remove all storage(8bay), achieve an extra layer of security.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Supports up to 2 GPU cards

FEATURE

Supports Gen5 E1.S, E3.S (2 types of EDSFF) and Gen4 U.2 form factor as open bay design

FEATURE

Supports 4th Gen AMD EPYC™ Processors (Codename: Genoa)

FEATURE

Short-depth design for space-critical applications

FEATURE

4 PSU options: 1600W 1+1, 1200W 1+1, single PSU and DC input (1200W)

FEATURE

Full drive removal with one lever

FEATURE

Easy maintain riser PCIe cards

Specification

Specification
SKU
FRU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 558.8 x 87.2

inches

17 x 22 x 3.4

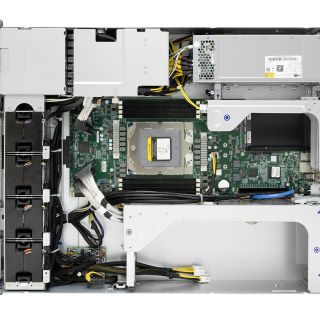

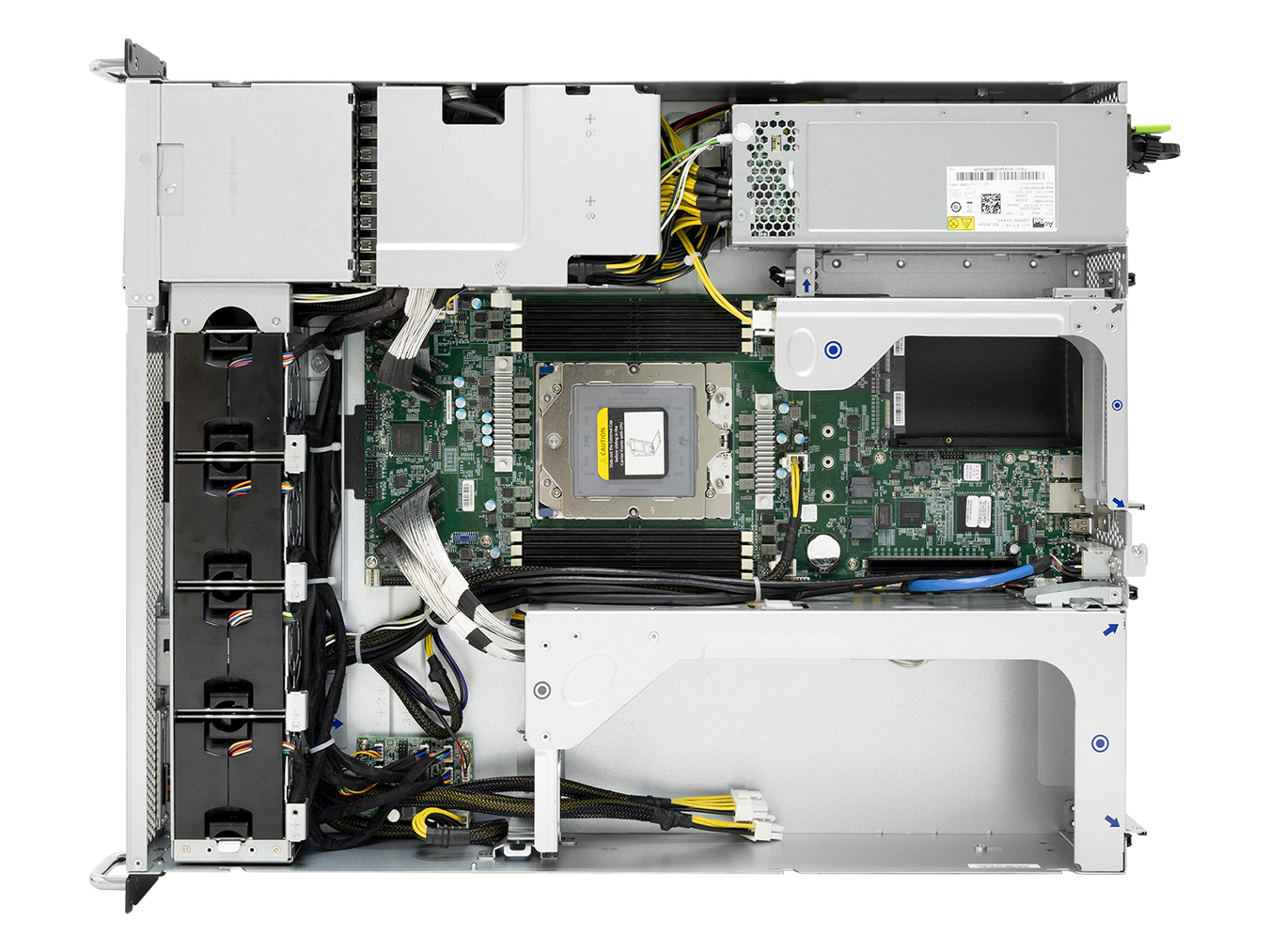

Motherboard

AIC Server Board Capella

Processor

Processor Support

4th Gen AMD EPYC™ Processors (Codename: Genoa)

CPU Interconnection

Support CPU TDP up to 360W

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)

Socket Type

Socket SP5

Chipset Support

System Memory

• Supports total up to 4TB

• DDR5 4800 MHz

• Total 8 memory slots

Front Panel

• Power switch

• Reset button

• ID button

• 2 x USB 2.0

LEDs

Front of System
Front panel:
• Power status, HDD status, Lan LED, BMC Alert LED, ID LED

SSD status:
• Green light : running
• Flashing green light : reading
• Amber light : no function, customize
• Blue light : no function, customize

Back of System
PSU:
• Constant bright green light: system running
• Red light : power has issue
• Flashing green light : has power but system does not turned on

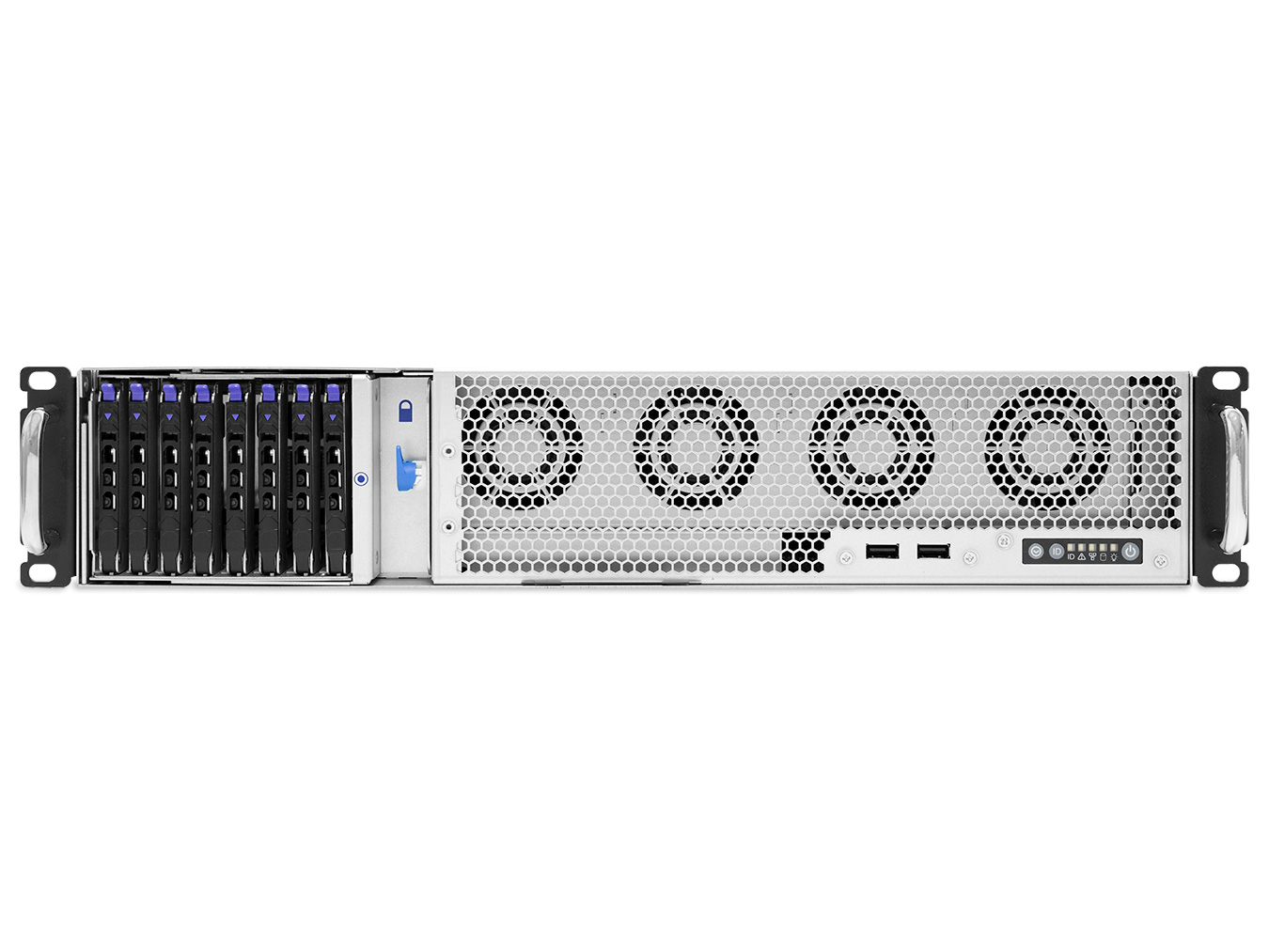

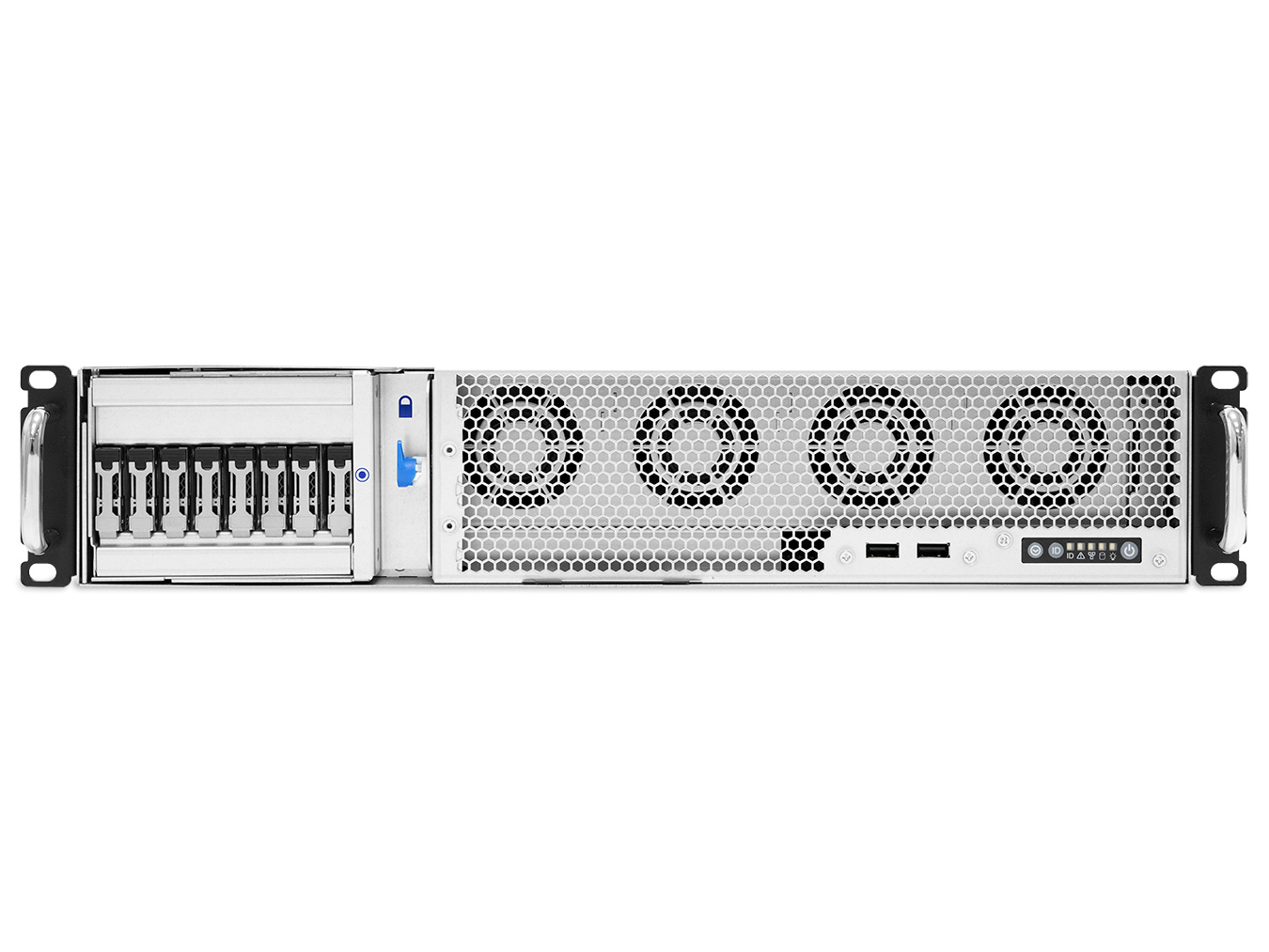

Drive Bays

External

Options:

• E1.S 8-bay (9.5mm)

• E3.S 8-bay (7.5mm)

• U.2 4-bay (2.5")

Internal

2 x NGFF (M.2) M-Key (2280) support PCIe Gen5

Backplane

Options:

• 1 x 8-port E1.S (9.5mm)/E3.S (7.5mm) backplane

• 2 x 2-port U.2 (2.5”) backplane

Expansion Slots

PCIe 5.0

• 1 x PCIe Gen5 X16 slot (HHHL)

• 2 x PCIe Gen5 X8 slots (FHHL)

• 2 x PCIe Gen5 X16 slot double deck (FHFL)

• 1 x OCP 3.0 Mezz. PCIe Gen5 X16

PCIe 4.0

System BIOS

BIOS Type

AMI / SPI (Serial Peripheral Interface) FLASH interface

BIOS Features

• ACPI

• PXE

• IPMI KCS interface

• SMBIOS

• Serial console redirection

• SR-IOV

• CXL

• Secure Boot

• TPM

• PCIe Hotplug

On-board Devices

SATA

IPMI

IPMI 2.0 compatible BMC with iKVM support / AST2600 (eSPI)

Network Controllers

• Broadcom BCM5720 for BMC shared NIC management and Data transfer

• Realtek RTL8211F GbE for BMC dedicate management port (NCSI shared NIC - reserved BCM5720)

Graphics

1920X1200 32bpp@60Hz

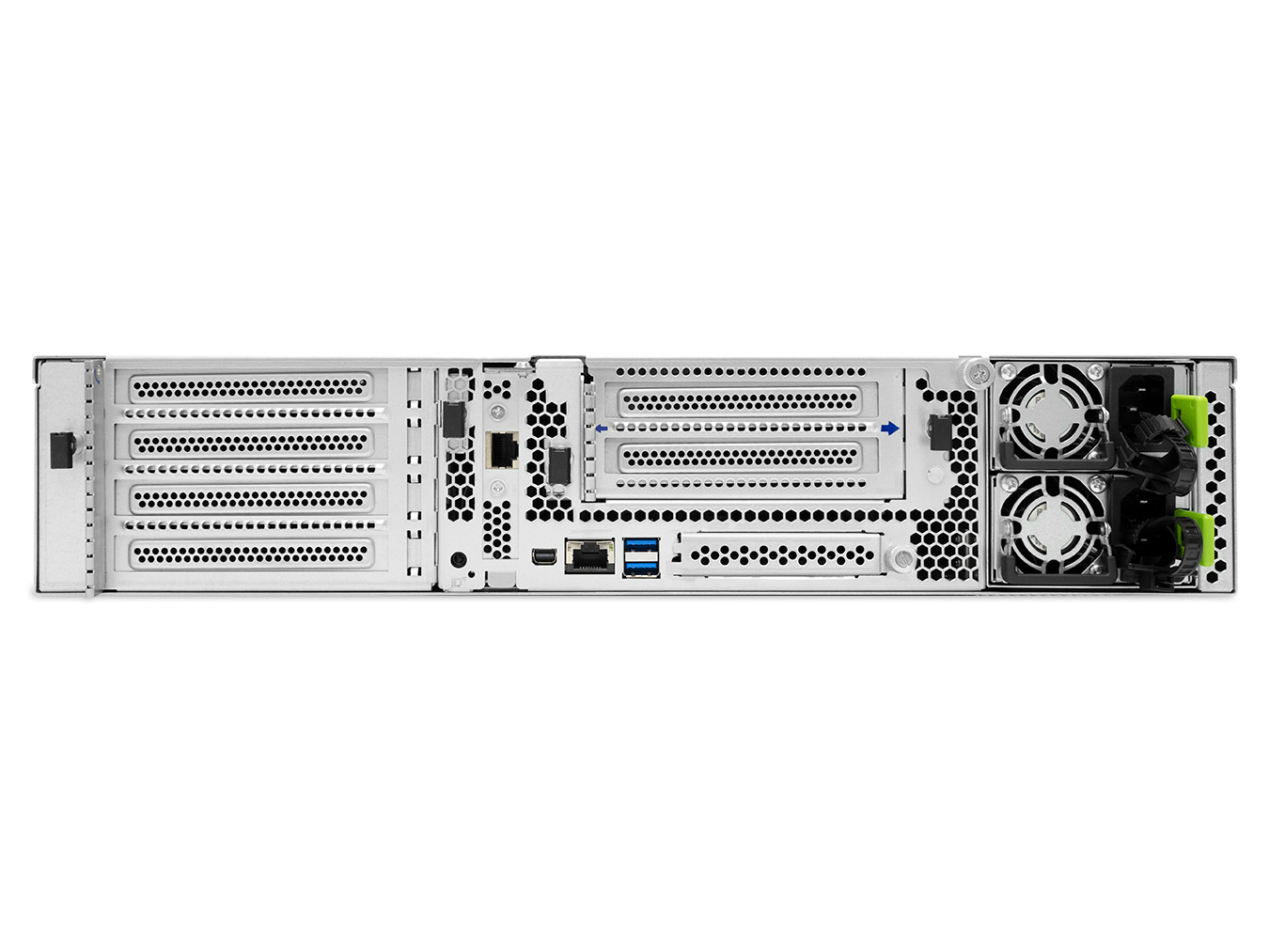

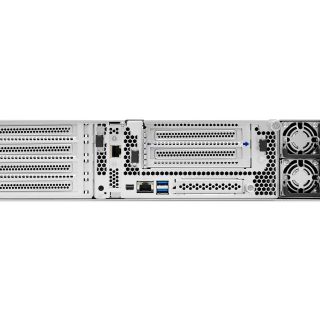

Rear I/O

LAN

1 x RJ45 for Dedicated BMC management

USB

2 x USB 3.2 Gen 1 Type A

Video Output

1 x Mini display port

Serial Port

1 x COM (for audio jack)

1 x ID LED

Power Supply

4 PSU options:

• Edge applications – redundant/single (1600W)

• Edge applications – 1200W 1+1

• Training simulation – single PSU (1600W or 1200W)

• Edge applications and vehicle – DC input (1200W)

System Cooling

Low noise/low power fans, 4 x 6056 fans, supports fan redundancy, 2 x 4028 fans in back of EDSFF drive backplane

System Management

• Baseboard Management Controller

• Intelligent Platform Interface 2.0 (IPMI 2.0)

• iKVM, Media Redirection, IPMI over LAN, Serial over LAN

• SMASH Support

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity : 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

24.5

lbs

Packaging Dimensions (W x D x H)

860 x 605 x 318

inches

33.9 x 23.8 x 12.5

* All specifications are subject to change without notice.

SKU Information	Description
XP1-E202CP01	2U 8-bay E1.S PCIe Gen.5 backplane, 1600W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP02	2U 8-bay E3.S PCIe Gen.5 backplane, 1600W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP03	2U 4-bay U.2 PCIe Gen.4 backplane, 1600W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP06	2U 4-bay U.2 PCIe Gen.4 backplane, 1600W 1+1 redundant 80+ Titanium, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP09	2U 4-bay U.2 PCIe Gen.4 backplane, 1200W 1+1 redundant DC -48V, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel
XP1-E202CP12	2U 4-bay U.2 PCIe Gen.4 backplane, 1200W 1+1 redundant 80+ Platinum, Capella motherboard, AMD Zen4 Genoa EPYC, DDR5 RDIMM x8, 1 x GbE dedicate IPMI, 1 x PCIe Gen5 x16 slot + 1 x HD slot PCIe Gen5 x16 (rear), 1x OCP 3.0 x16 Gen.5, 2x M.2 PCIe Gen.5, 1x CPU heatsink, 28" slide rail, w/o bezel

FRU Information
Part Number	Description
M06-1541-006	CRPS 1600W Platinum RPSU Module & Housing (for EB202-CP)
M06-1541-007	CRPS 1600W Titanium RPSU Module & Housing (for EB202-CP)
M06-1541-008	CRPS 1200W DC -48V RPSU Module & Housing (for EB202-CP)
