KEY FEATURE
Supports AMD EPYC™ 8000-series processor Siena based on the AMD "Zen4", future support Sorano (Zen5) microarchitecture for highest server performance
FEATURESupports 6 DDR5 DIMM slots for maximum memory performance
FEATURESupports 3 PCIe Gen5 x16 slots
FEATURESupports four MCIO x8 total 32 PCI Express Gen5 lanes
FEATUREOnboard Baseboard Management Controller for system management and IPMI control
FEATUREEmbedded components for 5+ year long life
FEATURESPECIFICATION
System
• inches : 9.6 x 9.65
• Total 6 memory slots
• 4 x MCIO x8 (PCIe Gen5) Total support 80 lanes of PCI Express Gen5
• 2 x NGFF(M.2) M-Key(2280) support NVMe x4/SATA co-design
System-BIOS
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
On-board-Devices
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• HTML5
• Redfish
• Broadcom BCM57416/BCM5720L co-design supports 2 x 10G Base-T/1GbE

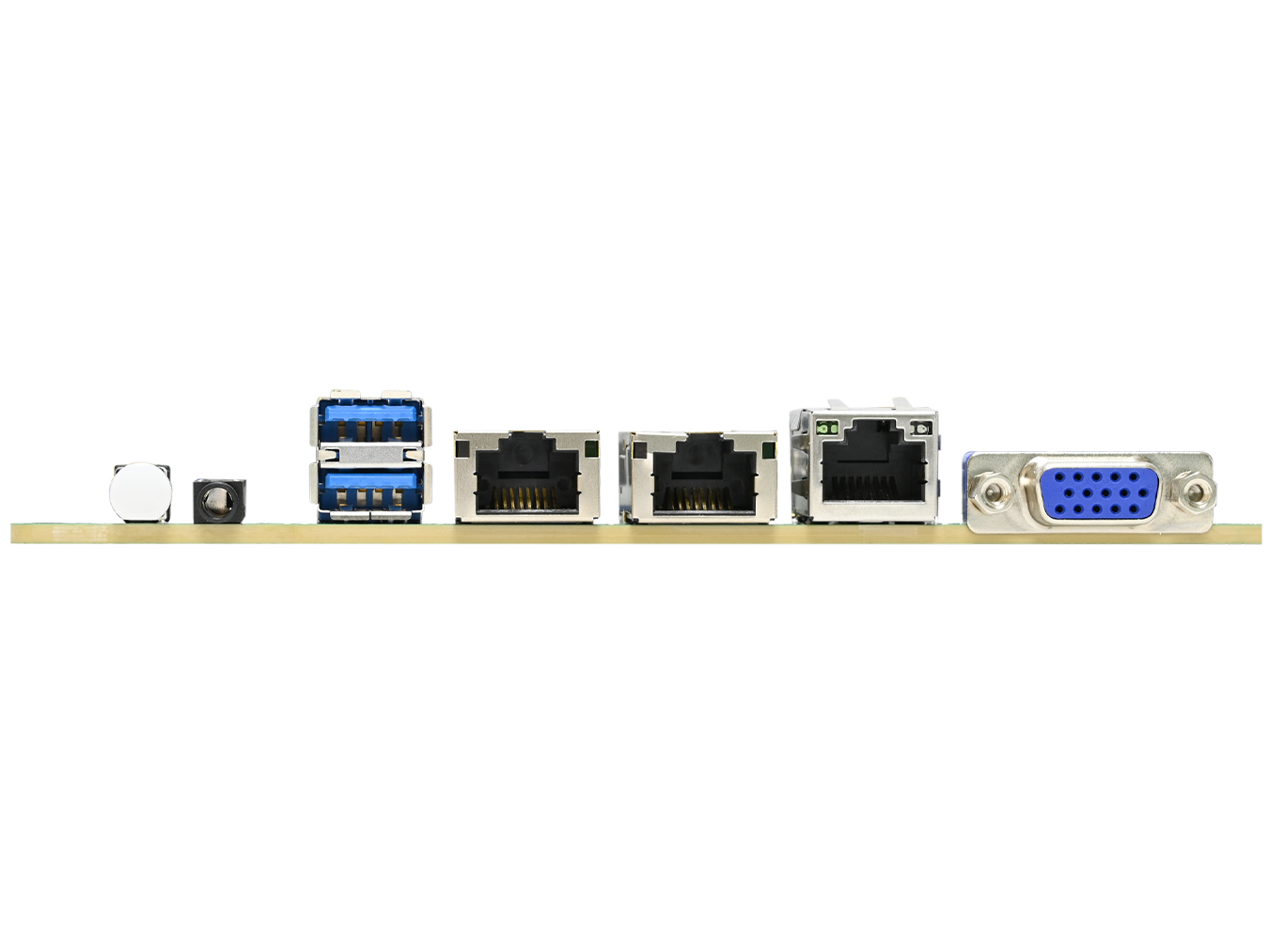

Input-Output
• 1 x RJ45 connector (for BMC management port)
• 2 x USB pin headers support 4 x USB 3.0/2.0
• 1 x internal COM box header
Additional-Information
* All specifications are subject to change without notice.
|
MB_SKU |
Ordering Information |
Description |
|---|---|---|
|
Zelus(A) |
BMB1UPS0001A |
PCBA/MOTHER BOARD/MB-UPSN01/ZELUS |
|
Zelus(A) |
M22-1717-010 |
Zelus MB (BMB1UPS0001A) (with 10G LAN) with IOS (M60-1717-001), bulk packing with 10 pcs MB & IOS (10 pcs in packing) |
|
Zelus(A) |
M22-1717-011 |
Zelus MB (BMB1UPS0001A) (with 10G LAN) with IOS (M60-1717-001), single packing |
|
Zelus(C) |
BMB1UPS0001C |
PCBA/MOTHER BOARD/MB-UPSN01/ZELUS |
|
Zelus(C) |
M22-1717-024 |
Zelus MB (BMB1UPS0001C) (with 1G LAN) with IOS (M60-1717-001), bulk packing with 10 pcs MB & IOS (10 pcs in packing) |
|
Zelus(C) |
M22-1717-025 |
Zelus MB (BMB1UPS0001C) (with 1G LAN) with IOS (M60-1717-001), single packing |
