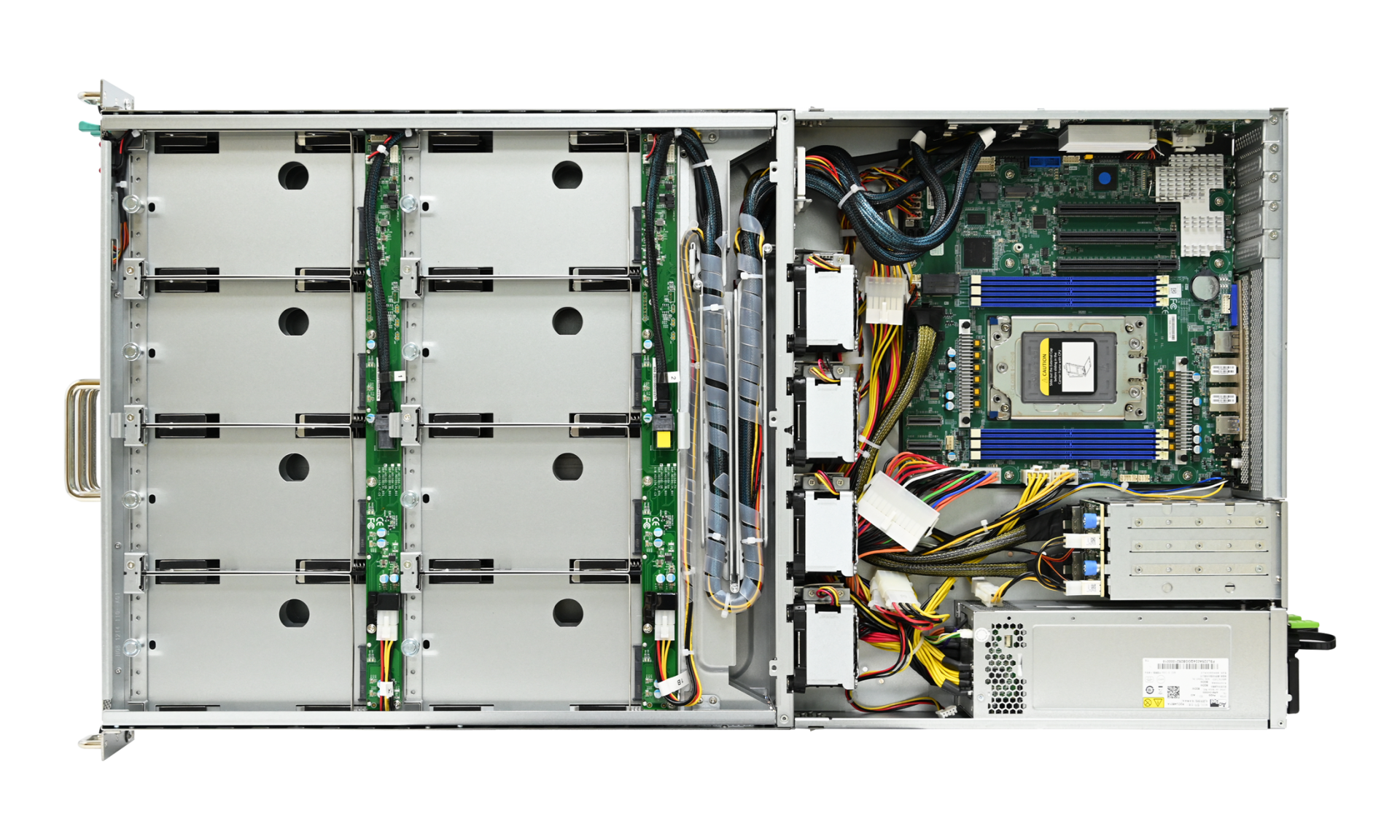

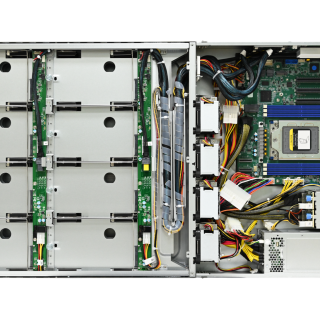

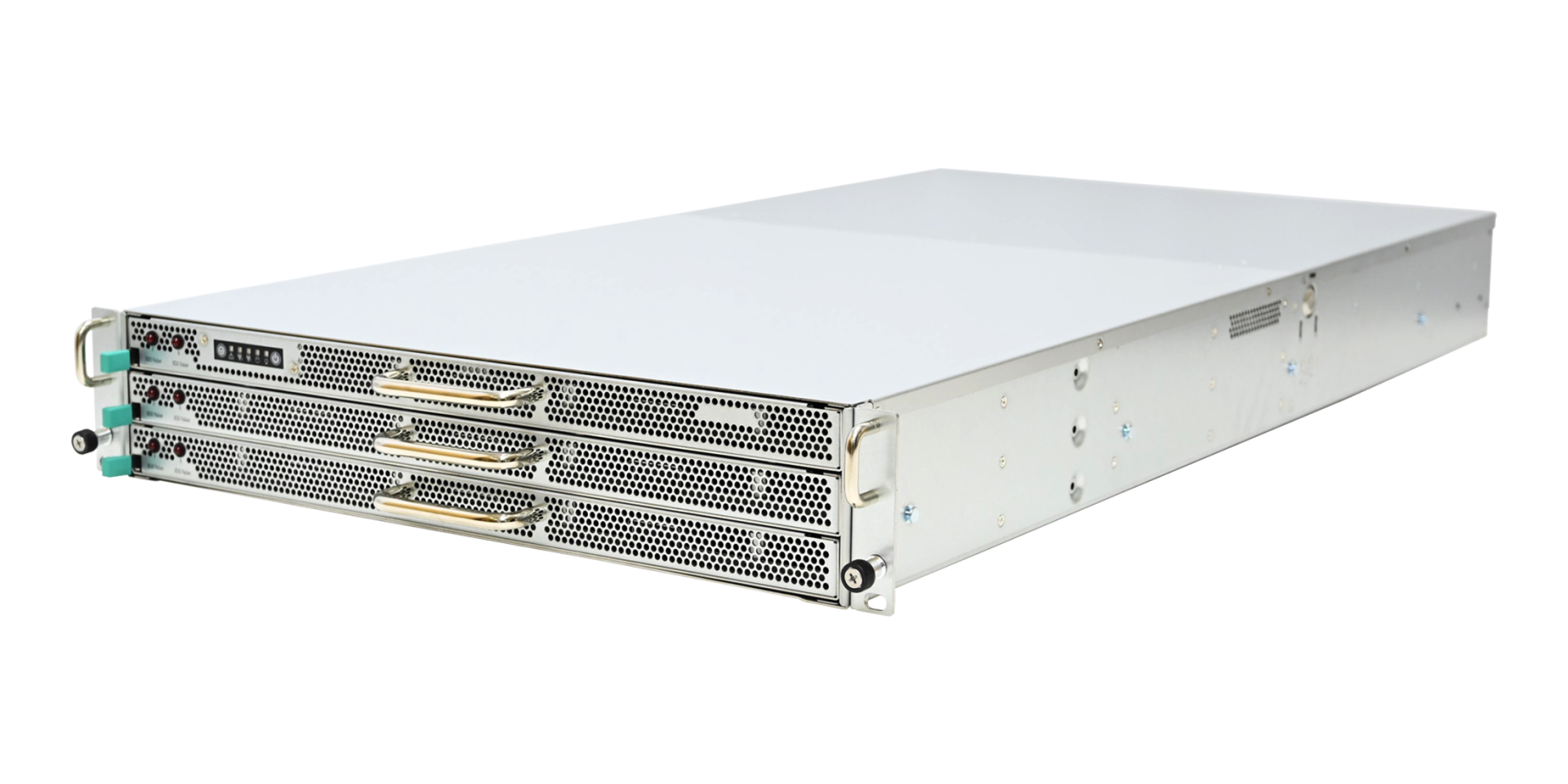

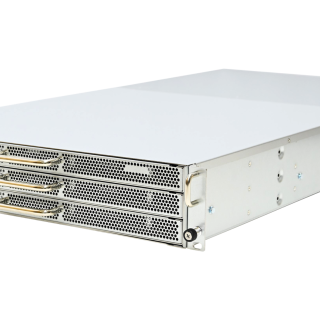

KEY FEATURE
FEATURE
FEATURE
Short-depth design to fit in standard 1M rack cabinet
FEATURE
FEATURE
Titanium level high efficiency redundant power supply
FEATURE
FEATURE
3 x PCIe Gen5 X16 slot expansions, 2 x 10GbE plus BMC management ports
FEATURE
FEATURE
Built in AIC Zelus server grade AMD EPYC™ 8000-series processor Siena/Sorano (Zen5) MB
FEATURE
FEATURE
24 x 3.5” + 4 x 2.5” Tri-mode drive bay tool-less HDD/SSD drive design
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 838 x 88
inches
17.2 x 33 x 3.46
Motherboard
AIC Server Board Zelus
Processor
Processor Support
AMD EPYC™ 8000-series processor Siena (Zen4) / Sorano (Zen5) microarchitecture
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)
CPU Interconnection
Socket Type
Socket SP6
Chipset Support
System Memory
• DDR5 4800MT/s RDIMM
• Total 6 memory slots
• Total 6 memory slots

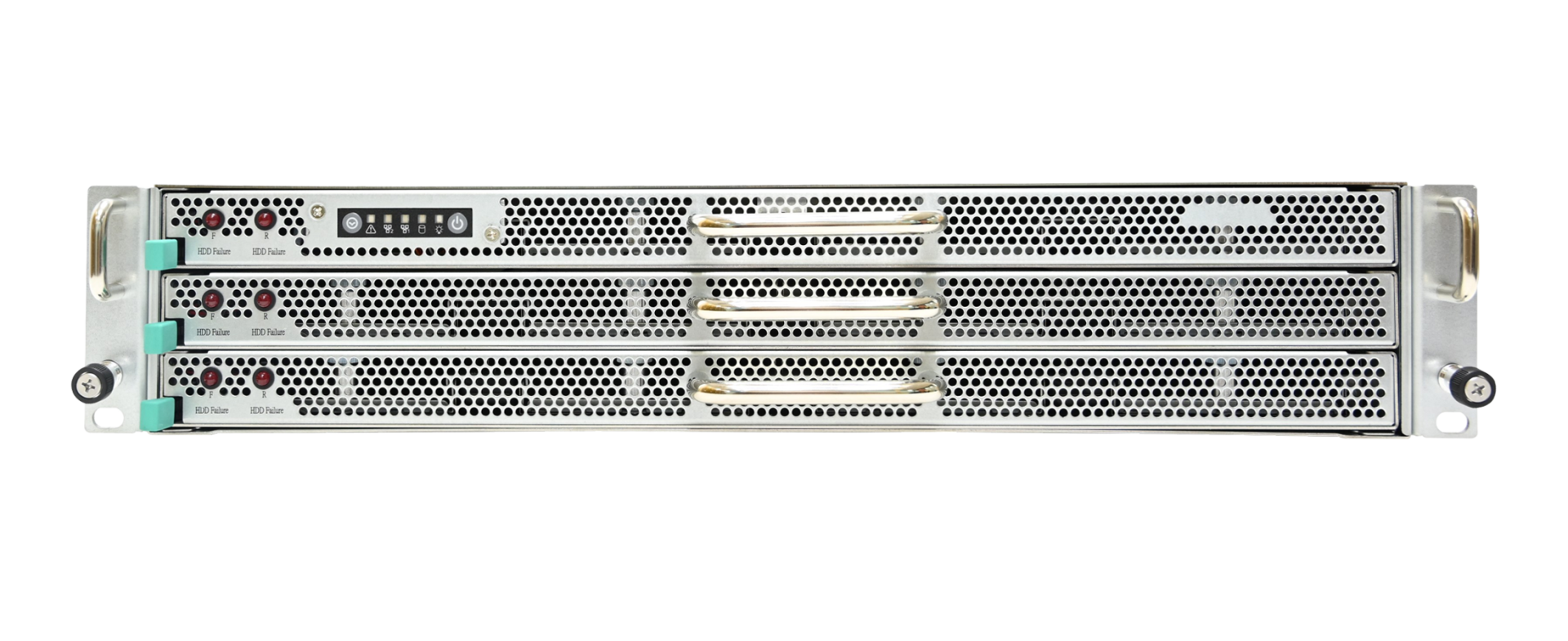

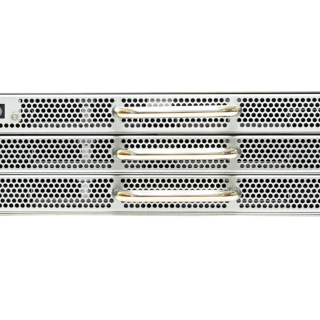

Front Panel
System power, system reset and UID switch
LEDs
• System power
• HDD
• LAN 1
• LAN 2
• UID
• Warning
• HDD
• LAN 1
• LAN 2
• UID
• Warning
Drive Bays
External
4 x 2.5" hot-swap
Internal
24 x 3.5" hot-swap
Backplane
Expansion Slots
3 x PCIe Gen5 X16 slots
Expander Board
12G EOB expander card (35X) DB-EXPD28-TY with internal 4 x Slimline 8i connectors and 2 x 8644 connectors
System Bios
Bios Type
AMI UEFI BIOS
Bios Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe hotplug
On Board
Devices
SATA :
2 x SATA 7-pin connectors with ASM1062R SATA 6Gbps controller (Supports RAID 0, RAID 1, SPAN)
2 x SATA 7-pin connectors with ASM1062R SATA 6Gbps controller (Supports RAID 0, RAID 1, SPAN)
Devices BMC
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
Devices Network Controllers
Realtek RTL8211FS GbE for BMC dedicate management port (NCSI shared NIC - reserved for Broadcom NIC)
• Broadcom BCM57416/BCM5720L co-design supports 2 x 10G Base-T/1GbE
• Broadcom BCM57416/BCM5720L co-design supports 2 x 10G Base-T/1GbE
Devices Graphics
Integrated VGA support by ASPEED AST2600 Resolution up to 1920x1200 @60Hz 32bpp

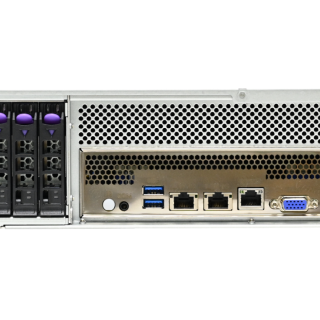

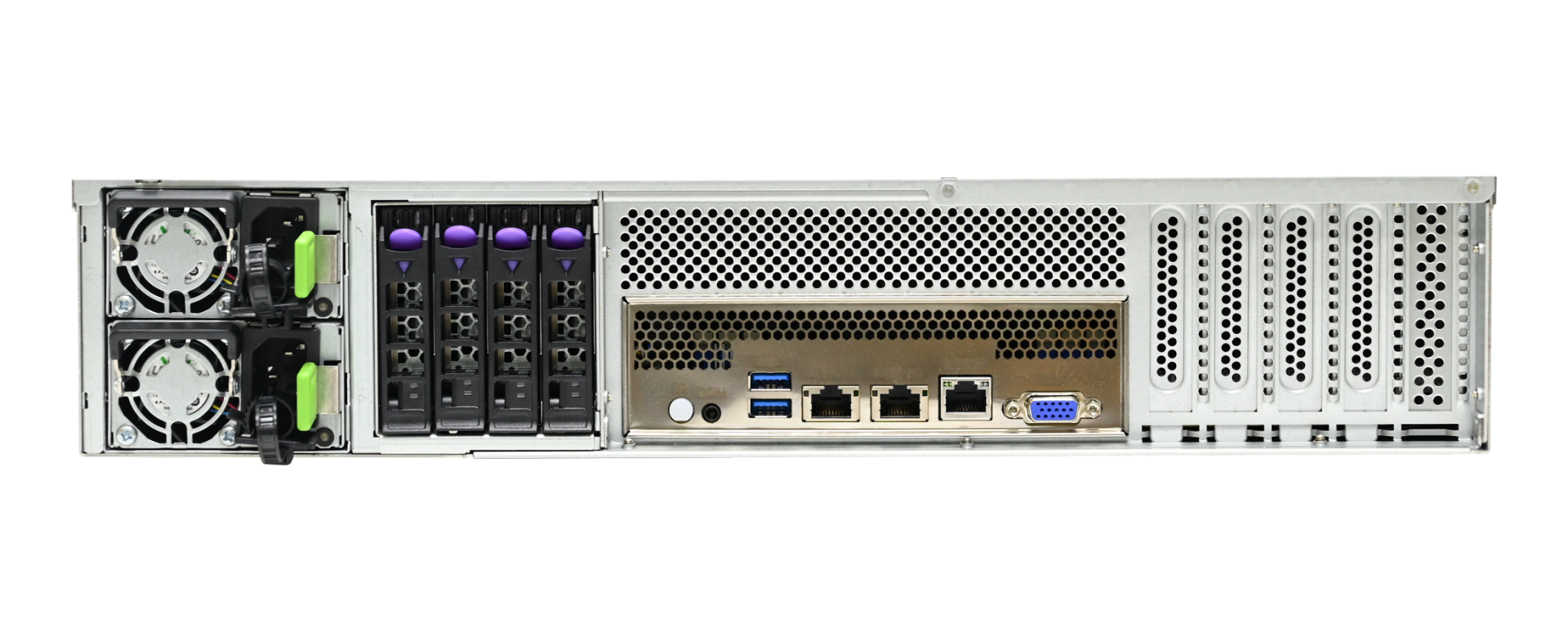

Rear I/O
LAN
• 2 x RJ45 connectors for dual port 10GbE/GbE
• 1 x RJ45 connector (for BMC management port)
• 1 x RJ45 connector (for BMC management port)
USB
2 x USB 3.2 Gen 1 double-stack Type A connectors
Video Output
1 x external VGA port
Serial Port
1 x external COM port
Other(s)
1 x UID switch + LED
TPM Support
Power Supply
1200W 1+1 redundant PSU PMBus 1.2 80+ Titanium
System Cooling
4 x 60x38mm PWM fans
System Management
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• HTML5
• Redfish
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH support
• HTML5
• Redfish
Environmental Specifications
• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
36
lbs
79.4
Packaging Dimensions (W x D x H)
mm
584 x 1015 x 254
inches
23 x 39.9 x 10
Mounting (Standard)
* All specifications are subject to change without notice.
