HP202-AG

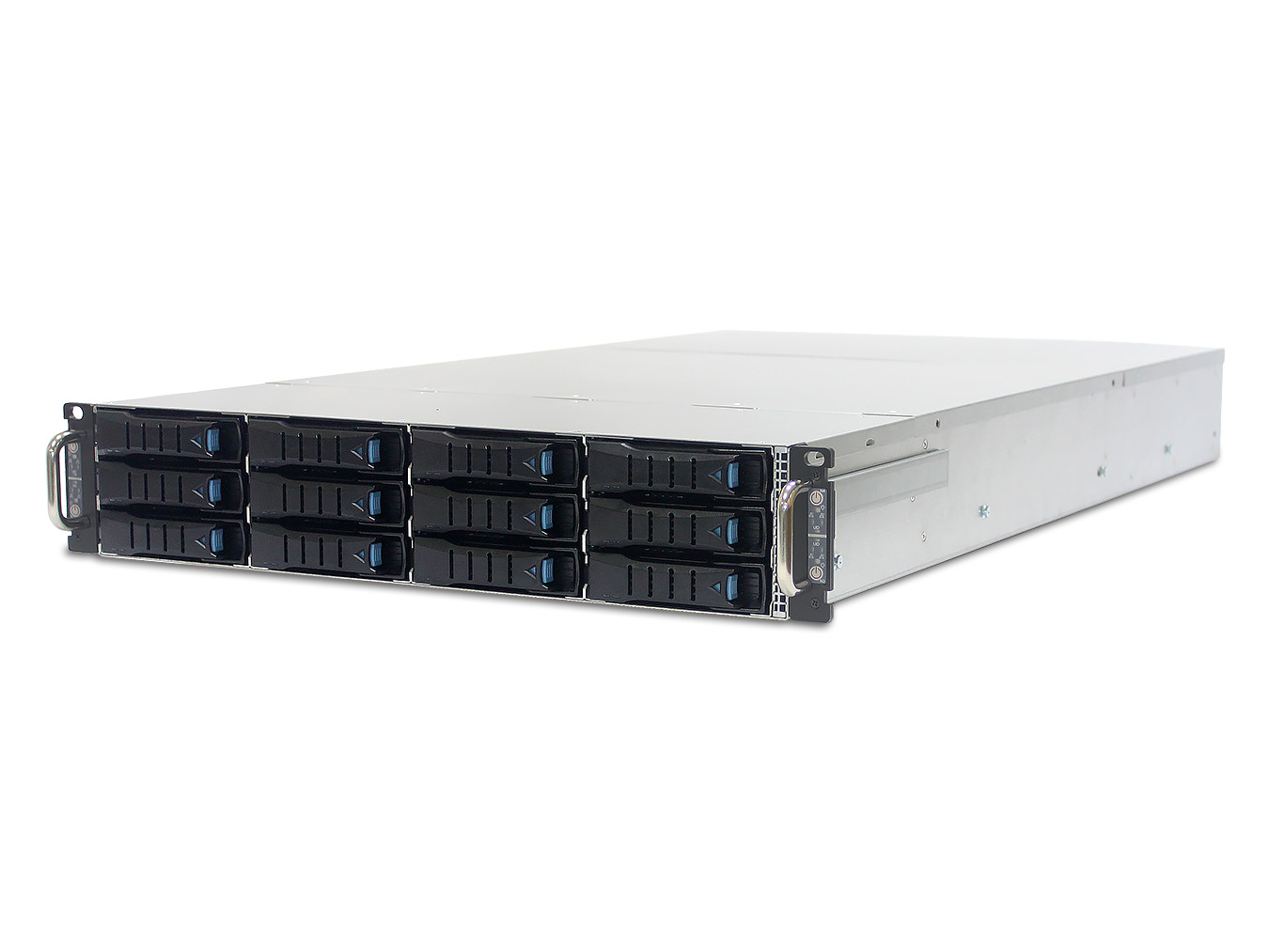

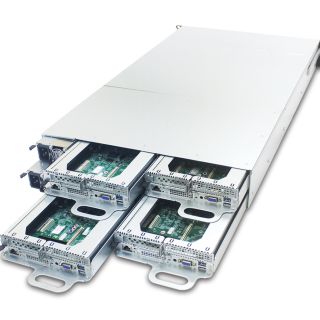

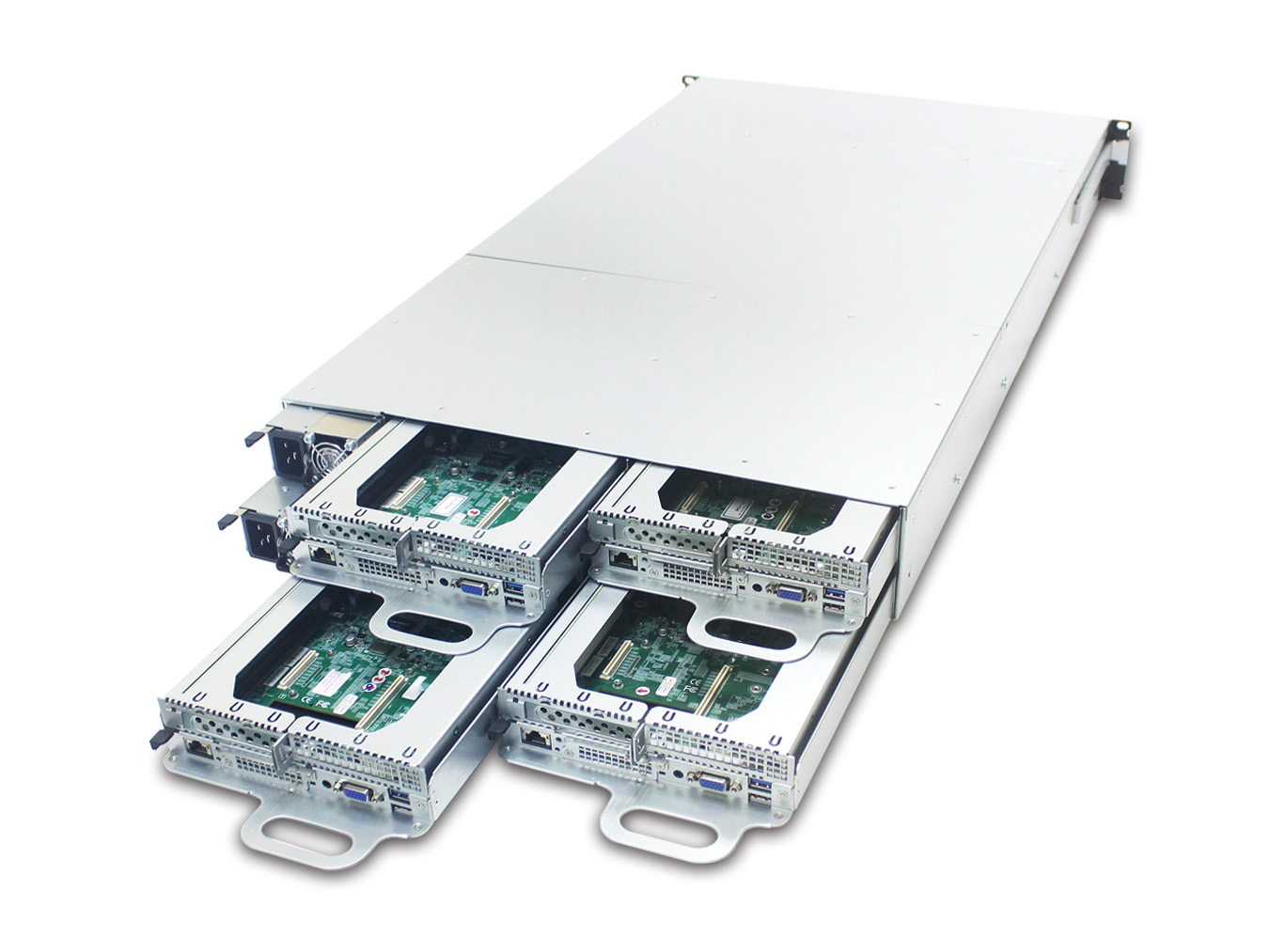

HP202-AG is a 2U 4-Node server solution with 12x 3.5” SAS/SATA + 8x 2.5” SATA bays. It comes with 4x AIC Auriga MB supports single AMD® EPYC® 7003/7002/7001 processor product family. Up to 3x PCIe X16 add-on cards for Network/HBA/RAID… features expansion. It has the optimized design for Hyper-Converged applications. Flexible Deployment/scale out one node at a time and transferring legacy software into cloud service easily.
KEY FEATURE

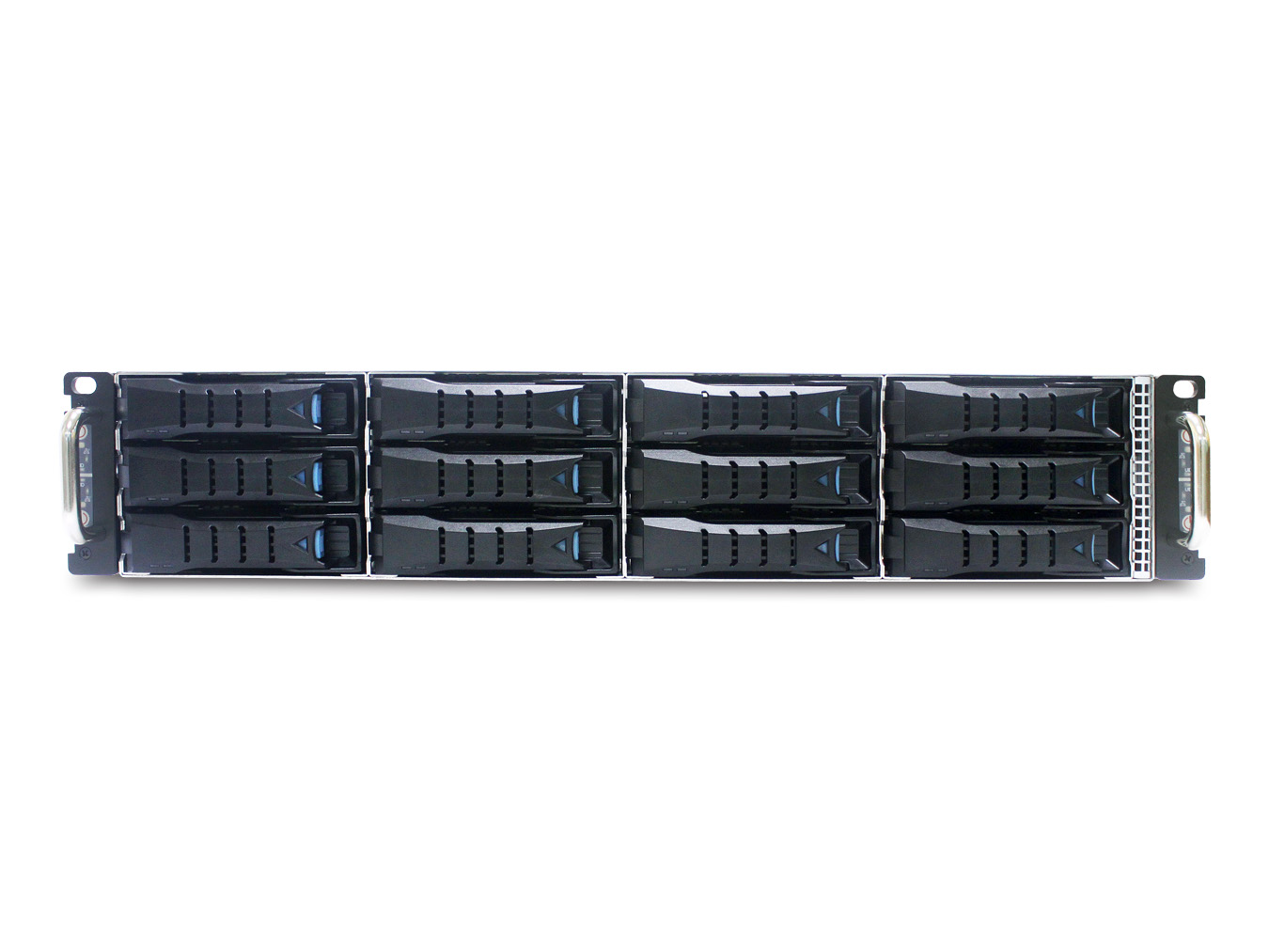

2U 4-Node hybrid storage server supports 12 hot swap 3.5” SATA/SAS drive bays
FEATURE
2U 4-Node hybrid storage server supports 12 hot swap 3.5” SATA/SAS drive bays
Supports AMD EPYC™ 7003/7002/7001 processor
FEATURE
Supports AMD EPYC™ 7003/7002/7001 processor
Maximizing the use of the numbers of memory, add-on cards and drives in one single system
FEATURE
Maximizing the use of the numbers of memory, add-on cards and drives in one single system
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
3 x PCIe x16 extensions on each node
FEATURE
3 x PCIe x16 extensions on each node
Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions
FEATURE
Front-to-back airflow and easy swap redundant fans to provide optimal thermal conditions
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 780 x 87.5
inches
17.2 x 30.7 x 3.5
Motherboard
AIC Server Board Auriga
Processor
Processor Support
• Single AMD EPYC™ 7003/7002/7001 processor
• Supports CPU TDP up to 280W (Support by EPYC™ 7003 CPU)
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)
• Supports CPU TDP up to 280W (Support by EPYC™ 7003 CPU)
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)
CPU Interconnection
Socket Type
Socket SP3
Chipset Support
AMD EPYC™ SOC
System Memory (Per Node)
• DDR4 3200/2933MHz RDIMM/LRDIMM
• Total 8 memory slots; 8 channels
• Supports up to 2TB (support by EPYC™ 7003/EPYC™ 7002 CPU)
• Supports NVDIMM feature
• Total 8 memory slots; 8 channels
• Supports up to 2TB (support by EPYC™ 7003/EPYC™ 7002 CPU)
• Supports NVDIMM feature
Front Panel (Per Node)
Node power on/off
LEDs (Per Node)
• Node power status
• Node ID
• BMC alert
• Node ID
• BMC alert
Drive Bays
External
12 x 3.5" hot swap (3 x SAS/SATA per node)
Internal
• 8 x 2.5" hot swap (2 x SATA per node)(Option)
• 2 x M.2(NGFF) / M-Key / 2280 /Supports SATA or PCIe x2
• 2 x M.2(NGFF) / M-Key / 2280 /Supports SATA or PCIe x2
Backplane
1 x 12-port SAS/SATA backplane with high-density connectors to bridge riser board
Expansion Slots (Per Node)
• 2 x16 slots (LP)
• 1 x16 OCP Mezzanine V2.0
(OCP & PCIe slots rear I/O plate are BTO reserved by factory option.)
• 1 x16 OCP Mezzanine V2.0
(OCP & PCIe slots rear I/O plate are BTO reserved by factory option.)
Riser Cards
• RC-PE1U02-Z2 : 1 x16 PCIe slot
• RC-PE1U18-TY : 1 x16 PCIe slot
• RC-PE1U18-TY : 1 x16 PCIe slot
System BIOS
BIOS Type
Insyde UEFI BIOS
BIOS Features
• ACPI
• PXE
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• iSCSI
• TPM (2.0 onboard)
• PCIe Hotplug
• PXE
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• iSCSI
• TPM (2.0 onboard)
• PCIe Hotplug
On-board Devices
SATA
SATA/NVMe:
• 2 x SATA 6.0 Gb/s
• 2 x SATA 6.0 Gb/s by M.2 (M-key) supports up to 22110 (can be confirgured as 2 x PCIe x1 M.2)
• 2 x SATA 6.0 Gb/s
• 2 x SATA 6.0 Gb/s by M.2 (M-key) supports up to 22110 (can be confirgured as 2 x PCIe x1 M.2)
BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish (by request)
• SMASH Support
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish (by request)
• SMASH Support
Network Controllers
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

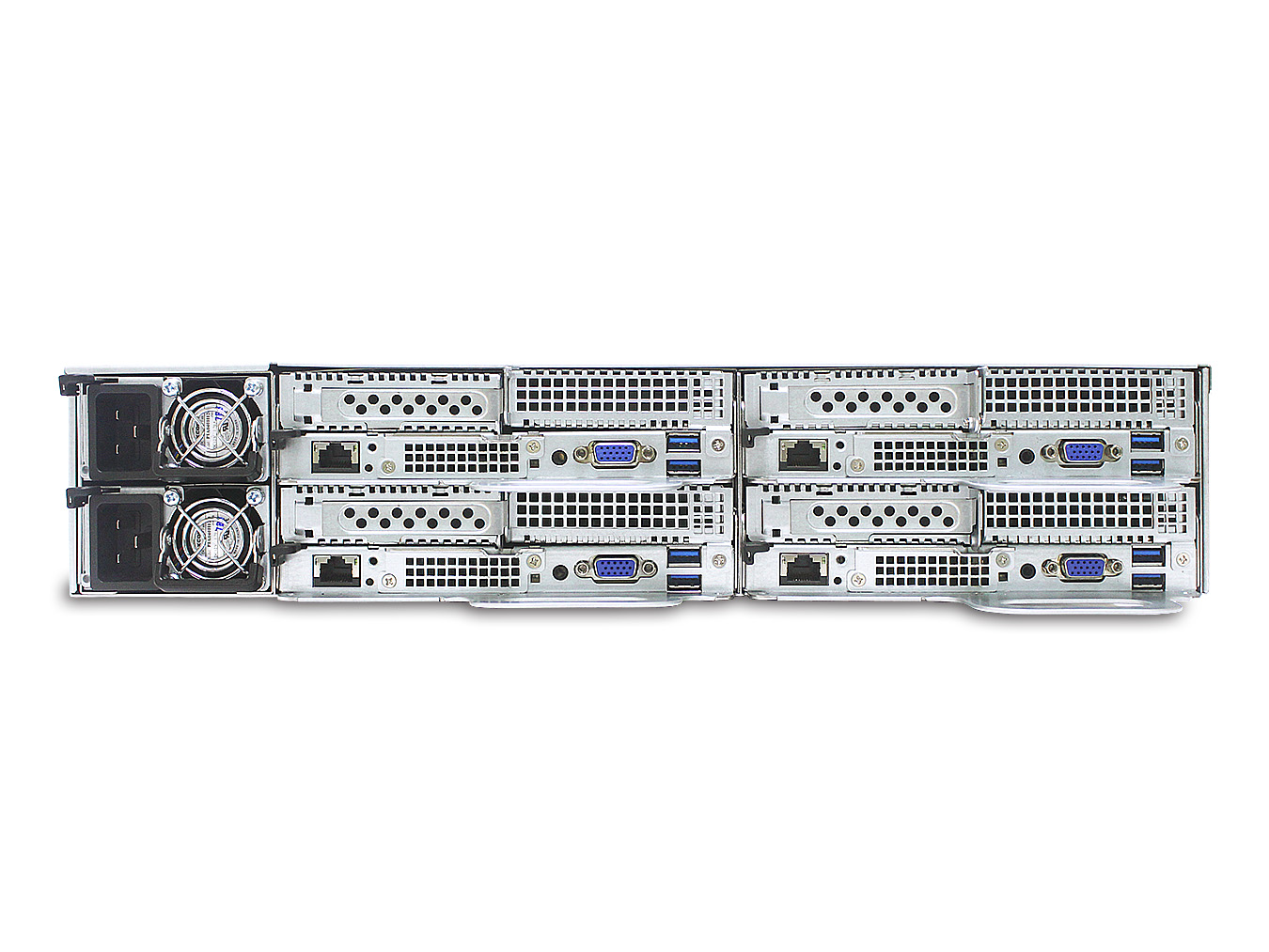

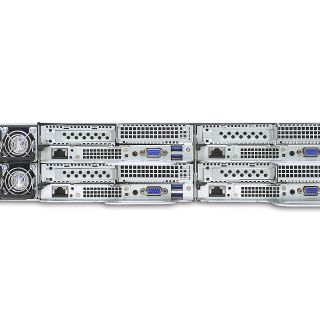

Rear I/O
LAN
1 x RJ45 dedicated to BMC management
USB
2 x USB 3.0
Video Output
rear-i-o-video-output
Others
• Power on/off
• System ID
• BMC alert LED
• System ID
• BMC alert LED
TPM Support
2.0 onboard
Power Supply
1600W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 200~240V,50/60Hz,12A (except China/Taiwan)
• AC INPUT : 200~240V,50/60Hz,10A (for China/Taiwan)
2000W 1+1 redundant power supply 80+ Platinum (BTO)
• AC INPUT : 200~240V,50/60Hz,15A
• Socket type: C20 (Power cord type: C19)
• AC INPUT : 200~240V,50/60Hz,12A (except China/Taiwan)
• AC INPUT : 200~240V,50/60Hz,10A (for China/Taiwan)
2000W 1+1 redundant power supply 80+ Platinum (BTO)
• AC INPUT : 200~240V,50/60Hz,15A
• Socket type: C20 (Power cord type: C19)

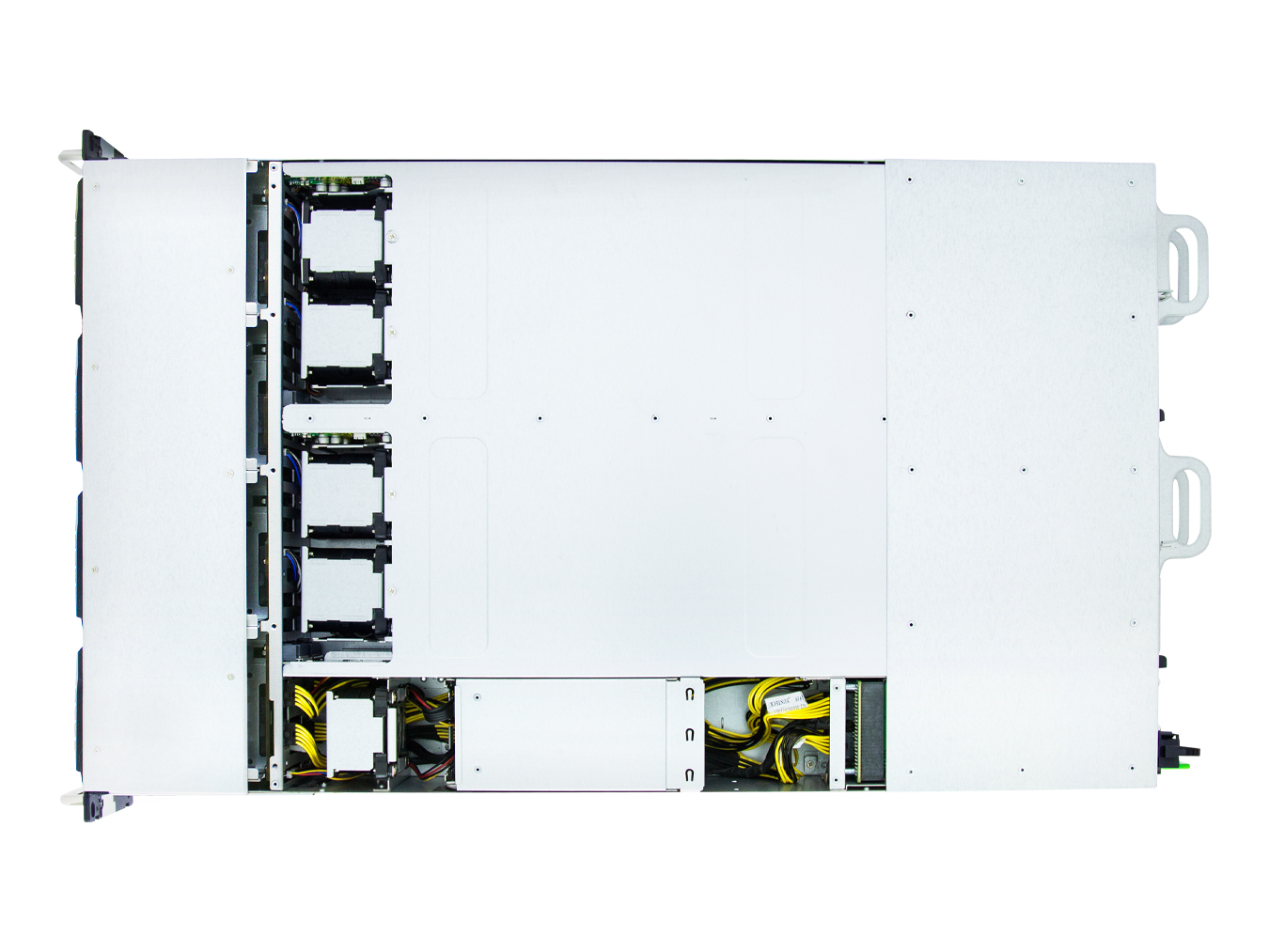

System Cooling
• 4 x 60x56mm easy swap fans
• 1 x 60x38mm easy swap fan
• 1 x 60x38mm easy swap fan
System Management
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Environmental Specifications
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
36
lbs
79.4
Packaging Dimensions (W x D x H)
mm
605 x 1160 x 320
inches
23.6 x 45.2 x 12.5
Mounting (Standard)
28" tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
| XP1-P202AG02 |
12x 3.5" tray, 12x 3.5” HDD backplane, 4x System Fan 6056, 1x System Fan 6038, 2000W 1+1 redundant 80+ Platinum, 4x Auriga, 8x PCIe card riser, 4x BP connection riser (SATA/NVMe), 4x Socket SP3 EPYC heatsink, 4x Slimline cables (SATA), slide rail, w/o bezel, w/o OS kit |
| XP1-P202AG04 | 12x 3.5” tray, 12x 3.5” HDD backplane, 4x System Fan 6056, 1x System Fan 6038, 1600W 1+1 redundant 80+ Platinum, 4x Auriga, 8x PCIe card riser, 4x BP connection riser (SATA), 4x Power connection riser, 4x Socket SP3 EPYC heatsink, 4x Slimline cables (SATA), slide rail, w/o bezel, w/o OS kit |
| FRU Information | ||
|---|---|---|
| Standard Parts List | Part Number | Description |
| Fan | FC-000000344 | 6056 fan module |
| Fan | FC-000000343 | 6038 fan module |
| Power Supply | PM-A00000103 | 2000W CRPS platinum redundant power supply module |
| Power Supply | PM-A00000104 | 1600W CRPS platinum redundant power supply module |
| Rail | H5541T100008 | 28" tool-less slide rail |
