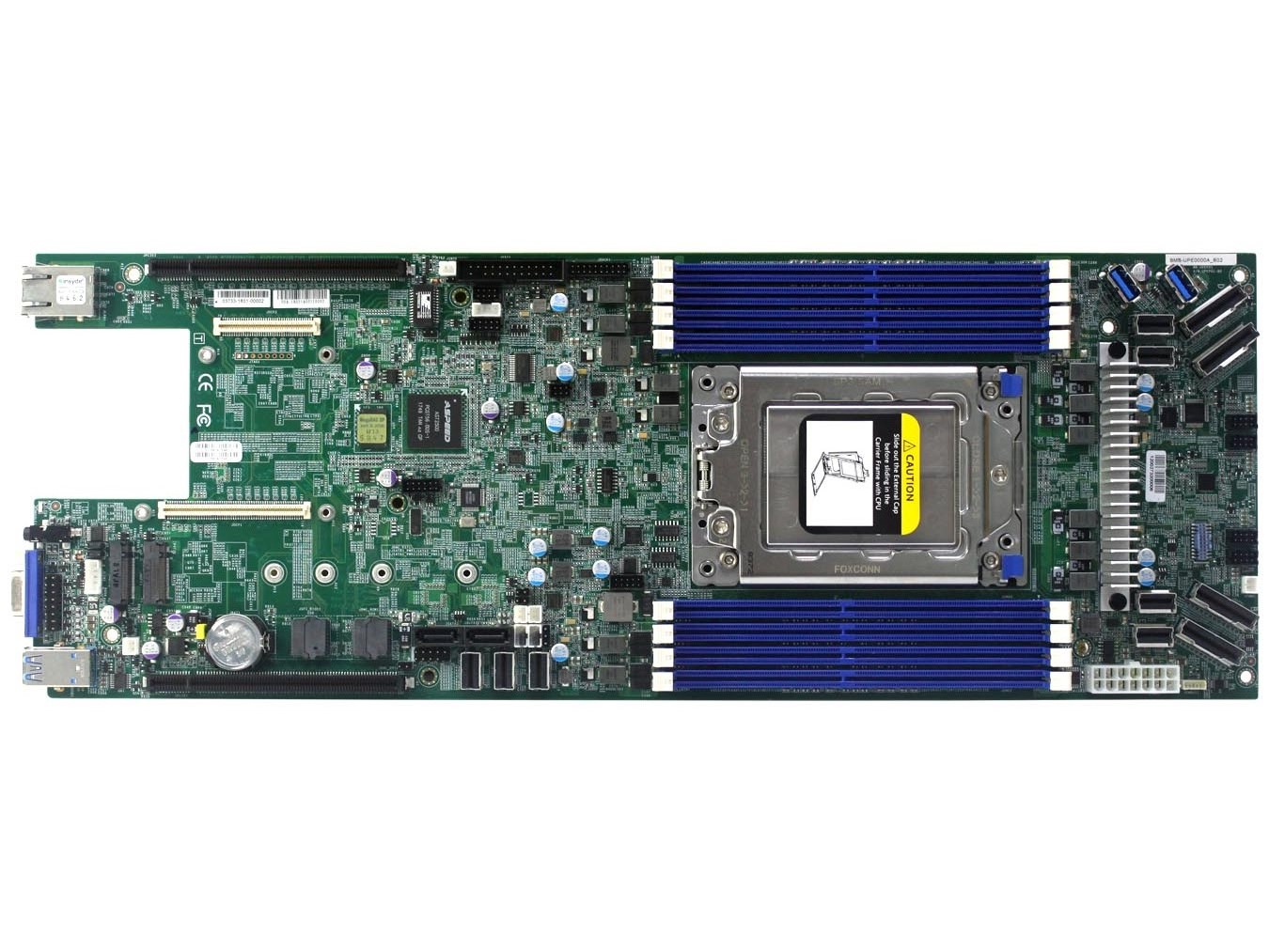

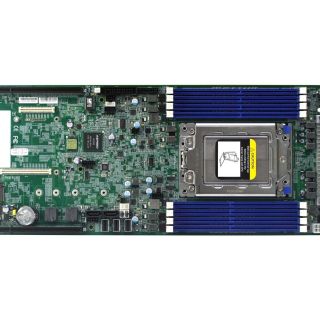

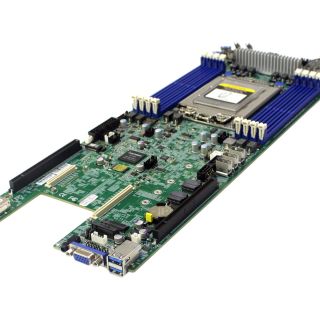

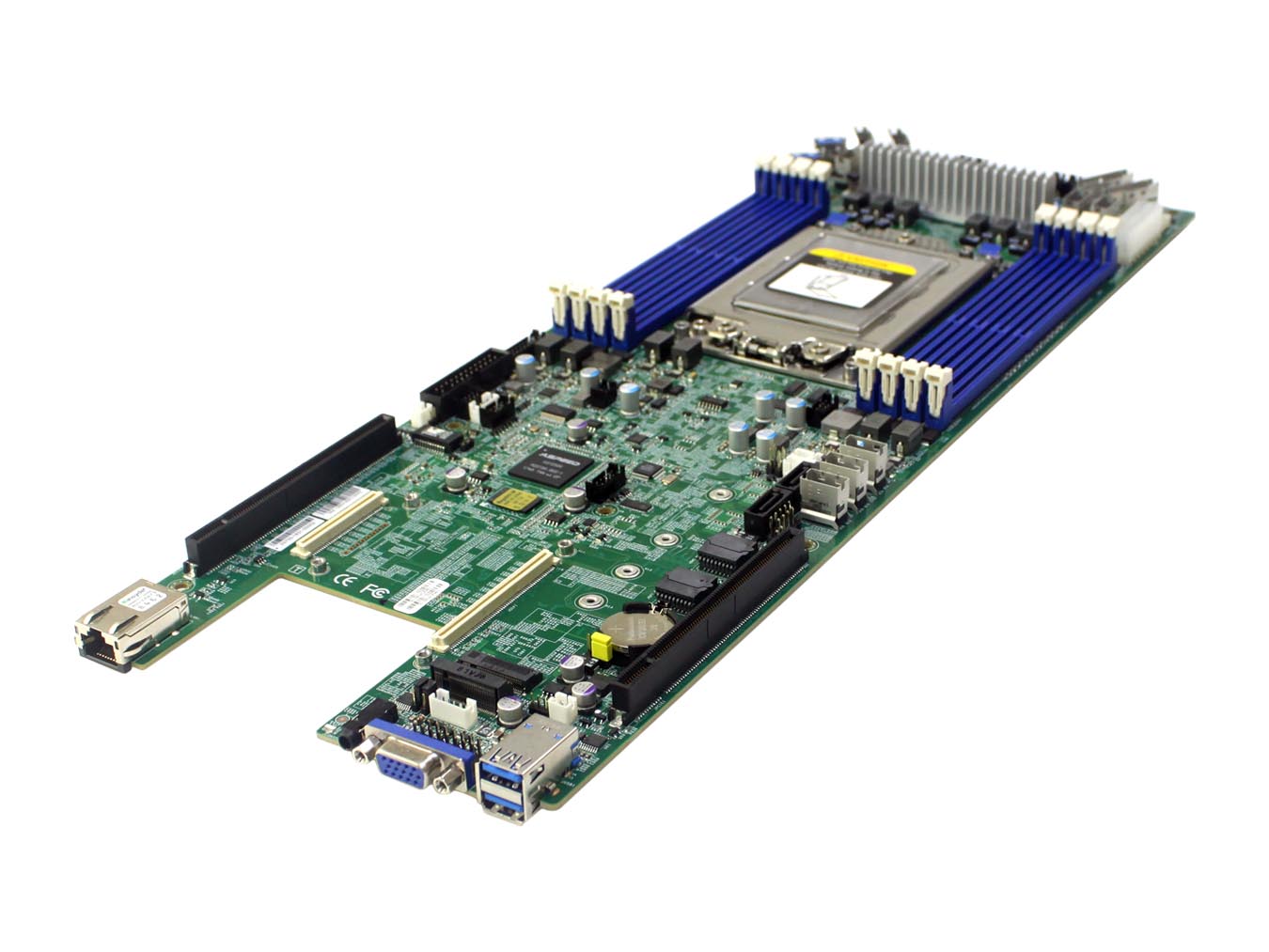

The Auriga server board offers the latest AMD EPYC™ SoC technology which can support the highest core count in an x86-architecture with EPYC™7003/7002/7001 processor, more main memory capacity and bandwidth with greater efficiency and greatest I/O density.
Auriga has I/O bandwidth that matches the capability of the CPU cores to move data to and from the network, spinning disks, NVMe storage, and graphics acceleration devices. By offering the parallelism to speed high performance computing environments, machine learning and predictive analysis benefit from the capability to process more data in memory and to accelerate computation with more direct GPU connectivity.
Auriga has I/O bandwidth that matches the capability of the CPU cores to move data to and from the network, spinning disks, NVMe storage, and graphics acceleration devices. By offering the parallelism to speed high performance computing environments, machine learning and predictive analysis benefit from the capability to process more data in memory and to accelerate computation with more direct GPU connectivity.
KEY FEATURE
Supports AMD EPYC™ 7003/7002/7001 processor based on the AMD "Zen" microarchitecture for highest server performance
FEATURE
Supports AMD EPYC™ 7003/7002/7001 processor based on the AMD "Zen" microarchitecture for highest server performance
Supports eight DDR4 DIMM slots for maximum memory performance
FEATURE
Supports eight DDR4 DIMM slots for maximum memory performance
Supports one OCP Mezzanine V2.0 up to PCI Express Gen4/Gen3 x16 extension (Gen4 supported by EPYC™ 7003/7002 CPU)
FEATURE
Supports one OCP Mezzanine V2.0 up to PCI Express Gen4/Gen3 x16 extension (Gen4 supported by EPYC™ 7003/7002 CPU)
Supports two PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
FEATURE
Supports two PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
Supports four slimline x12 + seven slimline x4 connectors, total 76 PCI Express Gen4/Gen3 lanes (Gen4 supported by EPYC™ 7003/7002 CPU)
FEATURE
Supports four slimline x12 + seven slimline x4 connectors, total 76 PCI Express Gen4/Gen3 lanes (Gen4 supported by EPYC™ 7003/7002 CPU)
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Embedded components for 5+ year long life
FEATURE
Embedded components for 5+ year long life
Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations
FEATURE
Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations
Specification
SPECIFICATION
Main
Sub
Details
System
Dimensions
• mm : 431.8 x 157.4
• inches : 17 x 6.196
• inches : 17 x 6.196
Processor-Support
Single AMD EPYC™ 7003/7002/7001 processor
CPU-TDP
280W (Support by EPYC™ 7003 CPU)
UPI-Speeds
Socket-Type
Socket SP3
System-Memory
• DDR4 3200/2933/2666MHz RDIMM/LRDIMM
• Total 8 memory slots ; 8 channels
• Supports up to 2TB (support by EPYC™ 7003/7002 CPU)
• Total 8 memory slots ; 8 channels
• Supports up to 2TB (support by EPYC™ 7003/7002 CPU)
Expansion-Slots
• 4 x Slimline x12 + 7 x Slimline x4
• 2 x PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
• 1 x OCP Mezzanine V2.0 supports PCI Express Gen4/Gen3 x16 (Gen4 supported by EPYC™ 7003/7002 CPU)
Total support 124 lanes of PCI Express Gen4/Gen3 (Gen4 supported by EPYC™ 7003/7002 CPU)
• 2 x NGFF(M.2) M-Key(2242/2260/2280/22110) support SATA/PCIe x1
• 2 x PCI Express Gen4/Gen3 x16 slots (Gen4 supported by EPYC™ 7003/7002 CPU)
• 1 x OCP Mezzanine V2.0 supports PCI Express Gen4/Gen3 x16 (Gen4 supported by EPYC™ 7003/7002 CPU)
Total support 124 lanes of PCI Express Gen4/Gen3 (Gen4 supported by EPYC™ 7003/7002 CPU)
• 2 x NGFF(M.2) M-Key(2242/2260/2280/22110) support SATA/PCIe x1
System-BIOS
BIOS-Type
• For EPYC™ 7002/7001-Insyde UEFI BIOS
• For EPYC™ 7003-AMI UEFI BIOS
• For EPYC™ 7003-AMI UEFI BIOS
BIOS-Features
• ACPI
• PXE
• IPMI KCS interface
• SMBIOS
• SRIOV
• Serial console redirection
• iSCSI
• TPM
• PCIe Hotplug
• PXE
• IPMI KCS interface
• SMBIOS
• SRIOV
• Serial console redirection
• iSCSI
• TPM
• PCIe Hotplug
On-board-Devices
SATA
• 2 x SATA 6.0 Gb/s
• 2 x SATA 6.0 Gb/s by M.2 (M-key) support up to 22110 (optional - above 4 SATA ports can be replaced with 2 x PCIe x1 M.2)
• 2 x SATA 6.0 Gb/s by M.2 (M-key) support up to 22110 (optional - above 4 SATA ports can be replaced with 2 x PCIe x1 M.2)
BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish (by request)
• SMASH Support
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish (by request)
• SMASH Support
Network-Controller
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

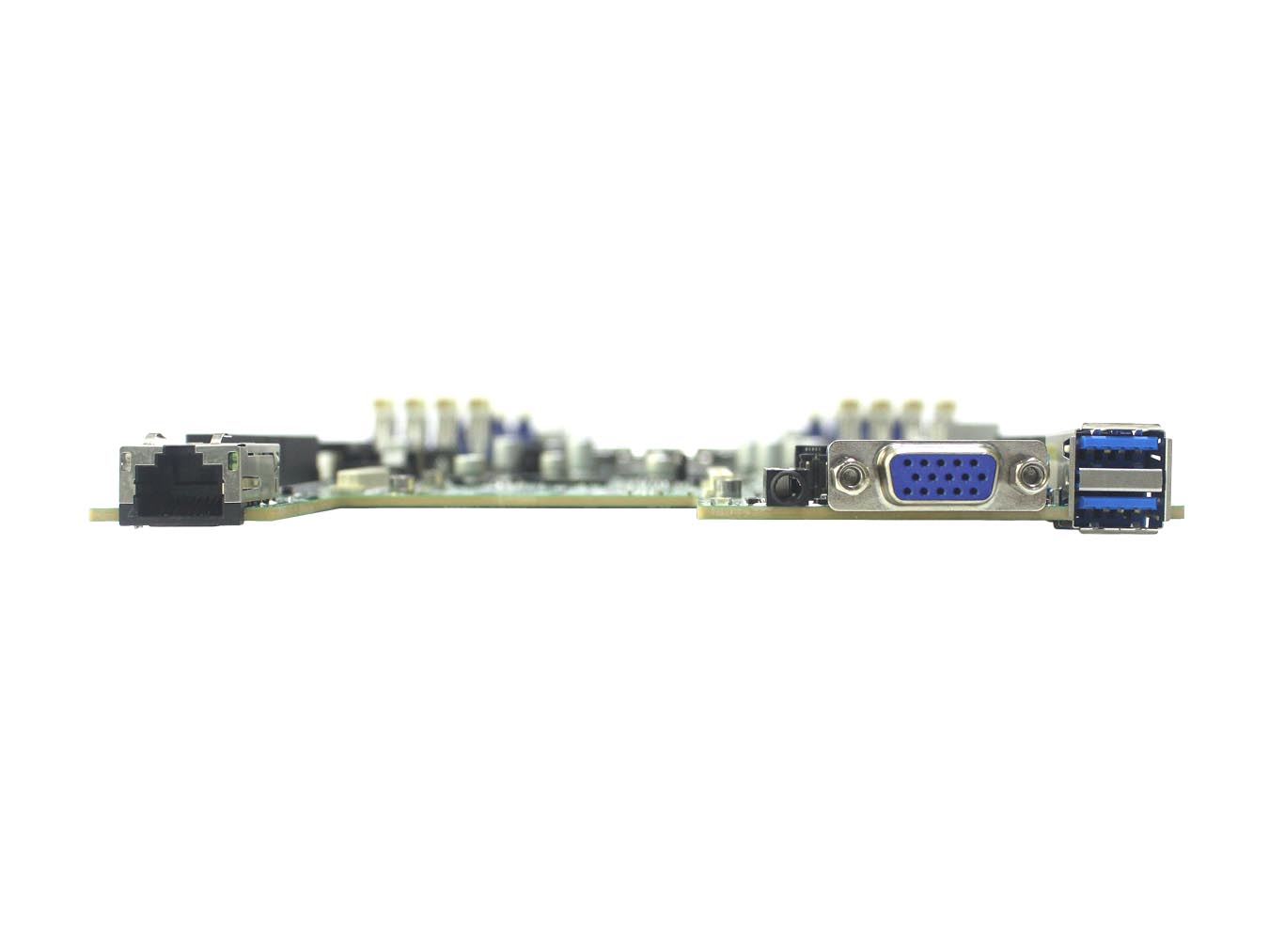

Input-Output
SATA
• 2 x SATA 6.0 Gb/s
• 2 x SATA 6.0 Gb/s by M.2 (M-key) supports up to 22110 (optional - above 4 SATA ports can be replaced with 2 x PCIe x1 M.2)
• 2 x SATA 6.0 Gb/s by M.2 (M-key) supports up to 22110 (optional - above 4 SATA ports can be replaced with 2 x PCIe x1 M.2)
LAN
• 1 x GbE RJ45 dedicated to BMC management
USB
• 2 x USB2.0/3.0 Type A connectors on rear I/O
• 2 x USB2.0/3.0 by onboard vertical Type A connectors
• 2 x USB2.0/3.0 by onboard vertical Type A connectors
Display
• 1 x external VGA port
• 1 x internal VGA pin-header (share with external VGA port)
• 1 x internal VGA pin-header (share with external VGA port)
Serial-Port
• 1 x external COM port by 3.5mm phone jack
• 1 x internal COM pin-header
• 1 x internal COM pin-header
Others
• 1 x TPM 2.0 onboard
Additional-Information
Security
* All specifications are subject to change without notice.
| Ordering Information | Description |
|---|---|
| BMB-UPE0000E | PCBA/MAIN BOARD/MB-UPEP01/AURIGA/AMI-1345 AMD MILAN CPU*1/BIOSX32MB AMI/OCP MEZZ.V2.0*2/SLIMLINEX12*4/SLIMLINEX4*7/ M.2*2/MEMORY SLOT*8 support Milan |
| BMB-UPE0004A | PCBA/MAIN BOARD/MB-UPEP05/AURIGA-N AMD MILAN CPU*1/BIOSx32MB AMI/OCP MEZZ.V2.0*2/SLIMLINEx12*4/SLIMLINEx4*7/M.2*2/MEMORY SLOT*8 |
| BMB-UPE0004B | PCBA/MAIN BOARD/MB-UPEP05/AURIGA-N AMD MILAN CPU*1/BIOSx32MB AMI/OCP MEZZ.V2.0*2/SLIMLINEx12*4/SLIMLINEx4*7/M.2*2+SATA7P*2/MEMORY SLOT*8 /FULL |
| BMB-UPE0004C | PCBA/MAIN BOARD/MB-UPEP05/AURIGA-N AMD MILAN CPU*1/BIOSx32MB AMI/OCP MEZZ.V2.0*2/SLIMLINEx4*2/M.2*2+SATA7P*2 WITH RAID /MEMORY SLOT*8 /LITE |
| BMB-UPE0004D | PCBA/MAIN BOARD/MB-UPEP05/AURIGA-N AMD MILAN CPU*1/BIOSx32MB AMI/OCP MEZZ.V2.0*2/SLIMLINEx4*2/M.2*2+SATA7P*2/MEMORY SLOT*8 /LITE |
