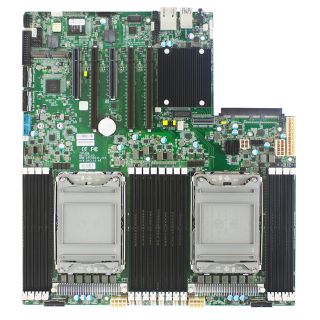

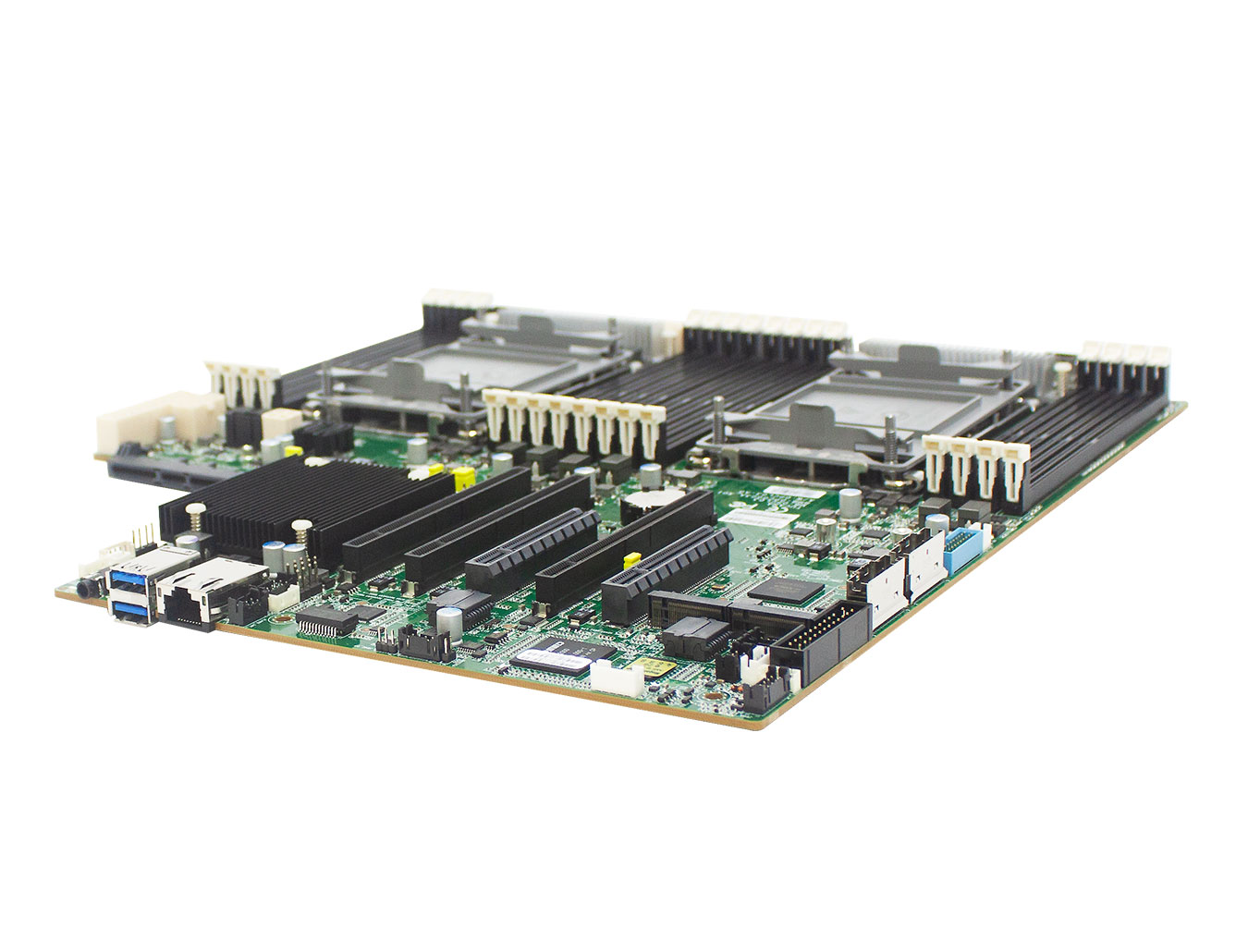

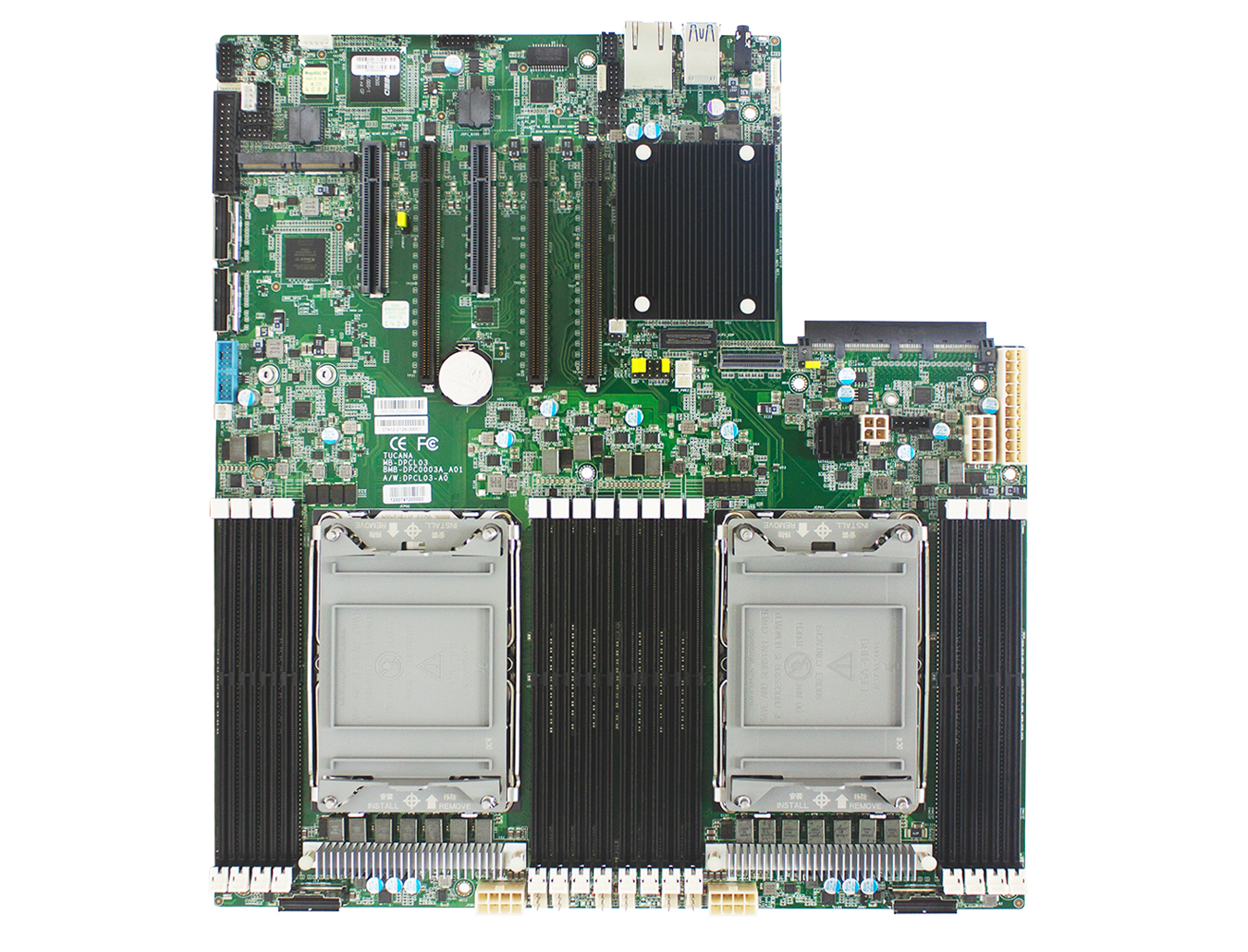

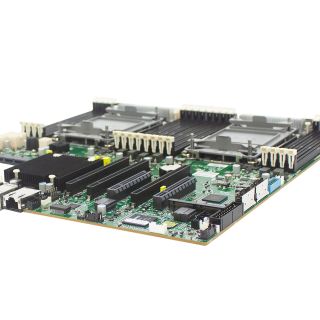

The Scutum server board offers Xeon® Scalable Processors technology solutions with compelling performance and provides premium power efficiency, which is optimized for efficient performance platforms (storage, security and communications infrastructure)

By implementing Intel® Xeon® Scalable Processors, fully integrated microarchitecture supports up to 3 x 16 lanes, 2 x8 lanes PCIe slots, 5 slimlinex8 of PCIe Gen4 and Broadcom LOM Triple-Play NIC solution (10G SFP+/ 25G SFP28 / 10G Based-T by BOM option), providing eight channels per CPU with total sixteen DIMM slots deployment which can support up to DDR4 3200/2933MHz, Scutum server board can meet both cost efficiency and performance requirement for lots of applications.

Featured with groundbreaking technologies including Intel® Next Generation Microarchitecture and Instruction Set (AVX-512, VMD), Speed Shift Technology, UPI link speeds up to 11.2GT/s, the Scutum server board enables next generation server solutions with an incredible leap in performance.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Supports 3rd Gen Intel® Xeon® Scalable Processors for highest server performance and improved power efficiency

FEATURE

Supports 16 DDR4 DIMM slots for maximum memory performance

FEATURE

Supports up to 3 x 16 lanes, 2 x8 lanes PCIe Gen4 slots, 5 x slimlinex8 PCIe Gen4

FEATURE

Onboard Baseboard Management Controller for system management and IPMI control

FEATURE

Embedded components for 5+ year long life

FEATURE

Rackmount Technology Extension (RTX) form factor utilizes full internal chassis volume for optimum I/O configurations

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

System

Dimensions

• mm : 304.8 x 330.2
• inches : 12 x 13

Processor-Support

3rd Gen Intel® Xeon® Scalable Processors (Ice lake CPU)

CPU-TDP

270W

UPI-Speeds

10.4 / 11.2 GT/s

Socket-Type

Socket P+ (LGA-4189)

System-Memory

• 8 x memory channels per CPU (1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support

Expansion-Slots

• CPU0: 2 x PCIe Gen4 x16 slots + 2 x slimline x8
• CPU1:
1 x PCIe Gen4 x16 slot
2 x PCIe Gen4 x8
3 x slimline x8

System-BIOS

BIOS-Type

AMI UEFI BIOS

BIOS-Features

• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug

On-board-Devices

SATA

Lewisburg PCH on-chip solution supports 12 x SATA 6.0 Gb/s
• 2 x SATA 7pin + 8 x SATA by slimline + 2 x SATA
by M.2 (supports both SATA/PCIe by PCH HSIO)

BMC

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Network-Controller

• Realtek RTL8211E GbE for BMC dedicate management port
• Intel I210 GbE
• Broadcom BCM57416/57417 co-design to support 10GBase-T/10G SFP+ / 25G SFP28 (by BOM option)
(NCSI shared NIC - reserved for BCM57416 & I210 by jumper setting)

Graphics

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Additional Information

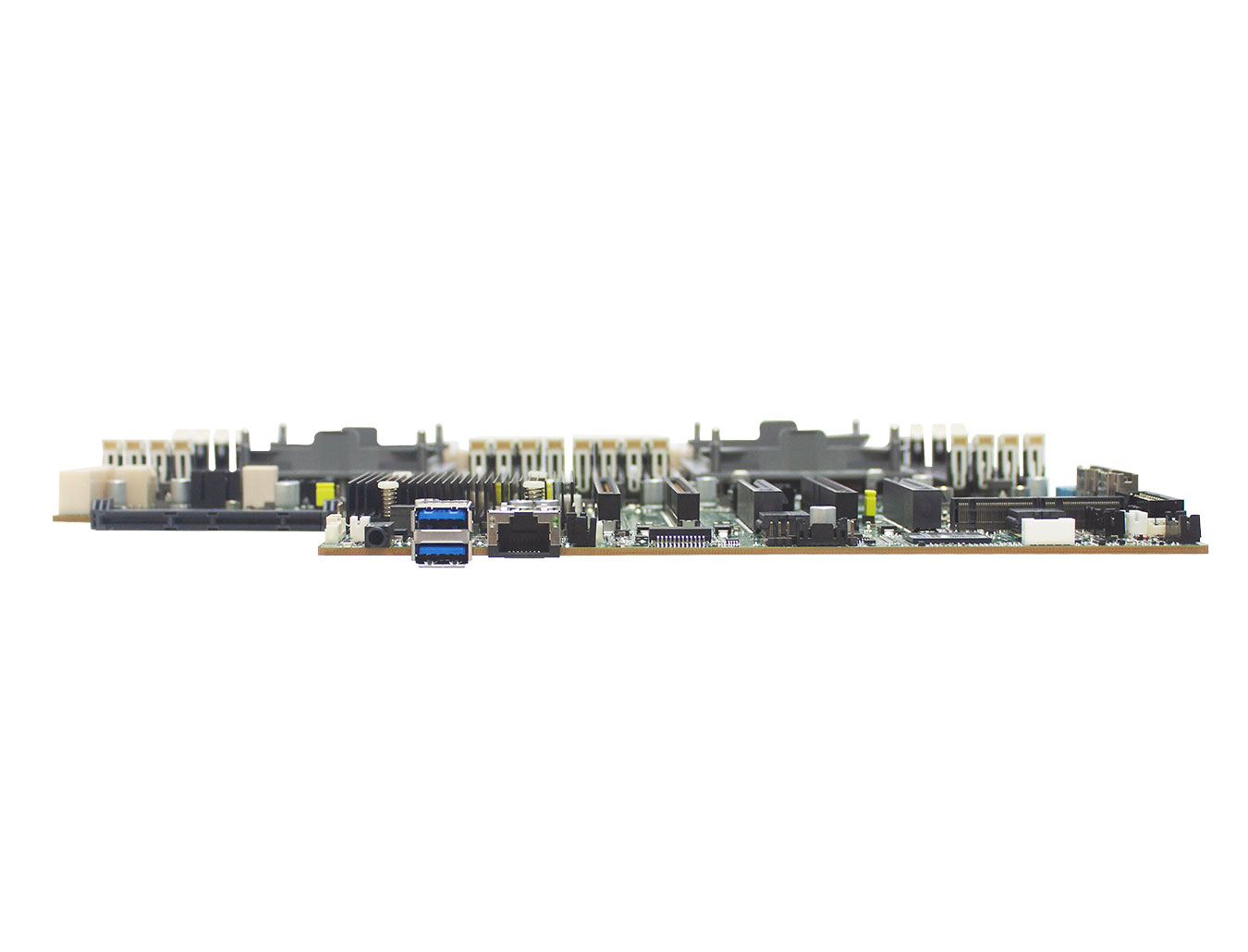

Input-Output

SATA

Lewisburg PCH on-chip solution supports 12 x SATA 6.0 Gb/s
• 2 x SATA 7pin + 8 x SATA by slimline + 2 x SATA by M.2 (supports both SATA/PCIe by PCH HSIO)

LAN

• 1 x GbE RJ45 dedicated to BMC management
• Dual port of RJ45 10G / SFP+ 10G / SFP28 25G (by BOM option)

USB

• 2 x USB 3.0 double-stake type A connectors
• 2 x USB pin headers support USB3.0/2.0

Display

1 x internal VGA pin-header

Serial-Port

• 1 x external COM port by audio jack
• 1 x COM2 box header
• 1 x COM1 box header share with rear IO audio jack

Others

1 x TPM2.0 onboard option (designed reserved, BTO only)

Additional-Information

Security

* All specifications are subject to change without notice.

Ordering Information	Description
BMB-DPC0004A	PCBA/MOTHER BOARD/MB-DPCL04(SCUTUM)/VER:B02 ICE LAKE-SPX2/LEWISBURG-1/10GBEX2/GBEX1/PHYX1/270W
BMB-DPC0004B	PCBA/MOTHER BOARD/MB-DPCL04(SCUTUM)/VER:B02 ICE LAKE-SPX2/LEWISBURG-1/10GBE(SFP+)X2/GBEX1/PHYX1/270W
BMB-DPC0004C	PCBA/MOTHER BOARD/MB-DPCL04(SCUTUM)/VER:B02 ICE LAKE-SPX2/LEWISBURG-1/25GBE(SFP28)X2/GBEX1/PHYX1/270W
