SB202-SU

Home Products Server MainStream Server 2U Rackmount Server

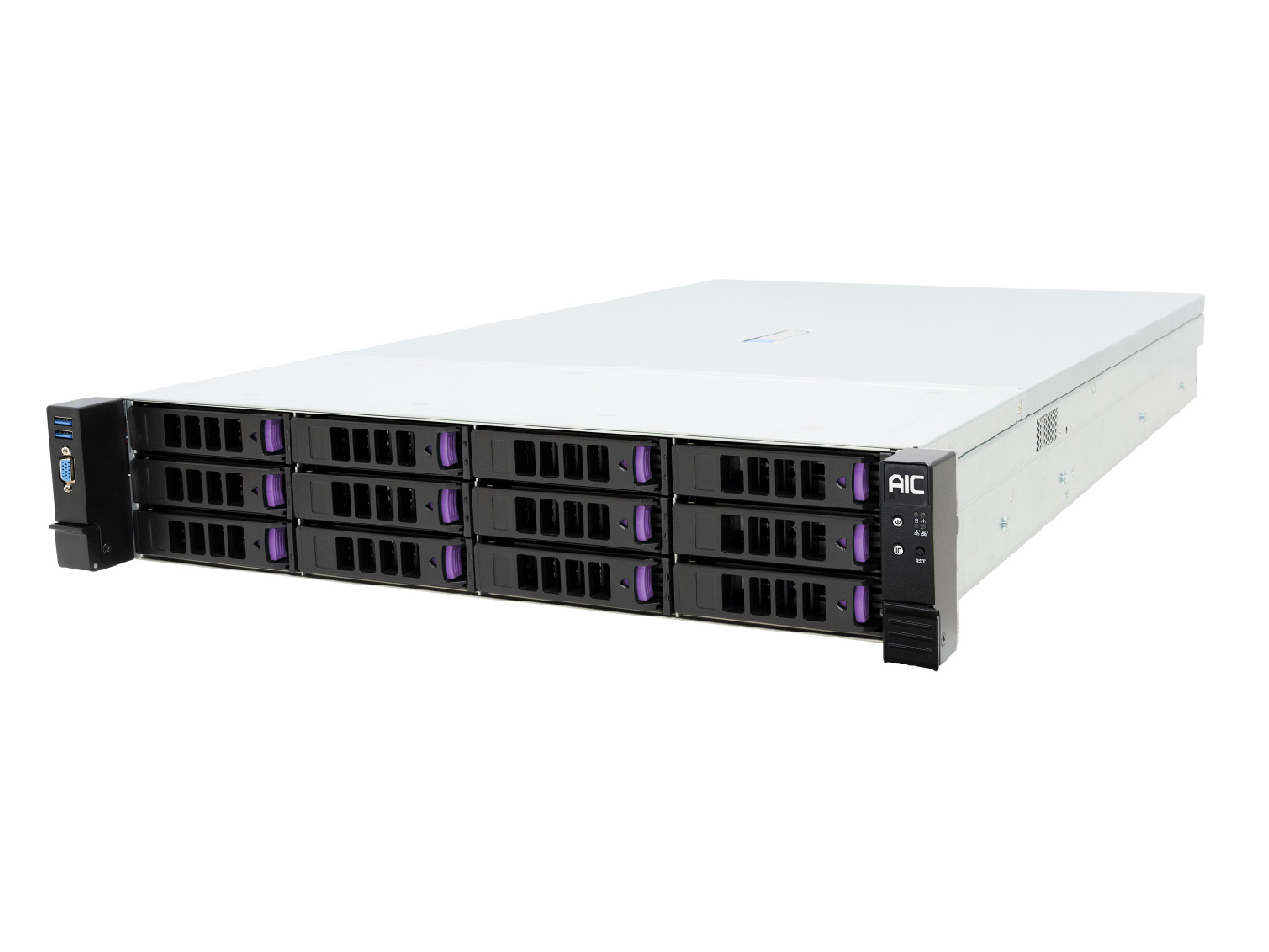

SB202-SU, a 2U server for general purpose, supports Intel® Xeon® 6700/6500 series with E-cores/P-cores processors (codename Sierra Forest/Granite Rapids), 32x DDR5 RDIMM, and 2x PCIe GEN5 extensions. SB202-SU has 12 x3.5”NVMe/SATA/SAS (front) and 2x2.5" SATA (rear) hot-swappable bays to provide highest storage density and optimized performance for the applications.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

2U general purpose storage server solution

FEATURE

Supports Intel® Xeon® 6 Scalable Processors for highest every performance and improved power efficiency

FEATURE

Onboard Baseboard Management Controller for system management and IPMI control

FEATURE

Dedicated BMC management port

FEATURE

Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 820 x 87.5

inches

17.2 x 32.2 x 3.4

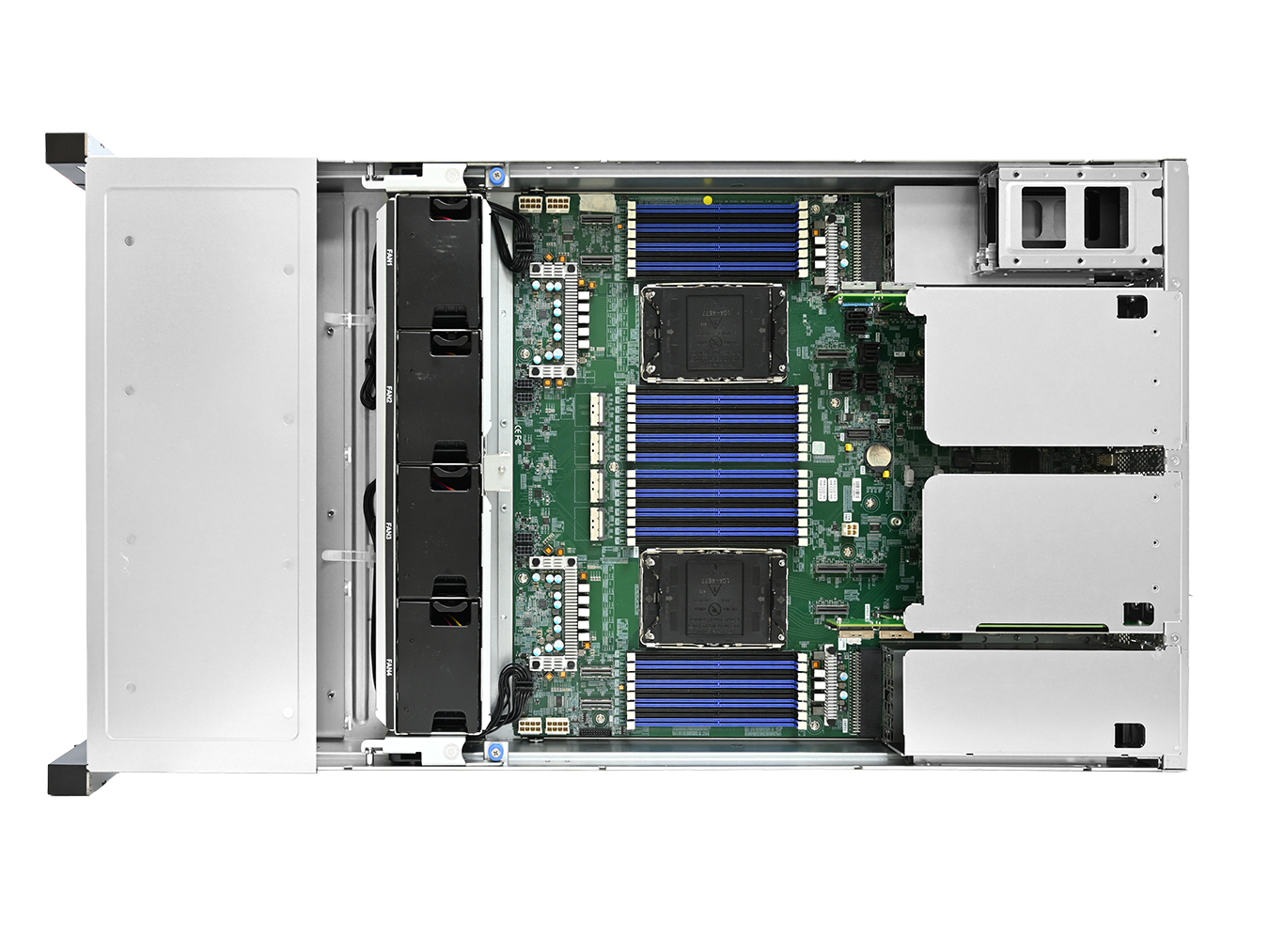

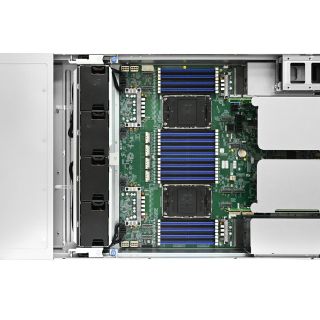

Motherboard

AIC Server Board Sirius

Processor

Processor Support

Dual Intel® Xeon® 6 6700E/6500P/6700P series CPU (TDP 350W)

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)

CPU Interconnection

UPI Speeds : 24GTs

Socket Type

Socket E2 (LGA 4710 Socket)

Chipset Support

System Memory

• Total 32 memory slots; 8 channel per CPU (2DPC)

• DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by 6700P/6500P series;

• DDR5 6400MHz(1DPC) 5200MHz(2DPC 2Rx4 RDIMM only) by 6700E series;

• DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by Clearwater Forest

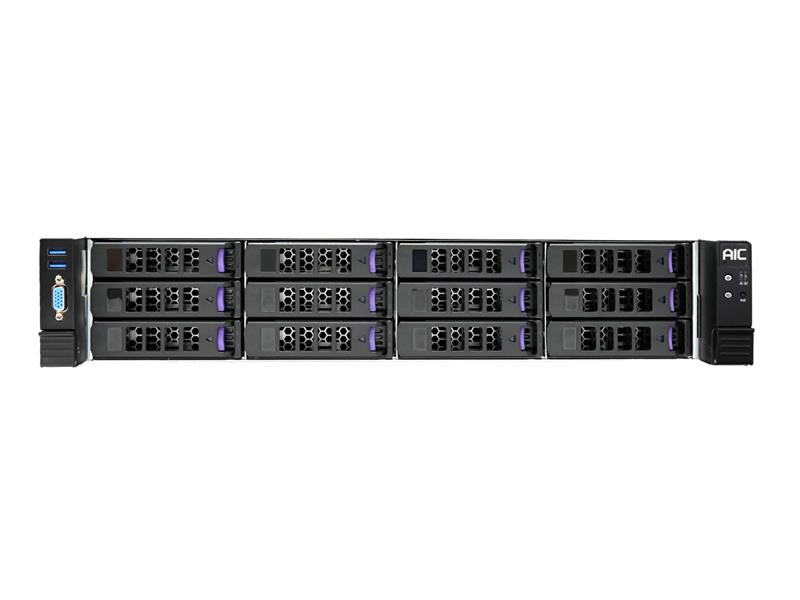

Front Panel

Power button, ID button, Reset button, VGA, 2 x USB 3.0

LEDs

Power status, System alert, System ID, Drive activity, LAN activity

Drive Bays

External

• 12 x 3.5" hot-swap

• 2 x 2.5" hot-swap (rear) (option 4 pcs)

Internal

2 × M.2 2280/22110 (PCIe Gen5 x 4)

Backplane

Front:

1 x 12-port 3.5" Gen4 Tri-mode

Rear:

• 1 x 2-port 2.5” SAS/SATA

• 1 x 2-port 2.5” Tri-mode + 1 x 2-port 2.5” SAS/SATA

Expansion Slots

Expansion Slots (PCIe 5.0 Options):

• 4 x PCIe 5.0 X16 FHHL/HHHL + 1 x OCP 3.0 + 2 x PCIe 5.0 X8 cable CEM(Optional)

• 2 x PCIe 5.0 X16 FHHL/HHHL + 4 PCIe 5.0 X8 FHHL/HHHL + 2 x PCIe 5.0 X8 cable CEM(Optional)

Riser Card (included):

• 1 x RC-PE2U26-TY

• 1 x RC-PE2U27-TY

System Bios

Bios Type

AMI UEFI BIOS

Bios Features

• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug

On Board

Devices

SATA :
• 2 x SATA3 7-pin by ASM1062R (support RAID 0/1)
• 12 x SATA3 by 3 x Mini-SAS connectors (power by ASM1164)

Devices BMC

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish

Devices Network Controllers

• Realtek RTL8211FS 1GbE for BMC dedicated management port
• 2 x Intel® I210 GbE ethernet controller

Devices Graphics

• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp

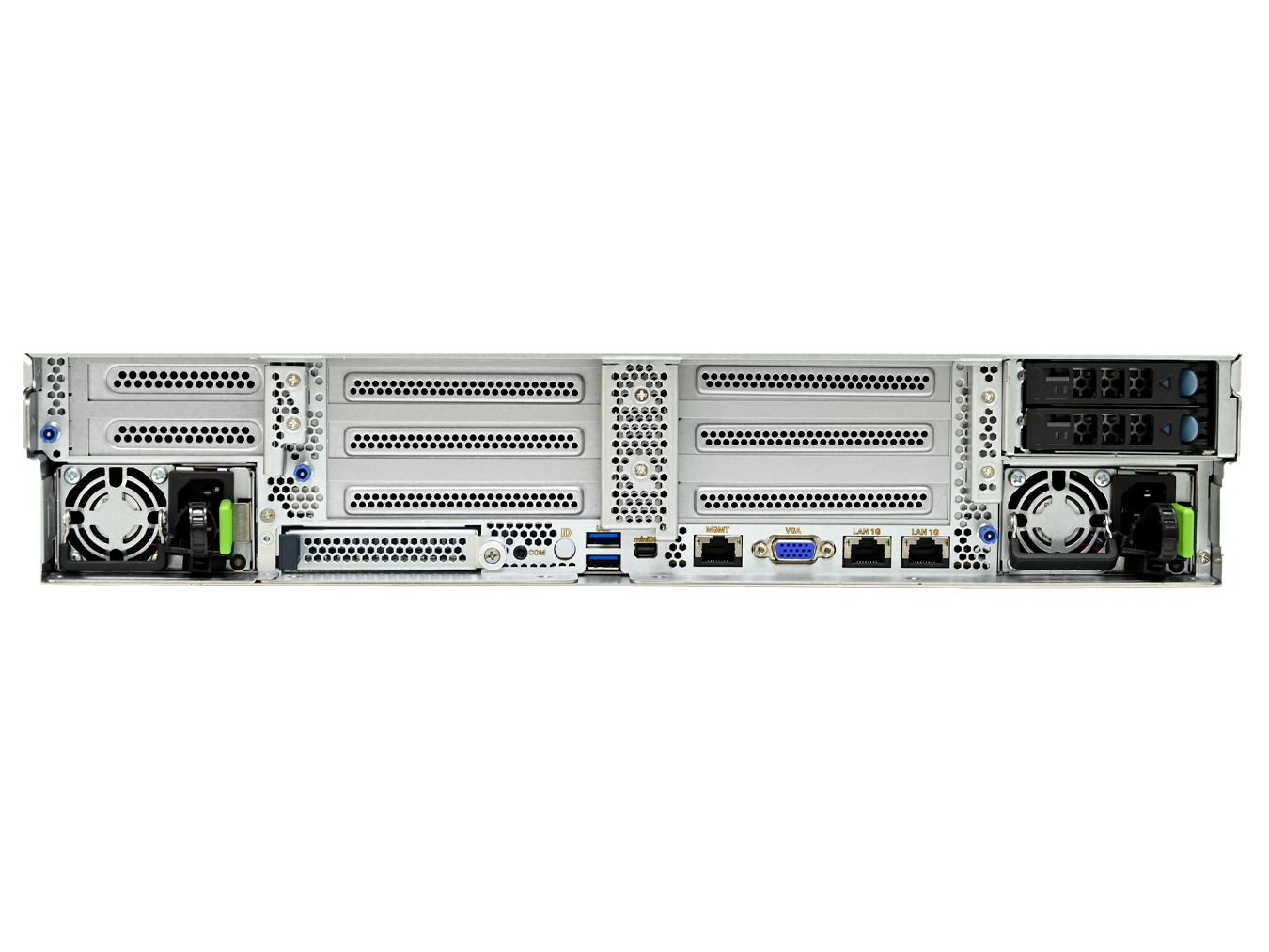

Rear I/O

LAN

• 2 x RJ45 connectors for dual port GbE

• 1 x RJ45 connector (for BMC management port)

USB

2 x USB 3.2 Gen 1 Type A

Video Output

• 1 x DB-15 VGA connector

• 1 x Mini display port

Serial Port

1 x COM connector (Audio Jack)

TPM Support

Power Supply

2000W/2400W 1+1 CRPS 80+ Titanium by CPU/NVMe supporting wattage SKU options

System Cooling

4 x 8056mm hot swap fans ABS material plastic air-duct (for air cooling)

System Management

• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support

Environmental Specifications

• Storage temperature: -10°C(14°F) ~ 60°C(140°F)

• Operating temperature: 0°C(32°F) ~ 35°C(95°F)

• Storage operating humidity: 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

Packaging Dimensions (W x D x H)

615 x 1155 x 328

inches

24.2 x 45.5 x 12.9

Mounting (Standard)

36" tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-S202SU02	2U 12-bay 3.5" hot-swap, 4x NVMe Gen4 + 8x SATA with rear 2x 2.5" SATA, 4x 8056 FAN, Acbel 2000W redundant power supply Titanium, Sirius motherboard (Intel® Xeon® 6 processor, TDP350W), DDR5 RDIMMx 32, 4x PCIe x8 Gen5 (FHHL), 2x PCIe x16 Gen5(FHHL), 36"slide rail, w/o bezel, w/o power cord
XP1-S202SU03	2U 12-bay 3.5" hot-swap, 12x NVMe Gen4 with rear 2x 2.5" SATA, 4x 8056 FAN, Acbel 2000W redundant power supply Titanium, Sirius motherboard (Intel® Xeon® 6 processor, TDP350W), DDR5 RDIMMx 32, 4x PCIe x8 Gen5(FHHL), 2x PCIe x16 Gen5 (FHHL), 36"slide rail, w/o bezel, w/o power cord
XP1-S202SU04	2U 12-bay 3.5" hot-swap, 8x NVMe Gen4 + 4xSATA with rear 2x 2.5" SATA, 4x 8056 FAN, Acbel 2000W redundant power supply Titanium, Sirius motherboard (Intel® Xeon® 6 processor, TDP350W), DDR5 RDIMMx 32, 4x PCIe x8 Gen5 (FHHL), 2x PCIe x16 Gen5(FHHL), 36"slide rail, w/o bezel, w/o power cord, 2-phase Heatsink and bracket for GPU card support
