SB202-A6

Home Products Server MainStream Server 2U Rackmount Server

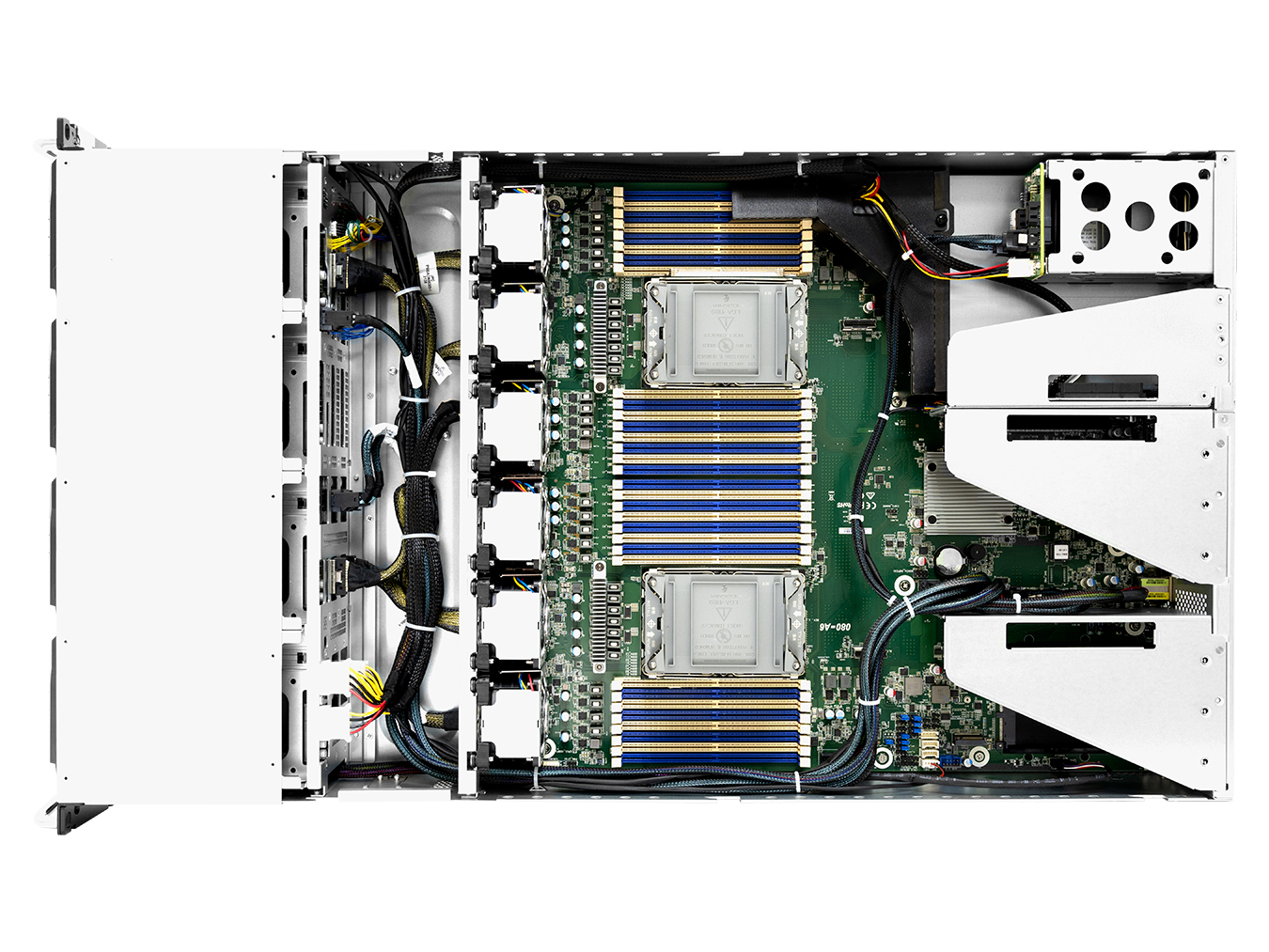

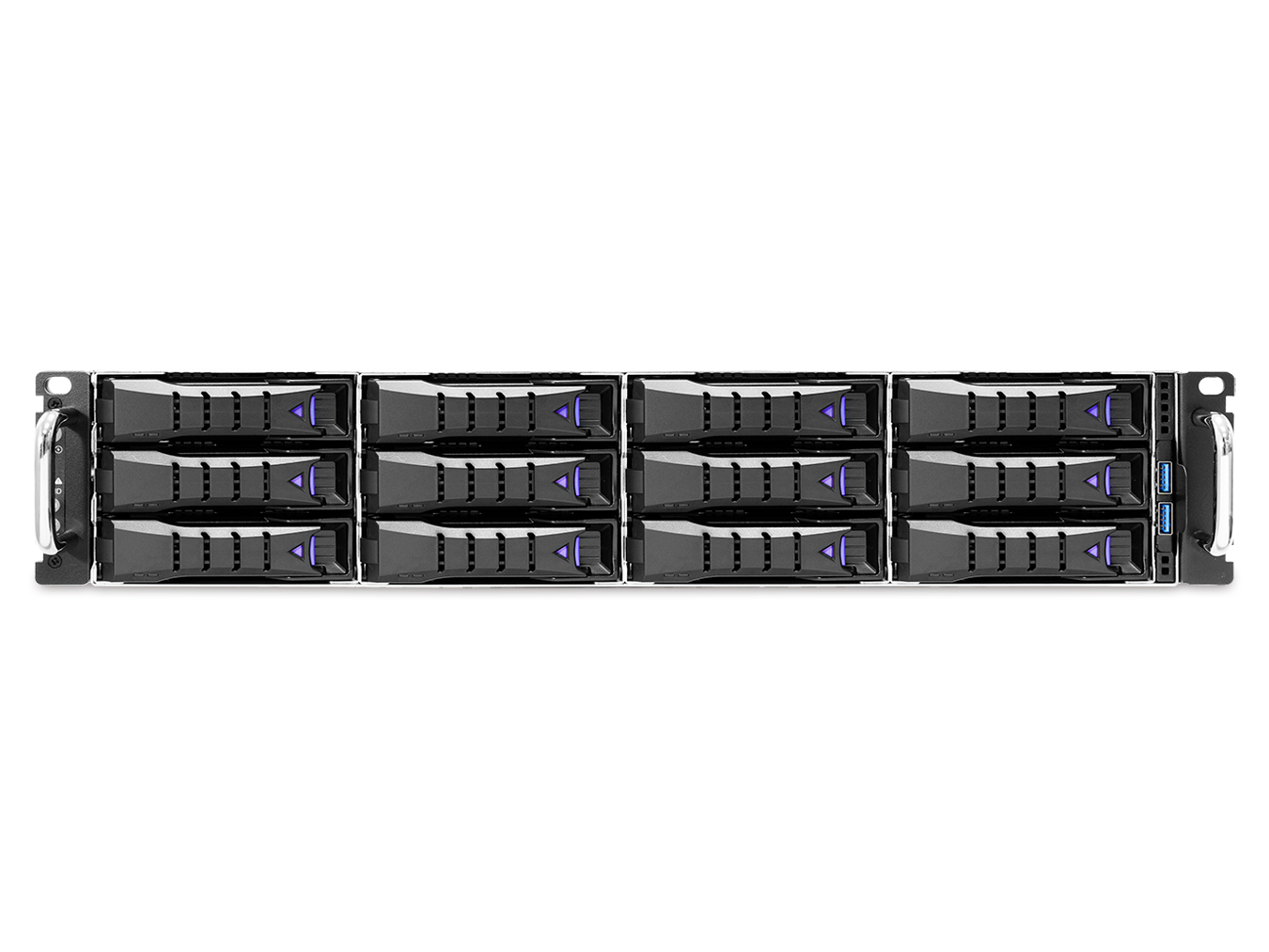

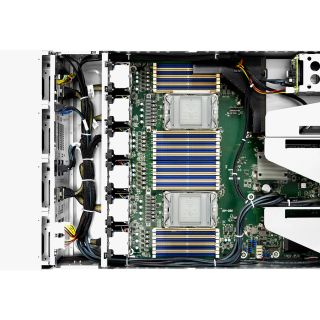

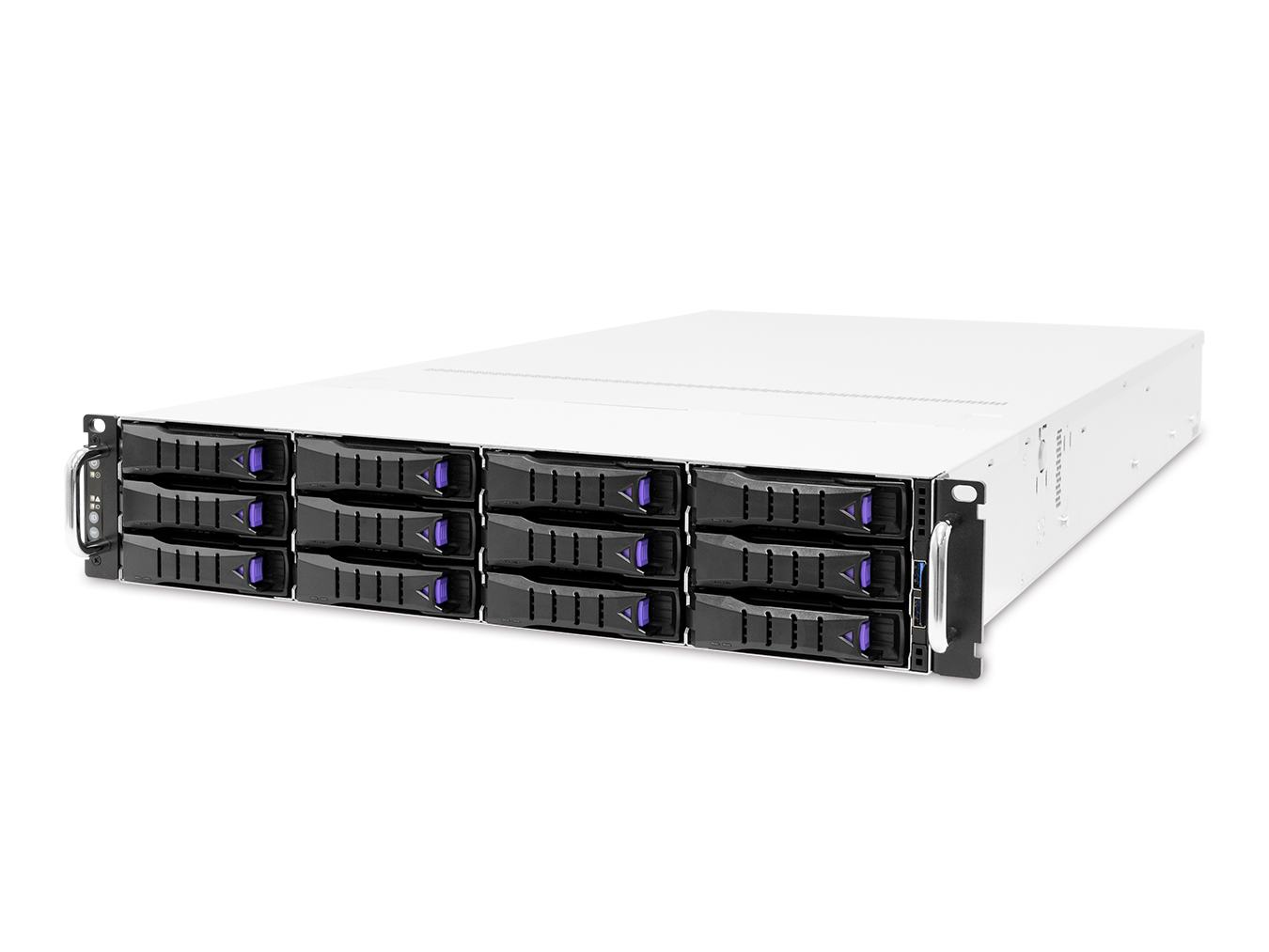

• 2U general purpose storage server supports 12 hot-swap 3.5”/2.5” universal SATA/SAS/NVMe U.2 drive bays
• Supports 3rd Gen. Intel® Xeon® Scalable processors (code name Ice Lake)
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
• Dedicated BMC management port

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

2U general purpose storage server supports 12 hot-swap 3.5”/2.5” universal SATA/SAS/NVMe U.2 drive bays

FEATURE

Supports 3rd Gen. Intel® Xeon® Scalable processors (codename Ice Lake)

FEATURE

Onboard Baseboard Management Controller for system management and IPMI control

FEATURE

Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions

FEATURE

Dedicated BMC management port

Specification

Specification
SKU
FRU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 800 x 88

inches

17.2 x 31.4 x 3.1

Motherboard

AIC Server Board A6

Processor

Processor Support

3rd Gen Intel® Xeon® Scalable Processors (Ice Lake)

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)

CPU Interconnection

CPU Interconnection: 11.2GT/s

Socket Type

1+1 Socket P+ (LGA 4189)

Chipset Support

Intel® C621A

System Memory

32 x DDR4 3200Mhz

• Total 16+16 DIMM slots (2DPC)

• Up to 12TB 3DS ECC RDIMM/LRDIMM

• Intel® Optane™ Persistent Memory 200 Series support

Front Panel

• System power on/off

• System reset

• System ID

LEDs

Power LED, ID LED, Fail LED

• Power (Secondary)

• Warning

B :

• Power (Primary)

• Warning

Drive Bays

External

• 12 x 3.5” hot-swap (SAS/SATA/NVMe)

• 2 x 2.5" (SATA, rear)

Internal

1 x M.2(NGFF)/M-Key/2280 (SATA/PCIe)

Backplane

1 x 4-port SATA/SAS/NVMe backplane with 1 x SFF-8643 + 2x SFF-8654 (Slimline 8i) connectors

Expansion Slots

• 2 x (1 x8 + 1 x16) FHHL

• 2 x8 HHHL

• 1 x16 OCP 3.0

Riser Card (included):

2U2S_RB24_G4 x2 : 1 x16 + 1 x8 PCIe slots

System Bios

Bios Type

AMI UEFI BIOS

Bios Features

• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode

On Board

Devices

SATA :
Intel® Lewisburg PCH on-chip solution
• 14 x SATA 6.0 Gb/s (3 Mini-SAS HD, SATA DOM, SATA DOM or M.2)
• RAID 0, 1, 5, 10 support by Intel RSTe

Devices BMC

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Devices Network Controllers

• Networking options provided via OCP Mezzanine extension

Devices Graphics

Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

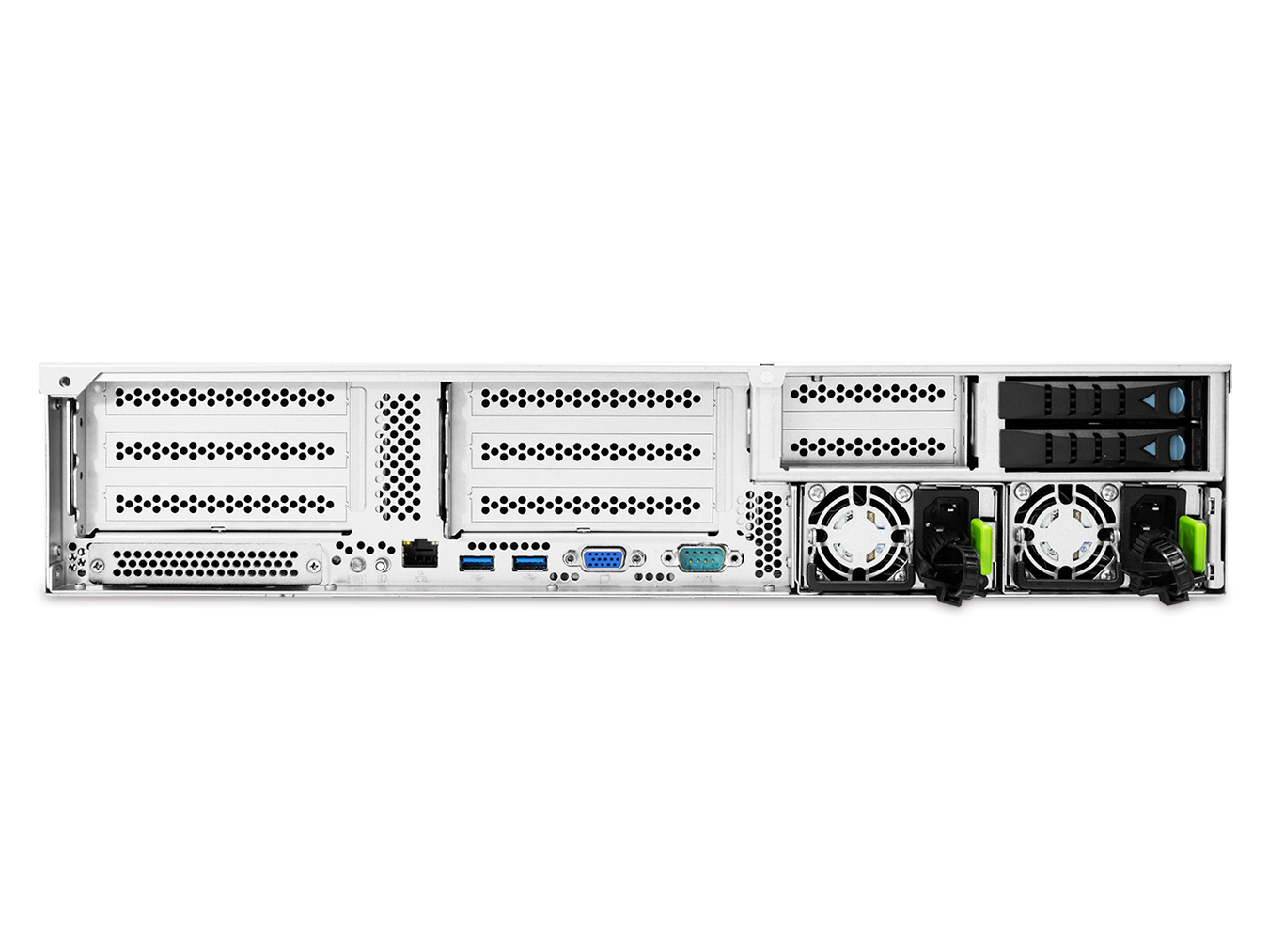

Rear I/O

LAN

USB

2 x USB 3.0 Type A in double-stack connector

Video Output

Serial Port

1 x DB9

TPM Support

Power Supply

1200W 1+1 redundant power supply 80+ Platinum

• AC Input: 100~240V, 50/60Hz, 7-3.5A

System Cooling

6 x 60x38mm easy-swap fans

System Management

• IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support

Environmental Specifications

• Storage temperature: -10°C(14°F) ~ 60°C(140°F)

• Operating temperature: 0°C(32°F) ~ 35°C(95°F)

• Storage operating humidity: 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

Packaging Dimensions (W x D x H)

595 x 1115 x 239

inches

23.4 x 43.9 x 9.4

Mounting (Standard)

28" tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-S202A605	2U 12x 3.5"/2.5" SAS/SATA hot-swap (EOB BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, A6 motherboard, DDR4 RDIMM x32, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 FHHL Gen.4, 2x PCIe x8 FHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsink (CPU TDP 270W), 28" slide rail, w/o bezel
XP1-S202A606	2U 4x 3.5"/2.5" tri-mode + 8x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, A6 motherboard, DDR4 RDIMM x32, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 FHHL Gen.4, 2x PCIe x8 FHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsink (CPU TDP 270W), 28" slide rail, w/o bezel
XP1-S202A607	2U 8x 3.5"/2.5" tri-mode + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, A6 motherboard, DDR4 RDIMM x32, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 FHHL Gen.4, 2x PCIe x8 FHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsink (CPU TDP 270W), 28" slide rail, w/o bezel
XP1-S202A608	2U 12x 3.5"/2.5" tri-mode hot-swap (Passive BP), 2x 2.5" SATA hot-swap, 6x 6038 fan, Acbel 1200W redundant power supply platinum, A6 motherboard, DDR4 RDIMM x32, Intel PCH C621A, WATX, dedicated 1GbE BMC, AST2500, 2x PCIe x16 FHHL Gen.4, 2x PCIe x8 FHHL Gen.4, 2x PCIe x8 HHHL Gen.4, 1x OCP 3.0 x16 Gen.4, 2x CPU heatsink (CPU TDP 270W), 28" slide rail, w/o bezel

FRU Information
Standard Parts List	Part Number	Description
Backplane	BBP-HD20029A	12-port 12GB SAS EOB backplane (BP-HD2E05-TY)
Backplane	BBP-HD10035A	4-port 12GB SAS/SATA passive backplane (BP-HD1S07-TY)
Backplane	BBP-FB10009A	4-port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U02-TY)
Fan	FC-A00000558	6038 fan L70MM
Power supply	PM-A00000118	1200W redundant power supply module
Slide rail	H5541T100005	33" tool-less slide rail
Screw	M15-00027-18	Screw kit/24 x 2.5" HDD, Bottom, F(+), M3X4L, NI*96pcs (for 3.5" tray with 2.5" device mounting)
Optional Parts List	Part Number	Description
Cable	G3-000000122	SFF-8643 to SFF-8643 mini SAS HD cable L800MM for RAID/HBA card
Cable	G3-A00001169	Slimline SAS 8i (SFF-8654) to Slimline SAS 4i*2 (SFF-8654) SAS cable L850MM for RAID/HBA card
