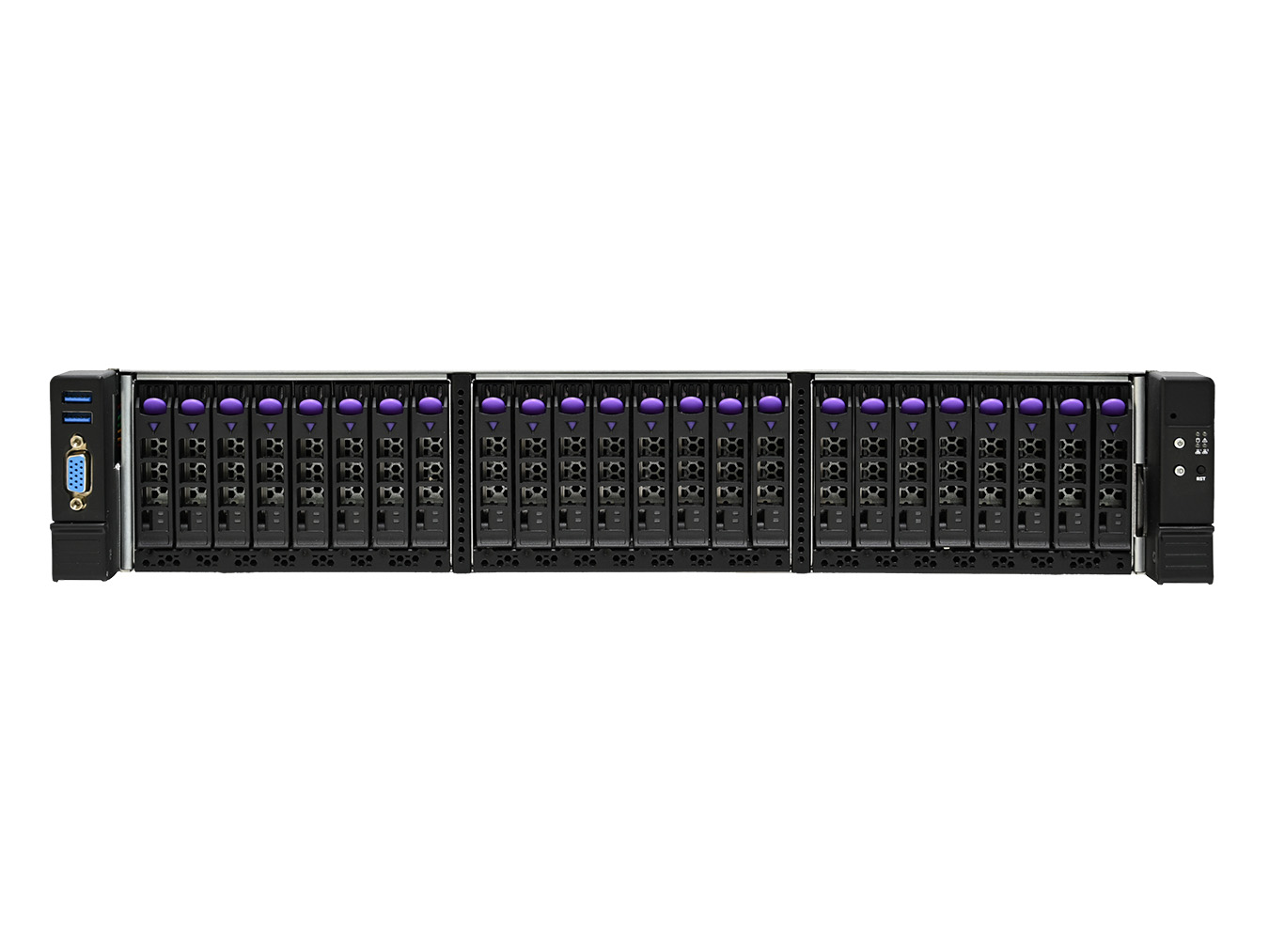

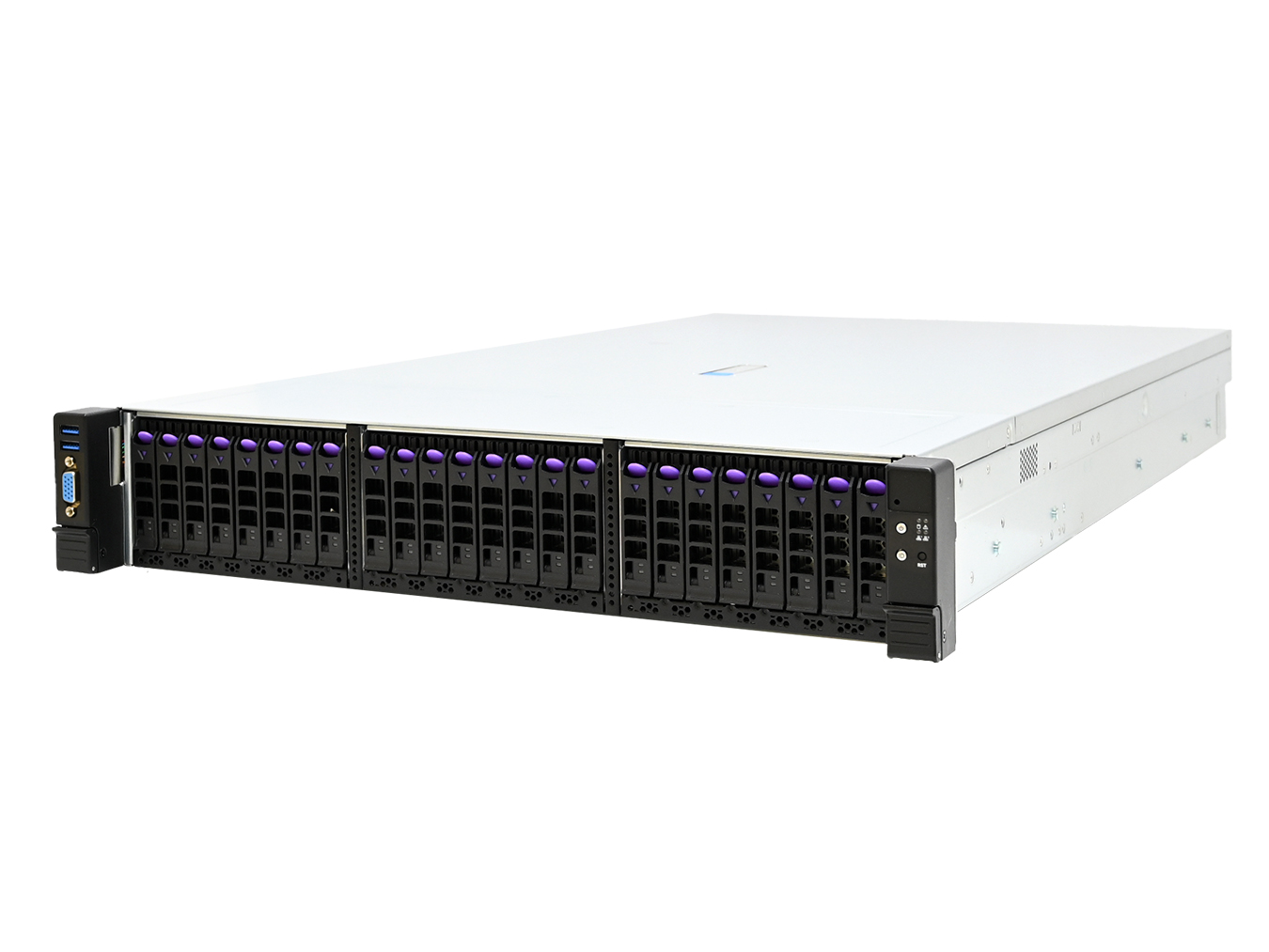

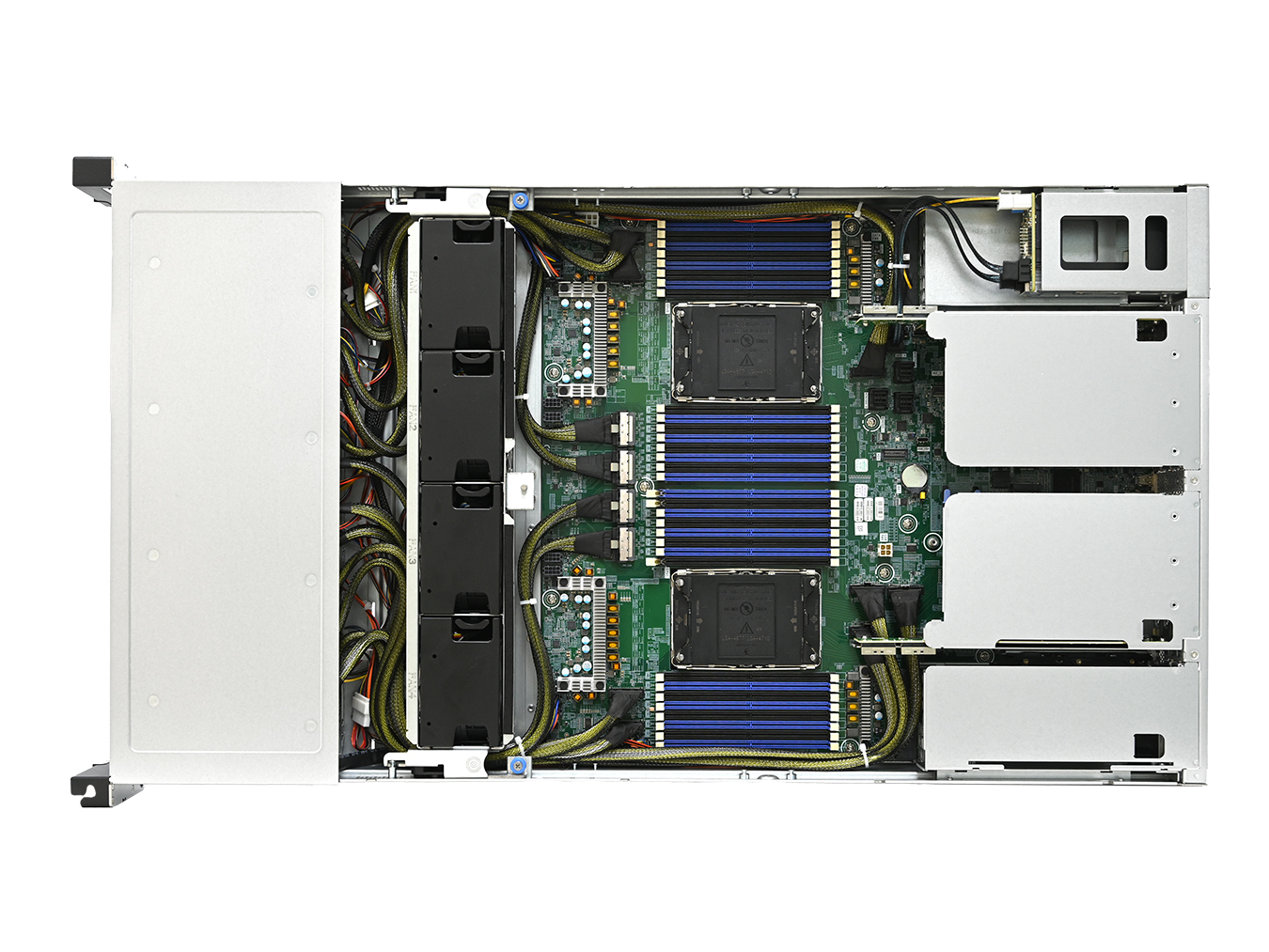

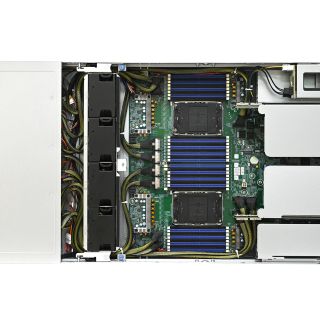

SB201-SU, a 2U server for general purpose, supports Intel® Xeon® 6700/6500 series with E-cores/P-cores processors (codename Sierra Forest/Granite Rapids), 32x DDR5 RDIMM, and 2x PCIe GEN5 extensions. SB201-SU has 24 x 2.5”NVMe/SATA/SAS (front) and 2x2.5" SATA (rear) hot-swappable bays to provide highest storage density and optimized performance for the applications.
KEY FEATURE
2U all-flash server solution
FEATURE
2U all-flash server solution
24 x 2.5” front hot-swappable PCIe Gen5 NVMe bays
FEATURE
24 x 2.5” front hot-swappable PCIe Gen5 NVMe bays
Supports Intel® Xeon® 6 Scalable Processors for highest every performance and improved power efficiency
FEATURE
Supports Intel® Xeon® 6 Scalable Processors for highest every performance and improved power efficiency
Supports DDR5 RDIMM and PCIe Gen5 extensions
FEATURE
Supports DDR5 RDIMM and PCIe Gen5 extensions
Onboard Baseboard Management Controller for system management and IPMI control
FEATURE
Onboard Baseboard Management Controller for system management and IPMI control
Dedicated BMC management port
FEATURE
Dedicated BMC management port
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
FEATURE
Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 820 x 87.5
inches
17.2 x 32.2 x 3.4
Motherboard
AIC Server Board Sirius
Processor
Processor Support
• Dual Intel® Xeon® 6 6700E/6500P/6700P series
• Supports CPU TDP 350W
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)
• Supports CPU TDP 350W
(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)
CPU Interconnection
UPI Speeds : 24GTs
Socket Type
Socket E2 (LGA 4710 Socket)
Chipset Support
System Memory
• Total 32 memory slots; 8 channel per CPU (2DPC)
• DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by 6700P/6500P series;
• DDR5 6400MHz(1DPC) 5200MHz(2DPC 2Rx4 RDIMM only) by 6700E series;
• DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by Clearwater Forest
• DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by 6700P/6500P series;
• DDR5 6400MHz(1DPC) 5200MHz(2DPC 2Rx4 RDIMM only) by 6700E series;
• DDR5 6400MHz(1DPC) 5200MHz(2DPC) 8000MHz(1DPC MCR) by Clearwater Forest
Front Panel
Power button, ID button, Reset button, VGA, 2 x USB 3.0
LEDs
Drive Bays
External
24 x 2.5" hot-swap (PCIe Gen5 NVMe)
Internal
2 × M.2 2280/22110 (PCIe Gen5 x 4)
Backplane
Front Options:
• 3 x 8-port 2.5” Gen5 Tri-mode
• 3 x 8-port E3.S Gen5 NVMe
Rear Options:
• 1 x 2-port 2.5” SAS/SATA
• 1 x 2-port 2.5” Tri-mode +
1 x 2-port 2.5” SAS/SATA
• 3 x 8-port 2.5” Gen5 Tri-mode
• 3 x 8-port E3.S Gen5 NVMe
Rear Options:
• 1 x 2-port 2.5” SAS/SATA
• 1 x 2-port 2.5” Tri-mode +
1 x 2-port 2.5” SAS/SATA
Expansion Slots
2 x PCIe 5.0 X16 FHHL/HHHL + 1 x OCP 3.0
Riser Card (included):
• 1 x RC-PE2U26-TY
• 1 x RC-PE2U27-TY
Riser Card (included):
• 1 x RC-PE2U26-TY
• 1 x RC-PE2U27-TY
System Bios
Bios Type
AMI UEFI BIOS
Bios Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug
On Board
Devices
SATA :
• 2 x SATA3 7-pin by ASM1062R (support RAID 0/1)
• 12 x SATA3 by 3 x Mini-SAS connectors (power by ASM1164)
• 2 x SATA3 7-pin by ASM1062R (support RAID 0/1)
• 12 x SATA3 by 3 x Mini-SAS connectors (power by ASM1164)
Devices BMC
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
Devices Network Controllers
• Realtek RTL8211FS 1GbE for BMC dedicated management port
• 2 x Intel® I210 GbE ethernet controller
• 2 x Intel® I210 GbE ethernet controller
Devices Graphics
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp
• Resolution up to 1920x1200 @60Hz 32bpp

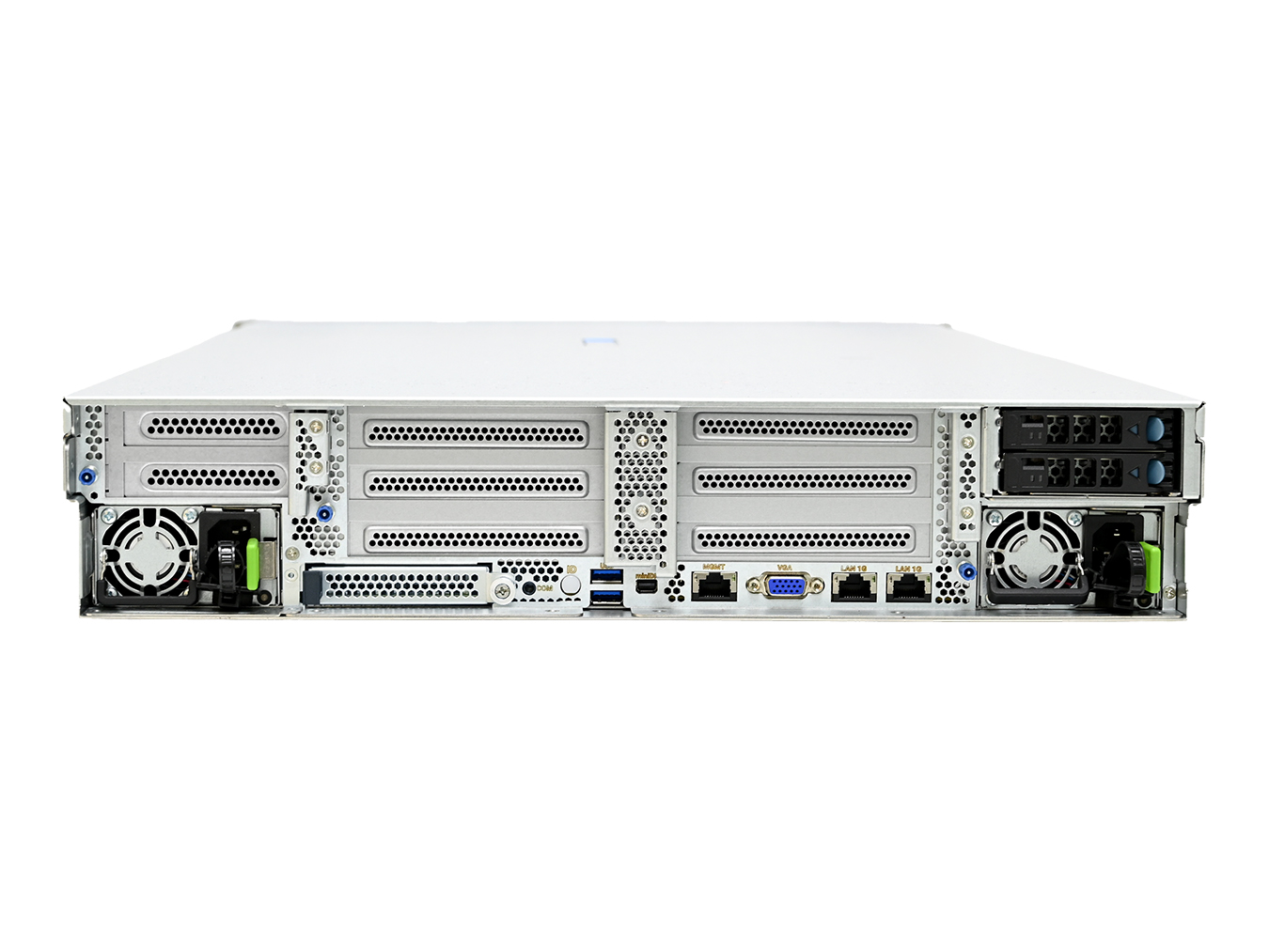

Rear I/O
LAN
• 2 x RJ45 connectors for dual port GbE
• 1 x RJ45 connector (for BMC management port)
• 1 x RJ45 connector (for BMC management port)
USB
2 x USB 3.2 Gen 1 Type A
Video Output
• 1 x DB-15 VGA connector
• 1 x Mini display port
• 1 x Mini display port
Serial Port
1 x COM connector (Audio Jack)
TPM Support
Power Supply
2000W/2400W 1+1 CRPS 80+ Titanium by CPU/NVMe supporting wattage SKU options
System Cooling
4 x 80x56mm hot swap fans
System Management
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5, Redfish
System Management Features:
• KVM over IP
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5, Redfish
System Management Features:
• KVM over IP
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
Environmental Specifications
• Storage temperature: -10°C(14°F) ~ 60°C(140°F)
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
• Operating temperature: 0°C(32°F) ~ 35°C(95°F)
• Storage operating humidity: 5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
25
lbs
55
Packaging Dimensions (W x D x H)
mm
615 x 1155 x 328
inches
24.2 x 45.5 x 12.9
Mounting (Standard)
36" tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
|---|---|
|
XP1-S201SU04 |
2U 24-bay 2.5” hot-swap, 3x PCIe Gen5 NVMe 8-port backplane, 4x 8056 FAN, Acbel 2000W redundant power supply Titanium (C14 inlet), Sirius motherboard, DDR5 RDIMM x32, 1x GbE dedicate IPMI, 2x PCIe x16 Gen5 (FHHL), 1x OCP 3.0 x16 Gen5, 2x CPU heatsink, 36" slide rail, w/o bezel |
