SB201-HK

Home Products Server MainStream Server 2U Rackmount Server

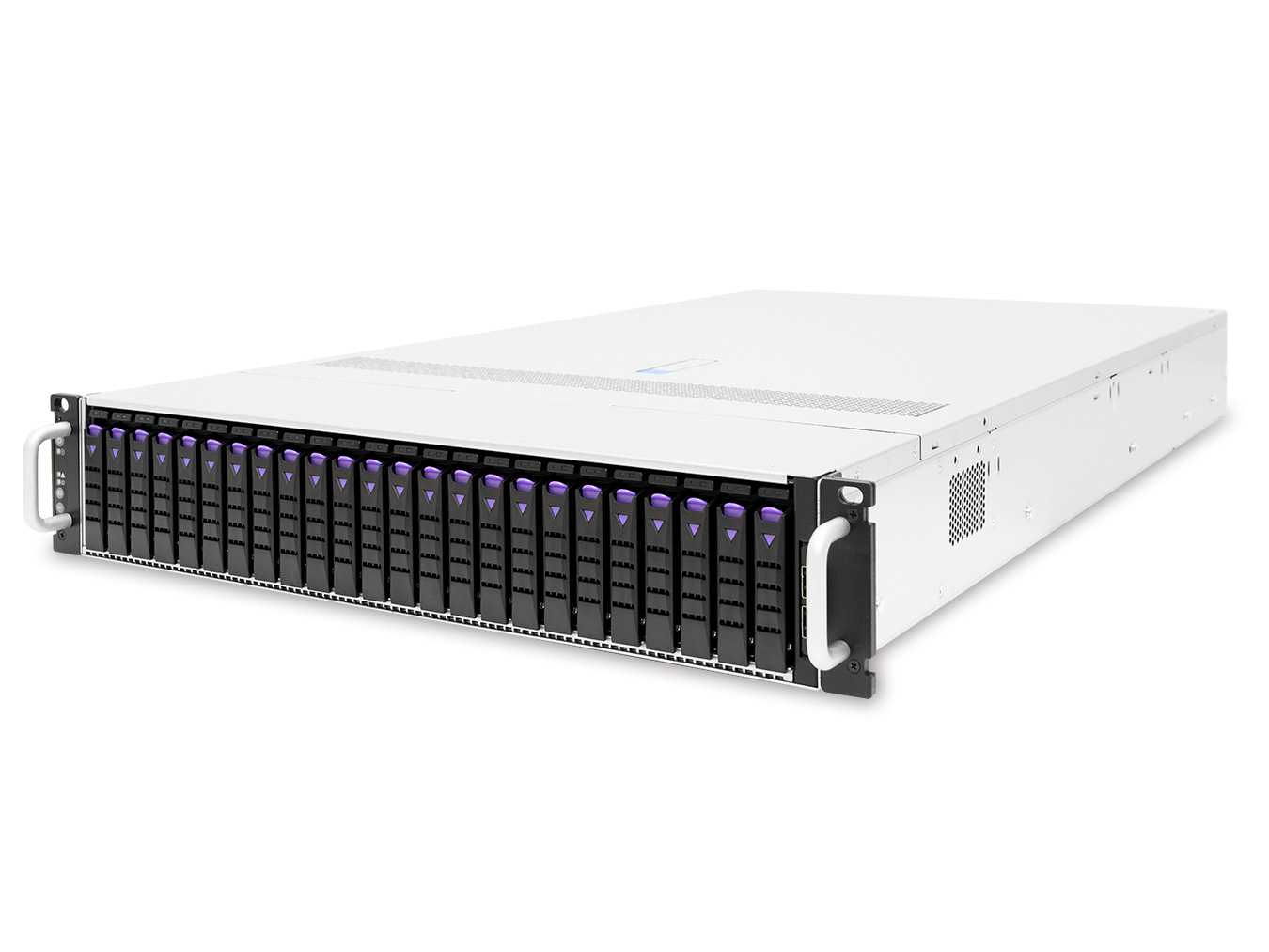

SB201-HK, a 2U all flash server solution, supports dual 4th Gen Intel® Xeon® Scalable Processors (codename Sapphire Rapids), 32x DDR5 RDIMM, and 4x PCIe GEN5 extensions. SB201-HK has 24 x 2.5” (front)NVMe and 2x2.5" SATA(rear) hot-swappable bays to provide highest storage density and optimized performance for the applications

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

2U all-flash server solution

FEATURE

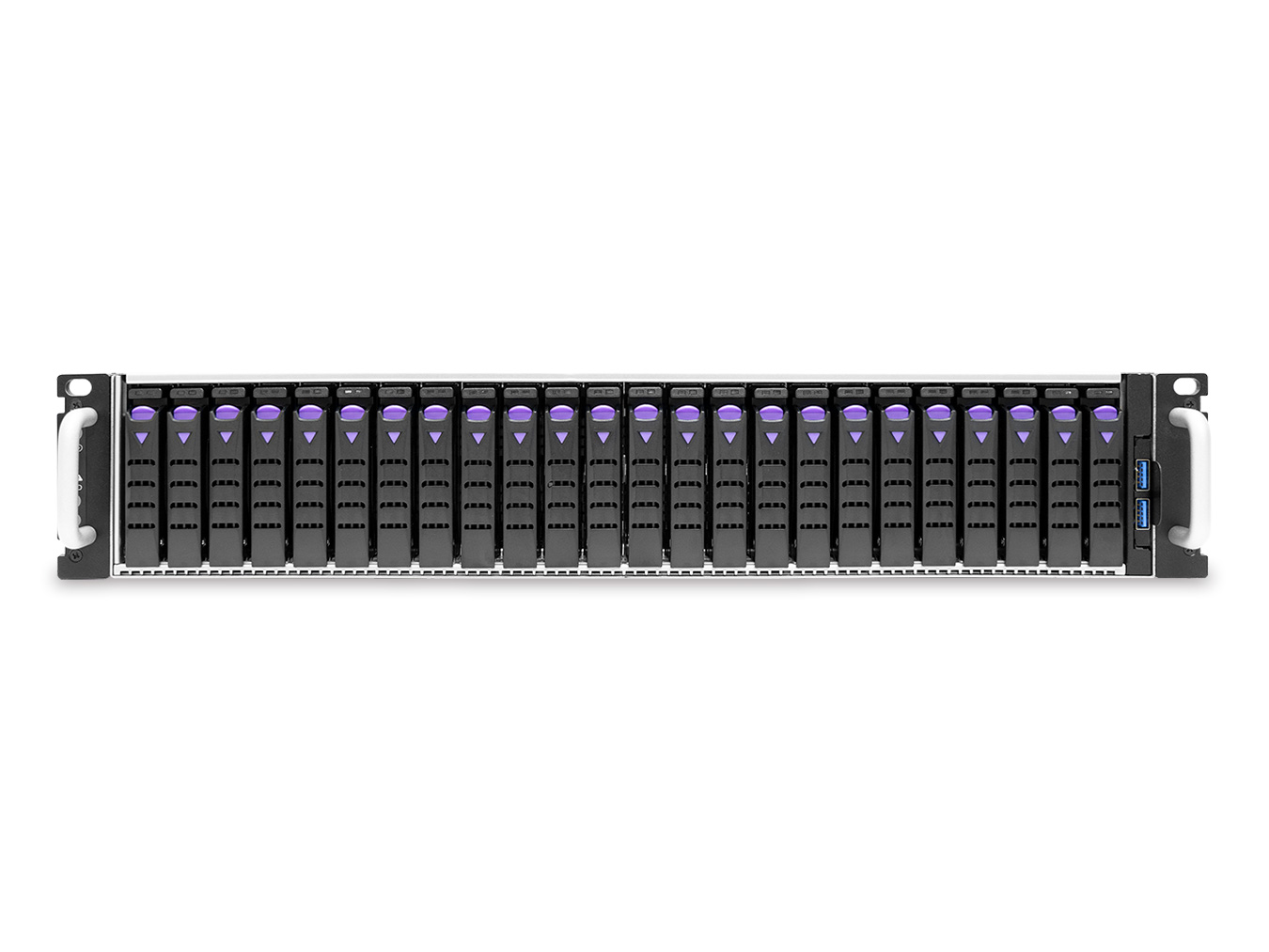

24 x 2.5” front NVMe hot-swappable bays and 2 x 2.5” rear SATA hot-swappable bays

FEATURE

Supports dual 5th Gen Intel® Xeon® Scalable Processors (codename: Emerald Rapids)

FEATURE

Supports dual 4th Gen Intel® Xeon® Scalable Processors (codename: Sapphire Rapids)

FEATURE

32x DDR5 RDIMM and 4x PCIe Gen5 extensions

Specification

Specification
SKU
FRU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 800 x 87.5

inches

17.2 x 33.5 x 3.5

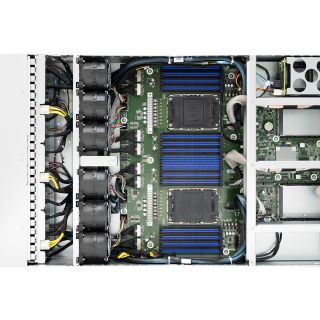

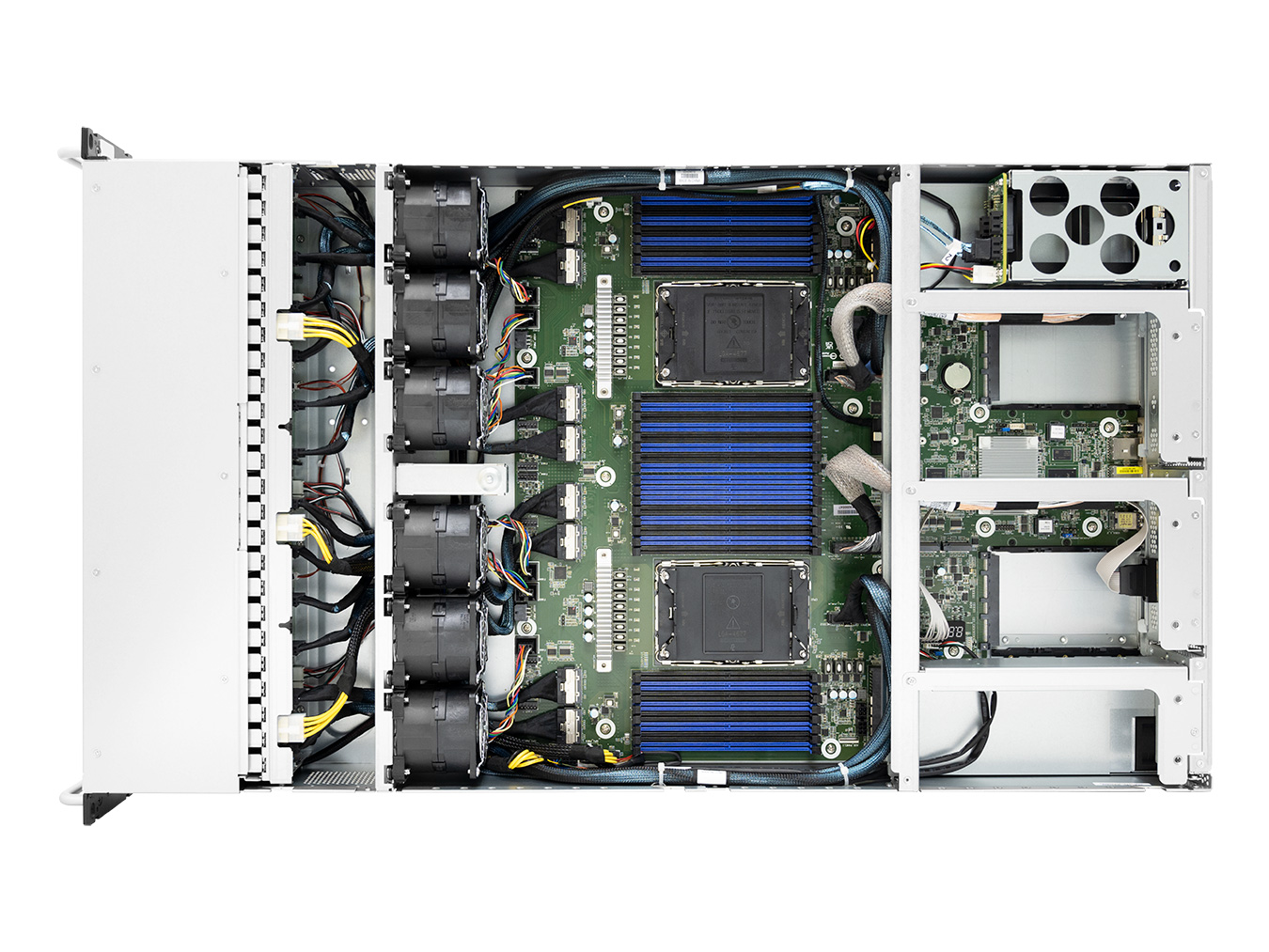

Motherboard

AIC Server Board Horkos

Processor

Processor Support

• 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids)

• 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids)

CPU Interconnection

Supports CPU TDP up to 350W

(Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.)

Socket Type

Socket E (LGA 4677)

Chipset Support

Intel® Emmitsburg PCH (C741 Chipset)

System Memory

• DDR5 4800MHz (1DPC)

• DDR5 5600MHz (1DPC) 4400MTS (2DPC) by Emerald Rapids CPU

• Total 32 memory slots; 16 slots per CPU (2DPC)

Front Panel

• 1 x System power on/off button/LED

• 1 x System reset button

• 1 x System ID button/LED

• 1 x System alert (BMC)

• 2 x USB 3.0

LEDs

Drive Bays

External

• 24 x 2.5" hot swap (PCIe 5.0 U.2 NVMe)

• 2 x 2.5" hot swap (SATA, 15mm, rear)

Internal

2 x M.2/M-Key/22110/2280 (PCIe Gen4)

Backplane

3 x 8-bay NVMe PCIe Gen 5

Expansion Slots

• 2 x PCIe X16 slots (FHHL) (Reserve GPU card support retention mechanical bracket)

• 2 x OCP 3.0 bays (PCIe X16 width)

System Bios

Bios Type

AMI UEFI BIOS

Bios Features

• ACPI
• PXE
• WOL
• AC loss recovery
• BIOS recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug

On Board

Devices

SATA/NVMe :
Intel® Emmitsburg PCH on-chip solution
• 2 x SATA 6.0 Gb/s by slimline x8
• M.2: 2 x M.2/M-Key/22110/2280 (PCIe Gen4)

Devices BMC

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
• SMASH Support

Devices Network Controllers

Realtek RTL8211E for BMC dedicated management port

Devices Graphics

Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• PCIe Graphic/2D Controller
• 1920x1200@60Hz 32bpp

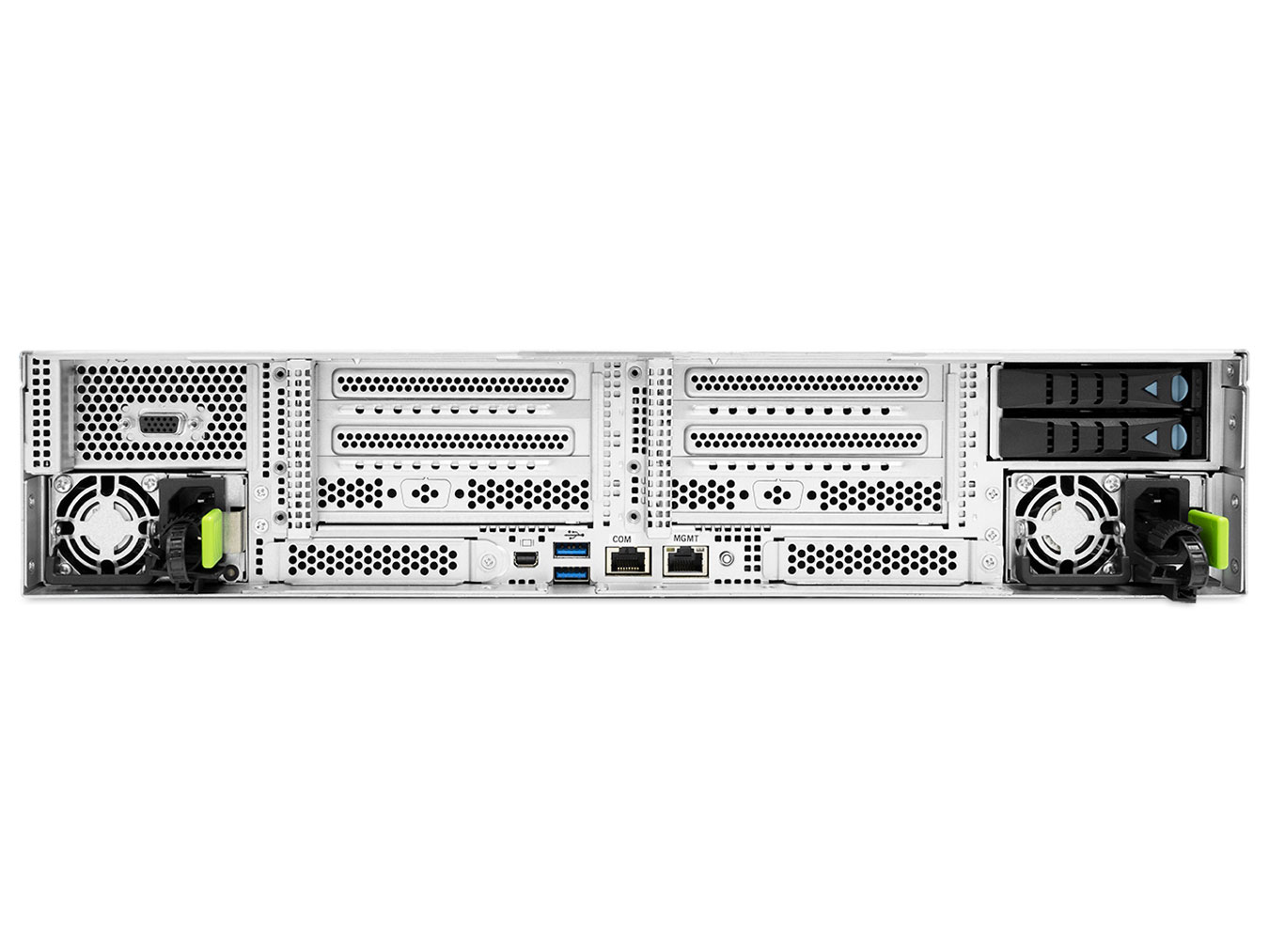

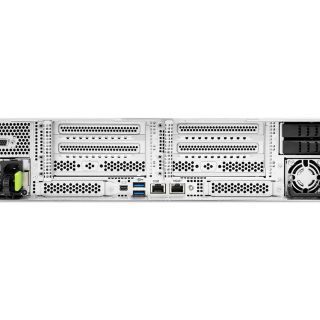

Rear I/O

LAN

1 x GbE RJ45 dedicated BMC management

USB

2 x USB 3.2 Gen1 Type A

Video Output

• 1 x Mini DisplayPort

• 1 x external VGA port

Serial Port

1 x RJ45 (COM)

TPM Support

Power Supply

• 2000W redundant power supply 80+ Platinum/Titanium

System Cooling

6 x 60x56mm easy swap fans ABS material plastic air-duct (clear)

System Management

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)

• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)

• Storage operating humidity : 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

63.9

Packaging Dimensions (W x D x H)

605 x 1210 x 320

inches

23.6 x 47.6 x 12.5

Mounting (Standard)

28" tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XP1-S201HK01	2U 24-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 8-port backplane, 2x 2.5" SATA hot-swap, 6x 6056 FAN, Acbel 2000W redundant power supply Platinum (C14 inlet), Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHHL) single slot, 2x OCP 3.0 x16 Gen.5, 2x CPU heatsink, 28 slide rail, Gen-Z to PCe cable (for add-on card support) x2, w/o bezel
XP1-S201HK02	2U 24-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 8-port backplane, 2x 2.5" SATA hot-swap, 6x 6056 FAN, Acbel 2000W redundant power supply Titanium (C14 inlet), Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHHL) single slot, 2x OCP 3.0 x16 Gen.5, 2x CPU heatsink, 28 slide rail, Gen-Z to PCe cable (for add-on card support) x2, w/o bezel
XP1-S201HK03	2U 24-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 8-port backplane, 2x 2.5" SATA hot-swap, 6x 6056 FAN, Acbel 2000W redundant power supply Platinum (C14 inlet), Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHFL) for double slot GPU with GPU card retainer, 2x OCP 3.0 x16 Gen.5, 2x 1U CPU heatsink, 28 slide rail, Gen-Z to PCe cable (for add-on card support) x2, w/o bezel
XP1-S201HK04	2U 24-bay 2.5" hot-swap, 3x PCIe Gen.5 NVMe 8-port backplane, 2x 2.5" SATA hot-swap, 6x 6056 FAN, Acbel 2000W redundant power supply Titanium (C14 inlet), Horkos motherboard, Intel Emmitsburg, DDR5 RDIMM x32, Intel PCH C741, 1 x GbE dedicate IPMI, 2x PCIe x16 Gen.5 (FHFL) for double slot GPU with GPU card retainer, 2x OCP 3.0 x16 Gen.5, 2x 1U CPU heatsink, 28 slide rail, Gen-Z to PCe cable (for add-on card support) x2, w/o bezel

FRU Information
Standard Parts List	Part Number	Description
Backplane	BBP-FB20004A	8 port PCIe Gen 5 NVMe backplane with MCIO 8i*4 (BP-FB2U02-TY)
Power supply	PM-C00000099	1600W redundant power supply module Platinum (with C14 plug)
Fan	FC-B00001015	6056 fan L100MM
Riser card	G3-A00001149	PCIe Gen 5 Gen-Z to x16 cable cem for add-on card support
Slide rail	H5541T100005	33" tool-less slide rail
