RSC-4H

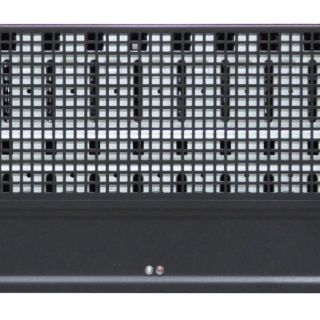

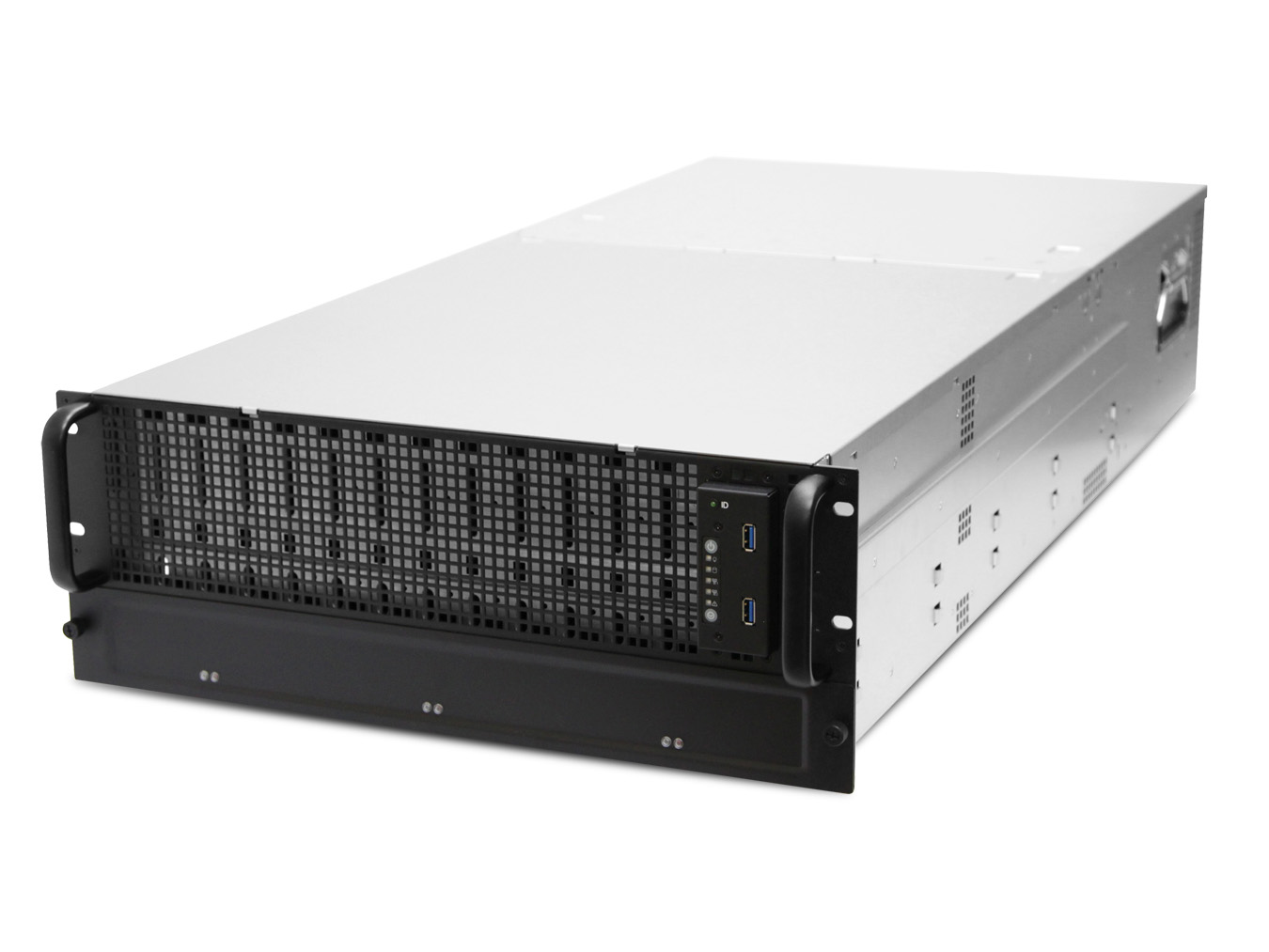

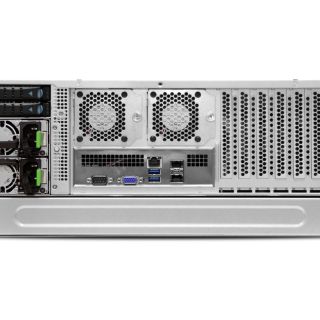

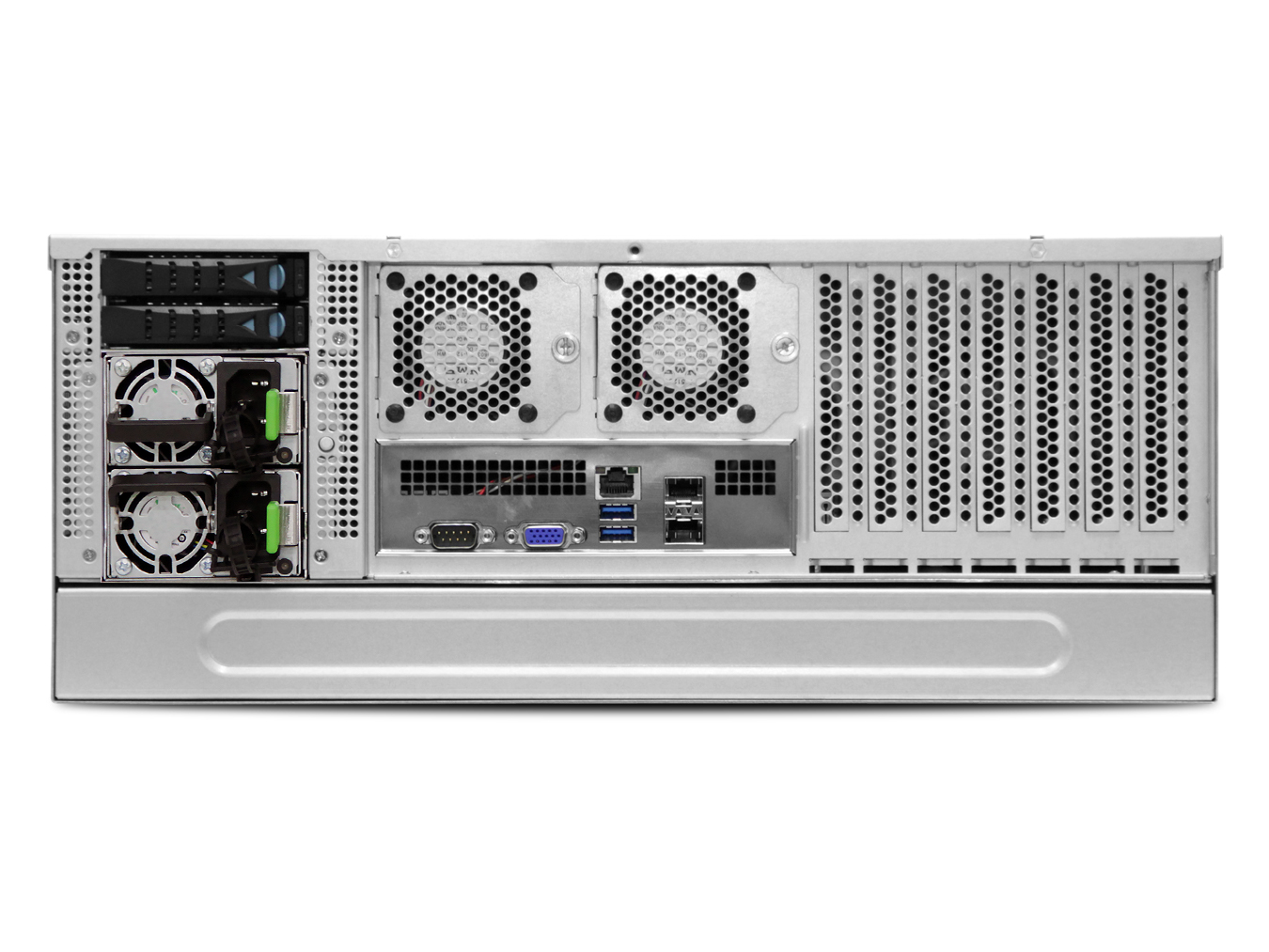

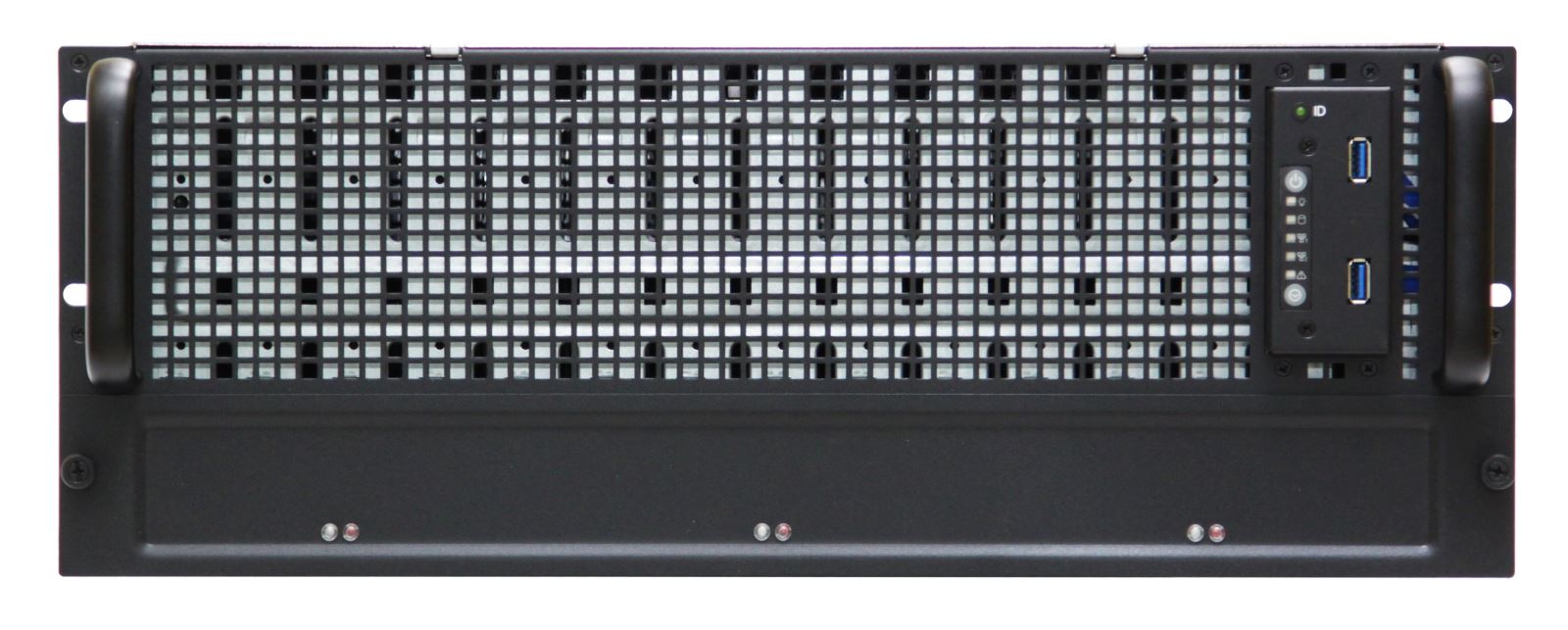

RSC-4H is a 4U 60-Bay high density storage server chassis with tool-less design features. Unlike typical 4U server chassis which accommodate 24 or 36 drives, RSC-4H supports 60 top-loading 3.5” drive trays to save rack space and lower power consumption. It is suitable for cold storage which requires the capacity for vast amount of data but allows slower data retrieval and response time. Some suitable applications include media storage, medical imaging, email archiving, public or private cloud storage and data warehousing. Tool-less features on drive trays, top cover and backplane sliding mechanism make assembly and maintenance quick and easy. (Power supply is included. Motherboard is not included.)

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

High-density storage server chassis

FEATURE

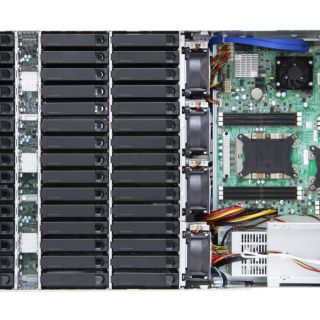

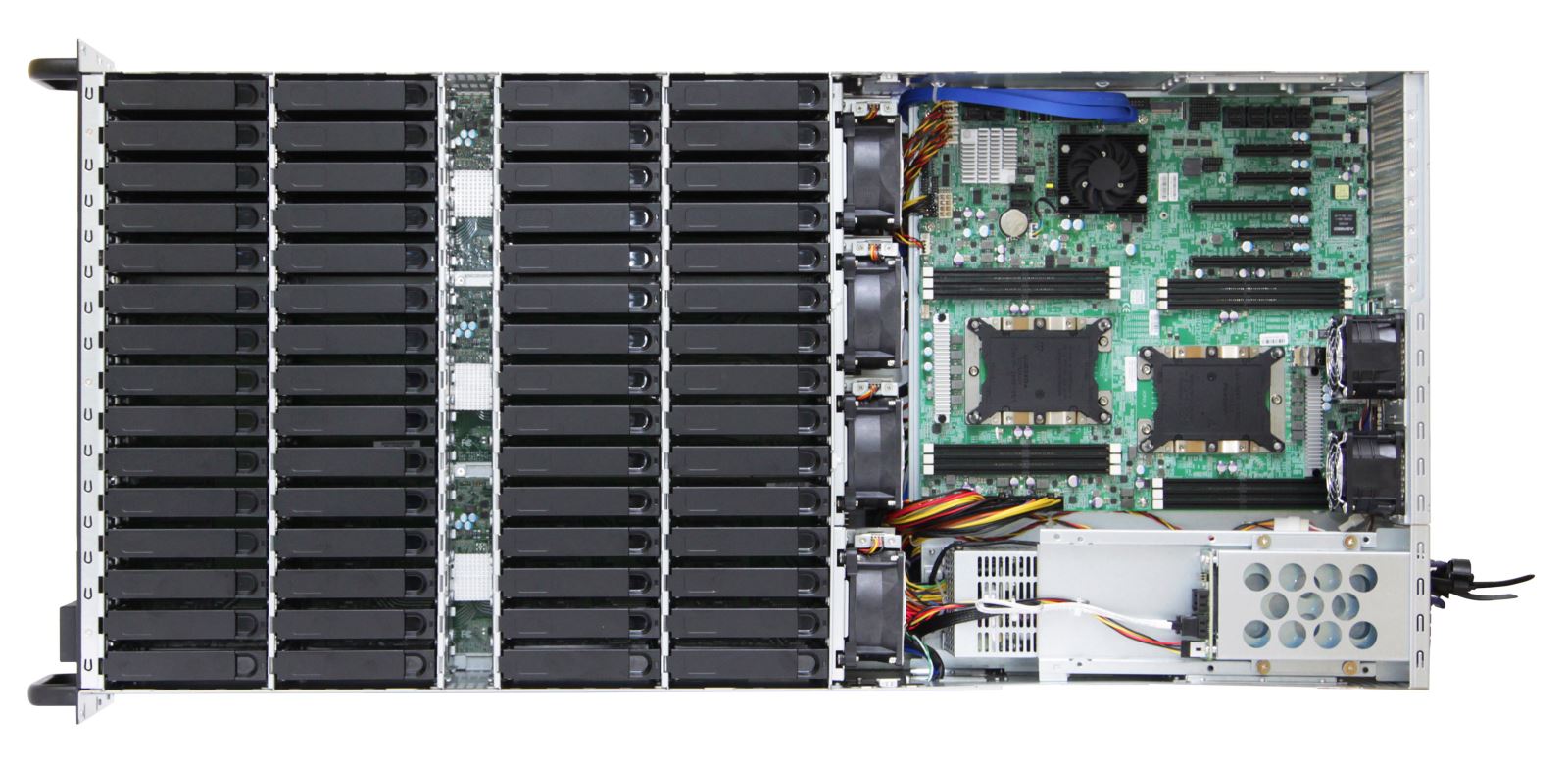

Tool-less design for easy maintenance: - 60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED - Tool-less top cover - Tool-less drive backplane sliding mechanism

FEATURE

Hot swap cooling fans and 80+ redundant power supply

FEATURE

Supports up to 2 x 2.5” hot swap drives for OS

FEATURE

Supports single drive power cycle setting

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

435 x 950 x 177

inches

17 x 37.4 x 7

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel : Black

Cooling

• Middle : 4 x 80x38mm PWM & low-power consumption hot swap fans

• Rear : 2 x 60x38mm PWM easy swap fans

Power Supply

• Standard : 1600W 1+1 redundant PSU 80+ Platinum

Expansion Slots

7 full height

Front Panel

• System power on/off

• System reset

• 2 x USB 3.0 ports

LED Indicators

• Power

• LAN

• Drive

• Alert

System board

12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

External

2 x 2.5” hot swap

Internal

60 x 3.5” hot swap

Backplane

3 x 20-port 12Gb SAS backplanes with 28-PHY expander chip and 2 SFF-8643 connectors on each

Storage Temparature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

94.8

Packaging Dimensions (W x D x H)

603 x 1240 x 454

inches

23.7 x 48.8 x 17.9

Cubic Feet

8.8

Container Load Quantity

20'

40'

199

40' H

240

Mounting

Standard : 25” tool-less slide rail
Option : Cable Management Kit

* All specifications are subject to change without notice.

SKU Information	Description
XE1-4H000-01	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (200~240V), rear 10x HDD dummy, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet
XE1-4H000-02	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (200~240V), rear 6x 2.5" SATA/SAS + 4x NVMe external hot-swap drive bays, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet
XE1-4H000-05	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (100~240V), rear 10x HDD dummy, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet
XE1-4H000-06	4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1600W CRPS redundant power supply (100~240V), rear 6x 2.5" SATA/SAS + 4x NVMe external hot-swap drive bays, 3x 20-port SAS 12G expander controller on backplane (35X series), 25" slide rail, pallet 43”slide rail

FRU Information
Part Number	Description
M03-00362-01	6038 fan module
M06-00128-16	8038 fan module
H5533T100001	40" tool-less slide rail (TL:611mm, post to post distance 672 to 940mm) For 435mm chassis width, for over 1M rack
BBPKHD40012B	20 port 12G SAS backplane with LSI 35x28 expender on board (usage 3 pcs)
BBP-HD10003A	2 port SATA/SAS backplane (for external : 2 x 2.5” hot-swap)
PM-000000010	1600W CRPS power supply module
PH-000000080	1600W CRPS power supply housing
H56-7604-001	cable arm
M06-00362-18X01	separate order 10-bay (4x NVMe+ 6x SATA)
M06-00362-19X01	separate order 10-bay SATA/SAS for standard
M06-00362-20X01	separate order 10-bay NVMe for standard
M06-00010-40	J4060-01~03/RSC-4H/SB403-VG FRU parts- 3.5" tray to 2.5" device adapter (20pc in package)
