RSC-4ET

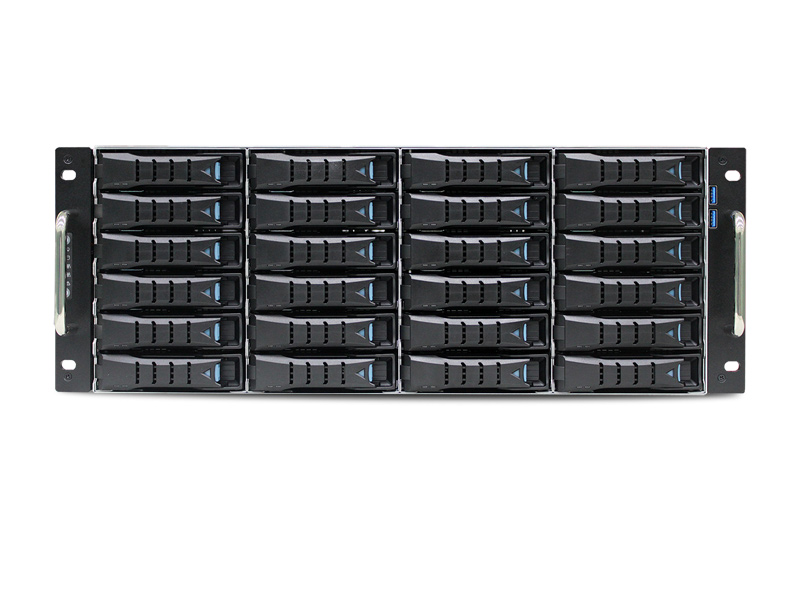

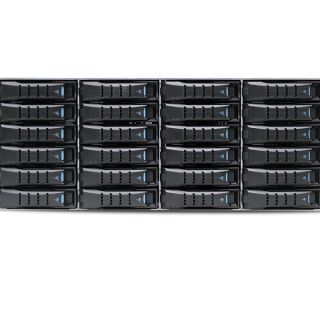

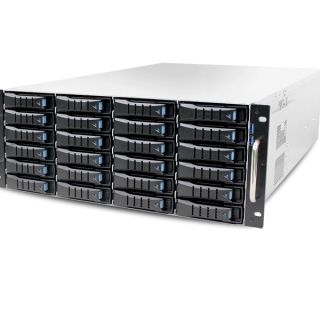

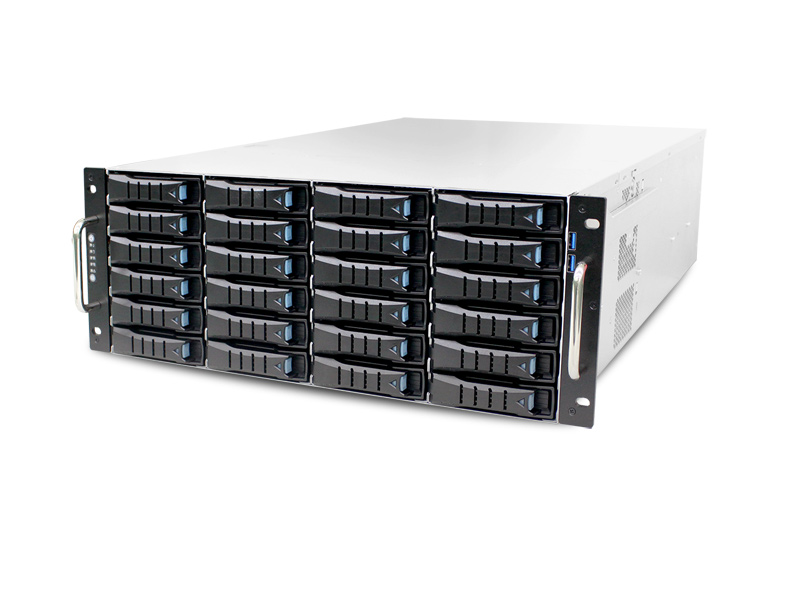

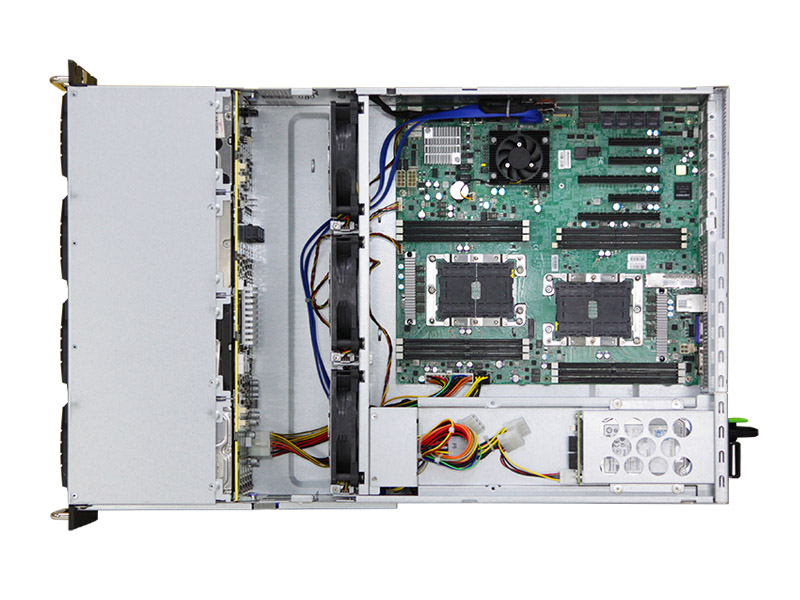

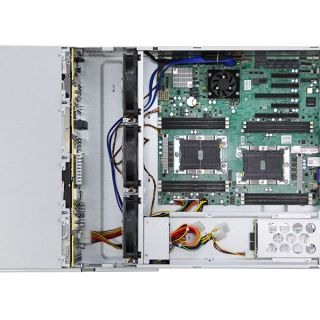

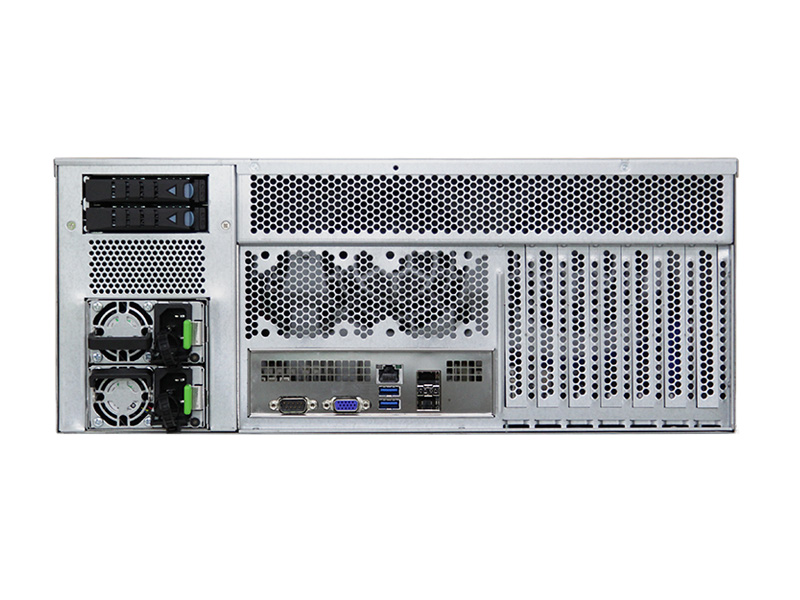

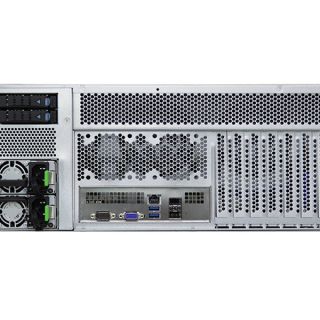

RSC-4ET is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
KEY FEATURE
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
12Gb/s SAS expander chip on backplane
FEATURE
12Gb/s SAS expander chip on backplane
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
FEATURE
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
FEATURE
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
Comes with a redundant PSU 80+ Platinum
FEATURE
Comes with a redundant PSU 80+ Platinum
Two front access USB 3.0 portsm
FEATURE
Two front access USB 3.0 portsm
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
430 x 680 x 174.3
inches
16.9 x 26.8 x 6.9
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel: Black
Cooling
Middle: 3 x 120x25mm PWM hot swap fans
Power Supply
1200W 1+1 redundant PSU 80+ Platinum
Expansion Slots
7 full height
Front Panel
System power on/off, System reset and 2 x USB 3.0 ports
LED Indicators
Power, LAN, Drive and Alert
System board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External
• 24 x 3.5” hot swap
Options choose 1:
• External: 2 x 2.5” hot swap
Options choose 1:
• External: 2 x 2.5” hot swap
Internal
Options choose 1:
• Internal: 2 x 2.5”
• Internal: 2 x 2.5”
Backplane
1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
37
lbs
81.6
Packaging Dimensions (W x D x H)
mm
645 x 835 x 310
inches
25.4 x 32.9 x 12.2
Cubic Feet
8.3
Container Load Quantity
20'
150
40'
315
40' H
345
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-4ET00-02 | 4U 24x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply, 2x 2.5" hot-swap OS, rail, 4U24 SAS 12G passive backplane support 4x NVMe (for PCIe Gen.3 device only / option customized cable) |
| XE1-4ET00-07 | 4U 24x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS Platinum redundant power supply, 2x 2.5" hot-swap OS, rail, 4U24 SAS 12G expander controller on backplane (35X series) |
| XE1-4ET00-09 | 4U 24x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS Titanium redundant power supply, 2x 2.5" hot-swap OS, rail, 4U24 SAS 12G expander controller on backplane (35X series) |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Fan | M06-00201-14 | 12025 fan module |
| Slide rail | H5521T200005 | 28" Tool-less slide rail |
| Backplane | BBPJHD40001A | 24-bay 12G EOB backplane |
| Power supply | PH-C00000010 | 1200W CRPS power supply housing |
| Power supply | PM-A00000118 | 1200W CRPS power supply module |
| Front bezel | M06-00201-17 | Suitable for RSC-4ET & RSC-4ETS/RSC-4BT(4ET DOOR ASS,Y) |
