RSC-4BT

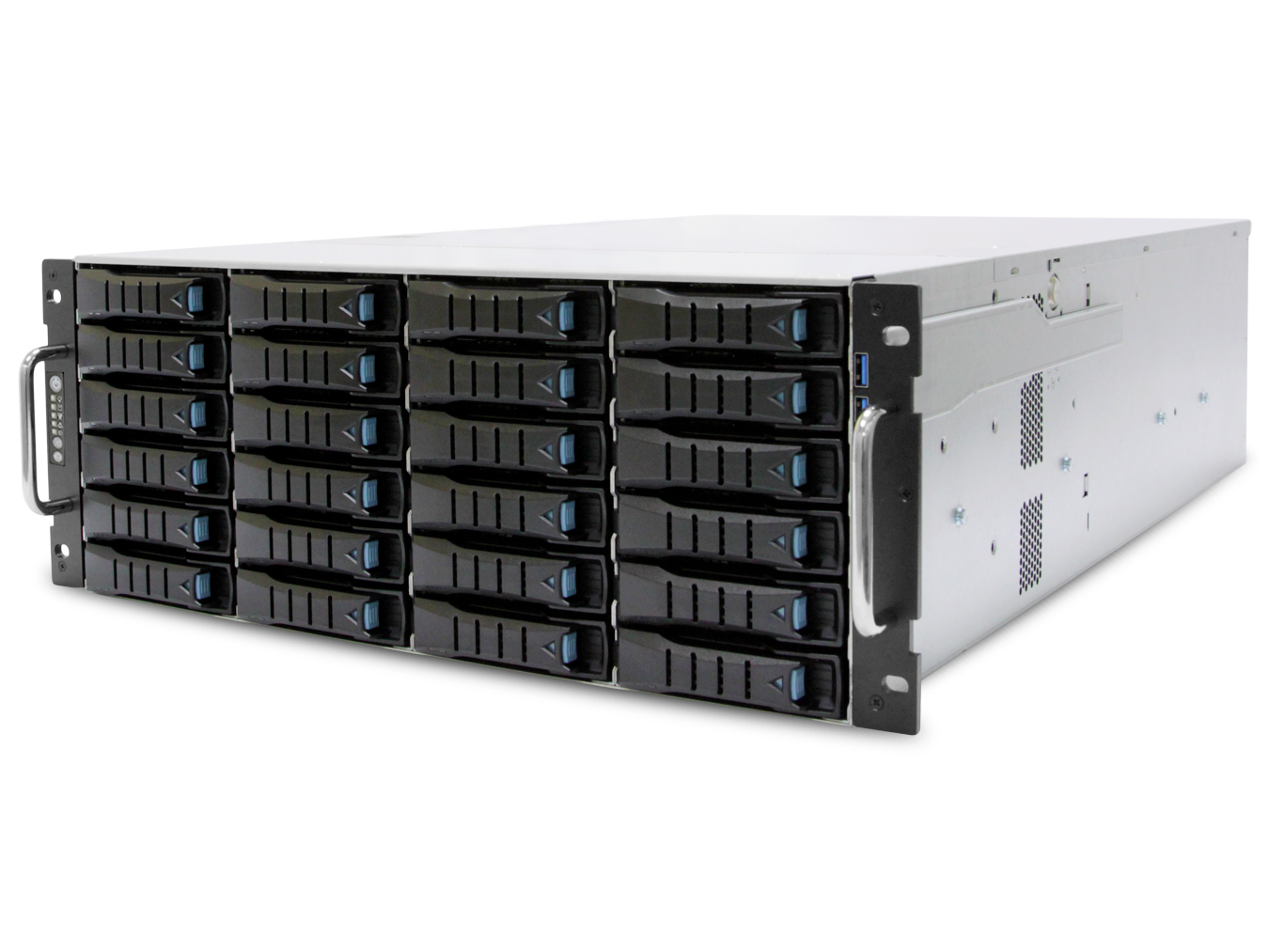

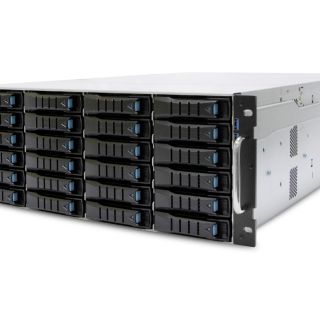

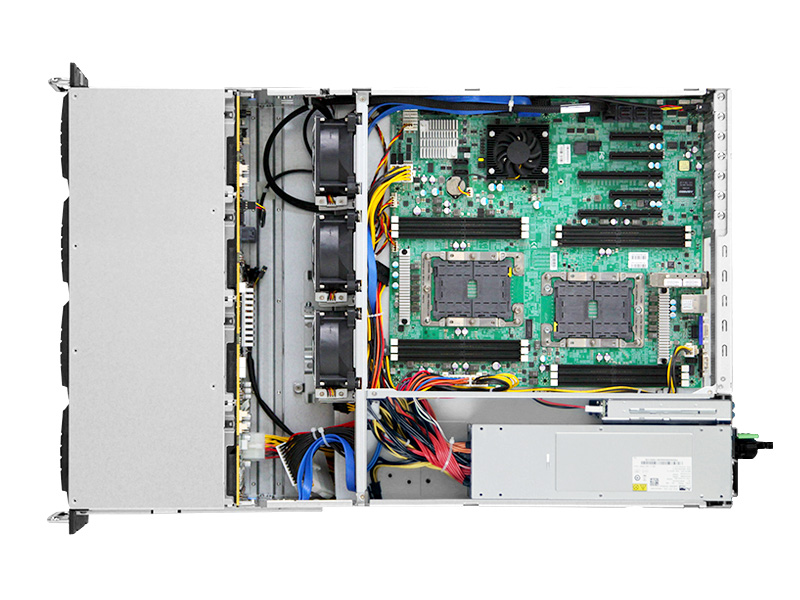

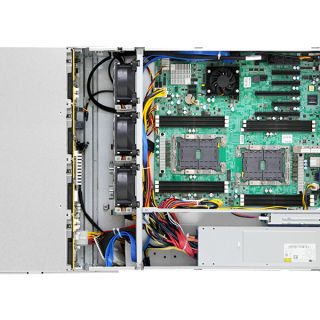

RSC-4BT is a T series 4U 36-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4BT supports quick installation and easy maintenance. This tool-less design solution also features 6 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Tool-less design supports quick installation and easy maintenance: - Tool-less 3.5” & 2.5” drive trays - Tool-less top covers - Tool-less backplane - Tool-less slide rails

FEATURE

12Gb/s SAS expander chip on backplane

FEATURE

Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling

FEATURE

3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive

FEATURE

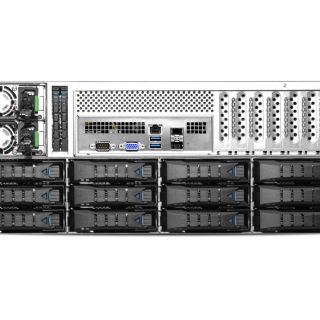

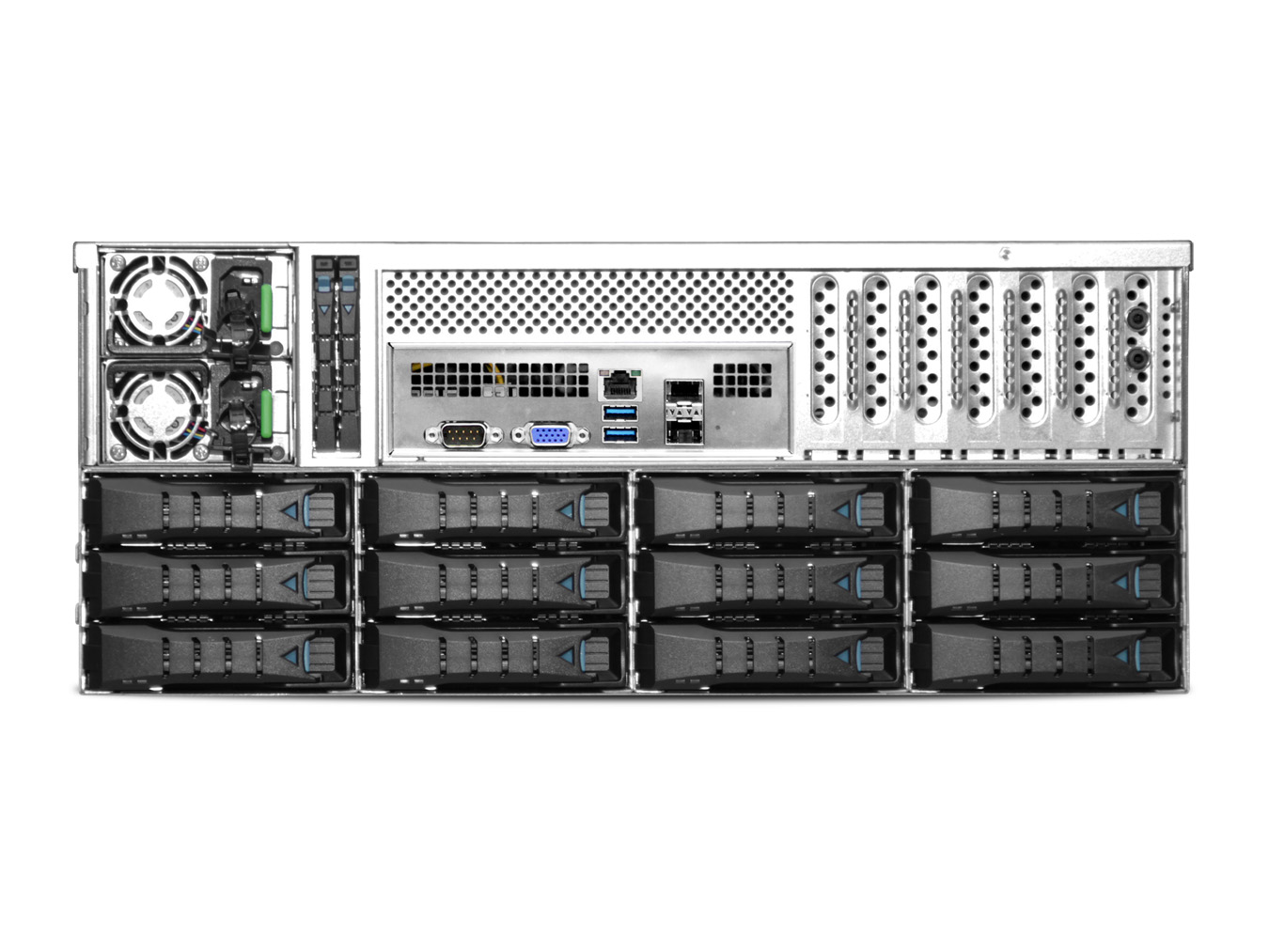

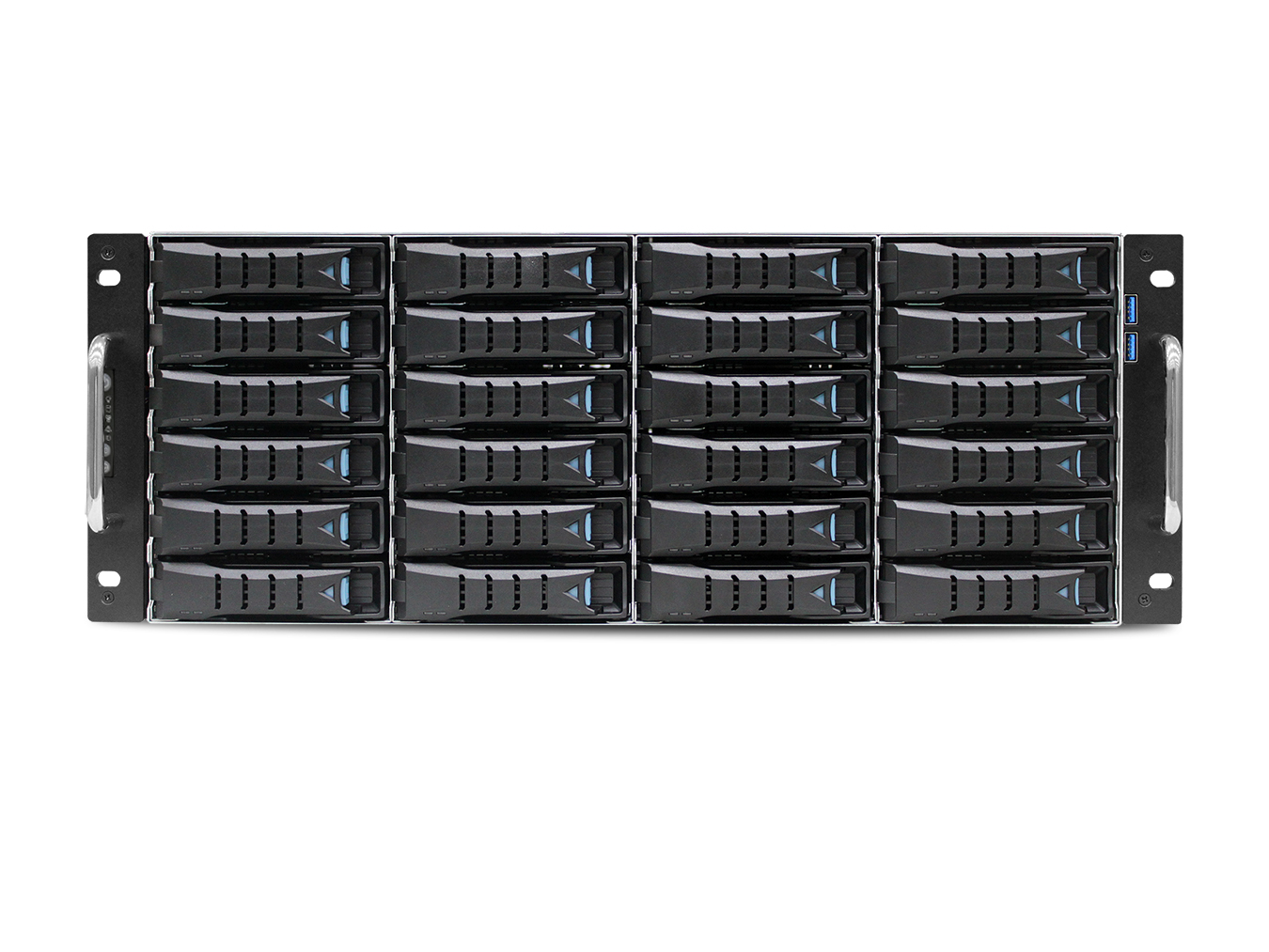

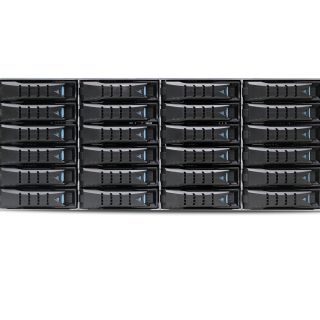

36 (24 front + 12 rear) bays to provide high-density storage in a 4U server chassis

FEATURE

Comes with a redundant PSU 80+ Platinum

FEATURE

Two front access USB3.2 Gen1 x1 ports

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

430 x 680 x 174.3

inches

16.9 x 26.8 x 6.9

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel: Black

Cooling

Middle: 6 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply

1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots

7 low profile

Front Panel

System power on/off, System reset, System ID and 2 x USB3.2 Gen1 x1 ports

LED Indicators

Power, LAN, Drive, ID and Alert

System board

12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

External

• 36 x 3.5” hot swap (24 Front + 12 Rear)

• External (Rear): 2 x 2.5” (7mm) hot swap

Internal

Backplane

• 1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors

• 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors

Storage Temparature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

40.4

lbs

Packaging Dimensions (W x D x H)

645 x 835 x 310

inches

25.3 x 32.8 x 12.2

Cubic Feet

8.3

Container Load Quantity

20'

120

40'

245

40' H

285

Mounting

Standard: 28” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XE1-4BT00-05	4U 36x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS Platinum redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, front 4U24 SAS 12G expander controller on backplane (35X series) + rear 2U12 SAS 12G expander controller on backplane (35X series)
XE1-4BT00-06	4U 36x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS Titanium redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, front 4U24 SAS 12G expander controller on backplane (35X series) + rear 2U12 SAS 12G expander controller on backplane (35X series)

FRU Information
Standard Parts List	Part Number	Description
Fan	M06-00128-16	8038 fan module
Slide rail	H5521T100002	28" Tool-less slide rail
Backplane	BBP-HD20035A	12 bay 12G 35X EOB backplane
Backplane	BBP-HD40022A	24 bay 12G 35X EOB backplane
Backplane	BBP-HD10012A	7mm 2.5" SATA two ports BP (BP-HD1H09-TY)
Power supply	PH-C00000008	1200W CRPS power supply housing
Power supply	PM-A00000118	1200W CRPS power supply module
Front bezel	M06-00201-17	Suitable for RSC-4ET & RSC-4ETS/RSC-4BT(4ET DOOR ASS,Y)
