RSC-3ET

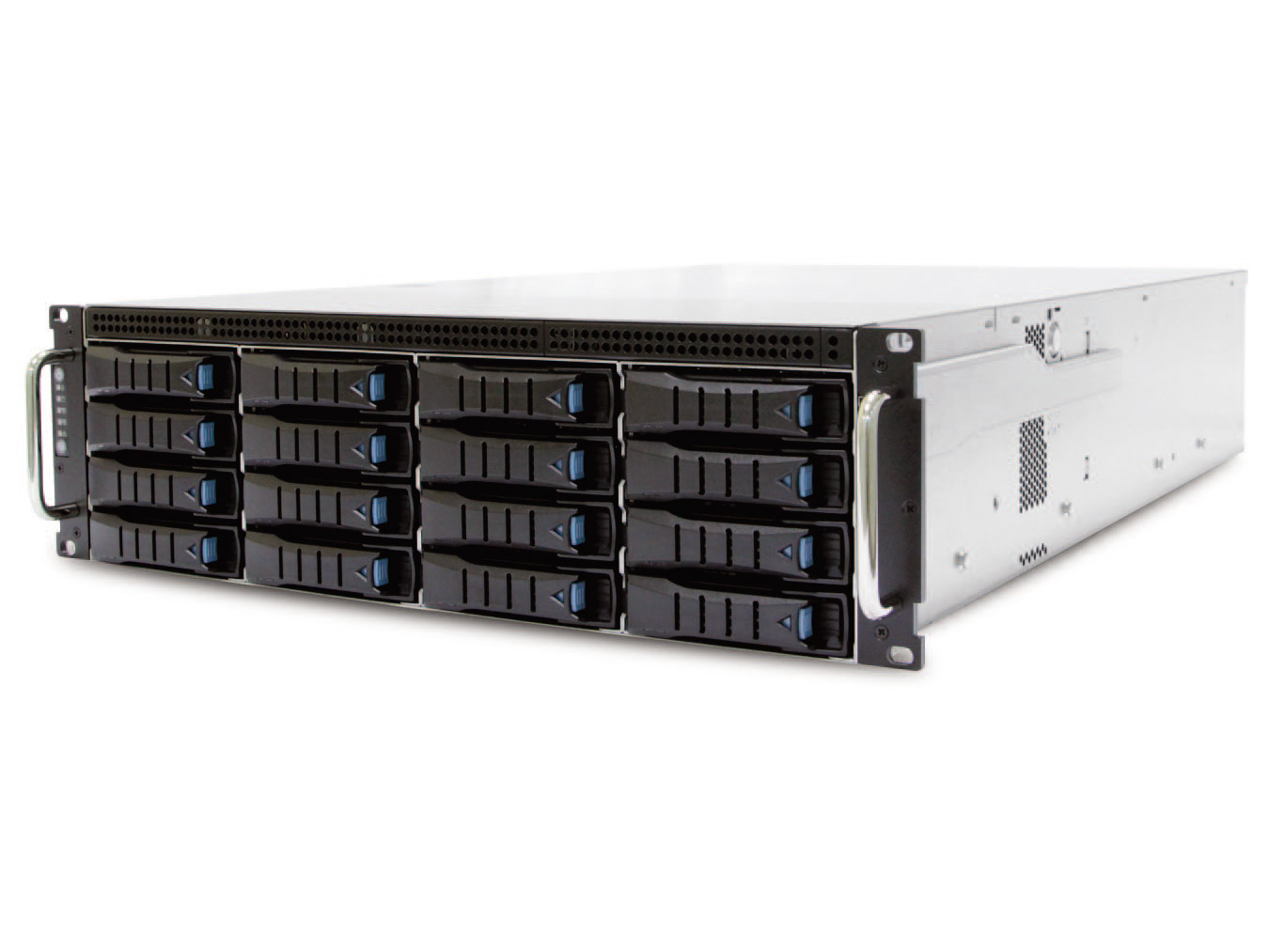

RSC-3ET is a T series 3U 16-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-3ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Tool-less design supports quick installation and easy maintenance: - Tool-less 3.5” & 2.5” drive trays - Tool-less top covers - Tool-less backplane - Tool-less slide rails

FEATURE

12Gb/s SAS expander chip on backplane

FEATURE

Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling

FEATURE

3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive

FEATURE

Comes with a redundant PSU 80+ Platinum

FEATURE

Two front access USB 3.0 ports

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

430 x 680 x 133

inches

17 x 26.8 x 5.2

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel : Black

Cooling

3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply

800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots

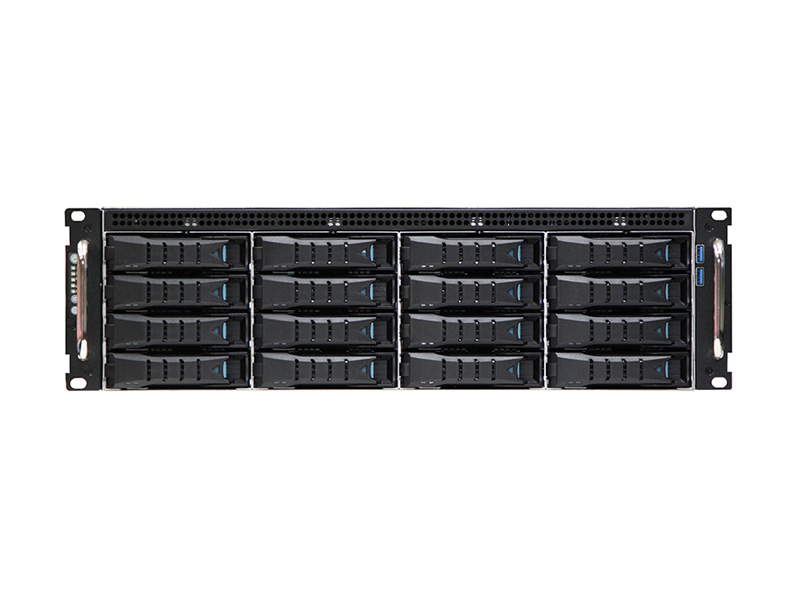

Front Panel

• System power on/off

• System reset

• 2 x USB 3.0 port

LED Indicators

• Power

• LAN

• Drive

• Alert

System board

12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

External

• 16 x 3.5” hot swap

Internal

Options -
• 6 x 2.5” internal
• 4 x 2.5” internal and 2 x 2.5” hot swap
• 4 x 2.5” internal and 1 x Slim DVD-ROM
• 2 x 2.5” internal, 2 x 2.5” hot swap and 1 x Slim DVD-ROM

Backplane

• 1 x 16-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors

Storage Temparature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

Packaging Dimensions (W x D x H)

645 x 835 x 268

inches

25.4 x 32.9 x 10.6

Cubic Feet

6.03

Container Load Quantity

20'

170

40'

355

40' H

405

Mounting

Standard: 28” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XE1-3ET00-10	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply Platinum, 4x 2.5" 7mm internal top plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G passive backplane, without individual power
XE1-3ET00-11	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply Platinum, 4x 2.5" internal 7mm top plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G expander controller on backplane (35X series)
XE1-3ET00-15	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply Platinum, 4x 2.5" internal 7mm top plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G expander controller on backplane (35X series)
XE1-3ET00-16	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply Titanium, 4x 2.5" internal 7mm top plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G expander controller on backplane (35X series)

FRU Information
Standard Parts List	Part Number	Description
Fan	M03-00151-01	8038 fan module
Slide rail	H5521T200005	28" Tool-less slide rail
Backplane	BBPJHD30002A	16 bay 12G EOB backplane
Backplane	BBP-HD30001C	16-bay 12G passive backplane, without individual power
Power supply	PH-A00000095	800W CRPS power supply housing
Power supply	PM-A00000117	800W CRPS power supply module

Door	M06-00010-42	RSC-3ET/RSC-3ETS 3U DOOR ASS,Y, with packing (12pcs in package)
Door	M06-00151-21	RSC-3ET/RSC-3ETS 3U DOOR ASS,Y, without packing
