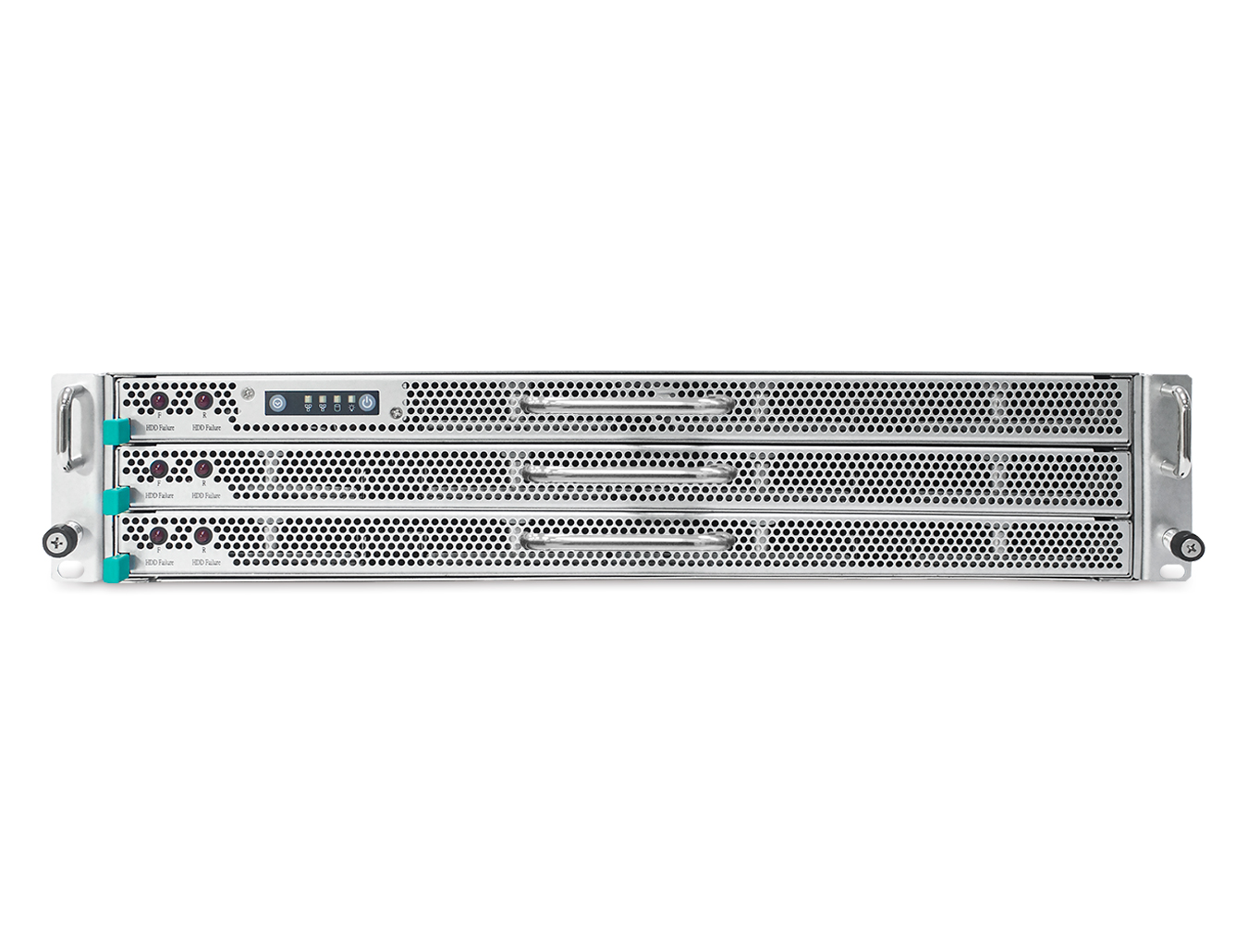

  • RSC-2MS_Front

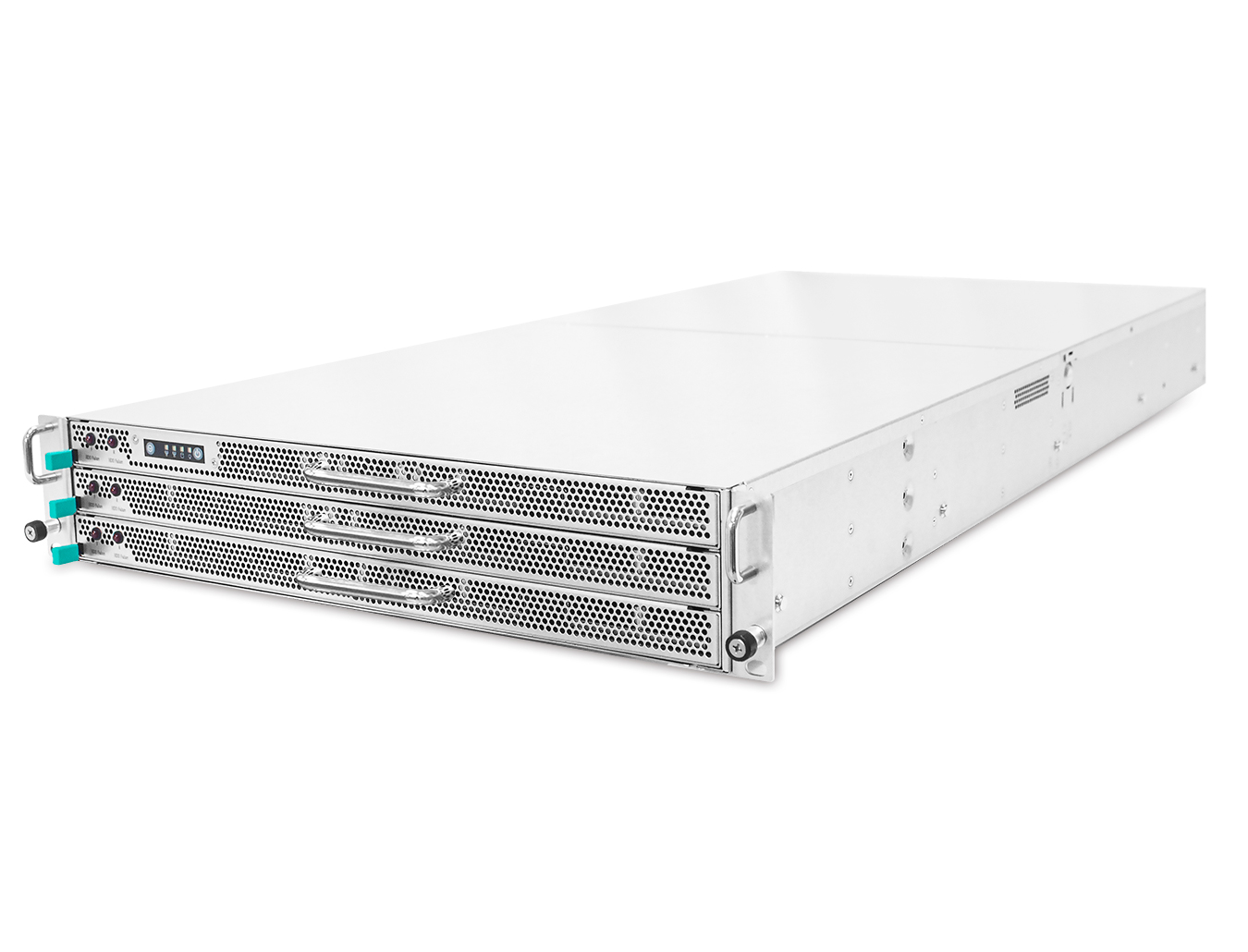

  • RSC-2MS_Front45

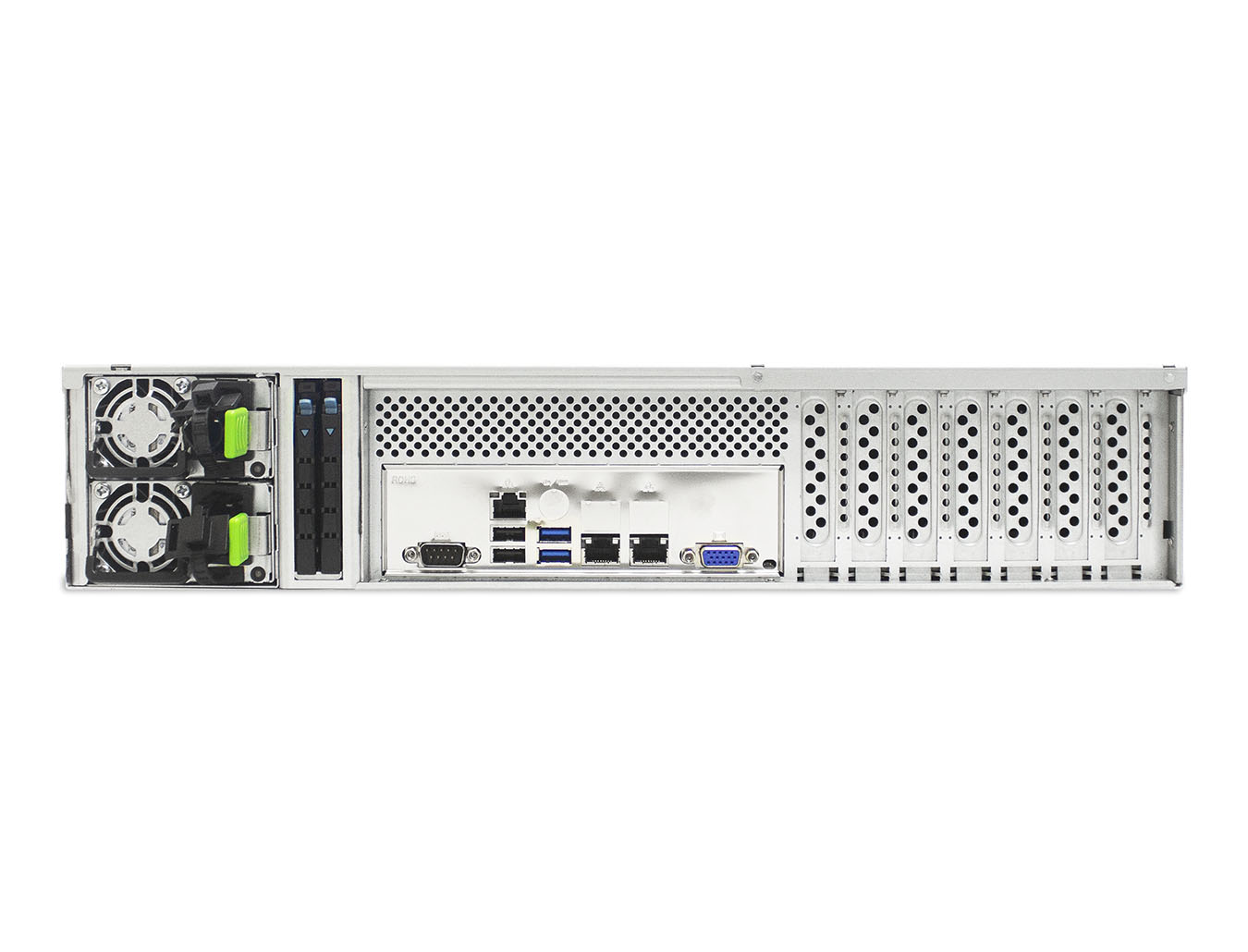

  • RSC-2MS_Rear_web

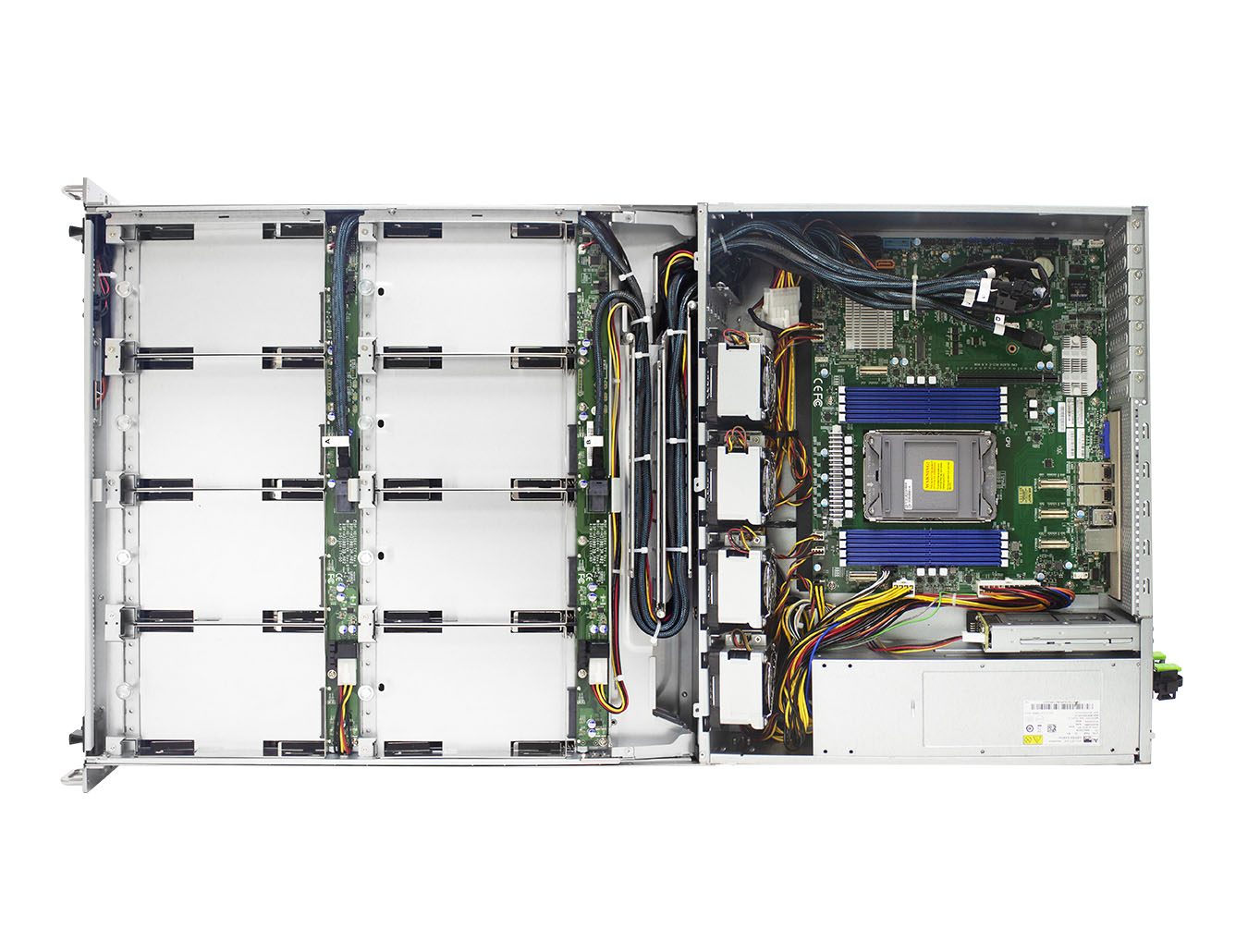

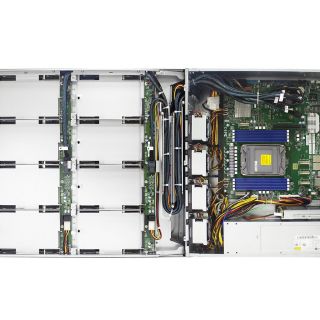

  • RSC-2MS_Top open_web
  • RSC-2MS_Front
  • RSC-2MS_Front45
  • RSC-2MS_Rear_web
  • RSC-2MS_Top open_web
RSC-2MS_Front RSC-2MS_Front45 RSC-2MS_Rear_web RSC-2MS_Top open_web

RSC-2MS

Home Products Chassis Server Chassis
As the manager or operator of a data center, it is important to maintain tight control over costs while providing the maximum uptime for your customers. For that reason, AIC has developed the RSC-2MS, a 2U 24-Bay storage server chassis. It enables data center services companies that run object storage applications a more efficient and economical solution. The tool-less design makes installation and maintenance quick and easy. Rubbers on the drive tray and silicon gaskets protect against vibrations. Its high-density, space-saving design saves you money. Its drives can be hot swapped at a moment’s notice, resulting in less downtime. Even though RSC-2MS was initially designed for data centers, the aforementioned features make it a good solution for media production as well. (Power supply is included. Motherboard is not included.)
COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE
Tool-less design, support quick installation and maintenance (HDD)
FEATURE
High-density storage server solution in 2U
FEATURE
3 drawers to load up to 24 hot swap drives
FEATURE
Tool-less 3.5” & 2.5” drive trays
FEATURE
Silicon gaskets to absorb vibration from the sides of the drives
Specification

SPECIFICATION

Main
Sub
Details

Dimensions

mm
438 x 838 x 88
inches
17.2 x 33 x 3.46

Industry Standard

EIA-RS310D

Material

SGCC

Color

No coating

Cooling

4 x 60x38mm PWM fans

Power Supply

800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots

7 low profile

Front Panel

System power switch and system reset switch

LED Indicators

• System Power

• HDD

• LAN 1

• LAN 2

System board

Up to 12” x 10.5” ATX M/B

Drive Bays

External
-2 x 2.5” SATA hot swap (7mm)

-2 x 2.5” SATA or NVMe (15mm) with 1U RPSU (option)

-4 x 2.5” SATA or NVMe (15mm) with 1U RPSU (option)
Internal
24 x 3.5” hot swap

Backplane

6 x 4-port SATA/SAS backplanes with SFF-8643 connectors

Storage Temparature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (W/PSU& Rail)

kgs
31
lbs
68.35

Packaging Dimensions (W x D x H)

mm
584 x 1015 x 254
inches
23 x 39.9 x 10

Cubic Feet

7.9

Container Load Quantity

20'
126
40'
266
40' H
304

Mounting

Standard : 33'' slide rail

* All specifications are subject to change without notice.

SKU Information Description

XE1-2MS00-02

2U chassis 24x 3.5" SAS/SATA hot-swap, 2x 2.5" 7mm SATA hot-swap, 4x 6038 fan module, 800W Platinum redundant power supply, with 6x mini SAS HD cable (for RAID adapter connection to 24x 3.5" hot-swap), with slide rail

XE1-2MS00-03

2U chassis 24x 3.5" SAS/SATA hot-swap, 2x 2.5" 15mm SATA hot-swap, 2x 2.5" 15mm PCIe Gen.4 NVMe hot-swap (customized MB I/O required), 4x 6038 fan module, 1U 600W Platinum redundant power supply, with 6x mini SAS HD cable (for RAID adapter connection to 24x 3.5" hot-swap), with slide rail
XE1-2MS00-04

2U chassis 24x 3.5" SAS/SATA hot-swap, 4x 2.5" 15mm PCIe Gen.4 NVMe hot-swap (customized MB I/O required), 4x 6038 fan module, 1U 600W Platinum redundant power supply, with 6x mini SAS HD cable (for RAID adapter connection to 24x 3.5" hot-swap), with slide rail
XE1-2MS00-05

2U chassis 24x 3.5" SAS/SATA hot-swap, 4x 2.5" 15mm SAS/SATA hot-swap (customized MB I/O required), 4x 6038 fan module, 1U 600W Platinum redundant power supply, with 6x mini SAS HD cable (for RAID adapter connection to 24x 3.5" hot-swap), with slide rail

XE1-2MS00-07

2U chassis 24x 3.5" SAS/SATA hot-swap, 2x 2.5" 7mm SATA hot-swap, 4x 6038 fan module, 800W Platinum redundant power supply, with 3x slimline 8i to 8643 Y cable (for RAID adapter connection to 24x 3.5" hot-swap), with slide rail

XE1-2MS00-08

2U chassis 24x 3.5" SAS/SATA hot-swap, 2x 2.5" 7mm SATA hot-swap, 4x 6038 fan module, 800W Titanium redundant power supply, with 3x slimline 8i to 8643 Y cable (for RAID adapter connection to 24x 3.5" hot-swap), with slide rail
FRU Information
Standard Parts List Part Number Description
Expander card M06-1579-900 12G EOB Expander card (35X) DB-EXPD28-TY 217.65mmx68.9mm with internal 4x slimline 8i connectors & 2x 8644 connectors, with IO bracket & packing
Power supply PH-C00000103 800W RPSU Housing (RSC-2MS)
Power supply PM-A00000117 800W CRPS Platinum power supply module
Power supply PR-A00000262 600W RPSU (housing & 1+1 module; A02 version for PCIe Gen.4 BP support)
Fan FC-A00000977 6038 L60mm
Backplane BBP-HD10012A 7mm 2.5" SATA two ports BP (BP-HD1H09-TY)
Backplane BBP-HD10003A 15mm 2-port SATA/SAS backplane (for external : 2x 2.5” hot-swap)
Backplane BBP-FB10007A 2.5" 15mm 2 port PCIe Gen 4 NVMe backplane (BP-FB1U04-TY) /SLIMLINEx8*1
Device adapter M06-1214-999 2.5" adapter kit for 3.5" drive tray (w/ packing 24 pcs in package)
