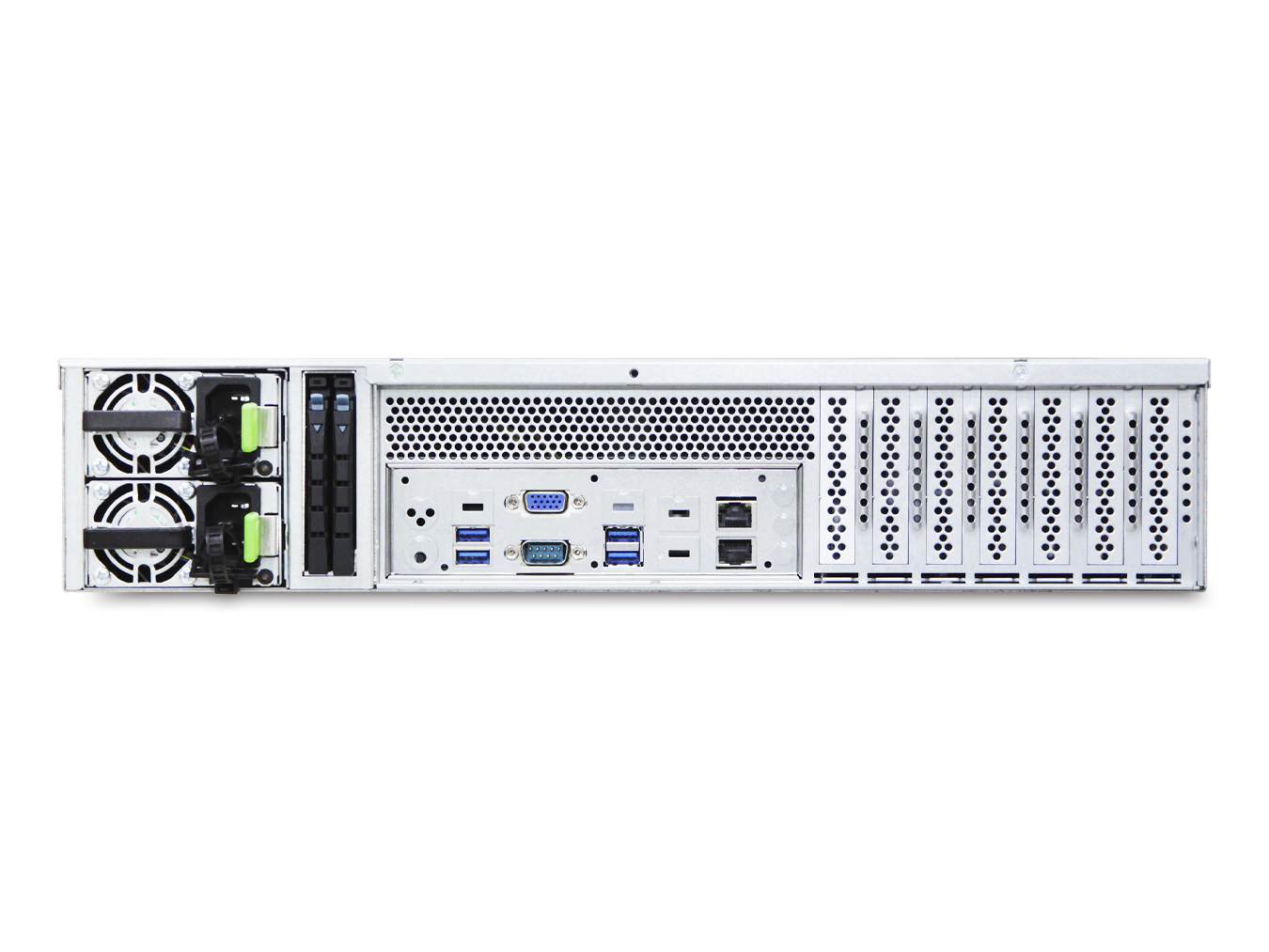

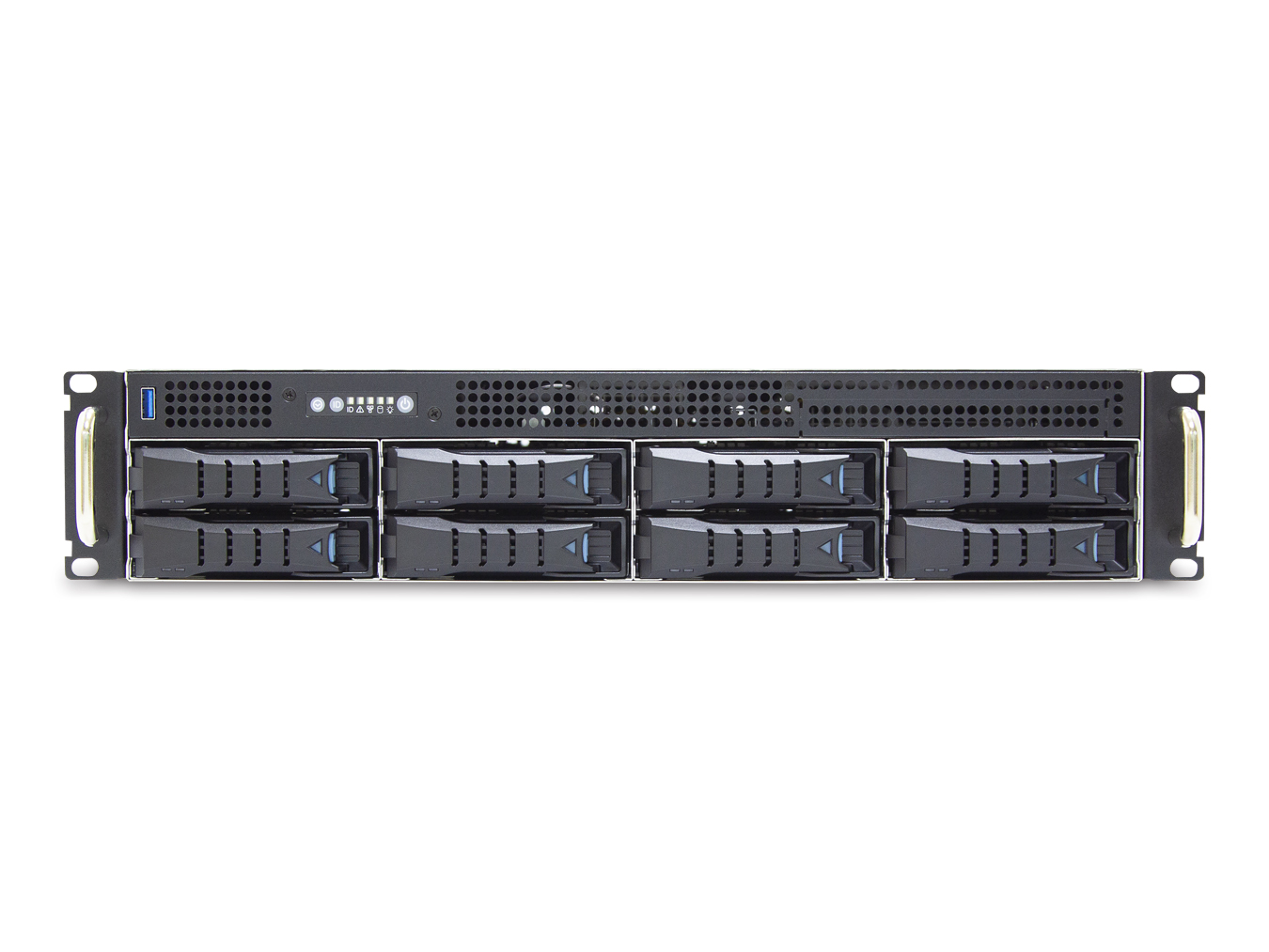

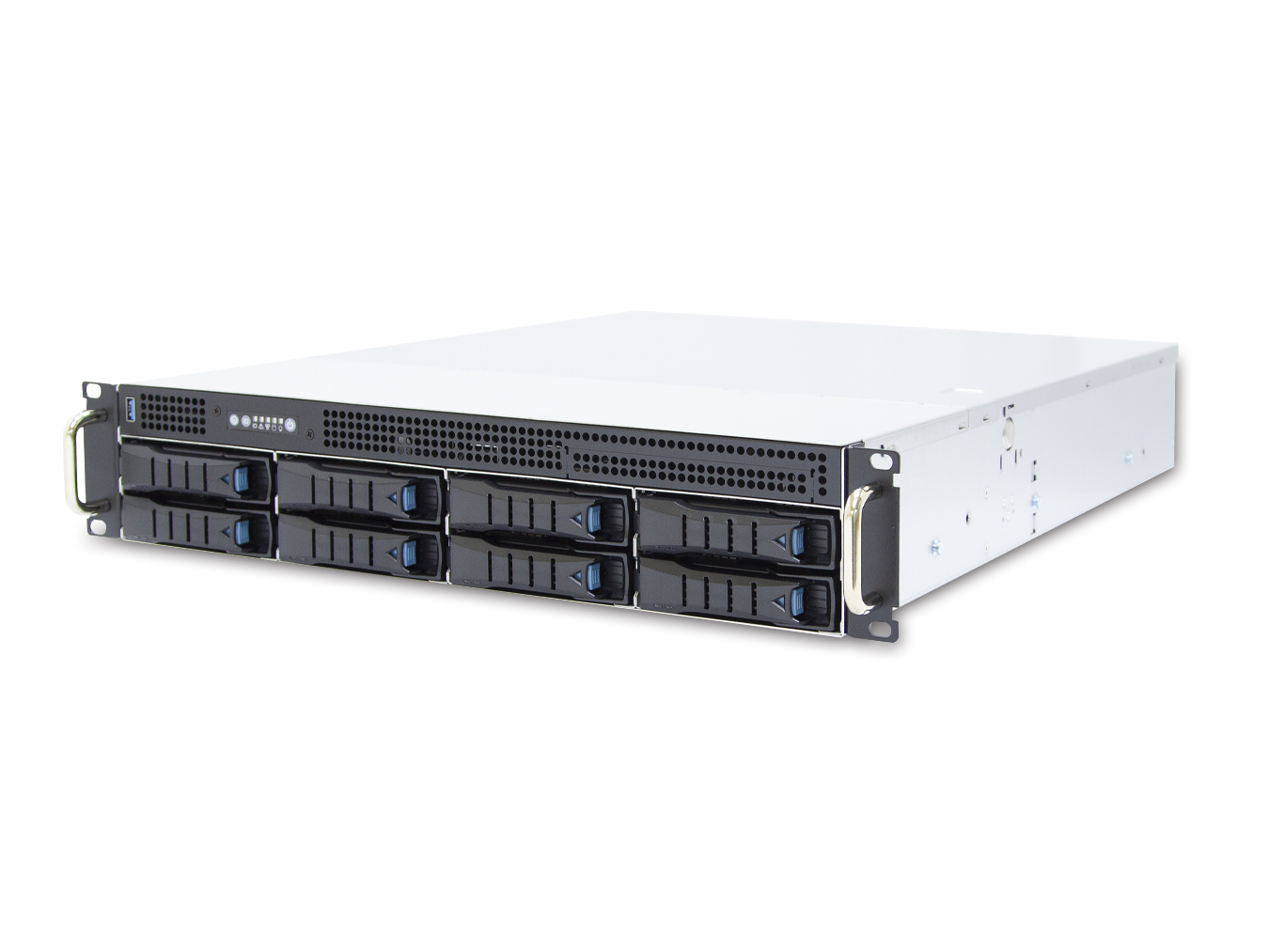

RSC-2KTS
RSC- 2KTS is a T-series 2U 8-bay SAS/SATA storage server chassis. RSC-2KTS structure form are based on quick installation, easy maintenance and cost competitive, with tool-less design 3.5” and 2.5” hard drive carriers and top cover. Fan are Easy swap design X3 with low-power consumption, SPGC pre-plated steel with minimal paint , offering a cost- effective solution ideally suited for a broad range of application. (Power supply is included. Motherboard is not included).
KEY FEATURE
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less slide rails
Supports power cycling on single drive
FEATURE
Supports power cycling on single drive

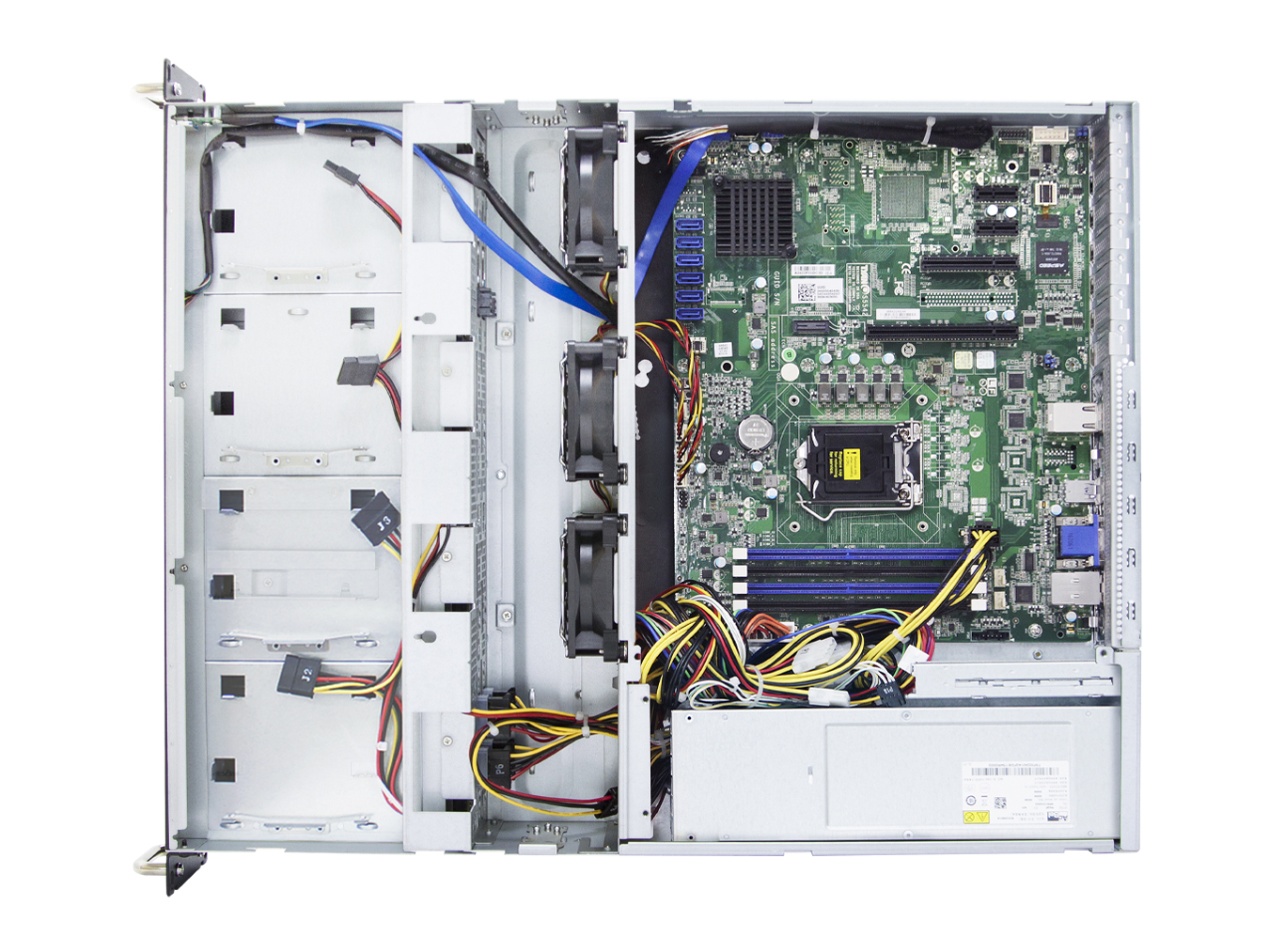

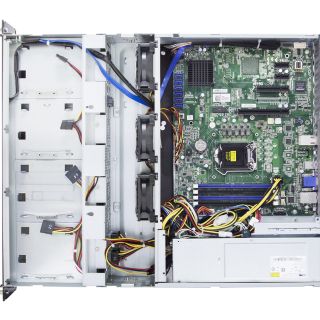

Specially designed easy swap and low power consumption fans minimize rotational vibration and provide superior cooling
FEATURE
Specially designed easy swap and low power consumption fans minimize rotational vibration and provide superior cooling
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
FEATURE
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
Comes with a redundant PSU 80+ Platinum
FEATURE
Comes with a redundant PSU 80+ Platinum
One front access USB3.2 Gen1 x1 port
FEATURE
One front access USB3.2 Gen1 x1 port
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
430 x 560 x 88
inches
17 x 22 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel: Black
Cooling
3 x 80x25mm PWM easy swap fans
Power Supply
2U 550W single
Options:
• 2U 550W 1+1 redundant power supply Platinum
• 2U 800W 1+1 redundant power supply Platinum
Options:
• 2U 550W 1+1 redundant power supply Platinum
• 2U 800W 1+1 redundant power supply Platinum
Expansion Slots
7 low profile
Front Panel
System power on/off, system reset, 1 x USB3.2 Gen1 x1 port and UID S/W
LED Indicators
Power, LAN, Drive, Alert and UID
System board
Up to 12” x 9.6” ATX / SSI EEB 3.6 compliant MB
Drive Bays
External
• 8 x 3.5” hot swap
• Optional (for XE1-2KTS0-02 / XE1-2KTS0-03): 2 x 2.5" (7mm)hot swap
• Optional (for XE1-2KTS0-02 / XE1-2KTS0-03): 2 x 2.5" (7mm)hot swap
Internal
• 2 x 2.5" (15mm)
• Optional (for all SKUs): 2 x 2.5” (15mm) / 1 x slim DVD-Rom
• Optional (for all SKUs): 2 x 2.5” (15mm) / 1 x slim DVD-Rom
Backplane
2 x 4-port SATA/SAS backplanes with SFF-8643 connector
Storage Temparature
0ºC(32ºF) ~ 50ºC(122ºF)
Humidity
5%~95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
23.5
lbs
51.8
Packaging Dimensions (W x D x H)
mm
645 x 835 x 224
inches
25.4 x 32.9 x 8.8
Cubic Feet
5.38
Container Load Quantity
20'
200
40'
420
40' H
450
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
|
XE1-2KTS0-01 |
2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W 2U Bronze single power supply, rail, 2x 4-port 12Gb SATA/SAS backplane |
|
XE1-2KTS0-02 |
2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS Platinum redundant power supply, 2x 7mm 2.5" hot-swap OS, rail, 2x 4-port 12Gb SATA/SAS backplane |
|
XE1-2KTS0-03 |
2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Platinum redundant power supply, 2x 7mm 2.5" hot-swap OS, rail, 2x 4-port 12Gb SATA/SAS backplane |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| M06-00926-10 | 2x 2.5" internal HDD kit | |
| M06-00926-12 | Slim CD-R bracket kit with cable | |
| Power supply | M04-00926-01 | 2.5" hot-swap kit for CRPS power supply use only |
| Fan | FC-000000335 | 8025 fan module with rubber |
| Power supply | PS-B00000120 | 550W Single Power |
| Power supply | PM-C00000083 | 550W CRPS power supply module |
| Power supply | PM-A00000117 | 800W CRPS power supply module |
| Front bezel | M06-00128-33 | Suitable for RSC-2AT & RSC-2ET/RSC-2ETS(2ET DOOR ASS,Y) |
| Backplane | BBP-HD10012A | 7mm 2.5" SATA two ports BP (BP-HD1H09-TY) |
