RSC-2KT3

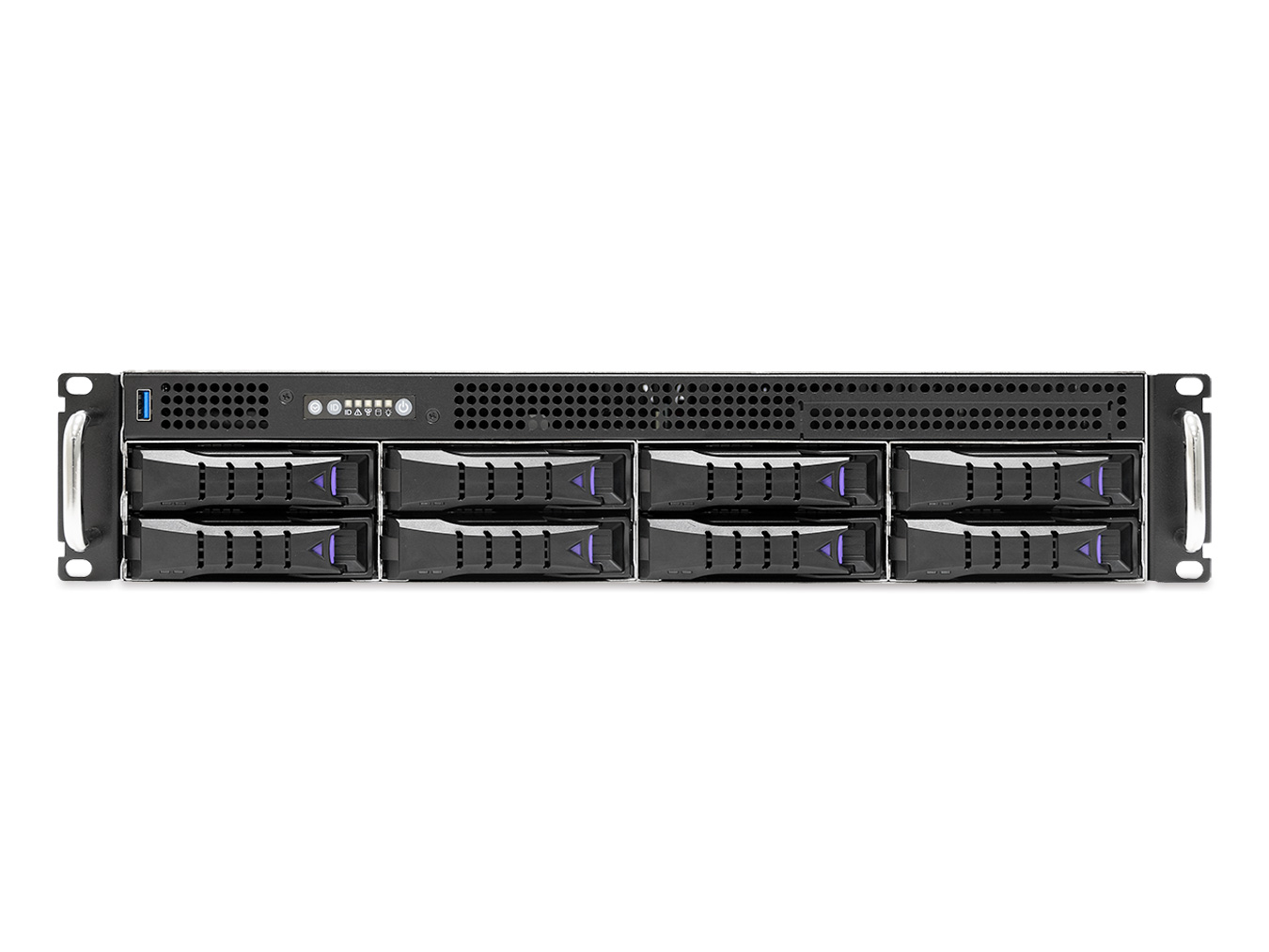

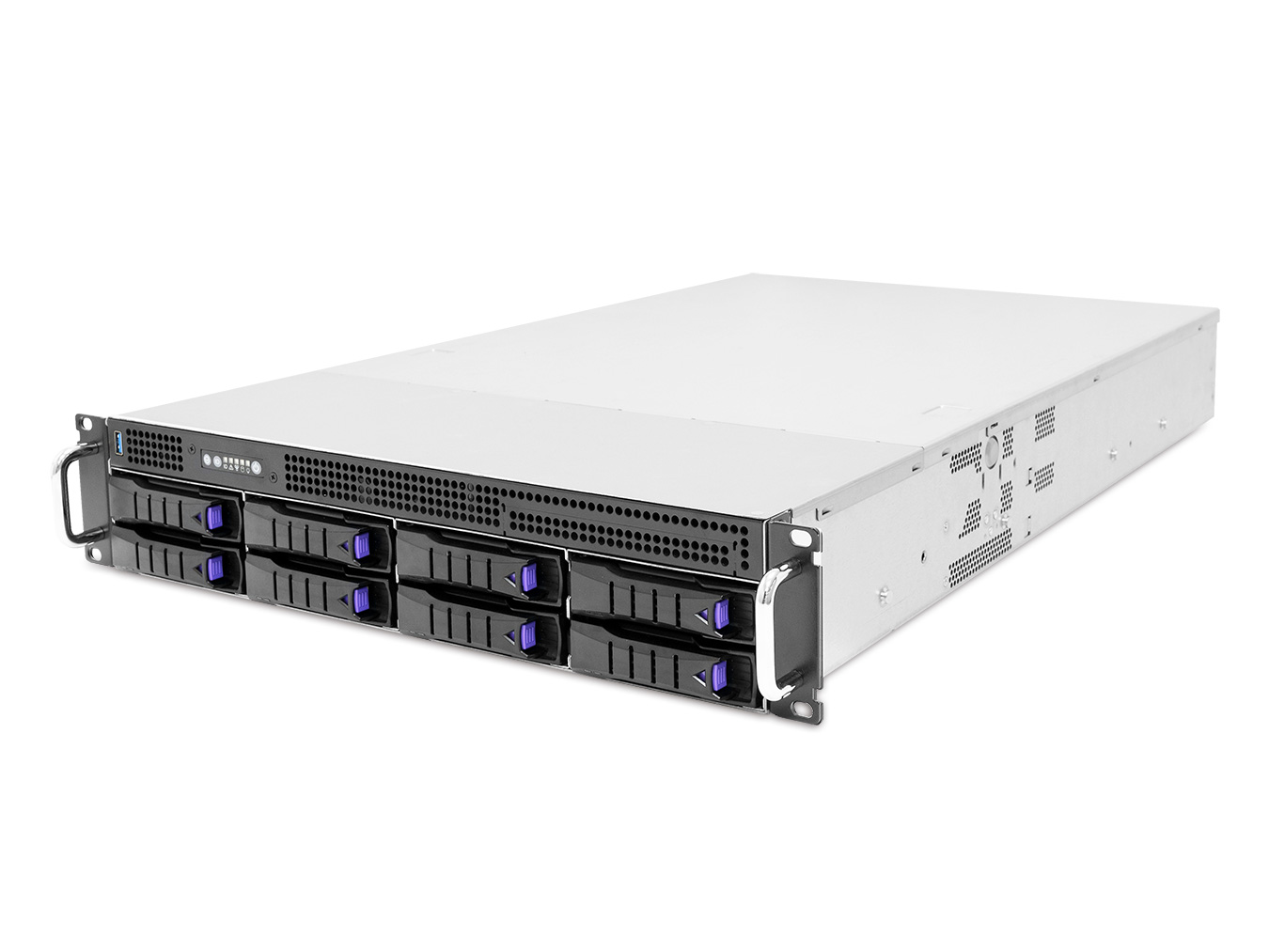

RSC- 2KT3 is a T-series 2U 8-bay SAS/SATA or 8 bay NVMe storage server chassis. RSC-2KT3 structure form are based on quick installation, easy maintenance and cost competitive, with tool-less design 3.5” and 2.5” hard drive carriers and top cover. Fan are Easy swap design X3 with low-power consumption, SPGC pre-plated steel with minimal paint, offering a cost- effective solution ideally suited for a broad range of application. (Power supply is included. Motherboard is not included).

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Tool-less design supports quick installation and easy maintenance: - Tool-less 3.5” & 2.5” drive trays - Tool-less top covers - Tool-less slide rails

FEATURE

Flexible backplane support

FEATURE

Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling

FEATURE

3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive

FEATURE

Comes with a redundant PSU 80+ Platinum

FEATURE

One front access USB 3.0 port

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

430 x 680 x 88

inches

17 x 26.8 x 3.5

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SGCC cold-rolled steel

Color

Front Panel: Black

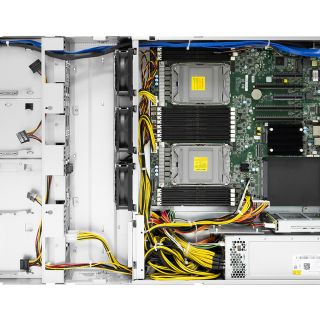

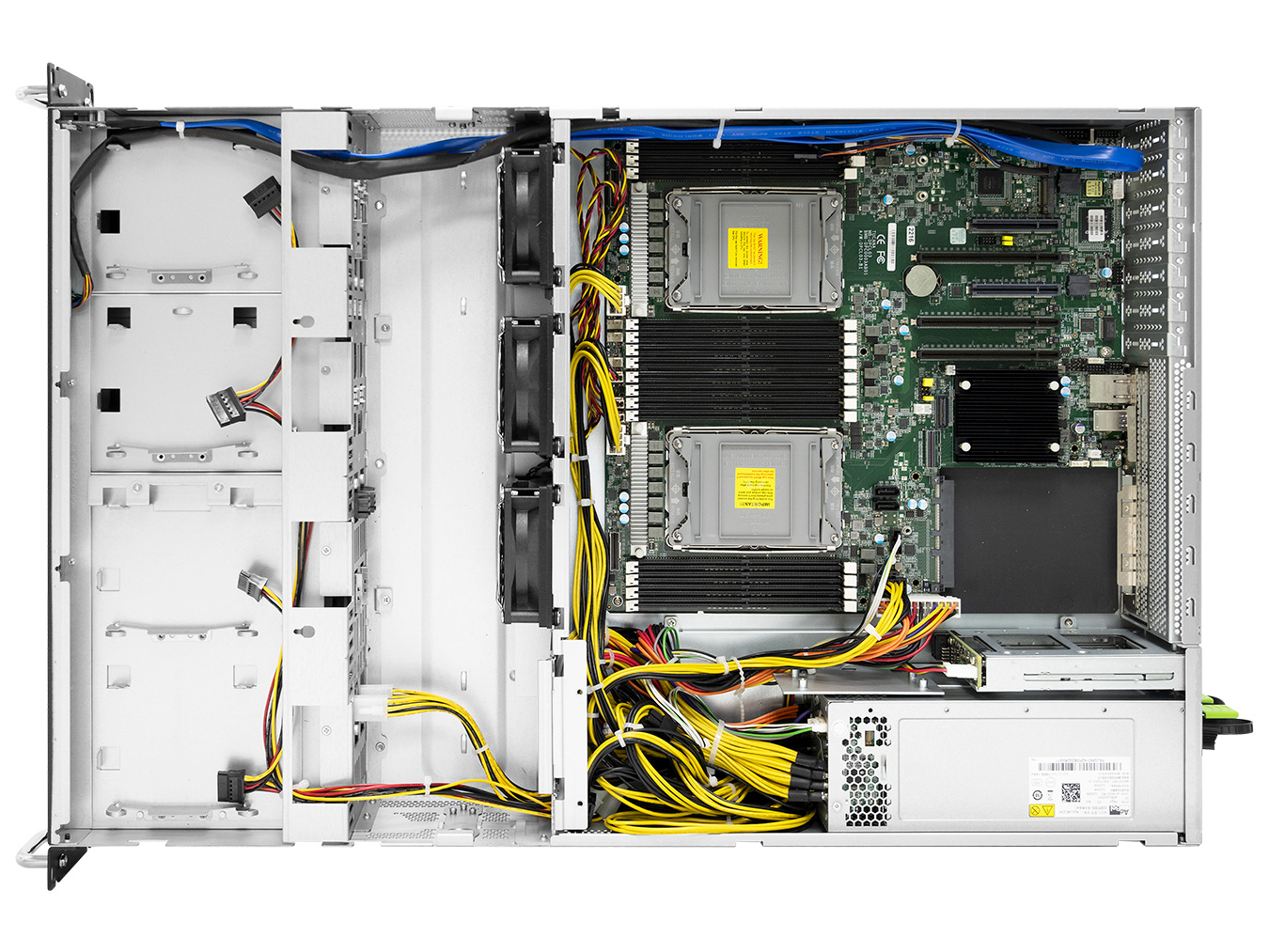

Cooling

• 3 x 80x25mm easy swap fans

• 3 x 80x38mm easy swap fans (option)

Power Supply

550W/800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots

7 low profile

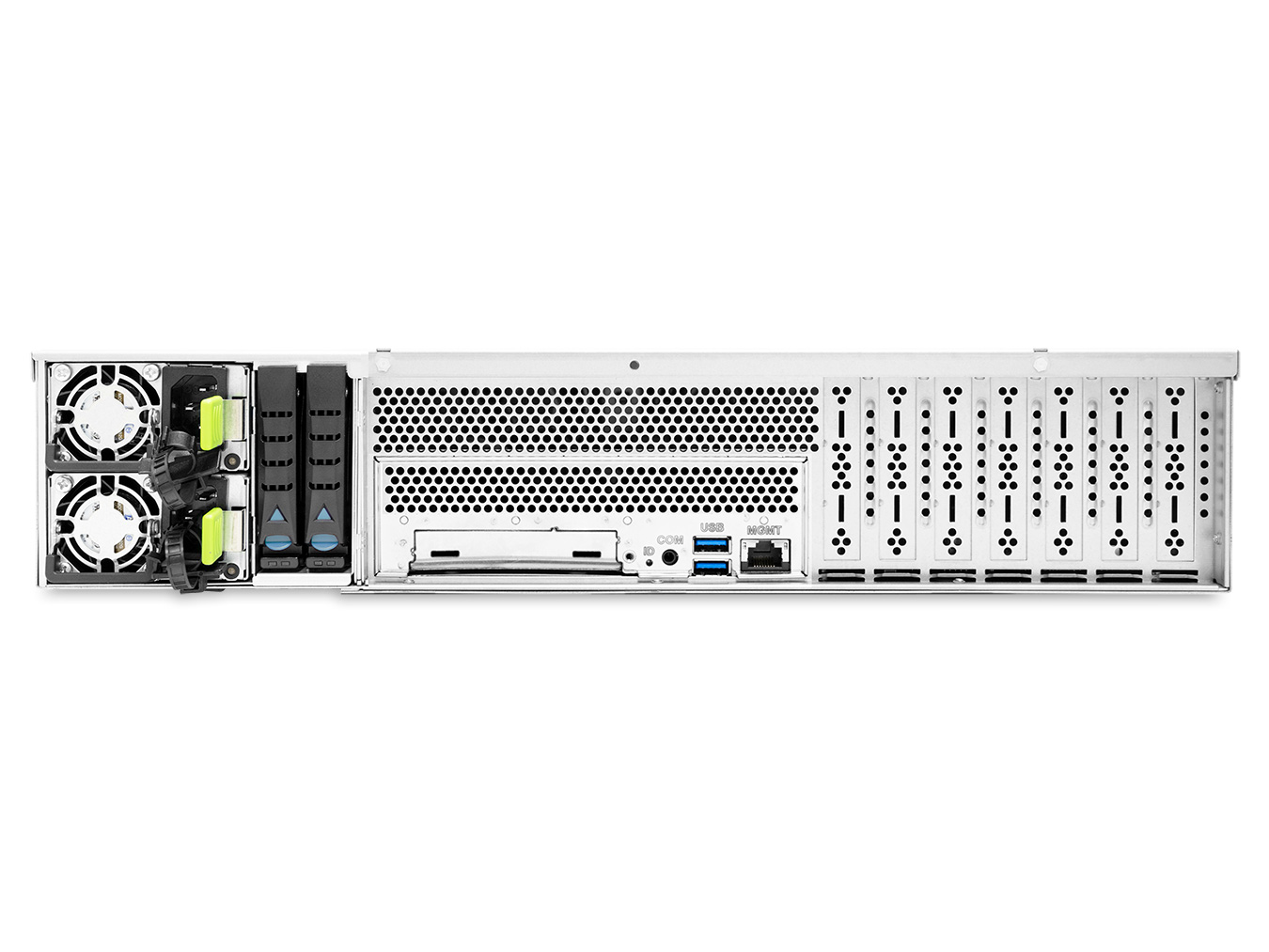

Front Panel

System power on/off, system reset and 1 x USB 3.0 port

LED Indicators

Power, LAN, Drive and Alert

System board

12”(W) x 13”(D) E-ATX MB

Drive Bays

External

• 8 x 3.5” hot swap

• 2 x 2.5" hot swap (15mm, optional)

Internal

• 2 x 2.5" or 4 x 2.5" (optional)

Backplane

• 4-port SAS3/SATA backplane

• 4-port SAS3/SATA/PCIe Gen4 NVMe tri-mode backplane

Storage Temparature

0ºC(32ºF) ~ 50ºC(122ºF)

Humidity

5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

20.5

lbs

Packaging Dimensions (W x D x H)

645 x 835 x 234

inches

25.4 x 32.9 x 9.2

Cubic Feet

Container Load Quantity

20'

40'

40' H

Mounting

28” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XE1-2KT01-01	2U 8x 3.5"/2.5" SAS/SATA hot-swap Chassis, top plate 4x2.5" 15mm internal, 3x 8025 fan, 550W redundant power supply Platinum, Low profile rear panel, 28" slide rail, without bezel
XE1-2KT01-02	2U 8x 3.5"/2.5" SAS/SATA hot-swap Chassis, top plate 4x2.5" 15mm internal, 2x 2.5" 15mm SATA hot-swap, 3x 8025 fan, 800W redundant power supply Platinum, Low profile rear panel, 28" slide rail, without bezel
XE1-2KT01-03	2U 4x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP) Chassis, top plate 4x2.5" 15mm internal, 2x 2.5" 15mm SATA hot-swap, 3x 8025 fan, 800W redundant power supply Platinum, Low profile rear panel, 28" slide rail, without bezel
XE1-2KT01-04	2U 8x 3.5"/2.5" SAS/SATA/NVMe hot-swap (Passive BP) Chassis, top plate 4x2.5" 15mm internal, 2x 2.5" 15mm SATA hot-swap, 3x 8038 fan, 800W redundant power supply Platinum, Low profile rear panel, 28" slide rail, without bezel
XE1-2KT01-05	2U 4x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP) Chassis, top plate 4x2.5" 15mm internal, 2x 2.5" 15mm SATA hot-swap, 3x 8025 fan, Acbel 800W redundant power supply Titanium, Low profile rear panel, 28" slide rail, without bezel
XE1-2KT01-06	2U 8x 3.5"/2.5" SAS/SATA/NVMe hot-swap (Passive BP) Chassis, top plate 4x2.5" 15mm internal, 2x 2.5" 15mm SATA hot-swap, 3x 8038 fan, Acbel 800W redundant power supply Titanium, Low profile rear panel, 28" slide rail, without bezel
XE1-2KT01-09	2U 4x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP) Chassis, top plate 4x2.5" 15mm internal, 2x 2.5" 7mm SATA hot-swap, 3x 8038 fan, Acbel 800W redundant power supply Titanium, Low profile rear panel, 28" slide rail, without bezel
XE1-2KT01-10	2U 8x 3.5"/2.5" SAS/SATA/NVMe hot-swap (Passive BP) Chassis, top plate 4x2.5" 15mm internal, 2x 2.5" 7mm SATA hot-swap, 3x 8038 fan, Acbel 800W redundant power supply Titanium, Low profile rear panel, 28" slide rail, without bezel

FRU Information
Standard Parts List	Part Number	Description
Backplane	BBP-HD10003A	15mm 2-port SATA/SAS backplane (for external: 2x 2.5" hot-swap/BP-HD1H04-TY)
Backplane	BBP-FB10016C	4-port PCIe Gen 4 NVMe/SAS/SATA tri-mode backplane (BP-FB1U11-TY)
Backplane	BBP-HD10035A	4-port 12GB SAS/SATA passive backplane (BP-HD1S07-TY)
Optional Parts List	Part Number	Description
CD-R BKT KIT	M00-00151-06	Top plate for 2x2.5" 15mm internal + CD-ROM kit w/ packing (10 pcs in packing)
Power supply	PM-C00000083	550W CRPS Platinum power module
Power supply	PM-A00000117	800W CRPS Platinum power module
Power supply	PM-A00000132	800W CRPS Titanium power module
Fan	FC-000000335	8025 fan L450MM (for easy swap FAN location)
Fan	FC-000000319	8038 fan L450MM (for easy swap FAN location)
Fan	M03-1534-004	8038 fan L450MM with rubber screw & packing (20 pcs in packing) (for easy swap FAN location)
Cable	G3-000000122	SFF-8643 to SFF-8643 mini SAS HD cable L800MM for RAID/HBA card
Cable	G3-A00001169	Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 4i*2 (SFF-8612) SAS cable L850MM for RAID/HBA card
Cable	G3-A00001114	Slimline SAS 8i (SFF-8654) PCIe Gen.4 to SFF-8643*2 mini SAS HD cable L750MM for RAID/HBA card
Cable	G3-A00000721	Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 8i (SFF-8654) cable L850MM for RAID/HBA card
Cable	G3-A00001307	MCIO 8i (SFF-TA-1016) PCIe Gen.5 to mini SAS HD (SFF-8643)*2 cable L850MM
Cable	G3-A00001319	MCIO 8i (SFF-TA-1016) PCIe Gen.5 to Slimline SAS 8i (SFF-8654) cable L900MM
OS kit	M06-1534-019	2-port 7mm SATA OS kit with backplane (BP-HD1H09-TY), HDD cage, tray, screw and packing (20 pcs in package)
