RSC-2KT

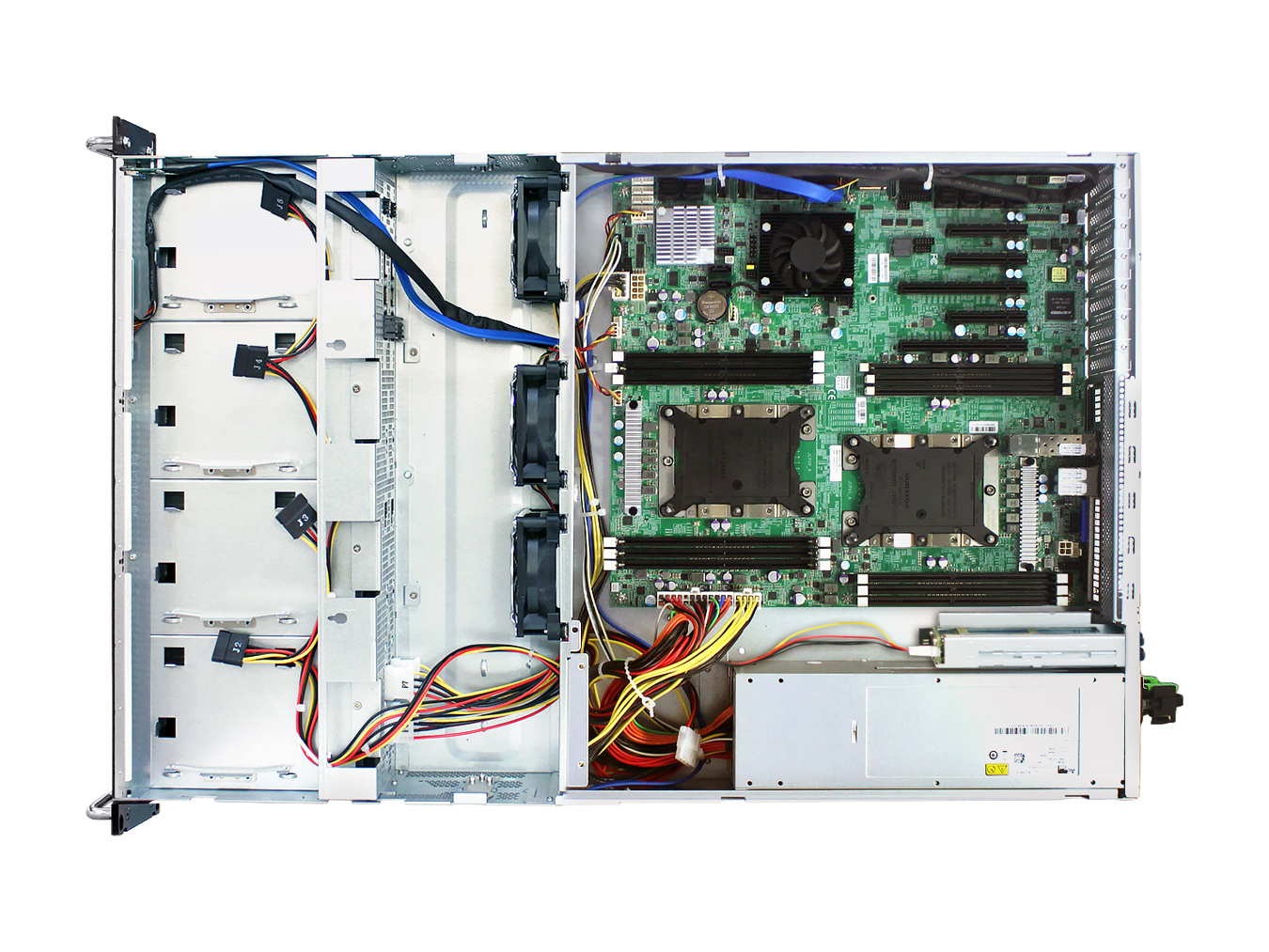

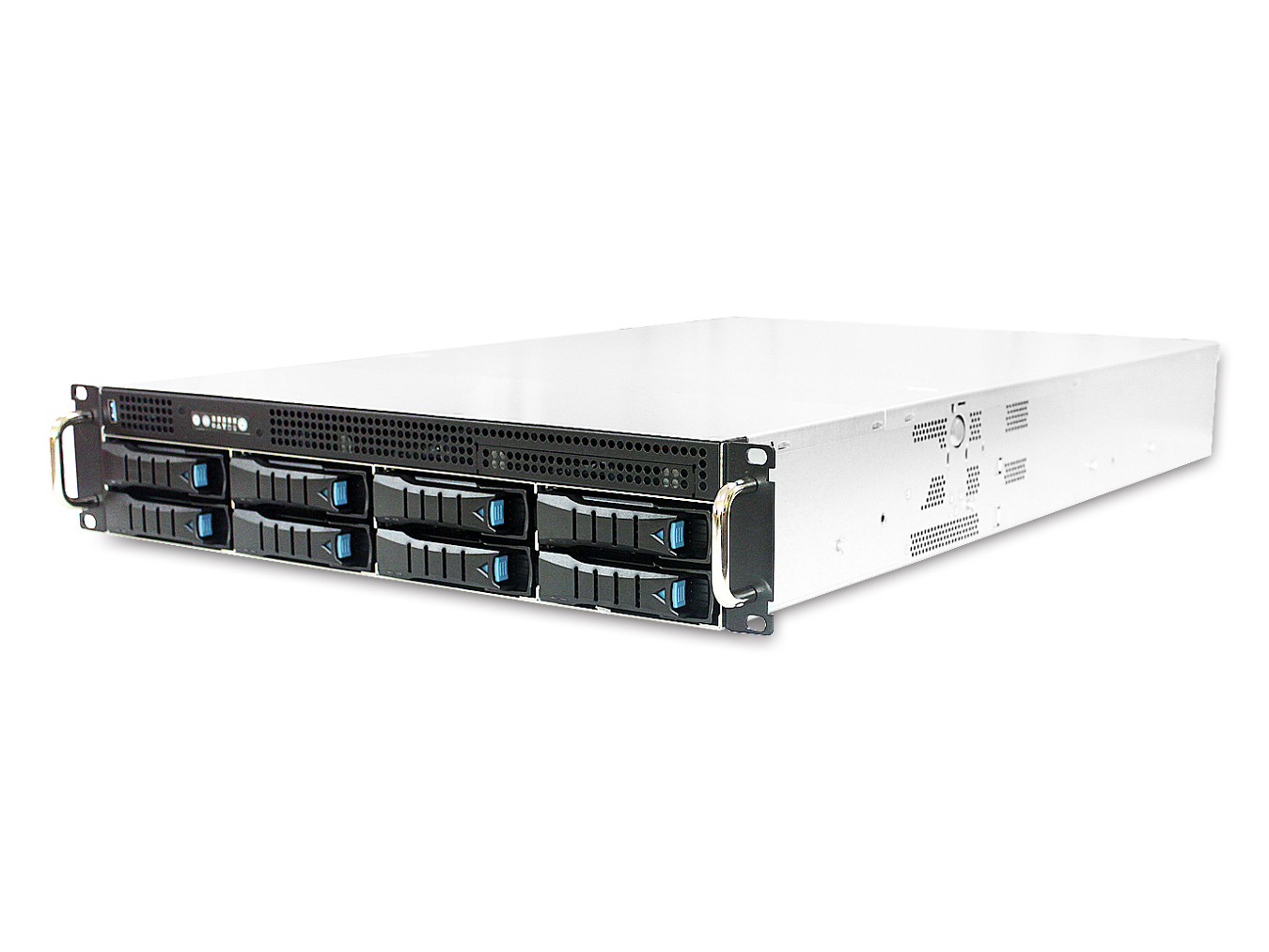

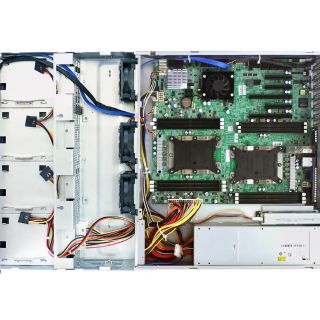

RSC- 2KT is a T-series 2U 8-bay SAS/SATA storage server chassis. RSC-2KT structure form are based on quick installation, easy maintenance and cost competitive, with tool-less design 3.5” and 2.5” hard drive carriers and top cover. Fan are Easy swap design X3 with low-power consumption, SPGC pre-plated steel with minimal paint , offering a cost- effective solution ideally suited for a broad range of application. (Power supply is included. Motherboard is not included).

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

High-density design for space saving

FEATURE

Hot swap design for maintenance and management

FEATURE

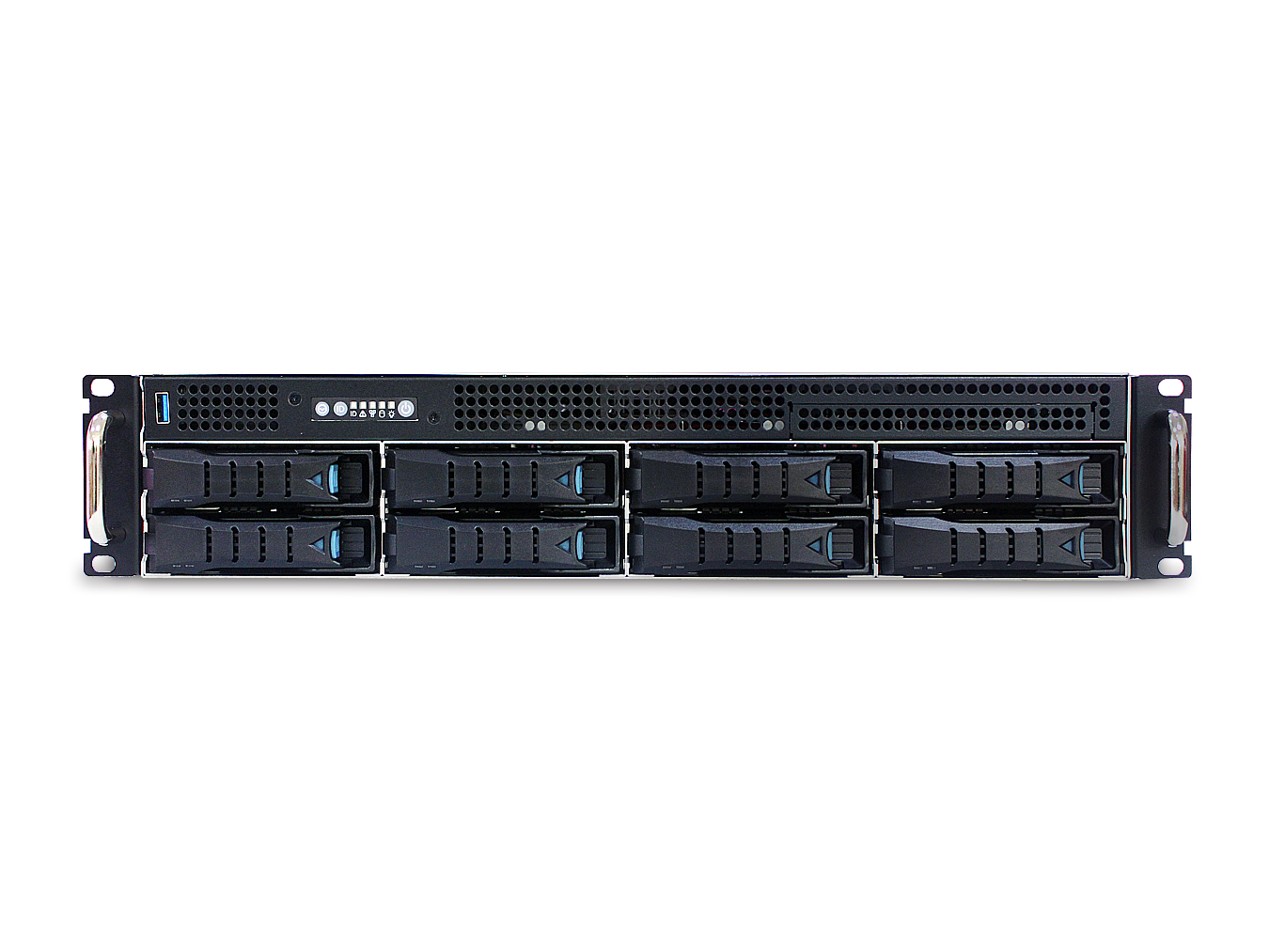

Supports 8 x 12Gb/s 3.5” hot swap drive bays

FEATURE

Supports 4 x 12Gb/s 2.5” OS drive or 2 x 12Gb/s 2.5” OS drive with 1 x slim CD-Rom option

FEATURE

Tool-less drive trays for 3.5’’ & 2.5’’ HDD

FEATURE

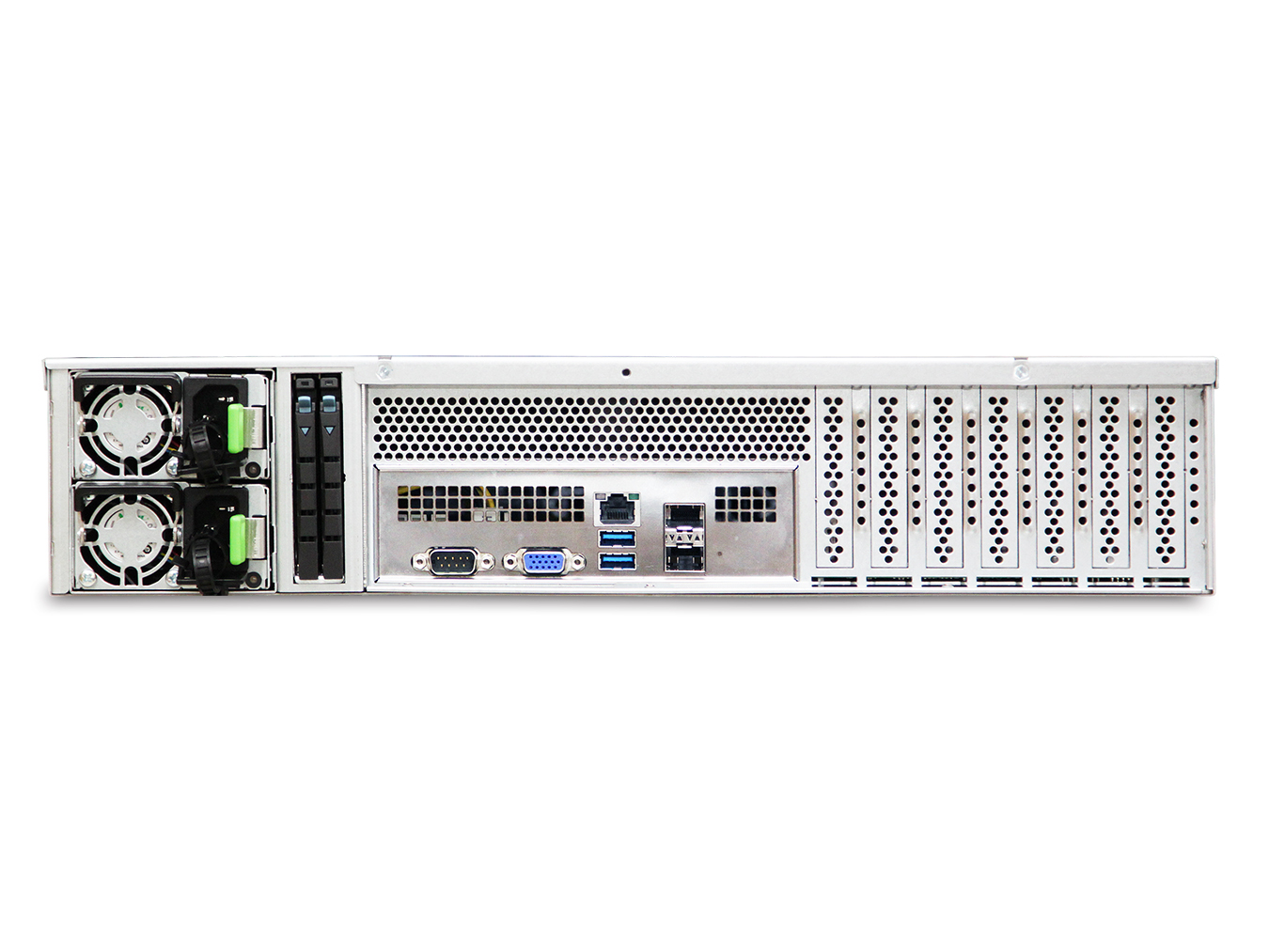

Supports single and redundant power supplies

FEATURE

7 x low profile slots

FEATURE

Front access USB 3.0 port

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

430 x 680 x 88

inches

17 x 26.8 x 3.5

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel: Black

Cooling

3 x 80x25mm PWM easy swap fans

Power Supply

550W 1+1 redundant power supply PMBus 1.2 80+ Platinum

Options:

• 2U 550W single

• 2U 800W 1+1 redundant PSU

Expansion Slots

7 low profile

Front Panel

System power on/off, System reset and 1 x USB 3.0 port

LED Indicators

Power, LAN, Drive and Alert

System board

12”(W) x 13”(D) E-ATX MB

Drive Bays

External

8 x 3.5” hot swap

Internal

Options:

• 2 x 2.5" (7mm) hot swap

• 4 x 2.5” internal

• 2 x 2.5” internal and 1 x slim DVD-Rom

Backplane

2 x 4-port 12Gb SATA/SAS backplanes with SFF-8643 connector

Storage Temparature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

20.5

lbs

Packaging Dimensions (W x D x H)

645 x 835 x 224

inches

25.3 x 32.8 x 8.8

Cubic Feet

3.98

Container Load Quantity

20'

180

40'

360

40' H

400

Mounting

Standard: 28” tool-less slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XE1-2KT00-03	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS Platinum redundant power supply, top plate HDDx2 + CD-ROM plate, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-04	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS Platinum redundant power supply, top plate HDDx2 + 2x 2.5" OS plate, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-06	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS Platinum redundant power supply, top plate HDDx2 + 2x 2.5" OS plate, 2x 7mm 2.5" hot-swap OS, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-07	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Platinum redundant power supply, top plate HDDx2 + CD-ROM plate, 2x 7mm 2.5" hot-swap OS, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-08	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS Platinum redundant power supply, top plate 2x2.5" 15mm internal only, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-09	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W Platinum single power supply (1U), top plate HDDx2 only, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-10	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Platinum redundant power supply, top plate HDDx2 + 2x 2.5" OS plate, 2x 7mm 2.5" hot-swap OS, 3x 8025 fan, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-12	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Titanium redundant power supply, top plate HDDx2 + CD-ROM plate, 2x 7mm 2.5" hot-swap OS, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord
XE1-2KT00-13	2U 8x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Platinum redundant power supply, top plate HDDx2 + 2x 2.5" OS plate, 2x 7mm 2.5" hot-swap OS, 3x 8038 fan, rail, 2x 4-port 12Gb SATA/SAS backplane, w/o bezel, w/o power cord

FRU Information	FRU Information
Standard Parts List	Part Number	Description
	M06-00926-10	2x 2.5" internal HDD kit
	M06-00926-12	Slim CD-R bracket kit with cable
Power supply	M04-00926-01	2.5" hot-swap kit for CRPS power supply use only
Fan	FC-000000335	8025 fan module with rubber
Power supply	PM-C00000083	550W power module
Power supply	PM-A00000117	800w CRPS power supply module
Front bezel	M06-00128-33	Suitable for RSC-2AT & RSC-2ET/RSC-2ETS(2ET DOOR ASS,Y)
Backplane	BBP-HD10012A	7mm 2.5" SATA two ports BP (BP-HD1H09-TY)
