RSC-2ET

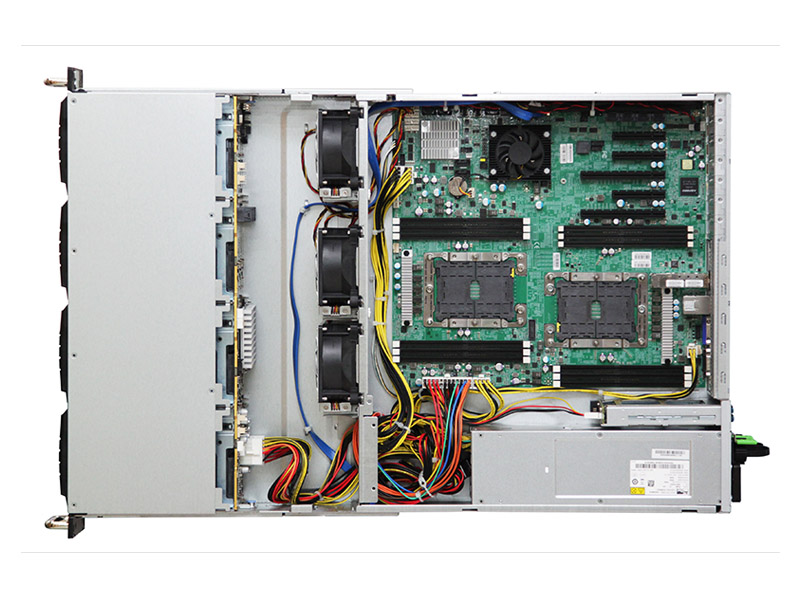

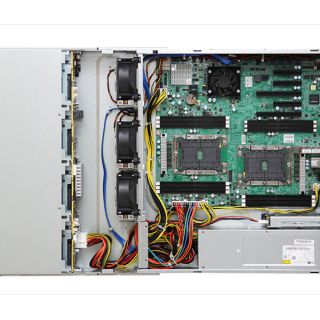

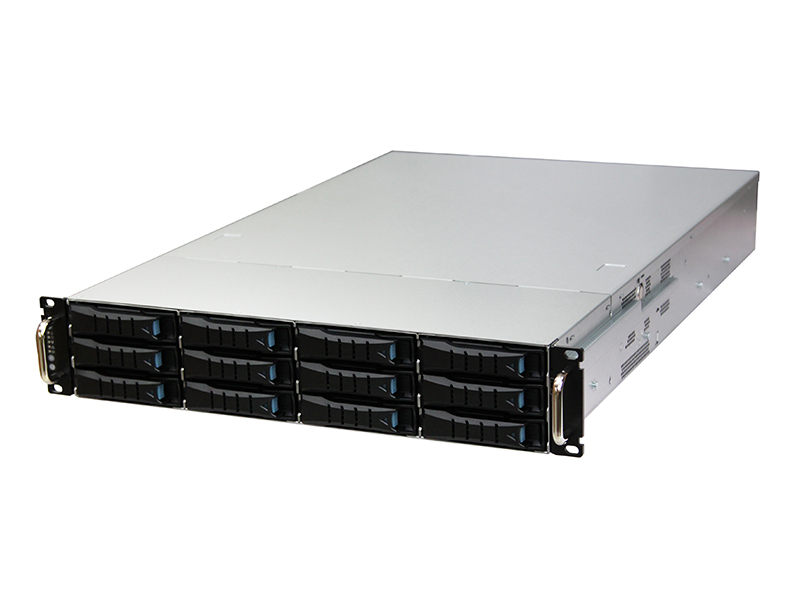

RSC-2ET is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-2ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
KEY FEATURE
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
12Gb/s SAS expander chip on backplane
FEATURE
12Gb/s SAS expander chip on backplane
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
FEATURE
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
FEATURE
3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
Comes with a redundant PSU 80+ Platinum
FEATURE
Comes with a redundant PSU 80+ Platinum
One front access USB 3.0 port
FEATURE
One front access USB 3.0 port
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
430 x 680 x 88
inches
17 x 26.8 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel: Black
Cooling
3 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
(Option: 550W / 1200W CRPS redundant power supply)
(Option: 550W / 1200W CRPS redundant power supply)

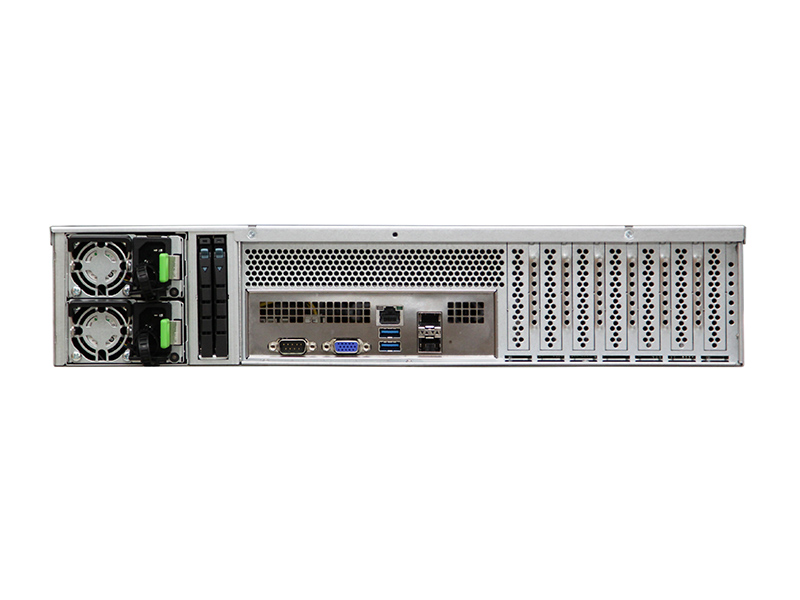

Expansion Slots
7 low profile

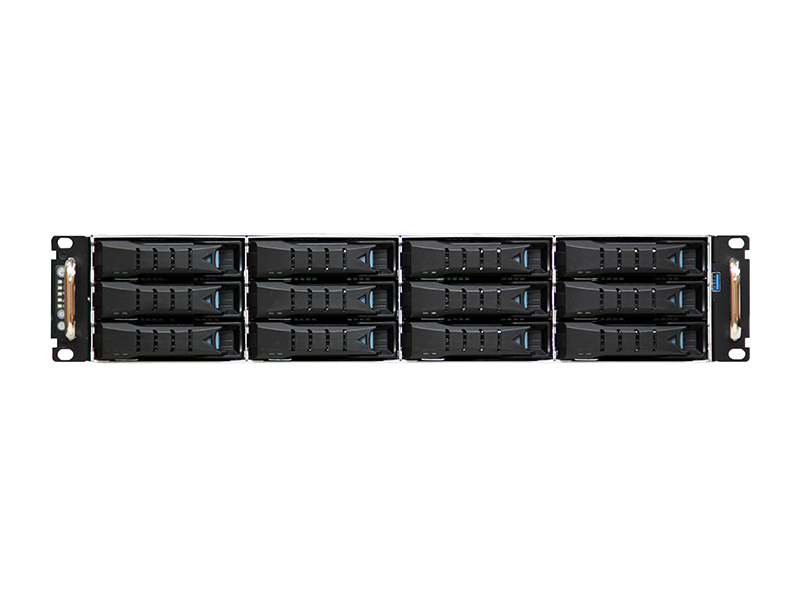

Front Panel
• System power on/off
• System ID
• System reset
• 1 x USB 3.0 port
• System ID
• System reset
• 1 x USB 3.0 port
LED Indicators
• Power
• LAN
• Drive
• Alert
• ID
• LAN
• Drive
• Alert
• ID
System board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External
• 12 x 3.5” hot swap
Options :
• 2 x 2.5” (7mm) hot swap
Options :
• 2 x 2.5” (7mm) hot swap
Internal
Options :
• 2 x 2.5” (15mm) internal
• 2 x 2.5” (15mm) internal
Backplane
Options :
• 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
• 1 x 12-port SATA/SAS backplane with 3 x SFF-8643 connectors
• 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
• 1 x 12-port SATA/SAS backplane with 3 x SFF-8643 connectors
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
23.5
lbs
51.8
Packaging Dimensions (W x D x H)
mm
645 x 835 x 224
inches
25.4 x 32.9 x 8.8
Cubic Feet
5.38
Container Load Quantity
20'
200
40'
420
40' H
450
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description | |
| XE1-2ET00-03 | [BTO SKU] 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Platinum redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane support 4x NVMe (for PCIe Gen.3 device only / option customized cable) | |
| XE1-2ET00-04 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane | |
| XE1-2ET00-05 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD Tray, 800W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane | |
| XE1-2ET00-15 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS Platinum redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane | |
| XE1-2ET00-18 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (35X series) | |
| XE1-2ET00-20 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS Platinum redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (35X series) | |
| XE1-2ET00-21 |
|
|
| XE1-2ET00-22 | 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS Titanium redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (35X series) |
| FRU Information | FRU Information | |
| Standard Parts List | Part Number | Description |
| Fan | FC-A00000968 | SANYO DENKI 8038 fan L60MM |
| Slide rail | H5521T200005 | 28" Tool-less slide rail |
| Backplane | BBPJHD20002A | 12 bay 12G EOB backplane (03X) |
| Backplane | BBP-HD20035A | 12-bay 12G EOB backplane (35X) |
| Backplane | BBP-HD10012A | 7mm 2.5" SATA two ports BP (BP-HD1H09-TY) |
| Power supply | PH-000000060 | 550W CRPS Power Supply Housing |
| Power supply | PM-000000083 | 550W CRPS Power Supply Module |
| Power supply | PH-A00000095 | 800W CRPS Power Supply Housing |
| Power supply | PM-A00000117 | 800W CRPS Power Supply Module |
| Power supply | PR-000000132 | Acbel 800W CRPS DC-48V PSU Module (w/o power code) |
| Power supply | PC-000000034 | Acbel DC-48V power code for 800W CRPS module (PR-000000132) |
| Power supply | PM-B00000102 | Acbel 1200W CRPS DC-48V PSU Module (w/o power code) |
| Power supply | PC-A00000045 | Acbel DC-48V power code for 1200W CRPS module (PM-B00000102) |
| Front bezel | M06-00128-33 | Suitable for RSC-2AT & RSC-2ET/RSC-2ETS(2ET DOOR ASS,Y) |
