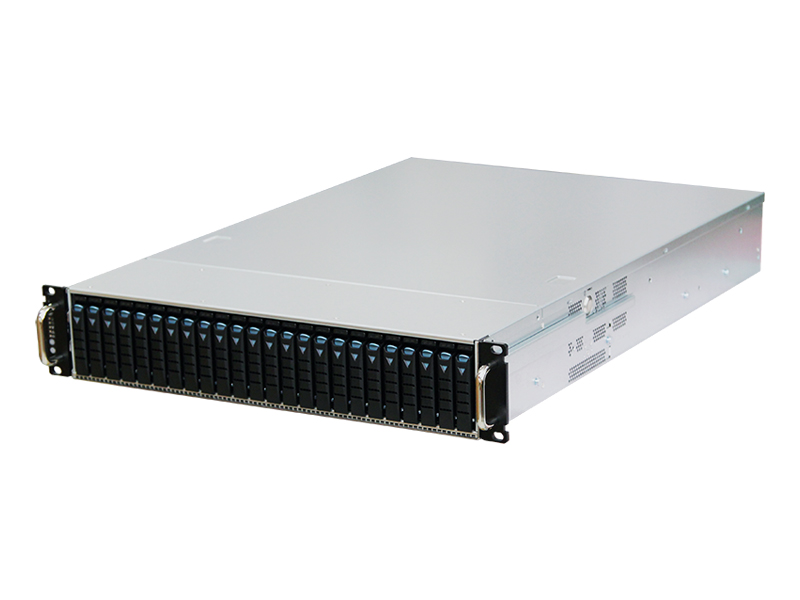

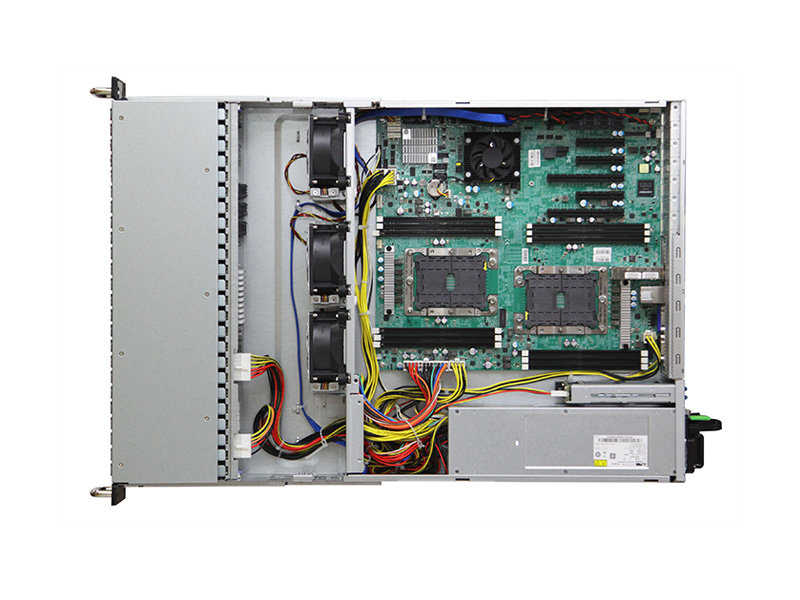

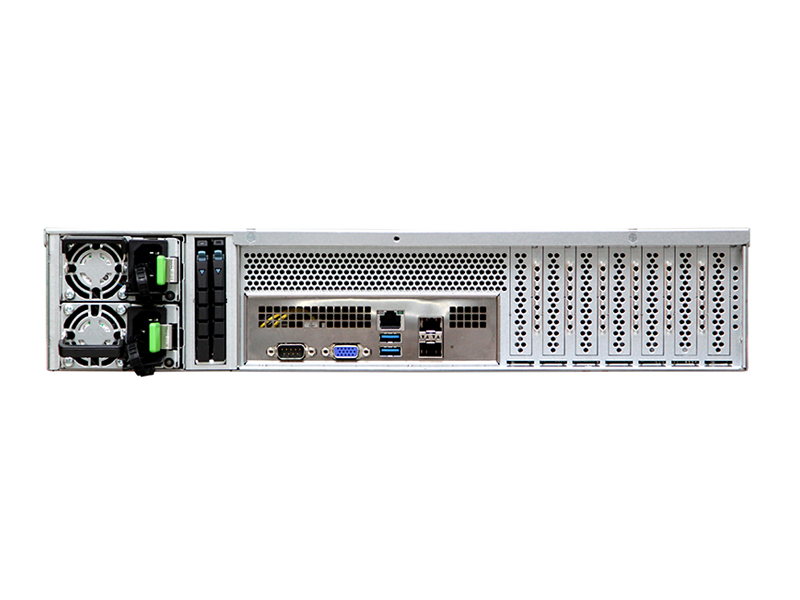

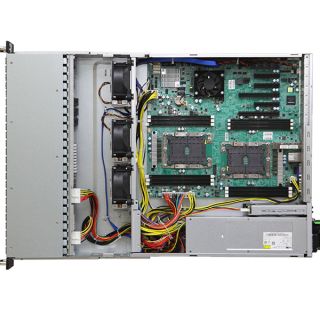

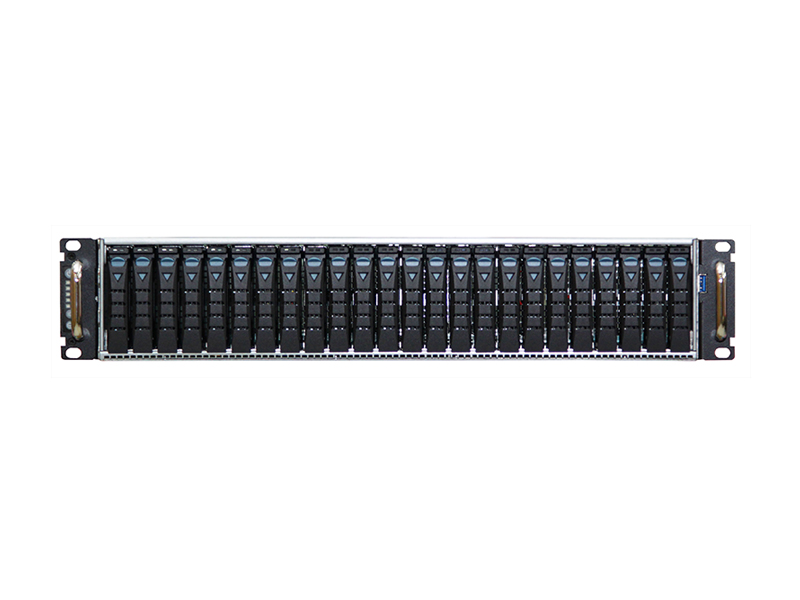

RSC-2AT
RSC-2AT is a T series 2U 24-bay SAS/SATA storage server chassis. With its tool-less 2.5" hard drive/SSD carriers, top covers and backplane, the RSC-2AT supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
KEY FEATURE
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
12Gb/s SAS expander chip on backplane
FEATURE
12Gb/s SAS expander chip on backplane
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
FEATURE
Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
Comes with a redundant PSU 80+ Platinum
FEATURE
Comes with a redundant PSU 80+ Platinum
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
430 x 645 x 88
inches
17 x 25.4 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Cooling
3 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Expansion Slots
7 low-profile
Front Panel
• System Power on/off
• System reset
• 1 x USB 3.0 port
• System reset
• 1 x USB 3.0 port
LED Indicators
• Power
• LAN
• Drive
• Alert
• LAN
• Drive
• Alert
System board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External
• External: 24 x 2.5” hot swap
• External: 2 x 2.5" hot swap (7mm, rear)
• External: 2 x 2.5" hot swap (7mm, rear)
Internal
Backplane
Options:
• 1 x 24-port 12Gb SATA/SAS backplane with 6 SFF-8643 connectors
• 1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors
• 1 x 24-port 12Gb SATA/SAS backplane with 6 SFF-8643 connectors
• 1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 SFF-8643 connectors
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
24.5
lbs
54
Packaging Dimensions (W x D x H)
mm
590 x 850 x 288
inches
23.2 x 33.4 x 11.3
Cubic Feet
5.14
Container Load Quantity
20'
200
40'
430
40' H
480
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-2AT00-02 | 2U 24x2.5" HOT SWAP BAYS, Tool-less 2.5" HDD Tray, 800W CRPS Platinum REDUNDANT PSU, 2* 7MM 2.5" HOT SWAP OS, LOW PROFILE REAR PANEL, RAIL, 2U24 SAS 12G Passive BP with 6*SFF-8643 connector |
| XE1-2AT00-07 | 2U 24x2.5" HOT SWAP BAYS, Tool-less 2.5" HDD Tray, 800W CRPS Platinum REDUNDANT PSU, 2* 7MM 2.5" HOT SWAP OS, LOW PROFILE REAR PANEL, RAIL, 2U24 SAS 12G Expander Controller on BP(35X series) |
| XE1-2AT00-10 | 2U 24x2.5" HOT SWAP BAYS, Tool-less 2.5" HDD Tray, 800W CRPS Titanium REDUNDANT PSU, 2* 7MM 2.5" HOT SWAP OS, LOW PROFILE REAR PANEL, RAIL, 2U24 SAS 12G Expander Controller on BP(35X series) |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Fan(s) | M03-00151-01 | 8038 fan module |
| Mounting Rail(s) | H5521T200005 | 28" Toolless slide rail |
| HD Backplane | BBP-HD20036A | 12G 35X EOB Backplane |
| Backplane | BBP-HD10012A | 7mm 2.5" SATA two ports BP (BP-HD1H09-TY) |
| Power Supply Housing | PH-000000095 | 800W CRPS Power Supply Housing |
| Power Supply Module | PM-0000000117 | 800W CRPS Power Supply Module |
| Optional Parts List | Part Number | Description |
| Front Bezel | M06-00128-33 | Suitable for RSC-2AT & RSC-2ET/RSC-2ETS |
