RSC-1DTS

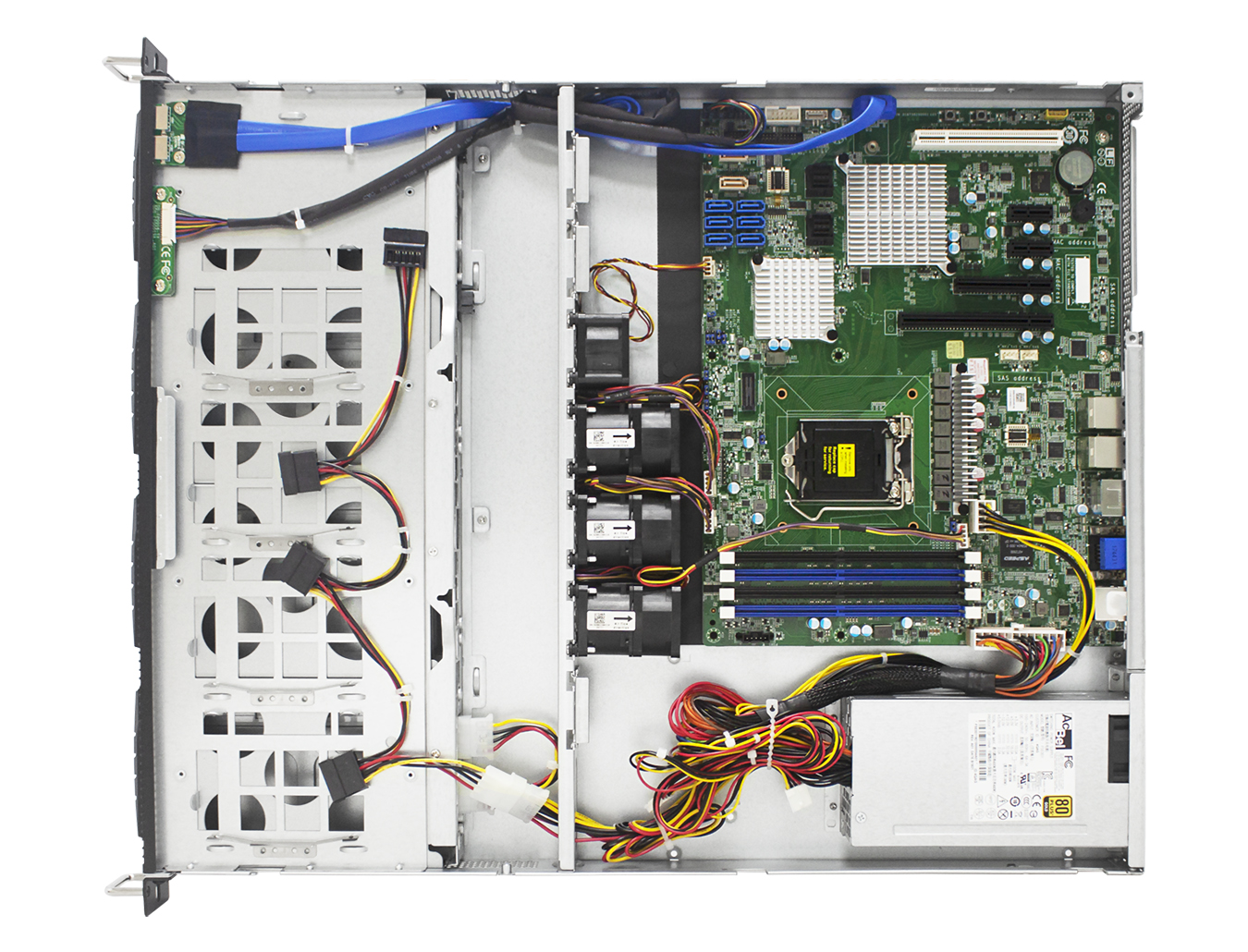

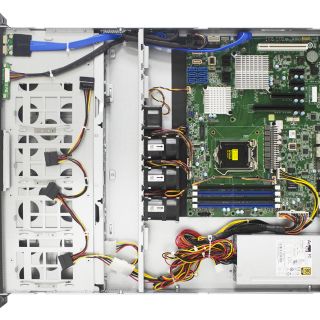

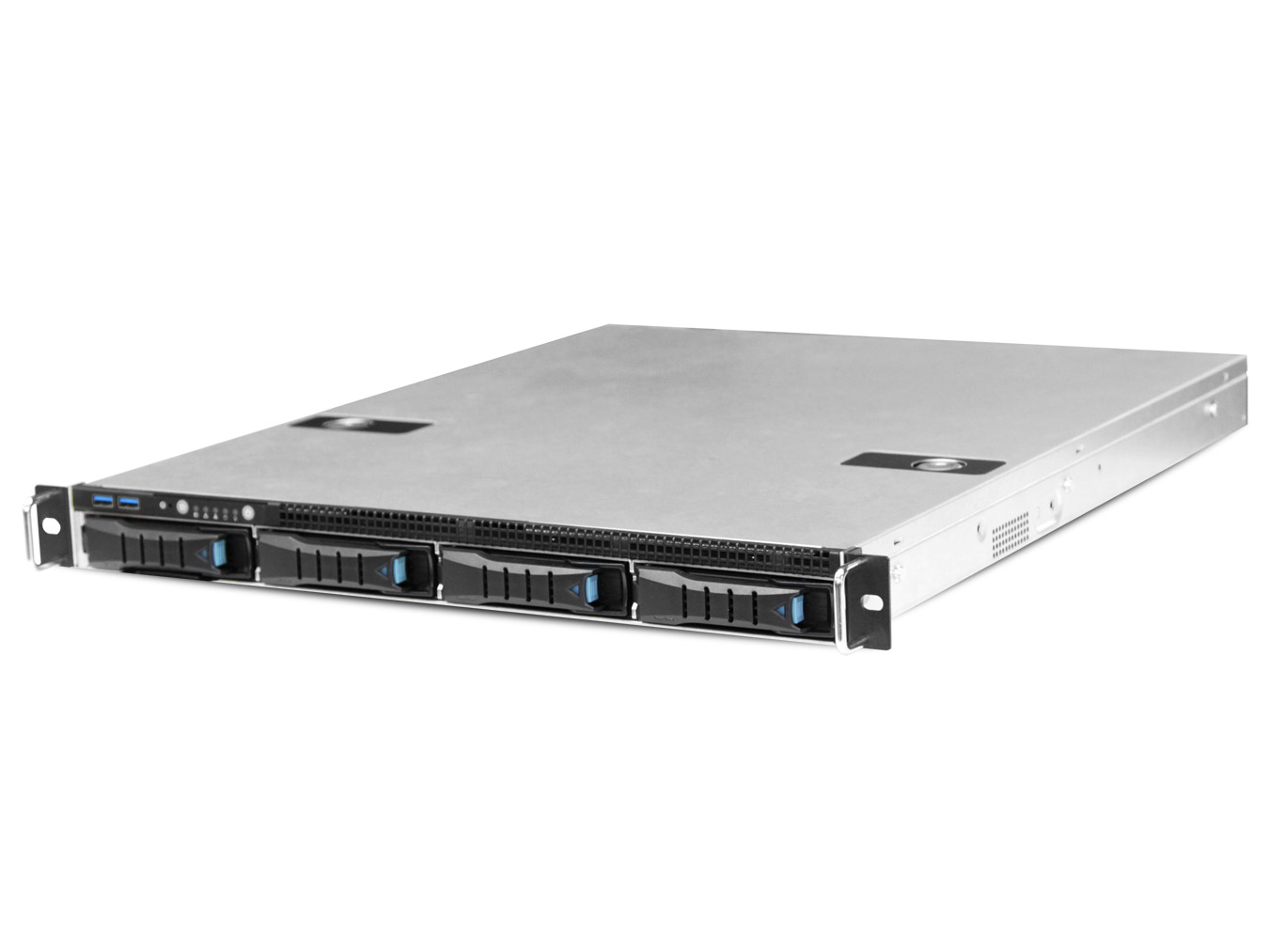

RSC-1DTS is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" (9mm) drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)
KEY FEATURE
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less slide rail
Supports 4 x 12G 3.5” hot swap drive bays
FEATURE
Supports 4 x 12G 3.5” hot swap drive bays
Supports single and redundant power supplies
FEATURE
Supports single and redundant power supplies
Supports 1 full height expansion slot
FEATURE
Supports 1 full height expansion slot
Two front access USB 3.0 ports
FEATURE
Two front access USB 3.0 ports
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 560 x 43.5
inches
17 x 22 x 1.72
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black
Cooling
1 x 40x28mm+3 x 40x56mm PWM easy swap fans
Power Supply
400W single PSU
Option: 300W 1+1 redundant PSU
Option: 300W 1+1 redundant PSU
Expansion Slots
1 full height

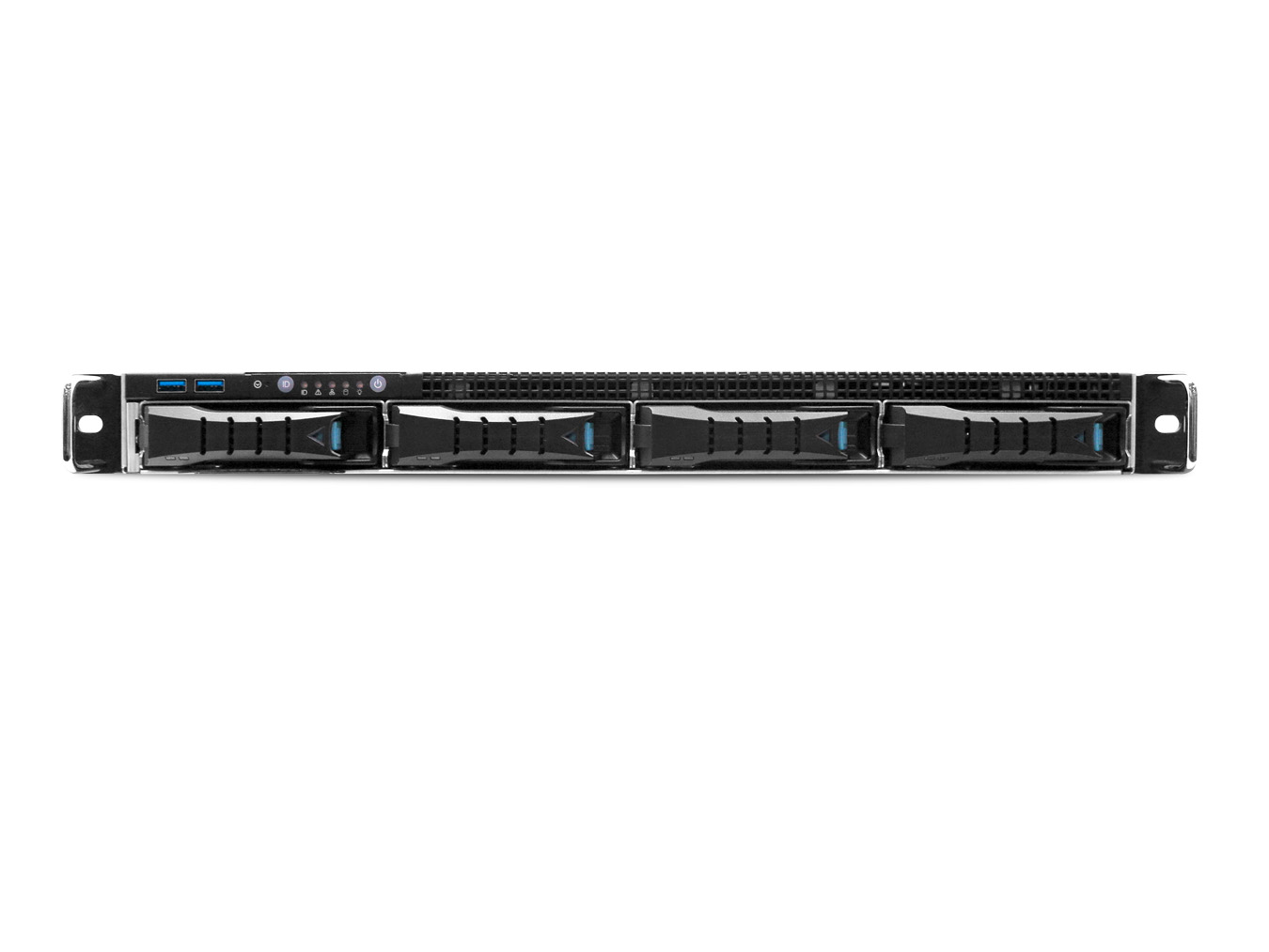

Front Panel
• System power on/off
• system reset
• 2 x USB 3.0 port
• system reset
• 2 x USB 3.0 port
LED Indicators
• Power
• HDD
• LAN
• HDD
• LAN
System board
Up to 12"(W) x 9.6"(D) ATX MB
Drive Bays
External
3.5" hot swap x 4
Internal
2.5" x 4 (9mm SSD)
Backplane
4-port with SFF-8643 connector supports 12G
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
15.8
lbs
34.8
Packaging Dimensions (W x D x H)
mm
645 x 790 x 180
inches
25.3 x 31 x 7.1
Cubic Feet
3.7
Container Load Quantity
20'
290
40'
600
40' H
660
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-1DTS0-01 | 12G 4-port backplane, 4x internal 2.5" 9mm SSD bay,1x 4028 fan+ 3x 4056 fan, Acbel 1U 300W redundant power supply Gold, rail |
| XE1-1DTS0-02 | 12G 4-port backplane, 4x internal 2.5" 9mm SSD bay,1x 4028 fan+ 3x 4056 fan, Acbel 1U Flex 400W single power supply Gold, rail |
| FRU Information | ||
| Standard Parts List | Part Number | Description |
| Fan | FNC6C-000002 | 4028 fan L300mm |
| Fan | FC-B00000326 | 4056 fan L300mm |
| Slide rail | H5541T200004 | 28" Tool-less slide rail |
| Backplane | BBP-HD10035A | 4-port 12GB SAS/SATA passive backplane (BP-HD1S07-TY) |
| Power supply | PH-000000020 | 1U 300W redundant power supply housing |
| Power supply | PM-000000017 | 1U 300W redundant power supply module |
| Optional Parts List | Part Number | Description |
| Door | M06-00376-08 | Suitable for RSC-1AT & RSC-1DT / RSC-1DTS(1DT DOOR ASSEMBLY/MCB) |
| Riser card | DB-000000034 | PCIe x8 Riser Card |
