RSC-1AT

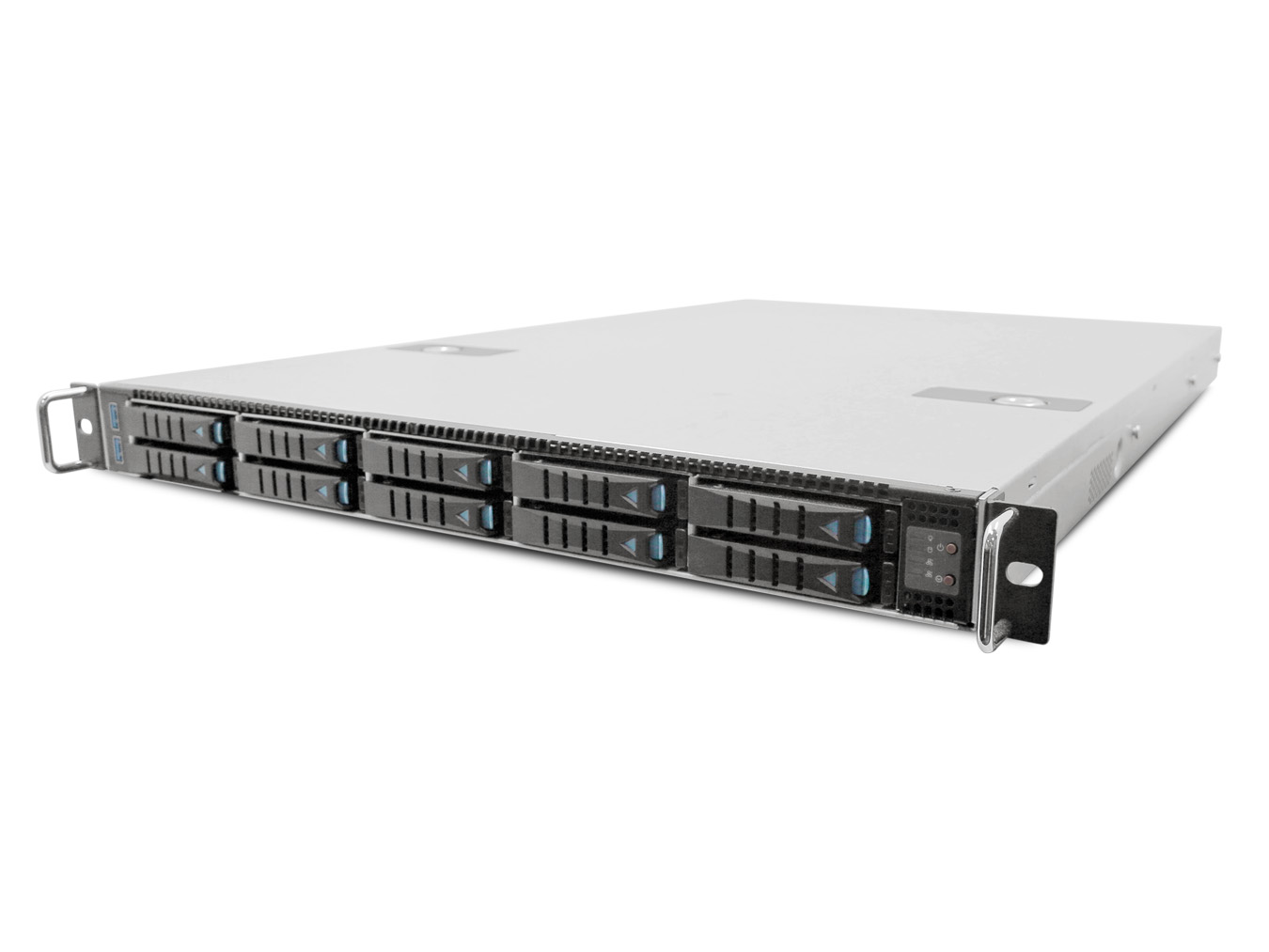

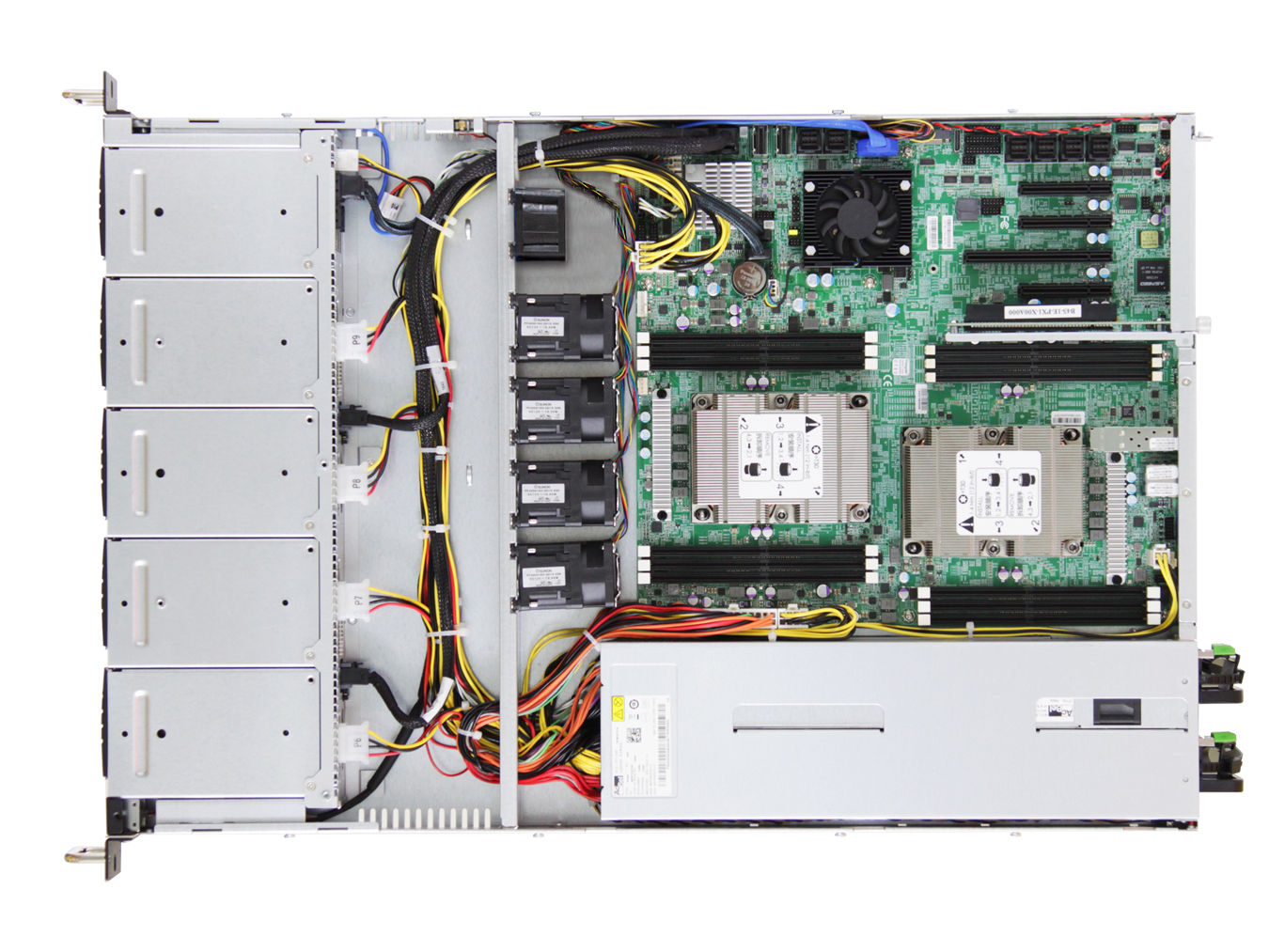

RSC-1AT is a T-series 1U SAS/SATA storage server chassis supports 8 x 12G 2.5" and 2 x 6G 2.5" hot swap drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less slide rail, and easy-swap PWM fans, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
KEY FEATURE
Tool-less design supports quick installation and easy maintenance
FEATURE
Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5” drive trays
- Tool-less slide rail
Supports 8 x 12G 2.5” hot swap drive bays + 2 x 6G 2.5” hot swap drive bays
FEATURE
Supports 8 x 12G 2.5” hot swap drive bays + 2 x 6G 2.5” hot swap drive bays

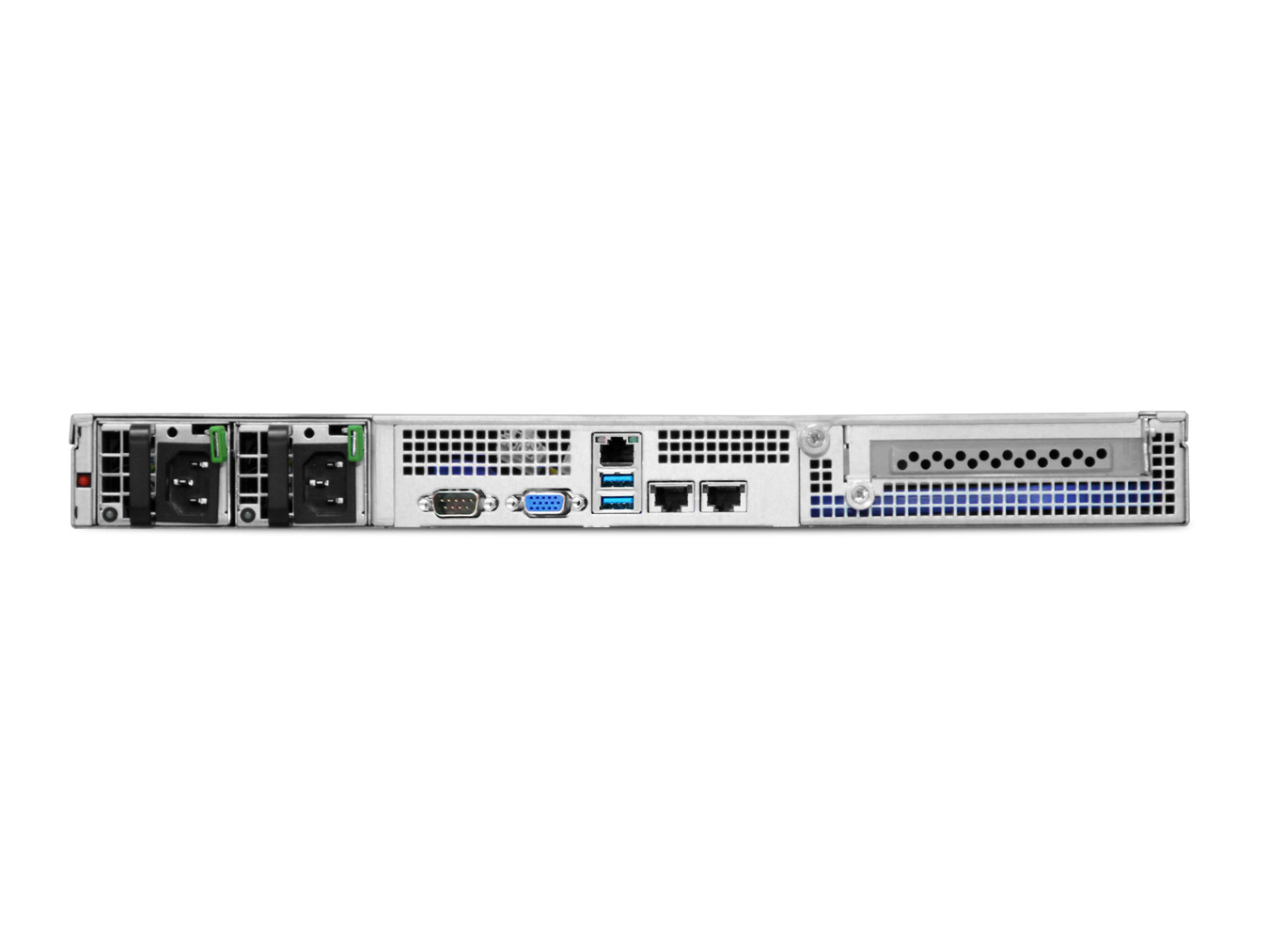

Supports single and redundant power supplies
FEATURE
Supports single and redundant power supplies
Supports 1 full height expansion slot
FEATURE
Supports 1 full height expansion slot
Two front access USB 3.0 ports
FEATURE
Two front access USB 3.0 ports
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
438 x 680 x 43.5
inches
17 x 26.8 x 1.72
Industry Standard
EIA-RS310D
Material
SGCC
Color
Front Panel: Black

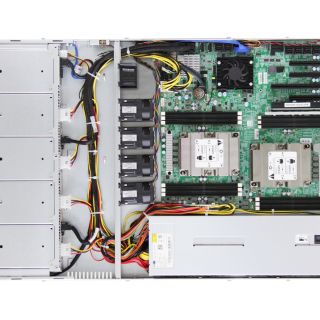

Cooling
4 x 40x56mm PWM + 1 x 40x28mm PWM easy swap fans
Power Supply
500W single PSU
Option: 650W 1+1 redundant PSU
Option: 650W 1+1 redundant PSU
Expansion Slots
1 full height

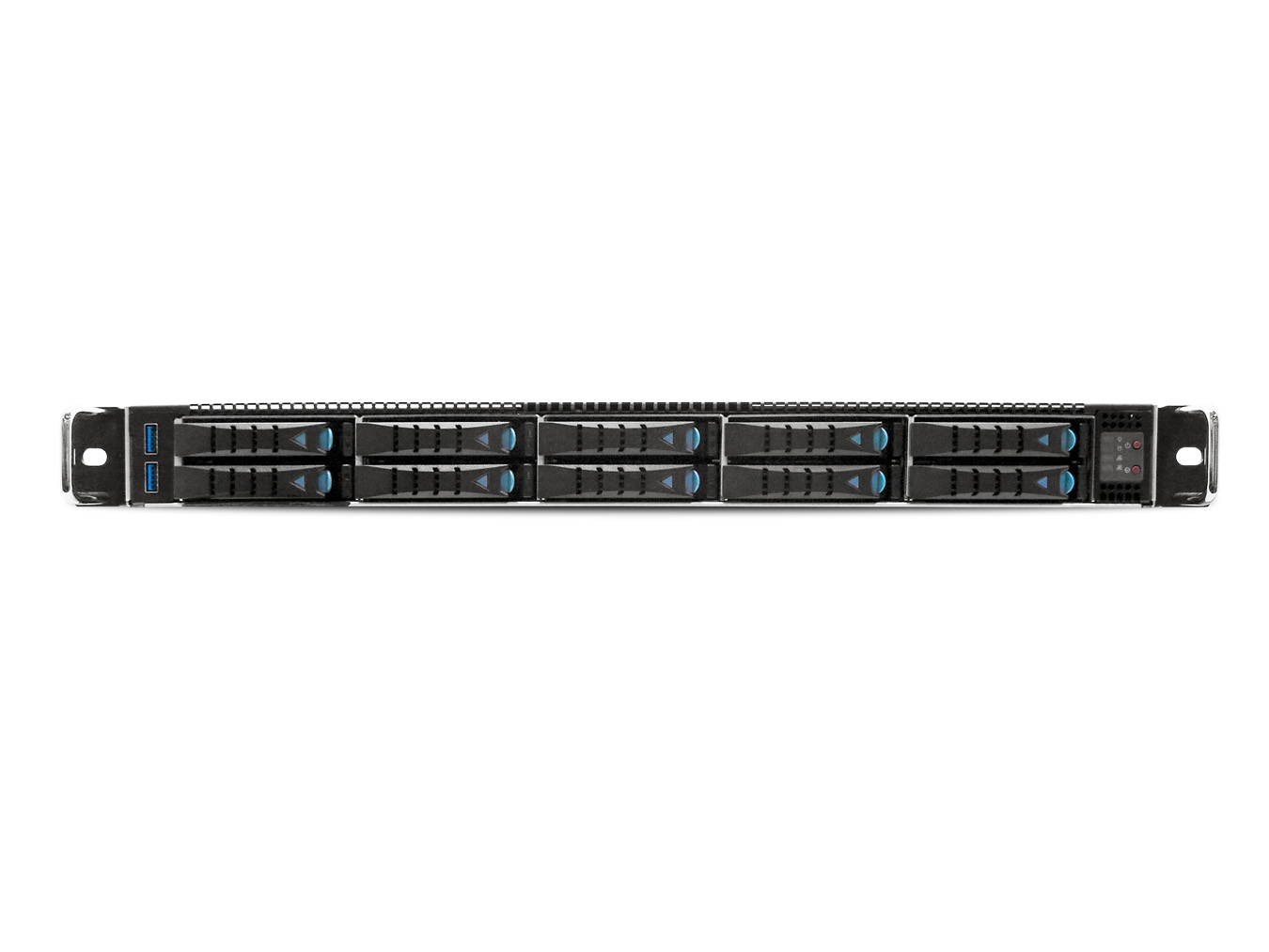

Front Panel
System power on/off and system reset, 2 x USB 3.0 ports
LED Indicators
• Power
• HDD
• LAN
• HDD
• LAN
System board
Up to 12"(W) x 13"(D) EATX MB
Drive Bays
External
2.5" hot swap x 10
Internal
Backplane
2 x 4-port 12Gb with SFF-8643 connector support 12G + 1 x 2-port with SATA connector
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
16
lbs
35.3
Packaging Dimensions (W x D x H)
mm
645 x 890 x 180
inches
25.3 x 35 x 7.1
Cubic Feet
3.96
Container Load Quantity
20'
265
40'
570
40' H
620
Mounting
Standard: 28” tool-less slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-1AT00-01 | 1U10x 2.5" hot-swap, 2x 12G 4-port backplane, 1x 2-port SATA backplane, 4x 4056 fan+ 1 x 4028 fan, 1U flex 500W single power supply Gold, 28" slide rail, w/o RC |
| XE1-1AT00-02 | 1U10x 2.5" hot-swap, 2x 12G 4-port backplane, 1x 2-port SATA backplane, 4x 4056 fan+ 1 x 4028 fan, 650W redundant power supply Platinum, 28" slide rail, w/o RC |
| FRU Information | FRU Information | |
| Standard Parts List | Part Number | Description |
| Fan | FNC6C-000002 | 4028 fan L300mm |
| Fan | FC-B00000326 | 4056 fan L300mm |
| Slide rail | H5541T200003 | 28" Toolless slide rail |
| Backplane | BBP-HD10014A | 1U 4-Port 12Gbps backplane with 8643 connector |
| Backplane | BBP-HD10003A | 1U 2-Port 6Gbps backplane with SATA connector |
| Power supply | PS-000000078 | 1U 500W platinum single flex power supply |
| Power supply | PH-000000021 | 1U 650W redundant power supply housing |
| Power supply | PM-000000006 | 1U 650W redundant power supply module |
| Optional Parts List | Part Number | Description |
| Door | M06-00376-08 | Suitable for RSC-1AT & RSC-1DT / RSC-1DTS(1DT DOOR ASSEMBLY/MCB) |
| Riser card | DB-000000034 | 1U PCIe x8 riser card |
