RMC-4S1
RMC-4S1 improve the compact 20” depth and desktop component compatibility of the RMC-4S. It features enhanced expansion capabilities, superior thermal management with flexible storage options, and various power supply form factor support. The RMC-4S1 is the perfect, versatile platform for building your high-reliability systems. (Power supply is optional. Motherboard is not included.)
KEY FEATURE
Front access dual USB 3.0 ports
FEATURE
Front access dual USB 3.0 ports
Option hot-swappable 2.5” HDD/SSD for easy use
FEATURE
Option hot-swappable 2.5” HDD/SSD for easy use
Superior cooling through front air intake - 2 x 12025 front cooling fans
FEATURE
Superior cooling through front air intake - 2 x 12025 front cooling fans
Removable & washable air filter
FEATURE
Removable & washable air filter
Hold down bar to ensure that add-on cards are locked into positions
FEATURE
Hold down bar to ensure that add-on cards are locked into positions
Supports both PS2 power supply and CRPS power supply (option)
FEATURE
Supports both PS2 power supply and CRPS power supply (option)
Supports dual slots 2 x GPU (Blower Type)
FEATURE
Supports dual slots 2 x GPU (Blower Type)
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
427 x 504 x 177
inches
16.8 x 19.9 x 7
Industry Standard
EIA-RS310D
Material
Heavy-duty cold-rolled steel
Color
Black
Cooling
Standard :
• Front: 2 x 120x25mm easy swap fans
Option :
• Rear: 2 x 60x25mm easy swap fans
• Front: 2 x 120x25mm easy swap fans
Option :
• Rear: 2 x 60x25mm easy swap fans
Power Supply
Standard :
• PS2 type power supply
Option :
• 2U CRPS with PDB
• PS2 type power supply
Option :
• 2U CRPS with PDB
Expansion Slots
7 slots FHFL

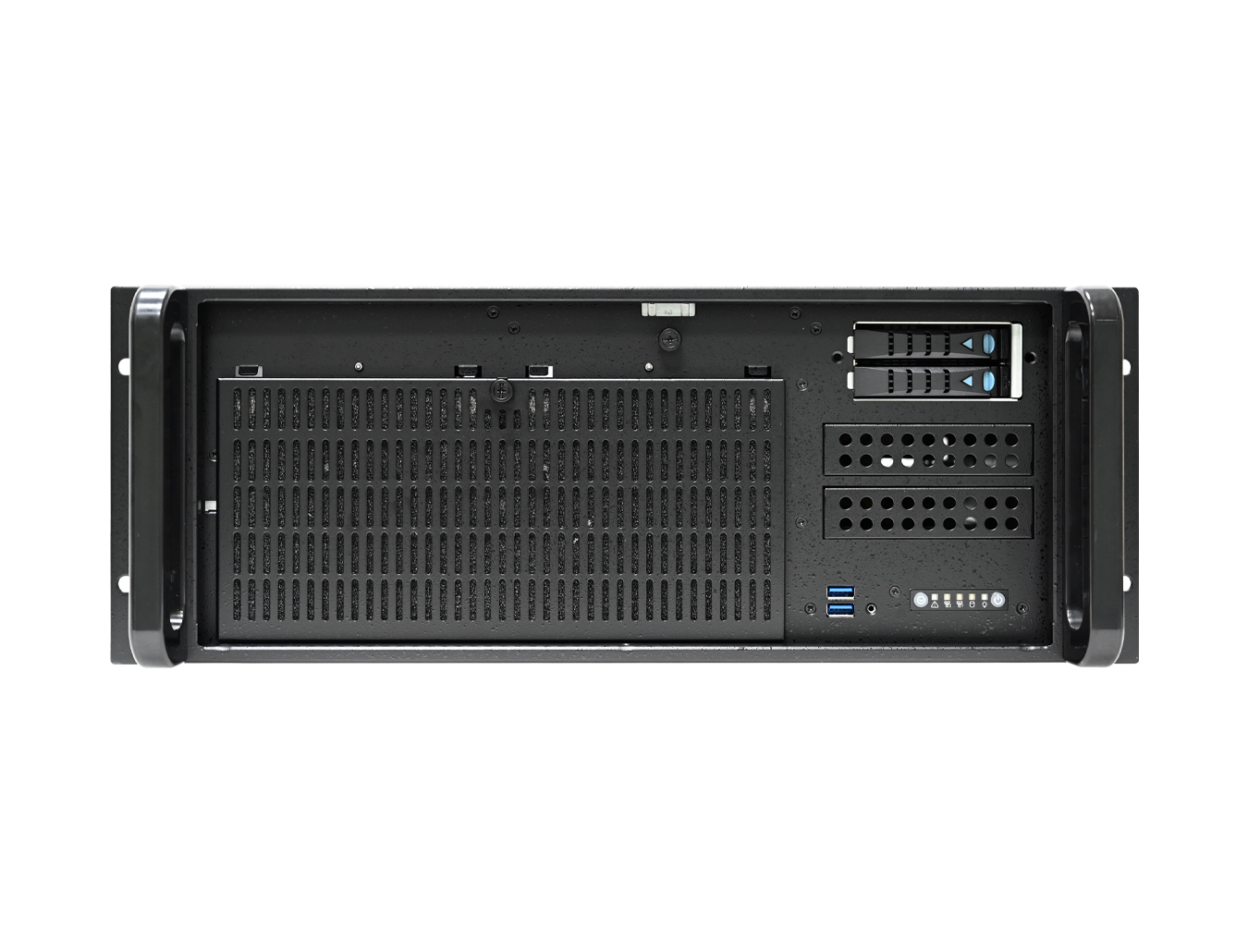

Front Panel
• System power on/off
• System reset
• 2 x USB 3.0 ports
• System reset
• 2 x USB 3.0 ports
LED Indicators
• Power
• Drive
• Lan1
• Lan2
• Alert
• Drive
• Lan1
• Lan2
• Alert
System board
ATX/SSI CEB compliant MB, EATX/SSI EEB 3.6 compliant MB by adding an optional MB bracket
Drive Bays
External
2 x 2.5” Hot Swap (option)
Internal
• 2 x 3.5"
• 2 + 2 (option) x 2.5"
• 2 + 2 (option) x 2.5"
Peripheral Drive
Backplane
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
16
lbs
35.3
Packaging Dimensions (W x D x H)
mm
580 x 668 x 321
inches
22.8 x 26.3 x 12.6
Cubic Feet
4.4
Container Load Quantity
20'
230
40'
488
40' H
556
Mounting
Options :
• 26” slide rail
• 26” slide rail with extension bracket for 1M rack support
• 26” slide rail
• 26” slide rail with extension bracket for 1M rack support
* All specifications are subject to change without notice.
