RMC-4S

RMC-4S is the most basic rack-mount chassis which shows the most resemblance to a desktop computer chassis. It is designed to fit all standard desktop components yet its depth is kept within 20”. Many patented designs make this chassis the best choice in its class. (Power supply is optional. Motherboard is not included.)

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

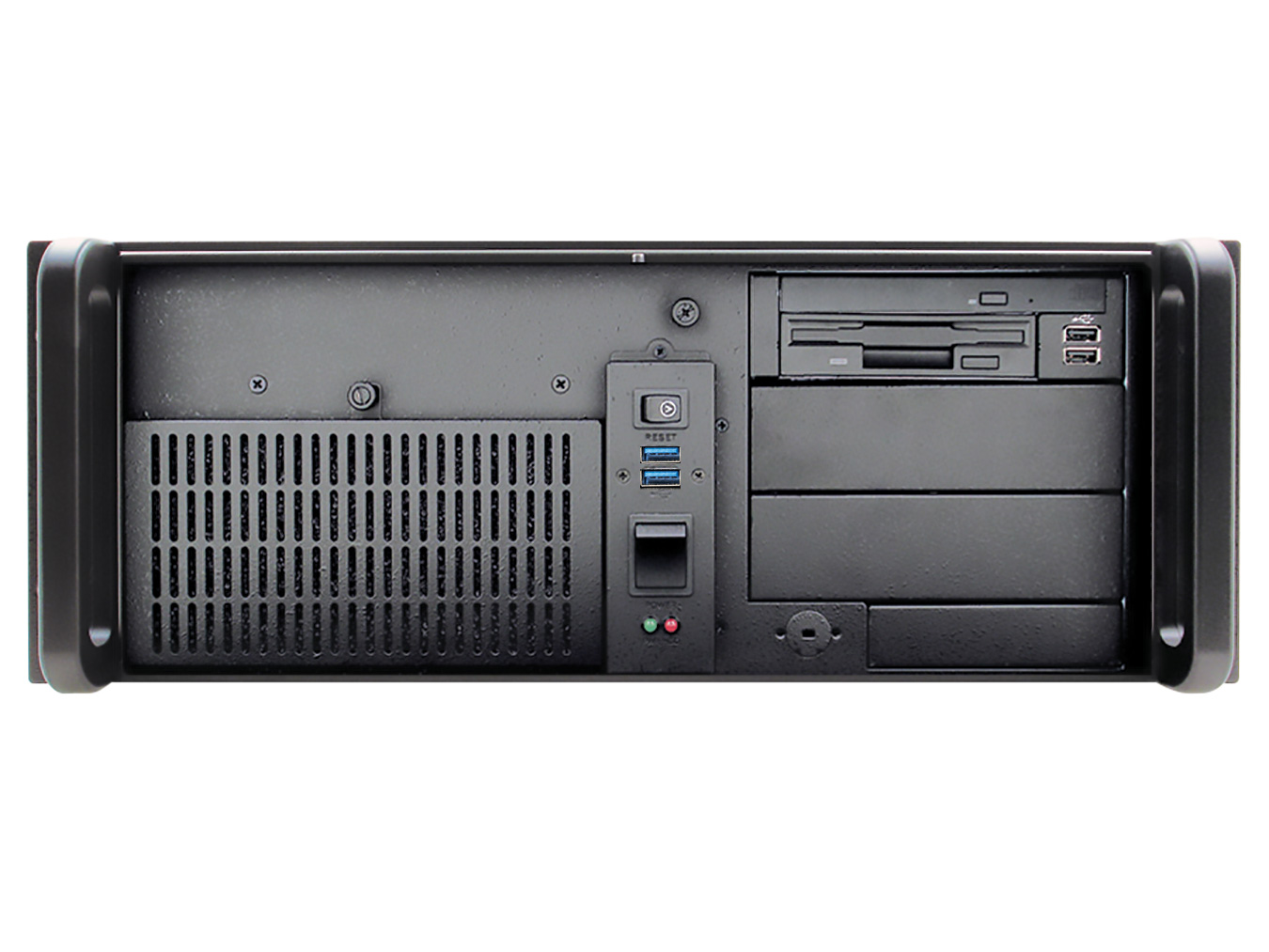

Front access dual USB ports

FEATURE

Removable & washable air filter

FEATURE

Superior cooling through front air intake - 2 x front cooling fans

FEATURE

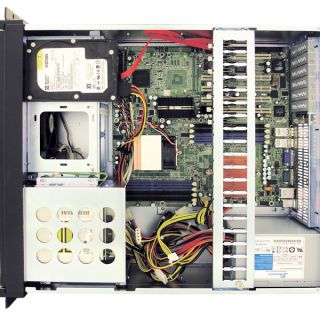

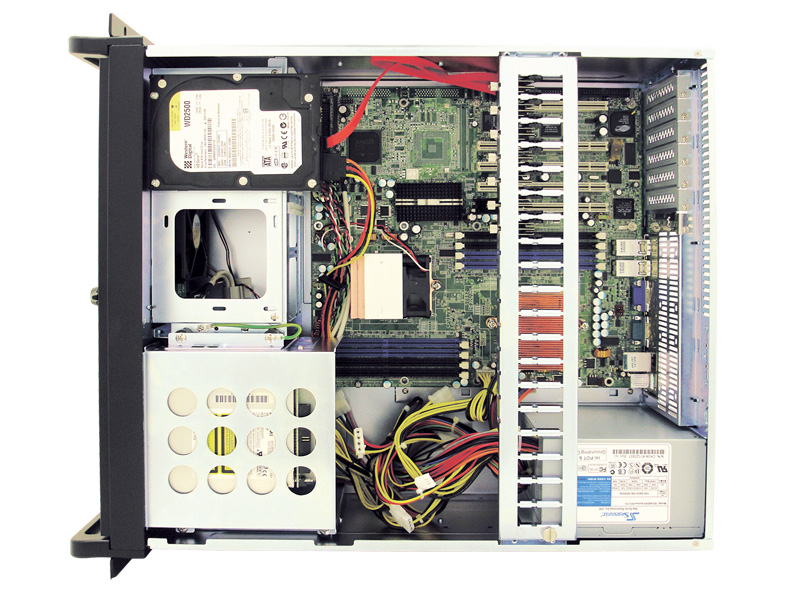

Hold down bar to ensure that add-on cards are locked into positions

FEATURE

PS2 power supply

FEATURE

Supports both MB and SBC slots

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

427 x 505 x 177

inches

16.8 x 19.9 x 7

Industry Standard

EIA-RS310D

Material

Heavy-duty cold-rolled steel

Color

Black

Cooling

Standard :

• 2 x 92x25 mm fans (front)

Add-ons :

• 2 x 60x25mm exhaust fans (rear)

• 2 x 60x38mm exhaust fans (rear)

Power Supply

PS2 type power supply

Expansion Slots

• MB Version : 7

• BP Version : 14

Front Panel

• System power on/off

• System reset

• 2 x USB ports

LED Indicators

• Power status

• Drive activity

System board

• MB Version : Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB (or 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB by adding an optional MB bracket)

• BP Version : (SBC) 14-slot

Drive Bays

External

3 x 5.25” & 1 x 3.5”

Internal

2 x 3.5” (or 4 by adding an option 2-bay 3.5” drive cage)

Peripheral Drive

Backplane

Storage Temparature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

35.3

Packaging Dimensions (W x D x H)

580 x 668 x 321

inches

22.8 x 26.3 x 12.6

Cubic Feet

4.4

Container Load Quantity

20'

230

40'

488

40' H

556

Mounting

Options :

• 20” slide rail

• 26” slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XE1-4S000-01	4U with fans, steel door, full height 7 slot rear panel, USB 3.0, w/o power supply, black
XE1-4S000-02	4U with fans, steel door, full height 7 slot rear panel, 2x 3.5" internal HDD bracket, USB 3.0, w/o power supply, black
XE1-4S000-03	4U with fans, aluminum door, full height 7 slot rear panel, USB 3.0, w/o power supply, black
XE1-4S000-04	4U with fans, steel door, full height 7 slot rear panel, USB 3.0, 2x 6cm rear FAN, w/o power supply, black
XE1-4S000-05	4U with fans, steel door, full height 7 slot rear panel, USB 3.0, w/o power supply, black, double carton
XE1-4S000-06	4U with fans, steel door, full height 7 slot rear panel, 2x 3.5" internal HDD bracket, USB 3.0, w/o power supply, black, double carton
XE1-4S000-07	4U with fans, aluminum door, full height 7 slot rear panel, USB 3.0, w/o power supply, black, double carton
XE1-4S000-08	4U with fans, steel door, full height 7 slot rear panel, USB 3.0, 2x 6cm rear FAN, w/o power supply, black, double carton
XE1-4S000-09	4U with fans, steel door, full height 7 slot rear panel, USB 2.0, w/o power supply, black, double carton
XE1-4S000-10	4U with fans, aluminum door, full height 7 slot rear panel, USB 2.0, w/o power supply, black, double carton

FRU Information
Standard Parts List	Part Number	Qty	Description
Fan	FC-000000055	2	92mm fans
Door	M06-00022-02	1	Steel door
