RMC-3N
RMC-3N is designed for entry-level applications where space is a concern, yet riser card or low-profile PCI requirements of 2U are not desirable. Up to 12” x 10.5” ATX or SSI CEB 1.01 compliant motherboards are supported in this chassis. (Power supply is optional. Motherboard is not included.)
KEY FEATURE
Front access dual USB ports
FEATURE
Front access dual USB ports
Supports single or redundant power supply
FEATURE
Supports single or redundant power supply

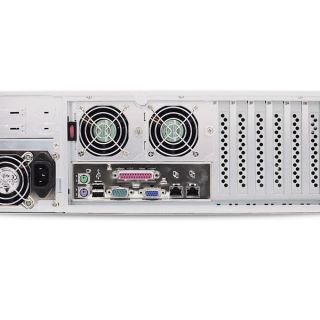

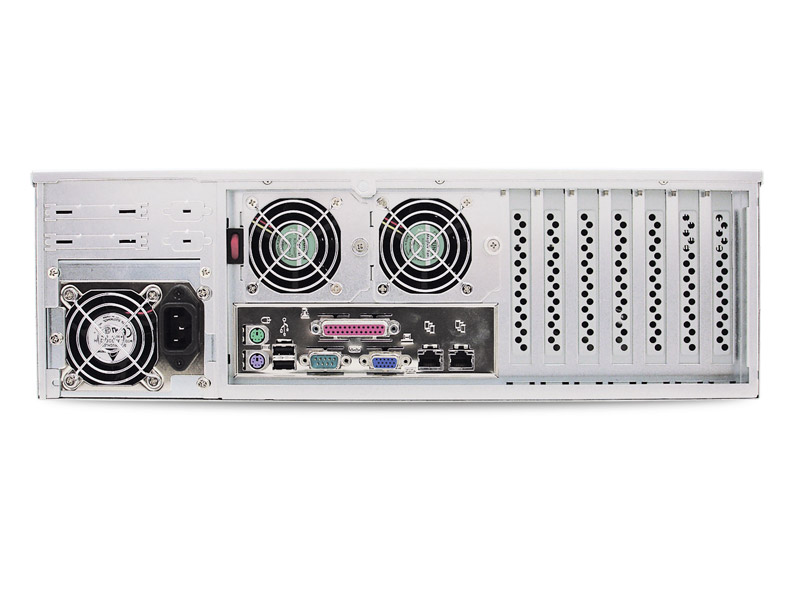

2 x easy swap rear fans for superior cooling
FEATURE
2 x easy swap rear fans for superior cooling
Rear access power supply alarm reset button (For redundant power supply only)
FEATURE
Rear access power supply alarm reset button (For redundant power supply only)
7 x full height expansion slots
FEATURE
7 x full height expansion slots
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
427 x 533.4 x 133
inches
16.8 x 21 x 5.2
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel : Black
Cooling
Standard :
• Rear : 2 x 60x25mm easy swap fans
Option :
• Rear : 2 x 60x38mm fans
• Rear : 2 x 60x25mm easy swap fans
Option :
• Rear : 2 x 60x38mm fans
Power Supply
Options :
• 550W single PSU
• 550W 1+1 redundant PSU
• 550W single PSU
• 550W 1+1 redundant PSU
Expansion Slots
7

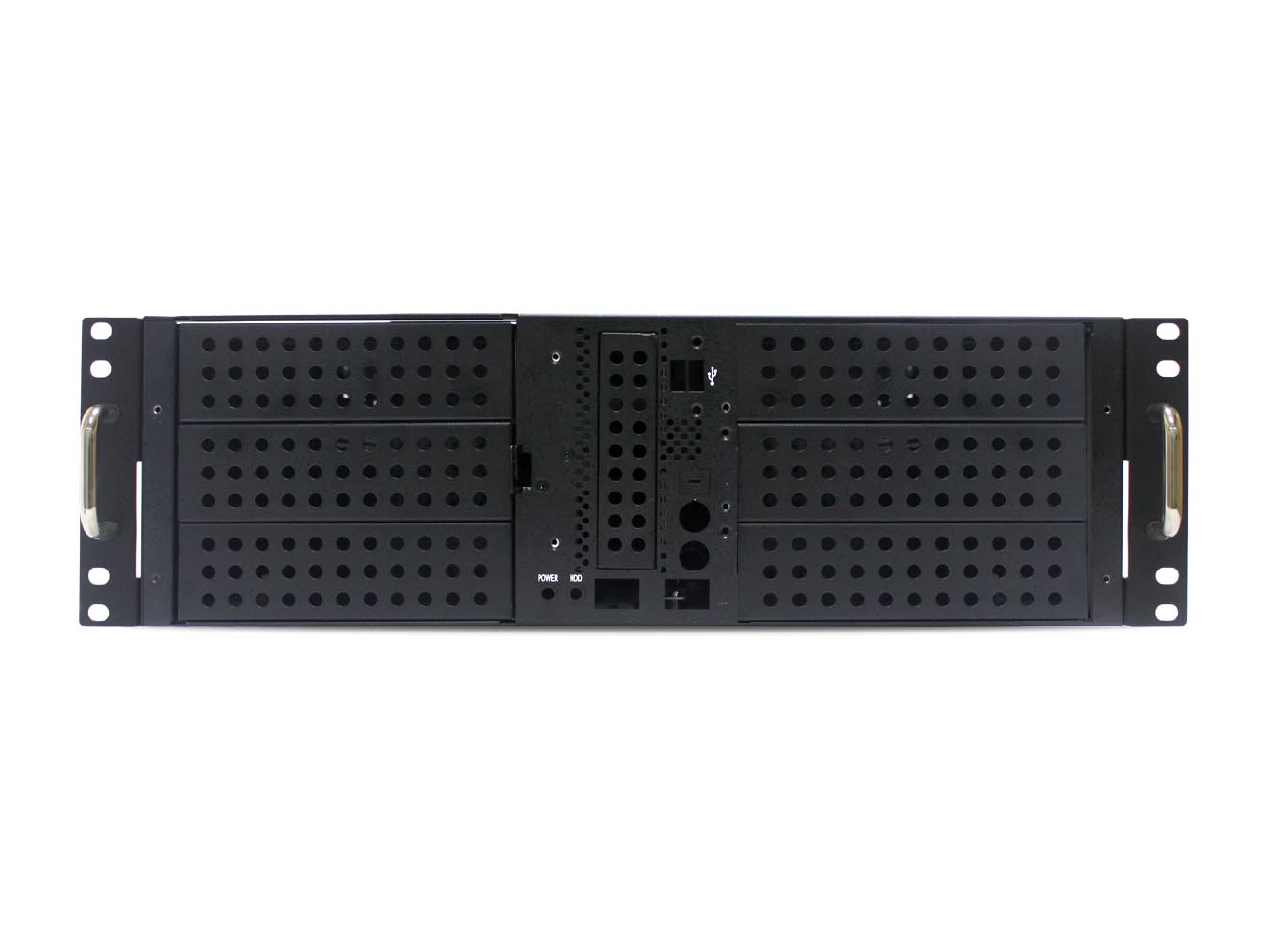

Front Panel
• System power on/off
• System reset
• 2 x USB ports
• System reset
• 2 x USB ports
LED Indicators
• Power status
• Drive activity
• Drive activity
System board
Up to 12”(W) x 10.5”(D) ATX/SSI CEB compliant MB
Drive Bays
External
6 x 5.25” & 1 x 3.5”
Internal
1 x 3.5”
Peripheral Drive
Backplane
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
15
lbs
33
Packaging Dimensions (W x D x H)
mm
590 x 715 x 306
inches
23.2 x 28.1 x 12
Cubic Feet
4.3
Container Load Quantity
20'
220
40'
455
40' H
485
Mounting
Options :
• 20” slide rail
• 26” slide rail
• 20” slide rail
• 26” slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-3N000-02 | 3U w/ fans, full height 7 slot rear panel, w/ R2W PSU bracket, steel door, w/o power supply, w/o rail |
| XE1-3N000-03 | 3U w/ fans, full height 7 slot rear panel, w/ Acbel CRPS 550W RPSU, steel door, w/o rail |
| XE1-3N000-04 | 3U w/ fans, full height 7 slot rear panel, w/ Acbel single 550W RPSU, steel door, w/o rail |
| XE1-3N000-05 | 3U w/ fans, full height 7 slot rear panel, w/ Acbel CRPS 800W RPSU, w/o door, w/o rail |
| FRU Information | |
| Part Number | Description |
| FC-000000112 | 60x25 mm easy-swap fans |

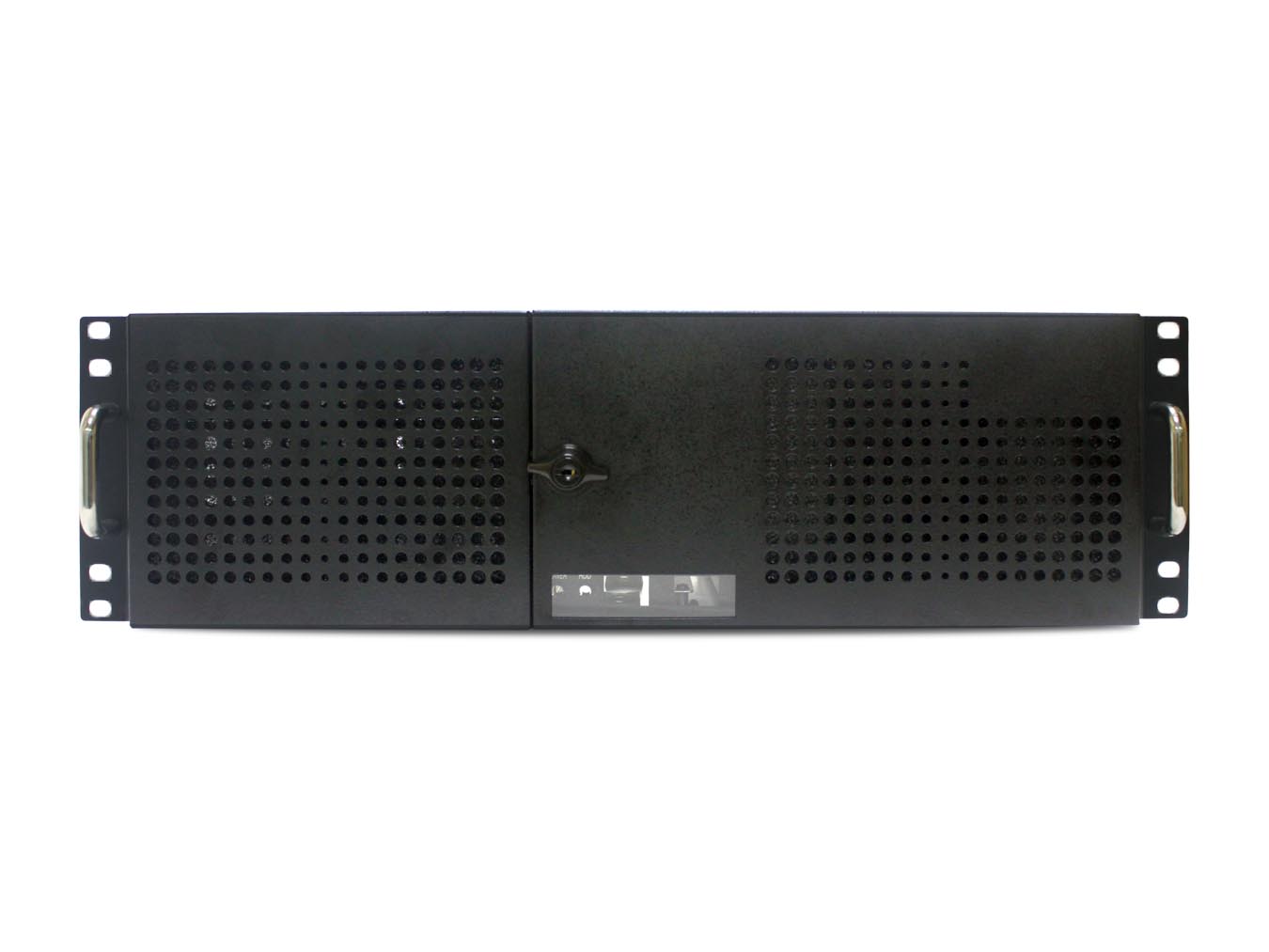

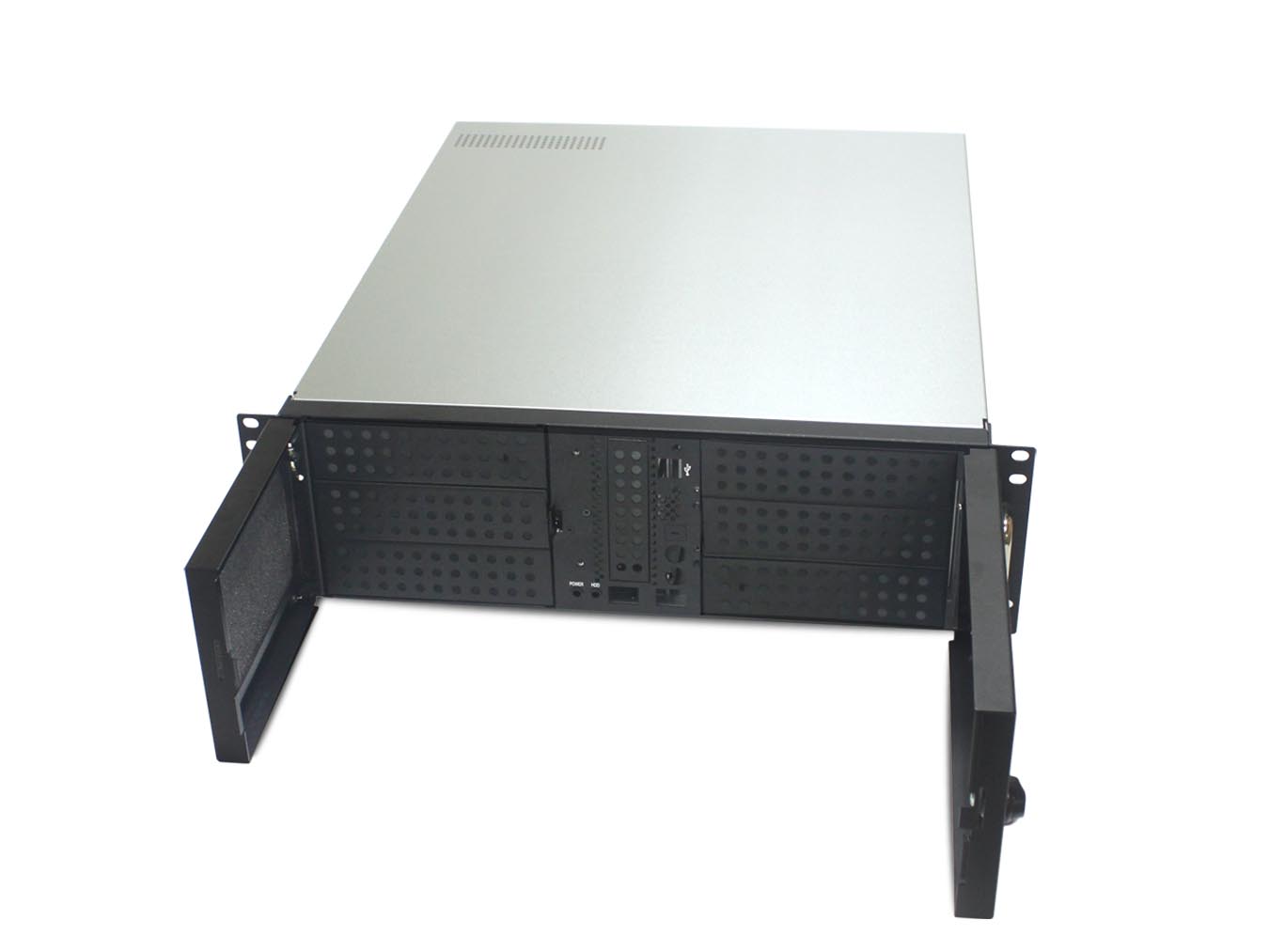

| M06-00137-01 | Front door with key lock for data security and protection |
| M03-00137-01 | 5.25" fan kit for RMC-3N |
