RMC-2E1(BTO)

The RMC-2E1 chassis is AIC first model focus on Edge-Computing appliance product. Its flexibility of support both front and rear I/O is the biggest feature on ALL application scenarios. The flexible and variable can easily reach through simple change/adjustment on the field. The 450mm depth is easy to implement into all cabinets.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Flexible front I/O and rear I/O application options

FEATURE

4 x easy swap fans for superior cooling

FEATURE

Supports GPU card with 2U riser card

FEATURE

Supports up to 4 x 2.5” external hot swap drive bays

FEATURE

Includes a redundant PSU 80+ Platinum

FEATURE

Two front access USB 3.0 ports

FEATURE

Short-depth design for space critical applications

FEATURE

Supports 2 post or 4 post rack deployment

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

Dimensions

438 x 450 x 88

inches

17.2 x 17.7 x 3.5

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Black

Cooling

Standard :
• 4 x 60x38mm easy swap fans

Power Supply

Standard:

• 800W 1+1 redundant PSU 80+ Platinum

Expansion Slots

Standard:

• 1 x PCIe x16 Gen3 single slot + 1 x PCIe x8 Gen4 single slot

Options:

• 1 x PCIe x16 Gen4 dual slot + 1 x PCIe x8 Gen4 single slot

• 7 x low profile slots

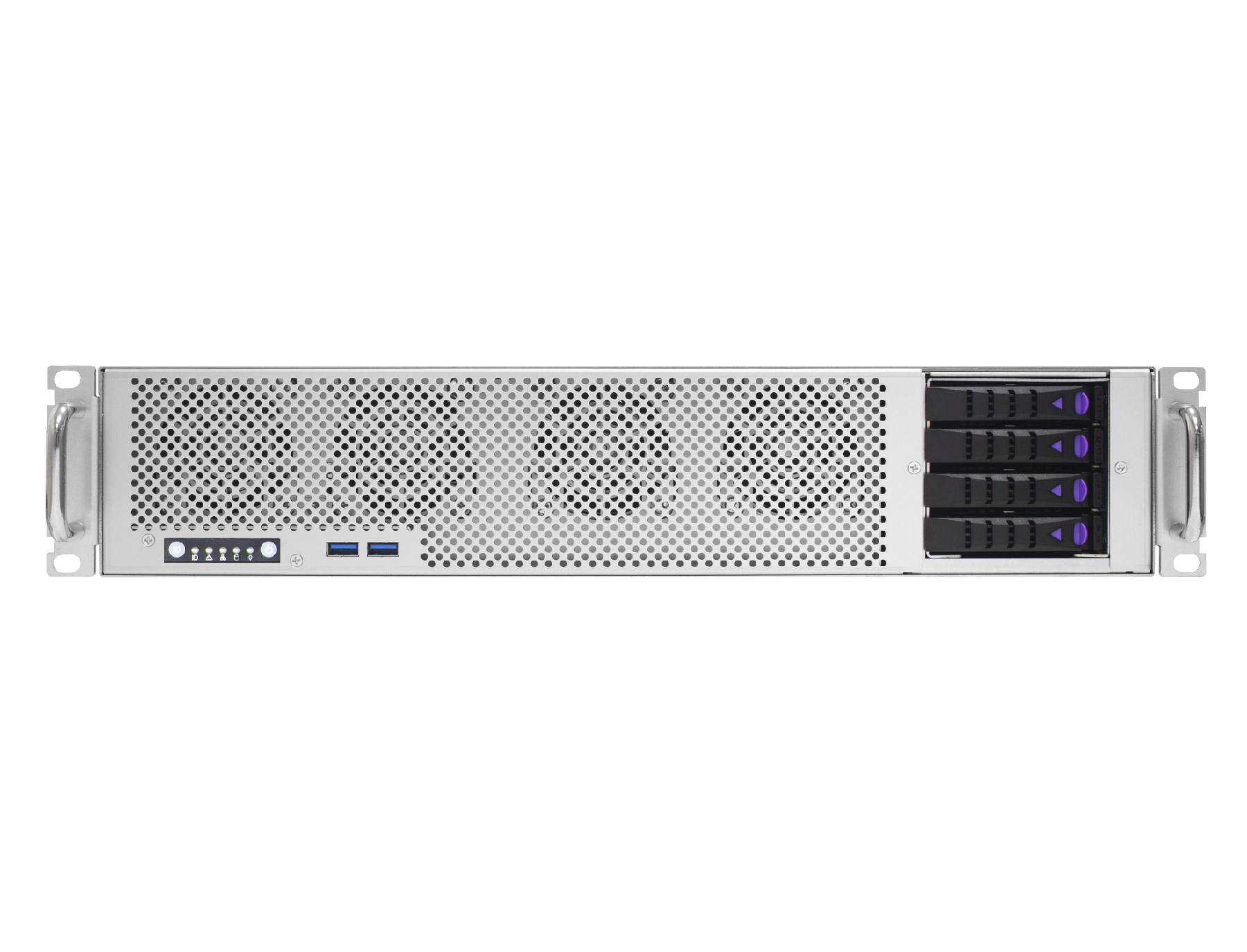

Front Panel

• System power on/off

• System reset

• 2 x USB ports

LED Indicators

• Power status

• LAN activity

• Drive activity

System board

Up to 12”(W) x 13”(D) EATX compliant MB

Drive Bays

External

External: 4 x 2.5”

Internal

Peripheral Drive

Backplane

2pcs dual ports SATA BP to support 4 x SATA

Storage Temparature

0ºC(32ºF) ~ 50ºC(122ºF)

Humidity

5%~95% non-condensing

Gross Weight (W/PSU& Rail)

kgs

lbs

28.5

Packaging Dimensions (W x D x H)

655 x 580 x 244

inches

25.8 x 22.8 x 9.6

Cubic Feet

3.2

Container Load Quantity

20'

295

40'

625

40' H

720

Mounting

Option : 20” slide rail

* All specifications are subject to change without notice.

SKU Information	Description
XE1-2E001-01	2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 2x full-height slots,1x low profile slot rear window, with 1x PCIe Gen3 x16 slot riser card (RC-PE2U23-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail
XE1-2E001-02	2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 2x full-height slots, 1x low profile slot rear window, with 1x PCIe Gen4 x16 slot + 1x PCIe Gen4 x8 slot riser card (shared/RC-PE2U22-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail
XE1-2E001-03	2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 7 low profile slots rear window, w/o rail
XE1-2E001-04	2U external 4x 2.5" NVMe hot-swap (w/o slimline cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 7 low profile slots rear window, w/o rail
XE1-2E001-05	2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 7 low profile slots rear window, w/o rail
XE1-2E001-06	2U external 4x 2.5" NVMe hot-swap (w/o slimline cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 7 low profile slots rear window, w/o rail
XE1-2E001-07	2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 2x full-height slots,1x low profile slot rear window, with 1x PCIe Gen3 x16 slot riser card (RC-PE2U23-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail
XE1-2E001-08	2U external 4x 2.5" SATA hot-swap (w/o SATA cable), 4x 6038 fan, 800W 1+1 Titanium redundant power supply, 2x full-height slots, 1x low profile slot rear window, with 1x PCIe Gen4 x16 slot + 1x PCIe Gen4 x8 slot riser card (shared/RC-PE2U22-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail
XE1-2E001-09	2U external 4x 2.5" NVMe hot-swap (w/o slimline cable), 4x 6038 fan, 800W 1+1 Platinum redundant power supply, 2x full-height slots,1x low profile slot rear window, with 1x PCIe Gen3 x16 slot riser card (RC-PE2U23-TY), 1x PCIe Gen4 x8 slot riser card (RC-PE1U34-TY), w/o rail

FRU Information
Part Number	Description
H5541S100003	18" slide rail GSLIDE-4101-43 (for RMC-2E, J2012-03/J2024-06/J2012-04/J2024-07)
PH-A00000193	2U 1+1 800W redundant power supply Housing
PM-A00000155	2U 1+1 800W redundant power supply Module PLATINUM
PM-C00000132	2U 1+1 800W redundant power supply Module TITANIUM
FC-A00001161	6038 fan module
BBP-FB10007A	2.5" 15mm 2 port PCIe Gen 4 NVMe backplane (BP-FB1U04-TY) /SLIMLINEx8*1
BBP-HD10003A	2.5" 15mm 2 port SATA backplane (BP-HD1H04-TY)
