RMC-2A
RMC-2A chassis is designed specifically for Entry-level server, Computer Telephony and Appliance applications with 17” depth and excellent air flow. It supports a full range of single processor-based ATX size motherboards. (Power supply is optional. Motherboard is not included.)
KEY FEATURE
Front access dual USB ports
FEATURE
Front access dual USB ports

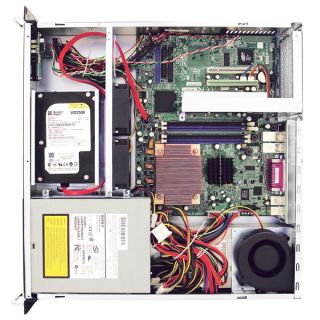

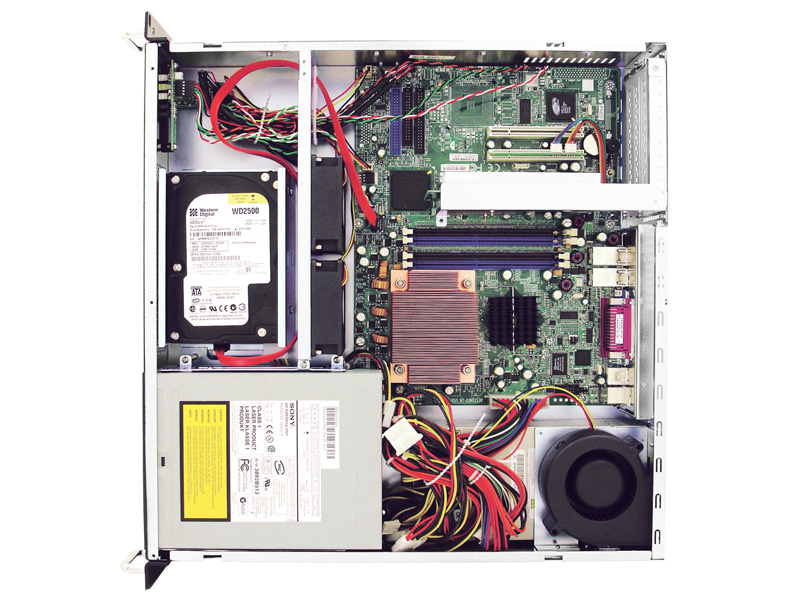

2 x middle fans + 1 x rear blower fan for superior cooling
FEATURE
2 x middle fans + 1 x rear blower fan for superior cooling
Includes riser card mounting bracket
FEATURE
Includes riser card mounting bracket
3 x full height or 7 x low profile expansion slots
FEATURE
3 x full height or 7 x low profile expansion slots
Short-depth design for space critical application
FEATURE
Short-depth design for space critical application
Specification
SPECIFICATION
Main
Sub
Details
Dimensions
mm
427 x 431.8 x 88
inches
16.8 x 17 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty cold-rolled steel
Color
Black
Cooling
• Middle : 2 x 80x25mm fans
Power Supply
• 1U 400W FLEX single PSU
Expansion Slots
Options :
• 3 full height via riser card
• 7 low profile
• 3 full height via riser card
• 7 low profile

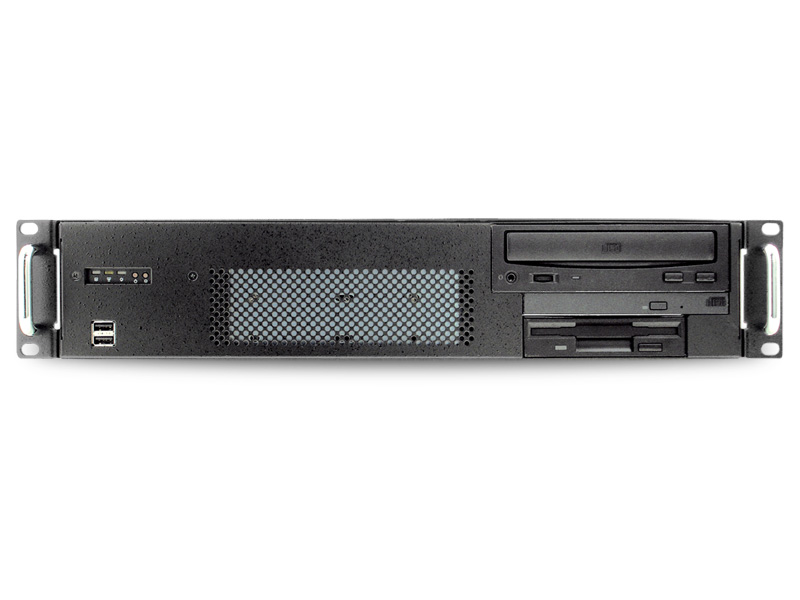

Front Panel
• System power on/off
• System reset
• 2 x USB 3.0 ports
• System reset
• 2 x USB 3.0 ports
LED Indicators
• Power status
• LAN activity
• Drive activity
• LAN activity
• Drive activity
System board
Up to 12”(W) x 9.6”(D) ATX compliant MB
Drive Bays
External
1 x 5.25”, 1 x 3.5”
Internal
3 x 3.5”
Peripheral Drive
1 x Slim DVD-ROM
Backplane
Storage Temparature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (W/PSU& Rail)
kgs
12.7
lbs
28
Packaging Dimensions (W x D x H)
mm
588 x 598 x 257
inches
23.1 x 23.5 x 10.1
Cubic Feet
2.8
Container Load Quantity
20'
335
40'
690
40' H
775
Mounting
Options :
• 20” slide rail
• 26” slide rail
• 20” slide rail
• 26” slide rail
* All specifications are subject to change without notice.
| SKU Information | Description |
| XE1-2A000-01 | 2U with 2x 8025 fan, 3 full height slot PCI rear panel, w/o power supply, w/o rail, black |
| XE1-2A000-05 | 2U with 2x 8025 fan, 7 low profile slot with 300W single power supply |
| XE1-2A000-06 | 2U with 2x 8025 fan, 7 low profile slot low profile rear panel, with 500W (P1H-5500V) PSU bracket, w/o rail, black |
| XE1-2A000-09 | 2U with 2x 8025 fan, 3 full height slot PCI rear panel, with 400W FLEX single PSU, w/o rail, w/o blower FAN, black |
| XE1-2A000-10 | 2U with 2x 8025 fan, 7 low profile slot low profile rear panel, with 400W FLEX single PSU, w/o rail, w/o blower FAN, black |
| FRU Information | |||
| Standard Parts List | Part Number | Qty | Description |
| Mid Fan | FC-A00000517 | 1 | 80x25 mm fan |
| Rear Blower | FC-B00000007 | 1 | 97mm blower fan |
| Power Supply | PS-A00000154 | 1 | 400W FLEX single power supply |
