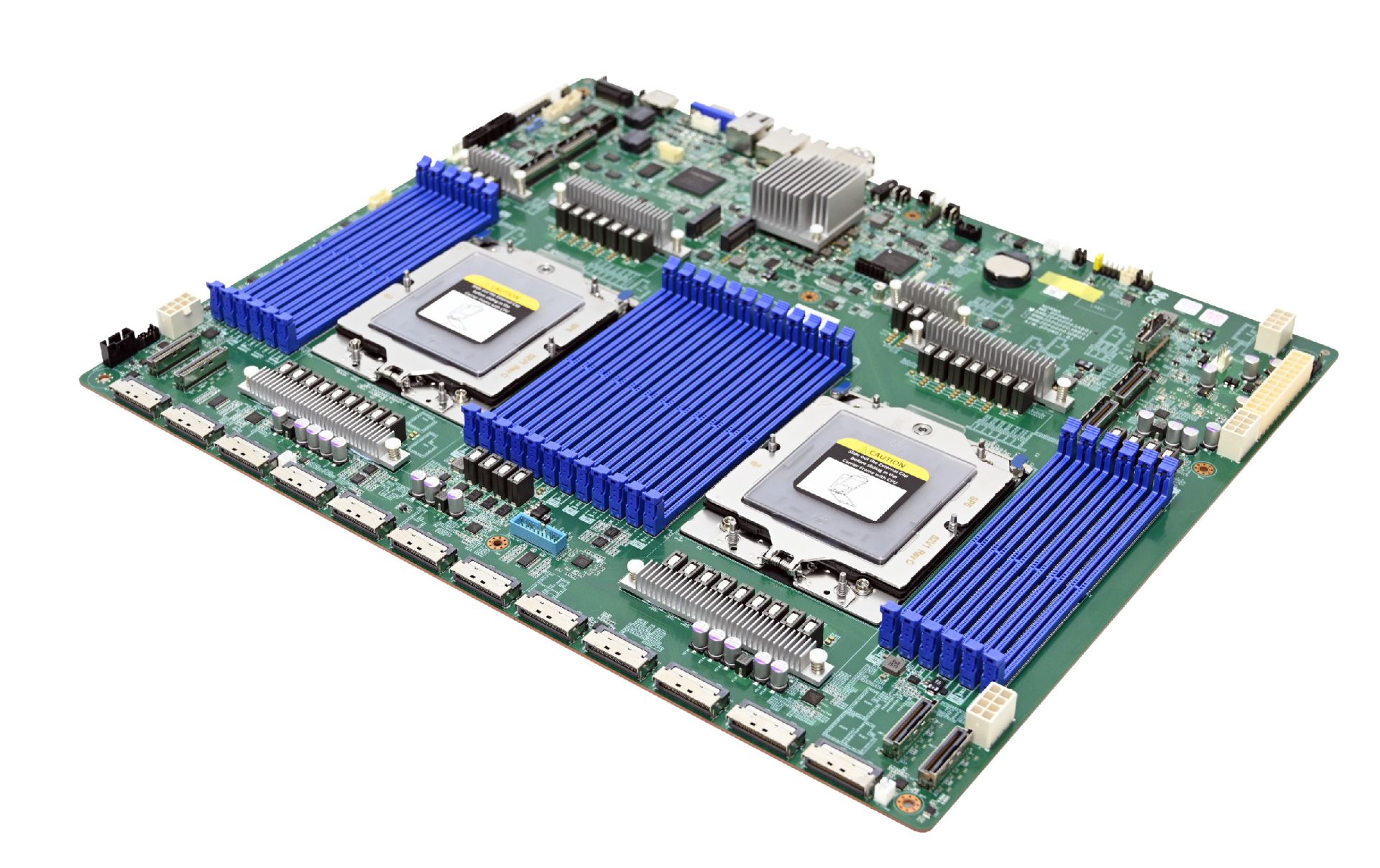

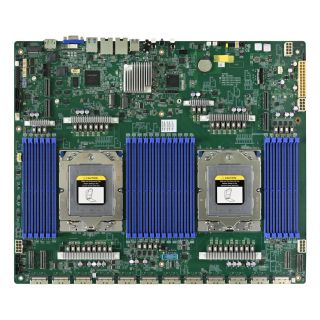

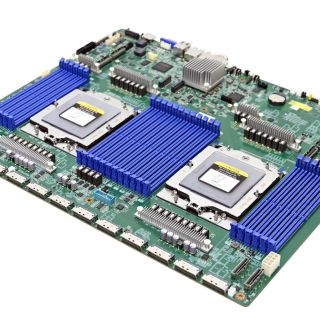

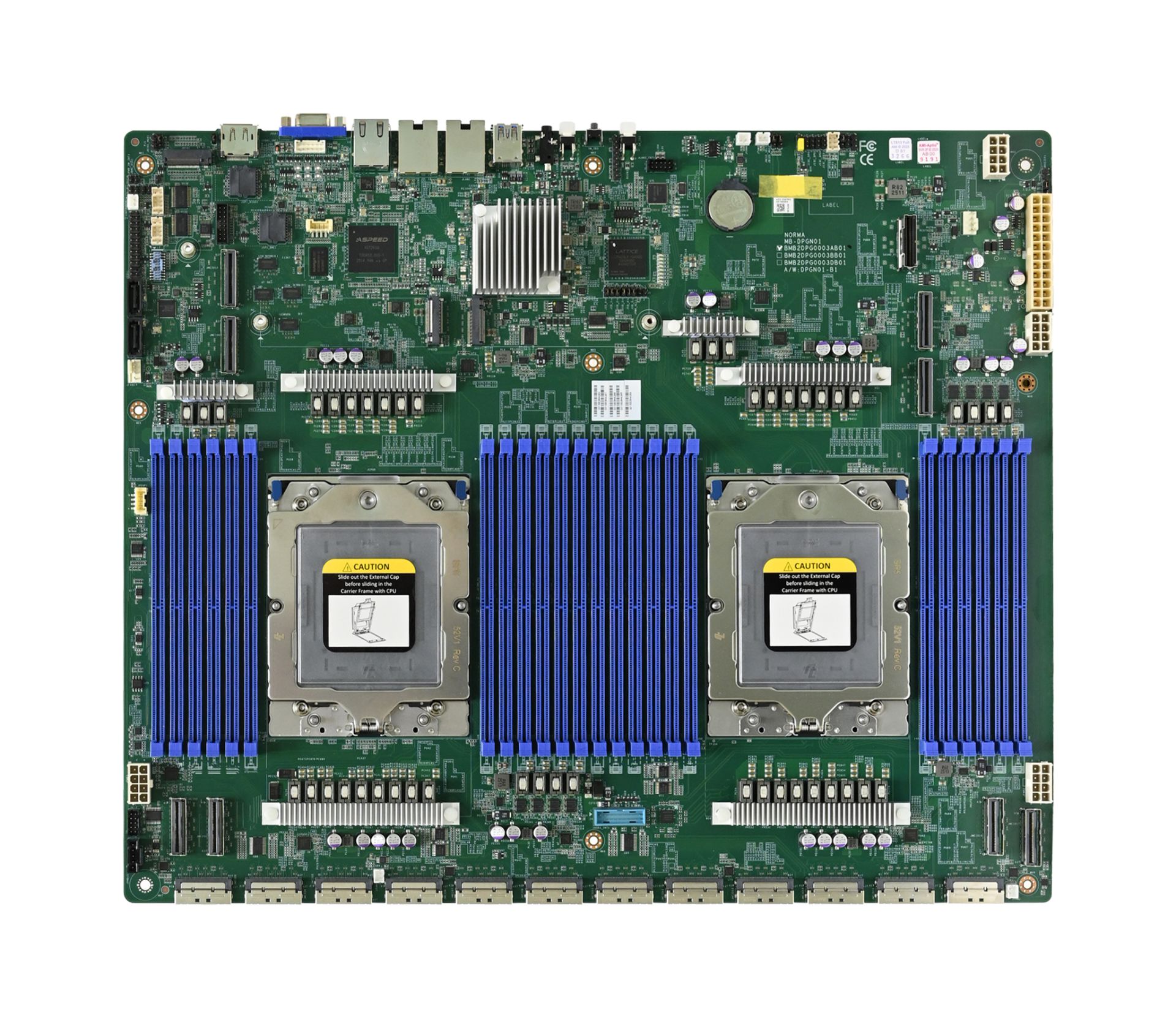

Norma supports dual AMD EPYC™ 9004/9005-series processors with up to 128 CPU cores and TDP up to 400W. It supports up to 6TB DDR5 3DS RDIMMs with 24 memory slots and memory speeds up to 6400MHz.
The high-speed expansion I/O includes 20 x MCIO PCIe Gen5 x8 lanes (total 160 PCIe Gen5 lanes), and 2 x M.2 NVMe PCIe Gen5 (option with forward PCIe expansion, default: MCIO from CPU0). Security features include TPM2.0 onboard, TCM and PFR by optional.
The high-speed expansion I/O includes 20 x MCIO PCIe Gen5 x8 lanes (total 160 PCIe Gen5 lanes), and 2 x M.2 NVMe PCIe Gen5 (option with forward PCIe expansion, default: MCIO from CPU0). Security features include TPM2.0 onboard, TCM and PFR by optional.
Specification
SPECIFICATION
Main
Sub
Details
System
Dimensions
• mm : 425 x 350.35
• inches : 16.7 x 13.8
• inches : 16.7 x 13.8
Processor-Support
Dual AMD EPYC™ 9004/9005-series processor
CPU-TDP
400W
UPI-Speeds
Socket-Type
Socket SP5 (LGA 6096)
System-Memory
DDR5 with ECC
• 6000MHz (1DPC RDIMM by Turin)
• 4800MHz (1DPC RDIMM by Genoa) Total 24 memory slots; 12 slots per CPU (1DPC) Supports up to 6TB (3DS RDIMM)
• 6000MHz (1DPC RDIMM by Turin)
• 4800MHz (1DPC RDIMM by Genoa) Total 24 memory slots; 12 slots per CPU (1DPC) Supports up to 6TB (3DS RDIMM)
Expansion-Slots
Total support 160 lanes of PCIe5.0
• PCIe expansion
- 20 x MCIO PCIe Gen5 x8 lanes
• M.2
(option with above PCIe expansion, default: MCIO)
- 2 x M.2 NVMe PCIe Gen5
• 1 x USB 3.0 double-stack Type-A connector
• 1 x USB pin header supports two USB 3.0 Gen1
• 1 x USB pin header supports two USB 2.0
• PCIe expansion
- 20 x MCIO PCIe Gen5 x8 lanes
• M.2
(option with above PCIe expansion, default: MCIO)
- 2 x M.2 NVMe PCIe Gen5
• 1 x USB 3.0 double-stack Type-A connector
• 1 x USB pin header supports two USB 3.0 Gen1
• 1 x USB pin header supports two USB 2.0
System-BIOS
BIOS-Type
AMI UEFI BIOS (64M ROM size)
BIOS-Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hot plug
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hot plug
On-board-Devices
SATA
• 1 x ASMedia ASM1062R SATA (6Gbs) RAID controller (Support RAID 0, RAID 1, SPAN) supports 2 SATA ports
• 2 x ASMedia ASM1164 SATA (6Gbs) controller supports 8 SATA ports
• 2 x ASMedia ASM1164 SATA (6Gbs) controller supports 8 SATA ports
BMC
ASPEED AST2600
Network-Controller
Intel® I210 GbE Ethernet Controller
Graphics
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920 x 1200 @60Hz 32bpp
• Resolution up to 1920 x 1200 @60Hz 32bpp
Additional-Information
• TPM 2.0 - NUVOTON NPCT760AABYX
• TCM 2.0 interface for extension
• PFR interface for extension (Default: N/A; optional by SKU)
• TCM 2.0 interface for extension
• PFR interface for extension (Default: N/A; optional by SKU)

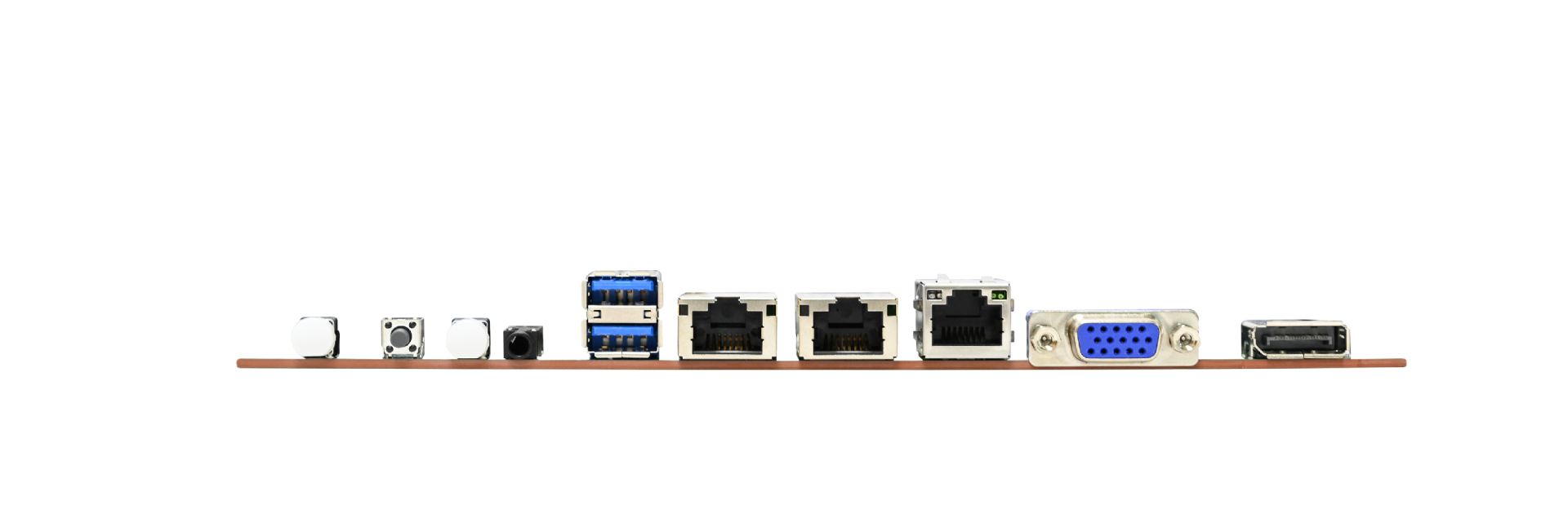

Input-Output
SATA
• 2 x SATA3.0 7-pin by ASM1062R (supports RAID 0/1)
• 1 x Slimline connector (up to 8 SATA ports) by ASM1164
• 1 x Slimline connector (up to 8 SATA ports) by ASM1164
LAN
• 2 x RJ45 10GbE connectors
• 1 x RJ45 1GbE connector (for BMC management port)
• 1 x RJ45 1GbE connector (for BMC management port)
USB
• 1 x USB 3.0 double-stack Type-A connector
• 1 x USB pin header supports two USB 3.0 Gen1
• 1 x USB pin header supports two USB 2.0
• 1 x USB pin header supports two USB 3.0 Gen1
• 1 x USB pin header supports two USB 2.0
Display
1 x VGA connector
Serial-Port
1 x COM connector (phone jack)
Others
Total support 160 lanes of PCIe5.0
• PCIe expansion
- 20 x MCIO PCIe Gen5 x8 lanes
• M.2 (option with above PCIe expansion, default: MCIO)
- 2 x M.2 NVMe PCIe Gen5
• PCIe expansion
- 20 x MCIO PCIe Gen5 x8 lanes
• M.2 (option with above PCIe expansion, default: MCIO)
- 2 x M.2 NVMe PCIe Gen5
Additional-Information
Security
• Security
- 1 x M.2 connector available for PFR extension
- TPM 2.0 onboard
- TCM 2.0 with 2x8 connector (optional)
- 1 x M.2 connector available for PFR extension
- TPM 2.0 onboard
- TCM 2.0 with 2x8 connector (optional)
* All specifications are subject to change without notice.
|
MB_SKU |
Ordering Information |
Description |
|---|---|---|
|
Norma(A) |
BMB2DPG0003A |
PCBA/MOTHER BOARD/MB-DPGN01/NORMA/VER-B06/SKU-A AMD CPUX2/GENOA AND TURIN/20*MCIO PCIE/2* M.2/2* SATA3 7PIN/10G LAN |
|
Norma(B) |
BMB2DPG0003B |
PCBA/MOTHER BOARD/MB-DPGN01/NORMA/VER-B06/SKU-B AMD CPUX2/GENOA AND TURIN/20*MCIO PCIE/2* M.2/2* SATA3 7PIN/1G LAN |
