J4108-02-04X

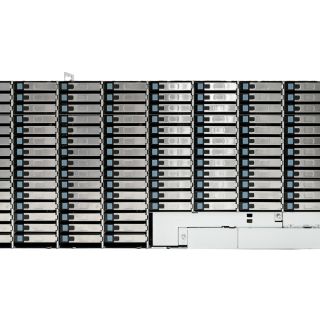

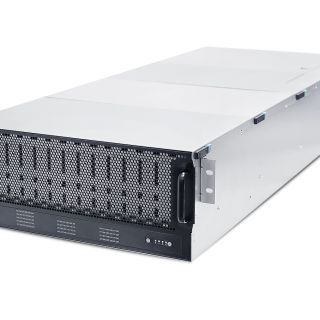

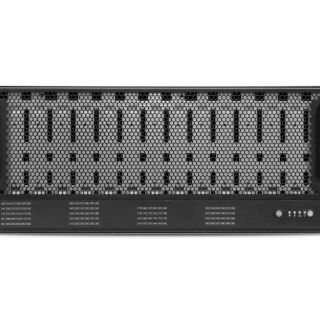

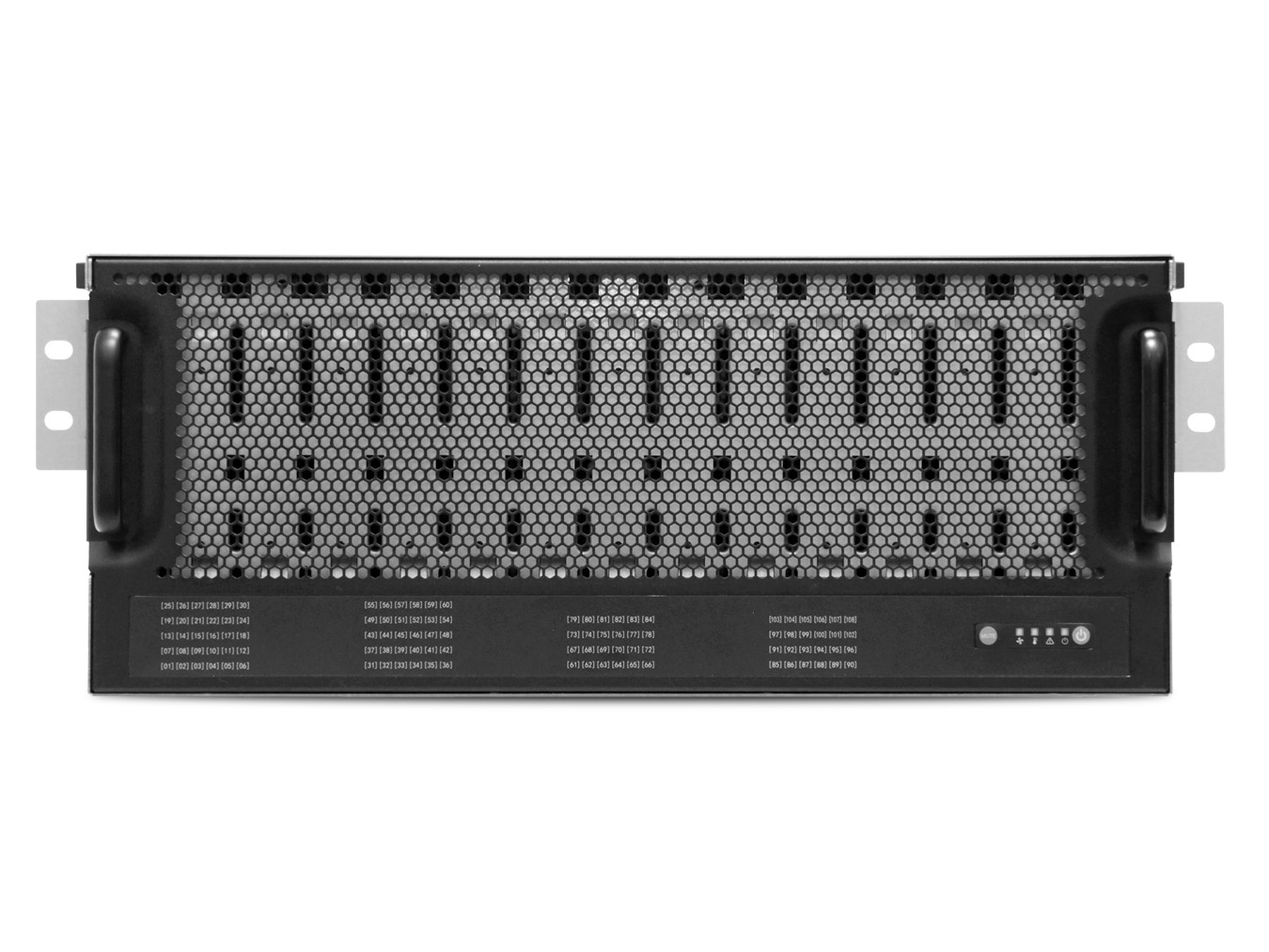

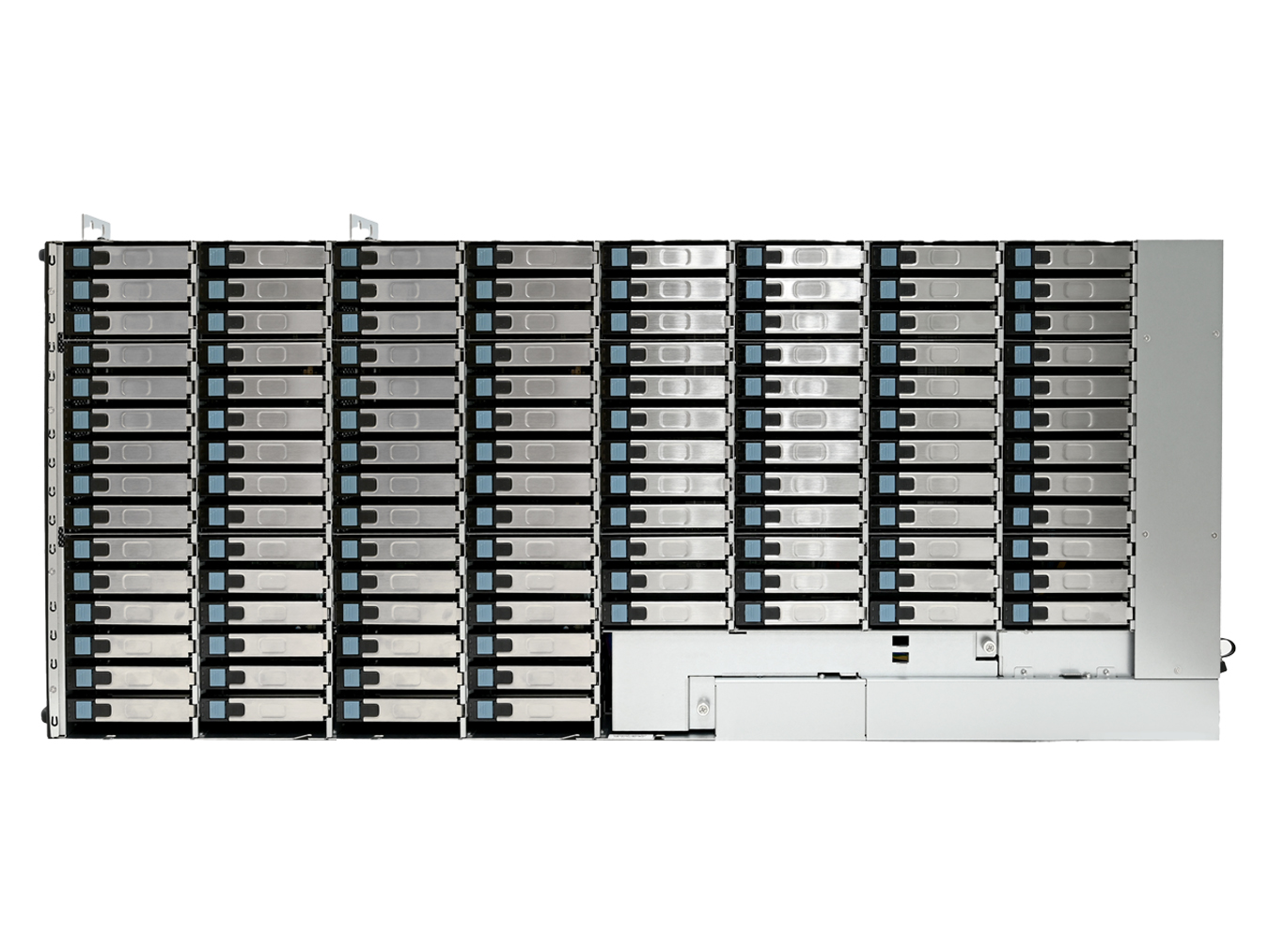

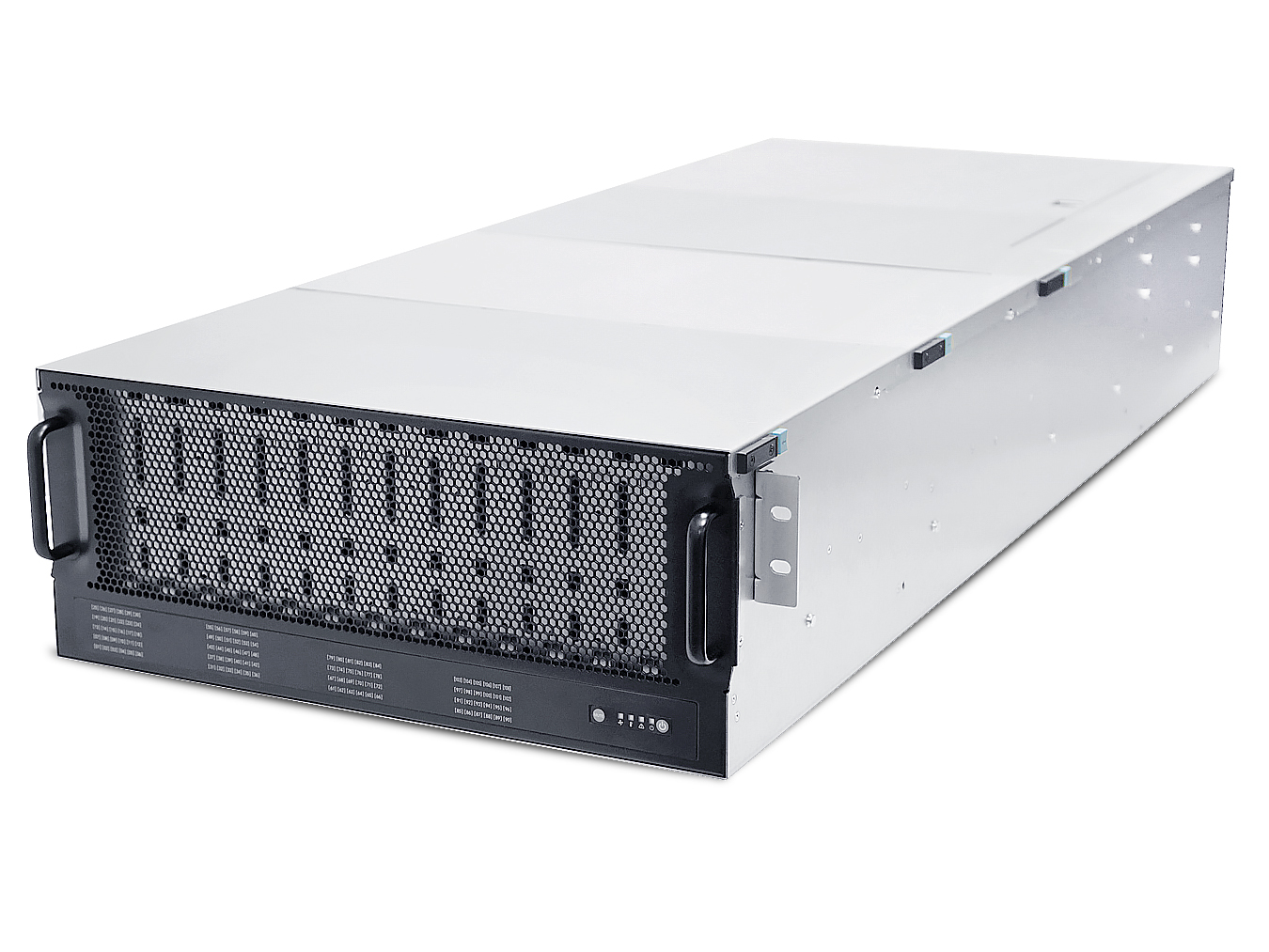

J4108-02-04X, a 4U 108-Bay 24Gb/s SAS JBOD, ideal for high-availability storage and high-performance appliance. This 4U 24Gb/s SAS JBOD enclosure with single or dual expanders supports 108 x 3.5” drives. (Support 2.5” with optional kit)

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Intelligent Enclosure Management

FEATURE

Individual drive power management

FEATURE

Hot swap design for easy maintenance and management

FEATURE

Enclosure Cable Management Kit

FEATURE

Tool-less drive trays

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

General

Number of Expander

Single/Dual

Expander Chip

Hub: SAS4x48

Edge: SAS35x40 & SAS35x36/SAS4x40 & SAS4x32

XJ1-40782-01~04 Edge 24/30bays fw and mfg file. Please refer our J4078-01-35X.

Host/Expansion Interfaces

4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drivers Supported

Drive Interface

• 24Gb & 12Gb SAS if using dual expanders

• 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander

Form Factor

3.5”

Administration/Management

Admin/Firmware Upgrade

• In-band

• IEM port

LED Indicators, Audible Alarm

Yes

Hot Swap and Redundancy

Drive Bays

108

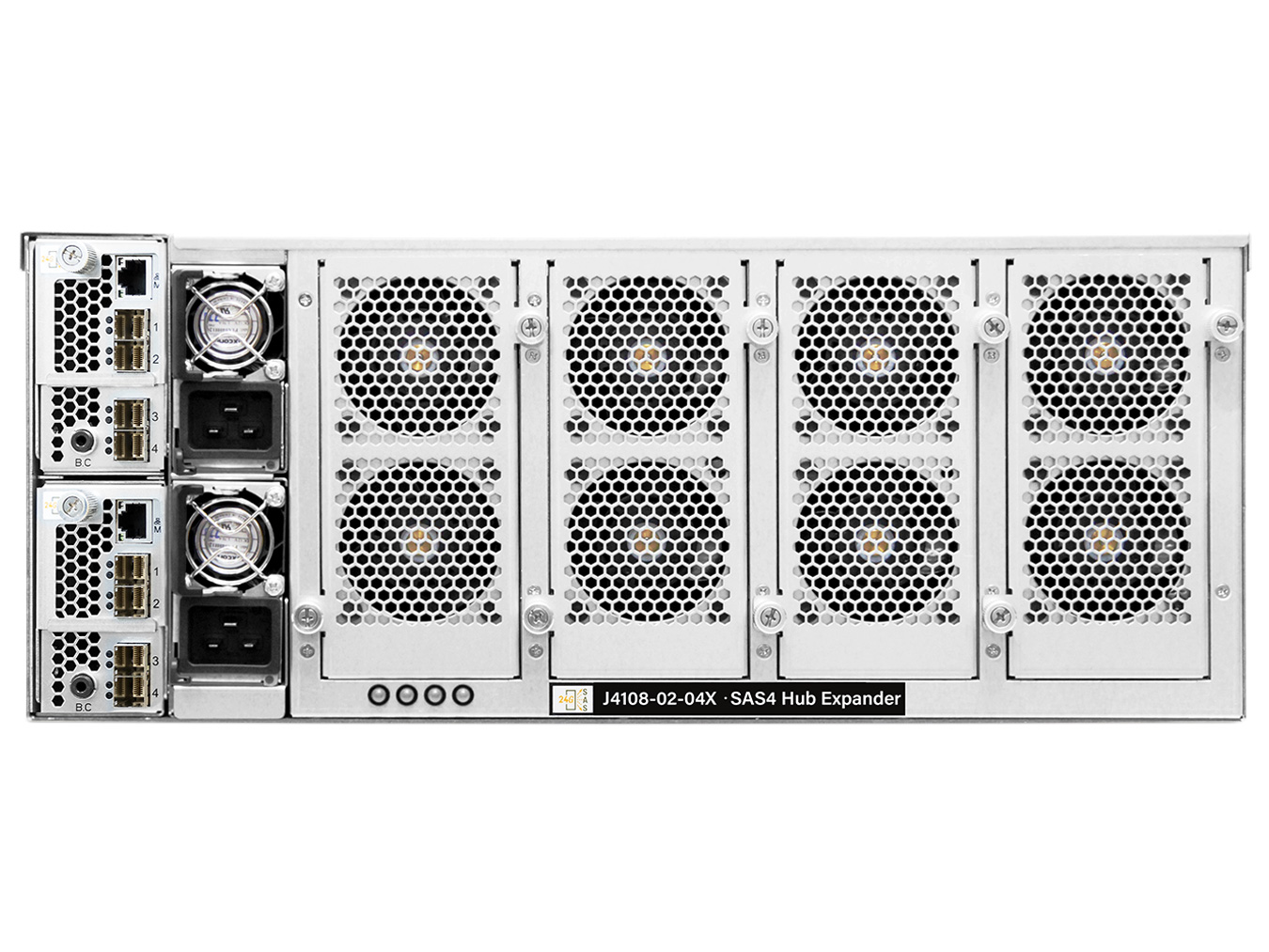

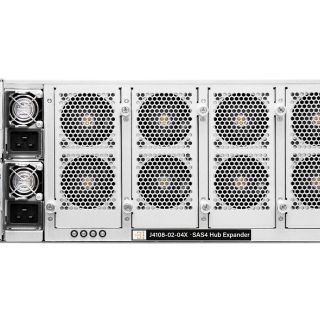

Cooling

• 8 x 60x56mm hot swap fans

• 1 x 40x56mm fan per expander module

Power Supply

• 2000W 1+1 hot swap redundant 80+ Platinum (with C20 power plug)

• 2000W 1+1 hot swap redundant 80+ Titanium (with C14 power plug)

Power Entry

Dual AC Inlet

Expander Modules

Dual SAS topology (Optional)

Electrical and Enviromental

A/C Input

Platinum:

• 200-240V~,50/60Hz,15A

Titanium:

• 100-127V~,50/60Hz,12A (except China)

• 200-240V~,50/60Hz,10A

Operating Environment

• Temperature 0ºC to 35ºC

• Relative humidity 20% to 80%

Non-operating Environment

• Temperature -20ºC to 60ºC

• Relative humidity 10% to 90%

Physical Specification

Dimension (W x D x H)

• mm:

434 x 1050 x 176

434 x 1273 x 176 (with CMA)

• inches:

17 x 41 x 7

17 x 50 x 7 (with CMA)

Gross Weight (w/PSU, Rail ; w/o Pallet, Disks)

• kgs: 66.97

• lbs: 147.6

Packaging Dimensions (W x D x H)

• mm: 640 x 1380 x 526

• inches: 25.2 x 54.3 x 20.7

Mounting

• Standard: 41" Slide Rail

• Option: Cable Management Kit

* All specifications are subject to change without notice.

Ordering Information	Description
XJ1-41082-01	4U 108x 3.5" hot-swap bays, hot-swap JBOD with single SAS 24G hub expander controller, single BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Platinum (C20 inlet), tool-less rail kit
XJ1-41082-02	4U 108x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 24G hub expander controller, dual BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Platinum (C20 inlet), tool-less rail kit
XJ1-41082-03	4U 108x 3.5" hot-swap bays, hot-swap JBOD with single SAS 24G hub expander controller, single BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit
XJ1-41082-04	4U 108x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 24G hub expander controller, dual BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit
XJ1-41082-05	4U 108x 3.5" hot-swap bays, hot-swap JBOD with single SAS 24G edge/hub expander controller, single BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Platinum (C20 inlet), tool-less rail kit
XJ1-41082-06	4U 108x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 24G edge / hub expander controller, dual BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Platinum (C20 inlet), tool-less rail kit
XJ1-41082-07	4U 108x 3.5" hot-swap bays, hot-swap JBOD with single SAS 24G edge / hub expander controller, single BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit
XJ1-41082-08	4U 108x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 24G edge / hub expander controller, dual BMC, tool-less HDD tray, 2000W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit

FRU Parts	Description
H5532S100001	41" Tool-less Slide Rail
H56-00673-01	CMA kit (for SB405 & J4108; full stroke)
H54-00673-02	CMA kit (for SB405 & J4108; incomplete stroke)
M06-00395-15	3.5" tray assy
M06-00628-15	J4060-04/J4078/J4108/RSC-4H1/SB407-TU/SB405-VL FRU parts- 3.5" tray to 2.5" device adapter (32pcs in package)
H18-00628B01	2.5 BKT only
BBPRHD40013B	30-bay SAS35X backplane w/ single expander chip
BBPRHD40014B	24-bay SAS35X backplane w/ single expander chip
BBPRHD40013A	30-bay SAS35X backplane w/ dual expander chip
BBPRHD40014A	24-bay SAS35X backplane w/ dual expander chip
BBPRHD40025B	30-bay SAS4 backplane w/ single expander chip
BBPRHD40026B	24-bay SAS4 backplane w/ single expander chip
BBPRHD40025A	30-bay SAS4 backplane w/ dual expander chip
BBPRHD40026A	24-bay SAS4 backplane w/ dual expander chip
BDB-PWR0010A	Power distribution board
BDBREXP0019A	J4078/J4108-02 24G Expander board (hub) DB-EXPD25-TY without packing
M06-1330-019_A01	J4078/J4108-02 24G Expander module (hub) DB-EXPD25-TY with packing (10 pcs in packing)
PM-F00000011	2000W Platinum PSU CRPS module (C20 inlet)
PM-A00000137	2000W Titanium PSU CRPS module(C14 inlet)
M06-00395-14	6056 fan module set with 6056 FAN (L150mm) 1 + 6056 FAN (L80mm) 1, with packing (16 sets in packing)
G8-A00000073	8674-8674 cable - 1M
G8-A00000074	8674-8674 cable - 2M
G8-A00000075	8674-8674 cable - 3M
