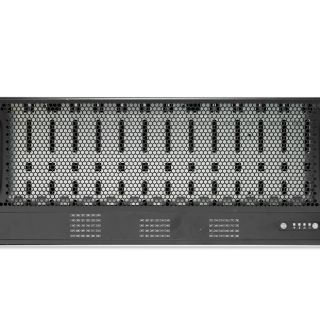

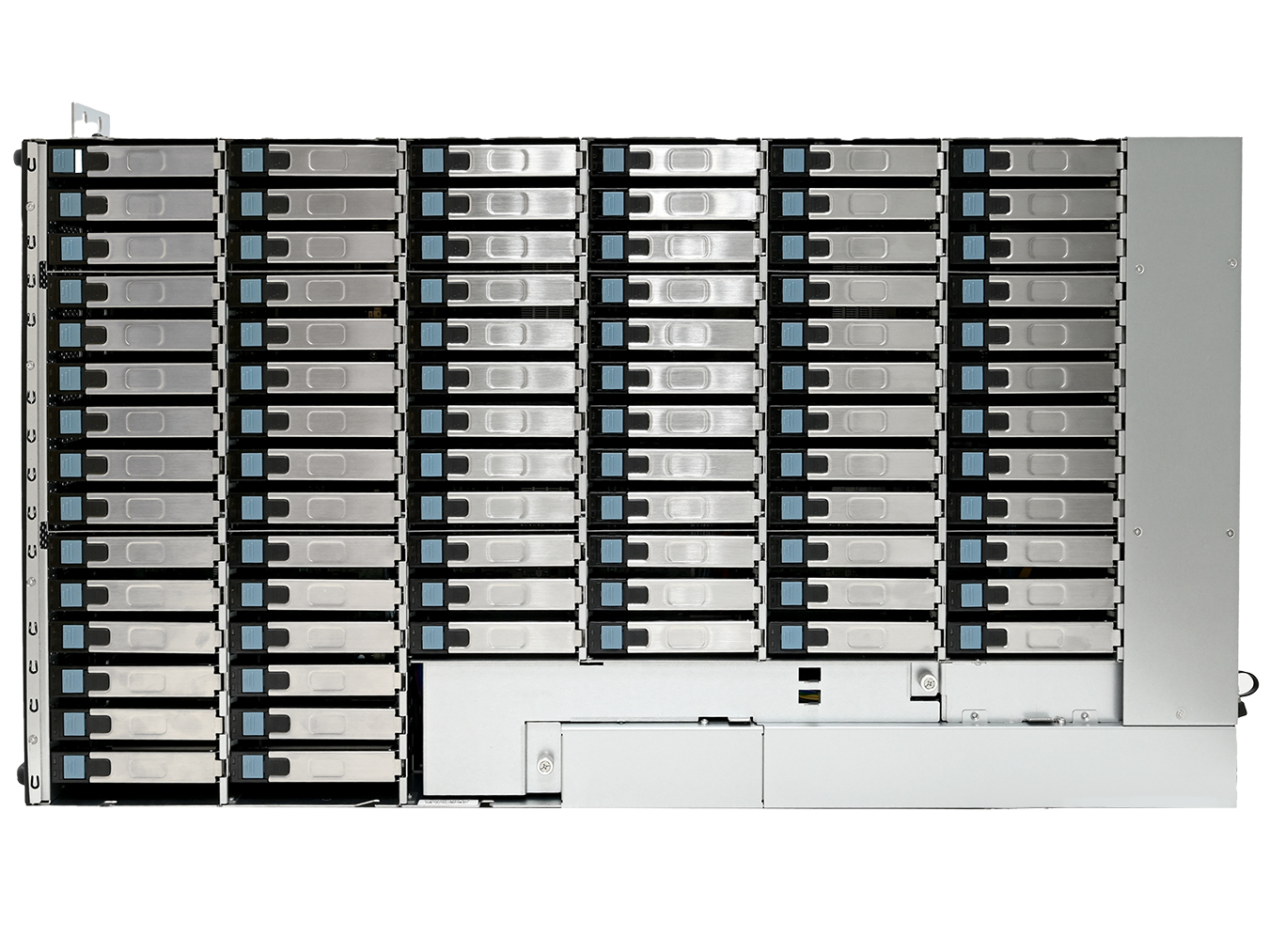

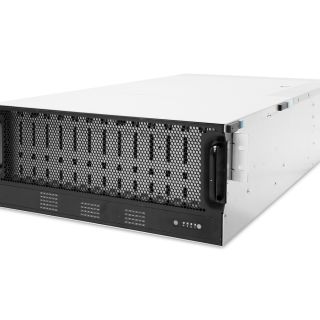

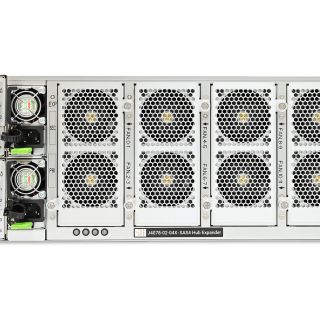

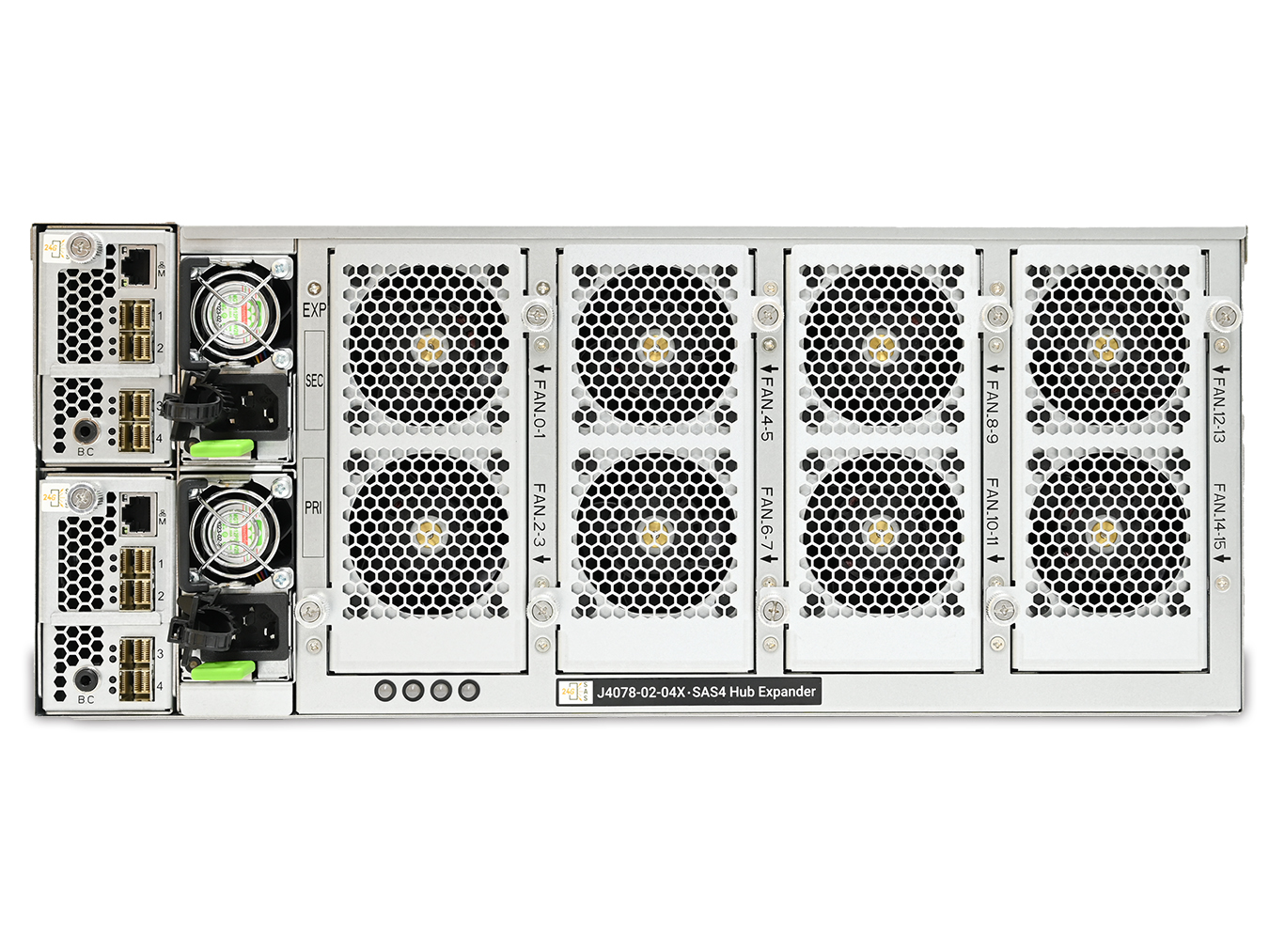

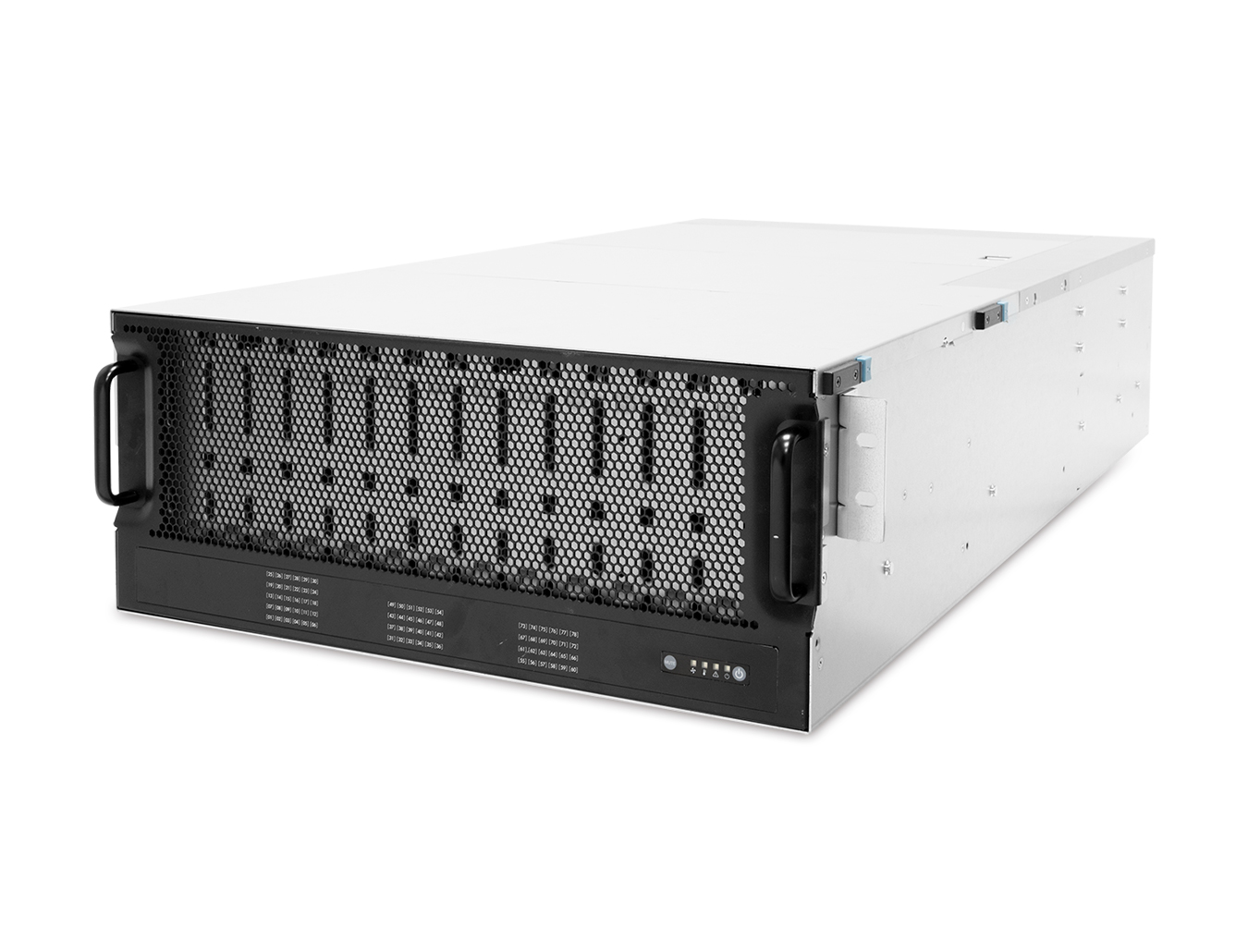

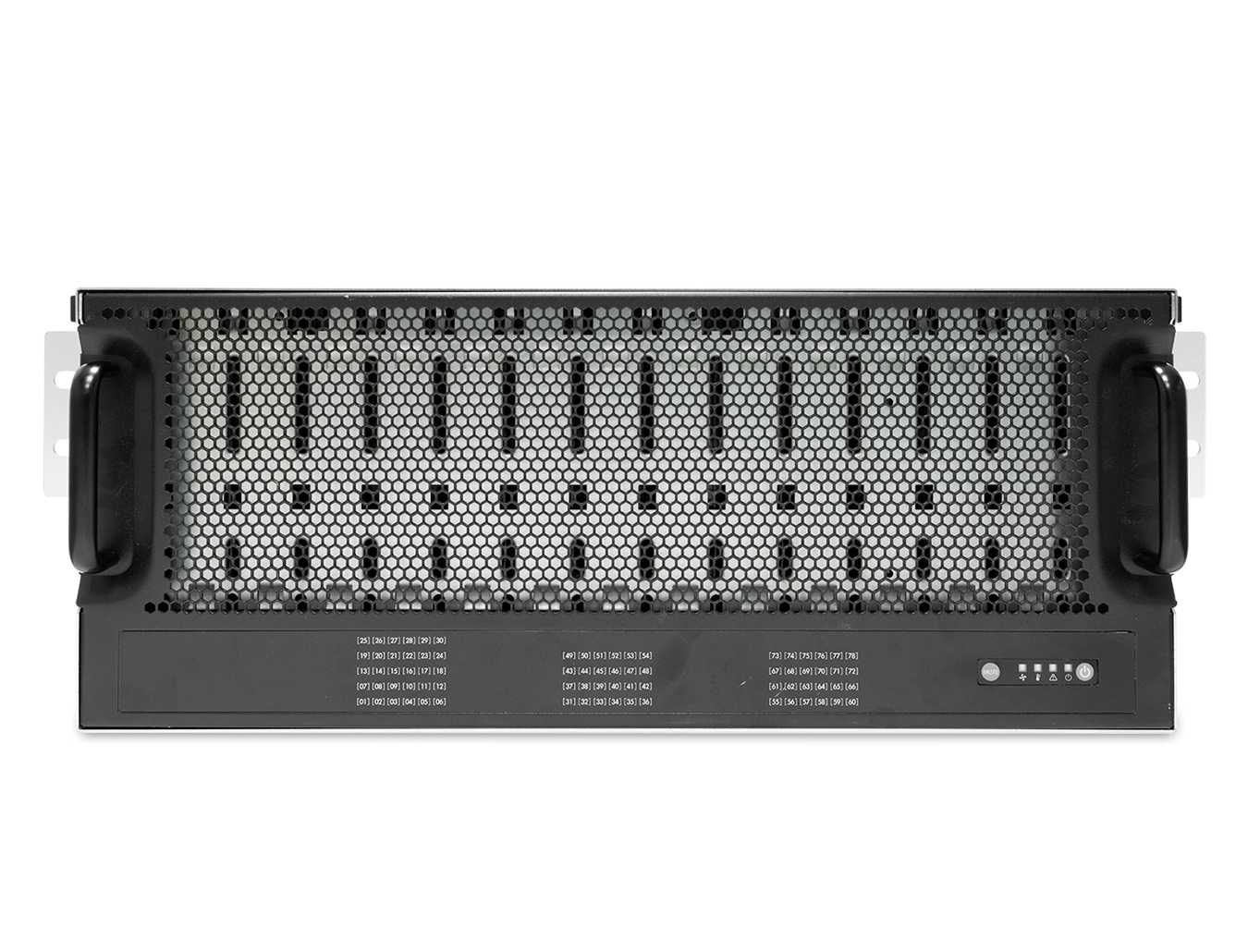

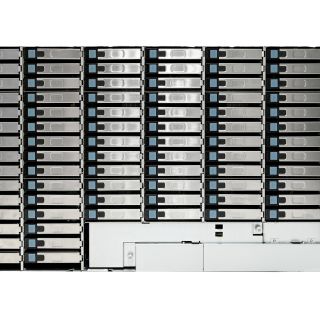

J4078-02-04X_Front J4078-02-04X_Front45 J4078-02-04X_rear(1) J4078-02-04X_top

J4078-02-04X

Home Products Storage JBOD / JBOX
J4078-02-04X, a 4U 78-Bay 24Gb/s SAS JBOD, ideal for high-availability storage and high-performance appliance.
This 4U 24Gb/s SAS JBOD enclosure with single or dual expanders supports 78 x 3.5” drives. (Support 2.5” with optional kit)
COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE
Intelligent Enclosure Management
FEATURE
Individual drive power management
FEATURE
Hot swap design for easy maintenance and management
FEATURE
Enclosure Cable Management Kit
FEATURE
Tool-less drive trays
FEATURE
Designed for 1000mm depth rackmount server cabinet
Specification

SPECIFICATION

Main
Sub
Details

General

Number of Expander
Single/Dual
Expander Chip
Hub: SAS4x48

Edge: SAS35x40 & SAS35x36/SAS4x40 & SAS4x32

XJ1-40782-01~04 Edge 24/30bays fw and mfg file. Please refer our J4078-01-35X.
Host/Expansion Interfaces
4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drivers Supported

Drive Interface
• 24Gb & 12Gb SAS if using dual expanders

• 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander
Form Factor
3.5” / 2.5” (with optional kit)

Administration/Management

Admin/Firmware Upgrade
• In-band

• IEM port
LED Indicators, Audible Alarm
Yes

Hot Swap and Redundancy

Drive Bays
78
Cooling
• 8 x 60x56mm hot swap fans

• 1 x 40x56mm fan per expander module
Power Supply
1600W 1+1 hot swap redundant 80+ Platinum/Titanium
Power Entry
Dual AC Inlet
Expander Modules
Dual SAS topology (Optional)

Electrical and Enviromental

A/C Input
• Platinum: 200-240Vac , 50/60Hz, 12A (1600W)

• Titanium: 200-240Vac , 50/60Hz, 10A (1600W)
Operating Environment
• Temperature: 0ºC to 35ºC

• Relative humidity: 20% to 80%
Non-operating Environment
• Temperature: -20ºC to 60ºC

• Relative humidity: 10% to 90%

Physical Specification

Dimension (W x D x H)
• mm:

434 x 810.5 x 176

434 x 974.7 x 176 (with CMA)

• inches:

17 x 31.9 x 7

17 x 38.4 x 7 (with CMA)
Gross Weight (w/PSU, Rail ; w/o Pallet, Disks)
• kgs: 57.67

• lbs: 127.1
Packaging Dimensions (W x D x H)
• mm: 675 x 1120 x 536

• inches: 26.6 x 44.1 x 21.1

Mounting

• Standard: 31” slide rail

• Option: Cable Management Kit

* All specifications are subject to change without notice.

Ordering Information Description
XJ1-40782-01 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  single  SAS 12G edge/24G hub expander controller,  single  BMC, tool-less HDD tray,  1600W 1+1 hot-swap redundant 80+  Platinum (C14 inlet/185mm), tool-less rail kit
XJ1-40782-02 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  dual  SAS 12G edge/24G hub expander controller,  dual BMC, tool-less HDD tray,  1600W 1+1 hot-swap redundant 80+  Platinum (C14 inlet/185mm), tool-less rail kit
XJ1-40782-03 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  single  SAS 12G edge/24G hub expander controller,  single  BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+  Titanium (C14 inlet), tool-less rail kit
XJ1-40782-04 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  dual  SAS 12G edge/24G hub expander controller,  dual  BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+  Titanium (C14 inlet), tool-less rail kit
XJ1-40782-05 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  single  SAS 24G edge/hub expander controller,  single  BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+  Platinum (C14 inlet), tool-less rail kit
XJ1-40782-06 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  dual  SAS 24G edge/hub expander controller,  dual BMC, tool-less HDD tray,  1600W 1+1 hot-swap redundant 80+  Platinum (C14 inlet), tool-less rail kit
XJ1-40782-07 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  single  SAS 24G edge/hub expander controller,  single  BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+  Titanium (C14 inlet), tool-less rail kit
XJ1-40782-08 4U 78x 3.5" hot-swap bays, hot-swap JBOD with  dual  SAS 24G edge/hub expander controller,  dual  BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+  Titanium (C14 inlet), tool-less rail kit
FRU Parts Description
H5532T100002 Tool-less Slide Rail
H54-00010-34 Cable arm/2BA7-363 (for J4060-04/J4078-01/J4078-02)
M06-00395-15 3.5" tray assy
M06-00628-15 J4060-04/J4078/J4108/RSC-4H1/SB407-TU/SB405-VL FRU parts- 3.5" tray to 2.5" device adapter (32pcs in package)
H18-00628B01 2.5 BKT only
BBPRHD40013B 30-bay SAS35X backplane w/ single expander chip
BBPRHD40014B 24-bay SAS35X backplane w/ single expander chip
BBPRHD40013A 30-bay SAS35X backplane w/ dual expander chip
BBPRHD40014A 24-bay SAS35X backplane w/ dual expander chip
BBPRHD40025B 30-bay SAS4 backplane w/ single expander chip
BBPRHD40026B 24-bay SAS4 backplane w/ single expander chip
BBPRHD40025A 30-bay SAS4 backplane w/ dual expander chip
BBPRHD40026A 24-bay SAS4 backplane w/ dual expander chip
BDB-PWR0010A Power distribution board
BDBREXP0019A J4078/J4108-02 24G Expander board (hub) DB-EXPD25-TY without packing
M06-1330-019_A01 J4078/J4108-02 24G Expander module (hub) DB-EXPD25-TY with packing (10 pcs in packing)
PM-D00000099 1600W Platinum PSU CRPS module
PM-A00000136 1600W Titanium PSU CRPS module
M06-00395-14 6056 fan module set with 6056 FAN (L150mm) *1 + 6056 FAN (L80mm) *1, with packing (16 sets in packing)
G8-A00000073 8674-8674 cable - 1M
G8-A00000074 8674-8674 cable - 2M
G8-A00000075 8674-8674 cable - 3M
RELATED RESOURCES
DOWNLOADS
Datasheet
J4078-02-04X_Datasheet
DOWNLOAD
Product Images
J4078-02-04X_Top
DOWNLOAD
J4078-02-04X_Rear
DOWNLOAD
J4078-02-04X_Front
DOWNLOAD
J4078-02-04X_Front45
DOWNLOAD
AVL
J4078-02-04X_AVL
DOWNLOAD
Firmware
J4078-02-04X_Edge_30bays_mfg4A4.0_4U78_4U108_v1.4.0.52
DOWNLOAD
J4078-02-04X_Edge_30bays_fw4A4_v1.24.4.54
DOWNLOAD
J4078-02-04X_Edge_24bays_mfg4A5.0_4U78_4U108_v1.5.0.52
DOWNLOAD
J4078-02-04X_Edge_24bays_fw4A5_v1.24.5.55
DOWNLOAD
J4078-02-04X_Hub_mfg4A1.0_4U78_4U108_v1.1.0.60
DOWNLOAD
J4078-02-04X_Hub_fw4A1_v1.24.1.58
DOWNLOAD
J4078-02-04X_BMC_4202JBD002303(AST2520)
DOWNLOAD
User's Manual
J4078-02-04X_User's Manual
DOWNLOAD
