J4078-01-35X

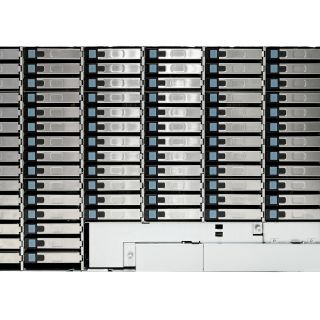

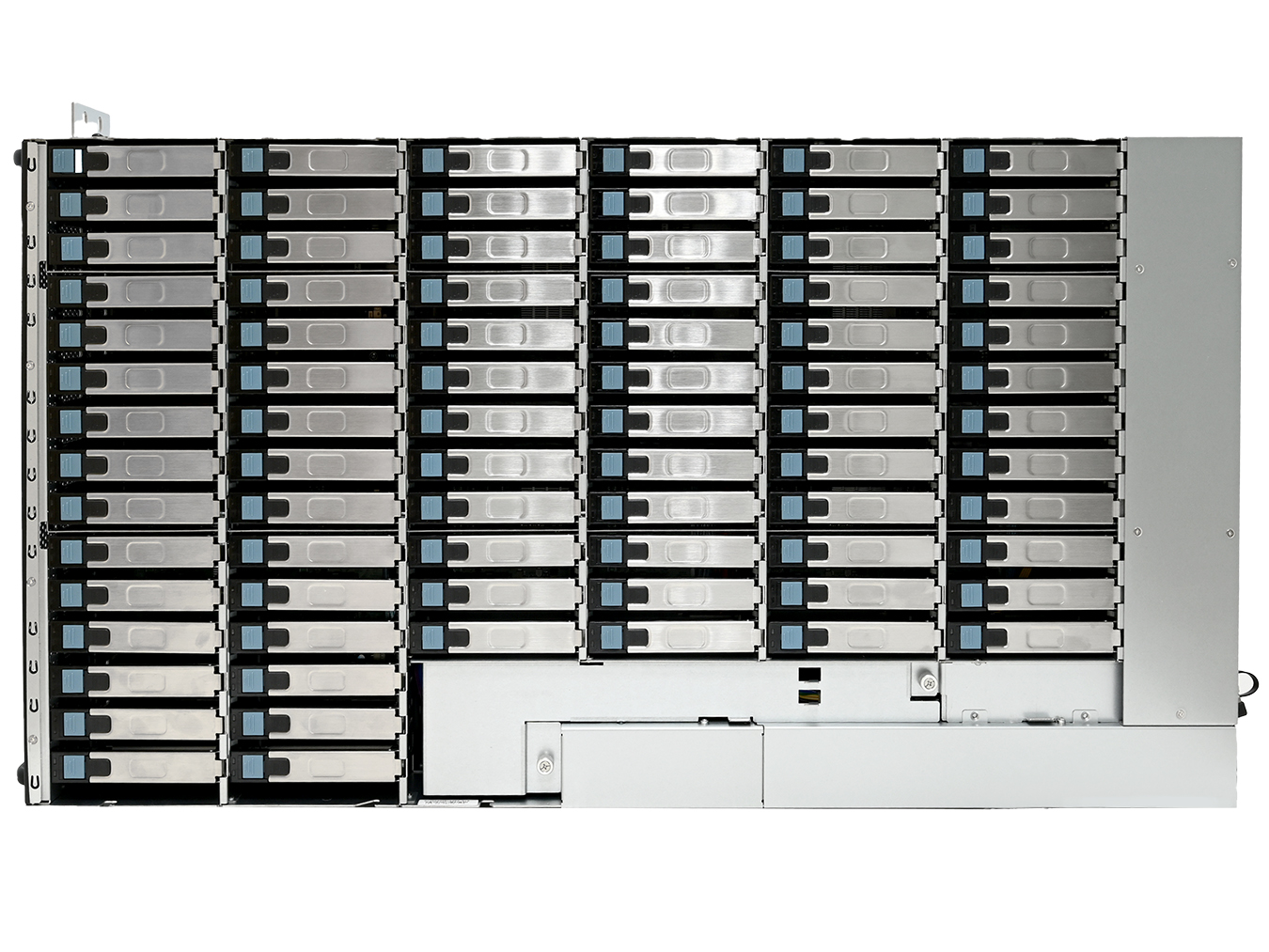

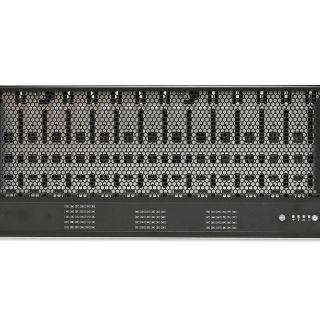

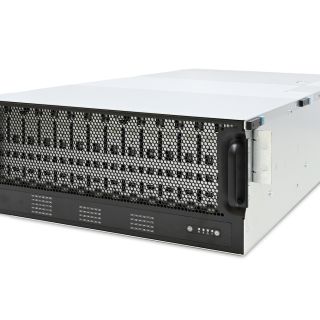

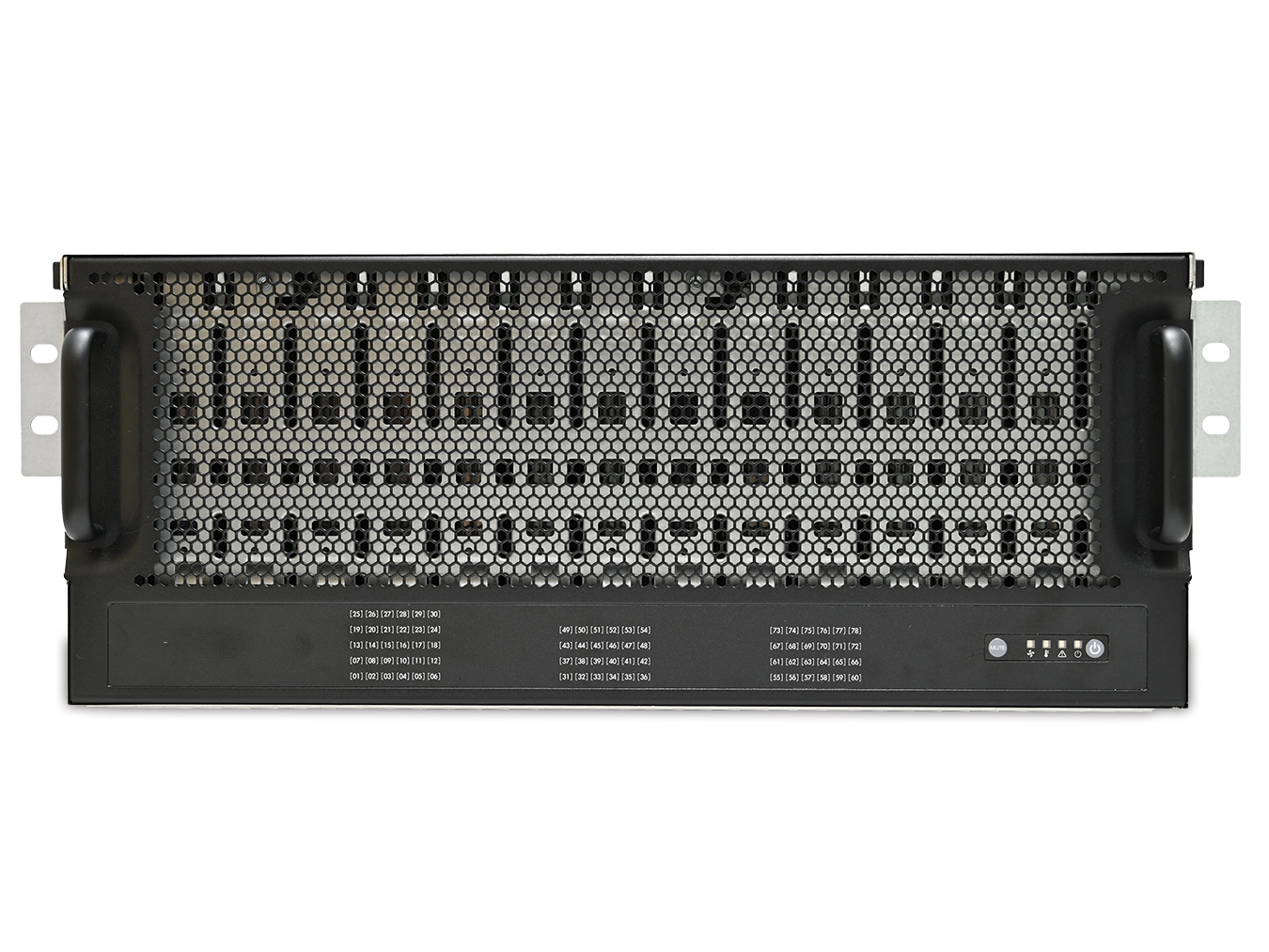

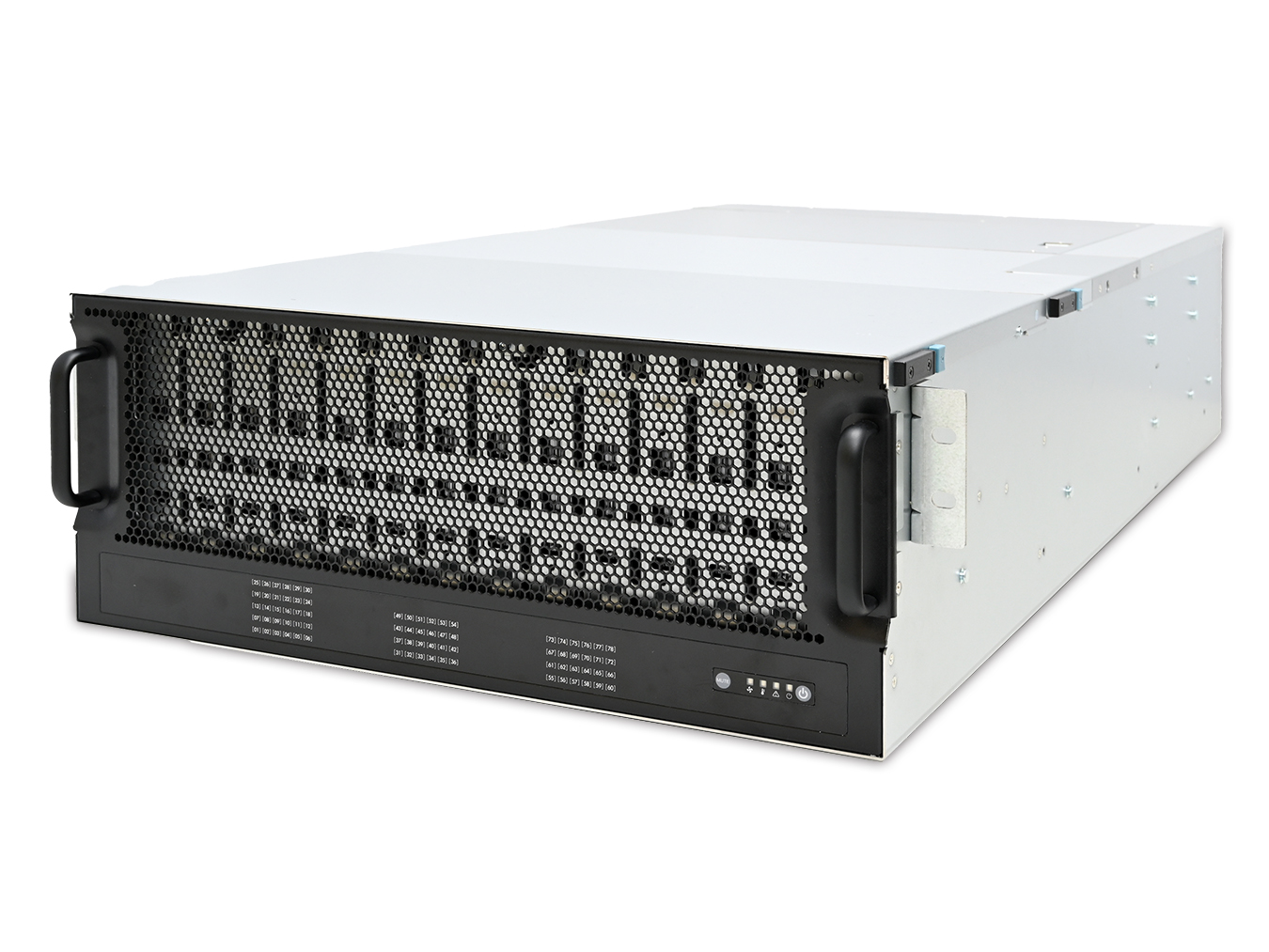

J4078-01-35X, a 4U 78-Bay 12Gb/s SAS JBOD, ideal for high-availability storage and high performance appliance. This 4U 12Gb/s SAS JBOD enclosure with single or dual expanders supports 78 x 3.5” drives.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Intelligent Enclosure Management

FEATURE

Individual drive power management

FEATURE

Hot swap design for easy maintenance and management

FEATURE

Enclosure Cable Management Kit

FEATURE

Tool-less drive trays

FEATURE

Design for 1000mm depth rackmount server cabinet

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

General

Number of Expander

Single/Dual

Expander Chip

Broadcom SAS35x48

Host/Expansion Interfaces

4 x Mini SAS HD (SFF-8644) per expander module

Drivers Supported

Drive Interface

12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander

Form Factor

SFF 3.5”

Administration/Management

Admin/Firmware Upgrade

• In-band
• IEM port

LED Indicators, Audible Alarm

Yes

Hot Swap and Redundancy

Drive Bays

Cooling

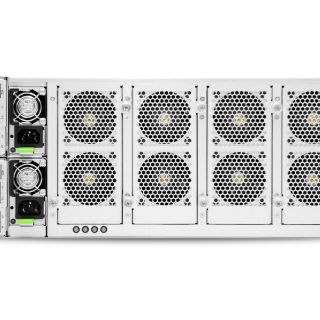

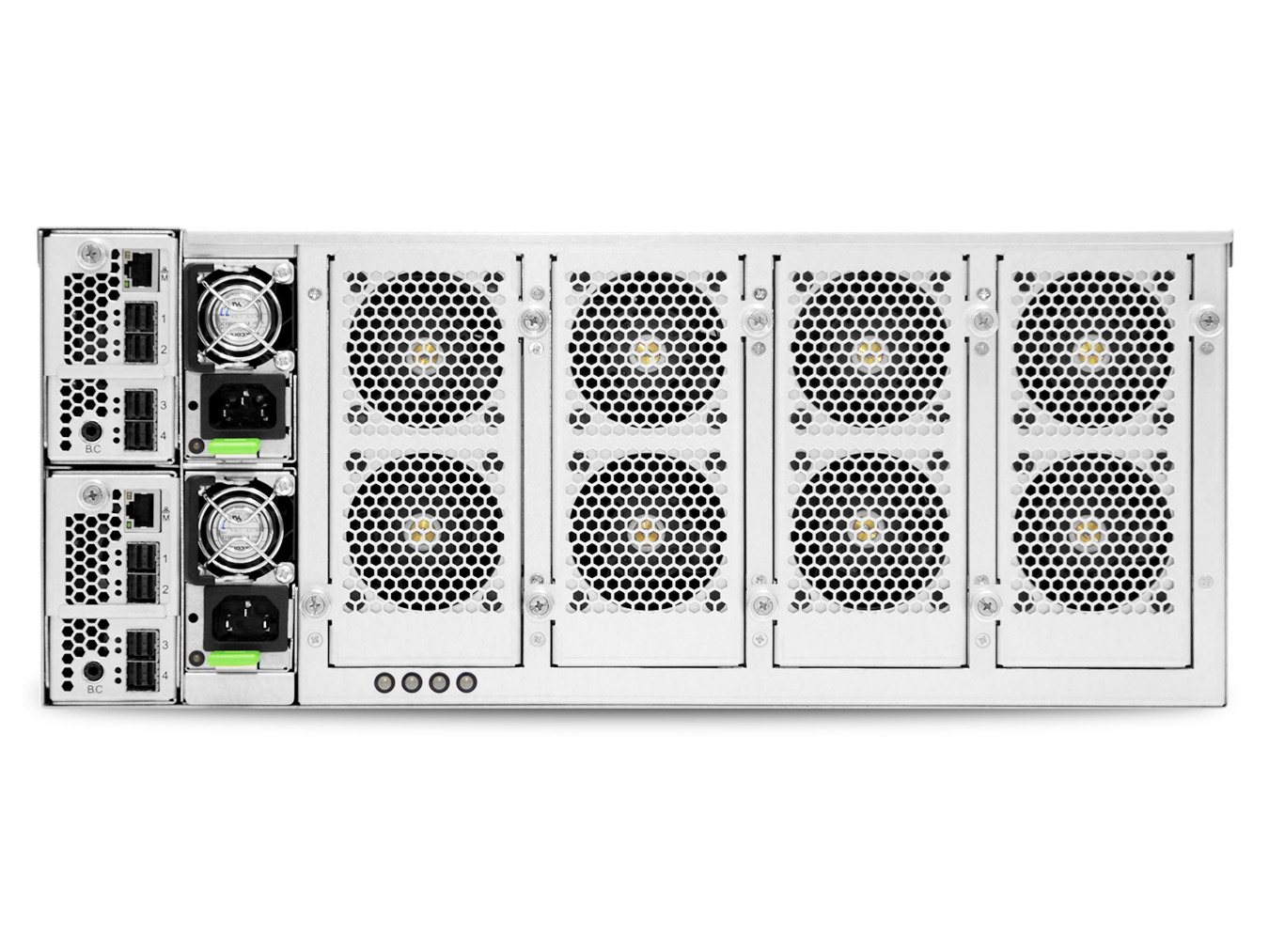

• 8 x 60x56mm hot swap fans
• 1 x 40x56mm fan per expander module

Power Supply

1600W 1+1 hot swap redundant 80+ Platinum

Power Entry

Dual AC Inlet

Expander Modules

Dual SAS topology (Optional)

Electrical and Enviromental

A/C Input

• Platinum: 200-240Vac , 50/60Hz, 12A (1600W)
• Titanium: 200-240Vac , 50/60Hz, 10A (1600W)

Operating Environment

• Temperature 0ºC to 35ºC
• Relative humidity 20% to 80%

Non-operating Environment

• Temperature -20ºC to 60ºC
• Relative humidity 10% to 90%

Physical Specification

Dimension (W x D x H)

• mm:
434 x 810.5 x 176
434 x 974.7 x 176 (with CMA)
• inches:
17 x 31.9 x 7
17 x 38.4 x 7 (with CMA)

Gross Weight (w/PSU, Rail ; w/o Pallet, Disks)

• kgs: 57.67
• lbs: 127.1

Packaging Dimensions (W x D x H)

• mm: 675 x 1120 x 536
• inches: 26.6 x 44.1 x 21.1

Mounting

• Standard: 31” slide rail
• Option: Cable Management Kit

* All specifications are subject to change without notice.

Ordering Information	Description
XJ1-40781-01	4U 78x 3.5" hot-swap bays, hot-swap JBOD with single SAS 12G expander controller, single BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Platinum (C14 inlet/185mm), tool-less rail kit (35X series)
XJ1-40781-02	4U 78x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Platinum (C14 inlet/185mm), tool-less rail kit (35X series)
XJ1-40781-04	4U 78x 3.5" hot-swap bays, hot-swap JBOD with single SAS 12G expander controller, single BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit (35X series)
XJ1-40781-05	4U 78x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit (35X series)
FRU Parts	Description
H5532T100002	Tool-less Slide Rail
H54-00010-34	Cable arm/2BA7-363 (for J4060-04/J4078-01/J4078-02)
M06-00395-15	3.5" tray assy
M06-00628-15	J4060-04/J4078/J4108/RSC-4H1/SB407-TU/SB405-VL FRU parts- 3.5" tray to 2.5" device adapter (32pcs in package)
H18-00628B01	2.5 BKT only
BBPRHD40013B	30-bay SAS35X backplane w/ single expander chip
BBPRHD40014B	24-bay SAS35X backplane w/ single expander chip
BBPRHD40013A	30-bay SAS35X backplane w/ dual expander chip
BBPRHD40014A	24-bay SAS35X backplane w/ dual expander chip
BDB-PWR0010A	Power distribution board
BDBREXP0016A	J4078/J4108-01 12G Expander board (hub)
PM-D00000099	1600W Platinum PSU CRPS module
PM-A00000136	1600W Titanium PSU CRPS module
M06-00395-14	6056 fan module set with 6056 FAN (L150mm) 1 + 6056 FAN (L80mm) 1, with packing (16 sets in packing)
