J4024-05-04X

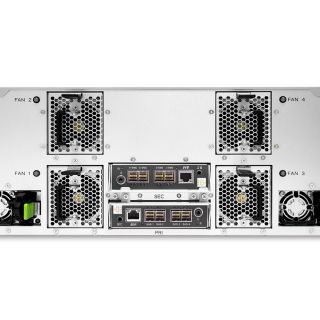

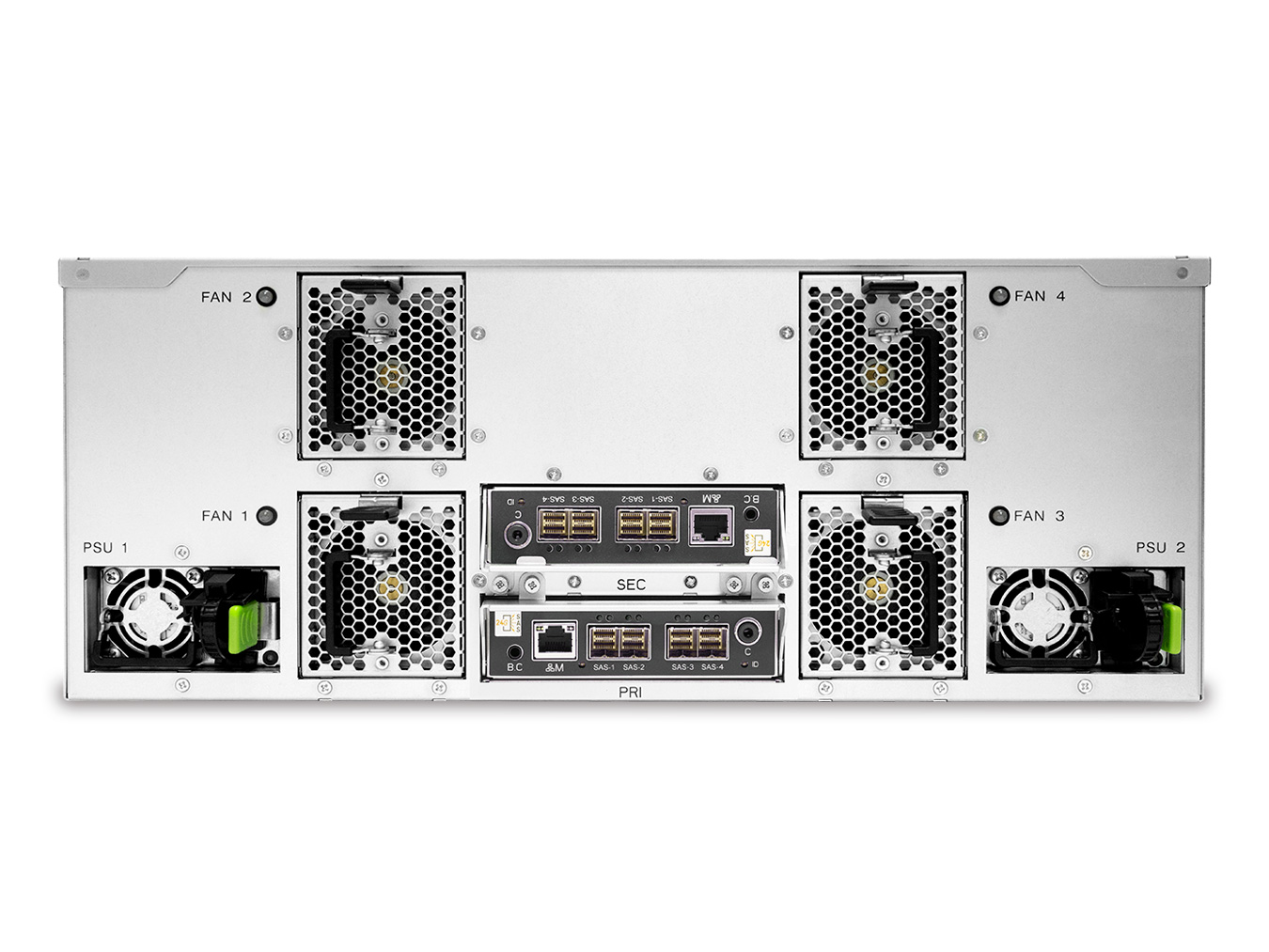

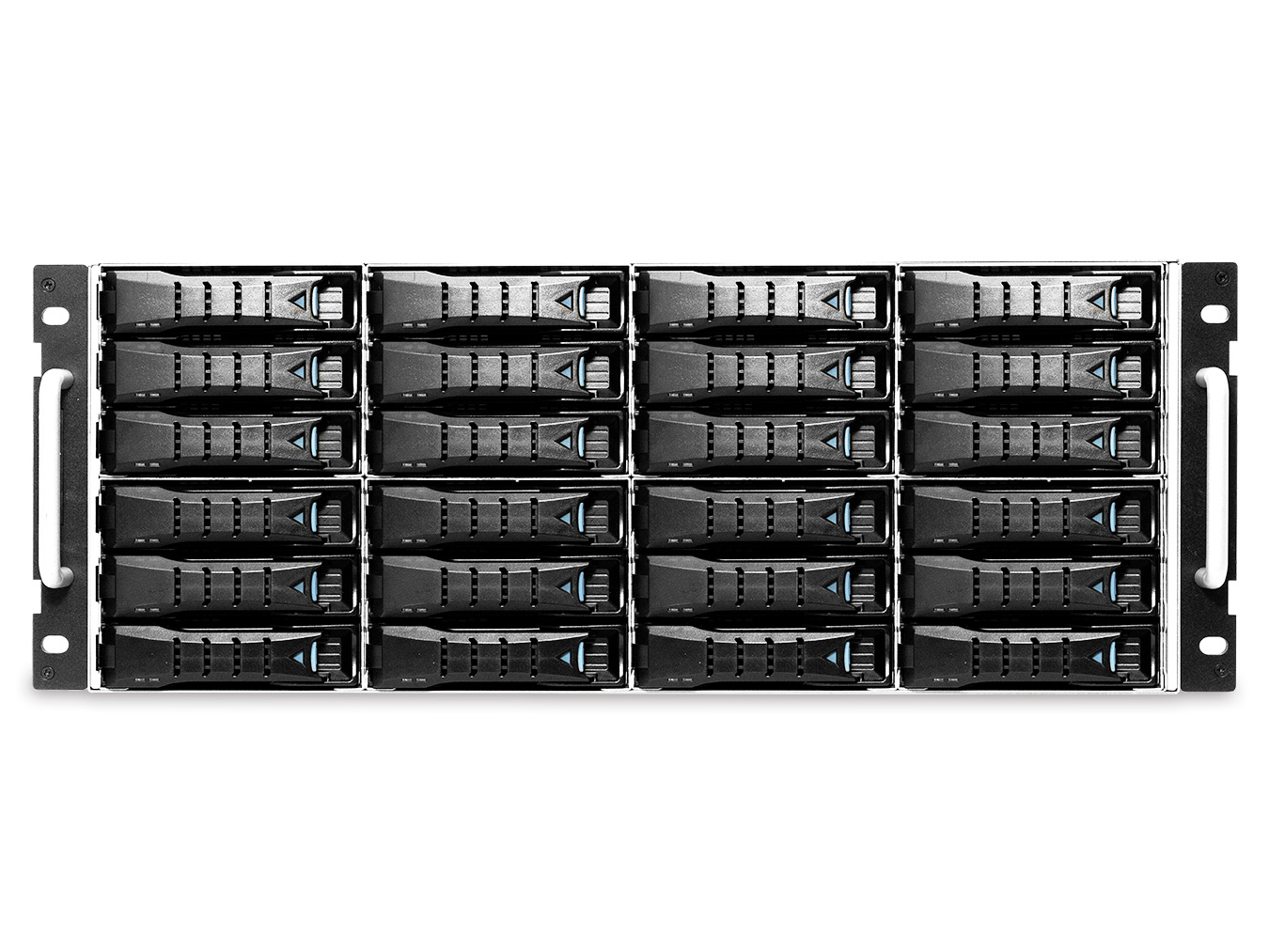

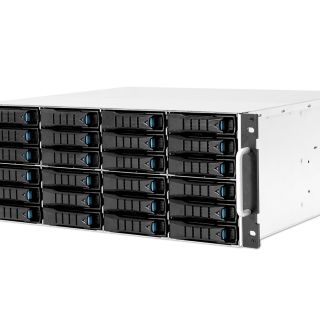

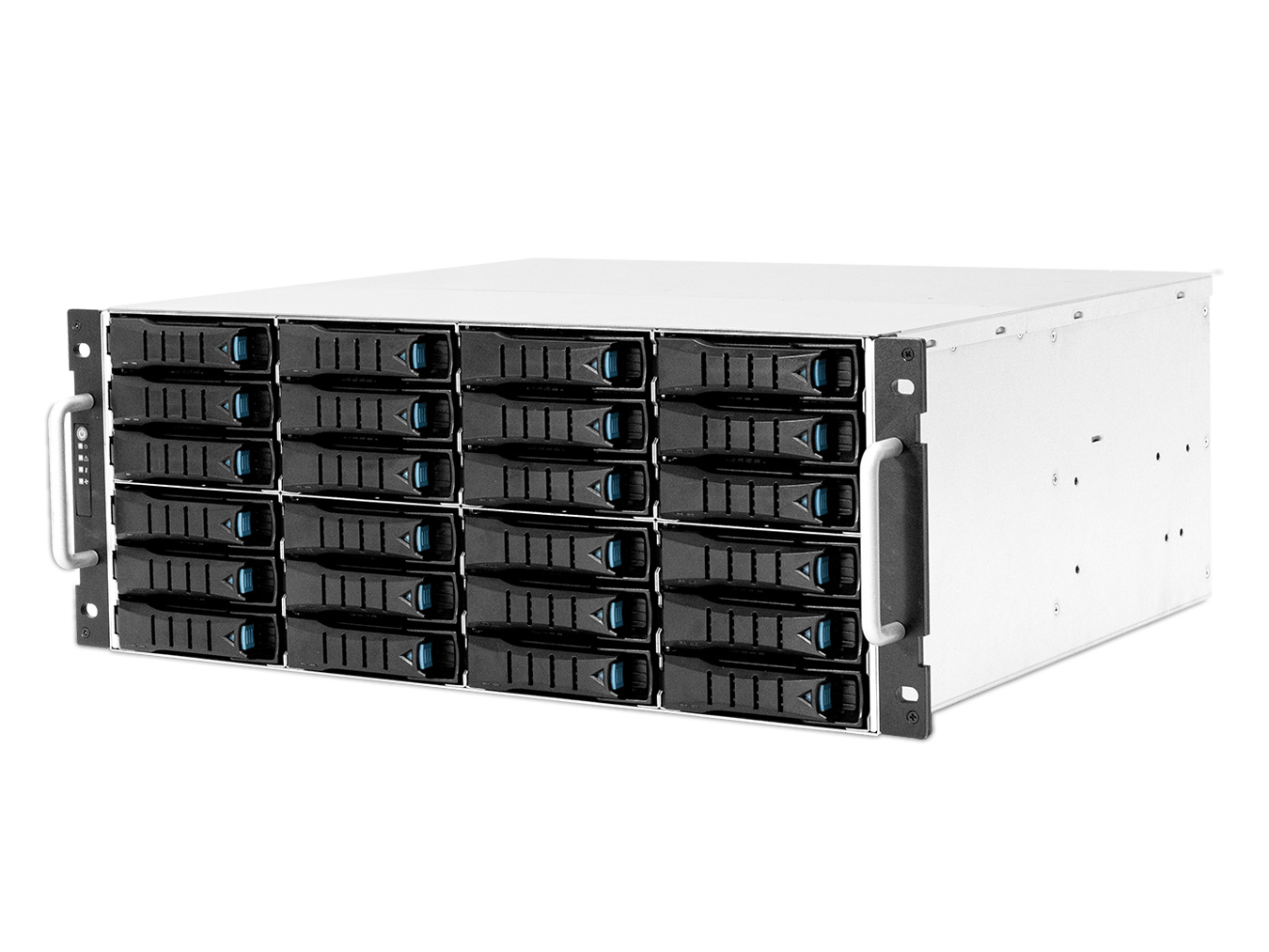

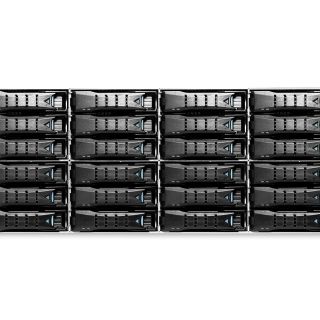

J4024-05-04X is an innovative 4U24 JBOD that integrates 3.5" SAS (24G/12G, dual) / SATA (6G, single) disk drive, Broadcom SAS4X-Series expander chip, and board-to-board connection design into a compact and stable system with exceeding productivity.

COMPARE REQUEST A QUOTE DOWNLOAD

KEY FEATURE

FEATURE

Ruggedized design (Internal board-to-board connection)

FEATURE

Short-depth

FEATURE

Tool-less design

FEATURE

Hot-swap expander modules, drives, PSU, fans

FEATURE

Clear front panel LED indicators

FEATURE

Optimized thermal solution

FEATURE

BMC onboard

Specification

Specification
SKU

SPECIFICATION

Main

Sub

Details

General

Number of Expander

Single/Dual

Expander Chip

LSI SAS4X40

Host/Expansion Interfaces

4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G)

Drivers Supported

Drive Interface

• 24Gb & 12Gb SAS if using dual expanders

• 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander

Form Factor

3.5”

Administration/Management

Admin/Firmware Upgrade

• In-band & Serial port interface

• IEM port

LED Indicators, Audible Alarm

Yes

Hot Swap and Redundancy

Drive Bays

24 hot swap

Cooling

4 x 60x56mm hot-swap fans

Power Supply

• 800W 1+1 hot-swap redundant power supply 80+ Platinum

• 800W 1+1 hot-swap redundant power supply 80+ Titanium

Power Entry

Dual AC Inlet

Expander Modules

Dual expanders (Optional)

Electrical and Enviromental

A/C Input

Universal A/C Input:

• 100~127V~, 50/60Hz, 7.0A

• 200~240V~, 50/60Hz, 3.5A

Operating Environment

• Operating temperature : 0° - 35°C

• System relative humidity : 20% - 80%

Non-operating Environment

• Storage temperature : -20° ~ 60°C

• System relative humidity : 10% - 90%

Physical Specification

Dimension (W x D x H)

• mm: 438 x 385.5 x 174.4

• inches: 17.2 x 15.1 x 6.9

Gross Weight (w/PSU, Rail ; w/o Pallet, Disks)

• kgs: 29.5

• lbs: 65

Packaging Dimensions (W x D x H)

• mm: 605 x 680 x 446

• inches: 23.8 x 26.8 x 17.6

Mounting

Standard: 20” tool-less rail

* All specifications are subject to change without notice.

Ordering Information	Description
XJ1-40245-01	4U 24x 3.5" hot-swap bays, hot-swap JBOD with single SAS 24G expander controller, single BMC, tool-less HDD tray, 800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit (4X series)
XJ1-40245-02	4U 24x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 24G expander controller, dual BMC, tool-less HDD tray, 800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit (4X series)
XJ1-40245-03	4U 24x 3.5" hot-swap bays, hot-swap JBOD with single SAS 24G expander controller, single BMC, tool-less HDD tray, 800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit (4X series)
XJ1-40245-04	4U 24x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 24G expander controller, dual BMC, tool-less HDD tray, 800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit (4X series)
FRU Parts	Description
M06-1339-010	Bare chassis with backplane (w/o power supply/fan/HDD tray/EXP) with packing
M06-1339-011	3.5" t-tray with packing (32 pcs in packing)
M06-1339-012	6056 fan module with packing (24 pcs in packing)
M06-1339-020	Expander module with packing (12 pcs in packing)
M06-00201-17	Front door without packing
PM-A00000117	800W redundant power supply module(80+ Platinum)
PM-A00000132	800W redundant power supply module(80+ Titanium)
H5542S100002	2U slide rail GSLIDE-5502-02
M06-1339-022	Adjustable plate (support rack post: 400-500mm; 30 sets in packing)
M06-1339-019	Expander dummy cover with packing (20 pcs in packing)
G8-A00000073	8674-8674 cable - 1M
G8-A00000074	8674-8674 cable - 2M
G8-A00000075	8674-8674 cable - 3M
