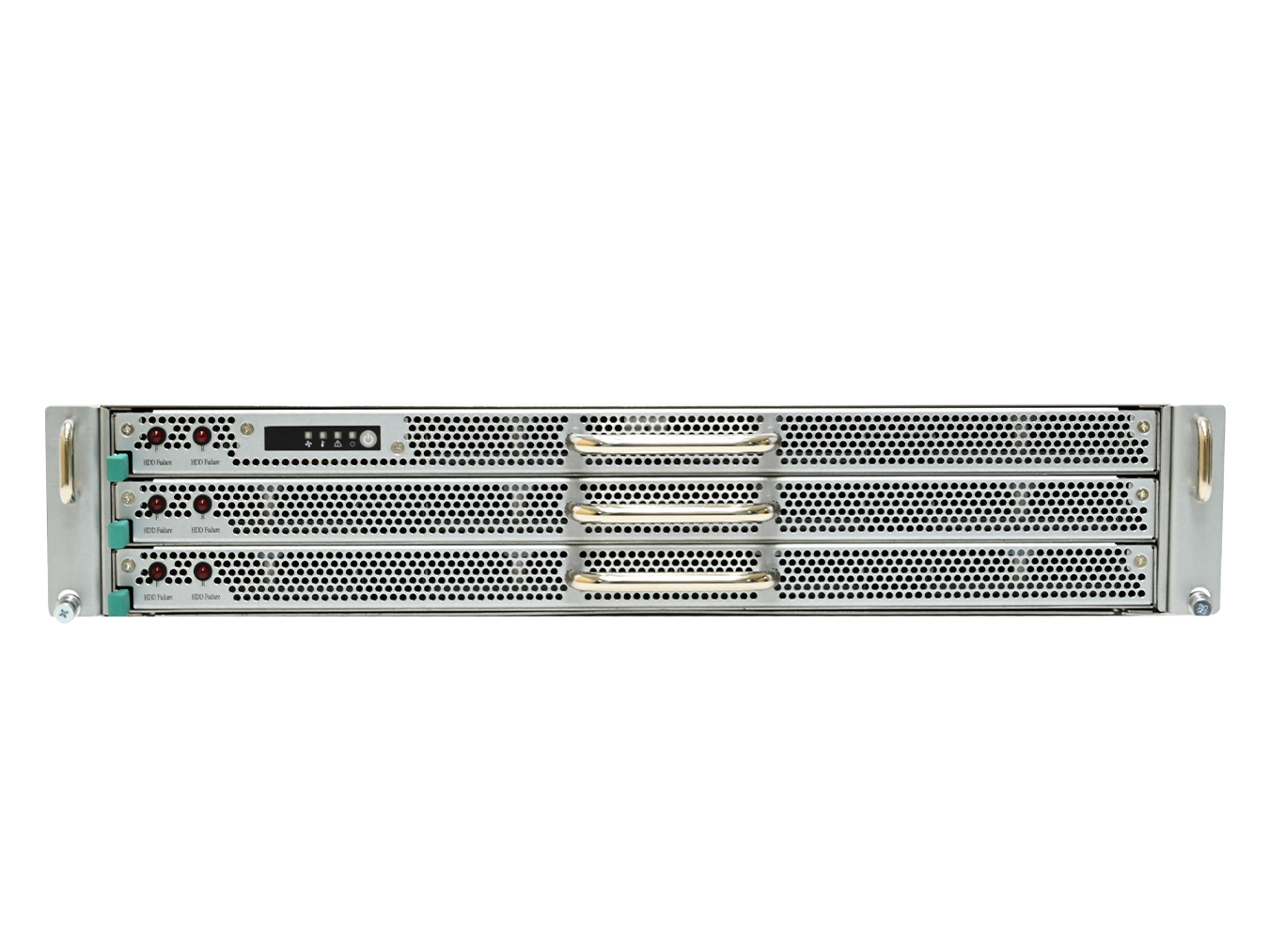

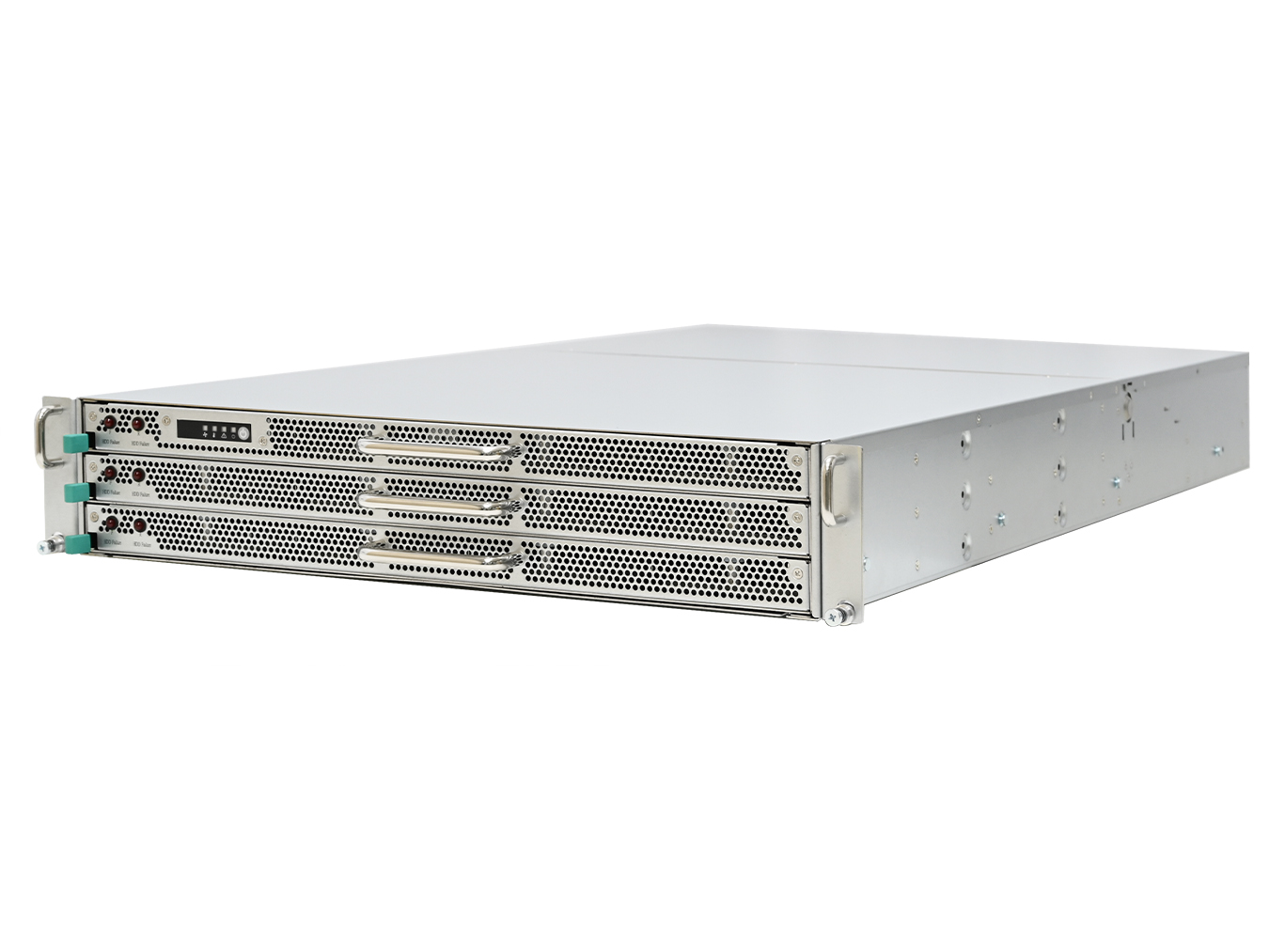

J2024-08-04X
J2024-08-04X, a high-performance 2U 24-Bay 24Gb/s JBOD, perfect for enterprise storage applications. This JBOD enclosure supports 24 x 3.5” hot-swappable drives with dual expander modules for superior scalability and reliability. Featuring LSI SAS4X40 expander chips and an optimized airflow design, it ensures efficient cooling and seamless integration into compact server environments. Ideal for businesses seeking a robust and flexible storage solution.
KEY FEATURE
2U with 24-bay hot-swap LFF 3.5” drive bays
FEATURE
2U with 24-bay hot-swap LFF 3.5” drive bays

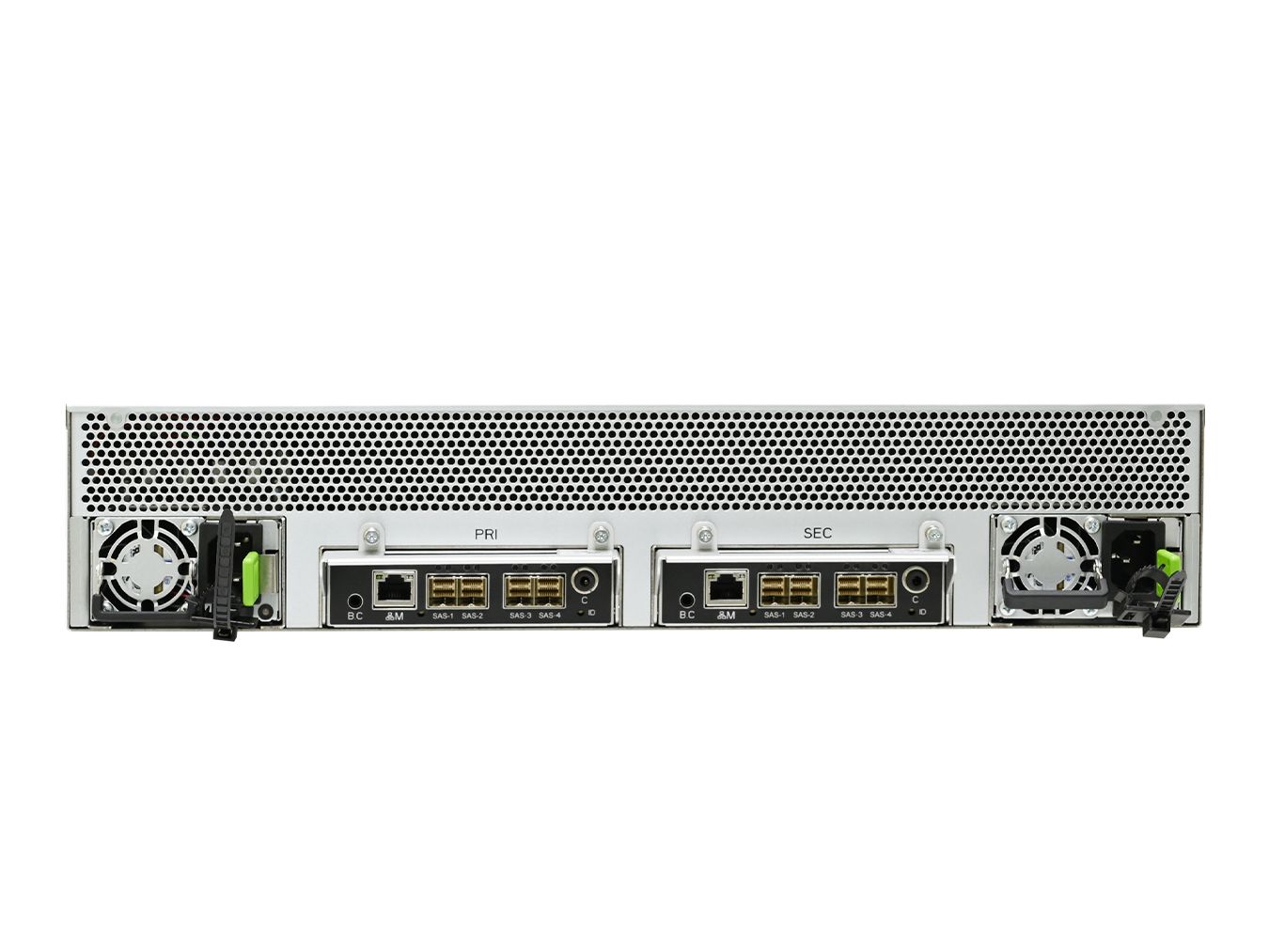

4 x SAS-4 24G Mini-SAS host port per expander module
FEATURE
4 x SAS-4 24G Mini-SAS host port per expander module
Built-in RTC module for reliable timekeeping
FEATURE
Built-in RTC module for reliable timekeeping
Less than 33” without Cable Management Arm (CMA)
FEATURE
Less than 33” without Cable Management Arm (CMA)
Redundant 80+ Platinum and Titanium level hot-plug power supplies
FEATURE
Redundant 80+ Platinum and Titanium level hot-plug power supplies
Specification
SPECIFICATION
Main
Sub
Details
General
Number of Expander
Dual
Expander Chip
LSI SAS4X40
Host/Expansion Interfaces
4 x Mini-SAS HD (SFF-8674) per expander module
Drivers Supported
Drive Interface
12Gb & 6Gb SAS/SATA
Form Factor
3.5”
Administration/Management
Admin/Firmware Upgrade
• In-band & Serial port interface
• IEM port
• IEM port
LED Indicators, Audible Alarm
Yes
Hot Swap and Redundancy
Drive Bays
24 hot swap

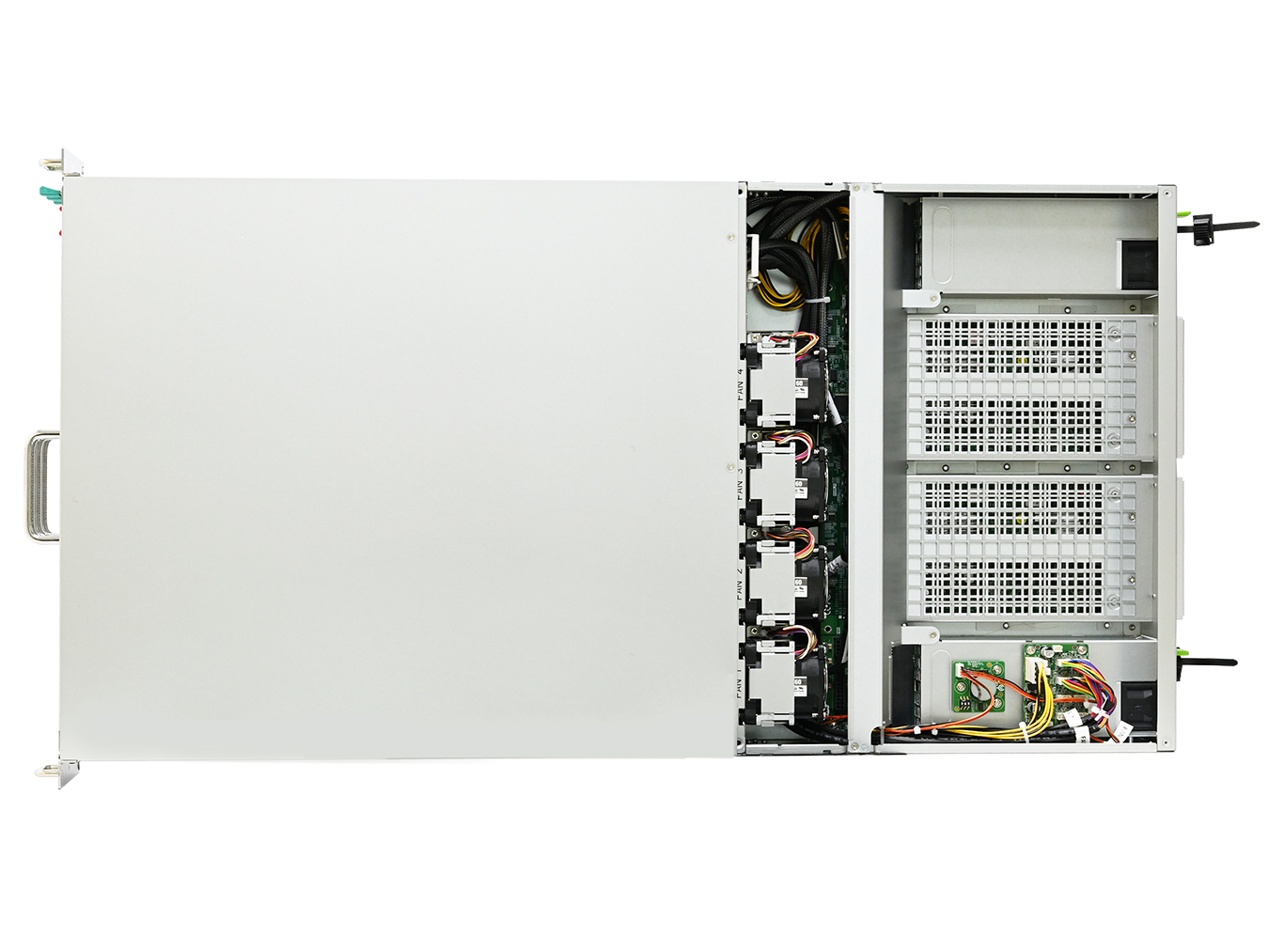

Cooling
4 x 60x56mm easy swap fans
Power Supply
800W 1+1 hot swap redundant 80+ Platinum/ Titanium
(options)
(options)
Power Entry
Dual AC Inlet
Expander Modules
Dual expanders (Optional)
Electrical and Enviromental
A/C Input
Universal A/C Input:
• 100-127V~, 50/60Hz, 10A
• 200-240V~, 50/60Hz, 5A
• 100-127V~, 50/60Hz, 10A
• 200-240V~, 50/60Hz, 5A
Operating Environment
• Temperature : 0ºC to 35ºC
• Relative humidity : 20% to 80%
• Relative humidity : 20% to 80%
Non-operating Environment
• Operating altitude condition : 0 ~ 10K ft
• Storage temperature : -20° ~ 60°C
• System relative humidity : 10% - 90%
• Storage temperature : -20° ~ 60°C
• System relative humidity : 10% - 90%
Physical Specification
Dimension (W x D x H)
• mm: 438 x 838 x 88
• inches: 17.24 x 33 x 3.5
• inches: 17.24 x 33 x 3.5
Gross Weight (w/PSU, Rail ; w/o Pallet, Disks)
• kgs: 34.35
• lbs: 75.7
• lbs: 75.7
Packaging Dimensions (W x D x H)
• mm: 605 x 1140 x 308
• inches: 23.8 x 44.9 x 12.1
• inches: 23.8 x 44.9 x 12.1
Mounting
Standard: 36’’ slide rail
* All specifications are subject to change without notice.
| Ordering Information | Description |
|
XJ1-20248-01 |
2U 24x 3.5" bays, hot-swap JBOD with 12G BP, single 24G hub expander controller, single BMC, 800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit |
|
XJ1-20248-02 |
2U 24x 3.5" bays, hot-swap JBOD with 12G BP, dual 24G hub expander controller, dual BMC, 800W 1+1 hot-swap redundant 80+ Platinum, tool-less rail kit |
|
XJ1-20248-03 |
2U 24x 3.5" bays, hot-swap JBOD with 12G BP, single 24G hub expander controller, single BMC, 800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit |
|
XJ1-20248-04 |
2U 24x 3.5" bays, hot-swap JBOD with 12G BP, dual 24G hub expander controller, dual BMC, 800W 1+1 hot-swap redundant 80+ Titanium, tool-less rail kit |
| FRU Parts | Description |
| M06-1339-020 | Expander module with packing (12 pcs in packing) |
| PM-B00000117 | 800W redundant power supply module(80+ Platinum) |
| PM-C00000132 | 800W redundant power supply module(80+ Titanium) |
| H5541T100011 | 36” slide rail A5612886_KS (for ES1 series, J2024-08) |
| H56-8501-002 | CMA/2AA7-86D |
| M06-1339-019 | Expander dummy cover with packing (20 pcs in packing) |
| G8-A00000073 | 8674-8674 cable - 1M |
| G8-A00000074 | 8674-8674 cable - 2M |
| G8-A00000075 | 8674-8674 cable - 3M |
| M06-1214-999 | 2.5" adapter kit for 3.5" drive tray (w/ packing 24 pcs in package) |
